Subclinical hypothyroidism is associated with basal ganglia enlarged perivascular spaces and overall cerebral small vessel disease load

Introduction

Cerebral small vessel disease (CSVD) refers to abnormal pathologies affecting the brain's small arteries, arterioles, venules, and capillaries (1). It is associated with a significant risk of cognitive impairment, stroke, gait disturbances, and other poor outcomes (1). Clinically, magnetic resonance imaging (MRI) is used to detect biomarkers of CSVD, including white matter hyperintensities (WMH), lacunes, and deep cerebral microbleeds (CMBs) (2,3). Increasingly, other markers, such as enlarged perivascular spaces (EPVS) and brain atrophy, have been suggested (1,4). Unfortunately, the precise etiology of CSVD is still not fully understood.

Studies have reported that arteriolosclerosis and artery and vascular endothelium dysfunction may contribute to CSVD (1-4). Recent investigations have suggested that subclinical hypothyroidism may cause arteriosclerosis and vascular endothelium dysfunction (5,6) and may have a pathological role in CSVD (1,4). Subclinical hypothyroidism is defined as elevated thyroid-stimulating hormone (TSH) with normal thyroid hormone levels (7) and may affect 4–20% of the adult population (7,8). Subclinical hypothyroidism has been reported to be associated with WMH, lacunes, and microbleeds, but its relationship with EPVS is still unclear (9,10). For instance, in patients suffering from acute stroke, no relationship between subclinical hypothyroidism and EPVS was found (9,10). However, since thyroid function changes with the recovery from strokes, the relationship should be reassessed after recovery (11,12).

In this study, the relationship between subclinical hypothyroidism and the risk of individual CSVD lesions (assessed using the biomarkers WMH, lacunes, microbleeds, and EPVS), the overall CSVD load, and brain atrophy in the stroke-free population was assessed.

Methods

Study participants

Stroke-free individuals who underwent a health check-up in the First Affiliated Hospital with Nanjing Medical University from July 2016 to December 2018, were consecutively and retrospectively screened for eligibility to this study. Patients were included if they satisfied the following inclusion criteria: (I) no history of stroke; (II) TSH, free thyroxine (FT4), and free triiodothyronine (FT3) data were available (thyroid-related antibodies were not routinely tested); (III) complete echocardiography data were available (Philipa, Netherland); (IV) assessment of carotid arteriosclerosis was conducted by Doppler Ultrasound (Toshiba, Japan); and (V) MRI data were available. Patients were excluded if they presented with the following: (I) overt thyroid disease defined by TSH >10 mIU/L, FT4 out of reference range, or FT3 out of reference range; (II) a history of thyroid diseases, or were treated with antithyroid medications or replacement thyroxine therapy; (III) bright signal on diffusion-weighted imaging (DWI)-MRI; (IV) carotid arteriosclerosis with lumen stenosis greater than 70% and left ventricular ejection fraction <50%; and (V) a history of brain tumor, brain trauma, or malignancy.

Basic patient demographic data (age and gender), medical history, vascular risk factors, and the serum concentrations of total cholesterol, low-density lipoprotein cholesterol, and creatinine [for the calculation of estimated glomerular filtration rate by Chronic Kidney Disease Epidemiology Collaboration (CKD-EPI) formula] were collated.

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study protocols were approved by the Ethics Committee of the First Affiliated Hospital with Nanjing Medical University, and informed consent was obtained from all subjects or their representatives.

Carotid artery ultrasonography

Ultrasonography was used to study the carotid artery with a machine (Toshiba, Japan) equipped with a 7.5-MHz transducer. The measurement of bilateral carotid arteries was performed at the level of the common carotid, the bifurcation, and the internal carotid arteries in transverse and longitudinal orientations. Experienced sonographers blinded to the clinical and laboratory data were responsible for measuring intima-media thickness (IMT). An isolated focal thickening of the intima-media layer with a thickness of ≥1.3 mm was defined as a characteristic of arteriosclerosis. Arteriosclerosis was measured at the common or internal carotid artery or the carotid bulb. Carotid arteriosclerosis was defined as IMT >10 mm or the presence of arteriosclerosis.

Thyroid function tests

Peripheral serum was collected to determine the concentrations of serum TSH, FT4, and FT3 using an automated electrochemiluminescence immunoassay (IMMULITE, Diagnostic Products Corporation, CA, USA). According to the international standard (7), elevated TSH levels (4.5–10.0 mIU/L) with normal FT4 levels (9.0–24.4 pmol/L) were defined as subclinical hypothyroidism. Individuals with normal thyroid function were assigned to the normal group. The normal reference range for TSH, FT4, and FT3 are 0.41–4.49 mIU/L, 9.0–24.4 pmol/L, and 3.1–6.6 pmol/L, respectively.

Neuroimaging protocol and analysis

Brain MRI (3.0 Tesla, TIM Trio, Simens, Erlangen, Germany) was used to assess CSVD within 7 days after admission. All patients received T1-weighted imaging, T2-weighted imaging (T2WI), fluid-attenuated inversion recovery (FLAIR), DWI, and T2*-weighted gradient echo images (T2*-GE) using standard protocols (2). Confluent deep WMH or irregular periventricular hyperintensity, which extends into the deep white matter on T2WI and FLAIR, was defined as confluent WMH. Silent lacunar infarction was defined as fluid-filled cavities, with a diameter <20 mm, located in the territory of a perforating arteriole. T2*-GE was used to detect deep CMBs both in white matter and basal ganglia. EPVS was characterized as small, sharply delineated structures of cerebrospinal fluid intensity on imaging that followed the orientation of the perforating vessels and ran perpendicular to the brain surface. High signals indicated the EPVS on T2 and low signals on T1, and FLAIR sequences. The EPVS was unilaterally counted at the axial level of the basal ganglia, and the side with more EPVS was selected. All ratings were independently performed by two experienced neurologists blinded to the patients' clinical data. Any disagreements between the neurologists were resolved via discussion. To measure total CSVD burden, an ordinal scoring scale with a minimum of 0 and a maximum of 4 was constructed. One point was awarded for the presence of each of the following items: confluent WMH; ≥1 silent lacunar infarctions; ≥1 deep CMBs; >10 basal ganglia EPVS. Brain atrophy was semi-quantitatively indicated by the ratio of a/b and the measurement of c-line on MRIs as previously reported, with minor modifications (13), where “a” is defined as the maximum measurement from the central line to the lateral margin of the anterior horn of the lateral ventricle and “b” is the maximum measurement from the central line to the lateral margin of frontal lobe at the axial level of the basal ganglia. The “c-line” is defined as the maximum measurement from the central line to the lateral margin of the insular cortex at the same level (Figure 1).

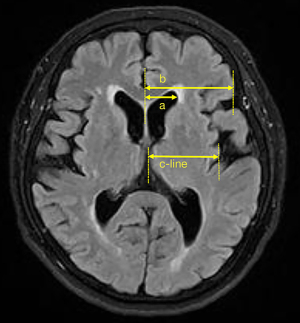

Figure 1 Magnetic resonance imaging (MRI) was used for the semi-quantitative assessment of brain atrophy. The a/b ratio and the measurement of c-line was calculated, where “a” is defined as the maximum measurement from the central line to the lateral margin of the anterior horn of the lateral ventricle and “b” is defined as the maximum measurement from the central line to the lateral margin of the frontal lobe at the axial level of the basal ganglia. The “c-line” is defined as the maximum measurement from the central line to the lateral margin of insular cortex at the same level.

Statistical analysis

The SPSS software (version 22.0) was used for all statistical analyses. Categorical variables are expressed as n (%), and continuous variables are expressed as mean ± standard deviation (SD). Differences in baseline characteristics between two groups were analyzed using χ² or Kruskal-Wallis test where appropriate. Binary logistic regression was used to explore the association of subclinical hypothyroidism with individual CSVD markers, including confluent WMH, lacuna, microbleeds, and EPVS. Ordinal regression was performed to investigate the association of subclinical hypothyroidism with the overall CSVD load and brain atrophy (increase in the a/b ratio or reduction of the c-line distance, where a/b and c-line distance were categorized as quartiles). Statistical significance was defined as P<0.05 (two-tail).

Results

Demographic, laboratory, and clinical parameters

A total of 354 participants (66.9% males) with a mean age of 69.4±12.8 years was enrolled in this study. In this cohort, 53.4% presented with hypertension, 31.4% had hyperlipidemia, 30.5% had diabetes mellitus, 7.6% had atrial fibrillation, 56.8% had carotid arteriosclerosis, and 18.6% presented with coronary heart disease. A history of smoking was reported in 26.8% of participants, and 18.6% reported a history of drinking. Subclinical hypothyroidism was observed in 44 (12.4%) patients. Table 1 illustrates the demographic, laboratory, and clinical characteristics of the participants grouped by subclinical hypothyroidism. Patients with subclinical hypothyroidism tended to be older (P=0.035), male (P=0.027), experienced more prevalent hypertension (P=0.035) and carotid arteriosclerosis (P=0.022), and were less likely to have a history of smoking (P=0.021) and drinking (P=0.018).

Individual CSVD markers and overall CSVD load on MRI

Based on MRI results (Table 2), 112 patients (31.6%) were not positive for any CSVD markers, whereas 8 patients (2.3%) were positive for all 4 markers of CSVD. For individual CSVD markers, 178 patients (50.3%) presented with confluent WMH, 174 cases (49.2%) had EPVS, 46 cases (13.0%) had lacuna, and 22 cases (6.2%) had microbleeds. Most CSVD patients (n=242) had 1 or 2 markers of CSVD (103/242, 42.6% and 108/242, 44.6%, respectively). Patients with subclinical hypothyroidism tended to have more prevalent EPVS (P=0.007) and increased severity of overall CSVD load (P=0.002). However, the incidence of confluent WMH (P=0.212), lacuna (P=0.274), and microbleeds (P=0.609) were not significantly different between the subclinical hypothyroidism group and the normal group. In addition, neither the a/b ratio (P=0.555) nor the c-line distance (P=0.099) was significantly different between the 2 groups.

The relationship between subclinical hypothyroidism and individual CSVD markers and brain atrophy

Hypertension, hyperlipidemia, diabetes mellitus, smoking history, and drinking history are traditional vascular risk factors. The factors that showed significant differences were further analyzed, including age, gender, hypertension, smoking history, drinking history, and carotid arteriosclerosis. Coronary heart disease was also examined as a confounder because stroke is considered an isocritical condition of coronary heart disease.

As shown in Table 3, binary logistic regression analysis revealed a significant association between subclinical hypothyroidism and increased risk of EPVS [Model 1: odds ratio (OR) =2.175, 95% confidence interval (CI): 1.075 to 4.401, P=0.031]. This association was still evident after controlling for confounding factors including age, gender, vascular risk factors, coronary heart disease, and carotid arteriosclerosis, as indicated by Model 2 (OR =2.261, 95% CI: 1.105 to 4.628, P=0.026) and Model 3 (OR =2.085, 95% CI: 1.012 to 4.296, P=0.046). However, no significant association was found between subclinical hypothyroidism and confluent WMH, lacuna, nor microbleeds in any of the 3 models.

Classification by quartiles revealed that increases in the a/b ratio and c-line distance reductions were associated with age, male gender, and EPVS. However, neither the increase of a/b nor the reduction of c-line distance was associated with subclinical hypothyroidism (Table S1).

The relationship between subclinical hypothyroidism and overall CSVD load

In Table 4, ordinal regression analysis showed that advanced age, hypertension (OR =2.430, 95% CI: 1.573 to 3.751), carotid arteriosclerosis (OR =2.339, 95% CI: 1.312 to 3.507), and subclinical hypothyroidism (OR =1.879, 95% CI: 1.028 to 3.438) were significantly related to the higher total load of CSVD. These associations were still significant after controlling for vascular risk factors and coronary heart disease.

Discussion

This study demonstrated that subclinical hypothyroidism was significantly related to overall CSVD load and EPVS in the stroke-free population. Moreover, these relationships were still evident after controlling for possible confounding factors.

Several studies have revealed an independent association between subclinical hypothyroidism and the total burden of CSVD in patients of acute stroke (9,10). The present study performed in stroke-free people also demonstrated a significant association between subclinical hypothyroidism and overall CSVD load. Reports regarding the relationship between subclinical hypothyroidism and individual CSVD markers are inconclusive. The Berlin “Cream & Sugar” Study showed that TSH levels were independently associated with the severity of WMH (9). Another hospital-based study suggested a relationship between subclinical hypothyroidism and WMH and deep CMBs in patients with transient ischemia attack or minor stroke (10). This current study demonstrated an independent association between subclinical hypothyroidism and EPVS in a non-stroke population. It is possible that TSH levels may increase during the recovery of ischemic stroke, and this may affect the relationship between subclinical hypothyroidism and individual CSVD markers (11,12). It has been reported that subclinical hypothyroidism is associated with diffuse loss of cortex and white matter in connected and unrelated regions (14) and eventually contributes to cognitive impairment (15). In the current study, the a/b ratio and the c-line distance were used to indicate brain atrophy, according to previous studies (13). However, neither the a/b ratio nor the c-line distance was associated with subclinical hypothyroidism.

CSVD is a dynamic, whole-brain disorder that is commonly observed in the elderly population worldwide (16,17). The underlying mechanisms of CSVD include arteriolosclerosis, artery stiffness, and vascular endothelium dysfunction (1,2,4). While the relationship between subclinical hypothyroidism and CSVD is not fully understood, subclinical hypothyroidism has been reported to increase with age. It is associated with vascular resistance, arterial wall thickening, and endothelial dysfunction, which suggests that subclinical hypothyroidism may initiate the development of CSVD (5,6,18). In support of this hypothesis, the current study demonstrated that participants with subclinical hypothyroidism experienced more prevalent hypertension and carotid arteriosclerosis.

An important function of the perivascular space is to drain interstitial fluid back to the circulation (19). The perivascular space is subject to blood-brain barrier dysfunction and increases in intra- and extra-cranial vascular pulsatility (20,21). While most patients with subclinical hypothyroidism do not exhibit clinical symptoms, subclinical hypothyroidism can negatively affect the vascular system (5,6). For instance, when the vessels are stiff, high pulsatile waves are transmitted to the vascular bed of the terminal organ, forcing the arterioles to adapt to higher blood flow, which might impair endothelial function and compromised the drainage of interstitial fluid (4,22). Eventually, the perivascular spaces lose the ability to drain interstitial fluid and become enlarged (23).

The current study had several strengths. The stroke-free status of patients was determined according to a positive history or positive findings on diffusion-weighted MRI. Both carotid arteriosclerosis and left ventricular eject fraction were assessed. Furthermore, a comprehensive assessment of various visible CSVD markers on brain MRI and several covariates were applied to analyze the relationship between subclinical hypothyroidism and CSVD. The relationship between subclinical hypothyroidism and brain atrophy was also investigated.

However, a causal relationship could not be established between subclinical hypothyroidism and CSVD, as there were several limitations to the current study. First, data were collected from a single center with a sample size of 354, which may lead to sampling bias. Second, data were observational, and the location of lacuna and the volume of WMH were not measured. Third, this is a cross-sectional study, and single measurements of TSH, FT3, and FT4 may lead to inevitable misclassification. Future large-scale longitudinal studies with repeated measurements of TSH, FT3, and FT4 are warranted to address these issues.

Conclusions

The results in this report suggested that subclinical hypothyroidism is related to CSVD. The potential explanation for the association of subclinical hypothyroidism with CSVD may include microvascular brain damage and perivascular space dysfunction. The underlying pathophysiological mechanisms and therapeutic considerations require further clarification.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (Grant No. 81771286).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-190). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study protocol was approved by the Ethics Committee of the First Affiliated Hospital with Nanjing Medical University, and informed consent was obtained from all subjects or their representatives.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
