Assessment of right ventricular function using cardiovascular magnetic resonance in patients with type 2 diabetes mellitus

Introduction

Type 2 diabetes mellitus (T2DM) is one of the most common chronic diseases, increasing its prevalence (1). Many complications in various bodily systems accompany T2DM. T2DM and its complications seriously affect people’s health and greatly increase the social burden of this disease. Cardiovascular adverse events represent some of the main complications and causes of death in T2DM. Even in the absence of coronary atherosclerotic heart disease and hypertension, T2DM can lead to myocardial structural and functional damage, termed diabetic cardiomyopathy.

Compared with the left ventricle, the right ventricle has an irregular shape and movement. Therefore, it is difficult to evaluate right ventricular (RV) function accurately. However, RV dysfunction is associated with limited exercise capacity and it significantly affects prognosis in many diseases (2,3). At present, many indices have been proposed to evaluate RV function, but none of them have been universally accepted. Thus, a reliable way to accurately assess RV function is urgently needed.

Cardiovascular magnetic resonance (CMR) cine imaging has been widely embraced to evaluate both left ventricular (LV) and RV function and structure (4). However, it is time consuming to manually delineate the epicardial and endocardial boundaries on the short axis cine images to derive the LV/RV function parameters. Besides, due to the irregular shape of the right ventricle, the repeatability of the measurement is poor (5). Therefore, long axis functions are widely used to evaluate the RV function. Tricuspid annular plane systolic excursion (TAPSE), one of the most commonly used RV long-axis function indices, is generally measured in apical four-chamber sections using the echocardiography M-mode. According to its definition, CMR-TAPSE can also be measured in a four-chamber cine (6,7). As an absolute value, the measurement of TAPSE is simple. However, because it is affected by many factors, its sensitivity and specificity concerning RV function are poor (8). Recently, long-axis strain (LAS) has been proposed as an accurate and simple measure of RV function in various disease states (9). The calculation of LAS, based on the RV long axis length systolic shortening rate on cine images, is convenient (10). However, it is unclear whether LAS and other RV indices are changed in patients with T2DM.

Therefore, this study aimed to evaluate RV function in patients with T2DM using LAS and other traditional indices.

Methods

Study subjects

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of the First Affiliated Hospital of Third Military Medical University (scientific research no. 50; approval date: May 11, 2016), and informed consent was obtained from all patients.

Sixty-one patients were prospectively enrolled between June 2015 and March 2018. The inclusion criteria were as follows: (I) an initial diagnosis of T2DM according to World Health Organization criteria (11); (II) no hypertension (resting systolic/diastolic blood pressure <140/80 mmHg); and (III) no history of cardiovascular disease or chest pain. The exclusion criterion was any standard contraindication to MRI. Forty controls were recruited from the community with the following criteria: (I) no T2DM; (II) no hypertension; (III) normal blood cholesterol and triglycerides; and (IV) no history of cardiovascular disease or chest pain.

Anthropometric and biochemical examinations

All participants underwent height, weight and blood pressure measurements. Blood samples were obtained approximately half an hour before the CMR scanning. They were immediately sent to the Department of Clinical Laboratory for analysis of total cholesterol, triglycerides, high-density lipoprotein cholesterol (HDL-C), low-density lipoprotein cholesterol (LDL-C), glucose and glycated hemoglobin (HbA1c).

Cardiac magnetic resonance protocols

All CMR scanning was performed on a 3.0T MR scanner (MAGNETOM Trio, Siemens Healthcare, Erlangen, Germany) with a combination of a 12-channel body array coil and the spine coil. An electrocardiogram-gated and breath-hold balanced steady-state free precession (bSSFP) sequence was used to obtain the short-axis cine images (covering the entire LV) and four-chamber long-axis cine images with the following parameters: slice thickness =6 mm, slice gap =1.5 mm, field of view =325×400 mm², matrix =179×256, repetition time/echo time (TR/TE) =59.22/1.45 ms and 25 reconstructed phases per cardiac cycle.

RV function measurements

All offline measurements were performed on commercially available software [cvi42, version 5.11.3 (1548), Circle Cardiovascular Imaging Inc., Calgary, Alberta, Canada].

TAPSE

Generally, the echocardiography M-mode was used to obtain TAPSE (12). CMR-TAPSE was the distance between the tricuspid annulus during diastole and systole on CMR four-chamber cine images (Figure 1A).

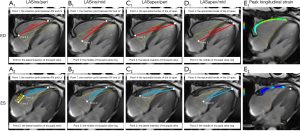

Figure 1 Schematic diagram for right ventricular longitudinal function measurements. Illustration of the four different LAS measurements (A-D), where LAS measurement =(Length_ES − Length_ED)/Length_ED × 100%: LASins/peri: (A) Point 1 (1') is the insertion point between the RV and LV; Point 2 (2') is the lateral insertion of the tricuspid valve; Length_ED, point 1 to point 2 (A1); Length_ES, point 1' to point 2' (A2); LASins/mid: (B) Point 1 (1') is the insertion point between the RV and LV; Point 3 (3') is the middle of the tricuspid valve ring; Length_ED, point 1 to point 3 (B1); Length_ES, point 1' to point 3' (B2); LASapex/peri: (C) Point 4 (4') is the epicardial border of the LVapex; Point 2 (2') is the lateral insertion of the tricuspid valve; Length_ED, point 4 to point 2 (C1); Length_ES, point 4' to point 2' (C2). LASapex/mid: (D) Point 4 (4') is the epicardial border of the LVapex; Point 3 (3') is the middle of the tricuspid valve ring; Length_ED, point 4 to point 3 (D1); Length_ES, point 4' to point 3' (D2). CMR-TAPSE was the distance between the tricuspid annulus during diastole (Point 2, A1) and during systole (Point 2, A2). Peak longitudinal strain measured by feature tracking on four-chamber long-axis cine image (E). LAS, long-axis strain; RV, right ventricular; LV, left ventricular; CMR, cardiovascular magnetic resonance; TAPSE, tricuspid annular plane systolic excursion.

LAS

LAS measurements were obtained on four-chamber images according to the following formula: LAS =(length_ES − length_ED)/length_ED × 100% (9). Measurements of four different lengths at end-diastolic (ED) and the corresponding lengths at ES were obtained from four different points: Point 1: the insertion point between the RV and LV; Point 2: the lateral insertion of the tricuspid valve; Point 3: the middle of the tricuspid valve ring; Point 4: the epicardial border of the LVapex (Figure 1A-1D).

Two-dimensional feature tracking

Endocardial and epicardial contours of the four-chamber and mid-ventricular short-axis cine images at the end-diastole phase were manually traced (Figure 1E). The software was able to track the motion at all other phases automatically. All tracked contours were checked and when poorly tracked, the data were excluded. Subsequently, the RV global longitudinal, circumferential and radial strains, as well as the peak systolic and diastolic strain rates, were obtained.

RV global function

The endocardial and epicardial contours of all short axes covering the RV at the ED and ES phases were manually delineated to obtain the RV, ED volume index (EDVi), ES volume index (ESVi), stroke volume index (SVi), ejection fraction (EF) and RV cardiac index (RVCI). The shortening percentage of the ED diameter (EDD) was also measured on the mid-ventricular short-axis cine images.

Inter- and intraobserver reproducibility

To assess interobserver reproducibility, images of twenty randomly selected participants (control subjects, five males and five females; T2DM patients, five males and five females) were independently analyzed by Shang Y and Zhang Y. For intraobserver reproducibility, Shang Y reanalyzed the images after 2 weeks.

Statistical analysis

SPSS (version 21.0, SPSS Inc., Chicago, IL, USA) was used for the statistical analysis and GraphPad Prism (version 6.01, GraphPad Software, Inc., La Jolla, CA, USA) was used to obtain the statistical figures. Categorical data were summarized as percentages. The Kolmogorov-Smirnov test was used to test the normality of the variables. Variables that were not normally distributed were presented as medians (interquartile range) and continuous and normally distributed data were presented as means and standard deviations (SD). Differences were tested using the independent samples t-test. Correlations were analyzed using linear regression. All indices’ intra- and interobserver variabilities were analyzed by determining the mean difference, intra-class correlation coefficient (ICC) and coefficient of variation (CoV). A two-tailed P value <0.05 was defined as statistically significant.

Results

Participant characteristics

The demographic and biochemical data are summarized in Table 1. Two controls and four patients with T2DM were excluded due to poor image quality. Thirty-nine control subjects and 57 patients with T2DM were enrolled. Patients with T2DM (mean diabetes duration, 7.8±4.8 years) were similar in gender, body surface area and blood pressure to the control subjects. The mean age (54.9±8.0 vs. 50.2±11.8 years, P=0.021) and BMI (24.9±2.6 vs. 23.8±2.7 kg/m², P=0.046) of the T2DM group was greater than that of the control group, respectively. Compared with controls, T2DM patients also showed higher triglycerides, glucose and HbA1c; lower HDL-C; and similar total cholesterol and LDL-C measurements. None of the subjects had valvular stenosis. All subjects had mild regurgitation.

Effects of T2DM on RV function

There was no significant difference in CMR-TAPSE between the T2DM patients and controls (T2DM, 19.8±4.7 mm vs. control, 18.7±4.6 mm, P=0.234) (Table 2).

Regarding LAS, T2DM patients had a smaller LAS of the epicardial apex of the LV and the lateral insertion of the tricuspid valve (LAS-LVapex/peri) compared with controls (T2DM, −17.4%±4.2% vs. −19.7%±3.7%, P=0.008) (Figure 2) and a smaller LAS of the epicardial apex of the LV and the middle of the lateral insertion point and septum insertion point (LAS-LVapex/mid) (T2DM, −17.5%±4.5% vs. controls, −19.5%±3.9%, P=0.026). However, T2DM patients had a similar LAS of the RV insertion between the RV and LV and the lateral insertion of the tricuspid valve (LAS-ins/peri) (T2DM, −20.7%±10.6% vs. control, −20.9%±4.2%, P=0.891) and a similar LAS of the RV insertion between the RV and LV and the middle of the lateral insertion point and septum insertion point (LAS-ins/mid) (T2DM, −20.3±4.5% vs. control, −19.3%±4.2%, P=0.264) (Table 2). After adjustments for age and BMI, T2DM was associated with LVapex/peri (P=0.028), but not with LVapex/mid (P=0.085).

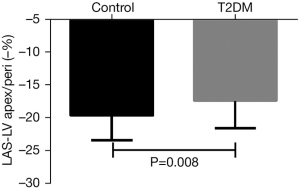

Figure 2 The difference in RV LAS (LVapex/peri) between patients with T2DM and controls. RV, right ventricular; LAS, long-axis strain; LV, left ventricular; T2DM, type 2 diabetes mellitus.

There were no significant differences between T2DM patients and controls in CMR-TAPSE (T2DM, 18.7±4.6 mm vs. control, 19.8±4.7 mm, P=0.234) and RV global function, including EDVi (T2DM, 124.4±21.5 mL/m²vs. control, 115.7±23.2 mL/m², P=0.066), ESVi (T2DM, 57.1±14.9 mL/m²vs. control, 61.8±14.4 mL/m², P=0.131), SVi (T2DM, 58.6±10.2 mL/m²vs. control, 62.6±9.4 mL/m², P=0.053), EF (T2DM, 51.1±5.2% vs. control, 50.8±4.8%, P=0.735) and RVCI (T2DM, 2.6±0.5 L/min/m²vs. control, 2.8±0.5 L/min/m², P=0.131) (Table 2).

There were no significant differences between T2DM patients and controls concerning all RV strains and strain rates (Table 2).

Relationship between LAS and RV function

In all participants, a reduced LAS-LVapex/peri was associated with a decreased CMR-TAPSE (r=−0.723, P<0.001), RVSV (r=−0.225, P=0.028), RVEF (r=−0.270, P=0.008), peak longitudinal strain (PLS, r=0.210, P=0.040). A reduced LAS-LVapex/mid was associated with a decreased CMR-TAPSE (r=−0.665, P<0.001), RVSV (r=−0.247, P=0.015) and RVEF (r=−0.207, P=0.043), but not with PLS (r=0.197, P=0.054). LAS-LVapex/peri and LAS-LVapex/mid were not associated with peak radial or circumferential strain. Besides, LAS-LVapex/peri and LAS-LVapex/mid were not associated with diabetic duration or glycated hemoglobin.

Intra- and interobserver reproducibility

A summary of the ICC values and mean differences in intra-and interobserver reproducibility is shown in Table 3 and Table S1.

Of the four LAS indices, the ICCs of the intra-and interobserver reproducibility of LVapex/peri was the highest (0.912 and 0.933, respectively); these were higher than the ICCs for CMR-TAPSE (0.909 and 0.900), PLS (0.885 and 0.805) and RVEF (0.716 and 0.797).

Discussion

In this study, CMR cine was used to evaluate changes in RV function in patients with T2DM. There were four main findings. First, concerning LAS, LASapex/peri and LVapex/mid were decreased in T2DM patients, but only the decrease in LASapex/peri remained significant after adjusting for other factors. Second, LASapex/peri significantly correlated with RVEF, CMR-TAPSE and PLS. Third, there were no significant differences in RVEF, CMR-TAPSE and PLS between T2DM patients and controls. Finally, compared with the other three LAS indices and RVEF, CMR-TAPSE and PLS, LASapex/peri showed the highest intra- and interobserver reproducibility.

TAPSE is the most frequently used index to evaluate RV function in clinical settings and can be easily obtained using ultrasound and CMR (13,14). Previous studies have shown a strong correlation between TAPSE and RVEF (15,16). Additionally, CMR-TAPSE is used as an important indicator for the prognosis of many diseases (7,17). In the present study, there were no significant differences in TAPSE between T2DM patients and controls. The reasons may be as follows: TAPSE is an absolute value that reflects the moving distance of the tricuspid ring between the diastolic and systolic phases. Individual differences can significantly affect the measurement of an absolute value instead of a relative value, limiting the sensitivity and specificity of TAPSE measurements. Therefore, in this study, TAPSE may not be sufficiently sensitive to T2DM-related RV changes.

In the present study, as an RV function index, LAS was measured in CMR four-chamber cine. LASapex/peri correlated well with RVEF and CMR-TAPSE, which is consistent with the studies of Arenja et al. (9) and Riffel et al. (10).

At present, whether PLS can sensitively reflect RV dysfunction is still controversial. In diseases that significantly affect RV function, such as arrhythmogenic RV cardiomyopathy, both echo-derived PLS (18,19) and CMR-derived PLS (20) is significantly reduced. Furthermore, in hypertrophic cardiomyopathy (21,22) and heart failure (23), PLS measured by CMR is also significantly reduced. However, in diseases that may not significantly affect RV function, PLS may not be reduced.

Whether T2DM significantly reduces PLS remains controversial. In studies by Ng et al. (24) and Shao et al. (25), PLS was significantly reduced. However, Hwang et al. (26) reported no significant difference in PLS between T2DM and non-T2DM patients. In the present study, decreased PLS was not seen in patients with T2DM. The intra- and interobserver reproducibility of PLS was quite low. It may be that because the RV wall itself is thin, it is difficult to track myocardial motion using either CMR cine or ultrasound (27,28). In addition, concerning feature tracking postprocessing, besides tagging and strain-encoding (SENC) CMR, many commercial software programs perform CMR cine-based strain analyses, including Circle42 (29,30), TomTec, Medis, Neosoft, etc. However, differences have been observed in the processing results between these software programs (31). Consequently, there is no universally recognized post-processing software to calculate RV strain. Therefore, PLS might not be sufficiently sensitive to evaluate RV function, particularly in those diseases that affect RV function only slightly, such as T2DM.

Compared with healthy controls, T2DM patients showed decreased LASapex/peri and LVapex/mid indices; however, only the decrease in LASapex/peri remained significant after adjustment for other factors. One possible mechanism of T2DM-related RV subclinical dysfunction is that increased myocardial triglyceride content in T2DM (32) may contribute to the extensive impairment of RV function (24). Moreover, it has been shown in an animal study that therapeutic interventions that relieve myocardial triglyceride accumulation can lead to improvements in myocardial function (33). Additionally, the intra- and interobserver reproducibility were highest for LASapex/peri. LAS is a relative index that considers individual differences and is derived from the apex of the LV and lateral insertion of the tricuspid valve on the end-diastolic and end-systolic phases. It is relatively simple and easily obtained in the clinic. Therefore, compared with CMR-TAPSE, PLS and RVEF, LASapex/peri may be a more sensitive and more suitable index for assessing the decrease of RV function in patients with T2DM.

Our study had the following limitations. First, the overall number of subjects was relatively small. Second, the current study did not enroll age-matched patients. Although consecutive patients were enrolled, the older age of the T2DM patients compared with controls may have led to selection bias. A larger age-matched cohort will be needed in further research. Second, this is a cross-sectional study; the prognostic value of LAS should be determined in future studies. Finally, the patients with T2DM were receiving treatment, which may have affected the results.

Conclusions

The reproducibility and values of RV functional indices were studied in T2DM patients. Our results suggest that, compared with traditional RV functional indices, such as CMR-TAPSE, RVEF and PLS, LAS is easy to obtain and has high repeatability; furthermore, the LAS apex/lateral wall may be a more sensitive index of T2DM-related RV dysfunction.
