Dual-source dual-energy computed tomography-derived quantitative parameters combined with machine learning for the differential diagnosis of benign and malignant thyroid nodules

Introduction

With the increasing use of medical imaging for screening, diagnosis, and treatment response evaluation in recent decades, as many as 67% of thyroid incidentalomas are detected in the general population (1,2). The malignancy rate of thyroid nodules is 10–15% (3). Differentiating malignant thyroid nodules from benign ones is important in planning further therapeutic approaches and the extent of surgical intervention.

Ultrasonography is the primary imaging test used to detect thyroid nodules, but it has some limitations in showing the relationship of the tumor to the surrounding structures and in identifying lymph node metastasis (4,5). Fine-needle aspiration is an invasive examination, and one-third of the results are inconclusive (3). With the rapid development of magnetic resonance imaging, some functional sequences have achieved better diagnostic performance, but this method has the disadvantages of being high cost and time-consuming (6). Computed tomography (CT) can be used to identify nodules, establish preoperative localization, provide information for the diagnosis, and assess the therapeutic effect. However, conventional CT is limited in differentiating between benign and malignant thyroid nodules due to beam hardening artifacts and poor contrast with the surrounding thyroid tissue (7).

The recent technical advance of dual-source dual-energy CT (DS-DECT) has improved the situation, as this method uses two different X-ray sources, allowing for the simultaneous use of two different energies to achieve potential tissue differentiation. The advanced quantitative technique can separate several types of substances, such as water, iodine, calcium, uric acid, and fat (8-11). Quantitative iodine parameters have been considered a promising tool for distinguishing malignant from benign tumors (12-15). Spectral curves and the effective atomic number (Z_eff) have helped identify benign and malignant tumors, histological type, and differentiation degree (16-19). Quantitative dual-energy CT (DECT) analysis has distinguished invasive adenocarcinoma from noninvasive or minimally invasive adenocarcinoma among pulmonary ground-glass opacity nodules (13). In addition, the DS-DECT quantitative technique has been used to discriminate the expression status of immunohistochemical biomarkers of invasive breast cancer (20). Previous studies have demonstrated the potential value of quantitative parameters of DECT in the differential diagnosis of benign and malignant thyroid nodules (21-24). However, few studies have used iodine concentration (IC), energy curve, and Z_eff as the quantitative parameters.

With the rapid evolution of machine learning, clustering algorithms can assign data points to discrete groups to maximize within-group similarities and between-group differences. A previous study reported that machine learning of DECT had a better diagnostic performance than qualitative evaluation of CT image features for preoperatively diagnosing cervical lymph node metastases in papillary thyroid cancer patients (25). We hypothesize that the different properties of benign and malignant thyroid nodules can be reflected by the quantitative parameters derived from DS-DECT. The present study obtained quantitative parameters in the nonenhanced and arterial phases and constructed a model to classify benign and malignant thyroid nodules.

We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/qims-21-501).

Methods

Patient collection and thyroid nodule selection

This was a retrospective study of DS-DECT scans (SOMATOM Drive, Siemens Healthineers, Forchheim, Germany) of the neck region. Data collection was planned after pathological surgical results were obtained. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of the Chongqing University Cancer Hospital, and the requirement for informed consent was waived. Patients who underwent CT scanning of thyroid nodules in our hospital between November 2019 and November 2020 were eligible for inclusion. Patients formed a consecutive series. The inclusion criteria were as follows: (I) pathological surgical results were available within a week of the CT examination; (II) the nodules were solid or mixed cystic; (III) only the largest nodule was selected when there were more than two nodules in one lobule. The exclusion criteria were as follows: (I) the presence of obvious artifacts; (II) patients had received a needle biopsy or therapy before the CT examination; (III) the nodule diameter was <10 mm; (IV) the pathological results were indeterminate. The screening flow chart is shown in Figure 1.

Figure 1 Flowchart showing the screening strategy for patients in this study.

Sample size

There are no generally accepted approaches to estimate the sample size required for derivation and validation studies of prediction models. However, we ensured that the study met the suggested requirements of having at least ten events per candidate variable to derive a model and at least 100 events for the validation study.

Examination method

A dual-energy protocol was used with tube A (Sn 140 KVp, 104 mAs) and tube B (Sn 100 KVp, 134 mAs) with a reformatted slice thickness of 1.5 mm, a collimation thickness of 32×0.6 mm, a matrix of 512×512, and a helical pitch of 0.7. The reconstruction kernel of the monoenergetic image was Q30f, and the iterative reconstruction algorithm used was Advanced Modeled Iterative Reconstruction (ADMIRE). The range extended from the petrous temporal bone to the thoracic entrance. The nonenhanced scan was acquired first. Patients were injected with a nonionic contrast material via an antecubital vein at a rate of 2–2.5 mL/s (1.5 mL/kg ioversol, 320 mg/mL iodine, HENGRUI Medicine, Jiangsu, China). After the injection, 20 mL of saline was transfused. The arterial phase scans were started using a bolus-tracking technique with a threshold of 100 Hu in the aorta arch and an additional delay of 7 s. The dose length product was 444.29±156.27 mGy. The CT dose index was 19.18±5.82 mGy.

Thyroid nodule analysis

All dual-energy scanning data were processed in viewer software on a syngo.via workstation (syngo.via VB20A, Dual Energy, Siemens Healthineers). The slice that best showed the boundary and parenchyma of the nodule was selected. The largest possible (round) region of interest (ROI) of the nodule was placed within the enhanced parenchyma of the nodule (Figures 2,3). The measurements were taken by two independent observers [observer 1 (L.L.J) and observer 2 (J.C) with two and six years of experience in thyroid imaging, respectively]. The observers were only aware of the location and diameter of the lesions and were blind to the pathological surgical results. The measurement was repeated one month later by observer 1.

Figure 2 Images of a 23-year-old male with papillary carcinoma: (A) the arterial polyenergetic image is selected as the reference to draw the region of interest; (B) IC_nodule (nonenhancement) is 0.3 mg/mL; (C) Z_eff (nonenhancement) is 7.71; (D) λ_Hu (nonenhancement) of the energy curve is 0.46; (E) IC_nodule (arterial phase) is 5.3 mg/mL, and NIC-P (arterial phase) is 92.4%; (F) IC_nodule (arterial phase) is 5.3 mg/mL, and NIC-A (arterial phase) is 41.4%; (G) Z_eff (arterial phase) is 9.65; (H) λ_Hu (arterial phase) of the energy curve is 5.72. IC, iodine concentration; Z_eff, effective atomic number; λ_Hu, spectral curve slope.

Figure 3 Images of a 41-year-old male with follicular adenoma: (A) the arterial polyenergetic image is selected as the reference to draw the region of interest; (B) IC_nodule (nonenhancement) is 0.5 mg/mL; (C) Z_eff (nonenhancement) is 7.58; (D) λ_Hu (nonenhancement) of the energy curve is 0.28; (E) IC_nodule (arterial phase) is 4.3 mg/mL, and NIC-P (arterial phase) is 97.0%; (F) IC_nodule (arterial phase) is 4.3 mg/mL, and NIC-A (arterial phase) is 57.7%; (G) Z_eff (arterial phase) is 9.39; (H) λ_Hu (arterial phase) of the energy curve is 4.95. IC, iodine concentration; Z_eff, effective atomic number; λ_Hu, spectral curve slope.

A quantitative analysis of IC and normalized iodine concentration (NIC) was carried out with virtual non-enhanced module. To minimize variation caused by the patient’s hormone and/or circulation status, the NIC was computed according to the IC of the thyroid parenchyma (NIC-P) and carotid artery (NIC-A). The ROI of the carotid artery was placed on the ipsilateral carotid artery. An ROI of the thyroid parenchyma was placed on the normal thyroid parenchyma, as close as possible to the ipsilateral thyroid parenchyma if there was epibiotic normal thyroid parenchyma. To reflect the blood flow of the nodules, the iodine concentration difference (ICD) was computed. The same ROI was applied for IC and NIC measurements in the nonenhanced and arterial phase images. The NIC-P (Eq. [1]), NIC-A (Eq. [2]), and ICD (Eq. [3]) were calculated by the following formulas:

NIC−P=ICnodule∕ICthyroidparenchyma[1]

NIC−A=ICnodule∕ICcarotidartery[2]

ICD=ICnodule(arterialphase)−ICnodule(nonenhancement)[3]

A quantitative analysis of the slope of the spectral Hounsfield unit curve (λ_Hu) was carried out with monoenergetic+ in the nonenhanced and arterial phases. Selecting the module as “monoenergetic plus ROI”, the largest possible (round) ROI was placed on the thyroid nodule on the monoenergetic images (70 KeV) (26). Lastly, the dual-energy spectral curve was obtained from 40 to 190 keV monochromatic energy images and plotted on the graph as different CT density values for various energy levels. The slope of the spectral Hounsfield unit curve (Eq. [4]) was calculated by the following formula (15):

λHu=Hu40keV−Hu100keV100−40[4]

Quantitative analysis of Z_eff was carried out with Rho/Z. Rho/Z was measured in the nonenhanced and arterial phases. The same ROI was applied for the Z_eff measurement. Every measurement was acquired on the same slice.

Histopathologic examination

According to the established convention, the histopathologic examination was used as the reference standard. Tissue samples of each nodule were obtained from the operation. Surgically resected nodules were subjected to an intra-operative frozen section analysis for preliminary risk assessment. The final diagnosis was based on the postoperative paraffin section pathological examination. In the event of suspicious malignant samples or atypical samples, immunohistochemical staining was applied to differentiate benign from malignant nodules. An experienced pathologist determined all diagnoses. According to the pathological results, the nodules were assigned to either the benign or malignant groups.

Statistical analysis

Statistical analyses were performed using SPSS (version 25.0), and the results were considered statistically significant at P<0.05. All variables of the quantitative parameters derived from multiple phase DS-DECT were exploratory. The interclass correlation coefficient (ICC) was used to test the interobserver reliability. Multiple quantitative parameters derived from DS-DECT were compared between the benign group and the malignant group. Tests for normality were performed using the Shapiro-Wilk test. Normally distributed continuous variables were compared using Student’s t-test, which included NIC-P (arterial phase), λ_Hu (nonenhancement), and Z_eff (arterial phase). Other variables were compared using the Mann-Whitney U test, which included IC_nodule (nonenhancement), IC_nodule (arterial phase), NIC-A (arterial phase), ICD, λ_Hu (arterial phase), and Z_eff (nonenhancement). If the P values for the variables were <0.05, the quantitative parameters derived from the multiple phase DS-DECT were entered into a binary logistic regression analysis to calculate the odds ratios (OR) and 95% confidence intervals (CI). All statistically significant variables were entered into a further multiple logistic regression analysis to build a prediction model of malignant nodules.

Machine learning was performed using Python (version 3.7) and R (version 4.0.1). Python was used to establish the feature selection and to construct a prediction model. R was used to compare the diagnostic efficacy. The patients were randomly assigned to the training group and testing group at a ratio of 2:1. The training group was used for feature selection and to create the prediction model. We used the least absolute shrinkage and selection operator (LASSO) algorithm to select key features. The LASSO algorithm was used to eliminate features with the greatest redundancy. A naive LASSO penalty was used to optimize the classifier. A linear discriminant analysis (LDA) based on the key features was used to construct the models. Before the model construction, data normalization was performed to avoid bigger ranges dominating those in smaller ranges. We used 5-fold cross-validation results to evaluate the performance of a specific machine learning classifier, where “accuracy” was chosen as the optimization metric to select the classifier. The key features included Z_eff (nonenhancement), λ_Hu (arterial phase), ICD, NIC-P (arterial phase), and IC_nodule (arterial phase). The DeLong test was used to compare the diagnostic efficacy.

Results

Clinical data

A total of 281 patients were identified for this study: 64 males and 217 females, with an age range of 16–86 years. Of these, 117 patients did not show pathological results, and the clinician diagnosed their nodules as benign. The pathological results of the two patients were inconclusive. One case had follicular adenoma with atypical hyperplasia, and another case had nodular goiters with focal cancerous lesions. Five patients with papillary carcinoma had received a needle biopsy or therapy before the CT examination. The images from two patients had obvious artifacts. Fifteen patients had micropapillary carcinoma, and ten patients had follicular adenoma with cystic degeneration. Ultimately, 130 patients were included in this study, of which 102 were females, and 28 were males, with an age range of 18–84 years. The malignant group comprised 52 females and 12 males aged 18–84 years old. The benign group comprised 50 females and 16 males aged 26–73 years old. Among the 139 nodules from 130 patients, 67 nodules were malignant (64 papillary carcinomas, two follicular carcinomas, and one medullary carcinoma), and 72 nodules were benign (46 follicular adenomas, 20 nodular goiters, two subacute thyroiditis, two Hashimoto’s thyroiditis, one granulomatous thyroiditis, and one oxyphilic cell adenoma). There were no adverse events in this study.

Comparison of the DS-DECT quantitative parameters between the malignant and benign groups

The results are summarized in Table 1. The malignant group had a significantly higher IC_nodule (arterial phase) (P=0.001), NIC-P (arterial phase) (P=0.002), ICD (P<0.001), λ_Hu (nonenhancement) (P=0.007), λ_Hu (arterial phase) (P=0.001), Z_eff (nonenhancement) (P<0.001) and Z_eff (arterial phase) (P=0.039) than the benign group (Table 1). The interobserver reproducibility for measuring thyroid nodules with the DS-DECT parameters is summarized in Table 2.

Binary logistic regression analysis of DS-DECT quantitative parameters for the prediction of malignant nodules

In the univariate binary logistic regression analysis, IC_nodule (arterial phase) (P=0.004), NIC-P (arterial phase) (P=0.003), ICD (P=0.001), λ_Hu (arterial phase) (P=0.001), Z_eff (nonenhancement) (P<0.001), and Z_eff (arterial phase) (P=0.042) reached statistical significance (Table 3). All the statistically significant variables were entered into a further multiple logistic regression analysis to build the prediction model for malignant nodules. The prediction model had an AUC of 0.76, sensitivity of 0.821, and specificity of 0.667 (Table 4). The ROCs of the prediction are shown in Figure 4.

Figure 4 The receiver operating characteristic curve of the binary logistic regression analysis model shows that the area under the curve is 0.76.

Machine learning result of DS-DECT quantitative parameters for the prediction of malignant nodules

There were 45 malignant nodules and 48 benign nodules in the training cohort. There were 22 malignant nodules and 24 benign nodules in the testing cohort. The 5-fold cross-validation curves of the model training procedure are shown in Figure 5. In the training cohort, the prediction model had an AUC of 0.86, sensitivity of 0.822, specificity of 0.791, and accuracy of 0.806 (Table 5). In the testing cohort, the prediction model had an AUC of 0.84, a sensitivity of 0.727, a specificity of 0.750, and an accuracy of 0.739 (Table 5). The ROCs of the training and testing groups are shown in Figure 6. The DeLong test showed that the AUC of the machine learning was statistically higher than the logistic regression analysis (Table 6).

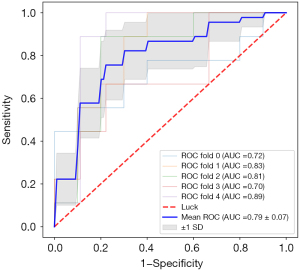

Figure 5 The 5-fold cross-validation curves of the model training procedure.

Figure 6 The receiver operating characteristic curve of the machine learning model shows that the area under the curve in the training group is 0.86, and the area under the curve in the test group is 0.84.

Discussion

In recent years, an increasing number of studies have reported that DS-DECT can be used to diagnose malignant and benign tumors (22,27-29). The present study showed that quantitative parameters derived from DS-DECT could differentiate benign from malignant thyroid nodules.

The thyroid is the only human organ rich in iodine, so measuring the iodine concentration can reflect thyroid function to some extent. A previous study verified that ¹²³I uptake at 3 hours was negatively correlated with IC evaluated by DECT (30). In this study, the IC_nodule (nonenhancement) showed no statistical significance between the malignant and benign groups, which contrasts to a previous study (31). In theory, the IC_nodule (nonenhancement) should be lower in the malignant group than in the benign group because thyroid follicular cells have an iodine uptake function that barely exists in malignant lesions but is present in benign lesions, such as adenoma, nodular goiter, and subacute thyroiditis (32-34). However, the Siemens Healthineers’ dual-energy model was designed for liver imaging and cannot identify microcalcification. Therefore, microcalcification of papillary carcinoma could affect the measurement of IC. Our study used the IC nodule (arterial phase), NIC-P (arterial phase), and NIC-A (arterial phase), which are mainly influenced by contrast material. Our results suggested that the IC nodule (arterial phase) and NIC-P (arterial phase) were significantly higher in the malignant group than in the benign group. A previous study reported that the AUC of NIC was better than IC (21), which was partly similar to this study.

Our results suggested that λ_Hu was higher in the malignant group than in the benign group. The dual-energy spectral curve was obtained from various monochromatic energy images and plotted on the graph as different CT density values concerning various energy levels. The spectral curve may be used to differentiate fibrous, fat, calcium, and iodine because each of these has different attenuations at different energy levels. A previous study reported that λ_Hu in papillary carcinoma was described as negative, which could be explained by the presence of lipid materials in the cells (23). However, no numerical values or statistical results were shown in this previous study. In fact, the λ_Hu in some patients with follicular adenoma, nodular goiters, subacute thyroiditis, and granulomatous thyroiditis was also negative in our study. Therefore, we infer that lipid materials not only exist in papillary carcinoma but also exist in other non-cancerous lesions. Previous studies have suggested that thyroid-stimulating hormones can induce thyroid lipid metabolism disorder (35,36).

Z_eff reflected the atomic number of the compound material; the denser the compound, the higher the effective atomic number (37,38). In lung cancer, gastric cancer, and rectal cancer studies, Z_eff has proved helpful in the preoperative identification of benign and malignant tumors (39-41). Our study found that Z_eff (nonenhancement) and Z_eff (arterial phase) was significantly higher in the malignant group than in the benign group. In addition, Z_eff (nonenhancement) was the most important indicator for predicting malignant thyroid nodules. Malignant nodules are characterized by a higher cell density than benign nodules (42); therefore, malignant nodules may have a higher Z_eff than benign nodules. In addition, microcalcification may result in a higher Z_eff in the malignant group than in the benign group. In the arterial phase, a higher Z_eff may also be related to higher perfusion in the malignant group than in the benign group (43).

In this study, machine learning showed a better diagnostic performance than binary logistic regression analysis because the LDA variable was calculated for each case through singular value decomposition, minimizing the intraclass variance and maximizing the interclass variance (44). In addition, as a commonly used data process method, LDA has a simple principle and a short calculation time. The results of our study indicated that “Lasso LDA” improved both the AUC and specificity in the prediction model of malignant thyroid nodules, compared to the binary logistic regression analysis. This is because “Lasso LDA” adopts a naive Lasso penalty in LDA without taking the matrix structure into account, and the logistic regression was regularized (45).

This study does have some limitations. First, the ROI included a slice rather than the entire nodule. Whether the parameters acquired from the entire nodule are better than those obtained from a slice is an issue that needs further study. Second, we adopted the monoenergetic images (70 keV) with the clearest boundaries to obtain a highly accurate ROI when necessary. The different monoenergetic image qualities for showing lesions at each keV level should be explored. Third, selection bias is inevitable because this is a retrospective study. For instance, this result did not apply to nodule diameters <10 mm, because the repeatability was poor owing to the volume effect. Lastly, the results are limited to the screening criteria and the DS-DECT scanning protocol.

In conclusion, this study suggests that multiple quantitative parameters of DS-DECT may serve as imaging markers to differentiate between benign and malignant nodules in the thyroid. The machine learning model constructed with these parameters exhibited excellent performance for the differential diagnosis.

Acknowledgments

The authors thank all volunteers who participated in the study and the staff of the Department of Radiology, Chongqing University Cancer Hospital, China, for their selfless and valuable assistance. We acknowledge the support of Xiaoyue Zhang from Siemens scientific research.

Funding: This study received funding from the National Natural Science Foundation of China (Grant No. 82071883), the Combination Projects of Medicine and Engineering of the Fundamental Research Funds for the Central Universities in 2019 (Project No. 2019CDYGYB008), the Chongqing Key Medical Research Project of Combination of Science and Medicine (Grant No. 2019ZDXM007), and the 2019 SKY Imaging Research Fund of the Chinese International Medical Foundation (Project No. Z-2014-07-1912-10).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/qims-21-501

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-501). JZ receives fundings from the National Natural Science Foundation of China (Grant No. 82071883), combination projects of medicine and engineering of the Fundamental Research Funds for the Central Universities in 2019 (project No. 2019CDYGYB008), the Chongqing key medical research project of combination of science and medicine (grant No. 2019ZDXM007), and the 2019 SKY Imaging Research Fund of the Chinese International Medical Foundation (project No. Z-2014-07-1912-10). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Review Committee of Chongqing University Cancer Hospital, and informed consent from the study participants was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
