Multidetector computed tomography assessment of vascular involvement in perihilar cholangiocarcinoma

Introduction

Perihilar cholangiocarcinoma (PHC) is a relatively rare disease with an annual incidence of 200 patients in the Netherlands (1). Radical surgery is the only potentially curative treatment, often consisting of resection of the extrahepatic bile duct and hemihepatectomy (2). To date, no accurate widely implemented staging system exists to assess resectability (3-5). In daily practice, resectability is determined in a multidisciplinary meeting. Preoperative imaging to define the extent of the biliary tumor is preferably performed before biliary drainage and often includes a combination of computed tomography (CT) and magnetic resonance imaging or cholangiography (MRI/MRCP).

For assessment of resectability multiphase contrast-enhanced CT (CECT) is regarded to be superior compared to MRI to demonstrate the relationship of the tumor to vascular structures (6). A systematic review with meta-analysis from our group showed a pooled sensitivity of CECT for portal vein and hepatic artery involvement of 89% and 84%, respectively (7). In literature, suggested CT criteria for vascular involvement are occlusion, stenosis or contour deformity and more than50% contact with the tumor (6,8).

Currently, approximately 40% of patients with potentially resectable PHC on imaging are deemed unresectable at explorative laparotomy. The most important reason for unresectability at exploration is extensive portal venous and/or hepatic arterial vascular involvement, as assessed intraoperatively by the surgeon and often confirmed by frozen section. It is clear that vascular involvement and consequent unresectability are still largely underestimated by imaging preoperatively (9,10). This not only leads to unnecessary surgery, with subsequent lower patient quality of life and high costs, but also has major implications for treatment strategies in PHC patients. Accurate assessment of resectability on imaging is the cornerstone of selecting the right patient for the right treatment.

Therefore, the aim of this study was to correlate CT findings in PHC with surgical and histopathological results, in order to evaluate the accuracy of currently used criteria for vascular involvement on preoperative CECT imaging.

Methods

All patients who underwent surgical exploration under the suspicion of PHC between March 2015 and April 2018 at one tertiary center were included in this study.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of the Amsterdam UMC, location AMC (W14_328) and individual consent for this retrospective analysis was waived.

Standard work-up of patients with PHC at our institution has previously been described in detail (11), and includes a preoperative staging CT scan. In our institution, concomitant resection of the portal vein bifurcation is only performed when the portal vein is involved. Standard CT protocol included a dynamic contrast-enhanced CT scan with arterial and venous phase. Three scanners were used, with the following specifications: Siemens Force CT scanner, AS+, Sensation (multi-slice 64, 122, 192), collimation 0.6 mm, reconstruction 2 and 3 mm, late arterial phase (with bolus timing peak + 30 s) and portal venous phase (70 s fixed), Ultravist 100–130 mL (3.5 mL/s). Coronal and sagittal reconstructions were performed and maximum intensity projections (MIP) were not used. The most recent CT scan prior to surgery (all within 6 weeks) was independently assessed by two dedicated radiologists, who were blinded for clinical information, other imaging and outcome.

Vascular contact of the hepatic artery and portal vein was evaluated, including their main trunk and right and left branches. The relation between the tumor and the vessel was assessed by scoring circumference of involvement, length of contact and the presence of irregular wall, stenosis and occlusion. For the portal vein the circumferential involvement was assessed as <90°, 90°–180°, 180°–270°, >270°. For the hepatic artery the circumferential involvement was assessed as the presence of tumor on one or two sides of hepatic artery (<180° or >180°), since scoring the precise circumferential involvement is difficult for (small) arteries. The length of contact was scored as less than 10 mm, 10–20 mm or more than 20 mm. Discrepancies were resolved by a consensus meeting and recorded as a third assessment. In case both radiologists individually evaluated a scan not assessable due to bad quality of the scan or substantial artifacts—especially present when portal vein embolization material was in situ—these patients were excluded. Severity of artefacts differed between patients; therefore not all patients undergoing PVE were excluded.

Radiological findings were compared to intraoperative findings. Intraoperative findings were obtained from the operation report or scored by the surgeon in theatre. Vascular involvement was defined as infiltration of the vessel by the tumor, not separable by the surgeon at dissection and often confirmed by frozen-section biopsy. Tumor-vessel contact was defined as tumor making contact with the vessel, but easily separable from the tumor. Vascular involvement was assessed intraoperatively by the surgeon, since this assessment determines resectability. However, pathological findings were also obtained from the pathology report, including intraoperative frozen-sections and, in case of resection, histopathological evaluation of the surgical specimen. Assessment of resection planes of the hepatic artery and portal vein were used to confirm surgical findings.

Statistical analysis

Statistical analysis was performed using SPSS version 25 software (IBM, Armonk, New York, USA). Descriptive statistics were used to describe the data. Variables that followed a normal distribution were described by mean and standard deviation, whilst variables that did not follow normal distribution were described by median with interquartile range. Negative and positive predicting values, sensitivity and specificity for vascular involvement were calculated for separate and combined criteria. For prediction of involvement, intraoperative tumor-vessel contact that could be easily separated by the surgeon was scored as an uninvolved vessel (since this did not preclude resection). The interobserver variability was assessed by calculating Cohen’s kappa.

Results

A total of 68 patients underwent explorative laparotomy for suspicion of PHC, of which 14 patients (20%) ultimately had a different diagnosis at final pathological examination. Of the remaining 54 pathologically proven PHC-patients, preoperative CT scans of 42 patients were evaluated. Twelve patients were excluded from analysis, with severe artefacts from portal vein embolization material as the most frequent reason for exclusion (as shown in Figure 1). There were 20 males and 22 females and the mean age was 68±7 years. The distribution of patients with Bismuth-Corlette (based on surgical findings) type II, IIIa, IIIb, IV was 3, 20, 5 and 14 patients, respectively. The median time between CT scan and operation was 20 days. Out of 42 patients, there were 28 patients with biliary stents in situ (including 9 percutaneous, 11 endoscopic, 7 percutaneous + endoscopic and 1 wall stent) and 14 patients without biliary drainage with stents prior to the assessed CT scan.

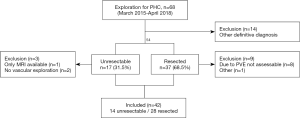

Figure 1 Flowchart of all included patients. PHC, perihilar cholangiocarcinoma; PVE, portal vein embolization; MRI, magnetic resonance imaging.

Unresectability

Out of 54 patients with pathologically proven PHC, there were 17 patients with unresectable tumors (32%) at explorative laparotomy (Figure 1). Three of these patients were excluded due to the lack of vascular exploration (n=2) or because there was only a MRI scan available (n=1). Reasons for unresectability in these three patients were liver metastases (n=1) and lymph node metastases (n=2). Reasons for unresectability for the remaining 14 patients with unresectable disease included in the study were liver metastases (n=2), lymph node metastases (n=2), lymph node metastases/peritoneal metastases combined with vascular involvement (n=3) and/or vascular involvement (n=7). Table 1 shows radiological findings of patients with unresectable tumors based on vascular involvement.

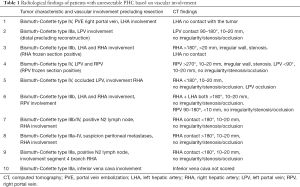

Table 1 Radiological findings of patients with unresectable PHC based on vascular involvement
Full table

Intraoperative findings

Radiological findings of 42 patients with pathologically proven PHC (14 unresectable, 28 resected) were correlated to intraoperative findings. As in each patients the left and right hepatic artery and portal vein were assessed, there were a total of 168 vessels to evaluate. After exclusion of the vessels that were deemed not assessable (n=53), intraoperative findings of 115 vessels could be correlated with preoperative imaging; 63 hepatic arteries and 52 portal veins. Of these vessels, there were 36 of 115 (31%) vessels involved at intraoperative assessment: 20 hepatic arteries and 16 portal veins. There were 79 vessels that were not involved at intraoperative evaluation: at radiological consensus 47 (59%) of these vessels were assessed as no contact, whilst 32 (41%) of these vessels were scored as tumor-vessel contact. Figure 2 shows an example of false positive assessment of right hepatic artery involvement on CT. Out of 36 vessels that were involved at intraoperative evaluation, there were two vessels (6%) scored as no tumor-vessel contact by the radiologists.

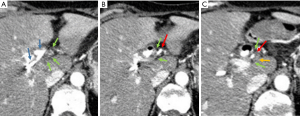

Figure 2 Arterial phase CT scan: false positive right hepatic artery (RHA) involvement. 72-year-old patient with Klatskin type 3A tumor. The RHA was judged as being involved >180 degrees (tumor on both sides of the artery). Although assessed as tumor on both sides of the right hepatic artery (>180°) on CT, during surgical exploration the right hepatic artery was closely related to the tumor, but was easily separable, and a left hemihepatectomy was performed. Green arrow: regarded as tumor, partially obscured by artefacts caused by the biliary stent. Red arrow: right hepatic artery. Blue arrow: Biliary stent in the right anterior and posterior bile ducts. Orange arrow: small lymph node on the left posterior side of the artery.

CT-criteria

Table 2 shows the negative predictive value (NPV) and positive predictive value (PPV) of separate and combined CT criteria. Occlusion of portal vein on imaging had a PPV of 100%, however it was found in only 5 of 16 involved portal veins and therefore has a low sensitivity (31%). Likewise, the PPV for occlusion of the hepatic artery was 100%, however present in only 3 of 20 involved hepatic arteries (15%). NPV of no tumor-vessel contact for the hepatic artery and portal vein were 100% and 94%, respectively. A total of 13 portal veins and 15 hepatic arteries met the criteria suggested in literature (e.g., presence of tumor-vessel contact >180° or irregular wall or narrowing or occlusion). Combination of these criteria resulted in a PPV of 85% for the portal vein, with sensitivity of 67% and specificity of 94%. For the hepatic artery these combined criteria resulted in a PPV of 53%, sensitivity of 40% and specificity of 86%.

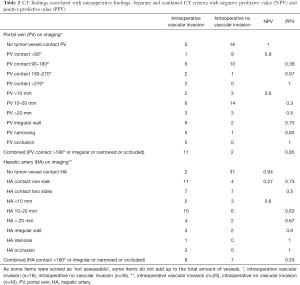

Table 2 CT findings correlated with intraoperative findings. Separate and combined CT criteria with negative predictive value (NPV) and positive predictive value (PPV)
Full table

Interobserver agreement

A consensus meeting was necessary for 40 out 42 scans. Overall, Cohens kappa for presence or absence of contact with the vessel was 0.265 (SE 0.062). If both radiologists scored tumor-vessel contact (n=47), Cohen’s kappa for circumference of contact (<180°, >180°), length of contact (<10, 10-20, >20 mm) and the presence or absence of irregular wall were 0.640 (SE 0.121), 0.374 (SE 0.122) and 0.115 (SE 0.125), respectively. For the presence of stenosis or occlusion, the Cohens kappa was 0.601 (SE 0.111) and 0.887 (SE 0.110), respectively.

Discussion

In this study, vascular involvement of PHC was investigated by correlating findings of two independent radiologists, who were blinded for surgical and pathological outcomes, with intraoperative findings. CT scans of 42 PHC-patients undergoing exploration were included and 115 vessels were evaluated. The PPVs of an occluded, narrowed or irregular portal vein were 100%, 83% and 75%, respectively. If no tumor-vessel contact of portal vein was noted on the CT scan, this correlated with no involvement at intraoperative assessment (NPV of 100%). For the hepatic artery, occlusion or stenosis of the vessel on imaging also resulted in a PPV of 100%. Interestingly, other criteria, especially for the hepatic artery, seemed of limited value in predicting vascular involvement. Due to the smaller diameter and the winding course of the hepatic artery, assessment may be more difficult compared to the portal vein.

In literature, there are several studies focusing on prediction of vascular involvement in PHC on imaging. In a study published by Lee et al. in 2006 (8), with a study design comparable to ours, a PPV for portal vein involvement on CT of 91% was found. In this study, vascular involvement on transverse imaging was defined as either tumor-vessel contact more than 180° or irregular wall or narrowing or occlusion of the vessel. Application of these combined CT criteria in the present study resulted in a PPV for the portal vein of 84%. For the hepatic artery, however, Lee et al. (8) reported a PPV of 95%, whilst in our study the PPV for the hepatic artery was 53%. A factor that could have contributed to this difference may be the selection of patients for explorative laparotomy. One could imagine that assessment of extensive vascular involvement is relatively easier than the assessment of limited vascular involvement. In the study by Lee et al. (8), tumors were deemed unresectable in 32 out of 55 patients (58%), compared to 17 tumors in 54 patients (32%) in the present study (8).

In 2018, Zhou et al. (12) investigated several CT criteria to assess portal vein involvement in PHC. Their proposed new model included more than180 degrees of contact and showed a PPV of 92%. Interestingly, the interobserver agreement was high with kappa’s between 0.870 and 0.957. Results of both previously mentioned studies suggest that length of tumor-vessel contact of the portal vein should also be incorporated in assessment of portal vein involvement. In the first study, revised criteria include a cut-off of 2 cm (8), whilst the second study by Zhou et al. suggests a cut-off of 7.29 mm for portal vein involvement (12). In the present study, more than 2 cm tumor-vessel contact of the portal vein resulted in relatively low PPV of 50% and was not incorporated in the combined criteria.

Another study assessing resectability of PHC, showed a PPV of portal vein and hepatic artery involvement on CT in 31 patients of 90% and 94%, respectively (13). Vascular involvement was also defined as more than 180 degrees of contact, occlusion, stenosis or contour deformity. The mean interval between CT and surgery was 10.6 days, compared to a mean interval of 26 days in the present study. Disagreements between two radiologists were resolved by consulting a senior hepatobiliary surgeon, which may have influenced results. Evaluation of technical specifications of different studies, revealed no explanation for the observed differences (8,12,13).

Unfortunately, vascular involvement can only be evaluated in patients undergoing exploration. The inability to evaluate vessels in initially unresectable patients is one of the major limitations of this study. Even for patients undergoing resection, the assessment of vascular involvement remains challenging for pathologists (14,15). As shown in literature, assessment of all relevant resection planes in PHC is often incomplete and the hepatic artery resection plane is most often lacking. Pathological parameters that are not described are often regarded as absent rather than as missing (14,15).

Complete pathological assessment of the relevant vessel is not always possible, since the surgical specimen is laminated following the biliary tree. As a consequence, the nature of the vessels seen in the pathology specimen (main hilar vessels or subsequent arterial and venous branches) is not always clear and the correlation between imaging and pathological assessment may be very difficult. Additionally, it remains unclear which layer (if infiltrated) of the vascular wall (adventitia, media and endothelium) defines relevant vascular involvement. In previous studies correlating pathological findings to CT images, these difficulties in pathological assessment may also have affected results (8,12,13).

Other limitations involve the retrospective evaluation of the majority of patients in this study, the lack of an optimal arterial reconstruction in some patients and the small sample size. Also, in this study the most recent CT scan prior to surgery was evaluated without access to other imaging modalities such as MRCP or previous scans, which could have influenced evaluation by the radiologists. Infiltration after interventions such as stenting and portal vein embolization could also influence assessment of vascular invasion (Figure S1). However, blinded evaluation by two independent radiologists of a single CT scan limited the risk of bias and is one of the strengths of this study. Additionally, we evaluated all consecutive patients explored in one institution in a recent period, making results translatable to current daily practice.

Although these results should be interpreted with caution considering limitations of this study, the observed discrepancies between imaging and intraoperative findings have major impact on clinical decision making and treatment strategies (16). If, for example, prediction of involvement only seems reliable in case of encasement or occlusion of the hepatic artery, other criteria (such as more than 180 degrees or a certain length of contact) should not preclude exploration. If assessment on imaging is indeed unreliable, explorative laparotomy might be necessary to prove ‘locally advanced disease’. This would not only lead to more unnecessary explorations, but specifically for PHC patients with locally advanced tumors would also eliminate the possibility of liver transplantation, since surgical exploration of the hepatoduodenal ligament is a contraindication in the (Dutch) liver transplantation protocol (17). On the other hand, patients (falsely) deemed unresectable based on imaging, could potentially have been denied an explorative laparotomy. The lack of resectability criteria also hampers the design of clinical trials. For example, studies on neoadjuvant or induction chemotherapy require solid resection criteria to determine a subgroup of patients with ‘locally advanced disease’ that may benefit from this treatment.

In conclusion, the assessment of vascular involvement of PHC on CT remains challenging. An occluded, irregular or narrowed portal vein is highly suggestive for venous invasion. CT criteria for hepatic artery involvement, other than stenosis or occlusion, are less reliable and therefore may not preclude exploration in patients with PHC.
