Use of ^99mTc-sestamibi SPECT/CT imaging in predicting the degree of pathological hyperplasia of the parathyroid gland: semi-quantitative analysis

Introduction

Uremic secondary hyperparathyroidism is a complicated disease with multifactorial conditions and protean clinical manifestations that occur in most patients with advanced chronic kidney disease. Phosphate accumulation and the trend of hypocalcemia are continuous stimulations that contribute to the development and progression of hyperparathyroidism, leading to abnormal mineral metabolisms, such as metabolic bone disease and extraosseous calcification. These factors result in a poor quality of life and short life expectancy in patients with secondary hyperparathyroidism (SHPT) (1,2). In the early stages, the development of SHPT can be controlled by maintenance dialysis or pharmacotherapy (3,4). However, with the progress of the disease, surgical intervention is required when drug therapy becomes ineffective or parathyroid hormone (PTH) levels exceed a certain range (5,6). The surgical methods of parathyroidectomy include total parathyroidectomy (TPTX), subtotal parathyroidectomy (SPTX), and total parathyroidectomy with autotransplantation (TPTX+AT). Each surgical approach has its advantages and limitations, and it should be selected based on the management of dialysis and the patient's characteristics (7,8).

When performing an SPTX, the partial parathyroid gland (PG) with the lowest degree of hyperplasia among all PGs needs to be selected for preservation in situ while the others are resected. TPTX+AT refers to selecting the partial PG with the lowest degree of hyperplasia based on total parathyroidectomy and cutting it into 1 mm³ (approximately) for autotransplantation. Due to the heterogeneity of the PGs, the intraoperative frozen section diagnosis of a PG just is a reference for the remaining PG that is preserved in situ or autotransplantation. Preoperatively, a few non-invasive examinations can help to select the PG with the lowest degree of hyperplasia (9). According to previous studies, the percentage of recurrence caused by implanted PG tissue is approximately 13–60% (10,11).

^99mTc-sestamibi (^99mTc-MIBI) Single-Photon Emission Computed Tomography/Computed Tomography (SPECT/CT) imaging is an effective preoperative examination in SHPT, which can provide accurate locations of hyperplasia PGs and their relationship with adjacent tissues (12). Moreover, it is more precise for locating hyperplastic PGs than ultrasonography, with a sensitivity of 70.30%, which is higher than that of ultrasonography (61.82%) (13). Therefore, we found that the degree of ^99mTc-MIBI accumulation is related to the degree of pathological hyperplasia of the PGs in patients before surgery, which helps us to preserve the PG with the lowest degree of hyperplasia in SPTX or TPTX+AT intraoperatively.

This study retrospectively analyzed the relationship between ^99mTc-MIBI SPECT/CT imaging and hyperplastic PGs’ clinical and pathological characteristics. We aimed to explore the clinical significance and value of ^99mTc-MIBI SPECT/CT scintigraphy in SHPT by evaluating the identification of the pathological hyperplasia of PGs.

Methods

Patients and methods

A total of 96 SHPT patients who underwent TPTX+AT at the First Affiliated Hospital of Zhejiang University from May 2019 to January 2020 were retrospectively enrolled. Patients with primary hyperparathyroidism, tertiary hyperparathyroidism, and multiple endocrine neoplasms were excluded. All matched 96 patients were initially treated at our institution without any previous head and neck surgery or radiation history. All patients had received a successful operation, which was defined as a serum intact parathyroid hormone (iPTH) level <300 pg/mL in the first postoperative week, following previous studies (14). iPTH concentrations were measured using chemiluminescence. Serum calcium and serum phosphorus level were measured using the colorimetric method.

Ninety-six patients were followed up, and five were lost to follow-up. Thus, the demographics, surgical records, and follow-up information of 91 patients were recorded and analyzed. Also, a total of 216 paraffin-embedded PGs of 54 patients were obtained and analyzed. Among these 54 patients, three parathyroids were removed in two patients, four were removed in 50 patients, and five were removed in two patients. Meanwhile, the preoperative ^99mTc-MIBI SPECT/CT imaging results of these patients were also available.

This study was conducted following the Declaration of Helsinki (as revised in 2013) and was approved by the institutional of Clinical Research Ethics Committee of the First Affiliated Hospital, Zhejiang University School of Medicine (No. IIT20200715). The requirement for individual consent for this retrospective analysis was waived.

Surgical approach

All patients underwent TPTX+AT surgery. During the operation, all PGs of the patients were explored and resected, and the partial PGs with the lowest degree of hyperplasia were selected and cut into 1 mm³. Two sites were selected for autotransplantation in the forearm muscles of the non-fistula hand (5,15,16).

^99mTc-MIBI scintigraphy

^99mTc-MIBI scintigraphy was performed using a SPECT/CT scanner (GE Medical Systems, 670, Tirat Hacarmel, Israel) after intravenous administration of 740 MBq ^99mTc-MIBI (Figures 1,2). Planar images of the neck and mediastinum were performed for 15 min (early image) and 120 min (delayed image). The planar images were obtained in a 128×128 matrix with a 20% window centered on the 140-keV photopeak with a low-energy, high-resolution parallel collimator. After delayed image acquisition, SPECT/CT was immediately performed with 64 frames over 360°; 20 s/frame; 20% window centered around a 140 keV photopeak; window matrix, 128×128; and zoom, 1. The CT acquisition parameters were as follows: 120 kV; 100–440 mA by automatic exposure control; pitch, 0.938; helical thickness, 1.25 mm; detector configuration, 2.5 mm; and beam-width, 2.5 mm. ^99mTc-MIBI scintigraphy and SPECT/CT were analyzed at a workstation (Xeleris™, GE Healthcare) that was displayed in the transaxial, coronal, and sagittal slices of the CT, SPECT, and fused SPECT/CT images. Two experienced nuclear medicine doctors evaluated the images and reached a final consensus.

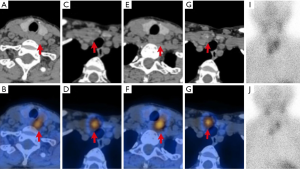

Figure 1 Axial CT (A,C,E,G) and SPECT/CT (B,D,F,H) showed four lesions in the back of the thyroid gland that were pathologically confirmed to be parathyroid hyperplasia (A,B: superior left parathyroid gland; C,D: inferior left parathyroid gland; E,F: superior right parathyroid gland; G,H: inferior right parathyroid gland). The early and delayed phase planar images (I,J) showed ^99mTc-MIBI uptake of the thyroid lobe and parathyroid gland.

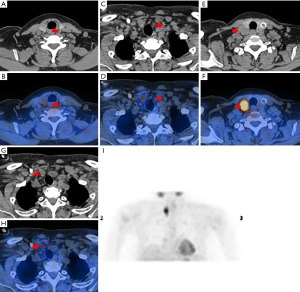

Figure 2 Axial CT (A,C,E,G) and SPECT/CT (B,D,F,H) showed four lesions in the back of the thyroid gland that were pathologically conformed to be parathyroid hyperplasia (A,B: superior left parathyroid gland, URRI =2.35; C,D: inferior left parathyroid gland, URRI =0.59; E,F: superior right parathyroid gland, URRI =8.03; G,H: inferior right parathyroid gland, URRI =3.62). The planar images (I) showed different ^99mTc-MIBI uptake of the parathyroid glands in a patient. URRI, uptake ratio of region of interest.

The precise location of each focus was reported according to the midline of the thyroid, and abnormal parathyroid lesions were divided into four quadrants. The regions of interest in the PG and the ipsilateral thymus lesion were manually delineated on the SPECT/CT images and the delayed phase (120 min). The radioactivity counts were obtained for the maximum cross lesion to represent ^99mTc-MIBI uptake of lesions and the ipsilateral thymus, and the value of the uptake ratio of the region of interest (URRI) was calculated as the radioactivity count of the lesion divided by the ipsilateral thymus. ^99mTc-MIBI negative PG(s) patients had a URRI value of no more than 1; meanwhile, ^99mTc-MIBI positive PG(s) patients had a URRI value of more than 1. The URRI total is the sum value of the URRI of all glands in a patient, and the URRI max is the maximum value of the URRI of all glands in a patient.

Immunohistochemistry (IHC)

The resected specimens were fixed in formaldehyde and embedded in paraffin. Sections (4 µm) were processed for hematoxylin and eosin and immunohistochemical staining. The sections were blocked with 3% hydrogen peroxide (H₂O₂) for 15 min to retrieve the enzyme for immunohistochemical staining. The sections were then treated with a sodium citrate buffer (pH 6.0; cat.no.C1010; Solarbio, Beijing, China) for 15 min at 95 °C and subsequently incubated with antibody proliferating cell nuclear antigen (PCNA) (1:5,000; cat no. 2586; Cell Signaling Technology, Danvers, MA, USA) at 4 °C overnight. After washing with Phosphate buffer saline (pH 7.2–7.4), the sections were incubated with anti-immunoglobulin G secondary antibody for 30 min at 37 °C, and Diaminobezidin was added. Finally, the sections were washed under running water and stained with hematoxylin.

IHC analysis

Cells in sections expressing PCNA were counted using Leica DM4000 (Leica Inc., Germany) under 400× magnification, and five fields were selected randomly per section. We captured images of the fields using software program Leica Application Suite (version 8.0; Leica Inc., Germany). Each field was quantified using Image-Pro Plus software (version 6.0; MediaCybernetics, Inc., Rockville, MD, USA). The mean values are expressed as the number of positive cells per sample (Figure 3).

Figure 3 An example of PCNA staining (IHC) for different URRIs and degrees of pathological hyperplasia in different parathyroid glands of a patient. URRI, uptake ratio of region of interest; PCNA, proliferating cell nuclear antigen.

Statistical analysis

Statistical analysis of the anonymized database was performed using SPSS version 22.0 software (IBM, Armonk, NY, USA). Descriptive statistics for continuous variables were presented as mean ± standard deviation. Bivariate analysis was conducted with an independent sample t-test to compare the mean values. Categorical variables were expressed as numbers and percentages (%), and Fisher’s chi-square test was used to assess the differences between groups. Binomial logistic regression analysis was used to assess the risk factors for hypocalcemia at 6 months postoperatively. The correlations between the URRI value of PG and glandular weight, the URRI value of PG and glandular volume, and the URRI values of PG and PCNA were examined using linear regression analysis. The correlation between the URRI value of PG and the hyperplastic pattern of PG was examined using one-way Analysis of Variance (ANOVA). A receiver operating characteristic (ROC) curve was used to validate the diagnostic tests, and to test the specificity and sensitivity, the area under the curve (AUC), standard error, and 95% confidence intervals (95% CI) were also calculated. Statistical significance was set at P<0.05.

Results

The relationship between the ^99mTc-MIBI information and clinical, biochemical results of 91 SHPT patients

The patient’s demographics and clinical characteristics are shown in Table 1. Thirty-six (39.56%) patients exhibited ^99mTc-MIBI negative parathyroid(s). The mean 6-month postoperative serum calcium of patients was 2.18±0.26 mmol/L, categorized into two groups based on serum calcium levels (higher than or less than 2.11 mmol/L) at 6 months postoperatively with 36 patients in the hypocalcemia group and 55 patients in the non-hypocalcemia group. ^99mTc-MIBI negative PG(s) patients had lower preoperative serum phosphorus and higher serum calcium levels at 6 months postoperatively compared to ^99mTc-MIBI positive PG(s) patients (all P<0.05, Table 2).

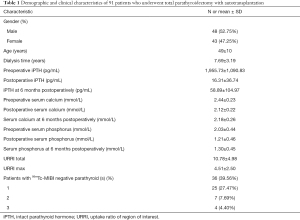

Table 1 Demographic and clinical characteristics of 91 patients who underwent total parathyroidectomy with autotransplantation
Full table

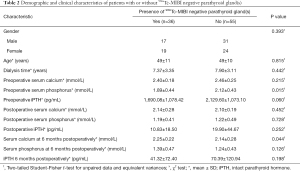

Table 2 Demographic and clinical characteristics of patients with or without ^99mTc-MIBI negative parathyroid gland(s)
Full table

The baseline characteristics, including sex, age, and time on dialysis, showed no difference between the two groups. No significant differences were detected between the two groups in terms of preoperative serum calcium (P=0.215), postoperative serum calcium (P=0.452), postoperative serum phosphorus (P=0.728), postoperative iPTH (P=0.252), serum phosphorus at 6 months postoperatively (P=0.126), and iPTH at 6 months postoperatively (P=0.198).

To clarify the risk factors for hypocalcemia at 6 months postoperatively in the entire cohort, patients were divided into two groups according to the occurrence of hypocalcemia at 6 months postoperatively (Table 3). In the hypocalcemia group, the URRI total and URRI max were higher than those in the non-hypocalcemia group. Further multivariable logistic regression analysis was performed to analyze the association between the URRI value and hypocalcemia at 6 months postoperatively. Since the URRI max was significantly correlated with the URRI total, multivariable logistic regression analysis was performed separately. Both the URRI total (odds ratio =0.857, P=0.003) and URRI max (odds ratio =0.779, P=0.028) were independent risk factors for hypocalcemia at 6 months postoperatively (Tables 4,5). Thus, a higher preoperative ^99mTc-MIBI URRI value of the parathyroid indicated a higher incidence of hypocalcemia at 6 months postoperatively.

Table 3 Demographic and clinical characteristics of patients who did or did not develop hypocalcemia at 6 months postoperatively
Full table

Table 4 Multivariable logistic regression for risk factors of hypocalcemia at 6 months postoperatively
Full table

Table 5 Multivariable logistic regression for risk factors of hypocalcemia at 6 months postoperatively
Full table

After subgroup analysis regarding whether to use the lowest URRI PG for autotransplantation, we found that the postoperative iPTH and iPTH levels at 6 months postoperatively were all lower in the autotransplantation group with the lowest URRI PG (11.33±17.77 vs. 22.12±50.30, P=0.193; 41.59±68.50 vs. 79.07±133.87, P=0.106); however, the differences were not statistically significant (Table 6).

Table 6 Demographic and clinical characteristics of patients who underwent autotransplantation with or without the lowest URRI parathyroid
Full table

Relationship between the URRI value and the degree of pathological hyperplasia in 216 PGs

After analyzing all 216 PGs of 54 patients, the URRI values of the PGs were found to be significantly positively correlated with glandular weight (R²=0.343, P<0.001), glandular volume (R²=0.240, P<0.001), and degree of pathological hyperplasia (P<0.001) (Figure 4). However, the URRI value of the PGs exhibited a notably weak correlation with PCNA (R²=0.035, P=0.006). These results indicate that ^99mTc-MIBI imaging is closely related to the pathological hyperplasia of the PG.

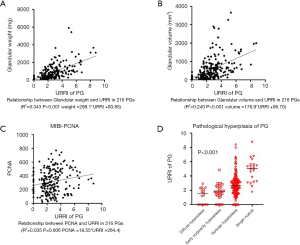

Figure 4 The relationship between the value of parathyroid URRI and glandular weight (A), glandular volume (B), PCNA (C), and pathological hyperplasia of PG (D). URRI, uptake ratio of region of interest; PCNA, proliferating cell nuclear antigen.

The location of the 216 PGs was precisely divided into superior and inferior groups first according to anatomy, followed by the midline of the thyroid. Compared to the inferior PGs, the superior glands were more similar to the normal PG in terms of the following: degree of pathological hyperplasia (P=0.029), lighter weight (P=0.002), smaller volume (P<0.001), and less PCNA staining (P=0.004) (Table 7).

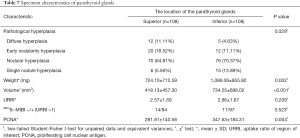

Table 7 Specimen characteristics of parathyroid glands
Full table

At the end of the study, the AUC of the ROC curves showed a URRI evaluative value of 0.771 (Figure 5A, Table 8) for diffuse and nodular types in the 216 PGs (P<0.001). During the evaluation of the nodular subtype (distinguishing between nodular hyperplasia and single nodule), the URRI evaluative value even reached 0.819 (Figure 5B, Table 9), which was higher than the volume or weight in 167 nodular-type PGs (P<0.001).

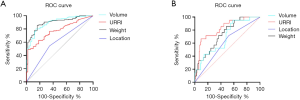

Figure 5 ROC curves demonstrating (A) the accuracy of volume, URRI, weight, and location as predictors of diffuse and nodular types in 216 parathyroid glands, and (B) the accuracy of volume, URRI, weight, and location as predictors of nodular hyperplasia and single nodule in 167 parathyroid glands with nodular-type. URRI, uptake ratio of region of interest.

Table 8 Evaluative performance for a nodular type in 216 parathyroid glands
Full table

Table 9 Evaluative performance for a single nodule in 167 nodular-type parathyroid glands
Full table

Discussion

Surgical treatments play a key role in the management of SHPT (5,17-19), and preoperative positioning of hyperplastic PGs is crucial for surgical treatment. The importance of ^99mTc-MIBI imaging in SHPT has been well documented in numerous studies and guidelines (13,20,21). It is worth noting that ^99mTc-MIBI-guided parathyroidectomy can better assist surgeons in locating parathyroids more easily, removing all hyperplastic parathyroids, as well as improving PTH, blood calcium, and phosphorus levels (22). We have been investigating the relationship between ^99mTc-MIBI imaging semi-quantitative analysis and hyperplastic PGs, applying this to clinical practice to improve the diagnosis and treatment of SHPT patients.

Initially, we found that patients with ^99mTc-MIBI-negative PGs (particularly those with more than one negative PG) often show lower PTH levels and lower intraoperative parathyroid gland hyperplasia (PGH). Most of the ^99mTc-MIBI-negative PGs were close to normal in pathological hyperplasia. These results confirm our hypothesis: patients with ^99mTc-MIBI-negative PGs demonstrate lower serum phosphorus and iPTH levels preoperatively, while patients with all positive PGs imaging exhibit more severe SHPT. In addition, the difficulty of surgery is greatly reduced for surgeons when a patient's preoperative ^99mTC-MIBI imaging clearly shows the PG locations. Therefore, combining the specific characteristics of each patient (including preoperative iPTH, state of dialysis and kidney transplantation, drug resistance, etc.) with their ^99mTc-MIBI imaging can help doctors determine the need for surgery and the optimal operation time. Moreover, it can also avoid unnecessary total or SPTX due to no PG being found, and increase the success rate of surgery.

For SHPT patients, hypocalcemia is one of the most common complications after PTX (23). Although we have given priority to the postoperative monitoring and management of serum calcium levels, the incidence of hypocalcemia after PTX remains high (24,25). Hypocalcemia is the reduction of calcium from circulation (26). Severe hypocalcemia can cause bone loss, tremors in the hands and feet, cardiac arrhythmia, and sudden death, and therefore, early prevention and prompt treatment are required.

Patients who underwent TPTX+AT were followed up, and we found that ^99mTc-MIBI-positive PG(s) patients showed lower serum calcium levels at 6 months postoperatively compared to ^99mTc-MIBI-negative PG(s) patients. Therefore, we conducted further analysis to quantify the ^99mTc-MIBI imaging of the PGs, and subgroup analysis was performed according to the occurrence of hypocalcemia (at 6 months postoperatively). Further verification showed that the patients’ URRI max and URRI total (collectively referred to as URRI) were negatively correlated with serum calcium levels 6 months postoperatively. Patients with higher URRI values were more likely to have hypocalcemia at 6 months postoperatively than patients with lower URRI values. This indicates that patients with obvious ^99mTc-MIBI scintigraphic visualization have a worse prognosis, and timely medical operations should be performed for these patients.

In general, both SPTX and TPTX+AT require selecting the partial PG tissue with the lowest degree of hyperplasia among all PGs for preservation in situ or autotransplantation (27,28). According to the classification of pathological hyperplasia of the PG in SHPT, hyperplastic PGs are divided into two types: diffuse type (which has a lower degree of hyperplasia) and nodular type (which have a higher degree of hyperplasia). The diffuse type includes diffuse hyperplasia and early nodular hyperplasia, while the nodular type includes nodular hyperplasia and a single nodule (29). The hyperplastic parathyroid tissue is heterogeneous. Removal of PGH by intraoperative frozen section diagnosis cannot represent transplanted PGH. When performing SPTX, the selected PG needs to be preserved in situ, which increases the difficulty in evaluating the degree of hyperplasia. All of the above factors could interfere with our judgment of the hyperplastic degree of the partial gland to be left. Typically, in clinical practice, the partial PG to be left is chosen based on an intraoperative frozen diagnosis of another partial PG that has been resected, combined with visual judgment or even intraoperative magnification judgment (27,30). In this study, we found that the analysis of ^99mTc-MIBI imaging helps in evaluating the degree of PGH before surgery and selecting the partial parathyroid tissue (with the lowest degree of hyperplasia) for preservation in situ or autotransplantation in surgery.

During the embryonic development of PGs, inferior PGs originate from the third pharyngeal pouches, while the superior PGs originate from the fourth pharyngeal pouch. Therefore, the anatomical origins of the superior and inferior PGs differ (31,32), which drew our attention to the difference between the superior and inferior PGs. We found that the superior PGs tended to have a lighter weight, smaller volume, lower PCNA expression, and lower degree of hyperplasia. Our preoperative ^99mTc-MIBI imaging showed that the degree of visualization of the superior PGs was lower, consistent with previous research (33). This may be due to the effect of hemodynamics, gravity, and a relatively narrow growth area, leading to slower pathological growth in the superior PGs than in the inferior PGs (32). From this perspective, we could select the superior PGs for preservation if a dilemma in selecting PG arises intraoperatively.

Analysis of the 216 PGs of 54 patients verified our hypothesis that ^99mTc-MIBI imaging is associated with the pathological characteristics of the PGs in SHPT, including weight, volume, PCNA expression, and degree of pathological hyperplasia. Therefore, evaluating the degree of PGH by preoperative ^99mTc-MIBI imaging could help to select the PG and leave it in situ following specific conditions during the operation. Our study implied that when the degree of pathological hyperplasia of the PGs was divided into three types: nodular hyperplasia, single nodule, and diffuse type (including diffuse hyperplasia and early nodular hyperplasia), the URRI had a better evaluative value for the degree of PGH (AUC =0.771). Meanwhile, the 167 PGs of the nodular type were divided into nodular hyperplasia and single nodule, the URRIs evaluative value of PGH was better than that of the naked eye on the appearance of the PG (including weight, volume, etc.). It is worth noting that this information could be obtained through ^99mTc-MIBI imaging preoperatively, which could help achieve optimal preoperative preparation.

However, this study has several limitations that should be noted. In terms of design, due to the limitations of diagnosis and treatment standards, we had to select the partial parathyroid tissue (with the lowest degree of hyperplasia) for autotransplantation according to the surgeon’s experience. The design of a prospective control study to compare different ^99mTc-MIBI imaging accumulations is against the ethics and guidelines. Also, the sample size in this study was relatively small, and it was a single-center study. Considering these limitations, we hope to conduct a prospective randomized controlled study with large sample size and long follow-up period in the future to confirm our research conclusions.

Conclusions

In general, in addition to the parathyroid location, the ^99mTc-MIBI scintigraphy results were related to the serum calcium level at 6 months after TPTX+AT, suggesting the occurrence of hypocalcemia (6 months after TPTX+AT). More importantly, this technique effectively evaluates the pathological hyperplasia of the PGs preoperatively, and therefore, could assist surgeons in selecting the PG with the lowest degree of hyperplasia intraoperatively.

Acknowledgments

Funding: This study was supported by grants from the National Natural Science Foundation of China (No. 81772853, 81972495, and 81902719), the National Natural Science Foundation of Zhejiang (No. LY18H160012 and LQ18H120002), and the Key Project of Scientific and Technological Innovation of Zhejiang Province (No. 2015C03031).

Footnote

Conflicts of Interest: All the authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-21-66). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and was approved by institutional of Clinical Research Ethics Committee of the First Affiliated Hospital, Zhejiang University School of Medicine (No. IIT20200715). The requirement for individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
