Can virtual touch tissue imaging quantification be a reliable method to detect anterior talofibular ligament type I injury at the acute, subacute, and chronic stages?

Introduction

As one of the most important joints in the human body, the ankle joint is responsible for supporting body weight and maintaining the motion stability of the foot-shank complex. However, when an ankle sprain occurs, the above joint properties can be strongly affected by structural damage, such as ligament injuries. An ankle sprain is a very common injury (1-3) and often involves the periarticular ligaments, including the anterior talofibular ligament (ATFL), which is one of the most vulnerable ligaments (4). However, ATFL injuries are often unrecognized and underrated (5). ATFL injuries can be classified into the following 3 types (6): type I, ligament presents with an interstitial tear, without macroscopic disruption; type II, partial tear; and type III, complete tear. Due to its mild clinical symptoms, type I is the most neglected injury. An injured ATFL may increase ligament laxity (7,8), which has a close relationship with recurrent ankle sprains and chronic ankle instability (CAI) (9-11). The latter can lead to more troublesome complications, such as post-traumatic osteoarthritis (12), and adversely affect patients’ quality of life. Thus, researchers need to investigate specific tissue changes within injured ATFLs and attempt to identify which of these changes are related to ligament laxity.

To date, the vast majority of studies have focused on ATFL morphological changes (13-16), including changes to ligament thickness, length, width, continuity, and cross-sectional area. Several studies have explored the possible correlation between ATFL structural changes and ankle joint stability. Some investigators (14) have found that injured ATFLs were longer and thicker than healthy ATFLs. Other researchers (16) have shown that chronic ankle sprain patients have a significantly greater ATFL area than control subjects. However, to date, there has been little research on ligament stiffness.

Virtual touch tissue imaging quantification (VTIQ) is a non-invasive ultrasonic palpation method used to take quantitative measurements of tissue stiffness. For decades, VTIQ has been well established in the diagnostics of several fine structures, such as the skin (17), tendons (18,19), and nerves (20). In this study, we sought to examine the efficacy of using the VTIQ technique as a method for differentiating between injured and non-affected ATFLs from the viewpoint of tissue stiffness. In this study, patients with ATFL type I injury were selected as research subjects, and differences between injured and non-affected ATFL stiffness at different injury phases were specifically analyzed.

Methods

Patients

The study was conducted following the Declaration of Helsinki (as revised in 2013). The Medical Ethics Committee approved this study of The Second Affiliated Hospital of Wenzhou Medical University (approval number: 2019-03), and individual consent for this retrospective analysis was waived. We retrospectively reviewed patients who visited our hospital from October 2018 to October 2020 and identified patients who had undergone ankle ultrasonography and magnetic resonance imaging (MRI) at the time of their visit. Patients’ medical records and imaging data were retrieved from the hospital database server using the search term “ATFL type I injury”.

To be eligible to participate in the study, patients had to meet the following inclusion criteria: (I) have ankle ultrasonography and MRI results showing a unilateral ATFL type I injury. An ATFL presented with stretching and interstitial tearing on MRI was classified as a type I injury (21). An experienced musculoskeletal radiologist made the MRI interpretations and diagnoses; (II) have failed to seek medical attention or accept treatment promptly. Conversely, patients were excluded from the study if they met any of the following exclusion criteria: (I) had a systemic disease that had an impact on the physiological characteristics of the ligament, including rheumatoid arthritis, systemic lupus erythematosus, diabetes mellitus, or gouty arthritis; (II) had a neuromuscular disease, including peripheral neuropathy, syringomyelia, or amyotrophic lateral sclerosis; and/or (III) had incomplete clinical data.

In total, 206 patients were reviewed retrospectively in the study (Table 1). The patients were categorized into one of the 3 following groups based on the time since the last ankle sprain: (I) the acute injury group, within 3 days (median time: 2 days) (81 cases); (II) the subacute injury group, between 3 and 30 days (median time: 19 days) (69 cases); and (III) the chronic injury group, more than 30 days (median time: 120 days) (56 cases).

Table 1 Characteristics of acute, subacute, and chronic ATFL type I injury cases
Full table

Ultrasound examination procedure

An ankle ultrasound examination was performed using ACUSON Oxana2 ultrasonic diagnostic apparatus (Siemens Medical Solutions USA, Inc. 685 East Middlefield Road. Mountain View, CA 94043, USA) equipped with a VTIQ mode and a 9L4 linear array transducer (7–9 MHz).

During the examinations, each patient was instructed to rest on the flat surface of the examination table in a seated position and flex their hip to 45 degrees and their knee to 90 degrees to produce an ankle internal rotation of about 25 degrees (22) (Figure 1A). In this ankle position, the ATFL was stretched moderately to observe its continuity and echogenicity better. The ultrasound probe was placed on the surface of the lateral malleolus, with one end on the fibular malleolus and the other end on the talus (Figure 1B). The probe was adjusted to ensure it was as parallel as possible to the long axis of the ATFL. During the VTIQ imaging, considerable care was taken to avoid applying pressure to the ligament. Following image stabilization, a shear wave velocity (SWV) measurement was taken using a region of interest (ROI) of 1 mm ×1 mm. The ROI was placed in the central region of the ATFL (Figure 1C). 3 ROIs were sampled per image. For each ATFL, 6 different images were acquired. The average value was selected for statistical analysis. An experienced musculoskeletal ultrasonography technician took all the ATFL SWV measurements.

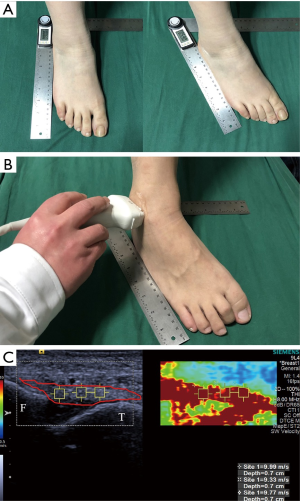

Figure 1 Patient position during the examination and the schematic diagram for ATFL SWV measurement using the VTIQ technique. (A) Patients were instructed to flex the feet internal rotation to 25 degrees. Angles were measured using a ruler. (B) An ultrasound probe was placed on the surface of the lateral malleolus, with one end on the fibular malleolus and the other on the talus. (C) SWV of ATFL was measured using the VTIQ technique with an ROI of 1 mm ×1 mm. The ROI was placed in the central region of ATFL. Red lines mark the outline of the ATFL. T: tibia; F: fibula. ATFL, anterior talofibular ligament; SWV, shear wave velocity; VTIQ, virtual touch tissue imaging quantification; ROI, region of interest.

Statistical analysis

Before statistical testing, a Shapiro-Wilk test was performed to test the variables for normality. Continuous values with normal distribution were presented as mean ± standard deviation (SD). We compared the SWV values of the injured ATFLs among the acute, subacute, and chronic groups and the non-affected ATFLs, using a one-way analysis of variance followed by a Fisher’s least significant difference (LSD) post-hoc test. Next, the SWV values of the injured ATFLs were compared to those of the non-affected ATFLs in each group using an independent samples t-test. The validity of the ATFL SWV in the diagnosis of ATFL type I injury was estimated by the receiver operator characteristics (ROC) curve, cut-off values, sensitivity, specificity, and area under the curve (AUC) with a 95% confidence interval (CI). The categorical data were compared using a Chi-square test. A P value less than 0.05 indicated a statistically significant difference. All the above-mentioned statistical analyses were performed using SPSS (IBM, Chicago, IL, USA), version 22.0. The power calculation was performed using PASS (NCSS, LLC. Kaysville, Utah, USA) version 15.0.5.

Results

The average SWV of the injured ATFL was 4.09±1.15 m/s in the acute ATFL injury group, 5.60±1.39 m/s in the subacute ATFL injury group, and 7.74±1.44 m/s in the chronic ATFL injury group (F=132.237; P<0.001; Power =100.00%). The acute injury group had significantly lower ATFL SWV than the subacute injury group (LSD-t =−6.726; P<0.001) and the chronic injury group (LSD-t =−16.260; P<0.001). The ATFL SWV of the subacute injury group was significantly lower than that of the chronic injury group (LSD-t =−8.919; P<0.001) (Figure 2). There were no significant differences in the SWV values of the non-affected ATFLs among the acute, subacute, and chronic ATFL injury groups (F=0.162; P=0.850; Power =7.33%). The average SWV of the injured ATFL was significantly lower than that of the non-affected ATFL in the acute ATFL injury group (4.09±1.15 vs. 7.50±1.12 m/s; t=–18.997; P<0.001; Power =100.00%). Similarly, the average SWV of the injured ATFL was significantly lower than that of the non-affected ATFL in the subacute ATFL injury group (5.60±1.39 vs. 7.53±1.06 m/s; t=–8.557, P<0.001; Power =100.00%). However, for the chronic ATFL injury group, there was no significant difference in the SWV values between injured and non-affected ATFLs (7.74±1.44 vs. 7.61±1.30 m/s; t=0.522; P=0.603; Power =12.59%).

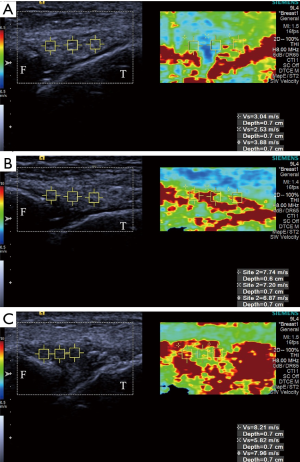

Figure 2 Injured ATFL in each group. ATFL SWV was measured using the VTIQ technique. (A) Injured ATFL in the acute group; the measured SWV was 2.53–3.88 m/s. (B) Injured ATFL in the subacute group; the measured SWV was 6.87–7.74 m/s. (C) Injured ATFL in the chronic group; the measured SWV was 5.82–8.21 m/s. T: tibia; F: fibula. ATFL, anterior talofibular ligament; SWV, shear wave velocity; VTIQ, virtual touch tissue imaging quantification.

Concerning the validity of the ATFL SWV as a predictor of acute and subacute ATFL type I injury, the ROC curve analysis showed that the best cut-off point for the SWV was 6.165 m/s, with 84.3% sensitivity, 88.5% specificity, and an AUC of 0.93 (95% CI, 0.90–0.95) (Figure 3).

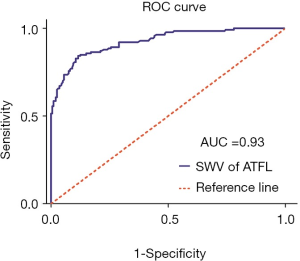

Figure 3 The ROC curve of ATFL SWV for detecting acute and subacute ATFL type I injury with sensitivity as the vertical coordinate and 1-specificity as the horizontal coordinate. The best cut-off point for SWV was 6.165 m/s, with 84.3% sensitivity, 88.5% specificity, and an AUC of 0.93 (95% CI, 0.90–0.95). ROC, receiver operator characteristics; ATFL, anterior talofibular ligament; SWV, shear wave velocity; AUC, area under the curve; CI, confidence interval.

Discussion

The ATFL, the calcaneofibular ligament, and the posterior talofibular ligament form the lateral ankle ligament complex. It is a flat, quadrilateral ligament composed of 2 or 3 bands or may be fasciculated (23). Compared with the other 2 ligaments, the structure of the ATFL is relatively weak (4). The ATFL extends from the anterior margin of the fibular malleolus, running forward and medially, forms a tent-like structure over the talus, and then attaches to the front of the lateral articular facet and the neck of the talus (24). Due to its structure and attachment position, the ATFL plays an important role in restricting the internal rotation of the talus (25). However, at the same time, the ATFL is vulnerable to injury in excessive ankle joint varus (26). An abnormal ATFL is thought to contribute to ligament laxity and CAI (7). Thus, it is necessary to evaluate the ATFL in patients with an ankle sprain. An accurate and timely diagnosis could provide a good foundation for a patient’s future treatment.

Currently, many diagnostic methods are available for detecting ATFL injury. Several of these methods, including stress radiography, MRI, ultrasonography, arthrography, and arthroscopy, are quite mature and have already been widely used in clinical practice (27,28). The majority of these methods focus on the external morphological changes of the injured ATFL. However, some of the methods have limitations. For example, while arthroscopy is used as the reference standard, it is invasive and operator-dependent (29), and while MRI has high specificity for diagnosing ATFL injury, its requirements for body position are relatively strict (30). Thus, we decided to examine the injury from the perspective of tissue changes inside an injured ligament. The VTIQ technique was applied in this study, which allows for quantitative measurements of tissue stiffness in a non-invasive manner.

To date, very few studies appear to have been conducted on ATFL stiffness. Hotfiel et al. (31) assessed ATFL stiffness in healthy athletes using a virtual touch tissue quantification (VTQ) technique and found that the average ATFL SWV was about 1.79±0.20 m/s for all participants, 1.72±0.36 m/s for females, and 1.85±0.31 m/s for males (31). Conversely, this work showed that the average SWV of the non-affected ATFL was 7.50±1.12 m/s in the acute group, 7.53±1.06 m/s in the subacute group, and 7.61±1.30 m/s in the chronic group. There could be several reasons for the differences between the present study results and those of Hotfiel et al. First, and presumably, the most important, the differences may be related to the different techniques used in each study. VTQ has a fixed-size ROI of 6 mm ×5 mm, which may be too large for ATFL measurements. The surrounding soft tissues of the ATFL within the ROI might obscure the stiffness of the ligament, resulting in an underestimate of the SWV value of the ATFL.

Conversely, VTIQ has a manually adjustable ROI, whose minimum achievable size is 1 mm ×1 mm; thus, it is especially accurate for small structures and allows for targeted multi-point measurements. Additionally, the results obtained using the VTIQ technique may be more reflective of actual ATFL stiffness. Second, the range of measurement of the VTIQ (0.5–10 m/s) is broader than that of the VTQ, which ensures that the SWV value in the ROI is not too high to be measured (32). Third, different ankle positions may also affect the results. In Hotfiel et al.’s study, the patient’s ankle was placed in a neutral position, while in the present study, the internal rotation of the ankle joint was performed. Compared to the neutral position, additional stretch stress is loaded onto the ATFL in the stretch position, and this stress could cause some changes in ATFL stiffness.

In the present study, the acute injury group had a significantly lower ATFL SWV (4.09±1.15 m/s) than that of the subacute injury group (5.60±1.39 m/s) and the chronic injury group (7.74±1.44 m/s). The ATFL SWV in the subacute injury group was significantly lower than that of the chronic injury group. These results indicate that the stiffness of injured ATFLs varies at different stages. The varied stiffness of the ligament observed in this study may be associated with pathological changes in different disease courses. Following an acute trauma, the inflammatory process sets in, and a variety of inflammatory mediators are released at the injured site, resulting in ankle pain and swelling (33). These acute-phase responses will be weaker in the subacute phase and gradually subside in the chronic phase in the absence of a new-onset trauma. Given this, we suggest that ligament stiffness can be accurately evaluated using the VTIQ technique, which could in part reflect the pathological condition of the injured ATFL.

In addition, our study showed that injured ATFLs had significantly lower SWV values than those of non-affected ATFLs in the acute and subacute groups; however, no significant difference was found for the chronic group. Our view that the stiffness differences between the injured and non-affected ATFLs are associated with pathological changes in the ligament after injury. This finding supports a similar trend found in previous studies. Notably, Rosskopf et al. (34) found that the mean total SWV of the supraspinatus muscle in patients with the symptomatic shoulder was lower than that in healthy volunteers. Hou et al. (35) found that the SWV of the deltoid muscle was lower in painful shoulders than in asymptomatic shoulders. VTIQ can identify the stiffness differences between injured and non-affected ATFLs in the acute and subacute phases. Concerning a chronic injury, possibly because of the subsidence of tissue edema, the injured ligament tissue gradually recovers to the original dense state.

Consequently, the stiffness difference between injured and non-affected ATFLs cannot be assessed using the VTIQ technique. Further, it is also possible that stiffness differences between injured and non-affected ATFLs in the chronic group do exist. However, due to the small sample size, the power may have been too low to detect this difference in the present study. In this respect, we believe that before drawing a reliable conclusion for the chronic ATFL type I injury, studies with a larger sample size need to be conducted in the future. However, taken together, our results suggest that VTIQ can be used to identify acute and subacute ATFL type I injury.

This study also tested the validity of the ATFL SWV as a predictor of acute and subacute ATFL type I injury. The results obtained from ROC analysis showed that ATFL SWV had high sensitivity and specificity, which further indicates that the VTIQ technique is a reliable method for diagnosing ATFL injury.

The current study had several limitations. First, it was a single-center study, and the case numbers were relatively small, especially those for the chronic ATFL type I injury cases. More patients need to be included in future research. Second, as this study undertook a retrospective analysis and one examiner collected the data, we could not calculate the inter-observer variability. Third, the effect of the ankle position on the VTIQ results was unable to be assessed. Future prospective studies need to provide a more comprehensive and reliable basis for the application of VTIQ.

Conclusions

In conclusion, the VTIQ technique can be used as an additional diagnostic tool for identifying acute and subacute ATFL type I injury and represents a new approach for tracking the development of a ligament injury. However, further research needs to be undertaken on chronic ATFL type I injury.
