Traumatic right diaphragmatic rupture with hepatothorax: a diagnostic challenge!
Letter to the Editor

Traumatic right diaphragmatic rupture with hepatothorax: a diagnostic challenge!

Awaji Qasim AL-Naemi1, Liaqat Ali Khan1, Ibrahim AL-Naemii1, Khadija Amin1, Musa Tumaihi1, Zhonghua Sun2

1Department of General and Laparoscopic Surgery, Sabya General Hospital, Jazan 3261300, Kingdom of Saudi Arabia; 2Department of Medical Radiation Sciences, Curtin University, Perth 6845, Australia

Correspondence to: Awaji Qasim AL-Naemi. Department of General and Laparoscopic Surgery, Sabya General Hospital, Jazan 3261300, Kingdom of Saudi Arabia. Email: awaji10@hotmail.com.

Submitted Jun 16, 2015. Accepted for publication Jul 07, 2015.

doi: 10.3978/j.issn.2223-4292.2015.07.04


Traumatic injuries of the diaphragm remain an entity of difficult diagnosis especially when it comes to the right diaphragm. It is a recognized consequence of high velocity blunt trauma to the abdomen, usually as a result of road traffic collisions or lateral intrusions into the vehicle and occasionally, penetrating thoraco-abdominal trauma. It has been reported that the rate of initial missed diagnosis of traumatic diaphragmatic injury ranges from 12% to 63% on CT (1). A missed diagnosis is associated with a mortality of 30% to 60% due to late presentation of intrathoracic visceral herniation and strangulation (2,3). After a high speed motor vehicle accident, a 30-year-old Saudi male was received in the trauma room. He was confused, hypotensive and in respiratory distress. The initial diagnostic work-up included chest X-ray and full body non-contrast spiral CT scan, revealing fracture of the nasal bone and right hemothorax. No other radiological findings were detected in the initial assessment. Due to an assumed massive right-sided hemothorax (Figure 1), a thoracic tube was inserted and 750 mL of blood coming in the chest drain. After initial stabilization the patient was then transferred to the surgical unit of Sabya General Hospital, Saudi Arabia.

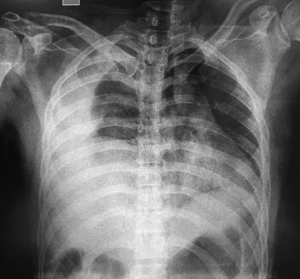

Figure 1 Chest radiograph shows an elevated right hemi-diaphragm with high density in the right thorax indicating presence of massive pleural effusion.

On admission, the patient was hemodynamically stable. His conscious level improved, maintaining saturation at room air. The routine review of the provided copies of the spiral CT scan showed a displacement of the liver into the right hemithorax (Figures 2,3), indicating liver herniation on the right side producing high-density appearance which is similar to the hemothorax due to right diaphragmatic rupture. Surgery was planned via thoracic approach for which the patient was shifted to nearby tertiary centre where repair of the right diaphragm was done by a thoracic surgeon. The patient remained in a good condition without developing any thoracic or abdominal complications.

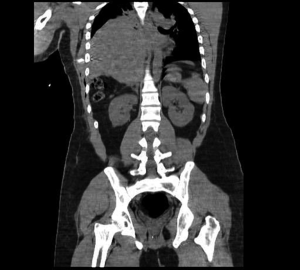

Figure 2 Coronal reformatted CT image demonstrates displacement of the liver into the right thorax indicating the herniated liver due to right diaphragmatic rupture.

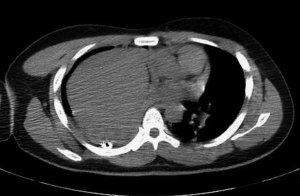

Figure 3 2D axial CT image shows displacement of the liver into the right thorax without clear appearance of the right diaphragm.

CT is currently the method of choice in the emergency department with high diagnostic accuracy in imaging traumatic condition (4). Furthermore, reviewing more images including different views such as multi-planar reformation increases the diagnostic value of CT, thus, leading to reduction of frequency of missed diagnosis.


Acknowledgements

None.


Footnote

Conflicts of Interest: The authors have no conflict of interest to declare.


References

  1. Panda A, Kumar A, Gamanagatti S, Patil A, Kumar S, Gupta A. Traumatic diaphragmatic injury: a review of CT signs and the difference between blunt and penetrating injury. Diagn Interv Radiol 2014;20:121-8. [PubMed]
  2. Nchimi A, Szapiro D, Ghaye B, Willems V, Khamis J, Haquet L, Noukoua C, Dondelinger RF. Helical CT of blunt diaphragmatic rupture. AJR Am J Roentgenol 2005;184:24-30. [PubMed]
  3. Chen HW, Wong YC, Wang LJ, Fu CJ, Fang JF, Lin BC. Computed tomography in left-sided and right-sided blunt diaphragmatic rupture: experience with 43 patients. Clin Radiol 2010;65:206-12. [PubMed]
  4. Sun Z, Ng KH, Vijayananthan A. Is utilisation of computed tomography justified in clinical practice? Part I: application in the emergency department. Singapore Med J 2010;51:200-6. [PubMed]
