Left atrial strain measured by 4D Auto LAQ echocardiography is significantly correlated with high risk of thromboembolism in patients with non-valvular atrial fibrillation

Introduction

Atrial fibrillation (AF), the most common form of persistent arrhythmia, has been found to increase the risk of ischemic stroke by a factor of 4 to 5 on average while increasing cardiac mortality by a factor of 2 (1). This condition endangers patients’ lives and greatly affects their life quality (2). The prevention of complications related to AF, such as stroke, is an important component in its comprehensive management. The CHA₂DS₂-VASc [congestive heart failure, hypertension, age ≥75 years, diabetes mellitus, stroke or transient ischemic attack (TIA), vascular disease, age 65 to 74 years, sex category] score is the most common method for stratifying thromboembolism risk in patients with AF, and it is also used to inform decisions on anticoagulation therapy. As men with CHA₂DS₂-VASc scores ≥2 and women with CHA₂DS₂-VASc scores ≥3 are high-risk groups for thromboembolism, anticoagulant therapy should be considered for these patients (3,4). However, this score is only based on clinical risks and does not take into account the structure or function of the left atrium (LA). Studies have reported that AF can aggravate LA remodeling, including LA structure, function, as well as electrophysiological remodeling (5,6). Moreover, LA remodeling is closely correlated with ischemic stroke (7,8).

LA strain (LAS) measured by speckle tracking echocardiography (STE) has been used by many scholars to study LA function (9,10). However, despite the value of STE (11,12), its clinical applications are limited by the thin-walled structure of the LA, irregular arrangement of the LA myocytes (13), and intervendor variability (14).

The 4-Dimensional Automated Left Atrial Quantification (4D Auto LAQ) tool is an LA analysis technique that uses 3D volume data to determine the volume and LA ejection fraction (LAEF) as well as LA longitudinal and circumferential strains. The present study aimed to evaluate the correlation between LAS, as measured by 4D Auto LAQ, and thromboembolism risk, as defined by CHA₂DS₂-VASc scores in patients with non-valvular atrial fibrillation (NVAF). Moreover, we quantitatively defined the LAS parameters that are independent high risk factors for thromboembolism, and established their cut-off points so as to inform decisions on clinical anticoagulation therapy in patients with NVAF.

Methods

Study population

This single-center retrospective study obtained ethical approval from the Second Affiliated Hospital of Nanchang University. The procedures used conformed to the standards of the World Medical Association Declaration of Helsinki (as revised in 2013). Between August 2019 and June 2020, 136 patients with AF were admitted to the Department of Cardiology of the Second Affiliated Hospital of Nanchang University. Patients with NVAF who did not have moderate-to-severe mitral stenosis or the presence of mechanical prosthetic heart valves were enrolled in the study. After relevant examinations, CHA₂DS₂-VASc assessment was performed by experienced cardiologists. Among the participants recruited, 51 patients were excluded due to having atrial septal defect (n=5), valvular disease (n=7), or poor-quality echocardiographic images (n=16). Patients with NVAF who were not in sinus rhythm during imaging were also excluded (n=23). Eventually, 85 patients with NVAF were included in the study.

Embolism risk score

Comorbid conditions such as heart failure, stroke, diabetes, age, female sex, hypertension, and vascular disease were considered when risk-stratifying the participants for embolism according to the CHA₂DS₂-VASc criteria. One point each was assigned for hypertension, congestive heart failure, diabetes, vascular disease (peripheral arterial disease and prior myocardial infarction), age (65–74 years), and female sex. Two points each were assigned for age >75 years, systemic embolism, stroke, and TIA. Based on the score, participants were allocated into either the thromboembolism high-risk group (n=39; males with CHA₂DS₂-VASC ≥2 and females with CHA₂DS₂-VASC ≥3) or the low-risk group (n=46; males with CHA₂DS₂-VASC <2 and females with CHA₂DS₂-VASC <3). Participants were examined by routine echocardiography and 4D Auto LAQ analysis.

Image acquisition

The GEvivid E95 ultrasonic diagnostic instrument (GE Healthcare; Vingmed Ultrasound, Horten, Norway) with an M5S probe (frequency: 1.5–4.6 MHz) and 4V probe (frequency: 1.5–4.0 MHz) was used for imaging. All participants underwent a complete transthoracic echocardiogram examination with the M5S transducer to determine cardiac structure, chamber size, mitral regurgitation, and cardiac function according to the current guidelines of the American Society of Echocardiography (15). The left ventricular ejection fraction (LVEF) was measured by the improved biplane Simpson method. All participants then underwent 3D echocardiographic examination using a 4V transducer. The image was optimized to obtain the full volume data of the whole LA under the apical 4-chamber view. Five heartbeat acquisition settings were used to obtain the dataset, and the frame rate was adjusted to 40% of the heart rate. Participants were encouraged to hold their breath at the end of breath (either ‘inhalation’ or ‘exhalation’) when feasible. At least 4 datasets were obtained for each participant, with the 3 best-quality data sets being selected for offline analysis. Datasets with part of the LA missing, blurred endocardial boundaries, or obvious suture artifacts were excluded.

During echocardiographic acquisition, the patients were in sinus rhythm. High-quality images were collected, so as to enhance the accuracy and repeatability of the measurements.

Principles of 4D Auto LAQ

A semi-automated segmentation algorithm was used for volume calculation. The algorithm was initialized with 1 landmark located in the center of the mitral valve (MV) at the annulus level. The segmentation algorithm computes the deformation of the 3D model by solving a state estimation problem using an extended Kalman filter that combines the LA motion model, geometry, and edge detection algorithms. Strain was calculated based on changes in the lengths of different lines along each anatomical direction. To calculate longitudinal strain, 8 longitudinal lines (Figure 1A), each connecting 2 opposite LA basal points, were sampled from an automatically constructed triangular mesh. To calculate circumferential strain, 7 circumferential lines (Figure 1B) that were equidistantly distributed between the LA base and the LA apex were used. The strain time was then calculated for each frame s(t) = (L(t) – L(tr))/L(tr) x 100%, in which L(t) is the line length at time t and tr is the time of the left ventricular end diastole (ED). Global strain was calculated as the average strain of the respective directional lines of each direction.

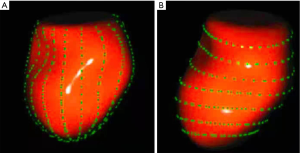

Figure 1 Schematic diagram of measuring left atrial strain by the 4-Dimensional Automated Left Atrial Quantification (4D Auto LAQ) tool. (A) The longitudinal line points for longitudinal strain calculation; (B) the circumferential line points for circumferential strain calculation.

4D Auto LAQ analysis

Images were imported into the EchoPAC203 software (GE Healthcare) and selected for analysis. The analysis mode was entered, and the volume and 4D Auto LAQ sub-mode were sequentially selected. After that, the sampling point was placed in the middle of the mitral orifice in the 3 planes. The ‘review’ function was selected to obtain the LA parameters, including volume and strain parameters, measured by 4D Auto LAQ, (Figure 2 and Video 1).

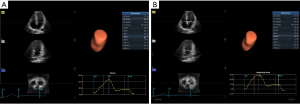

Figure 2 Left atrial volume curve and strain curve measured by the 4-Dimensional Automated Left Atrial Quantification (4D Auto LAQ) tool. (A) The volume curve; (B) The strain curves.

Volume parameters were volume at onset of LA contraction (LA VpreA) and LAEF, while LAS parameters were longitudinal and circumferential strains. The reference point was set at the left ventricle ED. During the reservoir phase, the LA wall lengthened, so the strain in this phase had a positive value. In the other 2 phases, the LA wall shortened, so the strains in these phases had negative values. LA longitudinal strain parameters obtained using this technique included LA reservoir strain (LASr), LA conduit strain (LAScd), and LA contraction strain (LASct), and LA circumferential strain parameters obtained included LA reservoir circumferential strain (LASr-c), LA conduit circumferential strain (LAScd-c), and LA contraction circumferential strain (LASct-c).

The longitudinal strain during the reservoir phase (LASr) is the difference of the strain value at MV opening minus ventricular ED; the longitudinal strain during the conduit phase (LAScd) is the difference of the strain value at the onset of atrial contraction (PreA) minus MV opening; the longitudinal strain during the contraction phase (LASct) is the difference of the strain value at ventricular ED minus onset of atrial contraction; LASr-c is the difference of the strain value at MV opening minus ventricular ED; LAScd-c is the difference of the strain value at the onset of atrial contraction minus MV opening; LASct-c is the difference of the strain value at ventricular ED minus onset of atrial contraction; LA VpreA = Volume at onset of atrial contraction; LA EF = (Maximum atrial volume – Minimum atrial volume) / Maximum atrial volume.

Statistical analysis

Continuous variables were expressed as medians with 25–75% interquartile ranges (IQR) or means ± standard deviations (SD) according to variable distribution. The Mann–Whitney U test or independent-samples t test was used to compare medians or means between the 2 groups. The χ² test was used for comparisons of the prevalence of comorbid conditions (diabetes, hypertension, degree of mitral regurgitation, and other medical illnesses) between the 2 groups. Logistic regression analysis was used to determine predictors of high risk of thromboembolism in patients with AF. The receiver operating characteristic (ROC) curve was used to establish the critical value, which is the parameter value corresponding to the maximum Youden index value (Youden index = sensitivity + specificity-1). A P value ≤0.05 was considered to be statistically significant. Statistical analyses were performed using SPSS version 23.0 (IBM Corp., Chicago, IL, USA).

Results

Clinical characteristics

Clinical characteristics of the thromboembolism high- and low-risk groups are shown in Table 1. There were no significant differences in LVEF, body mass index (BMI), or the clinical course of NVAF between the 2 groups. The high-risk group had higher numbers of participants with hypertension, diabetes, stroke, and vascular disease than the low-risk group, but the differences in sex, heart failure, and mitral regurgitation between the 2 groups were not significant. Also, compared to the low-risk group, the high-risk group was more advanced in age.

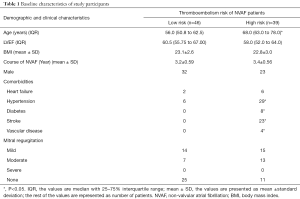

Table 1 Baseline characteristics of study participants
Full table

Univariate analysis of 4D Auto LAQ

Univariate analysis revealed that LASr [6.00% (3.00–12.00%) vs. 11.00% (7.75–18.00%); P<0.001], LASr-c [5.00% (2.00–9.00%) vs. 11.00% (6.75–21.25%); P<0.001], and LAScd-c [−7.00% (–12.00 to –2.00%) vs. –1.50% (–8.25–0.25%); P=0.005] were lower in the high-risk group than in the low-risk group. However, LASct [0.00% (–2.00–3.00%) vs. –7.00% (–10.00 to –4.75%); P<0.001] and LASct-c (1.59±5.80% vs. –11.50±3.60%; P<0.001) were higher in the high-risk group than in the low-risk group (P<0.001). LA VpreA, LA EF, and LAScd did not differ significantly between the 2 groups (Table 2).

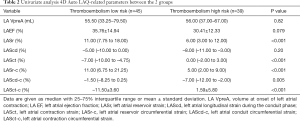

Table 2 Univariate analysis 4D Auto LAQ-related parameters between the 2 groups
Full table

Logistic regression analysis

Logistic regression analysis of patients with AF revealed that LASct-c was independently associated with a high risk of thromboembolism [odds ratio (OR): 2.52, CI: 1.27 to 4.99, P=0.008; Table 3 and Figure 3]. In patients with NVAF, LASct-c was found to be able to distinguish between high and low risk of thromboembolism, and the area under the curve (AUC) was 0.95 (P<0.001; Figure 4). The most approximate Youden index was 0.85, while the corresponding value of LASct-c was –4.5%. At this point, sensitivity and specificity were 0.872 and 0.978, respectively.

Table 3 Logistic regression analysis for the prediction of high risk of thromboembolism
Full table

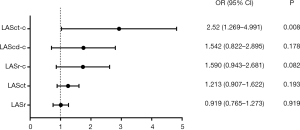

Figure 3 Logistic regression forest map of left atrial strain in non-valvular atrial fibrillation patients. OR, odds ratio; CI, confidence interval.

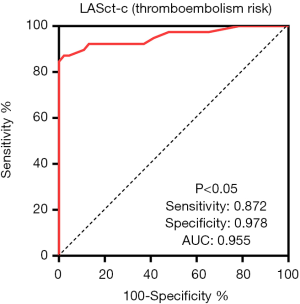

Figure 4 LASct-c ROC curve for predicting thromboembolism high risk in non-valvular atrial fibrillation patients. LASct-c, left atrial contraction circumferential strain; ROC, receiver operating characteristic; AUC, area under the curve.

Diagnostic efficacy of LASct-c for the factors in CHA₂DS₂-VASC

To establish the predictive value of LASct-c for factors in CHA₂DS₂-VASC, LASct-c was used as the test variable, with or without congestive heart failure, hypertension, age (≥65 years old), diabetes, stroke, and vascular disease as variables, and ROC curves were drawn. LASct-c was found to exhibit high diagnostic efficacy for stroke (P<0.001), with a sensitivity of 0.957 and a specificity of 0.823. LASct-c exhibited a certain accuracy in the identification of hypertension, diabetes, and age ≥65 years (P<0.001, 0.036, <0.001, respectively): the AUCs were 0.804, 0.726, and 0.765, respectively; the sensitivity was 0.77, 0.875, and 0.676, respectively; and the specificity was 0.84, 0.64, and 0.83, respectively. LASct-c did not exhibit diagnostic efficacy for heart failure or vascular diseases (P value: 0.102 and 0.378, respectively; AUC: 0.68 and 0.63, respectively; Figure 5). As female sex is not considered to be a risk factor for thromboembolism in patients with AF (16), we did not test the efficacy of LASCT-c in female participants.

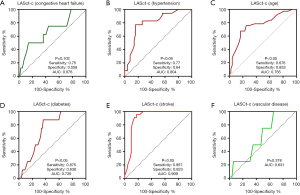

Figure 5 Diagnostic efficacy of LASct-c for the factors in CHA₂DS₂-VAS_C. (A) LASct-c ROC curve for predicting heart failure; (B) t LASct-c ROC curve for predicting hypertension; (C) LASct-c ROC curve for predicting age ≥65 years old; (D) LASct-c ROC curve for predicting diabetes; (E) LASct-c ROC curve for predicting stroke and embolism; (F) LASct-c ROC curve for predicting vascular disease. LASct-c, left atrial contraction circumferential strain; ROC, receiver operating characteristic; AUC, area under the curve; CHA₂DS₂-VAS_C, congestive heart failure, hypertension, age ≥75 years, diabetes mellitus, stroke or transient ischemic attack (TIA), vascular disease, age 65 to 74 years, sex category.

Reproducibility of 4D Auto LAQ

Repeat 4D Auto LAQ measurements of 15 randomly selected participants were taken by the same observers and by another experienced reader 2 weeks later, which allowed for the determination of intra-class correlation coefficients (ICC) as a measure of intra-observer and interobserver agreement. The ICC values ranged from 0.861 to 0.999, (Table 4), indicating good interobserver and intraobserver repeatability.

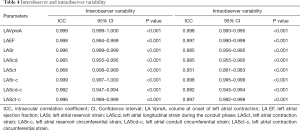

Table 4 Interobserver and intraobserver variability
Full table

Discussion

Compared to low-risk patients, patients at high risk of thromboembolism had significantly impaired LASr, LASct, LASr-c, LAScd-c, and LASct-c. However, there was no significant difference in LA volume between the 2 groups in our study. LASct-c >–4.5% could differentiate between high-risk and low-risk patients, with an AUC of 0.95 (P<0.0001). Furthermore, LASct-c exhibited high efficacy in the diagnosis of stroke, with an AUC of 0.957 (P<0.001). Therefore, strain parameters are more sensitive than volume parameters in distinguishing between thromboembolism risk in patients with NVAF. Moreover, we found LASct-c to be an independent factor for the identification of patients with NVAF who were at high risk of thromboembolism, and it was also found to be a marker for predicting the occurrence of stroke.

There are 3 phases of normal LA activity: the reservoir, conduit, and contraction phases (17). The specific temporal activity of the LA and the corresponding strain curve are as follows: After ventricular ED, the LA fills and stretches, and its strain curve increases, reaching the peak at the ventricular end-systolic (ES) phase (i.e., before the MV opening); this phase is the reservoir period of the LA. After ES, the mitral valve opens, and the LA empties quickly until its pressure is equal to that of the left ventricle; this phase is the conduit period of the LA. Then, the strain decreases and the LA contracts, further expelling blood into the left ventricle, and the strain further decreases (18); this phase is the contraction period of the LA (Figure 6).

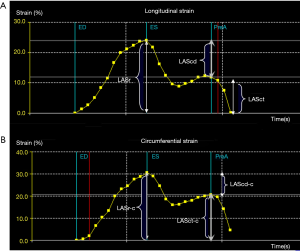

Figure 6 Strain relationship between 3 phases of left atrial activity. (A) shows the relationships among longitudinal strain parameters of the left atrium, and (B) shows the relationships among circumferential strain parameters of the left atrium.

The 4D Auto LAQ tool was specially designed for the study of the LA. It can analyze longitudinal as well as circumferential LAS, and evaluate changes in strain parameters of LA activity in different phases (Figure 6). Due to the lack of a dedicated software for LAS measured by STE, software for LV analysis has also been applied in the study of LA pattern strains. The accuracy and repeatability of LAS measurements are affected by factors such as the thin-walled structure of the LA, irregular arrangement of LA myocytes (13), oval foramen on the atrial septum, and the 4 pulmonary vein openings on the LA wall among others.

The presence of AF leads to LA remodeling, which is characterized by LA enlargement/dysfunction caused by atrial interstitial fibrosis (19). This remodeling can weaken the LA reservoir, conduit, systolic function, and even result in the loss of systolic function (20). Saha et al. reported that the global LAS, as measured by STE, decreased proportionally to the CHADS₂ risk score (21). This observation implies that the larger the number of risk factors in patients with NVAF, the more severe the impairment of LA functions. Our findings were similar for thromboembolism risk in patients with NVAF based on the CHA₂DS₂-VASC score. Compared to the low-risk group, the thromboembolism high-risk group had significantly impaired LASr, LASct, LASr-c, LAScd-c, and LASct-c. We established that LASct-c is an independent factor for identifying patients with NVAF who are at high risk of thromboembolism. It also has a certain significance for guiding the use of anticoagulation therapy in patients with NVAF. We also found that LASct-c is highly effective in the diagnosis of stroke. This may be because LASCT-c is an indicator of LA systolic function; therefore, it has higher sensitivity than the other strain parameters.

The most serious effect of AF on LA function occurs in the LA systolic phase (22), in which LA contractility is decreased due to atrial fibrosis and loss of electrical activity (13,23,24). Our previous study revealed that LA reservoir strain in the stroke group was lower than that in the non-stroke group (25), with impaired LAS being independently correlated with stroke (26). Obokata et al. reported that LAS, as measured by STE, provides an incremental value to the CHA₂DS₂-VASc score in the prediction of stroke in patients with NVAF (27). Furthermore, compared to the LA volume, measurement of LAS can be used to detect LA functions. Kuppahally et al. found that LAS and the strain rate, as measured by STE, were significantly correlated with atrial fibrosis (28). Similarly, they did not report any significant differences in LA volume parameters between Paroxysmal AF group and Persistent AF group. These studies have shown that LAS is a promising index; however, its measurement is made via STE, which has various limitations and cannot be used to obtain the circumferential strain value. However, when LAS is measured by 4D Auto LAQ, these limitations can be overcome. Further evaluation is needed to determine the value of LAS measured by 4D Auto LAQ in predicting stroke, and whether LASct-c is a better predictor of stroke than CHA₂DS₂-VASc.

The measurement of LAS by 4D Auto LAQ is extremely promising. LASct-c =–4.5 is the cut-off value for high risk and low risk of thromboembolism in patients with NVAF, and LASct-c shows high diagnostic efficacy for stroke. In conclusion, 4D Auto LAQ is a promising novel method for studying LA structure and functions.

Study limitations

This was a single-center, retrospective study. Since our sample size involved only 85 participants, some of our results may have been attributable to chance, and therefore need to be confirmed in a large-sample prospective study.

The LASct-c was found to be closely associated with stroke, hypertension, diabetes, and age ≥65 years old in the CHA₂DS₂-VASc score; therefore, it was concluded that LASct-c >–4.5% is completely equivalent to thromboembolism high risk, which cannot be completely determined.

Conclusions

LAS measured by 4D Auto LAQ is a useful index for the dynamic evaluation of LA function in patients with NVAF, and has higher sensitivity and accuracy than LA volume. LASct-c is independently associated with a high risk of thromboembolism and an LASct-c >–4.5% may be of guiding value for the use of anticoagulant therapy in patients with NVAF.
