A rare acute neck pain cause that can have misdiagnosis or missed diagnosis-crowned dens syndrome: description of two cases and a literature analysis

Introduction

The crowned dens syndrome (CDS) is a rare condition that can cause acute neck pain and restricted movement. It is manifested as microcrystalline formation due to the deposition of calcium pyrophosphate dehydrate (CPPD) or calcium hydroxyapatite (HA) around the dens. On images, especially those of computed tomography (CT), it is nodular, flaky, or annular around the dens, similar to a “crown-like calcification”, which is a specific imaging manifestation. Due to a lack of reports on this disease in Chinese literature, the clinical understanding of CDS is insufficient, often resulting in misdiagnosis or missed diagnosis. Herein, we have reported 2 cases of CDS with typical clinical histories and characteristic findings on CT and review the relevant literature.

Case description

Case 1

A 74-year-old woman was admitted to the hospital with a history of “acute head and neck pain for 1 week with fever”. A week ago, without a clear trigger, the patient suffered from head and neck tingling pain with limited neck mobility, the pain of which was intolerable. The pain was obvious when the head and neck were in motion. She had been treated in the outpatient department of our hospital for occipital neuralgia and had experienced no significant improvement after symptomatic treatment. Her physical examination findings at admission were as follows: temperature, 37.9 °C; pulse, 70 beats/min; respiration, 19 breaths/min; blood pressure, 130/70 mmHg. The patient’s symptoms were acute pain, head and neck tenderness, and restriction of movement of the neck in all directions, including rotation. Laboratory examination findings at admission were as follows: white blood cell (WBC) count, 11.32×10⁹/L (normal 4–10×10⁹/L); erythrocyte sedimentation rate (ESR) 23.6 mm/h (0–20 mm/h); C-reactive protein (CRP): 55.6 mg/L (0–6 mg/L). An unenhanced cervical spinal CT (Figure 1) showed annular high-density around the axis dens, with 183–342 HU. Annular high-density was also revealed at the dens posterior and superior aspects in sagittal and coronal multi-planar reformatting (MPR) imaging.

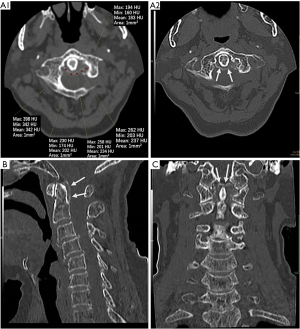

Figure 1 Case 1. Unenhanced cervical spinal CT images of a 74-year-old woman with CDS (window level: 500 HU; window width: 2,000 HU). Axial (A1, A2) CT images show lined-calcifications around the dense area (arrows), the mean CT number 183–342 HU (ROI area: 1.0 mm²) (A1). Sagittal (B) and coronal (C) MPR imaging (500 HU; 2,000 HU) shows lined-calcifications at the posterior and superior aspects of the dens (arrows). CT, computed tomography; CDS, crowned dens syndrome; ROI, region of interest; MPR, multi-planar reformatting.

The combination of clinical history and CT images led to a diagnosis of CDS. Then, the patient was treated with glucocorticoids (methylprednisolone sodium succinate, 40 mg QD, iv.gtt) and nonsteroidal anti-inflammatory drugs (NSAIDs) (diclofenac sodium, 40 mg QD, PO). After 5 days of continuous treatment, the patients’ clinical symptoms began to improve, and the symptoms were almost fully relieved on the 7^th day of admission. The WBC, ESR, hypersensitive CRP, and other indicators had also almost restored to normal by this time. The patient was followed up by telephone for 3 months, and no reappearance was noted during this period.

Case 2

A 65-year-old man was admitted to hospital due to “acute shoulder and neck pain for 4 days with slight fever”. The physical examination findings at admission were as follows: temperature, 37.5 °C; pulse, 72 beats/min; respiration, 17 breaths/min; blood pressure, 125/75 mmHg; and the patient had the appearance of being in acute pain. The findings of laboratory examination at admission were as follows: WBC count, 10.52×10⁹/L (4–10×10⁹/L); ESR 34.7.6 mm/h (0–20 mm/h); CRP: 75.2 mg/L (0–6 mg/L). An unenhanced CT of the cervical spine (Figure 2) revealed a similar resemblance to case 1: annular high-density around the dens. After 5 days of continuous treatment with glucocorticoids and NSAIDs, the clinical symptoms were gradually relieved. The laboratory examination results also became normal at this time. This patient was followed up for 2-months by telephone, without any recurrence.

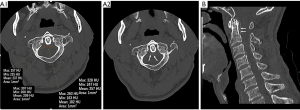

Figure 2 Case 2. The other patient with CDS, a 65-year-old man, in whom all CT findings resemble those of case 1. Axial (A1, A2) CT image unenhanced neck CT images (window level: 500 HU; window width: 2,000 HU) show lined-calcifications around the dense (A2 arrows), the mean CT number 182–257 HU (A1). Sagittal (B) MPR imaging (500 HU; 2,000 HU) shows lined-calcifications at the posterior and superior aspects of the dens (arrows). CT, computed tomography; CDS, crowned dens syndrome; MPR, multi-planar reformatting.

Discussion

In 1985, CDS was first reported and described by Bouvet et al., and hundreds of cases have since been reported, most of which have been case reports or small series case reports. A rare condition, CDS is caused by calcium salt crystal deposition, especially CPPD (1), and a few cases have been reported as having been caused by HA deposition (2). Epidemiology shows that the disease is prevalent in elderly patients, especially in older women (3), and CPPD deposition occurs easily in elderly patients, while HA deposition is more common in younger age groups(40–70 years) (4,5). A review of the published literature revealed that most cases reported are over 60 years old. In this paper, the 2 patients were 75 and 65 years old, which was consistent with most reported cases. The exact incidence of CDS is still uncertain. It is reported that about 1.9% of outpatients with head and neck pain have CDS (6), and the incidence rate of articular chondrocalcinosis is 35–45% (7). It was reported that the cases were most commonly Japanese (53%), followed by French (25%), and Italian (16.6%) (8). The risk factors of CPPD include age, osteoarthritis (OA), joint injury, metabolic disorders (hypophosphatemia, hyperparathyroidism, hemochromatosis, and hypomagnesemia), acute disease, and surgery (9,10). Trauma, ischemia, endocrine disorders (diabetes, thyroid disease), and some genetic factors may play a role in HA deposition’s pathophysiology (11).

Clinical manifestations are usually as follows (8,12-14): cervico-occipital pain (100%), neck rigidity (98%), and fever (80.4%), which is called “triad syndrome” (15). In this group, the 2 patients had been treated for acute shoulder and neck pain, with varying degrees of the neck’s restricted movement. One patient’s temperature was slightly elevated. Because the pain is very similar to that of gout caused by elevated uric acid, CDS is also known as pseudogout. The pain sometimes radiates to the shoulder, occipital, or temporal region.

Additionally, most patients have fever symptoms. Therefore, it is easy for CDS to be misdiagnosed as meningitis, arthritis, polymyalgia rheumatica (PMR), and so on. However, meningitis usually presents as meningococcal irritation; CDS, on the other hand, presents with omnidirectional neck motion restriction (including rotation); arthritis is usually manifested as joint pain, commonly in the knee and hip, wrist, and interphalangeal joints; PMR may present as an abrupt onset of proximal pain in the neck and elevated markers of ESR and CRP, but more commonly as pain in the hip, shoulder girdle, and upper extremity, which can be so severe that patients may be unable to lift their arms, rise from a chair or even get out of bed without assistance (16). Moreover, PMR has a chronic onset, morning stiffness is not unusual, and musculoskeletal ultrasonography or magnetic resonance imaging (MRI) may show evidence of bursitis and synovitis of the shoulder, hip, and related structures. The laboratory tests of the 2 CDS patients showed that ESR, CRP, and WBC increased, suggesting that it was an inflammatory reaction (8,15). Both of the cases had abnormal laboratory examination results.

In radiology, bone-window CT is the gold standard for the diagnosis of CDS and assists in ruling out fractures and primary or metastatic tumors (17), with a positive rate of about 97.1% (8). The most characteristic assessment feature is a high-density ring around the C1–C2 vertebral body, and the 2 patients in this group displayed this characteristic feature on CT. The calcium deposition of CDS sometimes involves the adjacent cruciate ligament and pterygoid ligament, which are shown to have a high density on CT. However, some scholars have surmised some literature and found that the CT value (202–258 HU) of a high-density transverse ligament of atlas attributed to CDS is higher than the CT value (35–110 HU) of a normal transverse ligament of the atlas (8). The MRI is less sensitive than CT, but in some cases, bone marrow edema of adjacent bone and soft tissue can be seen, and enhancement can be seen after gadolinium contrast injection, a mechanism which may be similar to that of rheumatoid arthritis (18). Thus, it is suggested that symptomatic and asymptomatic CDS can be distinguished according to this sign (19). The MRI can also be used to evaluate the spinal cord more completely (5), and is useful for proving inflammation in patients with CDS (1).

The prognosis of CDS is excellent, and the clinical symptoms will be relieved or totally resolved within a few days or weeks. In a few severe patients, the excessive sediment volume may lead to spinal cord compression symptoms. In the acute stage, NSAIDs or steroid hormones are generally used to relieve symptoms. After several days of combined use of NSAIDs and glucocorticoids, the symptoms of the 2 patients in this group were significantly relieved, and the symptoms had almost disappeared after a week of medication. Some scholars (6,20) have pointed out that compared with NSAIDs, the use of low- or medium-dose corticosteroids can significantly improve the level of CRP and neck and occipital pain scores in patients with CDS, and proposed the administration of low-dose corticosteroids (15–30 mg). Secondly, considering that sudden withdrawal of drugs is an independent factor for the recurrence of CDS, a gradual reduction is recommended before stopping the drug (20). It has also been reported that colchicine has a good effect on CDS, but its mechanism is still unclear (21).

In radiological work, we found that although several elderly patients were found to have an annular high density around the odontoid process, the patients do not classify as having “triad syndrome” symptoms, which confuses the process of diagnosing CDS. Some scholars have proposed that asymptomatic calcification around the odontoid process is very common (22,23). After reviewing published reports, we speculate that there may be 3 reasons for this phenomenon: (I) With the increase of age, calcium deposition will become more obvious, leading to the calcification of ligaments around the odontoid process, not CDS. (II) Takahashi et al. (20) scored comprehensively according to the shape (point, sheet, ring), position (front and back left), and CT value of sediments around the odontoid process and highlighted that the comprehensive score was significantly correlated with the level of cyclic CRP. After treatment, both CRP and pain scores decreased significantly. Therefore, we speculate that acute neck pain in CDS patients may be related to the shape, location, and CT value. (III) The prognosis of CDS is excellent; it is a self-limiting disease and can only cause clinical symptoms when in the acute attack phase; so, this contingent of patients with abnormal CT findings does not manifest with clinical symptoms. Therefore, the imaging diagnosis of CDS needs to be closely combined with clinical and laboratory auxiliary examinations. Treatment for CDS is only necessary when the patient is experiencing an acute attack.

In summary, when CT examination reveals nodular, flake, or annular high-density around the odontoid process, the patient has had an acute onset of neck and occipital pain, and some laboratory examinations (such as CRP, ESR) have returned abnormal readings, the possibility of CDS is high, and confirmation of CDS could avoid further unnecessary examination and treatment. In treating an acute attack, low-dose glucocorticoids combined with NSAIDs should be the first choice for symptomatic treatment. Therefore, both clinical and imaging doctors should improve their understanding of CDS to avoid missed diagnoses, misdiagnoses, and improper treatment. Antibiotic treatment is required if it is misdiagnosed as meningitis, which is useless in CDS treatment and will prolong the condition. Also, a lumbar puncture and cerebrospinal fluid examination are required to confirm the diagnosis of meningitis, which is an invasive procedure with the risk of concomitant brain herniation (24). If misdiagnosed as cervical spondylosis, conservative treatment will not improve the patient’s symptoms, and the surgical treatment option is invasive and represents overtreatment for patients with CDS. If CDS is incorrectly considered PMR, NSAIDs would not be administered, which plays a major role in improving symptoms in patients with CDS, while glucocorticoids will be used, but in much lower dosages. Also, PMR is treated with methotrexate, which is ineffective and can cause side effects in CDS patients.
