Vertebral bone marrow T2* mapping using chemical shift encoding-based water-fat separation in the quantitative analysis of lumbar osteoporosis and osteoporotic fractures

Introduction

Osteoporosis is a metabolic bone disease characterised by an overall reduced bone mass that results in reduced bone strength (1,2). The prevalence of osteoporosis and its consequences, e.g., low-energy vertebral fractures (VF), is continually increasing due to an overall ageing population (3). Complications such as pain and immobilisation are a burden for the individual patient as well as for the health care and social security systems, as they are confronted with increasing subsequent financial costs (4). Early detection and assessment of the osteoporotic status is of high importance, since it is a health condition that can potentially be treated, reducing the risk for osteoporotic fractures, pain and immobilisation (5).

Dual-energy X-ray absorptiometry (DXA) and dedicated quantitative CT (QCT) are the clinical standards for assessing osteoporosis by determining the bone mineral density (BMD) (4). However, those methods require additional radiation exposure and costs. Lack of access to dedicated diagnostic tools for BMD measurement and underutilization (e.g., due to patient noncompliance) potentially result in a multitude of missed diagnoses of osteoporosis despite the presence of a fragility fracture. This diagnostic gap leads to a delay of adequate care; previous studies have shown that in patients who sustain a fragility fracture, fewer than 20% of individuals receive therapies to reduce the risk of future fractures within the year following the fracture (6).

In clinical routine, the majority of the patients with suspected vertebral fracture receive imaging of the spine, e.g., in the form of radiography or CT for fracture detection and characterization as well as magnetic resonance imaging (MRI) for determination of the fracture age and the assessment of discoligamentous structures (7).

Previous studies have reported on T2* mapping and high-resolution trabecular bone imaging using MRI for the assessment of bone microstructure and osteoporosis (8,9). As bone is more diamagnetic than marrow, the trabecular bone and bone marrow interface induce local magnetic field inhomogeneities, which can be measured as a shortening of the effective transverse relaxation time (10). T2* measurements of the vertebra correlated with the bone mineral density inversly in previous studies, suggesting decreased susceptibility due to remodeled and decreased trabecular bone (11).

It has been shown that measurement of the fat content of the bone marrow itself is a reliable biomarker for quantification of osteoporosis, as the vertebral bone marrow composition changes, consisting of a mixture of hematopoetic tissue and adipocytes interspersed within the network of trabecular bone matrix (12,13). Chemical shift encoding-based water-fat separation techniques have been used for fat quantification [proton density fat fraction (PDFF)] and assessment of osteoporosis, but they also enable the assessment of bone marrow T2* in red marrow regions (14-16). T2* assessed using chemical shift encoding-based water-fat imaging (CSE-MRI) has previously been reported to be a biomarker for osteoporosis (14). It may give insight into the cause of vertebral fractures (i.e., osteoporotic vs. traumatic vs. malignant) when applied to vertebral bone marrow. In a more recent study, Schmeel et al. have already investigated the potential of T2* measurements to differentiate between acute benign and malignant vertebral fractures (17). To our knowledge however, it remains unknown whether T2* mapping using CSE-MRI enables the further differentiation between patients with high-energy traumatic and low-energy osteoporotic/osteopenic fractures as well as osteoporotic/osteopenic patients with and without vertebral fractures.

Therefore, the purpose of this study was to evaluate T2* mapping in vertebral bone marrow using chemical shift encoding-based water-fat separation in patients with and without osteoporotic and traumatic vertebral fractures and to assess their association with the trabecular bone microstructure.

Methods

Patient selection and study design

From January 2018 until July 2019 patients with a suspected vertebral fracture who underwent a CT examination at our institution as part of the clinical routine diagnostic work-up were approached for this study.

Patients with a CT examination as primary imaging modality, from which a quantitative BMD measurement could be derived, and with the diagnosis of at least one VCF were included in this study. Exclusion criteria were contraindications for MR imaging (e.g., pacemaker or pregnancy), history of cancer or hematologic disorders and withdrawal of consent.

In the initial assessment of the fractures we evaluated the clinical information and classified the fractures into low-energy osteoporotic/osteopenic fractures in patients with acute low-energy trauma (e.g., falling from standing height or less) or sudden onset of backpain without any trauma and in acute high-energy fractures with an underlying adequate trauma (any other type of trauma, e.g., falling from height higher than standing and motor vehicle accident) (18). In total, 32 patients with vertebral fractures [25 (78.1%) patients with in total 31 low-energy osteopenic/osteoporotic fractures, mean age 72.3±9.8 years, 76% female; 7 (21.9%) patients with in total 7 high-energy fractures, 47.3±12.8 years, 0% female] agreed to participate in this study and gave written and informed consent. Out of the 32 patients 6 had two VCFs and 26 had one VCF. Patients with vertebral fractures were frequency-matched for age and sex to patients without vertebral fractures (n=20, 69.3±10.1 years, 14 women).

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the local institutional review board (Ethics Commission of the Medical Faculty, Technical University of Munich, Germany; Ethics proposal number 70/17S). Written informed consent was obtained from all study participants.

QCT and BMD measurements

CT images were acquired with one dual-layer dual-energy (DLDE-) CT scanner (IQon Spectral CT, Philips Healthcare) and one multislice detector (MD-) CT scanner (iCT 256, Philips Healthcare). The data was acquired in helical mode with a peak tube voltage of 120 kVp, a reconstruction slice thickness of 0.9 to 1 mm and adaptive tube load.

For BMD measurements, a mid-line 15mm multiplanar reconstruction section in sagittal reformations was created with a PACS tool (IDS7, Sectra). Then, cylindrical volumes of interest were manually positioned in all non-fractured lumbar vertebrae by one radiologist (FTG), and mean Hounsfield Units (HU) were noted (19). Fractured or otherwise altered vertebrae (e.g., vertebrae with severe degenerative changes, vertebrae after vertebro-/kyphoplasty) were not used for HU measurements. The HU values were then converted into BMD using conversion equations as previously described: (I) 0.928 × HU + 4.5 mg/cm³ for the IQon Spectral CT, (II) 0.855 g × HU + 1.172 mg/cm³ for the Philips iCT 256 (20,21). Osteoporosis was defined as BMD <80 mg/cm³ and osteopenia as 80≤ BMD ≤120 mg/cm³ (22).

MRI and T2* assessment

Two 3T-MRI systems (one Ingenia, Philips Healthcare and one Elition, Philips Healthcare) were used for the dedicated examination of the lumbar spine. A six-echo 3D monopolar time-interleaved multi-echo spoiled gradient-echo sequence was acquired in sagittal orientation (23) using the posterior coil elements integrated in the table (12-channel array).

The six echoes were acquired in 2 interleaves with 3 echoes per repetition time (TR) and TR/TE1/ΔTE = 8.2/1.3/1.1 ms, field of view (FOV) =626×511×102 mm³, voxel size =1.8 mm³ isotropic, receiver bandwidth =1,504 Hz/pixel, frequency direction=anterior/posterior (A/P), 1 average, scan time = 3 min 39 s. To minimize T1-bias effects a flip angle of 3° was used (24). Frequency encoding was performed in A/P direction to reduce respiratory motion artifacts. For the reconstruction, an image reconstruction toolbox from raw k-space data was used (ReconFrame, Gyrotools, Switzerland). The oversampling was not removed, yielding the above extended FOV. The T2* maps were calculated using chemical shift encoding-based water-fat separation performed offline. A signal model accounting for the multi-peak fat spectrum and assuming a single T2* decay was employed (25). A multi-peak fat model specific to bone marrow with 9 fat peaks was used as previously introduced by Ren et al. (26). A state-of-the-art graph-cut algorithm (27) was used for field-map estimation and the parameter estimation was refined with a recently proposed generalized method for parameter estimation in multi-echo gradient-echo experiments (28).

Furthermore, the MR imaging protocol encompasses a sagittal short-tau inversion recovery (STIR) as well as a T1w spin-echo sequence according to clinical standards.

The entire vertebral bodies Th12 to L5 were manually segmentated by a radiologist (F.T.G., with 5 years of experience in MSK imaging) using the open-source software Medical Imaging Interaction Toolkit (MITK, German Cancer Research Center, Heidelberg, Germany). Heavily altered vertebrae (e.g., after kyphoplasty, heavy degenerative alterations) were excluded. The mean T2* value was calculated for each vertebra (fractured and non fractured) (Figure 1), then an average value was calculated for the non fractured vertebrae in each patient. In order to assess the intra-reader reproducibility error of the T2* and BMD values, a random sample of 5 subjects was chosen and reanalyzed by the same radiologist.

Figure 1 T1w spin-echo sequence, STIR sequence and T2* map of the lumbar spine in sagittal orientation of a 73-year-old male patient with a VCF of L1. The manually segmented ROIs in the vertebral bodies L1 to L5 are depicted in red. VCF, vertebral compression fracture; ROI, region of interest; STIR, short-tau inversion recovery.

Analysis of the MR imaging

The morphologic imaging features of the vertebral fractures were assessed by two board-certified radiologists (BJS. and ASG, with 11 years and 9 years of experience in musculoskeletal imaging). In total, 47 vertebral fractures were identified. The radiologists also ensured, in context with the clinical history, that no morphologic signs for a malignant fracture were present in any of the sequences.

CT texture analysis of the trabecular bone

Trabecular bone analysis was performed using the CALCDCN software developed at the University of California, San Francisco, which is based on IDL (Interactive Display Language, Research Systems, Inc., CO, USA).

Axial images of the spine (reconstructed in the bone kernel) were binarized by absolute thresholding to bone (“on” pixels) and marrow (“off” pixels). A global threshold was applied to all images, which was optimized visually prior to all analysis procedures as previously described by other researchers (29,30). The analyzed parameters included the trabecular number [TbN (mm⁻¹)], spacing [TbSp (mm)] and thickness [TbTh (mm)].

Statistical analysis

Statistical analysis was performed with SPSS version 25 software (IBM). Differences in baseline characteristics between osteoporotic patients with and without fractures or between patients with osteoporotic and traumatic fractures were assessed using independent sampes t-tests for continuous variables and chi-square tests for categorical variables. Pearson Correlation Coefficient was used to assess the correlations between T2* values, trabecular parameters and BMD. Differences in T2* values between patients with and without vertebral fractures in the osteoporotic/osteopenic group and differences between patients with osteoporotic/osteopenic fractures and traumatic fractures were calculated using a multivariable linear regression model, adjusting for age, sex and BMD. Significance was assumed if α-level was P<0.05.

For the measurement of the intra-rater reproducibility error of the T2* and BMD values, the root mean square errors (RMSE) were calculated in order to assess the differences between the respective measurements.

Results

In this study, 52 patients in total were included (65% female, 67.5±12.9 years). In total, 32 patients had at least one vertebral fracture (78.1% with low-energy osteopenic/osteoporotic fractures, mean age 72.3±9.8 years, 76% female; 21.9% with high-energy fractures, 47.3±12.8 years, 0% female); out of the 32 patients 6 had two VCFs and 26 had one VCF. According to the QCT-based BMD measurements, a total number of 32 patients were classified as osteoporotic/osteopenic (32/52; 62.0%), in accordance with the above-stated definition of osteoporosis/osteopenia. When analyzing the data of all patients, between patients with and without vertebral fractures, there were no significant differences found in age (66.4±14.4 vs. 69.3±10.1 years respectively; P=0.44) and sex [n=20 female patients (62.5%) vs. n=14 (70.0%), respectively, P=0.59] (Table 1).

Table 1 Characteristics of patients with and without at least one vertebral fracture
Full table

When assessing T2* of non fractured vertebrae in all patients, the mean T2* values showed an inverse correlation with the BMD values (Pearson’s r=−0.65, P<0.001). T2*-values were significantly higher in patients with osteoporosis/osteopenia compared to patients with normal BMD (13.6±4.2 vs. 9.3±2.5 ms, P=0.006). Moreover, T2* values also showed a moderate to high correlation with the trabecular number and trabecular spacing (r=−0.56, P<0.001 and r=0.61, P<0.001, respectively). As expected, the correlation between the microstructure parameters trabecular number (TbN), trabecular spacing (TbSp) and the BMD were high (r=0.71 and r=−0.69, P<0.001 for both correlations, respectively). Furthermore, with older age T2*-values increased significantly (r=0.70, P<0.001) while BMD-values decreased significantly (r=−0.63, P<0.001) (Table 2 and Figure 2). No significant differences between T2*-values of the vertebrae between women and men were found (12.9±4.2 vs. 10.8±3.7 ms, P=0.17).

Table 2 Pearson correlation coefficients calculated for BMD, T2* of non fractured vertebrae, trabecular parameters and age
Full table

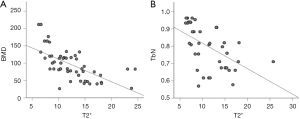

Figure 2 Scatter plot of T2* and BMD and TbN respectively. BMD, bone mineral density; TbN, trabecular number.

Out of all 52 patients 32 had at least one vertebral fracture, whereas 25 were classified as osteoporotic/osteopenic (25/32; 78.1%) and 7 as traumatic (7/32; 21.9%). When assessing the T2* values of non fractured vertebrae, patients with low-energy osteoporotic fractures had significantly higher T2* values than those with traumatic fractures (13.6±4.3 vs. 8.4±2.2 ms, P=0.01) (Figures 3,4), significantly lower mean BMD values (75.2±27.7 vs. 154.3±33.1 mg/cm³, P<0.001) as well as a lower mean trabecular number (0.69±0.08 vs. 0.93±0.03 mm⁻¹, P<0.01), and a significantly greater mean trabecular space (1.06±0.16 vs. 0.56±0.08 mm, P<0.01); the mean trabecular thickness, however, showed no significant difference between the two subgroups (0.44±0.08 vs. 0.53±0.09 mm, P=0.11) (Table 3). When comparing the mean T2* of the fractured vertebrae, no significant difference could be detected between low-energy osteoporotic fractures and high-energy traumatic fractures (12.6±5.4 vs. 8.1±2.4 ms, P=0.10).

Figure 3 Thoracolumbar spine of a 70 years old female patient with a low energy fracture of Th12 (a and a’) and a 49 years old male patient with a high energy fracture of L3 (b and b’). Panels a and b show color coded T2* maps. The longer T2* relaxation times in the non-fractured vertebrae in the patient with the low energy fracture are clearly noticeable. Panels a’ and b’ show the corresponding B0 field maps.

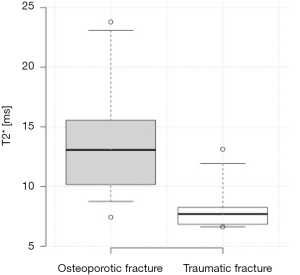

Figure 4 Average T2* of non-fractured lumbar vertebrae in patients with osteoporotic (n=25) and traumatic fractures (n=7).

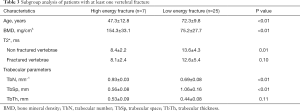

Table 3 Subgroup analysis of patients with at least one vertebral fracture
Full table

When evaluating the vertebral T2*-measurements of non fractured vertebrae in osteoporotic/osteopenic patients and comparing patients with and without vertebral fractures, no significant differences were found between the two subgroups (13.5±3.4 vs. 15.6±3.5 ms, P=0.40). Moreover, there were no significant differences found in mean BMD, mean trabecular space, mean trabecular thickness and mean trabecular number between the two subgroups (P>0.05).

For the BMD analysis the calculated intra-reader reproducibility RMSE was 6.4% and for the T2* analysis it was 6.2%.

Discussion

In this study, we investigated T2* mapping using chemical shift encoding-based water-fat separation, its correlation with volumetric trabecular bone mineral density (BMD) and trabecular bone structure parameters and the diagnostic value of the T2*-measurements for the evaluation of patients with vertebral compression fractures.

T2* of vertebral bone marrow correlates with QCT BMD as well as with trabecular structure parameters, allowing the assessment of osteoporosis and the trabecular microstructure. Moreover, T2* values of non-fractured vertebrae in patients with low- and high-energy fractures differ significantly, which enables a radiation-free differentiation between patients with osteoporotic and traumatic vertebral fractures, suggesting its potential as a biomarker for bone fragility. Also, T2* is unable to differentiate between patients with and without fractures in the osteoporotic subcohort.

The analysis of T2* in order to gain information on tissue composition is based on the phenomenon that different types of tissue lead to variations in magnetic susceptibility, which leads to variations in T2* relaxation times. In vertebral bone and bone marrow the T2* measurements are sensitive to inhomogeneities caused by susceptibility differences at the interface of bone marrow and bone trabeculae. These local field inhomogeneities shorten the T2* decay of both the water and fat components, which results in a rapid decay of the measured gradient echo signal with increasing echo time (25,31). It has already been shown that T2* of vertebral bone depends on bone density and the microarchitectural trabecular structure, whereas T2* increases with decreasing bone density (11). Previous studies have also demonstrated that MR-based T2*-measurements enable the differentiation between acute benign and malignant vertebral fractures (17) and that it can be applied to patients with vertebral bone tumors in order to reveal the tumor mass and the invasion of the tumor into the adjacent structures (32).

To our knowledge, it has not been investigated yet whether T2* mapping of vertebral bone marrow using chemical shift encoding-based water-fat separation enables the further differentiation between patients with high-energy traumatic and low-energy osteoporotic/osteopenic fractures as well as osteoporotic/osteopenic patients with and without vertebral fractures.

In our study, the overall T2*-measurements of intact vertebrae showed a significant inverse correlation with the bone mineral density which was assessed by using opportunistic QCT measurements. T2* was significantly higher in patients with osteoporosis/osteopenia compared to patients with normal BMD (i.e., >120 mg/cm³). These findings are in line with the previous studies (10,11). As the increase in T2* in patients with lower bone mineral density is presumably caused by rarefication of the trabecular bone structure, we investigated the correlation between T2* and the bone structure in greater detail; we therefore analysed CT-based trabecular bone parameters (TbTh, TbSp, TbN) and their correlation with T2*. Previous studies demonstrated that T2* correlates with CT-based trabecular bone parameters like trabecular thickness and number (33,34); those studies, however, focused on peripheral skeletal sites (e.g., wrist, calcaneus). To our knowledge, correlation of QCT for microstructure parameters with T2*-measurements using CSE-MRI in vertebral bone marrow has not been demonstrated yet. Our results showed a high and significant correlation between vertebral bone marrow T2* and the trabecular number as well as the trabecular spacing. Overall, T2*-measurements seem to be a biomarker for the overall bone mineral density as well as the trabecular microarchitecture of the vertebral bone.

In our clinical cohort, T2*-measurements of non fractured vertebrae were able to differentiate between patients with low-energy osteoporotic fractures and patients with traumatic fractures, showing significantly prolonged T2* in those with low-energy osteoporotic fractures. Accordingly, between patients with osteoporotic and traumatic fractures the trabecular number and trabecular space also showed significant differences.

When measuring T2* in fractured vertebrae, the values are on average very close to the measurements of the non fractured vertebrae (Table 3). However, the T2* values in low-energy VCFs tend to be lower on average with a larger standard deviation (12.6±5.4 vs. 13.6±4.3 ms). There are several factors in a fractured vertebra that might influence the T2* measurements, e.g., fracture age, edema, fracture morphology and compaction of the vertebra, which in turn might lead to an underestimation of the T2* value when trying to assess the general bone structure. As a result, when comparing the mean T2* of the fractured vertebrae, no significant difference could be detected between low-energy osteoporotic fractures and high-energy traumatic fractures in our study population. Our data suggests that the clinical value of T2*measurements using chemical shift encoding-based MRI lies in the evaluation of the whole lumbar spine and the radiation-free estimation of the bone mineral density.

Our data shows that T2*-analysis of the vertebral bone using chemical shift encoding-based water-fat separation has a great potential to be a useful biomarker for bone fragility since it can assess the BMD and microstructural architecture of the bone and differentiate between patients with different types of vertebral fractures. This indicates that CSE-MRI-based T2*-analysis of the vertebral spine allows the assessment for osteoporosis and microstructural bone changes, which are usually assessed using radiation-dependent techniques such as DXA or dedicated QCT. In a clinical setting MR imaging could therefore not only be used for the assessment of the presence of a fracture and the fracture age, as it is commonly requested, but also in order to gain reliable additional information on the microarchitectural bone structure and bone mineral density as well as the origin of the fracture (e.g., osteoporotic or traumatic).

This study has limitations. The sample sizes, especially for the subanalyses were fairly small. Especially the number of patients with osteoporosis without vertebral fracture as well as the number of patients with traumatic fractures is fairly low. Also, the age difference between patients with high- and low-energy fractures is rather high and is a potential confounder as BMD and T2* correlate with age. Furthermore, our study focuses on cross-sectional data only; it might be of interest how T2* performs as a predictive parameter for fracture risk e.g., in osteoporotic patients that develop osteoporotic fractures during follow-up and how it compares to radiation-dependant established modalities. Overall larger study cohorts and longitudinal study designs are needed in the future.

Two different MRI scanners were used in the study; however, the two scanners were running on identical scanner software releases and our implementation of the pulse sequence design and image reconstruction was identical in the two scanners. There were no significant differences found between the patients scanned at the two different scanners regarding patient characteristics. Patients of each subgroup were equally distributed between the two scanners. The off-line water-fat separation processing was centralized and identical for the data originating both systems. We therefore expect minimal effect of the scanner hardware on the measured T2* values. A potential limitation for this method in a clinical setting might be the rather long scan times, which originate from the comparably high isotropic spatial resolution and the consequently need for an interleaved acquisition scheme to achieve a reasonable echo time step (delta TE).

In conclusion, T2* mapping of vertebral bone marrow using chemical shift encoding-based water-fat separation allows the assessment of the bone mineral densitiy and osteoporosis as well as the trabecular microstructure and enables a radiation-free differentiation between patients with low-energy osteoporotic and high-energy traumatic vertebral fractures, suggesting its potential as a biomarker for bone fragility.
