Diagnostic accuracy of cardiac magnetic resonance tissue tracking technology for differentiating between acute and chronic myocardial infarction

Introduction

Myocardial infarction (MI) is characterized by myocyte cell death, usually precipitated by a profound reduction in blood flow to a region of the heart muscle followed by the development of replacement fibrosis at the injury site. Although the clinical laboratory results after MI are heterogeneous, it is difficult to distinguish between acute myocardial infarction (AMI)and chronic myocardial infarction (CMI). Furthermore, the examination and follow-up treatment to AMI and CMI are quite different. Although late gadolinium enhancement sequence (LGE) has been demonstrated as a gold standard method to evaluate infarct size and myocardium infarction regions (1), it is of limited value for distinguishing between AMI and CMI.

In recent years, cardiac magnetic resonance tissue tracking (CMR-TT) technology has been widely used in various heart diseases’ clinical research and practice. As a noninvasive technology without contrast, CMR-TT can quantitatively evaluate the early deformation of the left and right myocardium (2). Measurements of myocardial strain and the strain rate can objectively reflect the changes of ventricular structure and function after MI (3,4) and may be able to distinguish between the acute and chronic stages. Therefore, the purpose of this study was to explore the diagnostic accuracy of the quantitative assessment of left myocardial infarction in differentiating between AMI and CMI using CMR-TT.

Methods

Study cohort

The institutional ethics committee approved the study, and all subjects gave written informed consent. Patients with a first reperfused ST-segment elevation myocardial infarction (STEMI) were included in the study. Next, 74 recruited patients were screened for study participation, and 40 patients with left ventricular acute myocardial infarction (LVAMI) and 6 months’ follow-up were prospectively enrolled between February 2018 and October 2018. Follow-up of these patients was carried out after 6 months. The inclusion criteria were those of established diagnostic criteria (5), while patients with right ventricular myocardial infarction were excluded. Patients were treated with reperfusion therapy utilizing primary percutaneous coronary intervention (PCI). Adequate restoration of blood flow of the infarct-related artery was determined on coronary angiograms by 2 experienced observers with at least 5 years of experience who interpreted coronary angiograms according to the Thrombolysis in Myocardial Infarction (TIMI) trial criteria (6). Study exclusion criteria were as follows: no informed consent (n=13), participation in a pharmaceutical study (n=10), hemodynamically unstable at baseline (n=3), severe obesity (n=2), and presence of intracranial metal (n=0) (Figure 1). For controls, 64 healthy subjects (mean age 55±9 years; range 39–71 years; 69% male) without any cardiovascular disease symptoms and with normal electrocardiogram (ECG) results were included.

Figure 1 Patient flowchart. The exclusion criteria and patients who did not undergo follow-up are indicated. LVAMI, left ventricular acute myocardial infarction; LGE, late gadolinium enhancement sequence; STEMI, ST-segment elevation myocardial infarction.

CMR acquisition and image analysis

Cardiac magnetic resonance imaging (MRI) studies were performed at 7 days and 6 months post PCI on a 3.0 T system (MAGNETOM Verio, Siemens Healthcare, Erlangen, Germany). Short-axis balanced steady-state free precession (SSFP), cine imaging, and late gadolinium enhancement (LGE) covering the entire heart were performed. Typical imaging parameters for cine-SSFP were repetition time/time to echo (TR/TE) =40.4/2.4 ms, flip angle =12°, and GRAPPA (generalized autocalibrating partial parallel acquisition) with a parallel acceleration factor of 2. The typically used late gadolinium enhancement (LGE) imaging parameters were TR/TE =750 ms/1.6 ms, inversion time (TI) =300 ms, flip angle =20°, and bandwidth =465 Hz/pixel. Phase-sensitive inversion recovery (PSIR) was obtained after 8–10 minutes of gadolinium-diethylenetriamine penta-acetic acid (Gd-DTPA) injection.

Following this, the acquired MR images were processed by CVI42 (version 5.3.4, Circle Cardiovascular Imaging, Canada) by 2 experienced radiologists with more than 6 years of CMR experience (HH and SL). The tissue tracking analysis was performed by drawing out the long axis and the short axis of the endo- and epicardial border. The trabecula was carefully excluded, and the mitral and tricuspid plane and the apex were marked on the long axis and the short axis of the left ventricle (LV) and right ventricle (RV). The endocardium and epicardium were drawn on the maximum diastolic phase cine images at each short-axis level and at the 4-chamber view and left ventricle outflow tract (LVOT) level. The software automatically tracked the displacement of the endocardium and epicardium to quantify the left and right ventricular myocardium movement and divided the ventricle into a basal segment, middle segment, and apical segment.

Additionally, 17 myocardial segments were obtained according to the 2002 American Heart Association (7) guidelines, respectively showing each segment’s myocardial strain and strain rate (Figure 2). A consensus was reached between readers in cases of disagreement. LGE was taken as the golden standard to identify infarcted segments (1) and corresponding remote normal segments from the 17-segment image. Myocardial infarctions (MIs) were identified on LGE images and quantitated using a threshold set at 5 standard deviations (SDs) above the remote myocardium’s mean signal intensity. Finally, regions of microvascular obstruction (MVO) were manually delineated as those parts of the MI zone that were hypointense.

Figure 2 The CMR-TT. (A,B,C) Short-axis circumferential strain. The yellow represents the tracking for the ventricle. (A) Left ventricle (LV); (B) right ventricle (RV). The images are all diastolic images. (C) The curve showing the radial strain values of the LV in 25 phases, including the peak value. (D,E,F) A healthy, 42-year-old male. (G,H,I) A 54-year-old female, with acute myocardial infarction (AMI) at baseline (J,K,L) and 6 months after AMI. (D,G,J) The polar map of 2002 American Heart Association segmentation for radial strain. (E,H,K) Images illustrating the circumferential strain. (F,I,L) 3D models of LV and RV in diastole; the color coding represents the epicardial contours. CMR-TT, cardiac magnetic resonance tissue tracking.

Statistical methods

SPSS version 25 (IBM, Armonk, NY, USA) was used to conduct statistical analyses. Measurement data are expressed as mean ± SD. Independent samples t-test and receiver operating characteristic (ROC) curve were established for the diagnosing values of global and regional strain parameters in the LV and RV. Data between infarcted and remote normal myocardium in different stages were compared by using 2-sided paired t-tests; a P value <0.05 indicated a statistically significant difference.

Results

Patient characteristics

Initially, 74 patients were recruited, with 6 subsequently excluded due to poor image quality (n=3), a previous cardiac stent (n=5), and absence of LGE (n=1). In the final study cohort, 40 STEMI patients with LVAMI and 6 months’ follow-up MRI were included (Figure 1). The basic characteristics of the 40 patients (mean age 55±7 years; range 34–66 years; 85% male) with LV myocardial infarction and the 64 healthy subjects (mean age 55±9 years; range 39–71 years; 69% male) who underwent CMR scanning are shown in Table 1, while the patients’ clinical features are shown in Table 2.

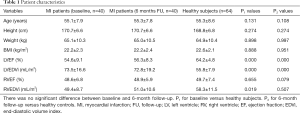

Table 1 Patient characteristics
Full table

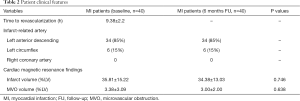

Table 2 Patient clinical features
Full table

Evaluation of strain parameters between the infarcted and remote myocardia

The strain parameters of peak radial strain (RS), peak circumferential strain (CS), and peak radial systolic strain rate (RS-s’) (P<0.001 for all) of infarcted myocardia at baseline were significantly lower than those of remote myocardia, while CS showed the greatest differentiation ability with the largest area under the ROC curve (AUC) of 0.895 (Figure 3). When a CS of <−14.47 was used as the AMI diagnostic area, the sensitivity and specificity were 95% and 75%, respectively. RS (P=0.001), CS (P=0.001), and RS-s’ (P=0.003) of infarcted myocardia remained lower than those of remote myocardia and progressively increased over the course of 6 months (Table 3, Figure 4). We further found significant differences in longitudinal strain (LS), peak circumferential systolic strain rate (CS-s’), and peak longitudinal systolic strain rate (LS-s’) between infarcted and remote myocardia in LVAMI patients (P=0.015, P=0.007, and P=0.010, respectively), but no significant differences in LVCMI patients were observed (P=0.081, P=0.526, and P=0.338, respectively; Table 3).

Figure 3 Graphs showing results of ROC analysis for differentiation between AMI and CMI. (A) The results of ROC analysis for differentiating the infarct myocardia of AMI and CMI (the AUCs of RS, CS, LS, RS-s’, CS-s’, and LS-s’ were 0.715, 0.751, 0.590, 0.685, 0.687, and 0.612, respectively). (B) ROC analysis for differentiating between the infarcted myocardia and remote normal myocardia in AMI patients (the AUCs of RS, CS, LS, RS-s’, CS-s’ and LS-s’ were 0.878, 0.895, 0.727, 0.835, 0.761, and 0.722 respectively). (C) ROC analysis for differentiating between infarcted myocarda and remote normal myocardia in CMI patients (the AUCs of RS, CS, LS, RS-s’, CS-s’, and LS-s’ were 0.800, 0.820, 0.690, 0.758, 0.587, and 0.609 respectively). AMI, acute myocardial infarction; CMI, chronic myocardial infarction; RS, peak radial strain; CS, peak circumferential strain; LS, peak longitudinal strain; RS-s’, peak radial systolic strain rate; CS-s’, peak circumferential systolic strain rate; LS-s’, peak longitudinal systolic strain rate.

Table 3 Strain values of the left ventricle in infarcted and remote normal myocardia at baseline and 6 months later
Full table

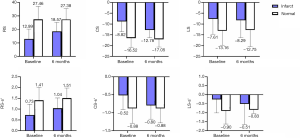

Figure 4 Bar graphs showing the development of RS, CS, LS, RS-s’, CS-s’, and LS-s’ after AMI in infarcted and remote normal myocardia. RS and RS-s’ showed a progressive increase while CS and CS-s’ showed a progressive decline in infarcted myocardium within the first 6 months after AMI (P₁<0.05). All the parameters in the remote normal myocardia showed minimal change between the acute and chronic stages (P₂>0.05). AMI, acute myocardial infarction; RS, peak radial strain; CS, peak circumferential strain; LS, peak longitudinal strain; RS-s’, peak radial systolic strain rate; CS-s’, peak circumferential systolic strain rate; LS-s’, peak longitudinal systolic strain rate.

Cardiac MR strain parameters for differentiating between AMI and CMI

There were significant differences in the parameters of RS, CS, RS-s’, and CS-s’ between AMI and CMI (P<0.05 for all), but no significant difference in LS (P=0.791) and LS-s’ (P=0.361; Table 3). The RS of infarcted myocardia increased from 12.99±7.28 to 18.57±6.66 at 6 months (P<0.001) CS increased from −8.82±4.71 to −12.78±3.55 (P<0.001), demonstrating the largest change. Of all the CMR-TT strain parameters obtained, CS yielded the best AUC (Figure 3) of 0.751 for differentiating between AMI and CMI. When CS <−14.57 was taken as the boundary point of diagnosing AMI or CMI, the sensitivity and specificity were 55% and 95%, respectively. We also explored the global and regional CMR-TT strain parameters of LV in healthy participants and LVMI patients. The comparative analysis results are shown in Table 4. The strain parameters of global and regional RS, CS, and LS (P<0.001 for all) of infarcted myocardia at both baseline and 6 months were significantly lower than those of remote myocardia.

Table 4 Global strain values of left ventricular myocardia at baseline and 6 months later in LVMI patients and normal controls
Full table

Evaluation of RV strain parameters in LVMI patients

We explored the global and regional CMR-TT strain parameters of RV in healthy participants versus LVMI patients. The comparative analysis results are shown in Table 5. The global peak radial strain (GRS), global peak circumferential strains (GCS), and global peak longitudinal strain (GLS) of the RV in the healthy participants were 25.75±6.28, −15.54±2.52, and −26.74±5.56, respectively. There were significant differences in GRS (P<0.001), GCS (P<0.001), GLS (P=0.001), peak radial systolic strain rate (GRS-s’ P=0.003), and baseline GRS (P<0.001) and GCS (P<0.001), with greater reductions shown in AMI patients as compared to controls. At a 6-month follow-up, the GCS (P=0.009), GLS (P=0.007), and global peak circumferential strain for basal segment (GCS-b) (P<0.001) of LVMI patients remained lower than those of controls; however, there was no significant difference in GRS (P=0.086) or GRS-s’ (P=0.061).

Table 5 Global strain values of right ventricular myocardia at baseline and 6 months later in LVMI patients and normal controls
Full table

Discussion

The current study evaluated the diagnostic accuracy of strain parameters by CMR-TT for differentiating between AMI and CMI. Our findings provide relevant proof of concept for the role of quantitative tissue techniques in noncontrast methods for recognizing and monitoring the staging of myocardial infarction in MI patients. Based on the parallel relationship between LV and RV strain measurement, LV deformation and edema are the predominant drivers for differentiating between AMI and CMI. The results of our study provide several important advances: (I) CS and RS, but not LS, progressively increased within the first 6 months after infarction; (II) cardiac MR strain analysis could be used for monitoring the staging of myocardial infarction in MI patients; (III) CS of infarcted myocardium was the best at differentiating between AMI and CMI, with high diagnostic accuracy in all patients; (IV) there were significant differences in the RV GRS, GCS, and GLS between AMI, CMI, and controls. Thus, the quantitative measurement of infarcted myocardia’s strain parameters may serve as a useful metric for noninvasive evaluation, detection, and discrimination of acute and chronic infarction.

Myocardial infarction caused by LV coronary heart disease is a disease related to myocardial ischemia. Myocardial ischemia can lead to myocardial deformation in the lesion segment, the decline of myocardial function, and a decrease in exercise—these changes of the myocardium resulting in the involvement of the endocardium and epicardium. The contraction of endocardial fibers results in the longitudinal shortening of the myocardium related to LS and LS-s’. Contraction of epicardial fibers results in the circumferential shortening of the myocardium, which is related to CS and CS-s’; this then results in the myocardium’s radial thickening, leading to a change in RS and RS-s’ (8). In the early stage of MI, the endocardial myocardium—as a remote blood supply area—becomes ischemic earlier than the epicardial myocardium. The LS decreases, while the RS and CS compensate (8) to maintain the normal cardiac function. Thus, myocardial stress can reflect a myocardial abnormality earlier than the decrease of ejection fraction (EF), as has already been confirmed by several studies (9-12).

Furthermore, the strain value, which has been suggested as a potential tool for evaluating early or subclinical changes of LV function, performs better than LVEF in reflecting myocardial deformation and has already been incorporated into alternative measurements of therapeutic results (13,14). Many clinical studies (15), including meta-analyses, have confirmed that timely vascular reperfusion therapy can reduce AMI patients’ annual mortality. The reason for this lies in the presence of the surviving myocardium. Therefore, distinguishing between AMI and CMI has clinical value and can effectively improve the prognosis and survival rate.

In the acute MI examined in our study, the absolute values of RS, CS, LS, RS-s’, CS-s,’ and LS-s’ in the infarcted segments were significantly lower than those in the distal normal areas (Figure 4), with this difference being statistically significant, especially for RS and CS (P<0.001). In this stage, the myocardial function is affected by ischemia and necrosis of myocardial infarction segments, activation of the inflammatory response, and phagocytosis of necrotic cardiomyocytes (16,17). Therefore, the myocardial function of infarcted segments decreases rapidly, and the coordinated contractile force of the myocardium decreases, rendering it unable to produce effective contractions. The compensatory enhancement of myocardial function can maintain the effective ejection function of LV (15). Neizel et al. (18) used strain-encoded imaging (SENC) MRI in 38 patients with AMI to compare transmural infarcted and noninfarcted segments to identify a threshold for CS of −10%, with a corresponding sensitivity of 97% and a specificity of 94%. A similar study performed by McComb et al. (19) found that a CS of −12.8% had moderately high values between infarcted and remote segments in 50 male AMI subjects, with an AUC of 0.88, a sensitivity of 84%, and a specificity of 78%. Our study shows that when a CS <−14.47 is used as the inflection point, AMI’s diagnostic efficiency is the best, with a corresponding sensitivity of 95%, a specificity of 75%, and an AUC of 0.90. Our findings are consistent with those of several other studies, in that the reductions in CS (18-24), RS (23,25), LS (18,22,23), and CS-s’ (26) can discriminate between the infarcted area and normal remote segments in AMI patients, with CS showing better discrimination ability than LS (20). Due to significant variations in strain values obtained by different software solutions and measurement techniques, these parameters should be quantified similarly if serial assessments or follow-up acquisitions are required; otherwise, the threshold identification may be affected.

In chronic MI, the absolute values of RS, CS, RS-s’, and CS-s’ in the infarcted segments were significantly higher than those in the same lesion in the acute MI, towarding the strain level of normal myocardial segments (Figure 4), with these differences being statistically significant (P<0.05). The absolute values of RS, CS, and RS-s’ in the chronic myocardial infarction area were still significantly lower than those in the remote normal area, with these differences being statistically significant (P<0.05). The results showed that with the prolongation of time, the infarcted myocardium could be remolded by the inflammatory reaction to form a fibrous scar. Although the deformation of the infarcted segment was still changed to some extent, it had not changed much, which indicates that the remodeling and deformation of the LV tended to be stable at the moment, that the myocardial load was reduced, and that, simultaneously, the RS, CS, and RS-s’ of infarcted segments changed significantly (15,16,27). In our study, LS and LS-s’ showed a significant reduction in AMI patients but no significant changes in CMI patients (Table 3), indicating that LS can, to some extent, recover after a certain period.

Our study also obtained the myocardial strain parameters of the RV. Liu et al. (28) reported the normal reference of RV myocardial strain parameters in 120 normal Chinese volunteers with a GLS of −24.3±4.7, a GRS of 23.0±8.5, and a GCS −13.1±4.0. The GLS, GRS, and GCS of our study of 64 healthy subjects were −26.74±5.56, 25.75±6.28, and −15.54±2.52, which were slightly higher. Our data also demonstrated the deformation and remodeling of the RV myocardium in patients with LVMI. GRS, GCS, and mid segments for both strain types could distinguish between acute and chronic MI stages, while basal and apical segments showed no significant difference. This result suggests that myocardial strain at the middle segments involves smaller deformation and better recovery than more obvious deformation and weaker recovery observed at the base and apex. A GCS of <−13.81 at the midsegments used as the inflection point showed the best diagnostic efficiency for AMI, with a sensitivity and specificity of 65% and 65%, respectively (Figure 5). GLS showed a significant difference between LVAMI and LVCMI; however, GLS could discriminate between LVAMI and controls and between LVCMI and controls.

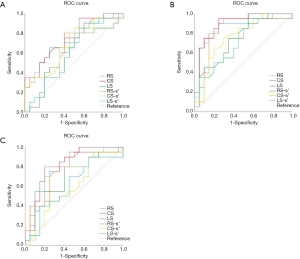

Figure 5 Graphs showing results of ROC analysis for differentiation in right ventricular myocardia between (A) LVAMI and normal controls (the AUCs of GRS, GCS, GLS, GRS-b, GRS-a, GCS-b, GCS-a, GRS-s’, and GCS-s’ were 0.813, 0.844, 0.788, 0.776, 0.680, 0.864, 0.691, 0.73, and 0.635, respectively), and (B) between LVCMI and normal controls (the AUCs of GCS, GLS, GRS-b, GCS-b, and GCS-s’ were 0.725, 0.767, 0.681, 0.784, and 0.666, respectively). LVAMI, left ventricular acute myocardial infarction; LVCMI, left ventricular chronic myocardial infarction; GRS, global peak radial strain; GCS, global peak circumferential strain; GLS, global peak longitudinal strain; GRS-b, global peak radial strain for basal; GRS-a, global peak radial strain for apical; GCS-b, global peak circumferential strain for basal; GCS-a, global peak circumferential strain for apical; GRS-s’, peak radial systolic strain rate; GCS-s’, peak circumferential systolic strain rate.

This study’s major limitations might be due to its small sample size and the individual variation between the participants. Larger samples would still be needed to determine the diagnostic threshold and promote the quantitative diagnosis between AMI and CMI afforded by this technology.

Conclusions

In conclusion, RS and CS demonstrated by CMR-TT have higher diagnostic value for differentiating between AMI and CMI and differentiate acute and chronic myocardial infarction segments within the same individual. LS has a degree of diagnostic ability in AMI, but its diagnostic value in CMI is limited. Overall, our findings suggest that CMR-TT can be employed to reveal infarcted segments at different stages without the use of contrast medium injection.

Acknowledgments

Funding: This study was funded by the National Nature Science Foundation of China (No. 81871435).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-1109). The authors have no conflicts of interest to declare.

Ethical Statement: Ethics Review Board approved this study of the First Affiliated Hospital of China Medical University and all subjects gave written informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
