Introduction

Nonalcoholic fatty liver disease (NAFLD) is a condition caused by excessive triglyceride accumulation in the liver, which affects approximately 25% of the global population, mostly overweight or obese people. It is also the most common cause of chronic liver disease. It is closely related to type 2 diabetes mellitus, hypertension, metabolic syndrome, and increased risk of cardiovascular diseases (1,2). If diagnosed early, NAFLD can be successfully cured. Yet, if left untreated, it often results in nonalcoholic steatohepatitis, fibrosis (cirrhosis), and eventually leads to liver failure and even hepatic cell cancer (3). Therefore, accurate and early assessment of the hepatic fat content is crucial for patients with NAFLD.

Liver biopsy is considered the gold standard for assessing hepatic fat fraction (FF) that reveals a semiquantitative analysis of NAFLD; yet, it is an invasive approach that is not universally accepted by patients. Furthermore, only a small part of the liver is collected by biopsy, which may lead to sampling error, especially in patients with diffuse hepatic steatosis, which tends to be inhomogeneous throughout the liver (4).

A magnetic resonance imaging (MRI) iterative decomposition of water and fat with an echo asymmetry at least-square estimation-iron quantification (IDEAL-IQ) sequence can be used to accurately quantify hepatic fat deposition (5). This technique uses a 6-echo 3-point Dixon method to minimize T2* interference. It reduces the effects of fat peak multiplicity, signal-to-noise ratio deviation, and eddy currents on the results, making proton density in tissues the main factor affecting signal intensity (6). By using IDEAL-IQ, accurate and reliable whole hepatic FF can be automatically obtained without postprocessing or calculation by a single breath-hold scanning. A recent meta-analysis showed that IDEAL-IQ has high diagnostic accuracy in detecting and grading hepatic steatosis with histology as the reference standard, suggesting that IDEAL-IQ can provide accurate quantification of hepatic steatosis in clinical trials and patient care (7). However, so far, no standards have been developed for using the hepatic FF region of interest (ROI) sampling in FF maps.

Hepatic steatosis tends to diffuse across the liver; however, its distribution may be uneven. Due to spatial heterogeneity in hepatic fat deposition, differences in the ROI sampling method can lead to fat quantification variability. Generally, sampling liver segments in both lobes and including a total surface area equal to or larger than 5 cm² are used to provide a close estimate of the liver mean FF (1,8); however, this method is not easy to perform. To avoid time-consuming manual placement of multiple ROIs, the use of whole-liver segmentation has been proposed to assess liver fat, mainly if the fat deposition is heterogeneous (9-11). Still, it remains uncertain whether the hepatic mean FF obtained by whole-liver segmentation due to the inclusion of intrahepatic vasculature is consistent with traditional ROI sampling methods.

The aim of this study was to assess the accuracy of hepatic mean FF obtained by whole-liver segmentation in patients with different severities of NAFLD using the traditional ROI sampling method as a reference standard.

Methods

Study population

This single-center, retrospective study included 1,818 patients who underwent upper abdominal MRI examination between January 2017 and December 2019. Of these patients, those who fulfilled at least 1 of the following criteria were excluded: age <18 years (n=8); a history of heavy drinking (alcohol consumption ≥30 g per week in men or ≥20 g per week in women in the last 10 years) (n=72); any clinical evidence of secondary causes of hepatic steatosis (n=73); evidence of other liver diseases (n=154), including viral hepatitis, autoimmune liver diseases, drug-induced liver injury, and so on; evidence of cirrhosis, malignant liver tumor, benign liver tumor (larger than two-thirds of each liver segment), liver posthepatectomy, decompensated liver diseases (n=984); no IDEAL-IQ sequence (n=128); poor image quality (poor signal-to-noise ratio or motion artifacts) (n=6); intrahepatic bile duct dilation (n=44). Finally, 349 participants (159 men and 190 women) were included in the study.

The local ethical committee approved the study, and the written consent was provided by all participants.

MRI examinations

In this study, an MRI scanner (GE Medical Systems, Inc., Waukesha, WI, USA) with an 8-channel phased-array body coil was used. Before scanning, patients fasted for 4–6 hours and were trained to exhale and hold their breath for more than 20 seconds. The participants were examined in the supine position. A 3-plane localization imaging gradient-echo sequence was performed at the beginning of acquisition.

The IDEAL-IQ sequence and routine MRI Ax T1 fast spoiled gradient-recalled (FSPGR), Ax T2 fast-spine echo (FSE), diffusion-weighted imaging (DWI) sequence, and dual echo sequence were acquired. The MRI parameters were as follows: 3.0 T MRI IDEAL-IQ sequence: repetition time/time to echo (TR/TE) =6.9 ms/3.0 ms, slice thickness =10 mm, bandwidth =200 KHz, field of view (FOV) =36 cm × 36 cm, matrix =256×160, flip angle =3°, number of excitation (NEX) =1, breath holding for less than 24 s; 1.5 T MRI IDEAL-IQ sequence: TR/TE =13.4 ms/4.8 ms, slice thickness =10 mm, bandwidth =125 KHz, FOV =36 cm × 36 cm, matrix =256×160, flip angle =5°, NEX =1, breath holding for less than 24 s; T1WI sequence: TR/TE =210 ms/2.4 ms; T2WI: TR/TE =8,571 ms/100 ms; dual echo sequence: TR =190 ms, TE =2, 4.3 ms; DWI sequence: TR/TE =7,500 ms/58 ms, NEX =4, b value =0, 600 s/mm², FOV =42 cm × 42 cm. The images were processed using IDEAL Research software provided by the manufacturer (GE Healthcare, Waukesha, WI, USA) to generate water-phase, fat-phase, in-phase, out-phase, along with R2* and FF maps.

ROI sampling methods

Hepatic FF was manually calculated using a circular ROI on the FF maps in an open-source vendor-neutral postprocessing platform (ISP, Philips Interspace Portal, Philips Healthcare, Amsterdam, Netherlands), and blood vessels, bile ducts, liver boundaries, and focal hepatic lesions were avoided. A total of 3 ROIs were placed in each of the 9 anatomical Couinaud liver segments (27 separate ROIs) (Figure 1A,B,C). Hepatic FFs in 27 ROIs were averaged to provide the mean hepatic FF. The hepatic FF protocol and ROI sampling method were based on a previous study (1). Similar to the previous study performed in Chinese populations (12), participants were categorized into 4 groups: healthy (hepatic FF <5%), mild (5%≤ hepatic FF ≤14%), moderate (14%< hepatic FF ≤28%), or severe (hepatic FF >28%) steatosis.

Figure 1 Hepatic FF measurement with the ROI sampling method (A,B,C) and whole-liver segmentation (D) in a 27-year-old man. We placed 3 ROIs in each of the 9 anatomical Couinaud liver segments (27 separate ROIs) while avoiding major vessels, bile ducts, and liver edges. The whole hepatic tissue was semiautomatically traced on FF maps. The hepatic FFs (%) were 29.7 and 27.7, respectively. FF, fat fraction; ROI, region of interest.

Whole-liver segmentation

On the image signal processor (ISP) post-processing platform, the software algorithm (multimodality tumor tracking, MMTT) defined the liver’s margins in 3 dimensions, and the whole hepatic tissue was semiautomatically traced on FF maps. If the margins needed tweaking, the operator made corrections; if margins were included within the liver segmentation contours, the main portal vein, inferior vena cava, and the gallbladder were manually removed. Then, hepatic tissue was segmented, and the whole hepatic FF was automatically calculated (Figure 1D).

Inter- and intraobserver variability

A total of 43 patients were selected between January 2017 and April 2017, and the data were measured independently by radiologists A and B (with 10 and 7 years of experience in abdominal imaging MR diagnosis, respectively). A week later, radiologist A carried out a second measurement of the same images to evaluate intraobserver data’s repeatability. Finally, radiologist A completed the remaining data measurement. Both radiologists were blinded to the grouping.

Statistical analysis

All data were analyzed using SPSS version 25.0 (IBM Corp., Armonk, NY, USA). The Shapiro-Wilk test was used to test the normality of the variables. Normally distributed data are expressed as means ± standard deviations, and nonnormally distributed data are expressed as medians and ranges (25th, 75th percentiles). Nominal data are expressed as a percentage. The intraclass correlation coefficient (ICC) was used to check the 2 observers’ consistency: ICC value <0.4 indicated poor consistency, while ICC value >0.75 indicated good consistency. Bland-Altman plots assessed the consistency between different methods. When parameters were normally distributed, Pearson’s correlation coefficient was used; otherwise, Spearman’s correlation coefficient was applied. Correlation coefficients were interpreted as follows: weak, 0–0.4; moderate, 0.4–0.7; strong, 0.7–1.0. Scatter plots were generated to visualize the correlation between hepatic FF of different methods. Furthermore, absolute differences for hepatic FF were calculated. A two-tailed P value <0.05 was considered statistically significant.

Results

A total of 349 patients were included in the study. The participants’ age, gender, height, weight, and body mass index (BMI) are shown in Table 1. Regular liver fat content was found in 223 participants (63.90%), whereas 97 (27.79%), 27 (7.74%), and 2 participants (0.57%) had mild, moderate, or severe steatosis, respectively.

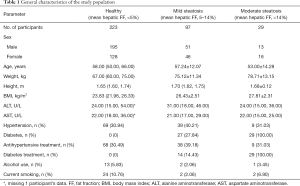

Table 1 General characteristics of the study population
Full table

Consistency analysis

The data consistency is shown in Table 2. The intraobserver and interobserver ICC values in whole-liver segmentation were 0.998 and 0.999, respectively. The intraobserver and interobserver ICC values in the ROI sampling method were 0.998 and 0.999, respectively. All ICC values were >0.9, which indicated good interobserver and intraobserver agreement.

Table 2 Measurement consistency of two observers
Full table

Correlation and Bland-Altman analysis

The hepatic FF (%) of whole-liver segmentation and the ROI sampling method in healthy participants were 3.10 (2.50, 3.90) and 2.56 (2.01, 3.28) respectively, and a strong correlation in hepatic FF was found between the two methods (r=0.943, P<0.001). The hepatic FF (%) of whole-liver segmentation and the ROI sampling method in mild steatosis patients was 7.80 (6.30, 10.00) and 7.71 (6.25, 10.00), respectively, which showed a strong correlation in hepatic FF between the two methods (r=0.990, P<0.001). The hepatic FF (%) of whole-liver segmentation and the ROI sampling method in moderate steatosis patients was 17.00 (14.30, 22.37) and 18.03 (15.15, 22.37), respectively, which showed a strong correlation in hepatic FF between two methods (r=0.961, P<0.001) (Figure 2). The detailed measurements are shown in Table 3.

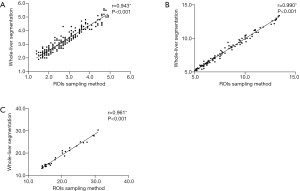

Figure 2 The correlation in hepatic FF between whole-liver segmentation and ROI sampling method. (A) Healthy subjects; (B) mild NAFLD; (C) moderate NAFLD. *, Spearman’s correlation coefficient. FF, fat fraction; ROI, region of interest; NAFLD, nonalcoholic fatty liver disease.

Table 3 Correlation of whole-liver segmentation and the ROI sampling method
Full table

Bland-Altman analysis showed a small bias of +0.50±0.27 and +0.05±0.30, which indicated a small overestimation by semiautomatic segmentation in healthy participants and mild NAFLD patients, respectively. The 95% limits of agreement ranged from +1.02 to –0.03, and from +0.65 to –0.55, respectively. However, a small bias of –0.96±0.77 was revealed, which indicated a small underestimation by semiautomatic segmentation in moderate NAFLD patients. The 95% limits of agreement ranged from +0.56 to –2.48 (Figure 3).

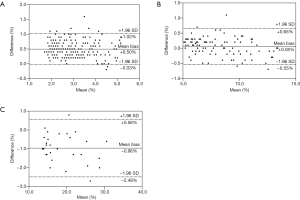

Figure 3 Bland-Altman plots. (A) Bland-Altman plot showing a bias of +0.50% with a 95% limit of agreement ranging from +1.02% to –0.03% in healthy participants. (B) Bland-Altman plot showing a bias of +0.05% with a 95% limit of agreement ranging from +0.65% to –0.55% in mild NAFLD. (C) Bland-Altman plot showing a bias of –0.96% with a 95% limit of agreement ranging from +0.56% to –2.48% in moderate NAFLD. NAFLD, nonalcoholic fatty liver disease.

The over- and underestimation of the degree of hepatic steatosis of whole-liver segmentation

As shown in Table 4, the number of healthy, mild, and moderate steatosis participants were 223, 97, and 29, respectively, according to the traditional ROI sampling method, and the number of healthy, mild, and moderate steatosis participants were 213, 110, and 26 according to whole-liver segmentation. Thus, 10 healthy participants were incorrectly classified into the mild steatosis group, while 3 moderate steatosis patients were incorrectly assigned to the mild fatty liver group.

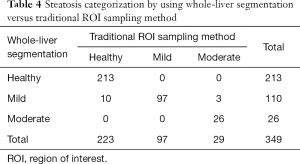

Table 4 Steatosis categorization by using whole-liver segmentation versus traditional ROI sampling method
Full table

Discussion

This study evaluated the accuracy of hepatic FF using whole-liver segmentation compared to the traditional ROI sampling method. Our results revealed an excellent agreement and correlation between the two methods. There was a slight overestimation of hepatic fat content in healthy people and mild NAFLD patients using whole-liver segmentation [bias (%) =+0.51±0.27 and +0.05±0.30, respectively]. However, hepatic fat content was slightly underestimated in moderate NAFLD patients [bias (%) =−0.96±0.77]. In our study, 10 healthy participants were incorrectly classified into the mild steatosis group, and 3 moderate steatosis patients were incorrectly assigned to the mild fatty liver group.

For years, MRI has been considered the optimal noninvasive method for the assessment of fat accumulation. Previous studies have quantified the FF by chemical shift imaging (CSI) technology using a declining degree of MR signal on the out-phase image (12,13); still, its accuracy has been affected by multiple factors, including T1 value, T2 value, and heterogeneity of fat proton. As a gold standard approach of fat quantification, MR spectroscopy (MRS) provides high safety and accuracy for hepatic fat quantification (14); when the fat content is low, its sensitivity is high. Nevertheless, the traditional MRS requires long postprocessing time, patient respiratory coordination, and sampling errors associated with a low spatial resolution. In addition, skill and knowledge are necessary for its accurate performance and spectroscopy data analysis (12). The MRI IDEAL-IQ has an advantage in quantifying liver fat content compared to MRS. With a low flip angle to suppress the T1 effects and multi-echo acquisition correction of the T2 effects, the IDEAL-IQ sequence offers more accurate modeling for measuring triglyceride fat content (15). Serai et al. (16) suggested that the estimation of hepatic FF with MRI using multipoint Dixon techniques is highly reproducible across readers, field strengths, and imaging platforms. Thus, in the present study, data in 2 different field strengths were analyzed together.

Typically, hepatic FF estimation is obtained by ROI sampling methods, which include single-ROI (17,18), multiple-ROI sampling of the right hepatic lobe (19,20), and multiple-ROI sampling of both lobes (21-23). Even so, an uneven spatial distribution of liver fat may lead to an inaccurate assessment of FF. Previous studies have observed lower FF in the left hepatic lobe and higher FF in the right lobe, attributed to preferential shunting of fatty mesenteric blood toward the right portal vein and shunting of splenic blood toward the left portal vein (12,21). Therefore, ROI location may affect liver mean FF estimation, which may be overestimated when the right lobe is exclusively or predominantly sampled. It has been recommended that hepatic fat content quantification based on MRI FF maps should sample each liver segment and include a total surface area equal or larger than 5 cm² to provide a close estimate of the hepatic mean FF (1).

The estimation of hepatic mean FF requires whole-liver segmentation, especially automated or semiautomated segmentation methods. These approaches not only overcome sampling errors due to steatosis heterogeneity but also save time (24). Stocker et al. (25) evaluated the performance of an automated workflow of hepatic FF with automated inline liver volume segmentation. This approach was proven to be very useful for patients with and without hepatic steatosis. Yet, in cases with iron overload and post-hemihepatectomy, extrahepatic areas were erroneously included to a greater extent, resulting in the overestimation of hepatic FF.

In this study, we observed excellent agreement and correlation between whole-liver segmentation and ROI sampling methods in different NAFLD patient grades. Our data indicated that inclusion of the intrahepatic vasculature with the whole-liver segmentation method had a slight effect on assessing mean hepatic FF, which caused a minor overestimation in healthy and mild hepatic steatosis patients, and a minor underestimation in moderate hepatic steatosis patients. However, it did not meaningfully impact the assessment of whole-liver FF in MRI FF maps, thus suggesting that whole-liver segmentation methods for assessing hepatic FF in MRI FF maps may not be necessary to exclude intrahepatic vasculature. Our results were similar to those of Vu et al., who reported that whole-liver segmentation was correlated with traditional ROI sampling methods (r=0.975) in a cohort of 35 patients with a mean hepatic FF of 2.1–32.5% (8). In addition, Kim et al. (11) evaluated the hepatic fat deposition using a free-drawn ROI measurement, which covered nearly the entire liver at 3 different levels (including the confluence of the right hepatic vein, the umbilical portion of the left portal vein, and the posterior branch of the right portal vein) along the liver margin in 156 patients (54 steatosis patients and 102 non-steatosis patients). They assumed that this method could be considered a new reference standard for MR fat quantification instead of MRS. In our study, participants were divided into different groups according to the degree of hepatic steatosis to accurately evaluate the degree of over and underestimation of hepatic steatosis of whole-liver segmentation in a larger sample size. Considering there have been no studies on hepatic steatosis assessment of whole-liver segmentation in FF map with a large patient cohort, our results showed that this method enables accurate hepatic fat quantification.

Our results also showed that 10 healthy participants were incorrectly classified into the mild steatosis group, while 3 moderate steatosis patients were incorrectly assigned to the mild fatty liver group. This suggested that when the liver fat content is near the critical value of mild and moderate hepatic steatosis, the two methods should be used to avoid over- and underestimating the degree of hepatic steatosis.

This study had several limitations. First, this was a retrospective study with a small sample size (particularly for patients with moderate or severe NAFLD), which might have generated some bias. Only 2 participants had severe steatosis, so the accuracy of whole-liver segmentation to evaluate severe steatosis was not analyzed separately. Our results should be further verified by a large-scale prospective validation study in a more general population. Second, we did not correlate our hepatic FF with histopathology or MRS as the standard of reference because the assessment of diagnostic accuracy of IDEAL-IQ sequence was not within the range of this study and had been previously validated. Moreover, biopsy and MRS samples included only a small fraction of the liver volume and might have led to sampling errors. Third, the study was limited to the use of software and a concrete MR scanner (GE Medical Systems). Finally, we did not compare the time spent by the analysts using the two different methods.

In conclusion, our findings demonstrated that the whole-liver segmentation method has some effect on assessing hepatic FF in different severities of NAFLD due to the inclusion of the intrahepatic vasculature, which does not significantly impact whole-liver FF assessment in MRI FF maps. These data suggest that whole-liver segmentation of assessing hepatic FF in MRI FF maps may not be necessary to exclude intrahepatic vasculature.

Acknowledgments

Funding: This work was supported by Program for Training Capital Science and Technology Leading Talents (Z181100006318003).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-989). The authors have no conflicts of interest to declare.

Ethical Statement: The local ethical committee approved the study, and the written consent was provided by all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
