Predicting cancer malignancy and proliferation in glioma patients: intra-subject inter-metabolite correlation analyses using MRI and MRSI contrast scans

Introduction

Glioma is the most common malignant brain tumor. It is associated with a high post-surgical disability rate and a high mortality rate, resulting in an enormous healthcare system burden (1). The current standard treatment regimen involves maximum extent resection plus radio-chemotherapy following adjuvant chemotherapy. However, this is not sufficient to significantly prolong a patient’s overall survival (2). Obvious substance metabolism changes and accumulation characterize the rapid growth of gliomas compared to normal brain tissue. High-grade gliomas (HGGs) typically have high proliferating rates and possess high and active metabolite transformation rates; thus, they have a distinct metabolic profile compared to low-grade gliomas (LGGs) (3). Many metabolites play a vital role in maintaining tumor malignancy, and invasiveness, and quantitative metabolic markers are necessary to explore tumor subtypes’ characteristics. Understanding the correlations between metabolites and tumor subtypes may help develop personalized therapies targeting unique tumor metabolic profiles (4).

PET-CT (positron emission tomography-computed tomography) is the most common non-invasive tool for imaging in vivo metabolism. With multiple radiolabeled tracers, such as ¹⁸F-fluorodeoxyglucose (¹⁸F-FDG), ¹C-methionine, ¹⁸F-fluoroethyltyrosine (¹⁸F-FET), and ¹⁸F-fluorothymidine (¹⁸F-FLT), PET provides significant clinical benefits in detecting anaerobic glycolysis and metabolism of amino acids and nucleosides for protein and DNA synthesis in cancer cells (5). Such quantitative information might help forecast variations in genetic, epigenetic, and proteomic factors or variations in invasion, proliferation, and immune-infiltration in gliomas (5,6). However, the need for radiant nuclear contrast agents and their time limitations mean PET-CT is not as convenient as magnetic resonance imaging (MRI) in routine clinical applications. Moreover, the ability of ¹⁸F-DOPA (¹⁸F-fluorodihydroxyphenylalanine) uptake parameters from PET-CT to reflect molecular and histological features is limited, and the prediction of prognosis is inefficient (7). In contrast, MRI markers can better reflect glioma biological features and predict a patient’s progression-free survival (8,9).

Advanced MRI sequences, such as proton magnetic resonance spectroscopic imaging (MRSI) and chemical exchange saturation transfer (CEST) imaging, provide quantitative parameters reflecting tissue metabolism at the molecular level (10-12). Magnetic resonance (MR) spectroscopy allows non-invasive detection of total choline (tCho), total N-acetylaspartate (tNAA), and total creatine (tCr) levels in cerebral tissue. Amide proton transfer imaging (APT) contrast, a type of CEST, detects cellular mobile proteins and peptides. Semi-solid magnetization transfer contrast (MTC) quantifies the number of macromolecular substances, such as structural proteins and carbohydrates (13-15). Increased metabolites and varied metabolism typically accompany the rapid growth of gliomas. The in vivo detection of these metabolic parameters with MRI/MRSI may allow the non-invasive quantification of key metabolites associated with tumor malignancy, tumor grades, proliferation, or genetic features (16-18). Moreover, these quantitative metabolic MR parameters may also help predict glioma genetic types and monitor tumor responses to treatments (19,20). Compared to PET examinations, MRI tests are more comprehensive, widely available, and safe.

Recently, increasing attention has been directed to the correlation patterns between different MRI modalities. The inter-modality correlations may reflect vital biological processes and the characterization of tumors. For example, the qualitative biomarker T2/FLAIR mismatch, which describes the consistency between T2 and T₂FLAIR (T2 fluid-attenuated inversion recovery imaging), is a highly specific imaging biomarker for the isocitrate dehydrogenase (IDH)-mutant, 1p/19q non-co-deleted molecular subtype in lower-grade gliomas (21,22). Moreover, previous studies have demonstrated the feasibility of using inter-imaging-modality correlations for assessing tumor prognosis. For example, the higher pixel-wise correlation between the PET signal and the apparent diffusion coefficient (ADC) value from MRIs suggests a shorter time progression (8,23). Hence, exploring inter-metabolite correlations with non-invasive MRI/MRSI contrasts may lead to an improved understanding of gliomas.

Our previous study found that APT contrast and MTC were significantly correlated with the tCho and tNAA (24). However, the group-level correlation analysis might be confounded by inter-subject heterogeneity. Since the inter-metabolite correlations at the individual level have not been systematically investigated, this current study examined the intra-subject inter-metabolite correlation with MRI/MRSI contrasts and utilized inter-metabolite correlation coefficients (IMCCs) to differentiate cancer malignancy and proliferation in clinical glioma patients.

Methods

Patients

This retrospective study was approved by the institutional review board, and all activities during this study abided by the basic principles of the Helsinki Declaration. Between June 2015 and September 2018, a total of 145 scans were performed using a 3.0 Tesla MR750 scanner (GE Medical Systems, Milwaukee, WI, USA) with a 32-channel coil. Informed consent was obtained from each participant before scanning. During the scan, patients were instructed to hold their heads still, while a soft sponge mat was used to comfort and reduce potential head movement. The inclusion criteria were as follows: (I) patients scanned with anatomical MRI, CEST, and MRSI; and (II) primary gliomas confirmed by pathological examinations. The following exclusion criteria were applied: (I) unsatisfactory MRSI or CEST scans (14 cases), including mismatched imaging slices between CEST and MRS, severe head motion, and no CEST or MRSI scans; (II) lesions with an insufficient number of voxels (less than 9 voxels) in the MRSI (18 cases); (III) non-tumors confirmed by histopathological examination (6 cases); (IV) patients not receiving surgical operations (8 cases) and duplicated scans (1 case); (V) patients with no gliomas, including 5 cases of lymphomas (1 non-Hodgkin’s lymphoma and 4 diffuse large B cell lymphoma), 7 cases of meningiomas, and 1 case of metastasis tumor; and (VI) no primary gliomas, including 17 cases of recurrent gliomas, 3 cases of treatment injuries confirmed at 6-month follow-up, and 1 recurrent primitive neuroectodermal tumor. Following the selection criteria, a total of 17 negative controls (NCs) and 64 glioma patients were enrolled in this study, including 39 LGGs (2 grade I and 37 grade II gliomas) and 25 HGGs (13 grade III and 12 grade IV gliomas).

Scanning protocols

Anatomical MRI, CEST, and MRSI were conducted. Anatomical MRI scans included T2 fluid-attenuated inversion recovery imaging (T₂FLAIR), T1 fluid-attenuated inversion recovery imaging (T₁FLAIR), T2-weighted fast spin-echo (T₂FSE), and T₁ post-contrast (T1C). All anatomical MRI scans were collected with the same field of view (FOV, 240×240 mm²), slice thickness (5.0 mm), slice spacing (1.5 mm), and a total of 20 slices covering the whole brain. Both CEST and MRSI were scanned on the same slices: the largest transverse slice of the solid tumor parts and the centrum semiovale in healthy volunteers. For CEST, image acquisition with 2 numbers of excitations was implemented before T1C scanning. A frequency list of +15.6, ±6, ±5, ±4.5, ±4, ±3.75, ±3.5, ±3.25, ±3, ±2.5, ±2, ±1.5, ±1, ±0.75, ±0.5, ±0.25, and 0 ppm was acquired to collect 64 images and 2 reference images without saturation. The radiofrequency (RF) saturation pulse train consisted of 4 pulses at 2 μT amplitude and 400 ms duration for each. Other CEST imaging parameters are listed as followed: repetition time/echo time (TR/TE) =3,000/22.6 ms, matrix size 128×128, slice thickness 5 mm, and FOV 240×240 mm². The total acquisition time for the CEST MRI of a single transverse brain slice was 3 minutes 18 seconds. For MRSI, two-dimensional multi-voxel MRS was implemented with point-resolved spectroscopy (PRESS) pulse sequence with the following parameters: TR =1,000 ms, TE =144 ms, FOV 240×240 mm² with the matrix size of 128×128, slice thickness 14 mm, and NEX =0.8. The voxel size was 7.5×7.5×14 mm³, with a total scanning time of 4 minutes 20 seconds. Areas of hemorrhage, calcification, cystic components, and large vessels were carefully avoided to reduce the potential interference with MRSI, and saturation slabs were applied in 6 directions to reduce potential fold-over and motion artifacts.

Data processing

The scanned data were transferred to an AW4.6 workstation (AW462) with post-processing capability. For the MRSIs, the following steps were included in the preprocessing: filtering to reduce noise, zero-filling the signal, water signal suppression, signal translating from the time domain to frequency domain with fast Fourier transformation, baseline correction, and phase correction. The total choline/total creatine (tCho/tCr) and total N-acetylaspartate/total creatine (tNAA/tCr) for each voxel were quantified as ratios of the areas of tCho, tNAA, and tCr peaks which were calculated via curve fitting using the post-processing program from the scanner workstation. Amide proton transfer (APT), with the asymmetric magnetization transfer ratio at 3.5 ppm, was derived from the raw CEST data, B₀-shifted by fitting the Z-spectrum according to the report by Zhou et al. (25). The quantitative parameter of the MTC, that is, the magnetization transfer ratio, was calculated using the following equation (S₀ − S_saturation)/S₀, where S_saturation is the signal intensity at +15.6 ppm, and S₀ is the signal with no saturation (26).

Multi-voxel segmentation and quantification of metabolites

Using the AW4.6 workstation, anatomical MRIs were automatically matched with MRSI scanning slabs, and quantitative parameters were reconstructed according to the acquisition matrix. MRSI voxels that fell completely within the tumor solid parts were included, and voxel-wise quantitative parameters were obtained. After that, voxel positions were recorded concerning anatomical images, based on which corresponding APT and MTC in each voxel were produced. The detailed flowchart of voxel segmentation and co-registration is illustrated in Figure 1.

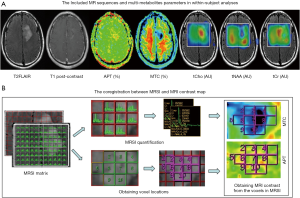

Figure 1 Analysis of the MRSI and MRI parameters and the co-registration flow chart. (A) Representative multi-parametric maps from MRSI and CEST sequences in gliomas. Signals from MRSI (tCho, tNAA, tCr) are color-coded and overlayed on T2-FLAIR images. (B) The flowchart illustrates the co-registration between the MRSI and MRI contrast maps. The MRSI was quantified according to the acquisition matrix and the voxel locations in reference to the MRI were obtained. The voxel locations were then used to obtain the corresponding MRI contrast information. MRSI, magnetic resonance spectroscopic imaging; MRI, magnetic resonance imaging; CEST, chemical exchange saturation transfer; AU, arbitrary unit; APT, amide proton transfer; MTC, magnetization transfer contrast; tCho, total choline; tCr, total creatine; tNAA, total N-acetylaspartate.

Histological examinations

Histological tumor grades were assigned according to 2016 WHO classification criteria on surgically resected specimens (27). Also, immune-histochemical staining was performed on 51 tissue specimens from 64 patients. The Ki-67 labeling index (Ki-67 LI) was used to quantify the tumor cell proliferation status. Ki-67 LI was measured as the percentage of positive cells among all cells counted in the stained area with the highest density of cells. Cells with nuclear staining of any intensity were considered positive.

Statistical analysis

All data are expressed as mean ± standard deviation. To explore the inter-metabolite correlation among NCs, LGGs, and HGGs, three inter-metabolites correlation coefficients (IMCCs), namely R_{APTvs. MTC}, R_{APTvs. tCho/tCr}, and R_{MTCvs. tNAA/tCr,} were defined as Pearson’s correlation coefficients of APT vs. MTC, APT vs. tCho/tCr, and MTC vs. tNAA/tCr, respectively, of solid-tumor voxels in each subject. For example, R_{APTvs. MTC} for a certain patient is the correlation coefficient between APT and MTC contrasts of all tumor voxels from that patient. To investigate the dependency of the IMCCs, regression analysis was conducted between included voxel numbers and the IMCCs. The correlation among the IMCCs and tumor grades was explored with Spearman’s rank correlation analysis, and the correlation between each IMCC and Ki-67 LI was quantified using Pearson’s correlation analysis. To examine the differences of the IMCCs among NC, LGGs, and HGGs, one-way analysis of variance (ANOVA) was implemented, followed by the post hoc analysis of the least-significant difference method. To combine multi-IMCCs and remove collinearity IMCCs, multi-variate linear regression or binary logistic regression was used to build combined models to predict the tumor proliferation and grades. The diagnostic performance of the IMCCs was evaluated by the receiver operating characteristic curve (ROC). The differences in the Ki-67 LI between LGGs and HGGs were tested with the independent Student’s t-test, and the differences in gender composition between NCs, LGGs, and HGGs were tested using the Kruskal-Wallis test. All statistical analyses were performed with either SPSS, IBM 18, or Prism 5.0 GraphPad software, with two-tailed P values ≤0.05 considered statistically significant.

Results

No significant differences in age or gender were observed in NCs, LGGs, and HGGs (Table 1). HGGs were marked with more rapid cellular proliferative activities. The Ki-67 LI in HGGs was significantly higher than that in LGGs (26.19±19.29 vs. 5.62±4.56, P<0.001). The total included voxels in NCs, HGGs, LGGs at the group level were 458, 764, and 558, respectively. The included voxel number of NCs was significantly more than both LGGs and HGGs (34.65±2.12 vs. 19.59±8.3 and 22.32±13.39, respectively; P<0.0001). However, no significant correlations were observed between included voxel numbers and R_{APTvs. MTC} (R=0.11, P=0.387), R_{APTvs. tCho/tCr} (R=−0.008, P=0.951), and R_{MTCvs. tNAA/tCr} (R=−0.172, P=0.174)_, indicating that IMCCs might be independent biomarkers.

Table 1 The demographic data of the included subjects
Full table

Compared with NCs, gliomas showed higher absolute IMCC values. However, HGGs demonstrated much greater inter-metabolite correlation. The representative cases of NCs, LGGs, and HGGs are displayed in Figure 2, and the corresponding metabolite correlation scatters are shown in Figure 3A,B,C. R_{APTvs. MTC} and R_{APTvs. tCho/tCr} increased with tumor grade. R_{APTvs. MTC} was significantly different in the three groups (NCs vs. LGGs vs. HGGs: −0.18±0.38 vs. −0.40±0.34 vs. −0.70±0.29, P<0.0001, Figure 3D). R_{APTvs. tCho/tCr} was significantly higher in HGGs compared to NCs (0.52±0.32 vs. 0.01±0.25, P<0.0001) and LGGs (0.52±0.32 vs. 0.13±0.34, P<0.0001) (Figure 3D). There appeared to be no significant differences between NCs and LGGs (P=0.231, Figure 3D). Furthermore, no differences in R_{MTCvs. tNAA/tCr} were observed among the three groups (P=0.116, Figure 3D).

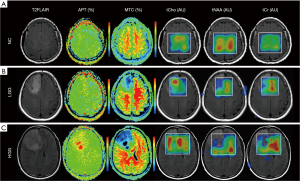

Figure 2 Representative cases of healthy control, low-grade glioma, and high-grade glioma. Representative images from (A) healthy control; (B) grade II glioma patient; and (C) grade IV glioma patient. Compared with healthy controls, gliomas showed increased APT signal and tCho, and reduced MTC signal and tNAA levels. AU, arbitrary unit; NC, healthy control; LGG, low-grade glioma; HGG, high-grade glioma; APT, amide proton transfer; MTC, magnetization transfer contrast; tCho, total choline; tCr, total creatine; tNAA, total N-acetylaspartate.

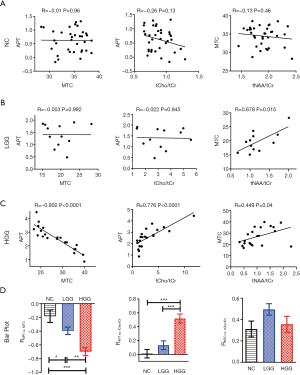

Figure 3 The scatter patterns and bar plots of the inter-metabolite correlation coefficients in healthy controls, low-grade glioma, and high-grade glioma patients. Scatter plots of the IMCCs in (A) healthy control; (B) grade II glioma patient; and (C) grade IV glioma patient. Subjects correspond to those in Figure 2. From left to right, the plots are correlations of APT vs. MTC, APT vs. tCho/tCr, and MTC vs. tNAA/tCr, sequentially. (D) Bar plot of R_{APTvs. MTC}, R_{APTvs. tCho/tCr}, and R_{MTCvs. tNAA/tCr} in the three groups. R_{APTvs. MTC} and R_{APTvs. tCho/tCr} are significantly different among the three groups, except in the case of R_{APTvs. tCho/tCr} in differentiating NCs from LGGs. No significant differences were observed in R_{MTCvs. tNAA/tCr} among the three subject groups. IMCC, inter-metabolite correlation coefficient; NC, healthy control; LGG, low-grade glioma; HGG, high-grade glioma; APT, amide proton transfer; MTC, magnetization transfer contrast; tCho, total choline; tCr, total creatine; tNAA, total N-acetylaspartate. *, 0.01<P≤0.05; **, 0.001<P≤0.01; ***, P≤0.001.

R_{APTvs. MTC} and R_{APTvs. tCho/tCr} were significantly correlated with tumor grades with corresponding R values of −0.41 (P=0.001) and 0.448 (P<0.001), while no significant correlation was observed in R_{MTCvs. tNAA/tCr} (R=−0.17, P=0.2). With tumor proliferation, only R_{APTvs. MTC} was negatively correlated with Ki-67 LI (R=−0.33, P=0.02), and neither R_{APTvs. tCho/tCr} nor R_{MTCvs. tNAA/tCr} exhibited any significant correlation (Figure 4A,B,C). Predictive models combining different IMCCs were built with regression analysis to evaluate the Ki-67 LI. The combined model, expressed as Y (predictive Ki-67 expression level) =12.48–17.08*R_{APTvs. MTC} −14.66*R_{MTCvs. tNAA/tCr}, displayed improved correlation with Ki-67 LI (R=0.46, P=0.0008, Figure 4D).

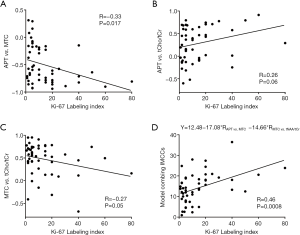

Figure 4 Scatter plots showing the correlations between the inter-metabolite correlation coefficients and the Ki-67 labeling index. Scatter plots showing (A) R_{APTvs. MTC}; (B) R_{APTvs. tCho/tCr}; and (C) R_{MTCvs. tNAA/tCr}. (D) A model combining multiple IMCCs. R_{APTvs. MTC} and R_{MTCvs. tNAA/tCr} significantly correlated with Ki-67 LI (A and C). The model combining R_{APTvs. MTC} and R_{MTCvs. tNAA/tCr} showed an improved correlation with the Ki-67 LI with P<0.001 (D). IMCC, inter-metabolite correlation coefficient; APT, amide proton transfer; MTC, magnetization transfer contrast; tCho, total choline; tCr, total creatine; tNAA, total N-acetylaspartate; LI, labeling index.

In distinguishing between healthy and tumor status, R_{APTvs. MTC}, R_{APTvs. tCho/tCr}, and R_{MTCvs. tNAA/tCr} achieved areas under the curve (AUCs) of 0.754, 0.71, and 0.637, respectively (Figure 5A). However, relatively low AUCs (R_{APTvs. MTC} 0.66; R_{APTvs. tCho/tCr} 0.60; R_{MTCvs. tNAA/tCr} 0.69) were obtained in differentiating NCs from LGGs. The differentiation between NCs and HGGs, R_{APTvs. MTC} and R_{APTvs. tCho/tCr}, resulted in excellent diagnostic efficiencies with AUCs of 0.90 and 0.88, respectively. However, R_{MTCvs. tNAA/tCr} showed poor diagnostic performance with an AUC of 0.55. In differentiating LGGs and HGGs, comparable AUCs were obtained in R_{APTvs. MTC} and R_{APTvs. tCho/tCr} (0.77 and 0.78); however, relatively low AUC with a value of 0.62 was detected in R_{MTCvs. tNAA/tCr} (Figure 5B). Using regression analysis, predictive models were built by combining different IMCCs to provide complementary information in differentiating glioma malignancy. The logistic regression model was expressed as ln [(1−Y)/Y] =−2.497*R_{APTvs. MTC} + 2.663*R_{APTvs. tCho/tCr} −2.591*R_{MTCvs. tNAA/tCr} −1.595, in which Y indicates tumor grade. The AUC of the combined multi-IMCCs model improved to 0.854, with sensitivity and specificity of 80.0% and 79.5%, respectively (Figure 5B).

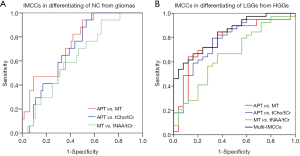

Figure 5 Diagnostic performances of the inter-metabolite correlation coefficients in differentiating healthy controls from gliomas, and low-grade gliomas from high-grade gliomas. (A) ROC curves of the IMCCs in differentiating NCs and gliomas. R_{APTvs. MTC} showed the best AUC value of 0.754. (B) ROC curves for the differentiation of LGGs from HGGs. R_{APTvs. tCho/tCr} showed the best AUC of 0.78. Combining multiple IMCCs resulted in improved diagnostic power with an AUC of 0.854. IMCC, inter-metabolite correlation coefficient; NC, healthy control; LGG, low-grade glioma; HGG, high-grade glioma; APT, amide proton transfer; MTC, magnetization transfer contrast; tCho, total choline; tCr, total creatine; tNAA, total N-acetylaspartate; ROC, receiver operating characteristic; AUC, area under the curve.

Discussion

Compared with normal controls, gliomas showed a stronger inter-metabolites correlation. Quantitative biomarkers of inter-metabolites correlation, that is, the IMCCs, revealed different metabolic correlation patterns in NCs, LGGs, and HGGs. Moreover, some patient-specific IMCCs significantly correlated with tumor grade and Ki-67 LI. The combined multi-IMCCs model could effectively predict tumor proliferation and differentiate LGGs from HGGs. This may represent a vital non-invasive metabolic biomarker for pre-surgical evaluation of gliomas.

Personalization of metabolic therapies may be an effective cancer treatment strategy. However, this requires the fine-tune matching of therapy to an individual’s unique physiology (28). Hence, cancer risk stratification with individual IMCCs might guide personal treatment regimens. As quantified by advanced MRI technologies, tCho, tNAA, APT, and MTC represent total choline concentrations, total N-acetylaspartate, cellular mobile proteins and peptides, and immobile macromolecular substances (3,5,15,29,30). The ratios of tCho/tCr and tNAA/tCr are frequently used to evaluate tumor burden and losses of neurons, respectively (31). The rapid growth of tumors increases the demands on metabolic substances, which leads to the accumulation of choline and an increase in mobile peptide and protein concentrations or the APT signal (25,32). The invasiveness of tumors on brain tissues causes the reduction of tNAA and immobile macromolecular substances (13,32). Thus, to identify the different metabolic statuses in patients with gliomas, it is meaningful to correlate APT with MTC, APT with tCho/tCr, and MTC with tNAA/tCr.

Moreover, the rapid growth of the tumor relies on a higher metabolic turnover, and it has been shown that the metabolism of many substances, such as peptides, lipids, and carbohydrates, accelerates during carcinogenesis (30,33). Due to different cell proliferation rates, metabolite transformation rates in tumor tissue differ according to the tumor malignancy, contributing to a different IMCC for each patient. Hence, patient-specific IMCC allows the individual evaluation of metabolite correlation in different tumor types.

The complex metabolic correlations in tumor tissue could be a vital pathophysiological basis for seeking useful biomarkers that reflect tumor metabolic procedures (34). The current study identified multi-quantitative metabolite-related biomarkers for glioma evaluation. Moreover, different IMCCs can be used to evaluate different aspects in stratifying tumors. For example, R_{APTvs. tCho/tCr} reflects the correlation of choline (an indicator of tumor cell membrane formation) and mobile peptides and proteins, and R_{MTCvs. tNAA/tCr} reflects the semisolid macromolecular substance (indicating the integrity of the brain structure) and tNAA decrease (a biomarker of neuron loss) (25,31). Different tumor malignancies contribute to varied pathological processes, and noninvasive IMCCs allow the quantitative description of those processes. Thus, the combination of multi-IMCCs provides a more effective index for predicting tumor proliferation and differentiating tumor grades. Also, intra-subject IMCCs can be more specific in differentiation LGGs and HGGs compared to group-level correlation analysis (35).

IMCCs, such as R_{APTvs. MTC,} are novel biomarkers for glioma malignancy and proliferation. Previously, we reported a positive correlation between APT contrast, tumor grades, and Ki-67 LI (17). While the present study demonstrated a negative correlation between R_{APTvs. MTC} and tumor grade or Ki-67 LI, this does not conflict with the previous study since R_{APTvs. MTC} represents the correlation coefficient between the inter-metabolites APT and MTC. R_{APTvs. MTC} is a different signal compared to APT contrast itself. IMCCs may be less influenced by inter-subject and spatial tumor heterogeneity compared to studies using metabolic imaging contrasts themselves for differentiating glioma malignancy (35). Therefore, IMCCs may be effective novel biomarkers for differentiating glioma malignancy and proliferation.

Three IMCCs, namely, R_{APTvs. tCho/tCr}, R_{APTvs. MTC}, and R_{MTCvs. tNAA/TCr}, were included based on their pathophysiological meanings in this study. APT and tCho/tCr were significantly correlated with tumor malignancy and proliferation, while MTC and tNAA/tCr represent brain structures and neurons (36). In this study, tCho/tCr and tNAA/tCr were examined rather than tCho and tNAA because tCho/tCr and tNAA/tCr are considered more reliable than tCho and tNAA alone. Moreover, a relatively short time of repetition (TR =1,000 ms) and a relatively long echo time (TE =144 ms) were utilized in our MRSI protocols. A relatively short TR can reduce the scanning time, allowing more averages within a clinically feasible scanning period. Meanwhile, a longer TE can preferably suppress the signals from macromolecules to achieve more stable spectroscopic baselines, contributing to more reliable quantifications (37,38). As demonstrated in this study results, the IMCCs showed no significant correlation with the number of included voxels. The inter-metabolite correlation analyses may have been less sensitive to tumor size and spatial location.

There are several limitations to this study. First, while the study demonstrated the adequacy of single-slice MRI and MRSI for glioma grading, three-dimensional APT and MRSI might provide more comprehensive information regarding cancers’ spatial heterogeneity. Second, the mismatch in slice thickness between MRSI and CEST MRI may have caused some inaccuracy in our quantification. Third, IDH gene status and the 1p19q codeletion were not measured in the dataset included in this study. Considering the increasingly important roles of these latter genetic biomarkers in glioma risk-stratification and treatment guidance (39,40), future correlation analyses among IMCCs, IDH status, and 1p/19q codeletion may provide further diagnostic information in the clinical setting.

Conclusions

Compared with normal controls, IMCCs generally showed an increase in glioma malignancy, and some IMCCs were effective at predicting tumor proliferation, and combining multiple IMCCs further improved cancer characterization. In conclusion, IMCCs might be an important novel clinical biomarker for the non-invasive characterization of gliomas in patients.
