A simplified method to quantitatively predict the effect of lenvatinib on hepatocellular carcinoma using contrast-enhanced ultrasound with perfluorobutane microbubbles
Brief Report

A simplified method to quantitatively predict the effect of lenvatinib on hepatocellular carcinoma using contrast-enhanced ultrasound with perfluorobutane microbubbles

Yuji Eso, Shigeharu Nakano, Masako Mishima, Soichi Arasawa, Eriko Iguchi, Haruhiko Takeda, Atsushi Takai, Ken Takahashi, Hiroshi Seno

Department of Gastroenterology and Hepatology, Graduate School of Medicine, Kyoto University, Kyoto, Japan

Correspondence to: Yuji Eso, MD, PhD. Department of Gastroenterology and Hepatology, Graduate School of Medicine, Kyoto University, Shogoin-Kawaharacho 54, Sakyo-ku, Kyoto 606-8507, Japan. Email: yujieso@kuhp.kyoto-u.ac.jp.

Abstract: Contrast-enhanced computed tomography (CECT) is generally used to evaluate the response to treatment of hepatocellular carcinoma (HCC); however, CECT is unsuitable for the early prediction of therapeutic effects and frequent monitoring. We aimed to investigate the usefulness of our simplified method for the quantification of tumor vascularity using contrast-enhanced ultrasound (CEUS) with perfluorobutane microbubbles [Sonazoid® (GE Healthcare, Oslo, Norway)] to predict the therapeutic effect of lenvatinib. Among the 13 patients studied, nine who had more than a 20% reduction in tumor vascularity within 2 weeks of starting treatment experienced complete response or partial response at 8–12 weeks as assessed by CECT. In contrast, three patients without reductions and one patient with only a slight decrease in tumor vascularity had a poor response to lenvatinib. Quantitative assessment of tumor vascularity by our simplified CEUS-based method could be a useful predictor of therapeutic responses to lenvatinib in patients with HCC.

Keywords: Contrast-enhanced ultrasound (CEUS); hepatocellular carcinoma (HCC); lenvatinib; sonazoid; time-intensity curve analysis


Submitted Aug 13, 2020. Accepted for publication Jan 20, 2021.

doi: 10.21037/qims-20-965


Introduction

Contrast-enhanced ultrasound (CEUS) allows continuous observation of intratumoral hemodynamics and its contrast pattern can be an essential clue for the differential diagnosis of focal hepatic lesions (1). CEUS with perfluorobutane microbubbles [Sonazoid® (GE Healthcare, Oslo, Norway)] is useful not only for diagnosis of hepatic lesions but also as guidance for percutaneous biopsy and local ablation therapy because it can stably depict the outline of the tumor during the post-vascular phase (2-5). In addition, some reports have attempted to evaluate blood flow in hepatic tumors quantitatively using CEUS (6,7). However, to date, there is no widely accepted and commonly used CEUS-based method for quantitative assessment of tumor vascularity in clinical practice. This may be due to the complex calculations required for quantitative evaluation of blood flow, the need to install commercial software, or the difficulty of reproducible evaluation unless the examiner is proficient in CEUS.

If an accurate quantitative assessment of liver tumor vascularity can be made by CEUS, it may be possible to detect a decrease in tumor blood flow due to the therapeutic effects of molecular targeted agents (MTAs) without using contrast-enhanced computed tomography (CECT) or magnetic resonance imaging (MRI). Sorafenib, previously used as a first-line MTA for hepatocellular carcinoma (HCC), exhibited a low response rate and few reports have attempted to determine early therapeutic efficacy by CEUS (8,9). Recently, lenvatinib (Lenvima®, Eisai Co., Ltd., Tokyo, Japan) was approved as a novel first-line MTA for unresectable HCC based on the phase III REFLECT trial (10). Lenvatinib exerts antitumor activity by inhibiting angiogenesis through blockage of both vascular endothelial growth factor and fibroblast growth factor pathways (11). In fact, patients with HCC who experienced remarkable responses to lenvatinib show marked decreases in tumor vascularity by CECT scans (12). However, CECT is not suitable for early prediction of treatment response or frequent monitoring because overutilization of CECT increases medical costs and the patient’s risk of both contrast media and radiation exposure.

In the present study, we performed CEUS on patients with HCC treated with lenvatinib and attempted to identify early therapeutic efficacy by quantitatively assessing tumor vascularity before and 1 to 2 weeks after treatment initiation. In addition, we aimed to develop a simplified method of quantitative assessment of tumor vascularity using the built-in quantification software on the ultrasound system in order for it to be performed easily and reproducibly by non-skilled sonographers.


Methods

In total, 43 patients with HCC received treatment with lenvatinib at Kyoto University Hospital (Kyoto, Japan) from March 2018 to July 2019. The diagnosis of HCC was based on CECT, MRI, and/or CEUS. We collected clinical data for these patients before treatment with lenvatinib, including treatment history and blood test results. The ethics committee of Kyoto University Hospital approved the study protocol (protocol number R2009), and we received informed consent from each participant.

Sonazoid-enhanced ultrasound imaging

The sonographic scans were performed with a LOGIQ E9 system (GE Healthcare, Milwaukee, WI, USA) using a convex probe. The dual-display function on the ultrasound system was used, providing a simultaneous display of the conventional B-mode and CEUS on a single monitor. For CEUS, one vial (16 µg) of perfluorobutane was reconstituted with 2 mL of sterile water for injection. An intravenous bolus injection of the perfluorobutane solution was administered in a volume of 0.5 mL, followed by immediately with a manual 10-mL saline flush for approximately 3 seconds. To avoid disrupting the microbubbles, we selected a low-mechanical index (0.2–0.25) and set the focus below the tumor of interest.

Quantitative assessment of tumor vascularity by CEUS

The quantitative assessment of tumor vascularity was performed with time-intensity curve (TIC) analysis using the LOGIQ E9 system. First, we selected one hyper-vascularized target tumor that could be stably observed within 10 cm from the body surface by CEUS and was considered suitable for TIC analysis, referring to the prior CECT and B-mode ultrasonography. Second, a video was recorded during the early vascular phase of CEUS (Figure 1A). Third, during TIC analysis mode, two regions of interest (ROI) were set at the most intensely imaged area in the tumor and the background liver area at the same depth, and then two TICs were displayed (Figure 1B). In order to make the method of quantifying tumor vascularity as simple and widely accepted as possible, we used the default ROI size of 5 mm without changing it from case to case. Fourth, a smoothing process was applied to the TICs. The starting point of the quantitative assessment was set from the junction of the two TICs where the curves start splitting into different curves, and the endpoint was set 15 s after the starting point, considering the time period that all patients can stably hold their breath (Figure 1C). Finally, several parameters, including the area under the curve (AUC), were automatically calculated from the TICs. The quantitative tumor vascularity was defined as the AUC of the tumor area minus that of the background liver area (ΔAUC, Figure 1D). To ensure the accuracy of the quantitative assessment, the TIC analysis was carried out in discussion with two or three examiners. Quantitative assessment of tumor vascularity was performed just before and 1 and/or 2 weeks after the start of treatment with lenvatinib.

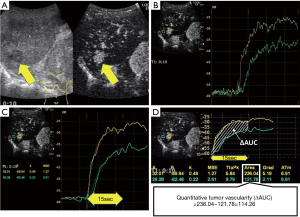

Figure 1 Quantitative assessment of tumor vascularity with Sonazoid-enhanced ultrasound. (A) A hypervascular tumor considered suitable for time-intensity curve (TIC) analysis was selected (yellow arrows). (B) Small regions of interest were set at the most intensely imaged area in the tumor (yellow circle) and the background liver area at the same depth (green circle). (C) The starting point of the quantitative assessment was set at the junction of the two TICs, and the endpoint was set 15 s after the starting point. (D) The quantitative tumor vascularity was defined as the area under the curve (AUC) of the tumor area minus that of the background liver area (ΔAUC).

Protocol of treatment with lenvatinib

The initial dose of lenvatinib was 8 mg q.d. to patients weighing <60 kg and 12 mg once a day to those weighing ≥60 kg. However, at the discretion of the attending physician, it was acceptable to start treatment with a reduced dose (from 12 to 8 mg, or from 8 to 4 mg) after obtaining informed consent. If unacceptable drug-related adverse events (AEs) occurred, the dose was reduced or treatment was interrupted. This dose reduction or temporary interruption of lenvatinib was maintained until the AEs were reduced to grade 1 or 2.

Evaluation of therapeutic response

Dynamic CECT scans were performed 8–12 weeks after treatment initiation to evaluate the therapeutic response to lenvatinib. The response to lenvatinib [complete response (CR), partial response (PR), stable disease (SD), or progressive disease (PD)] was evaluated by investigators in accordance with the modified Response Evaluation Criteria in Solid Tumors (mRECIST) guidelines (13).


Results

Baseline clinical characteristics of patients

Schematic flowchart of the patients enrolled in this study is shown in Figure 2. Among the 43 patients who started treatment with lenvatinib, seven discontinued treatment within 2 months due to AEs or disease progression. Thirteen patients did not undergo CEUS and four patients only had extrahepatic tumors. Among the 19 patients who underwent CEUS, TIC analysis was unsuccessful in six of them because their tumors could not be detected clearly during the early vascular phase of CEUS due to their size or depth. Consequently, quantitative assessment of tumor vascularity before treatment and 1 and/or 2 weeks after treatment initiation was successfully performed in 13 patients, and their baseline characteristics are shown in Table 1. The present study included 10 males and three females (mean age, 69.7 years; age range, 50–85 years). One patient was administered lenvatinib as an initial treatment, while 12 patients had a treatment history for HCC.

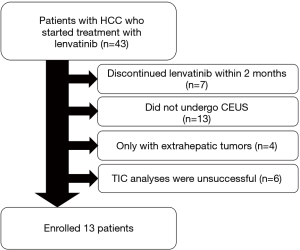

Figure 2 Schematic flowchart of the patients enrolled in this study. HCC, hepatocellular carcinoma; TIC, time-intensity curve; CEUS, contrast-enhanced ultrasound.
Table 1

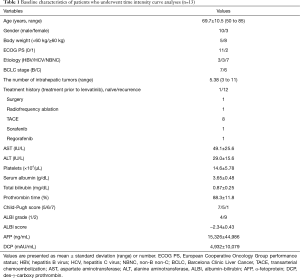

Table 1 Baseline characteristics of patients who underwent time intensity curve analyses (n=13)
Full table

Therapeutic response to lenvatinib

Among the 13 patients, seven patients experienced down-titration and one patient experienced a temporary interruption of lenvatinib treatment due to AEs. In the CECT imaging results of the 13 patients evaluated at 8–12 weeks, CR was noted in one patient, PR in eight patients, SD in three patients, and PD in one patient following the mRECIST guidelines.

Correlation between changes in tumor vascularity and response to lenvatinib

The relationship between the early changes in tumor vascularity evaluated with CEUS and the responses to lenvatinib detected by CECT carried out after 8–12 weeks was investigated in all patients. As a result, all nine patients who experienced objective responses (CR or PR) showed marked decreases in ΔAUC (≥20%) within 2 weeks after treatment initiation (Figure 3). In contrast, one case with SD and 2/3 cases with PD showed slight increases in ΔAUC after 1 week, and one case with PD showed a slight decrease in ΔAUC after 2 weeks.

Figure 3 Correlation between early changes in quantitative tumor vascularity (ΔAUC) detected by Sonazoid-enhanced ultrasound and response to lenvatinib detected by CECT after 8–12 weeks. PD, progressive disease; SD, stable disease; PR, partial response; CR, complete response.

Two representative cases are shown in Figures 4,5. Figure 4 shows the case of a 67-year-old male. He was initially treated with transarterial chemoembolization; however, a treatment switch to lenvatinib was planned due to disease progression. Although he weighed 79.0 kg weight and had a Child-Pugh score of 5, lenvatinib was started at 8 mg/day due to deterioration of his performance status. A hypervascular tumor, 2 cm in diameter, in segment five was considered suitable as a target lesion (Figure 4A). The baseline ΔAUC evaluated one day before treatment initiation was 207.35 (Figure 4B). After treatment with lenvatinib for 1 week, the ΔAUC decreased to 134.16 (64.7% of initial value, Figure 4C). Furthermore, the ΔAUC decreased to 109.42 (52.8% of initial value) after 2 weeks (Figure 4D). He continued to receive treatment with 8 mg until the CECT was performed after 9 weeks. CECT revealed a marked decrease in tumor vascularity and indicated PR following mRECIST guidelines. Figure 5 shows the case of a 55-year-old woman who experienced multiple recurrences after liver resection. A 1.2-cm-diameter tumor in segment three was selected (Figure 5A). The baseline ΔAUC evaluated one day before treatment initiation was 110.79 (Figure 5B). Surprisingly, after treatment for 1 week with 12 mg/day, the ΔAUC decreased to 47.57 (42.9% of initial value, Figure 5C). After 8 weeks of treatment CECT demonstrated the disappearance of enhancement in the arterial phase not only in the target lesion but also in other tumors. Thus, she was diagnosed as having CR (Figure 5D).

Figure 4 Case of a 67-year-old male patient. (A) A 2-cm diameter hypervascular tumor in segment five was considered suitable as a target lesion (arrowhead). (B) The baseline ΔAUC evaluated before treatment initiation was 207.35. (C) ΔAUC decreased to 134.16 (64.7% of initial value) after 1 week of treatment. (D) ΔAUC decreased to 109.42 (52.8% of initial value) after 2 weeks. (E) CECT performed after 9 weeks showed marked decrease in tumor vascularity (arrowhead).

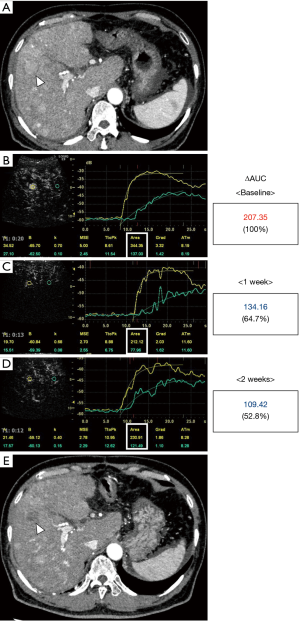

Figure 5 Case of a 55-year-old female patient. (A) A 1.2-cm diameter hypervascular tumor was detected in segment three by CECT (arrowhead). (B) The baseline ΔAUC evaluated before treatment initiation was 110.79. (C) ΔAUC decreased to 47.57 (42.9% of initial value) after 1 week of treatment. (D) Computed tomography performed after 8 weeks showed marked decrease in tumor vascularity (arrowhead).

Discussion

For assessment of the treatment response to MTAs in patients with HCC, either the Response Evaluation Criteria in Solid Tumors 1.1 (RECIST 1.1) or mRECIST is recommended by the EASL guidelines (14). RECIST 1.1 is based on the measurement of the whole tumor, while mRECIST is based on measurement of the largest diameter of the arterialized tumor area (14). Both criteria need CECT or MRI scans; however, CECT or MRI at a very early stage, such as a few weeks after the start of treatment, is not suitable in terms of patient burden and cost-effectiveness. Since, lenvatinib is an MTA that is associated with some AEs early in the course of treatment, such as hypertension, general malaise, and anorexia (10,11,15); early prediction of the treatment effect contributes to an appropriate and individualized treatment plan and an improvement in patient motivation for treatment.

In the present study, we demonstrated that quantitative assessment of tumor vascularity by CEUS within 2 weeks of treatment with lenvatinib could predict therapeutic responses in patients with HCC. Among the 13 patients studied, the nine patients who showed marked decreases in quantitative tumor vascularity (≥20%) experienced objective responses (CR or PR) as assessed by CECT performed 8–12 weeks after treatment initiation. In contrast, three patients without decreases in tumor vascularity and one patient with a slight decrease showed poor responses to lenvatinib (SD or PD).

Several methods have been proposed for the quantitative evaluation of tumor blood flow by contrast ultrasound. Shiozawa et al. previously reported the utility of arrival time parametric imaging using CEUS in predicting treatment effects of sorafenib. They measured the mean arrival time of the contrast agent in the target lesion from a reference point (9). Their method requires setting an appropriate reference point not in the background liver but within the vessel (such as an intrahepatic artery near the tumor), which could lead to discrepancies in the results due to the examiner. In addition, since the reference point is set in the artery, it may be affected by treatment-induced hemodynamic changes. Sugimoto et al. (16) and Kuroda et al. (7) reported the methods using the rate of change for total AUC during “wash-in”. Their methods are similar to ours. However, they did not set a reference point; thus, their data may still be affected by hemodynamic arrival changes. In our method, the ROI in the tumor and background liver can be set to an appropriate position while repeatedly checking the video images, which reduces the possibility of blurred results even for inexperienced sonographers. Since the calculation method is also simple, it could be widely accepted. However, it should be noted that the change in tumor vascularity of a single tumor detected by CEUS does not necessarily apply to all other tumors.

Overall, our findings have potentially important clinical implications for the quantitative assessment of tumor vascularity by CEUS as a predictor of therapeutic responses to lenvatinib in patients with HCC. However, our study has several limitations. First, in some patients (6 out of 19 in this study), the quantitative assessment of tumor vascularity was difficult due to the small size or depth from the liver surface. Second, our study was a single-center design and due to a small sample size, it was difficult to conduct a comparative analysis of response and non-response cases. Thus, caution should be exercised in interpreting our initial experience. In addition, in order to demonstrate the superiority and simplicity of our quantification method, further studies are required to compare with existing other commercial software packages.


Conclusions

In conclusion, we demonstrated that quantitative assessment of tumor vascularity by our simplified CEUS-based simplified method could be a useful predictor of therapeutic responses to lenvatinib in patients with HCC.
