Using shear wave elasticity in normal terminal ileum of a healthy southwest Chinese population: a pilot study of reference elasticity ranges

Introduction

Elastography is an ultrasound (US)-based imaging technology that objectively assesses tissue stiffness. It was first described by Ophir et al. in 1991 (1) and is regarded as an extension of conventional US (2). It introduces a mechanical excitation and monitors the resulting tissue response, exerting a comparable effect to that of palpation but with increased spatial discrimination and objectivity (3,4). Therefore, it is valuable for differential diagnosis since tissue stiffness changes are often involved in various diseases (3,5).

Elastography mainly comprises two different approaches: strain elastography and shear wave elastography (SWE). Of these, SWE can measure the quantitative information of elasticity recorded as specific data (SWV/E) (3,5). The SWE application was developed more recently than strain elastography, especially regarding the gastrointestinal (GI) tract (2,6).

Initially, SWE was widely used to evaluate and characterize liver, breast, and thyroid diseases (7-9). It was first used in GI diseases in 2013 by Dillman et al. (10), who conducted a Crohn’s disease animal model. Several studies have reported the value of using SWE, especially in inflammatory bowel disease (IBD) and rectal neoplasms (10-19). For instance, it has proven effective in the differentiation of fibrotic from inflammatory strictures in Crohn’s disease (14,18) and in assessing and staging rectal tumors (12,13,15). However, there are only a few studies of SWE involving healthy subjects, especially trans-abdominally (20), and the normal elasticity values of the bowel wall measured by SWE remain uncertain (18,21-25).

The terminal ileum (TI) is the most commonly involved site of various diseases in the small intestine and has a comparatively stationary anatomic location (20). Additionally, the thickness of other bowel wall usually ranges from 1 to 2 mm (26), whereas the TI may be slightly thicker (27). This makes the TI preferable for elasticity measurements because it is less influenced by peristalsis and is more suitable for the placement of regions of interest (ROI). This study aims to explore the feasibility of using SWE to measure the TI wall elasticity in healthy subjects and to establish the corresponding normal reference ranges.

Methods

This observational study was approved by the ethics committee on the biomedical research of the West China Hospital of Sichuan University (no. 359, 2020), and written informed consent was obtained from all subjects. Subjects were included if they were aged 18–70 years and had no known diseases or history of digestive, cardiovascular, or immune system disorders. Exclusion criteria were any imaging, laboratory evidence, or history of the disease in the systems above, pregnancy or lactation, or age under 18 or over 70 years (Figure 1). In total, 139 healthy adult volunteers (mostly students and workers in the hospital and their relatives) were enrolled from April to July 2020. Besides demographic data such as gender, age, height, weight, and BMI, BWT and the depth of the anterior TI wall were also recorded. Subgroups were classified according to the volunteers’ gender, age, BMI, BWT, and depth.

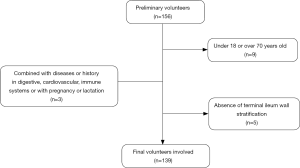

Figure 1 Volunteers’ recruitment flowchart.

Conventional US and elasticity data acquisition

Conventional US and SWE were performed using the Acuson Sequoia system (Siemens, Erlangen, Germany) with a 4–10 MHz 10L4 linear transducer, a general abdomen preset, and 8 cm/s set for the Color Doppler scale (as default). The two operators had over 5 years’ experience in GI tract US. All volunteers had fasted for over 8 hours and were placed in the supine position to relax the abdomen. To avoid intraluminal gas interference, all data were obtained from the anterior TI wall, with moderate compression. The echo beam was always perpendicular to the abdominal wall. The probe was initially placed vertically to the ascending colon’s long axis section, then moved downwards to the ileocecal valve level to reach the TI. The measurements were performed in the midline on longitudinal sections of the TI (Figure 2), within 5 cm of the ileocecal valve.

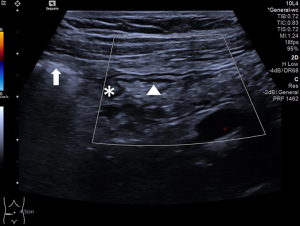

Figure 2 The longitudinal section of the TI. The blood flow signals of the TI wall are not observed (Limberg score 0). Arrow: cecum; asterisk: ileocecal valve; arrowhead: anterior wall of TI. TI, terminal ileum.

In the conventional US images, depth and BWT were measured (Figure 3, A and B), and bowel vascularization was observed (Figure 2). The vascularity grading protocol of 0–IV referred by Limberg et al. in 1999 (28) was used as follows: 0 = normal BWT; I = a thickened bowel wall without a color Doppler signal; II = a few, short signals; III = long intramural perfusion signals; IV = intramural and mesentery signals. SWE was performed to measure the TI wall stiffness. The bowel wall consists of five distinct sonographic layers when examined with a mid-high frequency probe: starting from the lumen, the hyperechoic layer 1 corresponds to the interface between the mucosa and the lumen. The hypoechoic layer 2 corresponds to the mucosa. The hyperechoic layer 3 corresponds to the submucosa, including the interface between the submucosa and mucosa. The hypoechoic layer 4 corresponds to most of the proper muscle. And layer 5 corresponds to the hyperechoic interface echo between the proper muscle and the serosa (20). BWT was measured from the mucosa interface and the lumen, to the interface between the serosa and proper muscle (20,29) (Figure 3B).

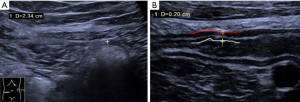

Figure 3 Measurement of depth and BWT. All measurements were performed in the anterior wall of the TI. (A) Depth measurement, between skin and serosa. (B) BWT measurement, from the interface between the mucosa and the lumen (white line), to the interface between the serosa and proper muscle (red line). BWT, bowel wall thickness; TI, terminal ileum.

The ROI was placed in the SWE mode to cover the whole anterior TI wall for 3–5 consecutive samplings to obtain the E and SWV values (Figure 4). The ROI diameter was determined by the rounding value of the BWT of the anterior TI wall, from the interface between the mucosa and the lumen to the interface between the serosa and proper muscle. The ROI placements were not overlapped, and we placed five ROIs when applicable. If the proximal TI wall was too thin to set the ROI, or the section was not ideal, three measurements were taken instead of five. The median of the 3–5 measurements was selected as the representative value. Then another row of 3–5 measurements and the median selection was repeated by the same operator (operator 1). The measurements were taken while volunteers held their breath. Each volunteer underwent two replicated measurements, both in the longitudinal section, by operator 1 (Figure 4A). SWV values were reported in meters per second (m/s) and E in kilopascals (kPa).

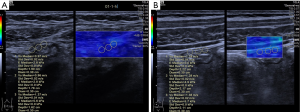

Figure 4 Measurement of SWE values of the TI by different operators. (A) Dual-picture of SWV and E measurements by operator 1. (B) Dual-picture of SWV and E measurements by operator 2. SWE, shear wave elastography; TI, terminal ileum; SWV, shear wave velocity; E, Young’s modulus.

Meanwhile, some volunteers were randomly chosen to be examined by operator 2 (Figure 4B), who was blinded to the results of operator 1. The parameters were measured in the midline on longitudinal sections as previously described. Due to workforce and time constraints, we chose 20 volunteers and collected their data to calculate inter-operator consistency. Additionally, the data of all volunteers obtained by operator 1 on two separate occasions were compared to calculate intra-operator consistency. Since the E value comes from SWV (c): E = 3ρc² (where ρ is a constant representing the soft tissue density) (3), the inter- and intra-operator consistencies were calculated only for the SWV values.

Statistical analysis

The Statistical Package for the Social Sciences (version 19.0.0, IBM SPSS Statistics, Armonk, NY, USA) was used for all statistical analyses. From the results of previous studies, the mean and standard deviation for SWE values and a permissible error (δ) of 0.2 were used to calculate a sample size of 123 subjects (139 in actual) to achieve 95% confidence (one-sided). An independent t-test was used for the analysis of continuous variables. One-way analysis of variance was used for SWV and E among subgroups of age, BMI, depth, and BWT. Normally distributed data were described as the mean ± standard deviation plus range, and non-normal data (height, weight, and BWT) were described as the median plus range. The intra-class correlation coefficient (ICC) and 95% confidence interval (CI) were calculated to evaluate the inter- and intra-group data reliability. Probability values <0.05 were considered statistically significant.

Results

Volunteer information

According to the exclusion criteria, 17 volunteers were excluded (Figure 1). In total, 139 healthy volunteers were included (41 men, 98 women) with an age range of 18–68 years (mean: 39.72±12.06 years), height range of 1.45–1.81 m (median height: 1.60 m), weight range of 42–87 kg (median weight: 58 kg), and a BMI range of 15.8–33.3 kg/m², (mean BMI: 22.53±3.01 kg/m²) (Table 1). The TI wall stratification existed in all volunteers. According to the measurement protocol of Limberg’s scoring system (28), no pathological increase of blood flow was detected, indicating a normal TI wall in all volunteers.

Table 1 Overall characteristics of the healthy volunteers
Full table

For the total number of volunteers, the mean value of SWV was 1.08±0.25 m/s (range, 0.6–2.11 m/s), E was 3.84±1.84 kPa (range, 1.1–13.4 kPa), and the depth was 22.28±6.55 mm (11.5–39.9 mm). The median of the BWT was 2.0 mm (1.2–3.4 mm).

Reliability of SWV measurements

Data from 20 volunteers were used to calculate the inter- and intra-operator consistencies of the SWV measurements. The mean SWV values measured by the different operators were 1.02±0.18 m/s (operator 1) and 1.12±0.20 m/s (operator 2). The inter-operator agreement was good and the corresponding ICC was 0.842 (95% CI: 0.576–0.941) (Table 2). The mean SWV values measured by operator 1 were 1.01±0.20 m/s (the first occasion) and 1.03±0.22 m/s (the second occasion). The intra-operator agreement was excellent and the corresponding ICC was 0.963 (95% CI: 0.947–0.975) (Table 2).

Table 2 Inter- and intra-operator consistency of SWV values measurements
Full table

Elasticity parameters in different subgroups

SWV and E were evaluated in different subgroups (Table 3). SWV and E did not show any significant differences with gender (P=0.589), age (P=0.738), BMI (P=0.678), depth (P=0.375), or BWT (P=0.410). The mean SWV and E of the different subgroups are shown in Table 3.

Table 3 SWV and E values in different subgroups
Full table

BWT in different subgroups

The BWT of the TI did not show any significant differences with age (P=0.142), BMI (P=0.863), or depth of the anterior wall (P=0.368) (Table 4). The gender difference in BWT was significant. It was greater in males (range, 1.3–2.4 mm; median: 2.2 mm) than in females (range, 1.2–3.3 mm; median: 1.9 mm) (P=0.022) (Table 1). The median BWT of the TI in the different subgroups is shown in Tables 1,4.

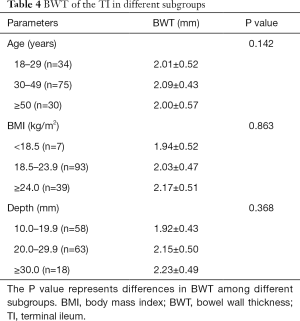

Table 4 BWT of the TI in different subgroups
Full table

Discussion

The small intestine remains challenging to examine due to its anatomic and morphological characteristics. Conventional US is limited in the differential diagnosis of small bowel diseases (5,27). SWE has created substantial interest in the past few years for its ability to provide quantitative tissue elasticity information (30). The underlying principle is that many soft tissues can share similar ultrasonic echogenicity but may have different mechanical properties (3). Studies on the use of SWE in the small intestine are currently scarce (6) and have concentrated on intestinal diseases such as IBD rather than the normal bowel. Inflammation or fibrosis can lead to increases in bowel wall elasticity (11,14,17,31). Average elasticity values in the normal TI conducted with large cohorts have not been listed in the published guidelines and recommendations about the small intestine (32). Therefore, establishing the normal bowel wall’s reference ranges is of great value in discriminating between pathological and physiological bowel changes.

In our study, the mean value of SWV in the TI of normal adults was 1.08±0.25 m/s, the mean E was 3.84±1.84 kPa, and the median BWT was 2 mm. Elasticity values were not correlated with other factors (gender, age, BMI, depth, or BWT). Except for gender, BWT was not correlated with other factors (age, BMI, or depth). The E and SWV values in our results did not exactly follow the formula E = 3ρc² due to instrument-related factors. The formula only works under certain limiting assumptions, including neglecting structural stiffness (3,33). The E-value calculated from SWV in our system may deviate. Therefore, SWV provides results that are more closely related to actual stiffness (33).

The main challenges of using SWE in the GI tract include peristalsis, a thin bowel wall, and the presence of gas, contents, etc. Elasticity measurement requires the target to have a stationary anatomic location, minimal peristalsis, and enough BWT to set the ROI. We chose to measure the TI because it met these criteria (20,29), and it is more difficult to make comparisons between healthy and pathological subjects in other segments of the bowel wall.

As previously mentioned, the TI is a preferred location to perform SWE to assess the bowel wall as well as lesions. To our knowledge, there are no published data merely focused on the normal TI. Other relevant studies mostly have other foci, in which reference values of normal TI wall elasticity are involved. For instance, Chen et al. (34) performed a similar study. The average value of E was 6.38±1.35 kPa in the normal intestine of healthy volunteers (with a sample size of 59 for the TI), which was higher than that in our study (3.84±1.84 kPa), and which may be related to the type of US device and the different sample size. A study conducted by Goertz et al. (11) using acoustic radiation force impulse (ARFI) showed that normal SWV values of the TI were 1.6±0.35 m/s (compared with 1.08±0.25 m/s in this study). However, they investigated only 13 healthy volunteers and mainly focused on pathological states.

Our study considers it feasible to utilize SWE in the ileocecal junction for its proper BWT and stationary location. Moreover, the EFSUMB Recommendations and Clinical Guidelines for Intestinal Ultrasound in Inflammatory Bowel Diseases affirmed elastography’s value in evaluating the stiffness of a Crohn’s stenosis. Several published articles have also confirmed that elastography can stably provide quantitative elasticity information in the IBD bowel wall. Goertz et al. (11) found that the mean ARFI values in an ulcerative colitis group (1.97±0.64 m/s, n=20) were higher than those of a healthy control group (1.75±0.51 m/s, n=13). Ding et al. (18) indicated that the optimal cut-off value was reached when the shear wave velocity exceeded 2.73 m/s in evaluating and differentiating intestinal stenosis in Crohn’s disease, with a sensitivity of 75%, a specificity of 100%, and an accuracy of 96%. Another study by Chen et al. (14) suggested using 22.55 kPa as the cut-off E value in discriminating between mild/moderate and severe fibrosis, and the sensitivity and specificity were 69.6% and 91.7% with an area under the curve of 0.822. Despite these findings, relevant research remains inadequate, although research consensus suggests that elasticity is likely to increase in IBD compared with healthy subjects. Based on the current literature, a cut-off value is required to discriminate IBD from the normal bowel wall, and further research efforts are needed in this regard. Compared with studies on IBD, the literature concerning elastography in other GI diseases is scarce.

BWT is by far the most important and popular parameter for Crohn’s disease, and many studies have reported the reference values for the bowel wall (TI: 1–3 mm) (29,35,36). We measured the normal value of BWT as a part of our study, and the value (2 mm) was consistent with previously published guidelines and studies. We used a mid-frequency linear probe (4–10 MHz) to examine the TI since the TI is comparatively superficial. The resolution of a mid-frequency range transducer is quite adequate for separating individual layers in the bowel wall according to the EFSUMB Recommendations and Guidelines for Gastrointestinal Ultrasound (2017) (20). Besides, patients with IBD in China are comparatively thin, without thick abdominal fat. It is not difficult to observe the TI with a mid-high frequency probe in clinical practice.

SWE value measurements can be influenced by several confounders, both technical and patient-related, such as BMI, depth of ROI placement, ROI size, etc. In our study, SWE values did not show any significant difference with BMI. This result was opposite to our expectation, and the reason may be due to unevenly distributed data caused by the lower-than-average BMI in a Chinese population. We were unable to find guidelines defining an inverse or direct correlation between BMI and SWE values, and the results of relevant researches have not been consistent (37). We will continue to take note of other reports on the influence of BMI on SWE measurements.

Regarding depth, some studies indicate a decrease of SWV in deeper ROI placements (38,39), while others report no significant correlation (37). In the current literature, SWV measurements appear to be feasible with a depth of placement between 1–5 cm (33,38). In our study, SWE values did not show any significant difference according to depth. ROI size is also a confounder of SWV measurements. SWV seems to increase with a larger ROI in some studies (38,39), but the trend is not significant in others (40). In this study, we did not analyze SWV in different ROI sizes because the BWT decided the diameter to include the whole bowel wall. Therefore, we did not establish subgroups based on ROI size. The direct correlation between ROI size and SWV measurements in the GI tract should be investigated with a rigorous design in future research. Further studies on a standardized measurement protocol for SWE are required, given the influence of several confounders and the relatively short history of SWE use.

We focused on elasticity values and provided preliminary reference ranges in healthy subjects in a southwest Chinese population. We consider it valuable because of the increasing incidence of IBD worldwide, especially in China (2.8% annually) (41). The primary data we obtained may be useful in quantitating IBD progression in future studies, especially in assessing the activity and grading of Crohn’s disease.

Limitations of the present study

• The volunteers enrolled in our study were asymptomatic and history-free cohorts. Thus we cannot exclude the possibility that some volunteers might have latent diseases.
• This is a single-center study using a single vendor (Siemens). We did not compare the differences in SWE values among various US systems.
• We chose to measure the anterior TI wall because gas and fecal deposits in the lumen made the posterior wall difficult to see. And our samples of the TI were within 5 cm of the ileocecal valve, and the reference ranges may not be applicable in other segments of TI.
• Only 20 samples were used to obtain inter and intra-operator consistencies.
• The permissible error was set as 0.2 for exploring the preliminary reference ranges. It should be reduced in subsequent studies in order to achieve more precise measurements. This is a pilot study, and the representative elasticity values of the GI tract require further validation.

Conclusions

The mean value of SWV in the TI of normal adults was 1.08±0.25 m/s, the mean E value was 3.84±1.84 kPa, and the median of BWT was 2 mm. SWE seems to be a promising approach to measure elasticity information of the TI, and SWE values do not appear to vary significantly due to several physiological variables. Future studies are needed with larger cohorts and more rigorous criteria.

Acknowledgments

Funding: This study was supported by the National Natural Science Foundation of China (grant no. 81101061)

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-877). The authors have no conflicts of interest to declare.

Ethical Statement: The trial was conducted in accordance with the Declaration of Helsinki and the Harmonized Tripartite Guideline for Good Clinical Practice from the International Conference on Harmonization. This study was reviewed and approved by the ethics committee on biomedical research of West China Hospital of Sichuan University (no. 359, 2020). All enrolled patients completed the informed consent form.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
