Treating sacroiliac joint dislocation through percutaneous sacroiliac screw fixation with the aid of 2 fluoroscopes: a novel technique

Introduction

With the development of convenient modern transportation and high-rise buildings, injuries caused by car accidents and falls are becoming increasingly common. Such injuries can affect the sacroiliac joint (SIJ), which is a weight-bearing joint in humans (1). If SIJ dislocation is not treated promptly, complications such as lower back pain, hip pain, and unequal lower limb length can occur (2). Traditionally, conservative treatment methods have been used; however, these require patients to remain in bed for extended periods, which is not conducive to recovery (3). When the SIJ dislocation is reduced, the joint is returned to its standard anatomical position as far as possible, which helps to restore the integrity of the pelvis and significantly improves pelvic stability (4).

A variety of surgical procedures can be used to treat SIJ dislocation, including internal fixation with an adjustable plate, tension band plate fixation, and sacral screw fixation (5-8). Biomechanical testing has confirmed that sacral screw fixation is more effective than plate fixation (9). Navigation technology allows for accurate positioning of the screw, minimal trauma and bleeding, a short operation time, a simple operating procedure, and rapid fracture healing (10), making it ideal for guiding SIJ fixation (11). However, most primary hospitals do not have access to computer navigation technology. C-arm X-ray systems are the most commonly used devices to guide fracture reduction, especially in primary hospitals. Hence, investigations to improve the accuracy and effectiveness of the percutaneous sacroiliac screw method, using the guidance of a C-arm X-ray system, is warranted.

The aim of this study was to investigate whether the use of 2 fluoroscopes simultaneously could reduce the radiation exposure frequency, dose and operation time of percutaneous sacroiliac screw fixation in patients with SIJ dislocation. Related clinical outcomes were compared between patients who underwent surgery guided by 2 fluoroscopes and those whose procedures were performed using a single fluoroscope.

Methods

Inclusion and exclusion criteria

The inclusion criteria for patients were as follows: (I) aged 18–75 years old; (II) clinically diagnosed with SIJ dislocation; and (III) sacroiliac screw was sufficient to meet the goal of anatomical reduction of the SIJ dislocation.

The patient exclusion criteria were as follows: (I) patients whose physical condition could not tolerate surgery; (II) patients diagnosed with other pelvic injuries; and (III) patients who could not commit to follow-up for longer than 24 months.

This was a prospective randomized trial, which was conducted in accordance with the principles outlined in the Declaration of Helsinki, and it was granted approval by the Ethics Committee of the Second Hospital of Jilin University (No. 20160321). Written informed consent to participate was given by all patients involved in the study. Participant data were anonymized to ensure confidentiality and privacy.

The power for the radiation exposure frequency and radiation dose were calculated using PASS 11 software (NCSS, East Kaysville, UT, USA) based on a 2-sample t-test power analysis with a significance level of 5%. With a sample size of 11 participants treated using 1 fluoroscope and 11 participants treated using 2 fluoroscopes, the trial would have more than 92% power to detect a difference between 2 groups in the proportion of participants with a radiation time greater than 5%. Finally, 28 consecutive patients who sustained SIJ dislocation were included in the study; SIJ dislocation was caused by traffic accidents and falling from a height in 20 and 8 cases, respectively. Preoperative X-ray (Figure 1A) and three-dimensional (3D) computed tomography (CT) examination of the pelvis were performed conventionally. Before surgery, the patients were randomly divided into 2 groups. The study group consisted of patients who were operated on using 2 fluoroscopes, while the control group comprised patients operated with a single fluoroscope. The type of C-arm X-ray machine was Brivo OEC 715, and its single radiation dose was 3.67 mGy. All participants were operated on by a single senior surgeon in the department.

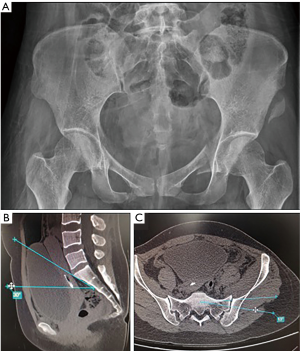

Figure 1 Preoperative X-ray of a patient who sustained left SIJ dislocation (A). C-arm machine projection angle at the pelvic entrance position, determined from the CT sagittal section (B). Screw channel design on transverse plane CT (C). SIJ, sacroiliac joint; CT, computerized tomography.

Planned operative technique

The steps of operations were performed sequentially as follows: (I) with the patient lying supine, the C-arm machine projection angle at the pelvic entrance position, determined from the CT sagittal section (Figure 1B), was positioned at 30–40 degrees to the horizontal line on the ground, unobstructed by the pubic bone; (II) the screw channel on transverse plane CT (Figure 1C) was designed so that screw entry was optimal (the upper edge of the first countersink was 5–12 mm and the abdominal and head inclination angles were 25 and 10–15 degrees, respectively).

Positioning of patients and fluoroscopes

General anesthesia was routinely performed with patients in a supine position with 5 cm of padding under the buttocks. A C-arm machine was used to visualize the entrance position (Figure 2A), exit position (Figure 2B), and the sacrum lateral position (Figure 2C). The anterior margin of the SIJ and the anterior sacrum were visualized at the entrance position, along with the first sacral foramen on the affected side and the upper edge of the sacral wing near the tangent to the exit position.

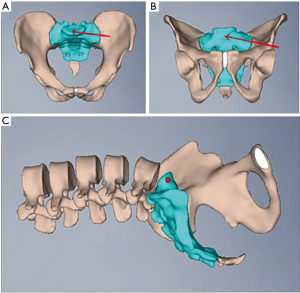

Figure 2 C-arm machine projection angles at the pelvic entrance position (A), exit position (B), and the sacrum lateral position (C), illustrated on a digital model. Red arrows mark the needle direction. The red dot indicating the needle entry point.

The 2 C-arm machines were placed on each side of the operating table, according to the previously measured angle (Figure 3A,B), so that 2 images from different angles could be viewed simultaneously (Figure 3C) when the 2 pedals were operated together (Figure 3D). This ensured there was no need to move the C-arm machine during surgery; it was only necessary to adjust the position of the guide needle. The operated area was regularly sterilized and draped with sterile sheets, according to standard practice (Figure 3E). The arc-shaped arm of the machine was wrapped with sterile towels to avoid intraoperative contamination, and the surgeon was able to perform the surgical procedures in the gap beneath the C-arm machine (Figure 3F).

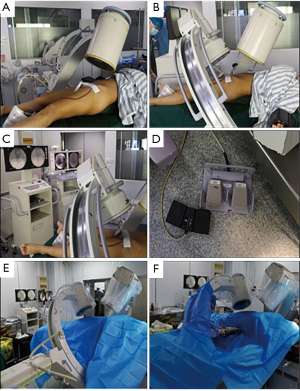

Figure 3 Two C-arm X-ray devices were used to visualize the entrance position (A) and exit position (B) in the operating room. Both images (C) could be obtained simultaneously using 2 pedals placed side by side (D). Draped sterile sheets (E). Photograph showing the position of the surgeon (F).

Surgical technique

A Kirschner wire (Ø=2.5 mm) was pressed against the skin at the potential insertion point, and a camera was used for visualization. When the position of the insertion point was satisfactory, a small incision (~10 mm) was made in the corresponding skin. The 2 images were used for real-time monitoring, which allowed the guide needle to be inserted accurately. The position of the guide needle was closely monitored with the help of 2 C-arm machines to avoid damage to the presacral venous plexus and sacral nerve (Figure 4A,B,C). A sacroiliac screw was implanted along the guide pin (Figure 4D,E), and then use of the dual C-arm was completed. Finally, the position of the sacroiliac screw was verified again from the lateral view before the incision was closed (Figure 4F).

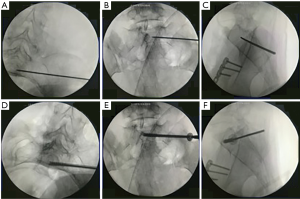

Figure 4 Images of guide needle insertion (A,B,C), sacroiliac screw implantation (D,E), and final verification from the lateral view before closure of the incision (F).

Postoperative evaluation

Postoperative evaluation of SIJ dislocation included assessment of fracture reduction, fracture healing, and functional recovery. Fracture reduction and fracture healing were assessed by an independent orthopedic surgeon using the Tornetta and Matta standard (12). Postoperative functional recovery was evaluated using the Majeed functional score to comprehensively assess clinical, imaging, and social function at 6 and 12 months postoperatively, and then annually thereafter (13). Complications, such as pain, superficial infection, restricted squatting (being unable to squat completely), limp, and screw failure were also recorded.

Statistical analysis

Total radiation exposure frequency was collected from the fluoroscopic devices at the end of the reduction and at the end of surgery, and radiation dose was calculated by multiplying total exposure frequency and single radiation dose by the number of fluoroscopes used. Procedure durations, from incision to wound closure, were collected and compared between the 2 groups. Data were presented as mean ± standard deviation, and differences in median values between the 2 groups were also assessed. Differences were evaluated using the chi-square test for nominal variables and a 2-sample 2-sided independent population t-test. A P value <0.05 was considered to be statistically significant.

Results

Patient information and intra-operative findings

A total of 28 patients (mean age, 42.6 years; median age, 44 years) participated in the study, including 12 females (42.9%) and 16 males (57.1%). The envelope draw method was used to randomly assign 15 patients to receive surgery with the assistance of 1 fluoroscope, and the other 13 to receive surgery with the assistance of 2 fluoroscopes. The total radiation exposure frequency was significantly less in the group operated on with 2 fluoroscopic devices than in the group in which a single device was used (21.5±8.6 and 42.6±18.3 times, respectively; P<0.001). However, there were no significant differences between the 2 groups regarding radiation dose (156.3±67.2 mGy for 1 fluoroscope and 157.8±38.2 mGy for 2 fluoroscopes; P>0.05). The total operation time was also significantly shorter with 2 fluoroscopic devices than with a single device (35.8±12.9 and 65.5±19.7 minutes, respectively; P<0.001). The results are summarized in Table 1.

Table 1 Operation time, radiation exposure frequency and radiation dose in patients operated using 1 or 2 fluoroscopes
Full table

Follow-up outcomes

At the last follow-up, a large majority of patients in both groups demonstrated excellent or good Tornetta and Matta standard values for rates of postoperative fracture reduction (92.3% and 93.3% for the groups with 2 and 1 fluoroscope, respectively). Similarly, most patients in both groups had excellent or good Majeed scores for pelvic functional recovery, with mean values of 86.7% and 84.6% for the 2 and 1 fluoroscope groups, respectively. Neither the postoperative fracture reduction rate nor pelvic functional recovery differed significantly between the 2 groups (P>0.05). Moreover, complications, such as pain, superficial infection, restricted squatting, limp, and screw failure, were seldom recorded in either group. Implant removal rates at the final follow-up for the double and single fluoroscope groups were 76.9% and 80.0%, respectively (Table 2).

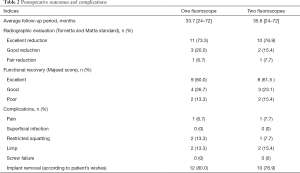

Table 2 Postoperative outcomes and complications
Full table

Discussion

Prompt surgery, an appropriate surgical plan, and control of operation time are essential factors influencing the outcomes of patients with SIJ dislocation caused by high-impact injury (14). The sacroiliac screw has become the “gold standard” for treatment of SIJ dislocation, and its biological characteristics and clinical efficacy have been confirmed (15). Behrendt et al. reported that a 3D computer navigation system could improve the accuracy of sacroiliac screw placement and also prevented operator exposure to the radiation area, although there was no difference in the operation time between surgery conducted using the navigation system and that performed using other methods (10). However, most primary hospitals do not have access to navigation equipment, which restricts its application in these settings. The double-fluoroscopic technique was first reported by Brin et al., who revealed its advantages of easy operation, time efficiency, and good clinical outcomes for closed reduction and internal fixation of stable intertrochanteric fractures (16). Therefore, we attempted to demonstrate that this technique might be also suitable for minimally invasive treatment of SIJ dislocation by percutaneous sacroiliac screw fixation.

The importance of detecting sacral malformations before surgery is well known; such malformations include lumbar sacralization, sacral lumbarization, and congenital malformations of the sacrum. If the slope of the sacral wing is excessively inclined, the screw channel of the SIJ will be extremely narrow, and the anterior cortex will be easily penetrated, which may damage the L5 nerve root and the obturator nerve. Herein, the SIJ screw was preoperatively designed for unilateral fixation of the sacral 1 vertebral body through CT 3D reconstruction. During the operation, 2 C-arm machines were used to dynamically observe the position and direction of the screw, thus significantly reducing the possibility of errors.

We found that using 2 devices could reduce the operation time by 45.3%. This difference in procedure length derives from the fact that, when working with 2 devices, it is not necessary to repeatedly relocate the fluoroscope during the procedure, which is a time-consuming process that is conducted several times when a single fluoroscope is used. Each time the fluoroscope is relocated, the radiology technician and the surgeons have to find the best position, which lengthens the entire procedure. Generally, longer operation times also involve increased tissue exposure time and decreased systemic physiological defenses, which may increase the risk of infection (17,18). Further, shorter procedures can help to accommodate the inclusion of more cases in the operating room schedule.

This study also showed that using 2 fluoroscopes reduced the radiation exposure frequency during surgery by 49.5% from 42.6±18.3 to 21.5±8.6 times. The mean addition in radiation exposure frequency for a single operation was 21.1 times, due to the extra projections required when the fluoroscope was relocated to provide different views during surgery. The surgeon and radiology technician are often dissatisfied with either the image quality or the angle of image capture, requiring the device to be repeatedly readjusted (19). These numerous readjustments lead to increased radiation exposure frequency. When 2 devices are used, there is no need for device relocation for either view, saving time and decreasing radiation exposure frequency. As the patients treated with 2 fluoroscopic devices were exposed to 2 radiation sources simultaneously in a single operation, in theory, their total radiation dose should have been doubled. Hence, there were no significant differences in the radiation dose to surgeons between the groups in our study, even though the radiation exposure frequency with a single fluoroscopic device group was double that with 2 fluoroscopic devices.

Potential disadvantages of the approach described here include that access to 2 C-arms for simultaneous use must be feasible for the orthopedic trauma team to implement this technique. Further, surgeons are required to operate in a less comfortable position to avoid contact with the placed machines. Moreover, these findings require replication in a larger cohort to improve confidence in their broad applicability.

Conclusions

The procedure tested in this study achieved reduced operation times, and protected surgeons and patients from excessive radiation exposure. Therefore, we recommend percutaneous sacroiliac screw fixation using 2 fluoroscopes simultaneously as a feasible alternative option for the treatment of SIJ dislocation.
