Quantitative assessment of structural and functional changes in temporal lobe epilepsy with hippocampal sclerosis

Introduction

Mesial temporal lobe epilepsy (mTLE) with hippocampus sclerosis (HS) is one of the most common causes of drug-resistant focal epilepsy and can be treated surgically (1). However, only approximately 30% of mTLE patients are thought to have normal MRI images (2). Identifying HS using MRI strengthens the mTLE diagnosis and is crucial for pre-surgical management, as it is strongly associated with epileptogenicity and surgical outcome (3). Seizure freedom after amygdala-hippocampectomy or temporal lobe resection ranges from 60% to 80% for MRI-positive TLE, when compared to MRI-negative TLE patients, who range between 36% and 76% (4,5). The presurgical evaluation of MRI-negative TLE patients remains challenging, necessitating improved quantitative analyses of HS to facilitate pre-surgical evaluations, leading to more favorable surgical outcomes.

In clinical practice, the two main manifestations used to identify HS are hippocampal atrophy seen in coronal T1-weighted images and increased signal intensity of the hippocampus on T2-weighted fluid-attenuated inversion recovery (T2-FLAIR) images (6). Additionally, temporal horn enlargement (7) and blurring of the gray mater-white matter (GM/WM) margin in the temporal pole (6,7) may accompany HS to varying degrees. Structural abnormalities in other limbic structures (6) and the neocortex have also been reported (8). The amygdala has a key role in temporal lobe epilepsy. It is usually involved in the epileptic network (9) and in certain patients it is regarded as an independent epileptogenic focus (10). How the amygdala manifests itself in TLE is disputed. Some studies reported amygdala atrophy (11,12). Others had reported enlargement of the amygdala (AE) in TLE patients with normal hippocampi, considering it a distinct subtype of TLE (13,14). Even in large-scale neuroimaging studies undertaken by the ENIGMA-epilepsy consortium with over 700 mTLE patients, no amygdala atrophy or enlargement was evident (8). Thus, it remains unclear whether quantitative amygdala structural analysis would prove useful in the presurgical evaluation.

Structural covariance and functional connectivity (FC) can also be used to understand the interactions between brain regions (15). TLE can be conceptualized as a network disorder involving brain regions far beyond the hippocampus (16,17). In TLE patients, voxel-based studies investigating the relationship between hippocampal and extrahippocampal volume loss have shown limbic network pathology that depends on the amount of mesiotemporal damage (18,19). Similarly, a surface-based study using the entorhinal cortex as a seed for cortical thickness covariance analysis showed alterations in limbic networks (20). FC inferred from stereo-electroencephalography (SEEG) offers a direct approach to investigating the functional coupling between the hippocampus and amygdala in TLE (21). Increased high-frequency broadband (HFB, 70–170 Hz) power amplitude in SEEG recordings is an effective index of local neural spiking and is associated with evoked or spontaneous brain activity (22). Such a metric can be used to measure quantitatively the FC properties of brain regions in the interictal state (23). As part of the limbic structure, involvement of the amygdala-hippocampus complex in the initiation and propagation of mTLE seizures has been demonstrated (9). By measuring both structural and FC between the hippocampus and amygdala, we may gain important insights into how these regions interact in TLE and their potential uses in diagnosis.

In this study, our aims were: (I) to quantify structural changes in the hippocampus and amygdala in mTLE; and (II) to understand the interactions between the hippocampus and amygdala using structural and FC analysis.

Methods

Participant selection

From a dataset of patients referred to Beijing Tiantan Hospital and Beijing Fengtai Hospital for the investigation of drug-resistant mTLE between 2015 and 2019, patients were retrospectively selected, using these inclusion criteria: (I) underwent anterior temporal lobectomy (ATL) or selective amygdalohippocampectomy (SAH); (II) resected hippocampal specimen suitable for histological analysis defined using the International League Against Epilepsy (ILAE) HS classification scheme (24); (III) not type III FCD defined using histopathology (e.g., HS with FCD in temporal lobe); (IV) high quality imaging data without motion artefacts, aliasing, or rippling related to eye movement and SEEG recordings without noise where available; (V) no history of dystocia hypoxia, encephalitis, or severe traumatic brain injury; (VI) no intracranial lesions, such as malformations of cortical development, epidermoid cyst, tumor, or vascular malformations; (VII) no encephalomalacia and severe or diffuse brain atrophy; and (VIII) non-reoperation.

All patients underwent preoperative 3.0 T clinical MRI, including at least T1-weighted magnetization prepared rapid acquisition gradient echo (T1-MPGAGE) and T2-FLAIR. All the patients underwent surgery after presurgical evaluation. This evaluation included a comprehensive history, evaluation of electroclinical and neuroimaging data evaluation and, where appropriate, invasive pre-surgical SEEG. Certain clinical information was extracted from patient medical records: age; sex; lateralization of affected hippocampus; age at epilepsy onset; duration of epilepsy; radiological report; and postoperative histology. For subgroup analysis, patient MRI scans were classified as “MRI negative” (no visible abnormalities) or “MRI positive” according to the radiology report. MRI images were typically reviewed by two or more radiologists. The diagnostic criteria included marked hippocampus atrophy, hyperintensity on T2-FLAIR images, and partial loss of internal architecture.

A group of healthy controls with no history of neurological disease also underwent the same MRI procedure. For SEEG FC analysis, the disease control group needed to these criteria: (I) no recorded ictal SEEG onset discharges in mesial temporal lobe structures; (II) lesions detected by presurgical evaluation were not located in the temporal lobe; and (III) intact brain structures. The study was approved by the Ethics Committee of the Beijing Tiantan Hospital and informed consent was obtained in writing from all participants.

MRI acquisition and image processing

MRIs were acquired for all participants using a 3T Siemens Verio scanner with a T1-MPRAGE sequence [repetition time (TR) =2,300 ms, echo time (TE) =2.53 ms, flip angle =12°, slice thickness =1 mm, no gap, voxel size =1 mm × 1 mm × 1 mm] and an axial T2-FLAIR sequence (TR =7,000 ms, TE =80 ms, flip angle =12°, slice thickness =1 mm, no gap, voxel size =1.5 mm × 1.5 mm × 1.5 mm).

The overall analysis pipeline, including structural analysis, FC analysis, and automated detection is shown in Figure 1.

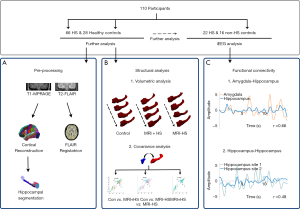

Figure 1 Schematic outline of the study. In total, 110 participants were included for neuroimaging analysis and 38 for SEEG analysis. (A) Neuroimage preprocessing and quantitative features extraction, including cortical reconstruction of T1-MPRAGE images, co-registration of T2-FLAIR images, and hippocampal segmentation. (B) Structural analysis. This involved volumetric analysis and structural covariance analysis. (C) Functional connectivity analysis. This was conducted between the amygdala and hippocampus (amygdala-hippocampal connectivity) and between two regions within the hippocampus (intra-hippocampal connectivity). HS, hippocampal sclerosis; Con, healthy control group; MRI + HS, MRI-positive HS patient group; MRI-HS, MRI-negative HS patient group.

FreeSurfer version 6.0 (https://surfer.nmr.mgh.harvard.edu) was used to create cortical reconstructions (25-27). In brief, the processing involves (I) segmentation of white matter; (II) tessellation of the gray/white matter boundary; (III) inflation of the folded surface tessellation; (IV) automatic correction of topological defects; and (V) FLAIR data was used to improve pial surfaces. These steps have been described in detail elsewhere (6,28). For FLAIR image processing, initially an anatomical segmentation was created for the geometric transfer matrix (GTM), and then linear registration was undertaken to register FLAIR images with the anatomical images. Partial volume correction (PVC) with Muller-Gartner analysis (29) was used to address the partial volume effect and quantify intensity information accurately. Intensity values were normalized by scaling using the intensity in pons, and finally smoothed using a 5-mm FWHM Gaussian diffusion kernel. Automated segmentation of the amygdala and hippocampus was performed with the segmentaHA_T1 command in FreeSurfer (30,31). Preprocessing results of each subject were assessed visually, and any inaccuracies were corrected manually (Figure 1A).

Morphological/intensity features

Normalized hippocampus volume

After automated segmentation of the hippocampus, quality control, and any necessary manual edits, the hippocampal volumes from all participants were obtained using the intrinsic module segmentHA_T1. In addition, to correct for individual variability in intracranial size, the value of the hippocampus volume was normalized using the estimated total intracranial volume (eTIV), obtained from the individual’s intracranial volume and the scaling factor (32).

FLAIR signal intensity of hippocampus

After co-registration of T1 images, intensity normalization, and smoothing, as described above, the value of the normalized FLAIR signal intensity was recorded.

Normalized volume of temporal horn of lateral ventricle

Similar to the normalized hippocampus volume, the volume of the temporal horn of the lateral ventricle was corrected for the eTIV.

Gray-white matter (GM/WM) boundary blurring in the temporal pole

The contrast in intensity between GM and WM was calculated, as blurring of GM/WM boundary in temporal pole is commonly identified in HS (6). The GM/WM signal intensity ratio was computed with the pctsurfcon command in FreeSurfer to the following equation:

$$pct=\frac{100\times (G-W)}{0.5\times (G+W)}$$^[1]

where pct is the mean surface-wise GM/WM contrast, and G is the GM signal intensity sampled at 50% of the cortical thickness above the GM/WM boundary. W is the WM signal intensity sampled 1 mm below the white surface. The more blurred the GM/WM boundary, the closer pct is to zero.

Participants’ left/right hemispheric data were sorted relative to the epileptogenic focus (e.g., ipsi- and contralateral to the focus).

Structural analysis

Patients were divided into three groups: control group, MRI-positive and MRI-negative HS patient groups. Structural analysis consisted of two parts. First, an evaluation of the degree of hippocampal atrophy and amygdala enlargement in MRI-positive and MRI-negative HS patients based on a structural volumetric analysis comparing the hippocampal volume, FLAIR signal intensity, volume of the temporal horn of the lateral ventricle, and GW/WM boundary blurring in the temporal pole of the amygdala and hippocampus between the 3 groups. Additional comparisons were made of morphological characteristics between the affected (ipsilateral) and unaffected (contralateral) hippocampi in HS patients.

Second, structural covariance analysis was undertaken by calculating the linear correlation between normalized volumes of the amygdala and hippocampus. To determine the relative atrophy of the amygdala and hippocampus, we calculated the volumetric ratio of the normalized hippocampus volume divided by the normalized amygdala volume (Figure 1B).

SEEG recordings

SEEG was recorded using a clinical long-term monitoring system (Nihon-Kohden Neurofax EEG-1200, 192 or 256 channels, Tokyo, Japan) with a sampling rate of 1,000 or 2,000 Hz and a bandpass filter of 1.6–300 or 0.08–600 Hz. Each depth electrode (Huake-Hengsheng Medical Technology, Beijing, China) had a diameter of 0.8 mm with 8–16 contacts. The center-to-center spacing of contacts was 3.5 mm. The strategy used for placing electrodes was a clinical decision based on pre-surgical noninvasive information which generated hypotheses concerning the localization of epileptogenic zones. Depth electrodes were placed using a CRW frame-based system (Integra Radionics, Burlington, MA, USA). A postoperative computerized tomography (CT) scan was used to confirm the absence of intracranial bleeding and the accuracy of electrode position. Long-term SEEG monitoring was undertaken for twenty-four hours after electrode implantation in order to record two or more habitual seizures. To reduce distortion during recording, SEEG signals were referenced to the most electrographically silent channel outside of the seizure focus, which was typically a white matter channel.

The SEEG based FC analysis

Patients with depth electrodes covering the amygdala and hippocampus were used for the FC analysis. In each case, five 5 min SEEG segments which were at least six hours before or after ictal discharges during sleep were selected randomly. SEEG segments were exported from NeuroWorkbench (Nihon-Kohden Tokyo, Japan) in edf format and preprocessed through a bespoke MATLAB pipeline that used functions for electrophysiological signal processing from SPM12 (33) and Fieldtrip (34).

Signals were first down-sampled to 1,000 Hz. Next, notch filtering was used to remove the 50 Hz line noise and its harmonic. Then, a bipolar re-referencing was undertaken (35). Next, we calculated the envelope signal of HFB (70–170 Hz) oscillations. The envelope signals were bandpass filtered using a fourth-order Butterworth filter with 0.1–1 Hz frequency threshold. Each segment was split into multiple 15 s epochs. Epochs contaminated by artifacts were excluded. Contacts in the amygdala and hippocampus were identified visually using coregistered presurgical MRI and postsurgical CT images.

The bipolar re-referenced channel, which has two corresponding contacts located within the amygdala or hippocampus, with the highest amplitude, was selected as the representative channel for each anatomical site. The Pearson correlation coefficient of two 0.1–1 Hz filtered envelope signals was used as a surrogate for the strength of FC between two anatomical sites. Pearson correlation coefficients of each epoch were then averaged at an individual level (Figure 1C). The distance between two bipolar channels was defined as the Euclidean distance between the two centers of four contacts.

Statistical analysis

Lilliefors test was used to confirm that all data fitted a normal distribution. Analysis of all participant demographic data and all intergroup analysis was undertaken using Student’s t-test or Mann-Whitney U test, as appropriate. The degree of association in the structural covariance analysis was calculated using a Pearson correlation coefficient (r) or the Spearman rank correlation coefficient. All calculations were undertaken using MATLAB 2018b version software (R2018b, The Mathworks, Natick, MA, USA). Statistical comparison was only undertaken for groups comprising six or more patients. A two-sided P value less than 0.05 was considered statistically significant. A false discovery rate (FDR) correction was used for multiple comparisons.

Results

Demographics

A total of 66 patients with HS confirmed by pathology (32 females, 33 left TLE, mean ± SD age =24.9±8.4 years, mean ± SD duration =12.3±8.0 years, mean ± SD ipsilateral amygdala volume =1702.5±264.7 mm³, mean ± SD ipsilateral hippocampus volume =2,617.5±402.8 mm³), 28 healthy controls (10 females, mean age =16.6±9.9 years, mean bilateral amygdala volume =1,776.9±288.1 mm³, mean bilateral hippocampus volume =3,420.8±476.4 mm³) and 16 epilepsy patients without HS but who had undergone SEEG implantation (7 females, 6 lesions were located in the left hemisphere, mean age =24.0±10.1 years, mean duration =10.6±6.8 years) were included in the study (Table 1).

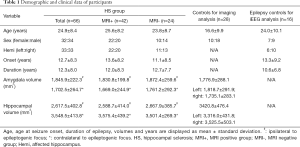

Table 1 Demographic and clinical data of participants
Full table

Twenty-two of the HS patients underwent depth electrode implantation. All such patients had one or more depth electrode implanted in the amygdala and one implanted in the hippocampus. Ten patients had two or more depth electrodes implanted in the hippocampus. Of the 16 disease controls used in the SEEG FC analysis, 10 had one or more electrodes implanted in the amygdala and one in the hippocampus, one had bilateral amygdala and hippocampal implantation, and nine had two or more electrodes implanted in the hippocampus. All the 16 SEEG disease controls had focal resections. Eleven had FCD (2 FCD I, 4 FCD IIa, 5 FCD IIb), one had ganglioglioma (WHO Grade I, GG), and four had gliosis only. Demographic information for these patients is shown in Table 1. The supplementary table 1 (see online: https://cdn.amegroups.cn/static/public/qims-20-624-1.pdf) summarizes the demographic and clinical information for all participants in the cohort.

Morphological/intensity features

The volumes of the amygdala and hippocampus were compared between HS patients and controls. Ipsilateral and contralateral volumes of corresponding anatomical structures were also compared.

In the ipsilateral hippocampus, both MRI-positive and MRI-negative patients had significantly lower normalized volumes than healthy controls (Mann-Whitney U: 7.61, P<0.01; Mann-Whitney U: 6.51, P<0.01, respectively; Figure 2A). However, only MRI-positive HS patients also had increased FLAIR signal intensity in the ipsilateral hippocampus (Student’s t: −2.05, P_uncorrected<0.05; Figure 2A).

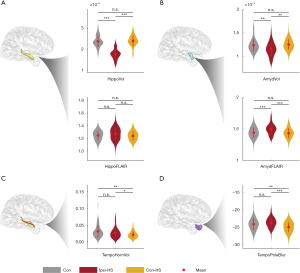

Figure 2 Structural features in controls and ipsilateral side of HS patients including MRI-positive and MRI-negative subgroups. (A) Normalized hippocampal volume and FLAIR signal intensity; (B) normalized amygdala volume and FLAIR signal intensity; (C) normalized temporal horn volume; (D) Gray-white matter blurring in the temporal pole. The red lines represent the mean values (solid circles) and standard deviations (two ends); *: P<0.05; ***: P<0.001; n.s.: non-significant. All P values were adjusted for multiple comparison using the FDR method. HippoVol, normalized volume of hippocampus; HippoFLAIR, normalized FLAIR signal intensity of hippocampus; AmygVol: normalized volume of Amygdala; AmygFLAIR, normalized FLAIR signal intensity of amygdala; TempoHornVol, normalized volume of temporal horn of lateral ventricle; TempoPoleBlur, GM/WM boundary blurring in the temporal pole; Con, control group; MRI + HS, MRI-positive HS patient group; MRI-HS, MRI-negative HS patient group.

In the ipsilateral amygdala, HS patients had significantly lower normalized volume and higher FLAIR signal intensity (Mann-Whitney U: 2.92, P<0.05; Student’s t: −3.57, P=0.01, respectively; Figure 2B). These changes were mostly observed in MRI-positive HS patients (amygdala volume: Mann-Whitney U: 2.75, P<0.05; FLAIR signal: Student’s t: −3.65, P=0.01, respectively; Figure 2B). There was no significant difference between MRI-negative HS patients and controls (amygdala volume: Mann-Whitney U: 1.93, P>0.05; FLAIR signal: Student’s t: −1.95, P>0.05). There were no inter-group significant differences in normalized volume of the temporal horn of the lateral ventricle and blurring of temporal pole (Figure 2C,D).

Although clear structural differences exist between healthy controls and HS patients, there were no significant quantifiable differences between MRI-positive and MRI-negative patients. In controls, significant differences between the left and right hippocampi were absent for any of the four structural features (Figure S1).

For the hippocampus and amygdala, there were significant differences between the ipsilateral and contralateral sides in HS patients (Figure 3A,B). Ipsilateral hippocampi and the amygdala had decreased normalized volumes (hippocampus: Student’s t: −14.58, P<0.01; amygdala: Student’s t: −4.26, P<0.01) and increased FLAIR signal intensity (hippocampus: Student’s t: −2.24, P_uncorrected=0.03; amygdala: Student’s t: 4.44, P<0.01). Whereas, measured values for the contralateral hippocampi and amygdala were similar to those of controls (hippocampal volume: Mann-Whitney U: −0.86, P=0.39; hippocampal FLAIR signal: Student’s t: 0.65, P=0.51; amygdala volume: Mann-Whitney U: −1.16, P=0.24; amygdala FLAIR signal: Student’s t: 0.61, P=0.24, respectively). For the other two features, the normalized volume of the ipsilateral temporal horn was significantly greater when compared to the contralateral side (Student’s t: 2.31, P=0.03) and controls (Mann-Whitney U: 3.32, P<0.01). The temporal pole was significantly less blurred on the contralateral side compared to the ipsilateral side in HS patients (Student’s t: 4.93, P<0.01) and controls (Student’s t: 2.81, P<0.01) (Figure 3C,D). In summary, the hippocampal and amygdala volume and FLAIR intensity were significantly different between ipsilateral and contralateral sides, but the corresponding values of the contralateral side were similar to controls.

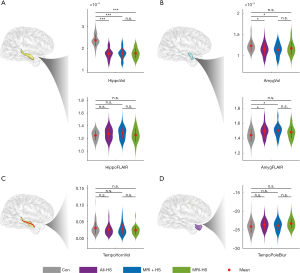

Figure 3 Structural features of the amygdala and hippocampus in controls and in ipsilateral and contralateral sides of HS patients. (A) Structural features of hippocampus; (B) structural features of amygdala; (C) normalized temporal horn volume; (D) Gray-white matter blurring in the temporal pole. Red lines represent the mean values (solid circles) and standard deviations (two ends); *: P<0.05; **: P<0.01; ***: P<0.001; n.s.: non-significant. All P values were adjusted for multiple comparison using FDR method. HippoFLAIR, normalized FLAIR signal intensity of hippocampus; AmygVol, normalized volume of Amygdala; AmygFLAIR, normalized FLAIR signal intensity of amygdala; TempoHornVol, normalized volume of temporal horn of lateral ventricle; TempoPoleBlur, GM/WM boundary blurring in temporal pole; Con, control group; Ipsi-HS, ipsilateral side of HS patient group; Con-HS, contralateral side of HS patient group.

Structural correlation and relative atrophy degree

In the structural covariance analysis, we evaluated the relationship between the normalized hippocampal and amygdala volumes. The Z-score normalized relative amygdala and hippocampal volumes in controls and HS patients were positively correlated: patients with larger hippocampal volumes had larger amygdala volumes (ρ_Spearman=0.72, P<0.01) (Figure 4A). Volume ratios between hippocampus and amygdala were significantly higher in HS group (Mann-Whitney U: 7.25, P<0.01, Mann-Whitney U: 10.66, P<0.01, respectively; Figure 4A). Subgroup analysis indicated that both MRI-positive and MRI-negative HS groups had a high positive correlation between hippocampal and amygdala volumes. However, their hippocampus/amygdala volumetric ratio did not show a significant difference (Mann-Whitney U: 0.33, P=0.74; Figure 4B). Significant positive correlations were also observed for ipsilateral and contralateral amygdala/hippocampus ratio comparisons in the HS group. Moreover, the volumetric ratio was not different for the contralateral amygdala/hippocampus ratio between contralateral side of HS patients and controls (Mann-Whitney U: 0.23, P=0.82) (Figure 4C).

Figure 4 Correlation between amygdala and hippocampal volumes. The scatterplots show a positive correlation between ipsilateral normalized volume of amygdala and hippocampus in all groups. Volumetric correlation and hippocampus/amygdala volumetric ratio comparison between (A) the control group and HS patients; (B) the control group, MRI-positive and negative HS patient groups; (C) the ipsilateral and contralateral side of HS patients. The bar chart displays the data distribution across all groups. ***: P<0.001; n.s.: non-significant. Con, control group; All-HS, all HS patients; MRI + HS, MRI-positive HS patient group; MRI-HS, MRI-negative HS patient group; Ipsi-HS, ipsilateral side of HS patient group; Con-HS, contralateral side of HS patient group.

FC analysis between the amygdala and hippocampus

In total, 38 epilepsy patients were included in the SEEG FC analysis. The SEEG cohort comprised 11 MRI-positive HS patients, 11 MRI-negative HS patients, and 16 non-HS disease controls. All patients had depth electrode coverage of the amygdala and hippocampus. SEEG data comprised 5 randomly selected segments (mean ± SD duration time =5.2±1.1 minutes) from a hippocampal and an amygdala contact for each patient during sleep.

The process of intracranial SEEG electrode localization and visualization was undertaken using an established protocol (36) (Figure 5A). For the FC calculation, the mean ± SD distances between channel pairs were comparable between groups. For the electrode pair within the hippocampus, the Euclidean distances of control, MRI + HS, and MRI- HS were 15.9±2.8, 14.9±3.2, 14.4±2.0 mm respectively (one-way ANOVA, P=0.39). For amygdala-hippocampus distances, the distances between groups were 19.1±3.8, 18.8±4.1, 21.0±5.2 mm (one-way ANOVA, P=0.41). In the interictal state, amygdala-hippocampus connectivity was significantly reduced in HS patients (Student’s t: 2.58, P=0.03) and particularly in MRI-negative HS patients (Student’s t: 3.33, P=0.01). There was no statistically significant difference between MRI-positive and MRI-negative subgroups (Student’s t: 1.55, P=0.14). However, connectivity between electrodes within the hippocampus of both MRI-positive and MRI-negative HS patient groups was significantly increased when compared to controls (Student’s t: −2.49, P=0.02) (Figure 5B).

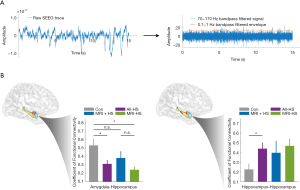

Figure 5 Functional connectivity analysis between amygdala and hippocampus. (A) An example of a 15s raw SEEG trace segment (left), the corresponding 70–170 Hz bandpass filtered signal and its 0.1–1 Hz bandpass filtered envelope, which was used for correlation between brain structures (right). (B) SEEG functional connectivity between ipsilateral amygdala and hippocampus (left) and intra-hippocampus (right). Diagram displays the anatomic relationship of the amygdala and hippocampus as well as an example of depth electrode positions for the amygdala-hippocampus and hippocampus-hippocampus analyses. The bar plot displays the coefficient of functional connectivity among the control and HS subgroups. There were only four MRI-positive HS patients with two or more electrodes in hippocampus, thus no analysis was performed between control and HS subgroups. *: P<0.05; n.s.: non-significant. Con, control group; All-HS, all HS patients; MRI + HS, MRI-positive HS patient group; MRI-HS, MRI-negative HS patient group.

Discussion

Patients with drug-resistant focal epilepsy but without structural abnormalities in MRI are challenging in presurgical evaluation, which is often longer, with a poorer prognosis, an increased risk of neurological complications, and a reduced likelihood of seizure freedom post-operatively (37). HS is among the most common pathologies found in this MRI-negative cohort (38). We sought to improve the presurgical evaluation of HS patients by quantifying structural and connectivity changes characteristic of the condition. We found HS patients, including MRI-negative cases, had structural and functional abnormalities in the ipsilateral mesiotemporal lobe structures. These features might be useful for developing future work developing automatic frameworks to detect and lateralise HS.

The affected hippocampus in TLE patients had significant structural abnormalities when compared to controls, with decreased normalized volume and increased normalized FLAIR signal in both MRI-positive and MRI-negative patients. Only MRI-positive HS patients exhibited temporal pole blurring, while the volume of the temporal horn of the ventricles was the same between groups. In the structural covariance analysis, volumes of the hippocampus and amygdala on the affected side were tightly coupled in HS patients. However, the atrophy was more pronounced in the hippocampus than the amygdala in both MRI-positive and MRI-negative patients. These results demonstrated that at a group level, distinct structural abnormalities existed in both MRI-positive and MRI-negative HS patients. Nevertheless, it is important to recognize that group level differences do not necessarily mean that all individuals have quantifiable hippocampal atrophy. Previous work by Coan et al. found quantifiable hippocampal atrophy in 13% of MRI negative patients (39).

SEEG based FC revealed hypersynchronous electrical activity within the hippocampus and hypoconnectivity between the amygdala and hippocampus in both MRI-positive and MRI-negative HS patients. The amygdala and hippocampus are both allocortical regions that are highly interconnected and often form part of the epileptogenic network (40). Seizures originating from the hippocampus may result in progressive and secondary atrophy of the amygdala. SEEG assesses the FC between amygdala and hippocampus. In this study, amygdala-hippocampal connectivity was decreased, in accordance with previous fMRI hippocampal seed-based analysis (41). This may be due to dysfunction of the epileptogenic hippocampus causing less functional connections to other brain regions, including the amygdala. However, increased intra-hippocampus FC was also evident. This may be as a result of epileptiform activity, such as interictal discharge, within the affected hippocampus (16).

In clinical practice, identification of HS typically relies on hippocampal atrophy in coronal T1 imaging, hyperintensity in T2 or FLAIR imaging, and loss of internal architecture. However, such diagnosis requires experienced neuroradiologists and a proper diagnosis can be missed. In our single center, the detection rate of pathologically confirmed HS using radiology was 63.6% (42/66), with the accuracy rising to 87.9% (58/66) after epilepsy surgery evaluation by a multidisciplinary team that in addition to MRI data analysis, semiology, EEG discharge pattern, PET hypometabolism zone and SEEG data where available. Given the difficulty detecting HS in 36.4% of patients, automated quantification of hippocampal structures might assist in the presurgical clinical evaluation of these patients. However, quantifying individual features is unlikely to greatly improve HS detection, as only a limited proportion of MRI-negative patients will have quantifiable hippocampal atrophy. To circumvent such restrictions, we have pursued a multivariate approach.

Despite a modest sample size, and subtle electrode placement differences in the sEEG analysis, we demonstrate structural and functional changes in patients with temporal lobe epilepsy due to hippocampal sclerosis (HS). These findings provide motivation for future work incorporating these structural and functional features in a multi-variate approach to detect and lateralise HS. Moreover, using a multivariate Mahalanobis distance could improve the robustness of our results, as it is less influenced by measurement noise, assuming this is independent, normally distributed, and orthogonal (42).

Conclusions

Quantitative structural changes in the amygdala and hippocampus occur in both MRI-positive and -negative HS patients. Such changes are accompanied by functional changes including increased functional coupling within the affected hippocampus and decreased coupling between the hippocampus and amygdala.
