Considerable effects of imaging sequences, feature extraction, feature selection, and classifiers on radiomics-based prediction of microvascular invasion in hepatocellular carcinoma using magnetic resonance imaging

Introduction

Hepatocellular carcinoma (HCC) has high incidence and mortality rates. It is ranked fifth among all malignancies in terms of incidence and is the third most common cause of cancer-related death (1). Partial hepatectomy and liver transplantation are the most effective treatments for HCC (2); however, the respective 5-year recurrence rates are as high as 70% and 35% (3-5). Occult metastatic lesions produced by hepatoma cells that invade microvessels are a major cause of postoperative recurrence of HCC. Numerous studies have shown that microvascular invasion (MVI) is one of the independent risk factors for the prognosis of primary HCC (5-9).

Accurate identification of MVI in patients with HCC is key to formulating treatment strategies and predicting prognosis. However, MVI cannot be reliably diagnosed by biopsy, which makes its preoperative diagnosis challenging. Although several radiologic features of magnetic resonance imaging (MRI) and computed tomography (CT) images, such as tumor margin, internal arteries, and hypodense halos, are known to be predictors of MVI status, a consensus on the best predictive features of MVI in HCC has not been reached (10-12).

The rapid development of medical imaging technology has allowed for more information to be obtained for HCC evaluation. Radiomics, a method that involves the high-throughput extraction of high-dimensional quantitative features from medical images, has received widespread attention in recent years (13-15), due to the additional information it provides for disease analysis. The key steps of radiomics analysis methods include image acquisition, tumor segmentation, feature extraction, and classifier modeling (13,14); all of these steps may have an effect on the final performances of radiomics models for HCC MVI. Studies have investigated the variability of radiomics features with respect to different imaging scanners (16,17), image acquisition parameters (18), tumor delineation methods (19), reconstruction methods (20-22), feature selection methods (23,24), and discretization (25), as well as the variability of model performance using different classifiers (23,24).

To date, several studies have shown that radiomics features based on CT (26-31) or MRI (32-34) perform well for the prediction of HCC MVI, outperforming radiographic features (26,27,30,32). It is worth noting that those studies mainly explored the predictive performance of different radiomics features; although, as mentioned previously, each step of the radiomics analysis can affect the final predictive performance. Ni et al. (31) showed that different feature selection methods and different classifiers had a significant effect on the prediction of HCC MVI based on CT radiomics features. Yang et al. (33) reported that radiomics features performed differently in the prediction of HCC MVI with different MRI sequences. However, almost all studies have neglected the effect of different radiomics feature extraction parameters on the performances of radiomics models for HCC MVI. In addition, some studies have failed to mention the detailed parameters of radiomics feature extraction. Therefore, we aimed to explore the effects of imaging sequences, feature extraction, feature selection and classifiers on the predictive performance of a radiomics biomarker for HCC MVI, and to provide standardized recommendations for subsequent radiomics research related to the prediction of HCC MVI.

Methods

Patients

The study was approved by the Institutional Review Board and Ethical Committee of The First Affiliated Hospital, Sun Yat-sen University, and conformed to the provisions of the Helsinki Declaration. The requirement for informed consent was waived. Between August 2016 and March 2019, we reviewed the medical records and imaging data of all HCC patients diagnosed at the First Affiliated Hospital, Sun Yat-sen University. The inclusion criteria were: (I) a solitary lesion; (II) hepatectomy; (III) no prior surgical or medical anticancer treatment before the MRI scan; (IV) MRI acquired within the 1 month prior to treatment; (V) HCC and MVI confirmed by pathologic examination; (VI) no known distant metastasis; and (VII) images with the same spatial resolution for all sequences. Patients with mixed cell tumors (HCC and cholangiocarcinoma) or with extensive tumor invasion were excluded. Details of the patient recruitment process are shown in Figure 1. Sixty-nine HCC patients (66 males, 3 females; mean age: 52.7 years, range: 18–75 years) met the inclusion criteria; of them, 29 were confirmed with MVI by postoperative histopathology.

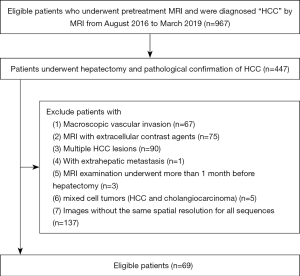

Figure 1 Flowchart of the patients’ enrollment. HCC, hepatocellular carcinoma; MRI, magnetic resonance images.

MRI acquisition

Gadoxetic acid-enhanced MRI examinations were performed for all patients (body coil, supine position), using a 3.0T MR system (Siemens Veiro, Germany). The MRI scan sequence included: T1-weighted imaging (T1WI) in/out of phase sequence imaging, pre-enhanced T1-weighted imaging (pre-T1WI) sequence axial imaging, and T2-weighted imaging (T2WI). Following the injection of gadoxetic acid (Primovist^®, 0.1 mL/kg body weight) into the cubital vein at a flow rate of 1 mL/s, post-contrast dynamic three-dimensional (3D) T1-weighted volumetric-interpolated breath-hold examination (VIBE) was conducted during the arterial phase (AP; 20–30 seconds), portal venous phase (PVP; 60–70 seconds), and hepatobiliary phase (HBP; 20 minutes). The detailed scanning parameters of the pre-T1WI, AP, PVP, and HBP are shown in Table 1. Figure 2 shows examples of pre-T1WI, AP, PVP, and HBP images of a 55-year-old man.

Table 1 MRI sequences and scanning parameters
Full table

Figure 2 Examples of pre-enhanced T1WI, HBP, AP, and PVP images of a 55-year-old man. T1WI, T1-weighted imaging; AP, arterial phase; HBP, hepatobiliary phase; PVP, portal venous phase.

Radiomics feature extraction

The tumor lesions on each axial slice were contoured carefully by a board-certified abdominal radiologist using ITK-SNAP software (www.itksnap.org) and then checked by an experienced radiologist (both with >10 years of experience in abdominal imaging). To increase the reliability of the MRI texture measurements, the voxels within the tumor region with intensities outside the range of µ ± 3σ (µ and σ represent the mean and standard deviation of the image intensities within the tumor region, respectively) were rejected and not considered in subsequent texture computations, as suggested by Collewet et al. (35). Next, all images were resampled to an isotropic voxel size using an interpolation method. Except that by Zhang et al. (34), all previous radiomics studies on the prediction of HCC MVI resampled the images to a voxel size of 1.00×1.00×1.00 mm³. Vallières et al. (36) suggested an isotropic voxel size that was equal to the initial in-plane resolution (1.19×1.19×1.19 mm³ in our study). Considering that the slice thickness was 2 mm, in our study we resampled the images to different sizes including 1.00×1.00×1.00, 1.19×1.19×1.19, 1.50×1.50×1.50, and 2.00×2.00×2.00 mm³. Because high interpolation accuracy can reduce the influence of image distortion, we chose the commonly used 3D cubic interpolation with the Matrix Laboratory (MATLAB, Version R2019a) software.

The quantitative image feature toolkit, which was developed in-house using MATLAB, was used to calculate the radiomics features. Using an image of a single tumor lesion as input, we calculated 167 quantitative features, including shape, intensity, and texture features, with the toolkit. In total, 24 shape features described the 3D geometric properties of the tumor. A further 37 intensity features estimated the first-order statistics of the intensity histogram. Moreover, the intra-tumor heterogeneity was quantified by 106 textural features derived from the gray-level co-occurrence matrix (GLCM), gray-level run-length matrix (GLRLM), gray-level size zone matrix (GLSZM), spatial gray-level dependence matrix (SGLDM), neighborhood gray-tone difference matrix (NGTDM), and neighborhood gray-level difference statistics (NGLDS).

Prior to the computation of the textural features, the full intensity range of the tumor region was quantified to a smaller number of gray levels (Ng). The pixel value in a gray-scale image is usually an integer between 0 and 255. If Ng =8 is chosen, the pixel value is quantitatively mapped to an integer between 0 and 7, which can greatly reduce the burden of calculation in feature extraction. The Uniform, equal-probability, and Lloyd-Max quantization algorithms were tested using our quantitative image feature kit. The calculation formula of the Uniform quantization algorithm was:

y=round[(x−xmin)(Ng−1)xmax−xmin]+1^[1]

where ‘round’ represents the rounding function, ‘x’ refers to the original tumor region voxel value, x_max and x_max are the maximum and minimum voxel values of the original tumor region, respectively, and y is the result (1–Ng) after quantization. The equal-probability and Lloyd-Max quantization algorithms were calculated using the histeq and lloyds functions of MATLAB, respectively. Ng can theoretically be set to any integer value in all three quantization algorithms. All previous radiomics studies related to the prediction of HCC MVI, only Zhang et al. (34), reported the value of Ng is 64 and selected the Uniform quantization algorithm as the quantization algorithm, while other studies (26-33) failed to specify the value of Ng or the quantization algorithm. In our study, we tested the three quantization algorithms and commonly used Ng values, including 8, 16, 32, 64, and 128.

Radiomics feature selection

There are three main types of feature selection methods: filter, wrapper, and embedded (37). Minimum redundancy maximum relevance (mRMR) (38), support vector machine (SVM) recursive feature elimination (RFE) (39), and least absolute shrinkage and selection operator (LASSO) (40) algorithms are common filter, wrapper, and embedded methods for feature selection, respectively. Of the radiomics studies related to HCC MVI prediction, we found that only two used SVM-RFE or mRMR as the feature selection method (29,34), and the others used LASSO (26,28,30,32,33). Our study tested the performance of the feature selection methods, including SVM-RFE, mRMR, and LASSO, in HCC MVI prediction. In addition, we present a two-stage feature selection method combining LASSO and the gradient boosting decision tree RFE (GBDT-RFE) (LASSO-RFE). The workflow of the LASSO-RFE is shown in Figure 3. With a 10-fold cross-validation strategy, LASSO was applied to obtain the feature subsets in the training set; next, the GBDT-RFE was used to sort the feature subsets. A backward search algorithm was used to verify the performance of different numbers of feature combinations in the validation set, from which the feature subset with the best performance was selected as the optimal feature subset. Finally, the maximal information coefficient (MIC) was used to calculate the correlation in the optimal feature subset for 10 folds and remove the redundant features that had a strong correlation (MIC >0.5) with the features with higher frequency.

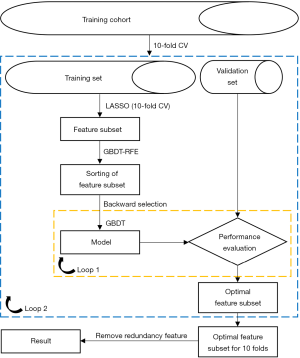

Figure 3 Workflow of the LASSO-RFE. CV, cross-validation; GBDT, gradient boosting decision tree; GBDT-RFE, GBDT-recursive feature elimination; LASSO, least absolute shrinkage and selection operator.

Classifiers and radiomics model building

Almost all of the previous radiomics studies about HCC MVI prediction used logistic regression (LR) as a classifier (29-30,32-34). Moreover, as SVM, random forest (RF), and GBDT are machine-learning classifiers commonly used in similar radiomics research, we explored the differences in performance between these four classifiers for the prediction of HCC MVI. In our study, LR, SVM, RF, and GBDT were implemented in the scikit-learn Python (version 3.7) library.

To train and test the model, we used the leave-one-out cross-validation (LOOCV) strategy, with one subject for testing and the remaining subjects for training. The data were divided into a training cohort and a testing cohort using the LOOCV strategy. In the training cohort, the best feature subset was first obtained by feature selection, and then the feature values of the best feature subset were standardized:

y=x−μδ^[2]

where x is the original feature value, µ and σ are the mean and standard deviation values of the original eigenvectors, respectively, and y is the standardized feature value. In the testing cohort, the corresponding features were standardized in the same way; however, it should be noted that µ and σ referred to the mean and standard deviation values of the original eigenvectors in the training cohort. Finally, the model was trained and tested using the training and testing cohorts, respectively. The above steps were repeated until each sample had been tested once as the testing cohort.

Study design and performance evaluation

The workflow of the study is shown in Figure 4. We chose 1.19×1.19×1.19 mm³, 64, Uniform, LASSO, and LR as the initial settings for the resampled voxel size, Ng, the quantization algorithm, feature selection method, and classifier, respectively, because they have been the most commonly used in other radiomics studies. In experiment 1, we aimed to explore the prediction performance differences between the pre-T1WI, AP, PVP, and HBP sequences; the experiment was carried out with the initial settings. In subsequent experiments, we used the control variable strategy, and each experiment setting was based on the variables that obtained the best predictive performance from the previous experiment. Furthermore, we explored the effects of resampled voxel size, Ng, quantization algorithm, feature selection method, and classifiers on the performance of predictive models in experiments 2, 3, 4, 5 and 6, respectively.

Figure 4 Workflow of the study. µ and σ represent the mean and standard deviation of the MRI voxel within the tumor region, respectively; AP, arterial phase; GBDT, gradient boosting decision tree; GLCM, gray-level co-occurrence matrix; GLRLM, gray-level run-length matrix; GLSZM, gray-level size zone matrix; HBP, hepatobiliary phase; PVP, portal venous phase; pre-T1WI, pre-enhanced T1-weighted imaging; LASSO, least absolute shrinkage and selection operator; LASSO-RFE, a method combining LASSO and gradient boosting decision tree recursive feature elimination; LOOCV, leave-one-out cross-validation; LR, logistic regression; MRI, magnetic resonance imaging; mRMR, minimum redundancy maximum relevance; NGLDS, neighborhood gray-level difference statistics; NGTDM, neighborhood gray-tone difference matrix; RF, random forest; SGLDM, spatial gray-level dependence matrix; SVM, support vector machine; SVM-RFE, SVM-recursive feature elimination.

The performance of the predictive models was evaluated using the receiver operating characteristic (ROC) curve. The area under the ROC curve (AUC) with 95% confidence intervals (95% CI) was calculated, because it denotes the classification performance across all decision thresholds. From the ROC curve, the accuracy, sensitivity, and specificity were calculated according to the decision threshold with the highest accuracy. In our study, the stability of the feature selection method using the cross-validation strategy was defined as:

stability=∑i=1K∑j=1KFi∩FjFi∪FjK×(K−1)(j≠i)^[3]

where F_i and F_j are the feature selection results of the i-fold and j-fold, respectively, and K represents the total number of folds. The stability value ranged between 0 and 1. If the feature selection results of each fold were consistent, the stability value would be 1.

Statistical analysis

The Mann-Whitney U test was used to compare the clinical characteristics between MVI-present and MVI-absent cohorts for continuous variables, and the Chi-square test was used for categorical variables. To evaluate the differences in the predictive performance of the different models, the ROC curves of all models were compared using MedCalc software (version 12.7.0). Other statistical analyses were performed in the scipy-stats Python (version 3.7) library. Two-tailed P values <0.05 were considered statistically significant.

Results

Demographic and clinical characteristics

The demographic and clinical characteristics of the patients are listed in Table 2. All patients had hepatitis, and 28 had accompanying cirrhosis.

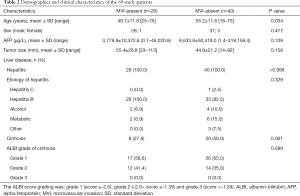

Table 2 Demographics and clinical characteristics of the 69 study patients
Full table

Prediction performance of the models

Experiment 1

With the settings of resampled voxel size, quantization algorithm, Ng, feature selection method, and classifier as 1.19×1.19×1.19 mm³, Uniform, 64, LASSO, and LR, respectively, the performance of the predictive models built using the AP, PVP, pre-T1WI, and HBP images are listed in Table 3. The ROC curves are shown in Figure 5. The model based on the radiomics features of HBP images displayed a better predictive performance for HCC MVI than the radiomics features of AP, PVP, and pre-T1WI (AUC =0.792 vs. 0.641/0.634/0.620, respectively). The P values of the differences between the HBP ROC curve and the AP, PVP, and pre-T1WI curves were 0.041, 0.021, and 0.010, respectively.

Table 3 Performance of predictive models built using HBP, AP, PVP, and T1WI sequences when the resampled voxel size, Ng, quantization algorithm, feature selection method, and classifier were 1.19×1.19×1.19 mm³, 64, Uniform, LASSO, and LR, respectively
Full table

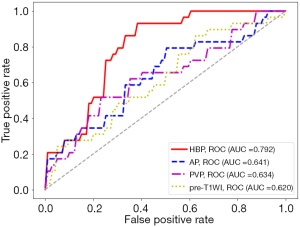

Figure 5 ROC curves of the predictive models built using different sequences when the Ng, quantization algorithm, feature selection method, and classifier were 64, Uniform, LASSO, and LR, respectively. AP, arterial phase; AUC, area under the ROC curve; HBP, hepatobiliary phase; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; Ng, number of gray levels; pre-T1WI, pre-enhanced T1-weighted imaging; PVP, portal venous phase; ROC, receiver operating characteristic.

Experiment 2

With the settings of Ng, quantization algorithm, feature selection method, and classifier as 64, Uniform, LASSO, and LR, respectively, details of the performance of the predictive models built using the HBP radiomics features obtained with different resampled voxel sizes are listed in Table 4. The ROC curves are shown in Figure 6. Compared with the images of 1.50×1.50×1.50 and 2.00×2.00×2.00 mm³, the radiomics features obtained with images of 1.00×1.00×1.00 or 1.19×1.19×1.19 mm³ displayed a better performance (AUC =0.792/0.792 vs. 0.639/0.613, P=0.010 and 0.001, respectively). The radiomics features obtained using the 1.19³ mm³ resampled voxel size had a higher sensitivity than those obtained using 1.00³ mm³ (sensitivity =86.2% vs. 75.9%).

Table 4 Performance of the predictive models built using HBP radiomics features obtained by different resampled voxel sizes when the Ng, quantization algorithm, feature selection method, and classifier were 64, Uniform, LASSO, and LR, respective
Full table

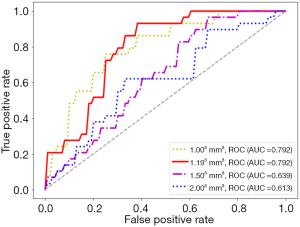

Figure 6 ROC curves of predictive models built based on HBP radiomics features obtained with different resampled voxel sizes, including 1.00³, 1.19³, 1.50³ and 2.00³ mm³ when the Ng, quantization algorithm, feature selection method, and classifier were 64, Uniform, LASSO, and LR, respectively. AUC, area under the ROC curve; HBP, hepatobiliary phase; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; Ng, number of gray levels; ROC, receiver operating characteristic.

Experiment 3

With the settings of resampled voxel size, Ng, feature selection method, and classifier as 1.19×1.19×1.19 mm³, 64, LASSO, and LR, respectively, details of the performance of the predictive models built using the HBP radiomics features obtained with the Uniform, Lloyd-Max, and equal-pro quantization algorithms are listed in Table 5. The ROC curves are shown in Figure 7. Compared with the equal-probability and Lloyd-Max algorithms, the radiomics features obtained using the Uniform quantization algorithm had a better performance (AUC =0.792 vs. 0.643/0.666, respectively). The P values for the differences between the Uniform ROC curves and the Lloyd-Max and equal-pro curves were 0.002 and 0.003, respectively.

Table 5 Performance of the predictive models built using HBP radiomics features obtained by Uniform, Lloyd-Max and equal-pro quantization algorithms when the resampled voxel size, Ng, feature selection method, and classifier were 1.19×1.19×1.19 mm³, 64, LASSO, and LR, respectively
Full table

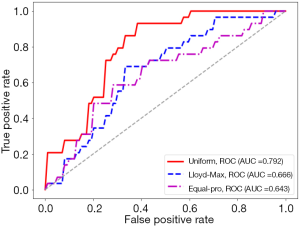

Figure 7 ROC curves of predictive models built based on HBP radiomics features obtained by Uniform, Lloyd-Max, and equal-pro quantization algorithms when the Ng, feature selection method, and classifier were 64, LASSO, and LR, respectively. AUC, area under the ROC curve; Equal-pro, equal-probability; HBP, hepatobiliary phase; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; Ng, number of gray levels; ROC, receiver operating characteristic.

Experiment 4

With the settings of resampled voxel size, quantization algorithm, feature selection method, and classifier as 1.19×1.19×1.19 mm³, Uniform, LASSO, and LR, respectively, details of the performance of the predictive models built using the HBP radiomics features obtained with different Ngs, including 8, 16, 32, 64, and 128, are listed in Table 6. The ROC curves are shown in Figure 8. Among the values of 8, 16, 32, 64, and 128, the best HCC MVI predictive performance was obtained when Ng was 64 (AUC =0.792 vs. 0.584/0.697/0.677/0.734, respectively). The P values of the differences between the ROC curves with a Ng of 64 and the curves with a Ng of 8, 16, 32, and 128 were <0.001, 0.039, 0.001, and 0.137, respectively.

Table 6 Performance of the predictive models built using HBP radiomics features obtained with different Ngs when the resampled voxel size, quantization algorithm, feature selection method, and classifier were 1.19×1.19×1.19 mm³, Uniform, LASSO, and LR, respectively
Full table

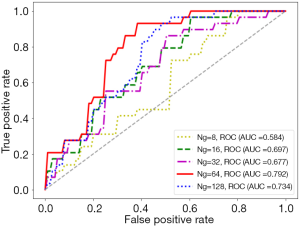

Figure 8 ROC curves of prediction models built based on HBP radiomics features obtained with different Ngs, including 8, 16, 32, 64, and 128, when the quantization algorithm, feature selection method, and classifier were Uniform, LASSO, and LR, respectively. AUC, area under the ROC curve; HBP, hepatobiliary phase; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; Ng, number of gray levels; ROC, receiver operating characteristic.

Experiment 5

With the settings of resampled voxel size, Ng, quantization algorithm, and the classifier as 1.19×1.19×1.19 mm³, 64, Uniform, and LR, respectively, details of the performance of the predictive models built using the HBP radiomics features obtained by different feature selection methods, including LASSO-RFE, LASSO, mRMR, and SVM-RFE, are listed in Table 7. Among these feature selection methods, the radiomics features selected by LASSO-RFE showed better stability and predictive performance than LASSO, mRMR, and SVM-RFE (stability =0.967 vs. 0.837/0.623/0.390, respectively; AUC =0.850 vs. 0.792/0.713/0.699, respectively) (Figure 9). The P values of the differences between the LASSO-RFE ROC curves and the LASSO, mRMR, and SVM-RFE curves were 0.142, 0.007, and 0.003, respectively.

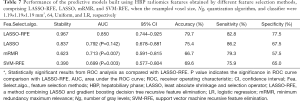

Table 7 Performance of the predictive models built using HBP radiomics features obtained by different feature selection methods, comprising LASSO-RFE, LASSO, mRMR, and SVM-RFE, when the resampled voxel size, Ng, quantization algorithm, and classifier were 1.19×1.19×1.19 mm³, 64, Uniform, and LR, respectively
Full table

Figure 9 ROC curves of predictive models built based on HBP radiomics features obtained by different feature selection methods, comprising LASSO-RFE, LASSO, mRMR, and SVM-RFE, when the Ng, quantization algorithm, and classifier were 64, Uniform, and LR, respectively. AUC, area under the ROC curve; HBP, hepatobiliary phase; LASSO, least absolute shrinkage and selection operator; LASSO-RFE, a method combining LASSO and gradient boosting decision tree recursive feature elimination; LR, logistic regression; mRMR, minimum redundancy maximum relevance; Ng, number of gray levels; ROC, receiver operating characteristic; SVM-RFE, support vector machine recursive feature elimination.

Experiment 6

With the settings of resampled voxel size, Ng, quantization algorithm, and feature selection method as 1.19×1.19×1.19 mm³, 64, Uniform, and LASSO-RFE, respectively, details of the performance of the predictive models established with SVM, LR, RF, and GBDT based on the HBP images are shown in Figure 10. The model based on the radiomics features of the HBP images using GBDT displayed a better performance than LR, SVM, and RF for the preoperative prediction of MVI (AUC =0.895 vs. 0.850/0.834/0.884, respectively). The P values of the differences between the GBDT ROC curves and the RF, LR, and SVM curves were 0.558, 0.229, and 0.058, respectively (Table 8).

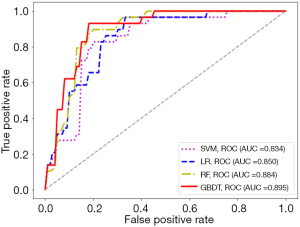

Figure 10 ROC curves of predictive models established with SVM, LR, RF, and GBDT classifiers based on the HBP images when the Ng, quantization algorithm, and feature selection method were 64, Uniform and LASSO-RFE, respectively. AUC, area under the ROC curve; GBDT, gradient boosting decision tree; HBP, hepatobiliary phase; LR, logistic regression; Ng, number of gray levels; LASSO-RFE, a method combining LASSO and gradient boosting decision tree recursive feature elimination; RF, random forest; ROC, receiver operating characteristic; SVM, support vector machine.

Table 8 Performance of the predictive models established with SVM, LR, RF, and GBDT based on the HBP images when the resampled voxel size, Ng, quantization algorithm, and feature selection method were 1.19×1.19×1.19 mm³, 64, Uniform, and LASSO-RFE, respectively
Full table

Feature selection results

With the LOOCV strategy, LASSO-RFE was used to select features in the training cohort. The selected features of 68 folds were solidity, range, high gray-level zone emphasis (HGLZE), and gray-level variance of GLSZM (GLSZM_GLV), while those of the remaining 1 fold were solidity, range, HGLZE, GLSZM_GLV, and maximum NGLDS (NGLDS_Max); the mean, standard deviation, and range (minimum–maximum) of each of these five features are listed in Table 9.

Table 9 Results of feature selections obtained by LASSO-RFE based on the HBP images when the resampled voxel size, Ng and quantization algorithm were 1.19×1.19×1.19 mm³, 64 and Uniform, respectively
Full table

Discussion

In this study, the model based on the radiomics features of HBP images displayed a better predictive performance for HCC MVI than those based on the radiomics features of AP, PVP, and pre-T1WI images; moreover, the differences in performance were significant (P values =0.010–0.041). Our finding is in accordance with the conclusion of Yang et al. (33). Notably, the predictive model based on HBP had higher sensitivity than the other sequences. Gadoxetic acid is a liver-specific intracellular MRI contrast agent that provides enhanced hepatocellular parenchymal contrast. Other studies have reported that gadoxetic acid-enhanced MRI may aid in the diagnosis of HCC MVI (41,42), which has been confirmed by our research, and may occur because, in the presence of MVI, tumor thrombi obstruct the minute portal branches that supply the hepatocytes. Thus, the uptake of gadoxetic acid by hepatocytes will decrease, resulting in hemodynamic changes that are visible on imaging (43).

Our results showed that the feature extraction parameters (resampled voxel size, Ng, and discretization method) had a considerable effect on the predictive performance of models for HCC MVI. The best predictive performance was obtained when the resampled voxel size was 1.19×1.19×1.19 mm³, equivalent to the transverse plane resolution. A possible explanation is that compared with 1.00×1.00×1.00, 1.50×1.50×1.50, and 2.00×2.00×2.00, the resampled voxel size of 1.19×1.19×1.19 mm³ does not require interpolation in the transverse plane of MR images, which can reduce the image distortion caused by interpolation and is thus conducive to extracting the features correlated with MVI. Moreover, the greater the difference between the resampled voxel size and 1.19×1.19×1.19 mm³, the worse the performance. Compared with equal-probability and Lloyd-Max, the radiomics features obtained using the Uniform quantization algorithm had better performance. Furthermore, the performance differences were mainly reflected in sensitivity, which may be because the equal-pro and Lloyd-Max quantization algorithms change the dimensionless range of intensity, thereby discarding the gadoxetic acid uptake information (i.e., metabolic activity) that plays an important role in the diagnosis of MVI, as discussed earlier. Among the values of 8, 16, 32, 64, and 128, the best HCC MVI predictive performance was obtained when Ng was 64. There were significant differences (P<0.001–0.039) in predictive performance compared with Ng =8 or 16. However, when Ng was 128 (>64), a better predictive performance was not achieved, even if the difference of predictive performance between 64 and 128 was not significant (P=0.137). PET (44), CT (45), and MRI (46) studies have reported that radiomics features are extremely sensitive to the specific choice of Ng, which is similar to the findings of our study. Compared with previous studies, we focused on the change in the final performance rather than the variability of the radiomics feature values. Ng values of 8, 16, and 32 are likely too small, especially a Ng of 8, which has previously been criticized as being inadequate for textural analysis (44). However, using a Ng of 128 will lead to large and empty matrices (including GLCM, GLRLM, GLSZM, NGTDM, and SGLDM) that may influence results. Thus, the most robust choice for Ng is 64; previous studies have also shown that this value is more suitable for the extraction of radiomics features than 8, 16, 32, and 128 (44).

High-throughput radiomics features can easily lead to over-fitting (47), especially in small datasets such as ours. In this case, what the classifier learns may be data-dependent noise rather than MVI biomarkers, which greatly reduces the generalizability of the HCC MVI predictive model. In our study, to avoid the disadvantages of dimensionality, feature selection was used, and we used the LOOCV strategy to determine if over-fitting had occurred. Among the three commonly used feature selection methods (mRMR, SVM-RFE, and LASSO), the radiomics features selected by LASSO displayed the best stability and predictive performance, which may be because LASSO retains the good features of both the subset selection and ridge regression. LASSO is suitable for analyzing large sets of radiomics features with a relatively small sample size and is designed to avoid over-fitting, which helps to reduce the interference of data noise (irrelevant features) (48,49). We also presented a two-stage feature selection LASSO-RFE, which achieved better stability and performance than LASSO. After using LASSO to select a feature subset, RFE used a verification set to perform a secondary selection of feature subsets, which further eliminated irrelevant features. Similar methods using two-stage feature selection have been used to achieve better performance in previous radiomics studies (50,51).

In the preoperative prediction of MVI, the model based on the radiomics features of HBP images using GBDT displayed a better performance than those using LR, SVM, and RF; this is consistent with the findings of Ni et al. (31), who explored the best model for MVI prediction based on CT images (31). In fact, some radiomics studies have also reported that GBDT has a better performance than other classifiers, including LR, SVM, and RF (52,53). This may be because GBDT is an iterative algorithm based on a decision tree, which can improve performance by reducing model deviation in the iterative process. Nevertheless, no significant differences were found among the four classifiers (P values =0.058–0.558), which indicates that the predictive ability of the radiomics features found in our study for MVI does not depend largely on the classifier.

Using the LOOCV strategy, the solidity, range, HGLZE, and GLSZM_GLV were selected stably in all 69 folds, and achieved a good average predictive performance using classifiers including LR, SVM, RF, and GBDT (AUC =0.834–0.895). This may demonstrate the stability and robustness of the extracted radiomics features. Specifically, we found that the presence of HCC MVI resulted in lower values of solidity, range, HGLZE, and GLSZM_GLV. The possible reasons may be as follows. Solidity is derived by calculating the proportion of pixels of the tumor region to the largest possible convex hull polygon structure of the tumor region, and the convex hull is the best-fitting polygon that encloses all of the pixels in the tumor region. Solidity reflects the degree of irregularity of the tumor; the more irregular the tumor, the smaller the isolation value. Moreover, according to histologic examination, MVI-positive HCC has a tendency to aggressively invade the tumor capsule and protrude into the noncancerous parenchyma, thus often showing an irregular shape (54). HGLZE indicates the distribution of the high gray-level region; a smaller HGLZE value indicates that the high gray-level region occupies a lower proportion of the image. A previous study reported that lower signal intensities are more frequent in MVI-positive HCC than in MVI-negative HCC on HBP images using gadoxetic acid-enhanced MRI (55). Therefore, the lower values of HGLZE in MVI-positive patients are most likely caused by an uneven occurrence of MVI in the tumor region. GLSZM_GLV indicates the dispersion degree of gray levels in the tumor region, and the range indicates the difference between the maximum and minimum values of tumor signal intensity. The lower values of range and GLSZM_GLV in MVI-positive patients may be caused by intratumoral heterogeneity (e.g., micro-necrosis and inflammation), accompanying MVI (56).

To date, radiomics studies of MVI prediction have reported AUCs of 0.727–0.88 and 0.833–0.861 with CT (26-31) and MRI (32-34), respectively. By optimizing the combination of various impact factors that affect the radiomics process, the final MVI predictive model in our study achieved an AUC of 0.895, accuracy of 87.0%, sensitivity of 93.1%, and specificity of 82.5%. Despite our predictive model of HCC MVI showing a better performance than those in previous studies, it should be noted that because of the lack of standardization in radiomics and the diversity in research methods, it is difficult to compare the results of different studies. The majority of previous studies used a single method for their radiomics research; thus, their models may not achieve the maximum prediction performance, because many aspects of the radiomics process, including imaging sequence, feature extraction parameters, feature selection method, and classifiers, have a great effect on MVI predictive performance. Moreover, previous studies have given only limited consideration to the effect of these factors on MVI predictive performance. When the quantization algorithm, Ng, feature selection method, and classifier were Uniform, 64, LASSO-RFE, and GBDT, respectively, the performance of the predictive models built on HBP images achieved the best performance in our study. This combination of factors is not quite the same as the method that has been commonly used in previous studies on MVI prediction. The lack of standardization and unification is also a major problem facing radiomics (57), which limits its large-scale application for the diagnosis of diseases. Therefore, we also hope that our work can provide standardized references for subsequent radiomics research related to MVI prediction.

This study may have several limitations. Firstly, with regard to accurate tumor segmentation, radiomics features might provide a more complete characterization of the tumor; however, there is no gold standard for tumor contouring. Thus, we failed to explore the effect of tumor segmentation on MVI prediction. However, in our study, tumor lesion contouring was verified by experienced radiologists, so we believe that any variation in tumor lesion contouring had limited effects in this study. Secondly, the exact value of the best Ng for MVI prediction is not given in our study. There are currently no specific guidelines for choosing the optimal Ng; however, we strongly recommend a Ng of 64. Thirdly, we only tested the most commonly used method of feature extraction, in which the Ng is a single value, but the optimal feature sets may consist of different features produced by multiple Ngs. Finally, because we used the LOOCV strategy on a small number of samples from a single center, further verification with a larger, external cohort is warranted to obtain reliable results.

In summary, we showed that imaging sequence, feature extraction parameters, feature selection method, and classifiers all affect the performance of radiomics models in predicting MVI. When the imaging sequence, quantization algorithm, Ng, feature selection method, and classifier were HBP, Uniform, 64, LASSO-RFE, and GBDT, respectively, the performance of the predictive models was better than those based on other combinations. The effect of different factors should be considered in future similar radiomics studies.

Acknowledgments

Funding: This work was funded by the National Natural Science Foundation of China (No. 81971684, No. 81771908, No. 61973220), Guangdong Basic and Applied Basic Research Foundation (No. 2020A1515010571), Jiangxi provincial leading scholar program (No. 20204BCJ22011), Guangzhou Science and Technology Planning Project (No. 201903010073), Shenzhen University Top Ranking Project (No. 860/000002100108).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-218). The authors have no conflicts of interest to declare.

Ethical Statement: The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board and Ethical Committee of The First Affiliated Hospital, Sun Yat-sen University {no. [2017]258} and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
