A case study of glycogen storage disease type Ia presenting with multiple hepatocellular adenomas: an analysis by gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid magnetic resonance imaging

Introduction

Glycogen storage disease type Ia (GSD Ia) is an extremely rare autosomal recessive inherited disorder affecting glycometabolism, with a prevalence of 1 in 100,000 (1). Deficiency of the enzyme glucose 6-phophatase (G6Pase) leads to abnormal glycogen metabolism, which then causes abnormal deposits of glycogen in the endoplasmic reticulum cavity. European research guidelines recommend that the diagnosis of GSD Ia should be based on clinical manifestations, imaging, and abnormal biochemical indicators (2). Diet and adjuvant drug therapy are the main forms of treatment for GSD type I. The objective is to maintain blood glucose levels and prevent long-term complications, including the development of hepatocellular adenomas (HCAs) and hepatocellular carcinomas (HCCs) (3). Although the use of magnetic resonance imaging (MRI) in the detection of HCAs has been reported in the literature (4-6), to our knowledge, this is the first case to include a comprehensive dataset, including clinical signs, laboratory tests, imaging manifestations, pathology, gene sequencing, and follow-up results.

Case presentation

A 17-year-old boy presented with growth retardation and was initially admitted for short stature. Physical examination revealed weight loss, lack of male sexual development, facial signs of chronic liver disease (Figure 1A), and an enlarged liver. Fasting blood glucose levels (3.57 mmol/L) were slightly decreased. Platelet count (374×10⁹ g/L), alkaline phosphatase (274 IU/L), glutamyl transpeptidase (233 IU/L), glutamic oxaloacetic transaminase (115 IU/L), alanine transaminase (71 IU/L), triglycerides (5.76 mmol/L), total cholesterol (6.54 mmol/L), lactic acid (9.9 mmol/L), albumin (51.20 g/L), anion gap (24 mmol/L), and uric acid (477 µmol/L) levels were all elevated. He tested positive for ketone bodies. Other indicators, such as alpha fetoprotein and abnormal prothrombin, were normal. He also tested positive for hepatitis B virus (HBV) markers and had been undergoing antiretroviral therapy for the past 16 years.

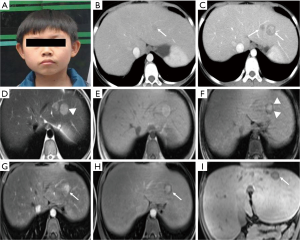

Figure 1 The computed tomography (CT) and magnetic resonance imagining (MRI) images of a 17-year-old male patient with Glycogen storage disease type Ia and hepatocellular adenomas. (A) A photograph of the patient presenting with doll face, growth retardation, and absence of male sexual development. (B,C,D,E,F) The contrast-enhanced CT results performed at time intervals of 15 months. Examination on July 1, 2015 showed a low-density nodule in segment II (white arrow, B). At the patient’s second examination, the number and diameter of the nodules had increased (white arrows, C). The lesion (no. 2, white triangle, D) was hyperintense on T2WI. The lesion was hyperintense on in-phase analysis (E). Perilesional signal (white triangles) was decreased on opposed-phase analysis (F). (G,H,I) The dynamic enhanced MRI. The lesion was significantly enhanced in the arterial phase (white arrow, G), and persisted to the delayed phase (white arrow, H) in comparison with adjacent hepatocytes. (I) Coronary hepatobiliary phase (HBP; white arrow) showed enlarged liver volume, and the nodule was hypointense but mixed with a slightly hyperintense interior.

The contrast-enhanced abdominal computed tomography (CT) examination at the time of admission (Figure 1B) showed multiple low-density nodules, and the largest nodule was located in segment II of the liver. Abdominal CT scans performed 15 months later (Figure 1C) revealed that the number and diameter of the nodules had increased.

The gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid (Gd-EOB-DTPA) MRI (Figure 1D,E,F,G,H,I) revealed an enlarged liver with fat infiltration. Thirteen abnormal rounded nodules were found in the left and right hemiliver with different diameters and signal features. Details of the Gd-EOB-DTPA MRI findings are shown in Table 1. These hypervascular features are commonly observed in different histological types of liver tumors (7). Therefore, to establish an exact diagnosis of GSD, systematic clinical characteristics including the enlarged liver, developmental retardation, and laboratory examinations were used together with the same hypervascular MRI imaging presentations.

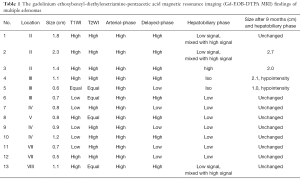

Table 1 The gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid magnetic resonance imaging (Gd-EOB-DTPA MRI) findings of multiple adenomas
Full table

Liver puncture was performed vertically into the liver (about 3 cm deep), and soft liver tissues (1 cm) were rapidly extracted. Staining of the liver tissues with periodic acid-Schiff (PAS) showed large amounts of glycogen deposition in the hepatocytes (Figure 2A). The pathology of one of the nodules was confirmed to be HCA (Figure 2B). Analyses of the genes (Figure 2C) related to liver metabolic diseases suggested that there was a homozygous mutation of the glucose 6-phophatase catalytic (G6PC) gene on exon 5 (rs80356484), c.G648 T. This caused CTG to change to CTT (p. Leu216L) and created a new splicing site located 91 base pairs (bp) downstream of the authentic splice site. The patient’s parents were found to be heterozygous for c.G648 T. Therefore, the final clinical diagnosis for this patient was GSD Ia.

Figure 2 Pathological examinations. (A) Periodic acid-Schiff (PAS) staining of the specimen showed a large amount of glycogen deposition in the hepatocytes (400× magnification). (B) Hematoxylin and eosin (HE) staining of the biopsy showed the presence of tumor cells (400× magnification). (C) The pathogenic mutation caused CTG to change to CTT in exon V at the 17th chromosome.

The patient was prescribed 50–100 g of raw corn starch four times a day (every 4–6 hours). After 9 months, the patient had grown by 10 cm in height, and secondary sexual characteristics had begun to develop, including facial hair, pubic hair, and seminal emission. However, Gd-EOB-DTPA MRI revealed that the diameter of the four lesions in segments II and III were larger than previously observed. In addition, two of the lesions were now hypointense, while in the previous hepatobiliary phase (HBP), they were hyperintense (Figure 3).

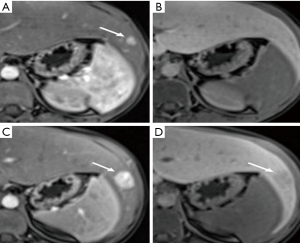

Figure 3 The gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid magnetic resonance imaging (Gd-EOB-DTPA MRI) scans at the time of admission and at 9-month follow-up. (A,B) Scans taken on October 30th, 2016 at the time of admission and (C,D) scans taken on July 29, 2017 after 9 months of medical treatment. The lesion (white arrow, referred to as no. 4 adenoma in Table 1) presented with obvious enhancement in the arterial phase (A), and showed isointensity on hepatobiliary phase (HBP) in comparison with adjacent hepatocytes (B). After 9 months’ treatment, the diameter of the lesion (C) had grown larger in size compared to (A) and showed hypointensity on HBP (D).

Discussion

GSD Ia is a rare inherited metabolic disorder. Due to the lack of G6Pases, glucose 6-phosphates cannot be further hydrolysed into glucose, and thus excessive amounts of glycogen are accumulated. This leads to hepatomegaly (8). Whole gene sequencing of the G6PC gene can be used to confirm the diagnosis of GSD Ia (9), which accounts for about 80% of GSD type I. Genetic mutations at certain sites of G6PC are related to different ethnic groups. For example, the mutation c.247C>T (p. Arg83Cys) has a high incidence in the Caucasian (32%) and Jewish (96%) communities, whereas the mutation of c.378_379dupTA (p. Tyr128Thrfs*3) is most common in the Hispanic population (50%). The genetic variation in our case study is a homozygous point mutation on exon V at the 17th chromosome (648G>T, p. Leu216L), and has a high prevalence in the Chinese (36–40%) and Japanese (85–88%) populations (3).

Based on the molecular types of HCA, it can be classified into four subgroups with different imaging features, including hepatocyte nuclear factor 1A HCA (HHCA), inflammatory HCA (IHCA), activating β-catenin HCA (β-catenin HCA), and unclassified HCA (UHCA) (10). Approximately 16–75% of HCAs are associated with GSD type I (3). The signal intensity of HCAs varies on T1-weighted imaging (T1WI) and T2-weighted imaging (T2WI) MRI sequences, which may be explained by variations in adipose, hemorrhage, or glycogen deposition. Decreased signal intensity on T1WI opposed-phase images can be caused by intratumoral fat deposition presented in HHCAs. The “atoll sign” (peripheral high signal intensity) on T2WI has been proposed to be a characteristic finding of IHCAs (11). The obscure scar may be a possible sign of the BHCAs, but the specificity of these features remains very low (12). All types of HCAs show hypervascularization in the arterial phase. Different dynamic enhanced patterns, including wash-in, wash-out, and lasting enhancements, may be caused by different types of pathology. Generally, IHCAs and β-catenin HCAs show lasting enhancement, while HHCAs and UHCAs show wash-in and wash-out patterns (11). HCAs typically appear hypointense on HBP which is also correlated with a low level of organic anion transporting polypeptide (OATP) expression. Yet, several studies have reported HCAs showing iso- or hyperintensity on HBP, especially in IHCAs and BHCAs (13). This may be related to the uptake of the contrast agent due to the overexpression of OATP. Secondly, it may be explained by the combination of tumor hyperintensity on precontrast T1WI and underlying steatosis (12).

It is worth nothing that this disease should be differentiated from focal nodular hyperplasia (FNH), a highly differentiated HCC. While HCAs are easily confused with FNH, the treatments for HCAs and FNH are different. The majority of FNH cases only require follow-up observation, whereas HCAs require clinical intervention. Approximately 90% of FNH and some HCA cases show hyperintensity in the HBP. The signal of FNH on T2WI imaging is close to that of normal liver parenchyma and often associated with a central scar (14). Intratumoral fat deposition and the atoll sign are typical features in HCAs but seldom observed in FNH (11). Reizine and colleagues reported that the mean liver-to-lesion contrast enhancement ratio (LLCER) of FNH was significantly higher than that of HCAs (46.67%±26.58% and 22.14%±30.74%, respectively) (15). Clinical symptoms such as obesity, metabolic diseases, and the use of oral contraceptives or steroids, will increase the confidence in the diagnosis of HCAs. Also, attention should be given to the differential diagnosis of HCCs, as 10% of highly differentiated HCCs also show hyperintensity in the HBP, which may be related to the overexpression of OATP on the surface of cancer cells. However, a low signal ring can be observed around the HCCs, and the signal of HCCs in the HBP is mostly heterogeneous, which presents as “mosaic” or “nodule-in-nodule” appearance (16). Moreover, HCC patients have a history of hepatitis with increased alpha-fetoprotein or abnormal prothrombin level (17).

Unfortunately, HCAs may progress to malignant transformations even if clinical symptoms improve after treatment. It has been reported that 5% of HCAs are associated with a risk of malignant transformation, especially β-catenin HCAs (18). Compared with HCAs induced by oral contraceptives or steroids, GSD I HCAs show a higher potential to transform into HCCs (19), but the pathological mechanism for this unclear. Kishnani et al. (20) used a high-density single-nucleotide polymorphism (SNP) array to evaluate chromosomal aberrations in 10 cases of GSD I HCAs and 7 cases of the general HCA population. The authors speculated that the chromosomal loss of 6q and the gain of 6p is significant for the malignant transformation of GSD Ia HCAs, which suggests that a regular diet alone may not prevent malignant transformation.

In conclusion, for childhood patients presenting with hepatomegaly, growth retardation, and laboratory tests abnormalities including hypoglycaemia, hyperuricaemia, and hyperlipidaemia, a diagnosis of GSD should be considered. If T1WI, T2WI, and Gd-EOB-DTPA MRI detect multiple masses with different signal intensities and enhancement patterns, there is a strong likelihood that the patient has GSD I with multiple HCAs. Treatment should be commenced without delay, even before gene sequencing analyses and liver biopsies are performed.
