Effect of different reconstruction algorithms on coronary artery calcium scores using the reduced radiation dose protocol: a clinical and phantom study

Introduction

Coronary artery calcium (CAC) scoring is a reliable, reproducible, non-invasive imaging technique used to assess asymptomatic patients with intermediate cardiac risk. It is also a good predictor of future cardiovascular risk independent of conventional risk scores, such as the Framingham risk score (1-5). The Agatston score (AS) method, which was first introduced in 1990, is the main system for the quantification of CAC (6). Although the AS has been widely used to identify and stratify patients at risk for coronary artery disease (CAD), it has certain limitations (7). Its major drawback is that the weighting factor is strongly dependent on image noise since it is based on maximum computed tomography (CT) numbers. Also, AS increases nonlinearly with an increase in coronary calcium. The second limitation is that AS is calculated and analyzed from the images reconstructed with the filtered back projection (FBP) algorithm, which requires a high radiation dose.

The low tube voltage method is widely used to reduce radiation doses for CAC scans (8). Nevertheless, low tube voltage produces a higher reduction value for calcium lesions, which requires an adaptation of the threshold of 130 HU configured by the AS method (9). Another limitation when using the low tube voltage approach is that it increases image noise and beam-hardening artifacts, which may impact the calcium lesion volume evaluation (9).

The iterative reconstruction (IR) algorithm is another approach that has been proposed to reduce image noise and lower the radiation dose for CAC scans (10,11). Previous studies have shown that the hybrid IR (HIR) algorithm could reduce the radiation dose by 60.6% while maintaining equivalent image quality as the FBP algorithm (11). However, other studies (10,12,13) have reported that AS is lower with HIR compared to that with FBP.

The iterative model reconstruction (IMR) algorithm was recently introduced among the latest generation of the IR algorithms, and is a model-based full IR algorithm (14). IMR reduces image noise, blooming artifacts, and measurement variability, thus producing stable and reproducible CAC scores. Although IMR can reduce the radiation dose by 80% without compromising image quality, some studies have shown that CAC scores from IMR are underestimated compared to those from FBP (15,16). Yet, the effects of IMR algorithms combined with different low tube currents on CAC scores have not been extensively discussed, and currently there is no method that can effectively offset the CAC score underestimation effect for risk stratification.

The purpose of this study was thus to evaluate the effects of different reconstruction algorithms on CAC scores using a reduced radiation dose (RRD) protocol in vitro and in vivo. Furthermore, we derived correction factors for CAC scores from IMR images, and applied this correction factor to clinical data so as to assess the effect on CAC scoring and risk stratification in comparison with FBP images.

Methods

Phantom

An anthropomorphic cardio CT phantom comprising thorax and cardiac calcification inserts (QRM Cardio-Phantom; QRM GmbH) was used in this study (Figure 1) (17). The thorax phantom included artificial lung lobes, a spine insert, and the shell of soft tissue-equivalent materials. The cardiac calcification inserts contained 9 cylindrical calcifications with different sizes and hydroxyapatite (HA) densities of 200, 400, or 800 mg/cm³. It also contained 2 larger calibration inserts, with 1 made of water-equivalent material, while the other contained 200 mg/cm³ HA.

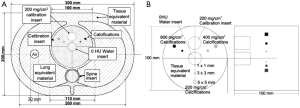

Figure 1 Characteristic of phantom. (A) Diagram of the frontal view of the anthropomorphic phantom body with the calibration insert. (B) Diagrams of the frontal (left) and side (right) views of the calibration insert, with 9 different calcifications and 2 large calibration inserts (0 HU water and 200 mg/cm³ calcium HA) (17).

Patient population

The institutional review board of our institution approved this study, and all patients signed written informed consent. The approval number was No.9 of the Ethical Review (in 2019).

A total of 50 patients with suspected CAD who underwent CAC scans between July and September 2019 were enrolled in this study. Patients with severe arrhythmia (n=1), previous coronary artery bypass grafting or coronary stenting (n=4), prosthetic valve replacement (n=2), pacemakers or implantable cardioverter defibrillators (n=1), or patients with no coronary calcifications (n=2) were excluded. Finally, 40 patients were included.

Image acquisition and reconstruction

Both the phantom and patients were scanned with a 256-slice CT scanner (Brilliance iCT, Philips Healthcare). The phantom was scanned with the prospective electrocardiographic (ECG)-triggered acquisition mode with a simulated heart rate of 65 bpm (Model 430B Patient Simulator, Medi Cal Instruments Inc.). The data were acquired with a tube voltage of 120 kV, and different tube currents from 20 to 80 mAs with an interval of 5 mAs. The phantom was scanned 3 times for each data acquisition parameter setting. All the acquisition data sets were reconstructed with the FBP algorithm, HIR algorithm (iDose⁴ level 1–7), and the full IR algorithm (IMR level 1–3).

Patients were scanned using a CAC scoring protocol with a tube voltage of 120 kV and a tube current of 50 mAs using the prospective ECG-triggered acquisition mode. All the acquisition data sets were reconstructed with the FBP algorithm, HIR algorithm (iDose⁴ level 4), and the full IR algorithm (IMR level 2). The other acquisition and reconstruction parameters were the same for both the phantom and patient scans and included a gantry rotation time of 0.25 s, an adaptive detector collimation varying from 96 to 192 in steps of 8 mm × 0.6 mm, a reconstruction filter of cardiac standard (CB), an image slice thickness of 2.5 mm, and an increment of 2.5 mm.

Calcium score analysis

All the image series were reviewed and analyzed on a commercially available workstation (IntelliSpace Portal, version 7.0, Philips Healthcare). For the phantom study, a region of interest (ROI) with an area of 200 mm² was drawn on the 2 calibration inserts (material of water equivalent and 200 mg/cm³ HA) to measure mean CT value and standard deviation (SD). Furthermore, signal-to-noise (SNR) and contrast-to-noise ratios (CNR) were calculated using the following formulas:

SNR=CT ValueHA−200 SDWater−equivalent[1]

CNR=CT ValueHA−200−CT ValueWater−equivalentSDWater−equivalent[2]

One radiologist with 3 years of experience in cardiovascular diagnosis independently performed the CAC scoring for all image series using a commercially available software application (Heartbeat-CS, Philips Healthcare) according to the AS method (5). This application automatically marked the CAC plaques with an area greater than 1 mm² and a CT value greater than 130 HU. Then, a calcium area was confirmed or modified manually, and an AS was automatically calculated. A senior radiologist with 12 years of experience in cardiovascular diagnosis independently confirmed all the CAC score results.

Patients were classified into the following 4 risk categories based on the AS values (18): 0, 1–100, 101–400, and >400.

Correction factor

In the phantom study, AS from the FBP image series with a tube current of 50 mAs was set as the standard reference. Linear regression analysis for AS was performed between the reference image series and other image series with different parameters. The slope from the regression equations was used as the correction factor.

When analyzing patients, the obtained correction factor was applied to generate the corrected AS, and risk reclassification was performed.

Radiation dose

The volume CT dose index (CTDIvol, mGy), and the dose length product (DLP, mGy·cm) were recorded for each scan. The effective dose (ED, mSv) was estimated by multiplying DLP and a conversion factor for chest examination (k=0.014mSv×mGy−1×cm−1) (19).

Statistical analysis

For the phantom study, the AS of the image series using different reconstruction algorithms and radiation doses was compared to that of the reference image series using a paired t-test. Regression analysis was performed to assess the relationship of AS between the reference image series and others. The SNR and CNR were compared using an independent t-test.

For the clinical study, the AS of the 3 different reconstruction algorithms is presented as median and interquartile because the scores were not normally distributed. AS from iDose⁴ and the IMR image series were compared to the FBP image series using the Wilcoxon signed-ranks test. Agreement in risk stratification between FBP and IMR was evaluated by using Cohen’s kappa (κ) statistic. Excellent agreement was defined as κ >0.80, good agreement was 0.61–0.80, moderate agreement was 0.41–0.60, and poor agreement was 0.01–0.40. All the above listed analyses were performed using IBM SPSS Statistics 22 (IBM Corp.). A P value of <0.05 was considered statistically significant. Scatter plots were generated using Origin 2019 (OriginLab Corp.).

Results

Phantom study

A total of 429 image series were successfully reconstructed for the phantom study. The average SNR and CNR increased with the tube current (from 20 to 80 mAs). Higher SNR and CNR were observed in the iDose⁴ and IMR groups compared to the FBP group (all P<0.05). Among them, IMR level 3 had the highest value (Figure 2). For the iDose⁴ group and IMR groups, the average SNR and CNR increased as the iterative level increased.

Figure 2 SNR (A) and CNR (B) of different reconstruction algorithms with different protocols. SNR, signal-to-noise ratio; CNR, contrast-to-noise ratio; FBP, filtered back projection; IMR, iterative model reconstruction; IMR1, IMR level 1; IMR2, IMR level 2; IMR3, IMR level 3; iDose⁴1, iDose⁴ level 1; iDose⁴2, iDose⁴ level 2; iDose⁴3, iDose⁴ level 3; iDose⁴4, iDose⁴ level 4; iDose⁴5, iDose⁴ level 5; iDose⁴6, iDose⁴ level 6; iDose⁴7, iDose⁴ level 7.

For some tube current settings, the SNR and CNR averages for iDose⁴ level 7 were significantly higher than those for IMR level 1, while no significant differences were found for other tube current settings (Table 1).

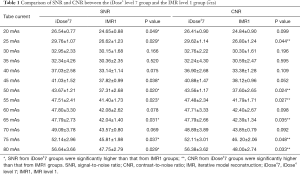

Table 1 Comparison of SNR and CNR between the iDose⁴ level 7 group and the IMR level 1 group ($\overline{x}\pm s$)
Full table

The total AS from the reference image series (120 kVp, 80 mAs, FBP) was 680.95±3.29. Compared with the reference image series, no significant differences (all P>0.05) in AS were observed from the image series reconstructed with FBP and iDose⁴ (level 1–7), while the AS from the IMR (level 1–3) image series was significantly lower (all P<0.05). For the insert with a HA density of 800 mg/cm³, all of the ASs from the IMR group were significantly lower than those from the FBP group. For the insert with a HA density of 400 mg/cm³, there was no significant difference in AS between the IMR and FBP groups at the tube current settings of 35 and 50 mAs, while the AS from the IMR group was significantly lower than that from the FBP group for the other tube current settings. For the insert with a HA density of 200 mg/cm³, the AS from the IMR group was significantly lower than that from the FBP group at the tube current settings of 20 and 25 mAs, but significantly higher at the tube current settings from 55 mAs to 80 mAs, with no significant differences being observed at the other tube current settings. The detailed results are listed in Tables 2,3,4,5. For the IMR group, in comparison with the standard radiation dose image series (80 mAs), the total AS from the ultra-low radiation dose image series (20–40 mAs) was significantly lower (all P<0.05), while the other low radiation dose image series showed no significant difference (Table 6). Therefore, the tube current of 50 mAs was selected for the clinical study.

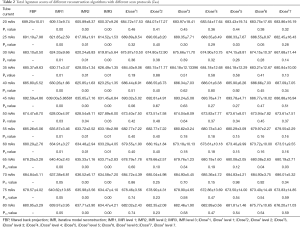

Table 2 Total Agatston scores of different reconstruction algorithms with different scan protocols ($\overline{x}\pm s$)
Full table

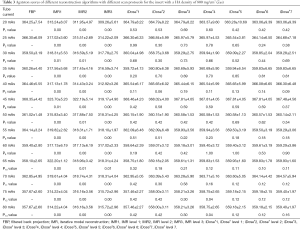

Table 3 Agatston scores of different reconstruction algorithms with different scan protocols for the insert with a HA density of 800 mg/cm³ ($\overline{x}\pm s$)
Full table

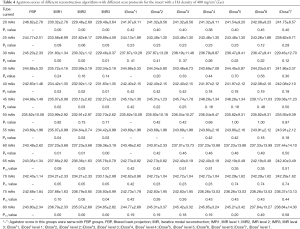

Table 4 Agatston scores of different reconstruction algorithms with different scan protocols for the insert with a HA density of 400 mg/cm³ ($\overline{x}\pm s$)
Full table

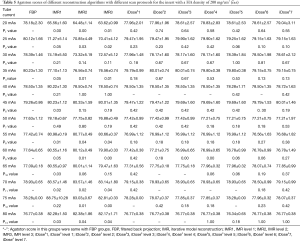

Table 5 Agatston scores of different reconstruction algorithms with different scan protocols for the insert with a HA density of 200 mg/cm³ ($\overline{x}\pm s$)
Full table

Table 6 Agatston scores of different scan protocols with IMR level 1–3
Full table

Correction factor

The correction factor was derived from regression analysis between the FBP and IMR level 2 image series using the RRD protocol (120 kV, 50 mAs). The correction factor for the RRD protocol was 1.14 (R²=0.99, P<0.05, Figure 3).

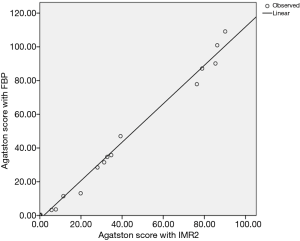

Figure 3 Linear regression equation of Agatston scores between FBP and IMR2 with the RRD protocol. FBP, filtered back projection; IMR, iterative model reconstruction; IMR2, IMR level 2; RRD, reduced radiation dose.

Clinical study

A total of 40 patients underwent CAC scanning. Three image series (FBP, iDose⁴ level 4, and IMR level 2) were reconstructed for each acquisition, and no motion artifacts were detected. The patient characteristics are summarized in Table 7.

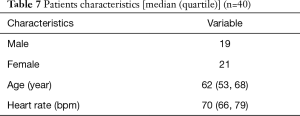

Table 7 Patients characteristics [median (quartile)] (n=40)
Full table

The median AS from the iDose⁴ and IMR groups were both significantly lower than those from the FBP image series [112.89 (63.01, 314.09), 113.22 (64.78, 364.95) vs. 118.59 (65.05, 374.48), both P<0.05]. After applying the correction factor, the adjusted AS from the IMR image series group showed no significant difference with the FBP group [126.48 (69.62, 355.85) vs. 118.59 (65.05, 374.48), P=0.145] (Figure 4).

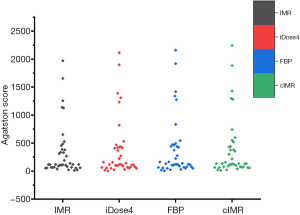

Figure 4 Agatston scores for the patients using different reconstruction algorithms and corrected Agatston scores for the IMR group. IMR, iterative model reconstruction; FBP, filtered back projection; cIMR, IMR after correction.

The AS-based risk stratification for different groups are shown in Table 8. Using the corrected AS, 1 patient was reclassified from 1–100 to 101–400, and 2 patients were reclassified from 101–400 to >400. The agreement in risk stratification between FBP and IMR improved from 0.81 to 0.85.

Table 8 Agatston score-based risk stratification for the different groups using different scan protocols (n=40)
Full table

For the clinical study using the RRD CAC protocol, the mean CTDIvol was 4.9 mGy, DLP was 41.9 mGy × cm, and ED was 0.69 mSv.

Discussion

Our data suggested that the IMR (level 2) algorithm could be applied to the CAC RRD scanning protocol with lower image noise. After applying the correction factor, we found no difference in AS between the IMR group and the FBP group. Nevertheless, the risk stratification of the patients was underestimated even when using the corrected AS. Moreover, the phantom study results implied that the AS was significantly lower when using an ultra-low radiation dose (20–40 mAs) scan compared to a normal radiation dose (80 mAs) scan using the IMR algorithm.

Willemink et al. (20) and den Harder et al. (21) performed a similar study by examining the maximal radiation dose reduction for the CAC scan using different IR algorithms and evaluating the AS results. They reported that 20 mAs could be applied for a CAC scan with a radiation dose reduction of 60–80% if the highest IR level was applied, and the reclassification rates were maintained below 15%. Some studies have also reported that the IR algorithm could reduce image noise and blooming artifacts using an ultra-low radiation dose scan protocol. They provided equivalent CNRs with an FBP reconstruction algorithm using a normal radiation dose scan protocol (16,22). However, other studies have reported a negative correlation between AS and IR levels (15,16,22,23), which can affect patient risk stratification. Our phantom study suggested that the IMR algorithm could significantly decrease the image noise, resulting in higher CNR, and underestimate AS and risk stratification compared with the FBP algorithm, which was consistent with previous studies. Additionally, for the IMR image series, no difference in AS was observed when applying tube current settings from 75 to 50 mAs compared with the 80 mAs setting. However, AS was significantly lower when using a setting from 40 mAs to 20 mAs compared with the 80 mAs setting. Based on the phantom study data, 50 mAs was selected for the RRD protocol tube current setting in our clinical study.

The AS is the most widely used method to quantify calcification of the coronary artery (6). However, the AS method cannot be used to evaluate information on the number or size of calcified coronary lesions or the regional distribution of calcification within the coronary tree. Furthermore, the weighting factor of AS is strongly affected by acquisition and reconstruction parameters, such as tube voltage and current, reconstruction algorithms, or image slice thickness (7). Although several new methods (like calcium volume score, calcium mass score) have been proposed to quantify calcification of the coronary artery, only AS has been validated by a large scale clinical trial (24), after which the guidelines with an evidence level of IIb for the assessment of asymptomatic adults at intermediate risk were written (4). Thus, another strategy is to optimize the acquisition parameters so as to improve image quality, decrease radiation dose, and reduce the variability of AS accordingly. Many studies have reported that IR algorithms can reduce radiation dose and improve image quality. However, they can also cause restratification (21-23,25-28). den Harder et al. (21) found that risk category of 21–25% and 18% patients were reclassified with IMR and HIR respectively at RRD levels. Moreover, Obmann et al. (23) reported that the risk stratification of 5.4% in patients was different for the HIR group with the highest iteration level compared to the FBP group. Caruso et al. (28) compared risk stratifications in the advanced modeled IR (ADMIRE) groups and the FBP group. In their study, 6 patients (15%) were reclassified into a lower risk category at ADMIRE level 3, while 15 patients (37.5%) were reclassified into a lower risk category at ADMIRE level 5. In our study, 1 patient was reclassified into the lower risk category with iDose⁴ level 4, and 5 patients were reclassified into the lower risk category with IMR level 2. After applying the correction factor for the IMR group, 2 patients were reclassified into the lower risk category, and the agreement in risk stratification between FBP and IMR increased from 0.81 to 0.85. Fan et al. (18) suggested modifying risk stratification thresholds based on the best diagnostic cutoff value obtained from the receiver operating characteristic (ROC) curves for reducing radiation doses in scan protocols using the IMR algorithm. The new CAC scoring risk stratification defined values of: 1–87 as low risk, 88–255 as moderate risk, and >255 as high risk. However, these modified thresholds have not been widely validated, and are scanner-dependent.

This study has a few limitations. Firstly, the phantom was scanned 3 times with each scan protocol, which might have introduced data bias. However, the data were stable considering the standardized physical characteristics of the phantom. Secondly, our phantom study did not simulate different somatotypes. Thirdly, all patients were scanned with the RRD protocol as suggested, but were not all scanned with the reference protocol due to ethical considerations, as there was higher radiation dose used with the reference protocol. Fourthly, to test the effect of different IR algorithms on the assessment of CAC, more severely calcified plaques or high CAC cases are needed to determine its effect on the quantification of CAC. Finally, large-scale patient studies should be performed to further validate the proposed method.

Conclusions

In conclusion, this study demonstrates that the RRD CAC scoring scan using the IMR reconstruction algorithm is clinically feasible, and a correction factor can help reduce AS underestimation effects.
