Preoperative volumetric synthetic magnetic resonance imaging of the primary tumor for a more accurate prediction of lymph node metastasis in rectal cancer

Introduction

Lymph node (LN) metastasis is an essential prognostic factor for overall survival (OS) in rectal cancer (1). Treatment strategies for rectal cancer patients are based on the risk stratification for local recurrence and distant metastasis, in which tumor, node, metastasis (TNM) staging is the main factor (2). Total mesorectal excision is usually considered for low-risk patients, while preoperative neoadjuvant chemoradiotherapy (nCRT) is recommended for high-risk patients with locally advanced rectal cancer (2-4). Therefore, an accurate preoperative LN stage is crucial for treatment planning.

Magnetic resonance imaging (MRI) is the accepted standard method for preoperative local staging of rectal cancer (4). The most common criteria are the traditional morphological findings like short-axis diameter, shape, border, and signal intensity (5). However, these characteristics’ diagnostic accuracy and interobserver agreement remain challenging for evaluating LN metastasis (6). The chemical shift effect (CSE) at the border of normal LNs is valuable in identifying metastatic LNs; yet, up to 31.2% of small benign LNs with long-axis diameters <3 mm present with an absence of CSE (7). Previous studies have suggested that quantitative functional images could be useful for predicting metastatic LNs (8-11). Some of these studies have used a node-by-node approach to match the LNs on MRI (mrLNs) with the pathological specimen, which currently represents the major obstacle in nodal research (9), while others have focused on the relationships between the characteristics of the primary tumor and the LN (10,11).

Synthetic MRI (SyMRI) is a novel technology that can simultaneously generate multiple sequences in a single scan, including morphological images like T1-weighted imaging (T1WI), T2-weighted imaging (T2WI), and quantitative images of T1 map, T2 map, and proton density (PD) map. There have been some promising findings of SyMRI in brain, bone, articulatio, breast, etc. (12-16). A previous study suggested that the T2 value derived from a T2 map is valuable for identifying prostate cancer and could reflect the tumor aggressiveness (17). Another study reported that the T2 value in breast cancer responders was reduced after neoadjuvant chemotherapy (18).

Histogram parameters reflect the distribution of voxel gray-level intensity with good repeatability (19). Previous studies have shown that the primary tumor histogram parameters on T2WI, diffusion-weighted imaging (DWI), or contrast-enhanced MRI were associated with tumor response to nCRT, survival, histological grade, and LN metastasis in rectal cancer (20-23). To our knowledge, studies evaluating the relationship between histogram parameters derived from SyMRI of the primary tumor and regional LN metastasis in rectal cancer are scarce. Therefore, this study aimed to explore the potential value of histogram parameters derived from SyMRI of the primary tumor in predicting regional LN metastasis in rectal cancer and to compare their predictive performance with traditional morphological characteristics and CSE.

Methods

Participants

This prospective study was approved by the Institutional Review Board of the Cancer Hospital, Chinese Academy of Medical Sciences (NCC2019C-040), and informed consent was provided by all participants. A total of 131 patients suspected of having rectal cancer between January 2019 and November 2019 were recruited for this study. Patients with locally advanced rectal cancer usually receive nCRT in our hospital, except for some specific palliative situations. Inclusion criteria were as follows: (I) underwent preoperative rectal MRI examination including SyMRI within 4 weeks of their surgery, (II) without nCRT before the surgery, (III) histopathologically proven rectal adenocarcinoma. A total of 61 patients were excluded for the following reasons: (I) received nCRT before the surgery (n=38), (II) without treatment records at our hospital (n=14), (III) with other pathological types such as mucinous adenocarcinoma, neuroendocrine carcinoma, and melanoma (n=5), (IV) insufficient imaging quality (n=2), (V) time interval between MRI and surgery >4 weeks (n=2). Consequently, 70 patients were enrolled and allocated to LN-negative (LN–, pN0) and LN-positive (LN+, pN1–2) groups based on the pathological N stage. The flowchart of participants is shown in Figure 1.

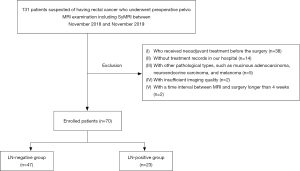

Figure 1 Flowchart of the enrolled patients. SyMRI, synthetic magnetic resonance imaging; LN, lymph node.

Clinical and pathological characteristics

Clinical status included gender, age, carcinoembryonic antigen (CEA), and carbohydrate antigen 199 (CA199). CEA and CA199 thresholds were based on the normal ranges at our institution (0–5 ng/mL for CEA and 0–37 U/mL for CA199). The pathological characteristics of surgical specimens were assessed according to the 8^th edition of the American Joint Committee on Cancer (AJCC 8^th) TNM staging system. In addition, the degree of differentiation, pathological T stage, N stage, and pathological extramural venous invasion (pEMVI) of the tumor were collected.

MRI protocol

The MRI was performed on a 3T scanner (Signa Pioneer, GE Healthcare, Milwaukee, WI, USA) using a phased array body coil. Before the examination, two glycerin enemas were routinely used to evacuate the bowels. The participants underwent endorectal filling with ultrasound transmission gel (60–100 mL) to highlight the tumor borders and antispasmodic medications (except those with contraindications) before conducting the MRI examinations. Consequently, oblique axial (angulated perpendicular to the long axis of the tumor), oblique coronal (angulated parallel to the long axis of the rectum), and sagittal T2-weighted spin-echo sequences were acquired according to the following parameters: repetition time, 5,115, 5,912, 5,062; echo time, 85.0, 98.8, 90.0; echo train length, 24, 32, 24; slices, 24; slice thickness, 3.0 mm; spacing, 0.3; the field of vision (FOV), 18×18, 24×24, 24×24 cm; matrix, 320×224, 320×256, 320×224; scanning time, 02:39, 02:40, 02:37. For SyMRI, a multi-dynamic multiecho (MDME) sequence with two echo times (19.5/97.3 msec) and four saturation delay times (210/610/1,810/3,810 msec) was used. The acquisition parameters of the oblique axial MDME sequence were as follows: repetition time/echo time, 4,000/19.5 msec; flip angle, 90°; echo train length, 16; slices, 24; slice thickness, 3.0 mm; spacing, 0.3; FOV, 24×24 cm; matrix, 320×256; total scanning time, 4 min and 32 s. All sequences were obtained during free breathing.

Imaging analysis

Two radiologists with 5 and 10 years of experience in rectal imaging, who were blinded to the pathological data, evaluated the MR images, including tumor location, maximum tumor length (MTL), circumferential percentage (CP) of the intestinal lumen, T stage, EMVI, and LN status. All these features were evaluated using T2-weighted spin-echo sequences. Tumor location was defined by the distance from the inferior part of the tumor to the anal verge on sagittal T2WI (lower rectum, <5 cm; middle rectum, 5–10 cm; and upper rectum, >10 cm). The MTL was obtained from the slice with the maximum longitudinal length of the tumor on sagittal T2WI. The CP was assessed at the slice showing the largest tumor on oblique axial T2WI according to the percentage of circumferential tumor invasion in the rectal wall and was divided into four groups (group 1, <1/4; group 2, 1/4–1/2; group 3, 1/2–3/4; group 4, >3/4). The T stage on MRI (mrT stage) and EVMI on MRI (mrEMVI) were evaluated based on the European Society for Medical Oncology (ESMO) guidelines (2). The LN status was assessed according to the conventional morphological characteristics of short-axis diameter, border, and intensity, and then the CSE was added for an overall evaluation. Specifically, LNs with a short-axis diameter ≥5 mm, irregular border, heterogeneous signal intensity, or absence of smooth and regular CSE were identified as positive LN (Figure 2). If there was any obvious discordance between the two radiologists in their assessment of MR features, a senior radiologist with 20 years of rectal imaging experience evaluated it again and made the final decision.

Figure 2 Representative images of CSE. (A) A 54-year-old male with rectal cancer; the arrow showing a LN with smooth and regular CSE on oblique axial T2WI; (B) a 66-year-old male with rectal cancer; the arrow showing a LN with irregular and interrupted CSE on oblique axial T2WI. CSE, chemical shift effect; LN, lymph node; T2WI, T2-weighted imaging.

The acquired SyMRI was processed with SyMRI software (version 8.0, SyntheticMR, Linköping, Sweden) to generate the quantitative maps (T1 map, T2 map, and PD map) and T2WI (SyT2WI). Then, SyT2WI was loaded into ITK-SNAP software (version 2.2.0, www.itksnap.org) for segmentation. For each patient, a radiologist (reader 1, with 5 years of experience in rectal imaging) who was blinded to all the clinical information, manually delineated the whole tumor regions of interest (ROIs) along the border of the primary tumor on each section, excluding obvious cystic and necrotic areas (Figure 3). The ROIs were later copied to the T1 map, T2 map, and PD map. After 2 weeks, 30 patients were randomly selected to segment again by reader 1 and another radiologist (reader 2, with 10 years of experience of rectal imaging) to assess intra-/inter-reader agreement. Open-source Pyradiomics (http://www.radiomics.io/pyradiomics.html) (24) was used to extract histogram parameters from quantitative maps, including mean, variance, maximum, minimum, 10^th percentile, median, 90^th percentile, energy, kurtosis, entropy, and skewness.

Figure 3 SyMRI of a 49-year-old male patient. (A) ROIs were manually drawn along the border of the tumor on T2WI of SyMRI; (B-D) T1 map, T2 map, and PD map at the same level as figure (A). SyMRI, synthetic magnetic resonance imaging; ROIs, regions of interest; T2WI, T2-weighted imaging.

Statistical analysis

Group comparison for continuous variables was performed by using the t-test or the Mann-Whitney U test according to the normality of data distribution. Categorical variables were compared using the chi-square test or Fisher exact test. The intraclass correlation coefficient (ICC) of histogram parameters was investigated for the intra-observer and inter-observer agreement. Features with ICC values <0.8 were excluded. Spearman correlation analysis was performed to evaluate the correlation between the histogram parameters and LN metastasis. Receiver operating characteristic (ROC) curves were applied to assess histogram parameters’ predictive performance in LN metastasis. The Youden index determined the optimal threshold, and the area under the ROC curve (AUC), sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV) were calculated. Collinearity diagnosis was then performed with a variance inflation factor (VIF) >10, indicating the existence of collinearity. Subsequently, multivariate binary logistic regression analysis was conducted with a forward selection of variables to evaluate the performance of distinguishing LN metastasis. Differences in diagnostic efficiency of different methods for predicting LN status were analyzed using the DeLong test. A two-sided P value <0.05 was considered statistically significant. All statistical analyses were performed using SPSS 20.0 (IBM, Armonk, NY, USA) and MedCalc 11.4 (MedCalc, Mariakerke, Belgium).

Results

Demographic and pathological characteristics

A total of 70 patients were included in the study. Among those, 48 (68.6%) were male, and 22 (31.4%) were female, with a mean age of 58 [36–76] years old. All patients received radical surgical resection, including abdominoperineal resection (APR) (n=21), low anterior resection (LAR) or anterior resection (AR) (n=45), Hartman’s resection (n=3), and other types of resection (n=1). The median MTL measured on sagittal T2WI was 3.5 (1.5–6.8) cm. A total of 4 patients were pathologically reported as pT1; 28 were pT2; 31 were pT3; 7 were pT4. In addition, 47 patients were pathologically confirmed with pN0, 12 with pN1 (pN1a, 8; pN1b, 4), and 11 with pN2 (pN2a, 4; pN2b, 7); there were 47 patients in LN– group, and 23 in LN+ group.

The clinical and pathological characteristics in the two groups are summarized in Table 1. The CEA and CA199 levels, pathological T stage, and EMVI were significantly different in the two groups (P=0.035, 0.035, <0.001, and 0.003, respectively); while no difference was found in age, gender, type of surgery, and histologic grade.

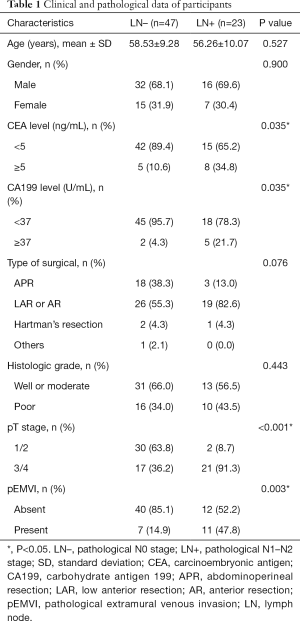

Table 1 Clinical and pathological data of participants
Full table

Imaging findings

Radiological features are listed in Table 2. Assessment of MLT, mrT stage, and mrEMVI was proven to be statistically different between the two groups (P<0.001). In 15 patients, LNs were evaluated as false-positive based on morphological features compared with pathology results and were correctly assessed in terms of CSE.

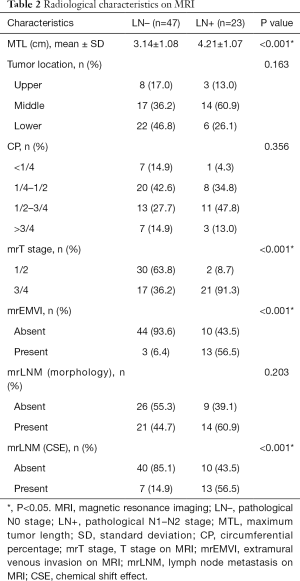

Table 2 Radiological characteristics on MRI
Full table

The histogram parameters with statistically significant differences between the two groups and their ROC curve results are shown in Table 3. The ICC values of these parameters were >0.8, reflecting excellent inter- and intra-observer agreement. The significantly higher energy of the T1 map, T2 map, and PD map was found in the LN+ compared to the LN– group (P<0.001; Figure 4A,B,C), and showed significant positive correlations with LN metastasis (rs =0.550, 0.583, 0.526, all P<0.001). In addition, maximum and kurtosis of T2 map, and maximum and variance of PD map showed significant differences between two groups (P=0.032, 0.045, 0.016, and 0.047, respectively), and were correlated with LN metastasis (rs =0.257, 0.242, 0.291, 0.239, P=0.031, 0.044, 0.032, 0.015, 0.047, respectively).

Table 3 Histogram parameters between the LN– and LN+ groups and ROC curve results
Full table

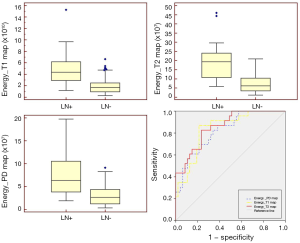

Figure 4 Box-and-whisker plots and ROC curves. (A-C) Box-and-whisker plots show the energy of the T1 map, T2 map, and PD map for the LN-negative (LN–) and LN-positive (LN+) groups. Significant differences were found between the two groups (all P<0.001); (D) the ROC curves in predicting LN metastasis with areas under the ROC curve of 0.838, 0.858, and 0.823, respectively. PD, proton density; LN, lymph node; ROC, receiver operating characteristic.

The energy of the T1 map, T2 map, and PD map demonstrated superior predictive performance in LN metastasis with an AUC of 0.838 [95% confidence interval (CI): 0.731–0.915], 0.858 (95% CI: 0.754–0.930), 0.823 (95% CI: 0.714–0.904), respectively (Figure 4D). Other parameters showed moderate diagnostic power in predicting LN metastasis.

Multivariate analysis

Only the noninvasive clinical and pathological factors, radiological features, and histogram parameters with a P value <0.05 in the univariate analysis were included in multivariate logistic analyses. The energy of the T2 map and PD map demonstrated strong collinearity with the energy of the T1 map (VIF =13.908, and 12.606, respectively). It was subsequently excluded due to their similar AUCs (P=0.690 and 0.395 in the DeLong test, respectively) and relatively lower sensitivity and specificity. The following covariates were entered into the multivariate logistic analyses, including CEA, CA199, MLT, mrT stage, mrEMVI, mrLN (CSE), the energy of T1 map, maximum of T2 map, kurtosis of T2 map, maximum of PD map, and variance of PD map. According to multivariate regression analyses, the energy of T1 map [odds ratio (OR) =1.683, 95% CI: 1.207–2.346, P=0.002] and mrEMVI (OR =10.853, 95% CI: 2.339–50.364, P=0.002) resulted as significant predictors of LN metastasis. The model showed good accuracy in predicting LN status with a correct overall percentage of 85.7% and goodness of fit in the Hosmer-Lemeshow test (P=0.305).

Diagnostic performance

The performance of the morphological features, CSE, the energy of the T1 map, CSE + energy of T1 map, and CSE + energy of T1 map + mrEMVI in predicting LN metastasis are listed in Table 4, and their ROCs are shown in Figure 5. Better diagnostic efficiency was shown by CSE compared to morphological features, with AUCs of 0.708 and 0.581, respectively (P=0.0015). Also, the energy of the T1 map (AUC =0.838) significantly improved the predictive performance compared to morphological features and CSE (P=0.0002 and 0.0485, respectively). The AUC of their combinations was significantly increased compared with morphological features or CSE alone, but there was no statistically significant difference between these combinations and the T1 map’s energy, although the AUC was slightly improved. The results of the DeLong test are presented in Figure 6.

Table 4 Predictive performance of different methods for predicting LN metastasis
Full table

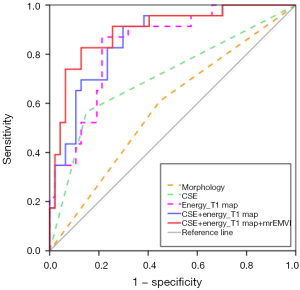

Figure 5 The ROC curves of morphological features, CSE, energy of T1 map, CSE + energy of T1 map, and CSE + energy of T1 map + mrEMVI. The combination of CSE + energy of T1 map + mrEMVI showing the highest AUC of 0.895 with a sensitivity of 82.6% and specificity of 87.2%. ROC, receiver operating characteristic; CSE, chemical shift effect; mrEMVI, extramural venous invasion on magnetic resonance imaging; AUC, area under the ROC curve.

Figure 6 The difference in the predictive performance of LN metastasis between different risk factors using the DeLong test. LN, lymph node; CSE, chemical shift effect; mrEMVI, extramural venous invasion on magnetic resonance imaging.

Discussion

This study suggested that the SyMRI-derived histogram parameters of the primary tumor could be useful for predicting regional LN metastasis in rectal cancer, and energy demonstrated superior predictive performance. Also, we found that combining the energy of the T1 map, CSE, and mrEMVI may lead to significant improvements in AUC, sensitivity, and specificity compared with morphological characteristics or CSE alone.

Reliable evaluation of metastatic LNs, which are the main indicators of unfavorable survival and distant metastasis, remains challenging. A previous study found that histogram parameters based on diffusion kurtosis imaging were associated with LN status with an AUC, sensitivity, and specificity of 0.735, 0.556, and 0.884, respectively (10). Moreover, Liu et al. observed significant differences in histogram parameters of intravoxel incoherent motion imaging between pN0 and pN1–2 patients with an AUC, sensitivity, and specificity of 0.751, 0.962, and 0.453, respectively (25). A recent study showed that the primary tumor histogram parameters on T2WI were associated with metastatic LN with an AUC, sensitivity, and specificity of 0.750, 93.5, and 52.6, respectively (22). However, so far, no study has explored the value of histogram parameters derived from SyMRI. Our study indicated that histogram parameters of SyMRI were valuable for evaluating LN status with a preferable predictive performance compared with these studies (AUC =0.838, 95% CI: 0.731–0.915, sensitivity and specificity of 0.870 and 0.787, respectively). Furthermore, SyMRI-derived histogram parameters were found to be significantly correlated with LN metastasis.

We found that the T1 map, T2 map, and PD map energy achieved good performance in predicting LN status with AUCs of 0.838, 0.858, and 0.823, respectively. Besides, the energy of the T1 map was a significant and independent predictor of LN metastasis. This suggests that energy might be a reliable predictor of regional LN metastasis in rectal cancer. The first order’s energy is a measure of the magnitude of voxel values in an image, and larger values imply a greater sum of the squares of these values (24). Antunovic et al. found that higher energy on 2-deoxy-2(fluorine-18)fluoro-D-glucose [(¹⁸F)FDG-PET/CT] represented poorer histological grade of breast cancer (26), which was consistent with our study. Conversely, Lu et al. reported that lower energy on the ADC map suggested a higher T stage of rectal cancer (27), but they used the energy of the gray-level co-occurrence matrix, which is a measure of heterogeneity in the image, and lower energy meant more heterogeneity. Therefore, these seemingly contradictory results are actually because the energy is from different matrices and therefore has different meanings. In the present study, we found differences in the maximum of T2 map and PD map, kurtosis (which indicates the peakedness of intensity) of T2 map, and variance of PD map between the LN– and LN+ groups; however, these were not independent risk factors and had moderate predictive efficacy. This further revealed that multiple histogram parameters derived from different MR sequences played a potential role in predicting LN metastasis, and energy showed a superior predictive performance.

Our study’s univariate analysis showed that the T stage and EMVI were associated with LN status in both pathological and MRI evaluation. Since only non-invasive features were entered in the multivariate logistic analyses, this study only explored whether the mrT stage and mrEMVI were independent risk factors for LN metastasis, while the pathological results were not included. Consequently, mrEMVI was an independent risk factor of LN metastasis, which was accordant with previous studies (28-30), whereas the mrT stage was removed at the multivariate logistic regression. In this study, 87.5% of the T1/2 cases were categorized as stage-T2, and 78.9% of T3/4 cases were assessed as T3 with an extramural depth of tumor invasion ≤5 mm, as tumors with obvious extramural invasion would receive nCRT rather than direct surgery. Therefore, in the study, the impact of the primary tumor T stage was weakened. Also, we found that CEA, CA199 levels, and MTL were related to LN status but were not independent risk factors of LN metastasis. Whether CEA, CA199 levels, and MTL could serve as a predictor of LN metastasis remains controversial, possibly due to the heterogeneous populations of rectal cancer patients across different studies. Several studies have reported no associations between CEA, CA199 levels, MTL, and LN status (28-30), while others found that they were preoperative predictors of LN metastasis (31,32).

Our study indicated that CSE has better performance in predicting metastatic LN compared to morphological features. A previous study explained CSE on the anatomical and physiological basis of the LN: between the outermost capsule and the cortex, there is a subcapsular sinus in which lymphatic fluid flows freely (33). Therefore, the subcapsular sinus and the mesorectal fat around the LN from the fat-water interface lead to the CSE along the frequency-encoding gradient (7). When tumor cells infiltrate the subcapsular sinus via afferent lymphatic vessels, the fat-water interface is destroyed, and CSE is interrupted, obliterated, or deformed. Moreover, the T1 map energy significantly improved the predictive performance of LN metastasis compared to morphological features and CSE. This suggests that histogram parameters could better reflect the potential tumor heterogeneity and aggressive biology of malignant tumors, which was consistent with previous studies (21,22). Combination of the energy of the T1 map, CSE, and mrEMVI showed a superior AUC and a reliable sensitivity and specificity, thus suggesting that combining the qualitative features of LN, quantitative parameters of the primary tumor, and other characteristics related to the tumor malignancy enables a more accurate assessment of LN metastasis.

Several participants with locally advanced rectal cancer did not receive nCRT in this study, some of which were due to preoperative under-staging, and some were due to the participants’ desire for direct surgery. The presence of under-staging patients may have made our results more beneficial in detecting clinically false-negative cases. The subset of patients wishing to undergo direct surgery may have somewhat affected the identification of non-metastatic and micro-metastatic LN patients, while it would further reflect the real clinical practice.

There were some limitations to this study. Firstly, the study included relatively small sample size, especially in the LN positive cohort. Secondly, a selection bias might be present due to the most suspicious LN+ cases having received nCRT and, consequently, being excluded from the study. Thirdly, we investigated the primary tumor histogram parameters to predict the overall LN status and did not match the mrLN with the pathological specimen. Features of the LN itself should be explored in the future. Finally, our study only used histogram parameters with good repeatability; it would be beneficial to explore other textural and radiomic features in a future study of a large sample size.

In conclusion, our study suggested that SyMRI-derived histogram parameters of the primary tumor are associated with LN metastasis in rectal cancer and enable a more accurate prediction than traditional morphological features and CSE. A combination of the energy of the T1 map, CSE, and mrEMVI leads to superior predictive performance in predicting LN metastasis.
