Normal reference values of left ventricular volumetric parameters in healthy adults—real-life single-center experience from the three-dimensional speckle-tracking echocardiographic MAGYAR-Healthy Study

Introduction

The left ventricle (LV) is the pump of the peripheral circulation, therefore its non-invasive accurate volumetric and functional assessment is essential (1). With its widespread availability, two-dimensional (2D) echocardiography (2DE) plays an important role in the assessment of conventional LV parameters including diameters, volumes and ejection fraction (EF) from typical views (2). However, 2DE is known to have significant limitations in measuring these parameters (3). Three-dimensional (3D) speckle-tracking echocardiography (STE) is a relatively new tool which is capable of quantifying LV volumes and EF (4). Previously it has been validated by several accepted methodologies such as sonomicrometry, cardiac magnetic resonance imaging (CMR), conventional 2DE, 2DSTE and volumetric real-time 3D echocardiography (RT3DE) (1,5-9). To the best of the authors’ knowledge, limited number of studies employing 3DSTE is available analyzing LV volumetric parameters and EF in real-life settings, therefore age- and gender-dependency of 3DSTE-derived LV volumetric parameters were aimed to be quantified in healthy adults.

Methods

Patient population

The present study involved 298 healthy adults. A volunteer was considered to be healthy, if he/she had no history of chronic illness, no history of medication use, had a negative physiological examination and routine electrocardiography and echocardiography showing normal parameters. Data acquisition took place over a 6-year period (2011–2017), during which 123 adults had to be excluded due to inferior image quality. The study population was further divided into 4 groups based on age decades. The present study is a part of the MAGYAR-Healthy Study (Motion Analysis of the heart and Great vessels bY three-dimensionAl speckle-tRacking echocardiography in Healthy subjects), where ‘magyar’ means ‘Hungarian’ in the Hungarian language. This 3DSTE study has been created to assess and determine physiological 3DSTE-derived volumetric and functional parameters of the heart. All subjects gave informed consent, the institutional human research committee approved the study and it also complied with the guidelines set by the Declaration of Helsinki.

Two-dimensional echocardiography

The 2DE data acquisition was carried out using a Toshiba Artida^TM imaging system (Toshiba Medical Systems, Tokyo, Japan) and a PST-30SBP (1–5 MHz) phased-array transducer. Experienced operators performed complete 2DE examinations in all subjects (DP, AK, ÁK, NG) together with a Doppler study according to the current clinical standards (2,10-12). In all cases, left atrial diameter, LV dimensions, volumes and EF were measured. To determine the severity of valvular regurgitations, a subjective visual scale was used, where 0 means no regurgitation and 4 represents severe regurgitation. Doppler echocardiography was used for exclusion of valvular stenosis.

Three-dimensional speckle-tracking echocardiography

For 3DSTE measurements, the same Toshiba Artida^TM echocardiographic equipment (Toshiba Medical Systems, Tokyo, Japan) was used with a PST-25SX matrix-array transducer (Toshiba Medical Systems, Tokyo, Japan) (1). Data acquisition was carried out from the apical window during a single breath-hold. A full volume pyramid shape dataset was made up of 6 smaller wedge-shaped subvolumes, which were recorded during 6 constant RR intervals. For offline image analysis purposes, the vendor-supplied 3D Wall Motion Tracking software (version 2.7) was used. During analysis, the apical four- and two-chamber views were automatically selected, while the three cross-sectional planes were manually specified by the operator. Following LV endocardial border detection, the software created a virtual 3D model of the LV, which then was used to compute LV volumetric parameters as well as different LV strain parameters together with LV rotational parameters (Figure 1). During a rigorous quality control, all dataset was excluded where not all 16 LV segments could be visualized.

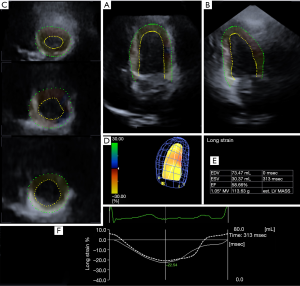

Figure 1 Three-dimensional (3D) speckle-tracking assessment of left ventricular (LV) volumes and mass is presented. ‘A’ shows the apical four-chamber view, ‘B’ shows the apical two-chamber view of the LV, while ‘C3-5’ are cross sections of the LV. ‘D’ shows the 3D cast of the LV and ‘E’ shows LV volumetric and mass data corresponding to the measurement. ‘F’ shows the actual LV volume change during a cardiac cycle (dashed line). LV, left ventricle; RV, right ventricle; LA, left atrium; RA, right atrium.

The following 3DSTE-derived parameters were assessed:

• LV end-diastolic and end-systolic volume (3DEDV and 3DESV, respectively);
• LV ejection fraction (3DEF);
• LV mass (3DLVM) (as assessed automatically by the software following automatic contour detection).

Statistical analysis

All data are reported as mean ± standard deviation. P values <0.05 were considered to be statistically significant. Fischer’s exact test was used for categorical variables. In case of continuous variables, Shapiro-Wilks test was performed firstly to test normality of distribution, then the homogeneity of variance was assessed using Levene’s test. For normally distributed continuous variables, Student’s t-test was used. For variables not following normal distribution, Mann-Whitney-Wilcoxon test was applied. RStudio was used for statistical analysis (RStudio Team (2015). RStudio: Integrated Development for R. RStudio, Inc., Boston, MA). For offline data analysis MATLab was used (The MathWorks Inc, Natick, Massachusetts).

Results

Demographic and two-dimensional echocardiographic data

The study population has been broken up into four subgroups based on their age: 18–29 years (mean age: 23.6±2.8 years, 45 males), 30–39 years (mean age: 33.5±2.7 years, 27 males), 40–49 years (mean age: 43.1±3.2 years, 11 males) and 50+ years (mean age: 56.1±4.4 years, 12 males). The results of 2DE and Doppler study are shown in Table 1. None of the volunteers had higher than grade 1 valvular regurgitation or significant valvular stenosis.

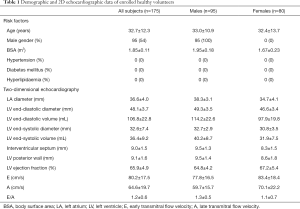

Table 1 Demographic and 2D echocardiographic data of enrolled healthy volunteers
Full table

3DSTE-derived LV volumetric data

No significant differences were detected between the different age groups regarding 3DEDV and 3DESV and their BSA-indexed counterpart. 3DEF differed significantly between the 30–39-year-old males and 40–49-year-old males (P=0.04). Between the youngest and oldest patient groups, only 3DLVM was significantly different (P=0.02). The 18–29-year-old females had a significantly different 3DLVM (P<0.001) compared to that of the 50+ year-old females. Between the 40–49-year-old and 50+ year-old females, 3DLVM (P=0.02) and BSA-indexed 3DLVM (P=0.05) proved to be significantly different (Table 2).

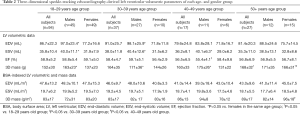

Table 2 Three-dimensional speckle-tracking echocardiography-derived left ventricular volumetric parameters of each age- and gender group
Full table

Gender differences in 3DSTE-derived LV volumetric data

In the age group of 18–29 years, 3DEDV (P<0.001), 3DESV (P<0.001) and 3DLVM (P<0.001) proved to be significantly different between the genders. In the age group of 30–39 years, 3DEDV (P=0.004), 3DESV (P=0.04), 3DLVM (P=0.04) differed significantly between males and females. In the group of 40–49-year-old subjects, 3DESV (P=0.003) and 3DLVM (P=0.02) were significantly different between the genders (Table 2).

Feasibility of 3DSTE-derived LV quantification

During the acquisition period (2011–2017), the experience of the operators grew significantly, thus increasing the feasibility of the 3DSTE method. For the overall duration of data acquisition, 175 measurements out of 298 proved to be acceptable (59% success ratio). For the last year of acquisition, 46 measurements out of 58 were successful (79% success ratio), this is a significant increase (P=0.001).

Discussion

Nowadays, 2DE is routinely available in the clinical practice, it is accessible in all cardiology centers all over the world. Through standardized acquisition and analysis, all 2DE-derived parameters are comparable no matter in which center the examination took place. A few of the most important of these LV parameters are EDV, ESV and EF. EF has been accepted as the most reliable LV systolic functional parameter with robust prognostic implications, almost every subspecialty strongly relies on it in the daily practice. There are several formulas to calculate LVEF using 2DE, the modified Simpson’s formula and the area-length method are suggested to be used by the guidelines. However, both methods approximate LVEF through different mathematical equations using geometric assumptions. Furthermore, they heavily rely on the observer and acquisition technique resulting in a relatively inferior interobserver variability (2,13).

The introduction of RT3DE and 3DSTE may be able to solve the aforementioned problems. 3DSTE is a validated, non-invasive tool in assessing LV volumetric and strain parameters together with LV rotational variables from a single dataset (1,5-7,14). During a 3DSTE measurement, an LV model is created through endocardial tracking in 3D space, resulting in precise, real volumetric chamber quantification, not just approximation through a mathematical formula. However, it is worthy to note that LVEF calculated during 3DSTE measurements are somewhat lower compared to conventional 2D measurements. The explanation for this is that 3DSTE underestimates LV volumetric parameters, 3DEDV is more affected than 3DESV (9), thus resulting in a lower 3DEF value. Mor-Avi et al. found that this underestimation of volume is the result of the lower spatial resolution of 3DE methodologies compared to CMR. The image quality is insufficient to clearly differentiate endocardial trabeculae, thus lumping them together with the myocardium resulting in lower LV volumes (15).

In a recently published paper from Takeuchi et al., a comparably large group of healthy adults (n=313) were examined employing RT3DE to assess age- and gender-dependency of LV and left atrial coupling. The healthy volunteers were divided according to age decades, then RT3DE-derived LV volumetric parameters were measured. According to the results, males had a significantly higher BSA-indexed 3DEDV and 3DESV compared to females, but 3DEF tended to be higher in females than in males. Through the age decades, 3DEDV and 3DESV steadily decreased in the higher age decades (16). In another paper from Kleijn et al., 303 healthy adults were examined using a Toshiba Artida system with 3DSTE capabilities. In this article, only the gender dependency of 3DSTE-derived LV volumetric parameters was described. 3DEDV, 3DESV and 3DLVM were found to be significantly higher in males, whereas 3DEF was significantly higher in females compared to the other gender (17).

The results presented in this study corroborate the aforementioned findings in a relatively large number of healthy volunteers from a single center. It has been found that 3DEDV and 3DESV are tendentiously larger in males compared to females in an age group, sometimes reaching the level of significance. These differences could also be observed in case of BSA-indexed 3DEDV and 3DESV, although to a smaller degree. The 3DEF was tendentiously higher in females compared to the other gender in a given age-group. 3DEDV and 3DESV slightly increased in the age group 30–39-year-old subjects compared to the youngest age-group, then a steady decline could be observed in these volumetric parameters. If 3DEDV and 3DESV were BSA-indexed, a slow decline could be seen with aging. Changes in LVM with aging and gender-dependency were also seen.

Results of the present study are consistent with previous non-3DSTE-derived findings demonstrating that EF in women is significantly higher compared to matched male counterparts, primarily due to smaller indexed EDV. Since indexed EDV is linearly correlated with indexed ESV, indexed EDV values are usually larger in men than in women (18). Moreover, gradual decline of LV volumes with aging and gender- and age-dependency of LVM could also be demonstrated.

The physiological basis of these findings—over the technical reasons—has been debated for decades, it is widely accepted that cardiovascular changes occur during aging including loss of myocytes, increased stiffness of the vascular bed, neurohormonal activation etc. (19-22). The age-related decrease of LV volumetric parameters is partly responsible for the physiologic LV concentric remodelling balanced by the increase of LVEF (23). These changes might occur in response to increased blood pressure and afterload. The continuous fluid loss of the body throughout aging might also play a role (23-25). Further validation studies are warranted to better understand LV volumetric changes during aging.

Limitation section

• Large number of cases were excluded due to inferior image quality. 3DSTE has a relatively low temporal and spatial resolution compared to 2DSTE, furthermore since the full volume dataset is the result of the combination of 6 cardiac cycles, a so-called “stitching noise” might occur at the subvolume borders. Moreover, the effect of motion artefacts could not be excluded either.
• In the present study only LV volumetric parameters are presented. Analyzing the LV strain and rotational parameters was not the goal of the present article.
• Comparison of 3DSTE-derived LV volumetric parameters and 2DE-derived ones was not aimed in this study.
• We have not aimed to examine inter- and intraobserver variability of 3DSTE-derived LV volumetric parameters in this study.
• The present paper was not aimed to be a validation study for using 3DSTE in quantifying LV volumetric parameters.
• 3DLVM is higher in our study compared to other studies because LVM was calculated based on the 3D cast created by the automatic software.

Conclusions

3DSTE seems to be a reasonably viable tool for the quantification of LV volumetric parameters. 3DEDV and 3DESV and their BSA-indexed counterparts show a steady decline with aging, whereas aging has no effect on 3DEF. In a given age decade, males have higher LV volumetric parameters compared to females, however females have a tendentiously higher 3DEF compared to males.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-786). AN serves as an unpaid editorial board member of Quantitative Imaging in Medicine and Surgery. The authors have no conflicts of interest to declare.

Ethical Statement: All subjects gave informed consent, the institutional human research committee approved the study and it also complied with the guidelines set by the Declaration of Helsinki.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
