Magnetic resonance quantitative susceptibility mapping in the evaluation of hepatic fibrosis in chronic liver disease: a feasibility study

Introduction

Hepatic fibrosis is a wound-healing response to repeated damage to the liver caused by multiple pathogenic factors including viral, autoimmune, drug-induced, cholestatic, and metabolic diseases (1). Hepatic fibrosis, a pathological progression common among most types of chronic liver diseases (CLDs), can result in cirrhosis, progressive hepatic dysfunction, portal hypertension, and in some cases, hepatocellular carcinoma (2). Hepatic cirrhosis is an irreversible process, but hepatic fibrosis progression is potentially reversible through drug therapy based on a careful and accurate evaluation of the extent of the hepatic fibrosis. Therefore, with the number of patients suffering from CLDs continually increasing, early diagnosis and staging of hepatic fibrosis have significant clinical value for patient management decisions, treatment stratification, and prognostication.

Pathological assessment via liver biopsy is the current gold standard for staging hepatic fibrosis. However, this invasive procedure is risky because of potential complications including hemorrhage, wound infection, and perforation of other organs. Moreover, liver biopsy is known to suffer from sampling errors due to fibrosis heterogeneity (3). Therefore, the exploration of a reliable, reproducible, and noninvasive alternative for detection and accurate staging of hepatic fibrosis is a highly relevant research topic.

With their excellent resolution and soft tissue contrast, various magnetic resonance imaging (MRI) techniques have been proposed for the noninvasive diagnosis and staging of hepatic fibrosis, including diffusion-weighted imaging (DWI) (4), MR perfusion imaging (5), dynamic contrast-enhanced MRI (6), spin-lattice relaxation time in the rotating frame (T1rho) MRI (7,8), susceptibility-weighted imaging (SWI) (9), MR elastography (MRE) (10), and multiparametric MRI quantitative techniques (11,12). However, the apparent diffusion coefficient (ADC) value measured by DWI could be affected by steatosis and iron overload (13). MR perfusion imaging in the liver is complicated by the effects of a dual blood supply and respiratory artifacts (5), while dynamic contrast-enhanced MR imaging may carry a risk to patients with renal insufficiency because of the injected [Gd] contrast agent. T1rho MR imaging is rather sensitive to magnetic field inhomogeneity, and this technique requires higher energy deposition produced by radio frequency (RF). SWI is a nonquantitative method with contrasts dependent on imaging parameters, and the tissue signal intensity ratio is dependent on the sequence provided by different MRI scanners. MRE is advantageous over ultrasound elastography and other MRI-based techniques because of its accuracy and reliability for diagnosing and grading liver fibrosis; however, the requirement for costly additional equipment limits its accessibility and application (13). Meanwhile, a multiparametric imaging approach to the liver may suffer from misregistration errors, because the images of multiple contrasts have to be acquired with multiple breath-holds.

Quantitative susceptibility mapping (QSM) is a post-processing technique that can accurately provide the quantitative distribution of susceptibility sources in tissue (14). QSM cleans up the acquired, but often discarded, phase information of the widely available gradient echo (GRE) sequence (15) and performs the field-to-source ill-posed inversion using Bayesian inference (16). QSM has been applied to abdominal organs by accounting for the fat contribution to the measured signal phase (17,18). QSM reproducibility has been demonstrated in the brain (19-23), lumbar vertebra (24), and liver (25,26). Hepatic fibrosis is characterized by excessive accumulation of extracellular matrix (ECM) proteins including collagen (1,3), which can contribute to strong diamagnetic susceptibility in the liver tissue due to the enhanced density of orbiting electrons (27). A previous in-vitro QSM study demonstrated that susceptibility was linearly dependent on collagen concentration (28). Therefore, QSM provides a method for measuring collagen to directly reflect the degree of fibrosis and should be investigated as a feasible tool for the noninvasive staging of hepatic fibrosis.

Thus, the purpose of this study was to investigate changes in liver magnetic susceptibility in patients with various stages of fibrosis, and to evaluate the feasibility of using susceptibility to stage hepatic fibrosis.

Methods

Human subjects

This prospective study was conducted after obtaining approval from the Institutional Review Board of Shuguang Hospital affiliated with Shanghai University of Traditional Chinese Medicine (approval number: 2018-625-54-01), and written informed consent was obtained from each participant. Thirty consecutive patients with suspected or known CLDs who were willing to take an MRI-QSM examination and biopsy were recruited for this study. MRI was performed before the liver biopsy. The interval between the MRI examinations, biopsy, and blood sampling was within 2 days. Four of the patients were excluded due to the poor quality of the tissue slice and staining. The final cohort consisted of 26 patients. Figure 1 summarizes the patient recruitment in this study.

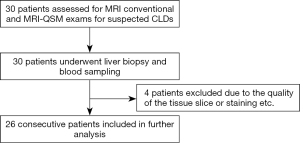

Figure 1 Flowchart showing participant recruitment. CLD, chronic liver disease; QSM, quantitative susceptibility mapping.

MR imaging

The patients were imaged on a clinical 3T MRI system (Skyra; Siemens Healthcare, Erlangen, Germany) using an 18-channel body coil in combination with some elements of the spine coil. To obtain the susceptibility and R2* maps, complex data were acquired by using a 3D monopolar readout gradient volumetric interpolated breath-hold examination (VIBE) sequence with the following parameters: repetition time (TR) =11.3 ms, flip angle =4°, echo number=6, the first echo time (TE₁) =1.07 ms, echo spacing =1.79 ms, bandwidth =1,060 Hz/pixel, field of view (FOV) =400×350 mm², matrix size =224×196×52, voxel size =1.8×1.8×3.5 mm³. Additionally, a CAIPIRINHA parallel imaging technique with an acceleration factor of 2×2 and 6/8 fractional Fourier transform in the phase-encoding direction was used to reduce acquisition time. The acquisition time for each sequence was 17 seconds during one breath hold. Conventional MR images, including T1- and T2-weighted images, were also acquired for anatomical evaluation.

Image processing

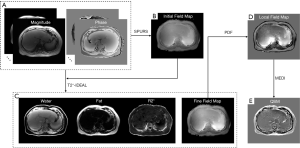

Figure 2 is a schematic of the QSM reconstruction. Phase images and magnitude images were extracted from the complex MRI data. Simultaneous phase unwrapping and removal of chemical shift (SPURS) (29) using graph cuts with conditional jump moves were first performed on the phase images, followed by fine-tuning of the field map with T2*-IDEAL with a single R2* and 6-peak fat model for the combined water-fat signal (30). The output inhomogeneity B0 field of T2*-IDEAL was then processed with background field removal using the projection onto dipole field (PDF) method (31), and the remaining magnetic field was processed to generate a susceptibility map using the morphology enabled dipole inversion algorithm (MEDI) (32) with the regularization parameter lambda set to 1,000 and the parameter SMV set to 5 mm.

Figure 2 The schematic view of liver QSM reconstruction. SPURS is performed on the magnitude and phase images (A) to initialize the inhomogeneity magnetic field (B). Then, the T2*-IDEAL algorithm is performed, outputting water, fat, R2*, and fine field maps (C). The fine field maps are then processed with background field removal to obtain the local magnetic field maps (D) using the PDF method. The remaining magnetic field maps are processed to generate a susceptibility map (E) by MEDI. QSM, quantitative susceptibility mapping; SPURS, simultaneous phase unwrapping and removal of chemical shift; IDEAL, iterative decomposition of water and fat with echo asymmetry and least-squares estimation; PDF, projection onto dipole field; MEDI, morphology enabled dipole inversion algorithm.

The proton density fat fraction (PDFF) image was generated from the obtained fat and water images. PDFF was defined by the following equation:

PDFF=ρfatρfat+ρwater[1]

where ρfat and ρwater are the signal amplitude of the fat image and water image, respectively.

The data processing was performed using Matlab2016b (MathWorks, Natick, MA, USA).

Image analysis

The image quality of the QSM images was assessed independently by two radiologists (with 3 and 12 years’ experience in hepatic MRI) based on the radiological impression of image blurring, deformity, and other artifacts, and scored with the following 4 point scale: 0, poor image quality with serious artifacts; 1, diagnostic with moderate image quality and substantial artifacts; 2, diagnostic with good image quality and marginal artifacts; and 3, diagnostic with excellent image quality and no artifacts. Only QSM images with acceptable image quality scores (≥1) were used for the analyses.

Liver magnetic susceptibility, R2*, and PDFF values were measured using region of interest (ROI) analysis. ROIs were manually drawn on the QSM images using ITK-SNAP software (version 3.8.0, www.itksnap.org) by the two radiologists mentioned above who were blinded to the clinical history, blood markers data, and liver biopsy results. First, through consensus, both reviewers determined the single liver slice which contained an as-large-as-possible cross section through the liver and the least motion artifacts to measure. Then, ROIs ranging from 5 to 8 cm² were independently placed in this consensus slice in the anterior and posterior segment of the right lobe of the liver where a biopsy specimen was obtained (Figure 3). The other two ROIs ranging from 1.8 to 3.6 cm² in the same slice were placed in the latissimus dorsi muscle on either side of the spine as a reference for determining the relative susceptibility in the hepatic parenchyma, as the latissimus dorsi muscle does not accumulate iron (28,33). All ROIs were drawn in the area in which the signal was as homogeneous as possible, and large blood vessels and cavities were avoided. ROIs in the liver were at least 7.2 mm away from the air boundary, while ROIs in the latissimus dorsi muscle were 3.6–7.2 mm away from the tissue border and the air boundary. The ROIs were then copied to corresponding R2* and PDFF images for measurements. R2* and PDFF values were measured and averaged on the liver ROIs, while the relative value between the averaged values on the liver ROIs and on the latissimus dorsi muscle ROIs was calculated as the hepatic susceptibility value. To evaluate the reproducibility of the ROI sampling, the above ROI drawing and analyses were repeated by both radiologists after 4 months.

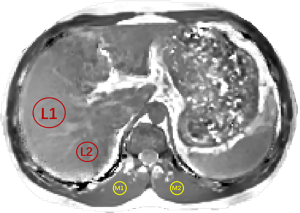

Figure 3 The ROIs for QSM, R2*, and PDFF value measurements. ROI analyses were performed at two locations (anterior and posterior segment of the right lobe) in the liver (L1, L2) and at two locations in the latissimus dorsi muscle (M1, M2). To select a region in which the signal was as homogeneous as possible and to avoid large blood vessels and cavities, L1 was made larger than L2. ROI, regions of interest; QSM, quantitative susceptibility mapping; PDFF, proton density fat fraction.

Blood markers and histopathologic evaluations

Serum markers including serum alanine aminotransferase (ALT, units per liter), serum aspartate aminotransferase (AST, units per liter), g-glutamyl transpeptidase (GGT, units per liter), serum albumin (Alb, grams per liter), total serum bilirubin (Tbil, micromoles per liter), and the AST-ALT ratio were used to assess liver function.

The liver biopsy specimens were obtained by an associate physician in the Institute of Liver Diseases using an automatic needle device (MAGNUM biopsy instrument, Bard, USA) with a 16-gauge disposable needle (MN1620, Bard, USA). Pathological samples of around 1 mm in diameter and 17 mm in length were fixed with 10% formalin, embedded in paraffin, and sectioned. The tissue slices were stained with hematoxylin-eosin (HE), Masson’s trichrome, reticulin, cytokeratin (CK) 7, CK19, CD34, CD8, hepatitis B surface antigen (HBsAg), hepatitis B core antigen (HBcAg), and Perls’ Prussian blue.

Hepatic fibrosis was evaluated semiquantitatively with the modified Ishak histological activity index scale ranging from 0–6 based on the reticulin and Masson’s trichrome staining (34). A detailed scoring description is shown in Table 1. The recent guidelines of the American Association for the Study of Liver Diseases (AASLD) and the European Association for the Study of Liver (EASL) both recommended antiviral therapy for patients with evidence of significant fibrosis (Ishak fibrosis score ≥3) (35,36), so we performed further quantitative measurements based on this classification: significant fibrosis (Ishak fibrosis score ≥3) and non-significant fibrosis (Ishak fibrosis score <3).

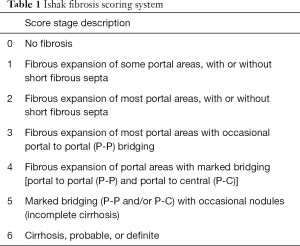

Table 1 Ishak fibrosis scoring system
Full table

Necroinflammatory activity was evaluated semiquantitatively according to the METAVIR scoring system (37) as follows: 0, none; 1, mild; 2, moderate; and 3, severe. According to the proportion of hepatocytes containing fat vesicles based on HE staining, liver steatosis was graded as follows: none, <5%; slight, 5–33%; moderate, 33–66%; and severe, >66%. Iron overload was classified as positive or negative based on the visual assessment of iron granules with Prussian blue stain (38).

All the liver biopsies were graded by three hepatologists independently, and the final scores were obtained by consensus from at least two hepatologists. If the three hepatologists had different results, liver biopsy samples were evaluated and decided by the central hepatologist.

Statistical analysis

Grading scales of the image quality are expressed as median [P25, P75], and differences between the two reviewers were evaluated with Wilcoxon signed-rank test. Sex and histopathologic grading are presented as numbers, whereas descriptive statistics of all other variables are expressed as medians and confidence intervals. The difference for anthropometric, blood markers, and MRI measurements between cohorts of non-significant (Ishak-F <3) and significant (Ishak-F ≥3) fibrosis were tested by using the Mann-Whitney U test. For the MRI measurements that were significantly different between the two cohorts, the distribution for each cohort is shown with box plots. A nonparametric Spearman’s rank correlation test was performed to evaluate the correlation of MRI measurements with fibrosis stages and necroinflammatory activity grades. Receiver operating characteristic (ROC) analysis was performed based on binary logistic regression to assess the diagnostic utility of MRI measurements (liver susceptibility, R2*, PDFF, and their combinations) to differentiate non-significant from significant fibrosis. The value that maximized the Youden index was chosen as the optimal cutoff value. To evaluate pathological distribution characteristics, Kendall's tau-b coefficient was calculated to measure the degree of correspondence between the fibrosis stage and other histopathologic grades (necroinflammatory activity grade and liver steatosis extent).

To evaluate intra- and interobserver reproducibility, reliability analysis was performed by calculating the intraclass correlation coefficients (ICC) based on the QSM ROI measurements.

All statistical tests were performed using SPSS software (version 23.0; SPSS, Chicago, IL, USA) and OriginPro software (version 8.0; OriginLab Corporation, MA, USA). A P value <0.05 was considered statistically significant.

Results

Patient characteristics

The final cohort consisted of 26 patients (mean age, 48.08±12.03 years; range, 27–68 years) diagnosed with CLDs on the basis of previous clinical, blood marker exam results, and MRI. These patients, including 17 men (mean age, 44.82±10.82 years; range, 27–64 years) and 9 women (mean age, 54.22±12.37; range, 33–68 years), had the following CLDs: chronic hepatitis B (n=9, 34.6%), cryptogenic hepatic fibrosis (n=5, 19.2%), hepatic injury (n=2, 7.7%), steatohepatitis (n=1, 3.8%), steatohepatitis with chronic hepatitis B (n=2, 7.7%), steatohepatitis with autoimmune hepatitis with (n=1, 3.8%), alcoholic hepatic disease (n=1, 3.8%), alcoholic hepatic disease with schistosome (n=1, 3.8%), chronic hepatitis with autoimmune hepatitis (n=1, 3.8%), primary biliary cirrhosis (n=1, 3.8%), autoimmune hepatitis (n=1, 3.8%), and primary biliary cirrhosis with hepatic injury (n=1, 3.8%).

Anthropometric measurements and blood markers

According to the Ishak fibrosis scores, 15 patients (58%) had significant hepatic fibrosis (Ishak-F ≥3) and 11 patients (42%) had non-significant hepatic fibrosis (Ishak-F <3). Anthropometric measurements, blood markers, and imaging results are summarized in Table 2. There were no statistically significant differences between the two fibrosis cohorts in age, BMI, gender distribution, or blood markers.

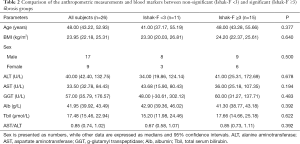

Table 2 Comparison of the anthropometric measurements and blood markers between non-significant (Ishak-F <3) and significant (Ishak-F ≥3) fibrosis groups
Full table

QSM, R2*, and PDFF measurements

The image quality scores for QSM were diagnostic for all patients, and thus all images could be used for further analysis. No significant difference in image quality was found between reviewer 1 [2.00 (1.00, 2.25)] and reviewer 2 [2.00 (1.00, 2.25)] (Z =−0.277, P=0.782).

The results of the MRI measurements are summarized in Table 3. A significant difference in liver susceptibility was observed between the two patient cohorts (Z =−2.880, P=0.004). The mean susceptibility value of the significant fibrosis cohort was 0.1051±0.0663 ppm, which was significantly lower than that of the non-significant fibrosis cohort (0.1971±0.0748 ppm). The susceptibility values between the two cohorts are also illustrated with boxplots in Figure 4. There were no significant differences in R2* and PDFF values between the two cohorts. Only two of the patients in this study had a PDFF value over 5.56%, which was taken as the cutoff value for hepatic steatosis.

Table 3 Comparison of the MRI measurements in patients between non-significant (Ishak-F <3) and significant (Ishak-F ≥3) fibrosis groups
Full table

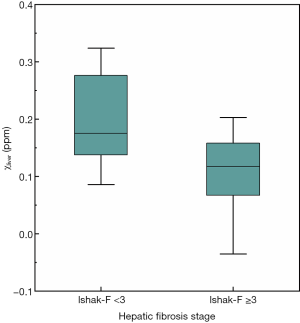

Figure 4 Boxplot analysis of the liver susceptibility value between cohorts of Ishak-F <3 and Ishak-F ≥3. The susceptibility value decreased significantly with increasing fibrosis stage.

The results of the nonparametric Spearman’s rank correlation test of the MRI measurements with the fibrosis stages and necroinflammatory activity grades are summarized in Table 4. There was a moderate negative correlation between the susceptibility value and the fibrosis stage of patients (r=−0.471, P=0.015), which is also shown in Figure 5. However, there was no significant correlation of R2* or PDFF with the fibrosis stage. No significant correlations of the MRI measurements with the necroinflammatory activity grade were observed.

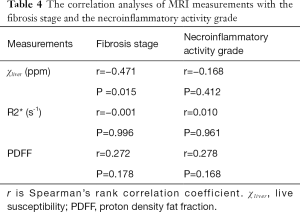

Table 4 The correlation analyses of MRI measurements with the fibrosis stage and the necroinflammatory activity grade
Full table

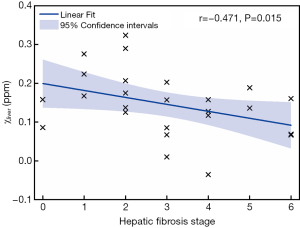

Figure 5 Correlation analysis of liver susceptibility values with the Ishak fibrosis scores. The susceptibility values are moderately and negatively correlated with the fibrosis stage. The correlation coefficient was calculated using the Spearman’s rank correlation test.

ROC analysis

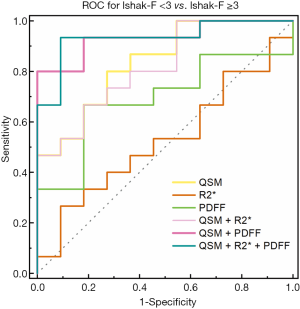

Figure 6 shows the ROC curves of the MRI measurements (liver susceptibility, R2*, PDFF, and their combinations) for differentiating significant from non-significant hepatic fibrosis. The areas under the curve (AUC), asymptotic significance, and asymptotic 95% confidence intervals of the MRI measurements for differentiating significant from non-significant hepatic fibrosis are summarized in Table 5. The ROC curves demonstrated that liver susceptibility had a superior ability to differentiate non-significant from significant hepatic fibrosis (AUC =0.836, P=0.004) over R2* (AUC =0.572, P=0.815) and PDFF (AUC =0.691, P=0.102). The optimal cutoff value of susceptibility for non-significant versus significant hepatic fibrosis was ≤0.1639 ppm with the Youden index as 0.503. A better diagnostic performance was obtained using susceptibility and PDFF together (AUC =0.933, P<0.001).

Figure 6 The ROC curves of the MRI measurements (liver susceptibility, R2*, PDFF, and their combinations) for differentiating significant from non-significant hepatic fibrosis. ROC, receiver operating characteristic; PDFF, proton density fat fraction

Table 5 The diagnostic performance of MRI measurements for differentiating significant from non-significant hepatic fibrosis
Full table

Pathological distribution characteristics

The distribution of patients in each hepatic fibrosis stage, necroinflammatory activity grade, steatosis, and iron load degree is summarized in Table 6. Kendall's tau-b rank correlation test revealed that the fibrosis stage correlated with an increasing necroinflammatory activity grade (r=0.664, P<0.001). However, there was no significant correlation between the fibrosis stage and the degree of steatosis in hepatocytes (r=0.251, P=0.139).

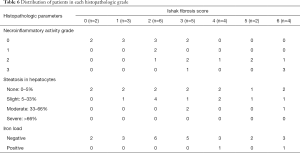

Table 6 Distribution of patients in each histopathologic grade
Full table

Inter- and Intra-observer reliability

Interobserver reliability between the two reviewers was almost perfect (ICC, 0.977; P<0.001; 95% confidence interval: 0.949, 0.990). The intra-observer ICCs were 0.917 and 0.983 for the two reviewers, demonstrating good reproducibility on the ROI measurements.

Discussion

Our results demonstrate the clinical feasibility and accurate diagnostic performance of liver QSM for assessing and staging hepatic fibrosis. QSM can noninvasively capture the susceptibility change during the development of hepatic fibrosis in patients with CLDs. Our data show that liver susceptibility had a moderate negative correlation with fibrosis stage, and that liver susceptibility values in patients decreased significantly with significant fibrosis compared to non-significant fibrosis. A highly accurate diagnostic performance was achieved in the cohort of CLD patients by integrating susceptibility and PDFF together. QSM is thus a feasible noninvasive diagnostic tool for differentiating fibrosis stages in patients with CLDs.

The QSM-based diagnostic accuracy in assessing significant liver fibrosis found in this preliminary study (AUC =0.933) has an obvious advantage over the serum biomarkers (AUC =0.71–0.81) (39,40) and over multiparametric MRI techniques such as FibroMRI (AUC =0.85) (12) and the liver inflammation and fibrosis score (AUC =0.89) (11). Moreover, the diagnostic accuracy of the QSM-based method matches that of MRE (AUC =0.92–0.94) (41-43), which is arguably the most accurate MRI technique for assessing liver fibrosis among available the methods based on diffusion, perfusion, T1rho, or mechanics response (13). QSM-based fibrosis assessment takes the chemical composition approach to evaluating liver fibrosis by logistically integrating magnetic susceptibility, proton density fat fraction, and R2* values all derived from a single, widely available multiecho GRE sequence without any additional hardware requirement. QSM has also been demonstrated to be very reproducible across scanner platforms (19) and readily applicable for imaging the liver (25). In comparison, MRE takes the mechanical approach to evaluating liver fibrosis by probing the tissue with a mechanical wave and measuring its response, necessitating expensive wave driver hardware. A QSM-based approach may be combined with MRE for a more accurate assessment of liver fibrosis, and a QSM-based approach may be used when MRE hardware is not available.

It is well known that multifactorial and often disease-specific hepatic injury leads to the initiation of fibrogenesis (3). The stimuli followed by activation of the innate immune system provoke a fibrogenic response with ECM-producing myofibroblasts, and liver fibrosis is characterized by excessive accumulation of ECM proteins including collagen (1,3). These proteins have an enhanced density of orbiting electrons and may contribute to strong diamagnetic susceptibility in the tissue (27), as demonstrated in previous studies with in-vitro collagen phantoms (28), articular cartilage specimens (44), and the fibrotic liver tissues (45). We found a moderate negative linear correlation between the measured susceptibility values and the fibrosis stage of the patients in this study, which suggests that an increase in collagen quantity could be reflected by a decrease in susceptibility, with this observed decrease in susceptibility being closely related to the progression of fibrosis.

Liver iron and fat may also contribute to liver tissue susceptibility. Iron overload leads to the accumulation of iron in tissues and tends to follow distinct patterns in which the liver is a common site of deposition, resulting in an increase in tissue susceptibility due to its paramagnetic effects. Lipids are less diamagnetic than water, resulting in an increase in susceptibility (46). In our study, only two of the patients were diagnosed as positive in iron overload through liver biopsy, and half of the patients suffered from slight-to-moderate steatohepatitis. It is unclear what value R2* can add to fibrosis diagnosis by QSM in patients with little iron overloading, and it may be more useful in patients with more substantial liver iron overloading.

Hepatic steatosis existing alone or as a cofactor with other CLDs can exacerbate liver injury and make the liver more vulnerable to factors that lead to liver inflammation and fibrosis (47). Meanwhile, increasing evidence has demonstrated that hepatic steatosis is an additional metabolic risk factor of chronic hepatitis B-related fibrosis (46). In our study, 42.3% of CLD patients suffered from chronic hepatitis B. The histopathologic results revealed that half of the patients suffered from slight-to-moderate steatohepatitis. Although no statistical difference of PDFF was observed between cohorts of non-significant and significant fibrosis, there was a trend that the PDFF value increased with the fibrosis stage, with a mean PDFF value of 1.9% for patients with non-significant fibrosis and 4.3% for patients with significant fibrosis. This may explain the increase on the AUC of susceptibility combined with PDFF. Therefore, QSM combined with a PDFF biomarker showed a better diagnostic performance than QSM alone.

The presence of fibrosis, fat, and iron in tissue does not only alter the susceptibility of tissue but also increases the local field inhomogeneity, which further increases the R2* value (48). However, the presence of necroinflammation with fibrosis reduces R2 and R2* because liver inflammation is typically accompanied by cell swelling, edema, and early loss of plasma membrane integrity with an accumulation of inflammatory necrotic tissue (49). No significant correlations of liver R2* with the fibrosis stage or the necroinflammatory activity grade were observed in this study. These results suggest that the co-occurrence of fibrosis and necroinflammation—but not that of fat or iron—renders the use of R2* problematic for characterizing liver fibrosis in patients with CLDs. This could explain why QSM combined with R2* as the biomarker showed a decreased diagnostic performance compared to QSM alone.

Chronic hepatitis B patients represented a significant part of our study sample. Approximately one-third of cirrhosis cases worldwide are caused by the hepatitis B virus (HBV) infection (50), and liver fibrosis may develop to cirrhosis. As the current gold standard of liver fibrosis, invasive liver biopsy is a risky procedure, especially when HBV can spread through blood. The drawbacks, which include patient reluctance, pain, and potential complications, also cannot be ignored. Therefore, by enabling accurate diagnosis of the degree of liver fibrosis, QSM may potentially help physicians better manage chronic hepatitis B patients and make informed clinical decisions.

This study has some limitations. First, chronic hepatitis B patients represented a significant part of our study. Inhomogeneous distribution of CLD etiology may also have an effect on the performance of the MRI measurements. A further study should be performed on a larger number of CLD patients with varying fibrosis stages and etiologies. Second, the liver biopsy specimen had a 1 mm diameter and 17 mm length, which may not be representative of the whole liver tissue. Hepatic fibrosis, necroinflammatory activity, iron load, and steatosis in this specimen may not be representative of the whole liver because the development of CLDs is very heterogeneous. Third, the cutoff values were determined within a small sample. Further studies with larger cohorts are needed to evaluate and validate clinically efficient cutoff values. Fourth, the quantitative MR images including QSM, R2*, and PDFF were generated under a breath-hold sequence, which tended to have low signal-to-noise ratio (SNR) and was prone to respiratory artifacts due to the relatively long breath-hold duration of 17 s. The acquisition time could be shortened by reducing the number of slices and including only the central liver, but this would also decrease the SNR. Reducing the spatial resolution could shorten the acquisition time and improve SNR, but the pixel size would be decreased. Both the low coverage and low resolution would lead to loss of contrast and errors in susceptibility maps (51,52). In future work, a navigator motion compensation approach (53) may be used for free-breathing data acquisition in liver QSM to produce consistently good quality maps. Fifth, liver QSM acquisition can be optimized by including in-phase echoes (25). The top or bottom of the liver may have more artifacts because a large variation of magnetic susceptibility and background magnetic field exists in these regions and may affect the reliability of the susceptibility measurement. The preconditioning method can be used to deal with the presence of air in the stomach and intestines of large susceptibility contrasts from the liver (54). With these data acquisition and reconstruction improvements, liver QSM quality may be as robust as brain QSM (19) and suitable for wide dissemination in clinical studies (23). Sixth, the effects of various physiological and technical factors on the susceptibility measurement may still need further assessment.

In conclusion, a significant decrease in liver susceptibility is associated with a corresponding progression in hepatic fibrosis. Liver susceptibility may be a promising marker for assessing significant fibrosis. With further study, QSM can potentially be used as an alternative tool for the noninvasive detection and diagnosis of the severity of hepatic fibrosis in patients with CLDs.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (grant numbers 81271533, 81730109); the Siming Scholar Foundation of Shuguang Hospital Affiliated to Shanghai University of Traditional Chinese Medicine (grant number SGXZ-201902); the National Science & Technology Major Project (grant number 2018ZX10302204); and the Shanghai “Rising Stars of Medical Talent” Youth Development Program Youth Medical Talents - Medical Imaging Practitioner Program (grant number SHWRS(2020)-087).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-720). CF and XY, from the commercial company Siemens Healthcare, were MR collaborating scientists providing technical support under the Siemens collaboration regulations and had no financial or other conflicts with respect to this study. The other authors have no conflicts of interest to declare.

Ethical Statement: This study was conducted after obtaining approval from the Institutional Review Board of Shuguang Hospital affiliated with Shanghai University of Traditional Chinese Medicine (approval number: 2018-625-54-01). Written informed consent was obtained from the patients for publication of this study and any accompanying images. A copy of the written consent is available for review by the editor-in-chief of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
