Left ventricular blood flow kinetic energy is associated with the six-minute walk test and left ventricular remodelling post valvular intervention in aortic stenosis

Introduction

Aortic stenosis (AS) is the third most common cardiovascular disease in Western countries and the commonest valvular disease requiring valve replacement (1,2). Management of patients with AS depends on understanding the criteria for the assessment of the severity of the disease. According to the current European Society of Cardiology (ESC) or the European Association for Cardio-Thoracic Surgery (EACTS) guidelines, the indications for aortic valve replacement depend on the patient’s symptoms and the severity of the stenosis (3). It is often debated which treatment option should be offered to yield optimum results. Therefore, appropriate diagnosis and classification of the disease severity are crucial for the management of AS. The haemodynamic effects of AS have significant implications on left ventricular (LV) remodelling (4). Although the main haemodynamic effect in AS is an increase in afterload due to the increased outflow resistance. However, preload is also affected as a consequence of LV compliance reduction (5). Thus, LV remodelling plays an important role in the clinical symptoms and leads to the development of heart failure in AS (4,5).

Recent studies on novel biomarkers in AS have demonstrated the role of multi-parametric tissue characterisation by cardiovascular magnetic resonance (CMR) imaging (6-10). In the diastolic cascade, reduction in LV compliance results in raised LV filling pressure which in turn affects the trans-mitral or LV intra-cavity flow immediately (11). Subsequently, adverse myocardial remodelling will ensue. Hence, the assessment of LV blood flow using kinetic energy (KE) as a modality may offer a unique opportunity to detect early deterioration in AS.

LV intra-cavity blood flow KE (LV KE) assessment by four-dimensional flow (4D flow) CMR has been demonstrated to be superior to mitral inflow for its association to LV diastolic function (11). In addition, LV KE assessment can detect early changes in blood flow in myocardial infarct patients with preserved ejection fraction (12).

However, it remains unknown how the LV blood flow KE adapts to severe AS and also what happens to it after the reduction of afterload following valve intervention. The diagnostic value of this needs to be determined. Therefore, the main objectives of this study are: (I) to investigate the LV KE in patients with AS before and after the valve intervention, (II) to investigate if the KE of the blood flow components can provide an insight into the haemodynamic of AS, and finally, to study if LV KE in patients with AS is associated with quantitative physical endurance evaluated by the six-minute walk test (6MWT).

Methods

Study population

This study was a sub-study of the EurValve project (http://www.eurvalve.eu/). We prospectively recruited 18 patients diagnosed with severe AS by echocardiography. All patients with severe AS and in need of valve intervention at our centre between 2017 and 2018 were eligible for this study. Patients with significant disease of other valves or aortic regurgitation were excluded. We also excluded patients with coronary artery disease (CAD) requiring coronary artery bypass grafting surgery (CABG), acute myocardial infarction or needing any coronary intervention, limited imaging data, any MRI contraindications or the inability to complete a 6MWT.

CMR examination

All patients underwent CMR examination to acquire morphological images and 4D flow data. The 4D flow data were obtained during free-breathing, using an ECG-triggered, retrospectively navigator-gated, three-dimensional, three-directional, time-resolved phase-contrast MRI sequence on a clinical 3T system (Ingenia, Philips Healthcare, Best, The Netherlands).

CMR protocol and data acquisition

The CMR protocol included complete short-axis cines covering the whole left ventricle for each acquisition, 3 sets of long-axis cines (two-, three-, and four-chamber), and 3-directional phase-contrast velocity images. Single heartbeat was divided into 20 time-steps to form the cine images. The number of slices varied according to the size of each patient’s heart. Scan parameters for cines images included: SENSE with a speed-up factor of 2–3, flip angle 45°, echo time (TE) 1.5 ms, repetition time (TR) 3.05 ms, spatial resolution of 2.5×2.5 mm², pixel size of 1.56×1.56 mm², field of view (FOV) 400 mm, and a slice thickness of 6.0 mm with contiguous slices for the short axis stack.

4D flow acquisition

Scan parameters for 4D flow acquisitions included: acquired spatial resolution of 3×3×3 mm³, TR 10.7 ms, TE 3.5 ms and a reconstructed voxel size of 1.5×1.5×15 mm³. Other acquisition scan parameters of this sequence were: flip angle 10°, an approximate FOV of 340 mm × 340 mm, no slice gap, and k-space segmentation factor of 3. The number of signal averages was 1, with 30 cardiac phases. Previously validated echo-planar acceleration (EPI) with a shot factor of 5 was applied (13). The velocity encoding (VENC) was obtained from echocardiographic images to reduce scan time and optimised if aliasing occurred, 150 cm/s was used as a starting point and adjusted accordingly. These settings gave a temporal resolution of 40 ms. After data acquisition, the 4D flow data was reconstructed into 30-time frames on the scanner.

4D flow corrections

Data pre-processing was done on the scanner for correcting phase offset errors such as eddy currents, Maxwell effects, and encoding errors related to gradient field distortions to avoid impairment of the measurements and inaccuracies in flow quantification (14,15).

Image analysis

All images were post-processed and analysed using a previously validated method (12,16). Manual contouring of the endocardial and epicardial surfaces, excluding the papillary muscles, was performed on the stack of short-axis cine images to obtain LV end-diastolic volume (LVEDV) and LV end-systolic volume (LVESV) in Mass software (Version 2019 EXP, Leiden University Medical Centre, Leiden, The Netherlands). From end-diastolic (ED) and end-systolic (ES) volumes, LV stroke volume (LVSV) and LV ejection fraction (LVEF) were calculated. Ventricular mass was calculated at end-diastole; the interventricular septum was considered part of the LV (17). During systolic phases, cautious segmentation of only those basal segments was done where there was evidence of myocardium and this was also confirmed in long-axis cines—both four-chamber and two-chamber cines.

The KE of each voxel of blood was computed using the following formula:

$$\text{KE}=1/2{\text{ρ}}_{\text{blood}}\times {\text{V}}_{\text{voxel}}\times {\text{v}}_{\text{voxel}}\text{2}$$[1]

Where the ρ_blood represents the density of blood (1.06 g/cm³), V voxel represents the voxel volume, and v represents the velocity magnitude. The total LV KE was then computed in each time step as the summation of the KE of all voxels in the left ventricle and plotted by the software as a time-resolved KE curve where different KE parameters were derived from this curve. All KE parameters were normalized to LV EDV and reported in µJ/mL (LV KEi_EDV) (Figure 1).

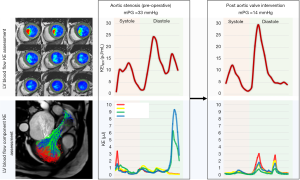

Figure 1 Case example from our study. The top panel demonstrates LV blood flow KE assessment. Even though the pattern was different for systolic and diastolic KE curves after intervention, the average quantified values for not significantly different. The second panel demonstrates a three-chamber image with superimposed particle tracing component analysis of the four LV blood flow components: retained inflow (yellow), residual volume (red), direct flow (green), and delayed ejection flow (blue). It is worth noting that the drop in direct and delayed flows was mainly observed in diastole. LV, left ventricle; KE, kinetic energy; mPG, mean pressure gradient.

LV blood flow component analysis

We applied a previously validated technique which enables the separation of the LV ED flow into four different functional components (18). LV short-axis cine stack, long-axis cine, and 4D flow images views were used for the analysis. The short-axis cine series was used to define the intraventricular blood particles. LV endocardial contours were manually traced in the ES and ED phases. The most basal short-axis slice in ES was used as inflow/outflow plane and particles were considered as invalid when they were either below the inflow/outflow plane or outside the LV epicardial contours in ES phase.

The ED blood flow was divided into four functional flow components, according to the transit of blood flow through the LV chamber for the complete cardiac cycle: (I) direct flow is the volume of the blood that enters the LV and ejected during the same cardiac cycle, (II) delayed ejection flow is the volume of the ejected blood that enters the left ventricle from a previous cardiac cycle, (III) retained inflow is the volume of the blood that enters the left ventricle but does not eject in the same cardiac cycle, and (IV) the residual volume is the blood that resides in the LV over the entire cardiac cycle for at least 2 cardiac cycles. The results of particle tracing were reviewed visually and data quality was checked as previously described (18). After the quality was thoroughly assessed, the KE of the volume of each flow components were calculated over a complete cardiac cycle.

6MWT

6MWT was performed before and after the intervention according to the protocol based on the guidelines established by the American Thoracic Society (19).

Statistical analysis

Statistical analysis was carried out with IBM SPSS^® Statistics (Version 25) software. All data were treated as non-parametric. Continuous measurements are presented as median with interquartile ranges (IQR). A paired nonparametric two-tailed test (Wilcoxon signed-rank test) was used for paired analysis. Mann-Whitney test was used for all continuous variables to compare differences between two different procedure options of the aortic valve. For investigating associations between two categorical variables, non-parametric Chi-squared test (χ²) was used (20). Correlation between variables was assessed by Spearman correlation coefficient (rho), Value of P<0.05 was considered significant. Results with a P value of <0.05 were considered statistically significant.

Results

Demographic characteristics

The demographic data of the patients were fully summarized in (Table 1). Eighteen patients completed the full study protocol with a mean age of 74.6, ranging from 53 to 89 years. Ten patients underwent SAVR whereas eight patients underwent TAVI procedure. SAVR patients were younger than TAVI patients (68±8 vs. 82±11 years old, P=0.01), and the 6MWT was better in SAVR patients as compared to TAVI cohort (409±182 vs. 318±96.5 meters, P=0.02). From 18 patients recruited, 6 were in atrial fibrillation (AF) (Table S1). Patients in AF had lower LVSV. On direct comparison, the heart rate (HR) was comparable in patients with AF versus in patients with sinus rhythm. Only one patient had a bicuspid aortic valve. A total of 6 post-operative patients including 1 SAVR and 5 TAVI declined to come back for research CMR scan. 4D flow CMR scans were performed between 2017 and 2018 at a mean time of 3 months before and after the intervention.

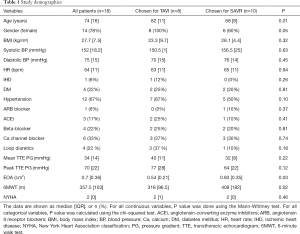

Table 1 Study demographics
Full table

Paired comparison of pre- and post-operative data changes

Haemodynamic parameters

There were no significant changes in the systolic blood pressure and diastolic blood pressure or the HR after the valve intervention (P=0.41, P=0.83, P=1.0 respectively). The transthoracic echocardiographic haemodynamic measurement showed a significant reduction in the mean pressure gradient (PG) (P=0.001) (Figure 2). LVEDV, LV SV, and LV mass were decreased significantly after the valve intervention (P=0.02, P=0.009, P=0.002 respectively), however, there were no significant changes in both LVESV and EF (P=0.09, P=0.38 respectively) (Table 2).

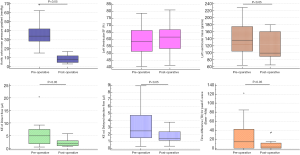

Figure 2 Pre and post aortic valve intervention box and whisker charts demonstrating a significant drop in LV mass and the associated drop in TD (msec), direct and delay LV blood flows. LV, left ventricle; TD, time delay.

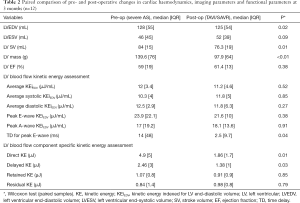

Table 2 Paired comparison of pre- and post-operative changes in cardiac haemodynamics, imaging parameters and functional parameters at 3 months (n=12)
Full table

KE parameters

Table 2 provides a full summary of LV KEi_EDV parameters before and after the intervention. The results from Wilcoxon analysis demonstrated that pre and post aortic valve interventions (SAVR/TAVI), average LV KEi_EDV (12.0±3.4 vs. 11.2±4.6 µJ/mL), average systolic LV KEi_EDV (10.3±3.8 vs. 11.8±5.0 µJ/mL), and average diastolic LV KEi_EDV (12.5±2.9 vs. 11.8±6.3 µJ/mL), were comparable (P=0.52, P=0.85, P=0.27 respectively). Furthermore, there were no significant changes in the early and late diastolic (E and A waves) peaks (P=0.38, P=0.91 respectively).

The relative drop in mitral flow KE parameters (from base to mid-ventricle and from mid-ventricle to apex) were also not changed significantly after the valve intervention (P=0.27, P=0.15).

Early diastolic time delay (TD)

Figure 2 shows the change of TD and some CMR functional parameters before and after the intervention for all the patients. The delayed time for the travel of the blood from the base to mid-ventricle during the early diastolic phase (TD) was significantly decreased after the valve procedure (14±48 vs. 2.5±9.75 msec, P=0.04) (Table 2).

Flow components analysis

The volume and distribution of the LV flow components were determined in all patients before and after the intervention. The calculated volumes of LV inflow and outflow were well matched (concordance correlation coefficient =0.91, 95% confidence interval, 0.83 to 0.96, P<0.0001; mean bias =−0.82, 95% confidence interval −3.5 to 1.9, P=0.55; 41.76±17.69 vs. 42.11±18.07 mL, P=0.59). The Wilcoxon analysis of the blood component KE reveals that the KE of both direct flow and delayed flow was significantly reduced after the intervention (P=0.01, P=0.04 respectively) (Table 2), whereas no significant changes were noted for the LV KE of the other two components (Table 2).

Association with 6MWT

There were no significant differences in the preoperative versus postoperative 6MWT (373±96.6 vs. 360±146 meters, P=0.76). The results from the non-parametric Spearman’s analysis revealed that there was a significant negative correlation between 6MWT and the average LV KEi_EDV (r=−0.53, P=0.003), average diastolic KEi_EDV (r=−0.53, P=0.003), and peak E-wave KEi_EDV (r=−0.38, P=0.04) (Figure 3). 6MWT correlated positively with the relative drop in mitral flow KEi_EDV (r=0.40, P=0.033). However, there was no correlation observed with the other LV KEi_EDV parameters. Interestingly, 6MWT did not correlate with KE of the four blood components (Table 3) respectively.

Figure 3 Scatter-matrix demonstrating data distribution for 6MWT and its association to LV blood flow KE in the whole study population both pre- and post-valvular intervention. 6MWT, six-minute walk test; LV, left ventricle; KE, kinetic energy; TD, time delay.

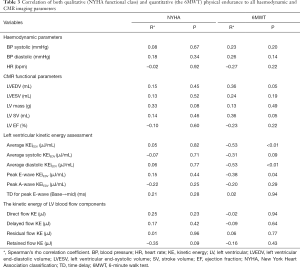

Table 3 Correlation of both qualitative (NYHA functional class) and quantitative (the 6MWT) physical endurance to all haemodynamic and CMR imaging parameters
Full table

There was positive correlation between 6MWT and both LVEDV, SV (r=0.36, P=0.05; r=0.36, P=0.05 respectively), however, LVESV, LV mass, and EF did not show any significant correlation with 6MWT (P=0.18, P=0.49, P=0.22 respectively) (Table 3).

Association with NYHA classification

There was no significant association between the imaging parameters and the patient’s symptoms assessed by NYHA classification (Table 3).

Association with LV remodelling

From the LV KE parameters, only the preoperative average KEi_EDV was significantly correlated with the absolute change in LV mass post-operatively (P=0.02) (Table 4 and Table S2). Preoperative routine assessment (LV EF and mean TTE PG) did not show any significant changes with LV remodelling in the post-operative phase (P=0.25, P=0.73 respectively) (Figure 4).

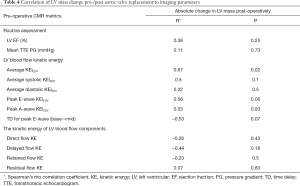

Table 4 Correlation of LV mass change pre-/post aortic valve replacement to imaging parameters
Full table

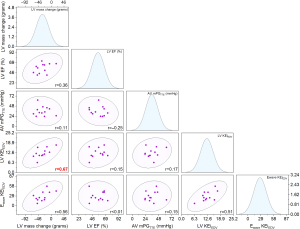

Figure 4 Scatter matrix demonstrating an association of LV remodelling post SAVR/TAVI is associated with pre-intervention LV blood flow KE only and not with LV EF or AV mPG. LV, left ventricle; KE, kinetic energy; SAVR, surgical aortic valve replacement; TAVI, transcatheter aortic valve implantation; EF, Ejection fraction; AV, aortic valve; mPG, mean pressure gradient.

Discussion

To our knowledge, this is the first study to report the LV blood flow KE in patients with AS—both in pre and post valvular intervention stages. In addition, this study gives mechanistic insight into changes associated with AS in the assessment of KE of the blood flow component. The main findings of this study include that the average KE of the blood flow through the left ventricle does not change significantly following valve intervention. However, the TD, direct flow and delayed flow are significantly altered post valvular intervention. In addition, LV blood flow KE metrics demonstrated best association with the 6MWT. Finally, LV remodelling at 3-months was only associated with the delayed flow component of LV flow.

LV KE before and after the intervention

The results from our study reveal that the LV blood flow KE does not change significantly after valve intervention and thus remains preserved. This was an unexpected finding—however, we speculate that this is the result of energy preservation of blood flow coupled with left ventricle mechanics. However, different components of blood flow KE demonstrated changes in pre valve intervention to post valve intervention cohort. Both direct and delayed flow components KE were significantly reduced post valvular intervention. It is worth noting that the rise in direct and delayed flow components in severe AS patients was mainly observed in late diastolic filling phase (Figure 1). However, further research is warranted to explain this phenomenon.

In our study, LV blood flow KE demonstrated inverse correlation to the quantitative physical endurance, i.e., the 6MWT. This was not seen for standard CMR derived functional and volumetric assessment. Several studies have reported that the 6MWT is a reliable measure of the overall impact of a clinical condition and a predictor of increased mortality (21-23). Hence, an increase in the LV blood flow KE may provide a novel haemodynamic biomarker of physical endurance that could be a useful early parameter in the assessment of function, morbidity and perhaps prognosis in patients with AS. However, previous studies from our group have demonstrated that the average LV blood flow KE has a trend to reduce slightly with age, hence the association with 6MWT may become more relevant when a patient develops AS and requires longitudinal monitoring of progress. Future studies should evaluate clinical cut-offs which predict outcomes in AS.

It was worth noting that none of the non-invasive functional or haemodynamic parameters demonstrated association to NYHA functional class. While it is tempting to blame this on the subjectivity of NYHA functional class and to claim that it may have a limited role in precision medicine. However, we need to admit that NYHA class withstood the test of time since 1923 and remains broadly a reliable classification in making therapeutic decisions in cardiology.

Early diastolic TD

Normally, the blood flows rapidly into the LV cavity from the base to the apex of the heart. In this study, we measured the TD described before by our research group as a marker of LV compliance and diastolic function (12,16). TD increases in patients who had an MI with preserved LVEF and also has a diagnostic value in patients with LV thrombus. The significant reduction in TD reflects an improvement in restrictive LV filling after the valve intervention. This method is similar to the assessment of the mitral valve flow propagation velocity (Vp) by echocardiography, which is normally more than 50 cm/sec (24). However, the TD here is derived automatically using 3D flow quantified data versus VP which is very susceptible to operator variability (25,26).

Predictors of positive LV remodelling

The only pre-operative CMR parameter which demonstrated good association to LV remodelling post valve intervention was average LV blood flow KEi_EDV for the complete cardiac cycle. Both PG by echocardiography and CMR LVEF did not demonstrate any added value for prediction. In this small pilot study, peak E_wave KEi_EDV showed a trend towards association with LV remodelling. This is consistent with previous CMR study which demonstrated no added predictive value of routine PG and function assessment for LV remodelling in patients with AS (21,22).

Relation to earlier studies

Although this study did not recruit healthy control, patients with AS appear to have higher LV KE when compared to similar age group patients in previous studies (12.0±3.4 vs. 8±1.3 µJ/mL) (23). This could be explained by the increased outflow tract velocity in this cohort. Also, the diastolic and peak E-wave KE were higher in this study when compared to Crandon et al.’s work, and may reflect higher degree of deterioration of LV compliance in AS patients than previously studied healthy controls.

Clinical implications and future direction

This study demonstrates the feasibility of three-dimensional quantification of blood flow in the LV cavity from the complete cardiac cycle in patients with AS. The results from this pilot work are hypothesis generating and the real clinical value of LV blood flow KE needs to be tested in a larger clinical cohort. From this study, it would seem that LV blood flow KE may offer novel imaging flow-based based biomarkers which reflect the true functional status of the patient quantified by the 6MWT. The LV blood flow KE assessment may also have a prognostic role in understanding of LV remodelling post aortic valve intervention. However, as there is emerging evidence of multi-parametric CMR including tissue characterisation in AS assessment, the overall clinical role of LV blood flow KE assessment may only be complimentary. Nevertheless, this is likely to make CMR a more versatile tool for a comprehensive assessment of AS.

Limitations and further works

This study has some limitations. Because of small numbers of patients recruited to this study, findings are mainly hypothesis-generating. Future larger sample sizes with long-term studies are required to detect possible changes in intra-ventricular blood flow behaviour over a complete cardiac cycle, and potential differences according to the surgical approach. In addition, a direct age-matched comparison with healthy volunteers was not done in this study. Furthermore, assessment of the difference in LV KE profiles between the two different treatment options of the aortic valve replacement (TAVI and SAVR) would be interesting to study. Higher VENC settings in pre-operative cases may have introduced noise in lower velocity profiles, which could influence our results.

Conclusions

LV blood flow KE is associated with 6MWT and LV remodelling in patients with AS. LV KE assessment demonstrates complimentary value to routine LV function and PG assessment in AS. Future prognostic and larger clinical studies are warranted to establish the cumulative role of routine LV blood flow KE assessment in patients with AS.
