Texture analysis based on quantitative magnetic resonance imaging to assess kidney function: a preliminary study

Introduction

Chronic kidney disease (CKD) is a global public health problem with an unabated rise in prevalence and mortality (1). The early detection of renal function impairment and prediction of the likelihood of a progressive decline in the glomerular filtration rate (GFR) is important for timely therapeutic management (2). It has been established that decreased perfusion, chronic hypoxia, and renal fibrosis play a critical role in causing kidney damage (3). Thus, researchers have made efforts to develop novel biomarkers that can accurately assess these renal changes to detect and evaluate renal function impairment early and potentially predict disease progression (4).

Magnetic resonance imaging (MRI) has been applied as a useful tool to assess chronic kidney disease noninvasively, and different MRI techniques have shown great potential in the evaluation of renal function (5). Diffusion weighted imaging (DWI), one of the most studied techniques, has been demonstrated to characterize renal function, with decreased apparent diffusion coefficient (ADC) values in patients with renal dysfunction (6). Other studies have evaluated T1 and T2 mapping, which have already been applied in clinical practice to quantify myocardial edema or fibrosis in patients with myocardial infarction or cardiomyopathy (7,8). It has been shown that T1 mapping can detect the severity of acute kidney injury and predict further outcomes and that T2 values are sensitive markers of early cystogenesis in polycystic kidney disease (9,10). However, the study of T1 and T2 mapping to evaluate humans' renal function is limited (11). Also, DWI and T1 and T2 mapping measure the average value within a particular lesion and do not reflect the tissue’s signal heterogeneity.

Texture analysis (TA) is a novel technique that performs an ensemble of mathematical computations on conventional images to quantify tissue heterogeneity (12,13). It has been applied as new imaging biomarkers in oncology to classify tumors, predict prognosis, and monitor treatment responses (14-16). Previous studies have also demonstrated that TA based on T2-weighted images offers an approach to refine autosomal dominant polycystic kidney disease (ADPKD) and that TA based on DWI, blood oxygen level-dependent (BOLD) MRI, and susceptibility-weighted imaging (SWI) can assist in evaluating renal dysfunction (17,18). However, renal function evaluation in humans using TA based on ADC, T1, and T2 values has not yet been explored.

Therefore, the purpose of this study was to investigate the feasibility of using TA based on DWI and T1 and T2 mapping to detect GFR decline and discriminate different degrees of renal function impairment.

Methods

Patients

This prospective study was approved by the Medical Ethics Committee of Peking Union Medical College Hospital (Ethical No.: ZS-1271), and written informed consent was obtained from each participant. From February 2017 to May 2017, patients were randomly and consecutively recruited from the Department of Nephrology in our hospital. The inclusion criteria were as follows: (I) age ≥18 years old; and (II) biopsy-proven or clinically confirmed renal diseases, including Gitelman syndrome, immunoglobulin (Ig) A nephropathy, CKD, IgG4 nephropathy, malignant hypertension, acute kidney injury, and antineutrophil cytoplasmic antibodies (ANCA)-associated systemic vasculitis. The exclusion criteria included pregnancy, lactation, malignancies, hemodialysis, renal tumors with maximal diameter >1 cm or number of renal tumors >5 in each kidney, and patients unable to hold their breath for over 10 seconds, and general contradictions for MRI examination.

All participants followed 4-hour pre-examination fasting. Clinical information was collected from the medical database of our hospital. Estimated GFR (eGFR) was calculated using the Chronic Kidney Disease Epidemiology Collaboration equation as follows: GFR (mL/min/1.73 m²)=141×min (Scr/κ,1)^α×max (Scr/κ,1)^1.209×0.993^age×1.018 (if female) ×1.157 (if black), where κ is 0.9 for males and 0.7 for females, α is −0.411 for males and −0.329 for females, min indicates the minimum value and max indicates the maximum value, age is in years, weight is in kilograms, and Scr is the serum creatinine level in micromoles per liter. The enrolled subjects were classified into four different groups according to their eGFR: (I) a normal renal function group (nRF), eGFR ≥90 mL/min/1.73 m²; (II) a mildly impaired renal function group (mi-IRF), 60≤ eGFR <90 mL/min/1.73 m²; (III) a moderately impaired renal function group (mo-IRF), 30≤ eGFR <60 mL/min/1.73 m²; and (IV) a severely impaired renal function group (se-IRF), eGFR <30 mL/min/1.73 m².

MRI protocol

All MRI images were obtained on a MAGNETOM Skyra 3T MR scanner (Siemens Healthcare, Erlangen, Germany) using an 18-channel phased-array body coil combined with a 32-channel spine coil with imaging parameters in each sequence described in Table S1. To reduce the respiratory motion artifacts, patients held their breath during T1 mapping scanning. During T2 mappin scanning, motion artifacts were reduced by using respiratory triggerin through synchronizing the measurement with the breathing cycle of the patient. We also asked patients to use thoracic breathing and take shallow breaths during the scanning. Axial and coronal T2-weighted images were acquired for the kidney structure's anatomical identification, and then axial DWI and coronal T1 and T2 mapping of both kidneys were performed. T1 mapping based on the inversion recovery SNAPSHOT-FLASH sequence with respective reconstruction was described in detail in the work of Deichmann and Haase (19). For T1 mapping, free relaxation of the longitudinal magnetization after a 180° inversion is modeled by Mfree(t)=M0−2M0e−tT1, where t is the time after the 180° inversion, M^free (t) is the longitudinal magnetization at time t, M₀ is the equilibrium longitudinal magnetization, and T1 is the relaxation time in the considered voxel. T2 mapping was based on the work of Sumpf et al. (20,21). The model of the T2 mapping is a simple spin-echo mono-exponential signal-model: M(t,r→)=ρ(r→)⋅e−R(r→)⋅t, where M is the magnetization in voxel r→ at time point t, R(r→) is the relaxation-rate parameter, and ρ(r→) is the spin density at position r→. ADC maps were computed automatically using the DWI images at five b-factors. ADC, as well as T1 and T2 maps, were subsequently used for TA.

Image analysis

The images were anonymized before being reviewed by radiologists who were blinded to the participants’ clinical information, including renal function. One genitourinary radiologist (13 years of experience) selected the slice at the renal hilum level for each ADC and T1 and T2 map. Anatomical landmarks and visual coregistration were used to find corresponding slices among different maps. The selected images were transmitted to a workstation for TA afterward. TA was performed by a trained radiologist with 6 years of experience in renal imaging and 4 years of experience in TA using the commercially available research software TexRAD (TexRAD Ltd., www.texrad.com, part of Feedback Plc, Cambridge, UK). On each selected image, regions of interest (ROIs) for the cortex and medulla were placed in both kidneys (Figure 1A,B). For the cortex, the ROI was delineated along the cortex’s outline to cover the entire cortex. For the medulla, since many patients with impaired renal function had diminished corticomedullary differentiation (CMD), it was difficult to draw the medulla outline accurately. Thus, we placed at least three pyramidal ROIs in each kidney to represent the entire medulla, and the average of the values in these pyramidal ROIs was subsequently used for analysis.

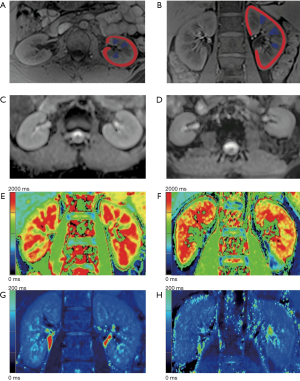

Figure 1 Demonstration of ROIs and examples of ADC and T1 and T2 maps obtained in a healthy volunteer and a patient with impaired renal function. (A) and (B) show ROIs in axial and coronal anatomic reference images. Red ROIs are cortex delineation, and blue ROIs are medulla delineation. (C,E,G) show ADC and T1 and T2 maps of a healthy volunteer (male, 26 years old). (E,F,H) show ADC, T1 and T2 maps of a 46-year-old female diagnosed with IgA nephropathy with mildly impaired renal function. ROI, region of interest; ADC, apparent diffusion coefficient.

Texture quantification by histogram analysis was performed after an image filtration process using a Laplacian Gaussian spatial bandpass filter (22). The spatial scaling factor (SSF) represented the size of the image features highlighted by the filter, and ranged between object radii of 0, 2, 3, 4, 5, and 6 mm. An SSF of 0 indicated no filtration, an SSF 2 represented fine, an SSF 3–5 represented medium, and an SSF 6 represented coarse texture scales. At each SSF, six texture features were extracted. The six texture features generated using the histogram were mean gray-level intensity (mean), standard deviation (sd), entropy, mean of positive pixels (mpp), skewness, and kurtosis. The value of each texture parameter across each SSF on each slice was recorded for both the cortex and medulla of the left, right, and both kidneys, respectively, on ADC and T1 and T2 maps. The values of the parameters for the cortex and medulla of both kidneys were automatically provided by the software. The process was repeated three times, and the average values of three measurements for each parameter on the ADC and T1 and T2 maps were used for statistical analysis.

Statistical analysis

The texture feature analysis and prediction model construction were implemented with scikit-learn (https://scikit-learn.org/) on Python 3.5.4 (https://www.python.org/). For each patient, a total of 6 (mean, sd, mpp, entropy, skewness, kurtosis) ×6 (SSF 0, 2, 3, 4, 5, 6) ×6 (cortex of right, left, both kidneys; medulla of right, left, both kidneys) ×3 (ADC, T1 mapping, T2 mapping) =648 features were extracted. Spearman's rank correlation coefficients were calculated between all features and prediction labels. We removed features that were strongly correlated with each other (those exhibiting a high correlation coefficient over 0.75). Features with a low correlation coefficient (<0.3) or a corresponding P value greater than 0.05 were removed accordingly. The least absolute shrinkage and selection operator (LASSO) algorithm was used to implement next-step feature dimensionality reduction. The remaining features were then used to train a prediction model in the training cohort.

We compared six machine-learning classifiers, including Ridge Classifier, LogisticRegression, LinearSVC, Perceptron, SGDClassifier, and PassiveAggressiveClassifier. Five-fold cross-validation was used to compare the performance (prediction accuracy) of different machine-learning classifiers and help to select the optimal one. Receiver operating characteristic (ROC) analysis was performed, and the area under the ROC curve (AUC) was calculated for each comparison. The Delong test was used to calculate the 95% confidence index (CI) of the ROC curves. A two-sided P<0.05 indicated a statistically significant difference.

Results

Patient characteristics

In total, 116 participants were included in this study. Figure 1C,D,E,F,G,H shows examples of ADC and T1 and T2 maps of a healthy volunteer and a patient with impaired renal function, respectively. Figure 2 depicts the flowchart of patient selection in this study. Of the 116 subjects, 94 were patients with renal diseases (male/female 57/37, mean age 42.3±14.1 years), and 22 were healthy volunteers (male/female 12/10, mean age 29.4±6.2 years). Of the 94 patients with renal diseases, 20 had genetic testing confirmed Gitelman syndrome, 26 had biopsy-proven IgA nephropathy, 26 had clinically confirmed CKD, 12 had biopsy-proven IgG4 nephropathy, eight had malignant hypertension, one had acute kidney injury, and one had biopsy-proven ANCA-associated systemic vasculitis. The etiologies of CKD were as follows: chronic glomerulonephritis (n=9), diabetic mellitus nephropathy (n=5), chronic interstitial nephritis (n=4), and unknown etiology (n=8).

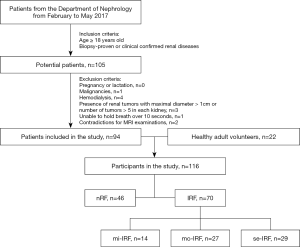

Figure 2 Flowchart of patient selection. nRF, normal renal function, eGFR ≥90 mL/min/1.73 m²; IRF, impaired renal function, eGFR <90 mL/min/1.73 m²; mi-IRF, mildly impaired renal function, 60≤ eGFR <90 mL/min/1.73 m²; mo-IRF, moderately impaired renal function, 30≤ eGFR <60 mL/min/1.73 m²; se-IRF, severely impaired renal function, eGFR <30 mL/min/1.73 m². eGFR, estimated glomerular filtration rate.

According to the eGFR, there were 46 patients with nRF (male/female 22/23, mean age 30.2±11.1 years, mean eGFR 117.3±14.0 mL/min/1.73 m²), 14 patients with mi-IRF (male/female 9/5, mean age 41.9±14.3 years, mean eGFR 72.0±6.5 mL/min/1.73 m²), 27 patients with mo-IRF (male/female 18/9, mean age 41.2±14.9 years, mean eGFR 46.4±8.9 mL/min/1.73 m²), and 29 patients with se-IRF (male/female 21/8, mean age 44.6±15.7 years, mean eGFR 19.1±7.5 mL/min/1.73 m²). Table 1 details the distribution of patients and healthy volunteers in each eGFR group. Patients in the nRF group were significantly younger than the patients in any of the IRF groups. The ages of the patients in the mi-IRF group were similar to those of the patients in the mo-IRF group, and both were slightly younger than the patients in the se-IRF group.

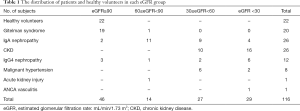

Table 1 The distribution of patients and healthy volunteers in each eGFR group
Full table

Detection and characterization of impaired renal function

None of the texture features quantified from the T2 map were selected to build classifiers to detect or evaluate renal function impairment. As for selecting the optimal classifier, RidgeClassifier was used to distinguish between nRF and IRF. Linear SVC and RidgeClassifier were further used to characterize the severity of impaired renal function: mi-IRF vs. mo-IRF and mo-IRF vs. se-IRF, respectively (Figure 3). Table 2 summarizes different classifiers’ performance built by texture features from ADC and T1 maps to differentiate between normal and abnormal, mildly impaired and moderately impaired, and moderately impaired and severely impaired renal function.

Figure 3 Comparison of machine learning classifiers for differentiation of different renal function. Accuracies of six machine learning classifiers for differentiation between (A) normal and abnormal renal function, (B) mildly and moderately impaired renal function, (C) moderately and severely impaired renal function.

Table 2 The performance of detecting and characterizing the severity of impaired renal function
Full table

Normal vs. abnormal renal function

To distinguish between the normal and abnormal renal function groups, the patients were divided into two groups: nRF (n=46, eGFR ≥90 mL/min/1.73 m²) and IRF (n=70, eGFR <90 mL/min/1.73 m²). Data were randomly divided into training and testing datasets at a ratio of 2:1 (training n=77, testing n=39). The six texture features with the highest coefficients were selected to build the classifier. The selected features and corresponding coefficients are provided in Table 3. All of the selected texture features were quantified from ADC maps. The ADC-based texture features demonstrated favorable discrimination in both the training and testing datasets (AUC training: 0.877, testing: 0.835, P=0.63). The ROC curves for both datasets with five-fold cross validation are shown in Figure 4A,B. The performance of the classifier to distinguish between normal and abnormal renal function in both datasets was as follows: accuracy: training 0.821, testing 0.779; sensitivity: training 0.792, testing 0.761; specificity: training 0.867, testing 0.806; NPV: training 0.722, testing 0.694; and PPV: training 0.905, testing 0.854. The distribution plot showing the differences in the normal and abnormal function groups’ selected texture features is demonstrated in Figure 4C.

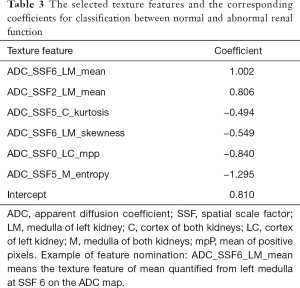

Table 3 The selected texture features and the corresponding coefficients for classification between normal and abnormal renal function
Full table

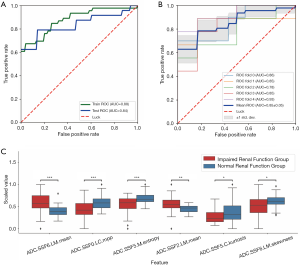

Figure 4 ROC curves and the distribution plot of the selected texture features for differentiation between normal and abnormal renal function. (A) shows ROC curves with an AUC of 0.880 (95% CI: 0.81, 0.97) in the training dataset and an AUC of 0.835 (95% CI: 0.712,0.966) in the testing dataset. (B) shows ROC curves of five-fold cross validation for differentiation between normal and abnormal renal function. (C) shows differences in the ADC-based texture features in the normal and abnormal renal function groups. Lines and asterisks indicate statistical significance to the boxplot with * indicating P<0.05, ** indicating P<0.01 and *** indicating P<0.001. Labels on the x-axis of the boxplot are named according to the specific MR sequence, SSF, and ROI location from which the texture feature is quantified. For example, ADC. SSF0. LC. mpp means the feature mpp quantified from left cortex at spatial scale factor 0 on the ADC map. ROC, receiver operating characteristic; AUC, area under the curve; ADC, apparent diffusion coefficient; CI, confidential interval; SSF, spatial scale factor; LM, left medulla; RM, right medulla; LC, left cortex; RC, right cortex; M, medulla of both kidneys; C, cortex of both kidneys.

Mildly vs. moderately impaired renal function

To distinguish between mi-IRF (n=14, 60≤ eGFR <90 mL/min/1.73 m²) and mo-IRF (n=27, 30≤ eGFR <60 mL/min/1.73 m²), nine texture features were selected, including seven features quantified from the ADC map and one feature quantified from the T1 map to build the classifier (Table 4). The classifier produced an AUC of 0.937 [95% confidential interval (CI): 0.864–1], an accuracy of 0.878, a sensitivity of 0.889, a specificity of 0.857, an NPV of 0.800, and a PPV of 0.923 to differentiate between mi-IRF and mo-IRF (Table 2). The ROC curves with cross validation are shown in Figure 5A,B, and the distribution plot of the selected texture features in the mildly and moderately impaired renal function groups is demonstrated in Figure 5C.

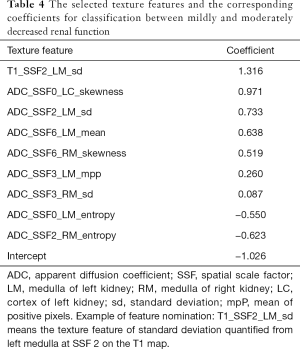

Table 4 The selected texture features and the corresponding coefficients for classification between mildly and moderately decreased renal function
Full table

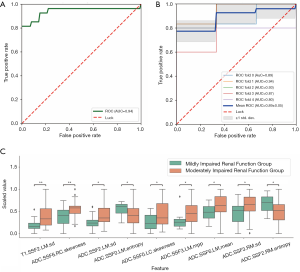

Figure 5 ROC curves and the distribution plot of the selected texture features for differentiation between mildly and moderately impaired renal function. (A) shows the ROC curve for discrimination between mildly and moderately impaired renal function with an AUC of 0.937 (95% CI: 0.864, 1) and (B) shows the corresponding ROC curves of five-fold cross validation. (C) shows differences in the ADC and T1 map-based texture features in the mildly and moderately impaired renal function groups. Lines and asterisks indicate statistical significance to the boxplot with * indicating P<0.05, ** indicating P<0.01 and *** indicating P<0.001. Labels on the x-axis of the boxplot are named according to the specific MR sequence, SSF, and ROI location from which the texture feature is quantified. For example, ADC. SSF0. LC. mpp means the feature mpp quantified from left cortex at spatial scale factor 0 on the ADC map. ROC, receiver operating characteristic; AUC, area under the curve; ADC, apparent diffusion coefficient; CI, confidential interval; SSF, spatial scale factor; LM, left medulla; RM, right medulla; LC, left cortex; RC, right cortex; M, medulla of both kidneys; C, cortex of both kidneys.

Moderately vs. severely impaired renal function

For separating mo-IRF (n=27, 30≤ eGFR <60 mL/min/1.73 m²) from se-IRF (n=29, eGFR <30 mL/min/1.73 m²), we found that the classifier with 10 selected features quantified from ADC maps could yield an AUC of 0.940 (95% CI: 0.883–1), an accuracy of 0.821, a sensitivity of 0.759, a specificity of 0.889, an NPV of 0.774, and a PPV of 0.880 (Table 2). The selected features and corresponding coefficients are provided in Table 5. The ROC curves with cross validation are shown in Figure 6A,B, and the distribution plot of the selected texture features of the moderately and severely impaired renal function groups is shown in Figure 6C.

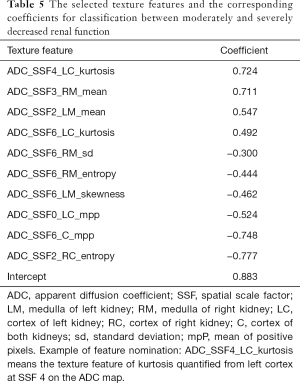

Table 5 The selected texture features and the corresponding coefficients for classification between moderately and severely decreased renal function
Full table

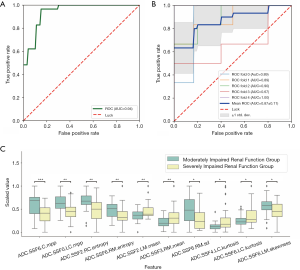

Figure 6 ROC curves and the distribution plot of the selected texture features for differentiation between moderately and severely impaired renal function. (A) shows the ROC curve for differentiation between moderately and severely impaired renal function with an AUC of 0.940 (95% CI: 0.883, 1) and (B) shows the corresponding ROC curves of five-fold cross validation. (C) shows differences in the ADC-based texture features in the moderately and severely impaired renal function groups. Lines and asterisks indicate statistical significance to the boxplot with * indicating P<0.05, ** indicating P<0.01 and *** indicating P<0.001. Labels on the x-axis of the boxplot are named according to the specific MR sequence, SSF, and ROI location from which the texture feature is quantified. For example, ADC. SSF0. LC. mpp means the feature mpp quantified from left cortex at spatial scale factor 0 on the ADC map. ROC, receiver operating characteristic; AUC, area under the curve; ADC, apparent diffusion coefficient; CI, confidential interval; SSF, spatial scale factor; LM, left medulla; RM, right medulla; LC, left cortex; RC, right cortex; M, medulla of both kidneys; C, cortex of both kidneys.

Discussion

This study demonstrated that texture features quantified from ADC and T1 maps were related to eGFR, and a higher number of texture features on ADC maps showed a correlation with eGFR than those based on T1 maps. Texture features quantified from the renal medulla seemed to be more related to renal function than features quantified from the renal cortex. Combinations of different texture features could enable the detection of eGFR decline, and the discrimination between different degrees of eGFR decreases with relatively satisfactory performance.

Consistent efforts have been made to reveal DWI's potential for evaluating renal diseases, and promising results have been achieved for estimating fibrosis in CKD and guiding biopsy in acute graft dysfunction (23,24). Of the DWI models, the monoexponential model with ADC calculation is the most robust and widely used. Numerous studies have confirmed that ADC can differentiate between normal and impaired kidneys and correlates with renal function estimated by creatinine values (25-29). A few studies have also revealed that cortical ADC is relatively well correlated with cortical fibrosis and chronic lesions (30-32). In the present study, certain texture features quantified from the ADC map showed good correlation with eGFR changes and were selected to build models for the classification of different degrees of renal impairment, which achieved satisfactory performance. All of the selected texture features to classify normal, abnormal, moderately, and severely impaired renal function were quantified from the ADC map, indicating the potentially significant role of the ADC map in evaluating renal function. However, as ADC is a single parameter in the monoexponential model, and since renal impairment is a rather complicated process, it remains unclear whether alterations in ADC values reflect the decline of renal function alone, the degree of tissue fibrosis, or both.

Several studies have investigated renal T1 mapping for evaluating renal transplants and renal function. T1 CMD could be used to evaluate renal interstitial fibrosis in allografts, and T1 values are sensitive to possible acute kidney injury changes in patients with lung transplantation (33-35). Cortical T1 and T1 CMD are moderate to strongly correlated with the severity of renal impairment (36,37). Our study revealed that standard deviation quantified from the left kidney's medulla at SSF2 on the T1 map showed a good correlation with eGFR decline and was selected to build the classifier to differentiate between mildly and moderately impaired renal function. However, no other texture features quantified from the T1 map were selected to build classifiers to detect or evaluate renal function impairment. One possible explanation for this is that ADC-based texture features outperformed T1 map-based texture features in the assessment of renal function; thus, T1 map-based texture features were not selected when building the classifiers. The only selected T1 map-based texture feature was quantified from the renal medulla. However, as previous studies have demonstrated that cortical T1 is sensitive to oxygenation level changes, the implication of medullary T1 modulations has yet to be determined. Thus, this result should be interpreted with caution, and whether specific texture features quantified from medullary T1 values truly correlate with eGFR decline still needs to be further clarified and remains a subject for future exploration.

The role of T2 mapping in evaluating renal function in humans is also under investigation, but studies involving in vivo measurements of renal T2 values are relatively scarce. Elevated T2 values were observed in patients with early-stage ADPKD, and T2 mapping may potentially improve the assessment of early-disease progression compared with total kidney volume (17). It has also been shown that renal T2 values measurements have the potential to assess ischemia-reperfusion injury (38). In the present study, we attempted to identify the relation of in vivo renal T2 values to eGFR and clarify the role of T2 mapping in evaluating renal function. Our results, however, showed that none of the texture features quantified from the T2 map were selected to detect eGFR decline or discriminate between different degrees of renal function impairment. It seems that renal T2 values are not correlated with eGFR, and it is possible that T2 mapping may not be of great value in evaluating renal dysfunction. However, further research is needed to confirm our results and explore the potential of T2 mapping in assessing renal diseases.

TA has become a novel research focus on rapid development in recent years, especially in oncological imaging. Quantitative texture features are promising biomarkers for pathological changes or the response to treatment (14). Several studies have explored the potential of TA to evaluate kidney diseases. Kline et al. demonstrated that TA of T2-weighted MRI images could be a significant prognostic biomarker for the subsequent eGFR decline and disease progression in ADPKD (17). Researchers used the stability of texture features as the basis for feature selection, and entropy was selected as a result that showed a strong correlation with the subsequent percentage change in eGFR. Ding et al. performed TA on DWI, BOLD, and SWI to evaluate renal dysfunction and found that BOLD and SWI (but not DWI) may be suitable for assessing renal dysfunction in the early stages (18). They showed that entropy was correlated with eGFR, which was similar to our results; however, skewness and kurtosis were not significantly correlated with eGFR, which differed from our findings. This discrepancy may be attributable to the fact that they quantified texture features from the renal parenchyma instead of our study, which quantified texture features from the renal cortex or medulla, respectively. Like the study by Kline et al., entropy quantified from BOLD also showed the capability to differentiate non-severe renal function impairment from normal renal function (17). In line with these two studies, our results support the conclusion that TA based on MRI could evaluate renal dysfunction. In addition to the ADC map, we explored the potential of texture features quantified from T1 and T2 maps to evaluate renal function, and our results implied that T1 mapping might be of value for the evaluation of renal function. However, our findings need to be confirmed in future studies.

The present study has several limitations that should be noted. First, since the subjects were divided into four groups according to eGFR, each group's sample size was small, especially the mi-IRF group (n=14). The dataset was imbalanced when differentiating mi-IRF from mo-IRF (n=27). A greater number of subjects with more balanced grouping should be enrolled to validate the results further. Second, since we focused on evaluating renal function based on eGFR rather than underlying renal diseases, patients with different renal pathologies were included. Our results showed that TA based on quantitative MRI could detect and characterize impaired renal function regardless of the cause of renal impairment. However, we did not assess TA’s potential to distinguish among these renal pathologies, which is worth investigating in the future.

Third, the data were not divided into training and validation datasets when differentiating between mildly and moderately impaired renal function and between moderately and severely impaired renal function because of the limited number of patients in each group. Further investigation with an independent validation cohort should be conducted to validate our results. Fourth, we only selected the slice at the renal hilum level for analysis, given the time-saving nature of this method and the fact that not all the slices of the included patients exhibited sufficiently good image quality for TA. We plan to perform whole kidney analysis in the future to validate our study. Fifth, since many patients with impaired renal function in this study had diminished CMD, it was hard to draw the medulla outline accurately. Thus, we adopted a compromise approach by placing at least three pyramidal ROIs on the medulla to represent the whole medulla, which may have introduced bias. A greater number of patients with visible CMD should be enrolled to allow the entire medulla’s delineation for further analysis. Sixth, undoubtedly, TA based on MRI is not time- or cost-effective for evaluating renal function; however, our study demonstrated the possibility of using this novel technique to evaluate renal dysfunction or disorders.

In conclusion, TA based on quantitative MRI offers an opportunity to monitor renal dysfunction. Compared with those from T2 maps, texture features quantified from ADC and T1 maps may be more suitable for detecting and characterizing renal dysfunction with relatively satisfactory performance. It is promising that texture features based on quantitative MRI may serve as imaging biomarkers to reveal renal impairment and potentially act as a tool to evaluate renal pathologies with further exploration in the future noninvasively.
