Layer-specific strain and dyssynchrony index alteration in new-onset systemic lupus erythematosus patients without cardiac symptoms

Introduction

With advances in immunosuppressive therapies, the short-term outcome of patients with systemic lupus erythematosus (SLE) has significantly improved. However, SLE patients have up to a 10-fold increased risk of cardiovascular morbidity and mortality, and cardiac involvement still accounts for most deaths (1). Cardiac impairment in SLE is often asymptomatic and not always in parallel with disease activity (2,3). While transthoracic echocardiography is a routine method to screen cardiovascular system involvement in SLE, it often fails to detect subclinical ventricular dysfunction for several reasons. For example, abnormal left ventricular ejection fraction (LVEF) tends to reflect global but not regional myocardial dysfunction. Furthermore, disadvantages including load and angle dependency and low reproducibility exist in the measurement of LVEF (4).

Speckle-tracking echocardiography (STE) is a practical and noninvasive method of assessing cardiac function which has attracted increased attention in the past two decades. While STE provides important information on subclinical left ventricular dysfunction (5,6), layer-specific STE has the advantage of quantifying longitudinal-and circumferential-layer strains of the endocardium, midmyocardium, and epicardium, which makes it more sensitive and accurate than STE (7). Moreover, peak systolic dispersion (PSD) acquired in layer-specific STE and defined as the standard deviation of the time to peak strain of the 18 segments, reflects left ventricular mechanical dyssynchrony (LVMD). Patients with LVMD have a poor prognosis, especially those with preserved ejection fraction (8,9).

To the best of our knowledge, the present study is the first to evaluate silent cardiac dysfunction and mechanical dyssynchrony in drug-naïve patients with new-onset SLE. Disease parameters associated with layer-specific STE change were also explored.

Methods

Study subjects

Drug-naive patients with new-onset SLE were consecutively recruited from the Second Affiliated Hospital of Fujian Medical University from January 2019 to January 2020. All patients fulfilled the 2012 American College of Rheumatology (ACR)/Systemic Lupus International Collaborating Clinics (SLICC) criteria (10). The onset of SLE-related symptoms occurred within 1 month prior to study entry, and patients had no cardiac symptoms. Disease activity was assessed by the Systemic Lupus Erythematosus Disease Activity Index-2K (SLEDAI-2K). The high-risk antiphospholipid antibody (aPL) profile was defined as the presence of lupus anticoagulant, or of double or triple aPL positivity, or the presence of persistently high aPL titres (11). A group of healthy controls included age-matched volunteers with a negative result to antinuclear antibodies and no history of systemic disease was also established. Other inclusion criteria for this group were normal echocardiography, electrocardiographic, N-terminal pro-B-type natriuretic peptide (NT-proBNP), and troponin I results. Exclusion criteria included age <18 years, a history of treatment with cardio-toxic drugs, acute coronary symptoms or symptomatic heart failure, previous cardiac surgery, obesity, hypertension, smoking, diabetes, bundle-branch heart block, an estimated glomerular filtration rate of <30 mL/minute/1.73 m², and tumor. This study was approved by the ethics committee of the Second Affiliated Hospital of Fujian Medical University. Written informed consent forms were obtained from all participants.

Routine echocardiographic assessment

We performed two-dimensional (2D) echocardiography examinations using a GE VIVID E95 ultrasound system equipped with a 1.4–4.6 MHz transducer (M5Sc-D probe). The LVEF was measured by the modified Simpson’s method and determined using the following parameters: left ventricular end-diastolic diameters (LVEDD), left ventricular end-systolic diameters (LVESD), interventricular septal (IVS), posterior wall thickness (PWT), left ventricular end-diastolic volume (LVEDV), and left ventricular end-systolic volumes (LVESV). Diastolic parameters included E, A, septal e’, lateral e’, E/e’, tricuspid regurgitation (TR) velocity, and left atrial volume index (LAVI). The “E” represents the trans-mitral peak velocity of early diastole, while the “e’” and the “A” refer to the velocity of early diastole of the mitral annulus and trans-mitral peak velocity of late diastole, respectively. Left ventricular diastolic function was assessed according to the 2016 American Society of Echocardiography/European Association of Cardiovascular Imaging recommendations (12). In patients with normal LVEF, the four variables for identifying diastolic dysfunction, and their abnormal cutoff values were the following: septal e’ <7 cm/sec, lateral e’ <10 cm/sec, average E/e’ ratio >14, LAVI >34 mL/m2, and peak TR velocity >2.8 m/sec.

2D STE assessment

Two-dimensional STE was performed using a GE VIVID E95 ultrasound system. Images of the apical four-chamber, apical two-chamber, apical LV long-axis, and LV short-axis views at the basal, papillary, and apical levels were collected within 3–5 cardiac cycles. The software package EchoPAC (version 201 6.3, GE Vingmed Ultrasound) was used to analyze images. Software tracked the endocardium outline and divided the whole ventricle wall into three layers (an endocardial, a mid-myocardial and an epicardial layer). Quantitative myocardial parameters for the global longitudinal strain (GLS) and global circumference strain (GCS) of each layer, and PSD, were obtained. STE data analyses were conducted by two investigators (TL and ZW) who had experience with layer-specific STE and were blind to the clinical data.

Statistical analysis

Differences and correlations between patients and controls were analyzed using t-test and Pearson’s correlation analysis, respectively, when the data was normally distributed. When it was not, the nonparametric Mann-Whitney rank-sum test and Spearman’s correlation analysis were applied. Partial correlation analysis and multivariate linear regression were used to find the disease parameters associated with abnormal measure values in STE. Inter- and intra-observer reproducibility was assessed using intraclass correlation coefficients. Statistical significance was defined as P<0.05, and all statistical analyses were performed with GraphPad Prism software 5.0 and SPSS software 21.0.

Results

Study population

The characteristics of SLE patients and healthy controls are summarized in Table 1. A total of 35 SLE patients with new-onset disease and 25 healthy controls were enrolled. Stable-to-mild disease activity was found in 51% of patients (n=18), while 40% had moderate disease activity (n=14), and 9% had high disease activity (n=3). No cardiac symptoms were reported in either SLE patients or controls. All participants had normal serum markers of cardiac injury including N-terminal pro-B-type natriuretic peptide (NT-proBNP) and troponin I, indicating an absence of clinical evidence of cardiac impairment in the SLE patients.

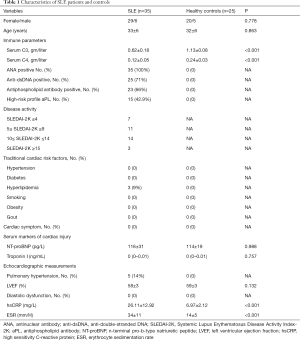

Table 1 Characteristics of SLE patients and controls
Full table

Conventional echocardiographic parameters

Conventional echocardiographic results are summarized in Table 2. All participants had normal LVEF. No significant differences of parameters assessing systolic and diastolic function including LVEDV, LVESV, LVEDD, LVESD, IVS, PWT, E, A, septal e’, lateral e’, averaged e’, E/e’, TR velocity, or LAVI were found between SLE patients and healthy controls (P>0.05, all).

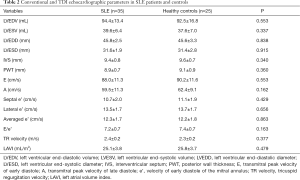

Table 2 Conventional and TDI echocardiographic parameters in SLE patients and controls
Full table

Layer-specific STE characteristics, left ventricular dyssynchrony index (PSD), and disease parameters in SLE patients

The representative images of layer-specific STE’s of one SLE patient and one healthy control are shown in Figures 1 and 2 respectively, and the results of layer-specific STE parameters are displayed in Table 3. Although clinical evidence of cardiac involvement was not detected in SLE patients through routine assessment, an increase in impairment of left ventricular GLS at three layers (whole layer GLS, endocardial GLS, and epicardial GLS) was observed in drug-naïve patients with new-onset SLE, compared with controls (P=0.02, 0.01, 0.04, respectively). Elevation of PSD, which reflects left ventricular dyssynchrony, was also found in SLE patients (P<0.01). In contrast, there was no significant difference in the GCS of the three layers (midmyocardium GCS, endocardium GCS and epicardium GCS) at the basal, papillary, and apical levels between SLE patients and controls (P>0.05, all).

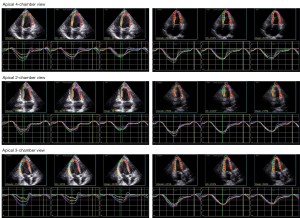

Figure 1 Typical layer-specific global longitudinal strain (GLS) images of the left ventricle (LV) from a patient with systemic lupus erythematosus (left) and a healthy individual (right). LV GLS was measured from three different views [apical 4 (upper level images)-, 2 (middle level images)-, and 3 (bottom level images)-chamber views]. Measurement of whole layer GLS, endocardial GLS, and epicardial GLS were performed.

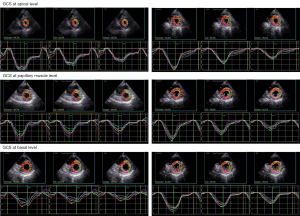

Figure 2 Representative plot of layer-specific global circumferential strain (GCS) in the left ventricle (LV) of an SLE patient (left) and a healthy individual (right). LV GCS was measured from three different levels (apical level, papillary muscle level, and basal level). Measurement of midmyocardium GCS, endocardium GCS, and epicardium GCS were performed.

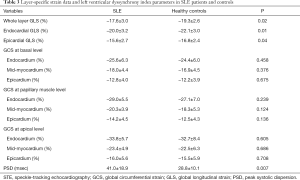

Table 3 Layer-specific strain data and left ventricular dyssynchrony index parameters in SLE patients and controls
Full table

In addition to the above findings, more severe impairment of GLS was observed in SLE patients with moderate-to-severe active disease, high-risk aPL profile, or lupus nephritis, compared with those with inactive-to-mild active disease, negative-to-low-risk aPL profile, or no evidence of renal involvement, respectively (Table 4). In contrast, PSD was significantly increased in patients with higher disease activity or high-risk aPL, but not in those with lupus nephritis (Table 4).

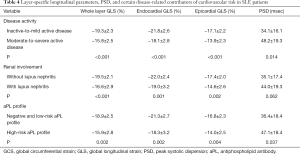

Table 4 Layer-specific longitudinal parameters, PSD, and certain disease-related contributors of cardiovascular risk in SLE patients
Full table

Correlation analysis showed that endocardial GLS, whole layer GLS, epicardial GLS, and PSD correlated with high-sensitivity CRP (hsCRP) levels in SLE patients, but not in healthy controls. PSD also correlated with the three layer-specific GLS parameters above (Figure 3). Partial correlation analysis showed that PSD correlated with epicardial GLS, but not with whole layer GLS or endocardial GLS, when treating hsCRP level, renal involvement, aPL profile, and disease activity as control variables (Table 5). Multivariate regression analysis showed that hsCRP level and epicardial GLS are the predictors of layer-specific GLS impairment and PSD change, respectively (Table 6).

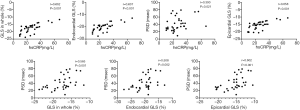

Figure 3 Univariate correlation between (I) global longitudinal strain (GLS) parameters and high sensitivity C reactive protein (hsCRP) levels; (II) peak systolic dispersion (PSD) and hsCRP levels; (III) PSD and GLS parameters in SLE patients.

Table 5 Partial correlation analysis between PSD and layer-specific GLS parameters
Full table

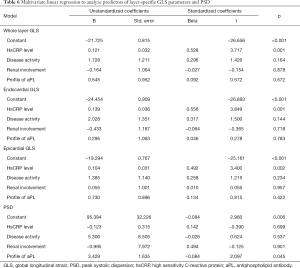

Table 6 Multivariate linear regression to analyze predictors of layer-specific GLS parameters and PSD
Full table

Intra- and inter-observer variability of GLS

Intra-observer variabilities and inter-observer reliability for whole GLS, endocardial GLS, and epicardial GLS were analyzed by a Bland-Altman plot presented (Figure 4), and were all within the limits of agreement.

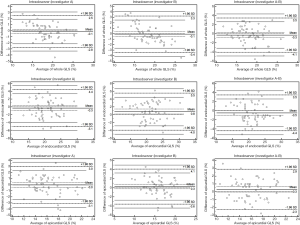

Figure 4 Bland-Altman analysis of (I) intra-observer reliability for whole global longitudinal strain (GLS), endocardial GLS, and epicardial GLS of two investigators (left and middle); (II) interobserver reliability of whole GLS, endocardial GLS, and epicardial GLS (right).

Discussion

In 2016, Ozawa et al. first analyzed the relationship between layer-specific strain parameters and heart failure indicators in 20 systemic autoimmune disorder patients, including 7 SLE patients. They found that GCS values, but not GLS in whole, endocardial, or epicardial layers, correlated with serum B-type natriuretic peptide (BNP) levels (13). In addition, GCS in the endocardial layer was significantly positively correlated with LVEF. To the best of our knowledge, the present study is the first to examine asymptomatic myocardial dysfunction in drug-naïve patients with new-onset SLE via a speckle-tracking-based multilayer approach. The main findings are that decreased whole layer GLS, endocardial GLS, and epicardial GLS could be found in SLE patients, when compared with age- and sex-matched healthy individuals. This suggests that subclinical impairment of left ventricular function can occur as early as the time when SLE is newly diagnosed and LVEF remains preserved.

Interestingly, SLE patients had impaired myocardial GLS but not GCS. The relationship between LS and CS is still not clear. Emerging evidence shows that different roles are played by CS and LS in left ventricular ejection (14), with circumferential shortening contributing more to LVEF (14,15). In contrast, patients with impaired longitudinal shortening constantly have preserved LVEF. This result was also consistent with the study by Kraigher-Krainer et al. who found that in heart failure with preserved ejection fraction (HFpEF), after adjustment for 10 baseline covariates, lower LS but not CS was associated with higher NT-proBNP, a prognostically relevant biomarker in HFpEF (16). In our study, decreased GLS was found in new-onset SLE patients with normal LVEF, suggesting GLS might be a marker for the early detection of myocardial dysfunction in SLE patients.

PSD has been proven to be a relatively new and useful marker for the early detection of LVMD (17,18). Mounting evidence suggests that LVMD has an independent and incremental negative impact on myocardial mechanics and remodeling. In the study by Leong et al., left ventricular (LV) dyssynchrony was independently associated with changes in the LVEF over time in idiopathic dilated cardiomyopathy and the occurrence of ventricular tachycardia after myocardial infarction (19). Fudim et al. demonstrated that LV dyssynchrony was strongly associated with adverse outcomes among patients with coronary heart disease (20). In our study, elevation of PSD was detected in drug-naïve SLE patients for the first time, suggesting subclinical LVMD in SLE. Moreover, previous studies have shown that LVMD was particularly prevalent in patients with microvascular involvement (21), which is also a characteristic lesion mediated by immune complex deposition in SLE. Whether or not higher PSD predicts a poorer myocardial prognosis in patients with SLE needs to be clarified in further research.

Both mouse models and clinical evidence have shown that lupus-associated risk factors play key roles in the pathogenesis of cardiovascular disease (CVD) in SLE patients (22,23). Disease activity, inflammation, antiphospholipid antibody, and lupus nephritis are among the most studied SLE-associated cardiovascular risk factors (24-26). Similarly, our results showed that more active disease, high-risk aPL profile, renal involvement, and higher hsCRP level were linked with the tendency towards more severe; 7 impaired GLS parameters and higher PSD (although not always with statistical significance). Active disease is associated with macrophage activation, which enhances the pro-inflammatory process of CVD occurrence in SLE (27). A high-risk aPL profile not only mediates hypercoagulable states and endothelial dysfunction, but also exacerbates atherosclerosis inflammation in SLE with antiphospholipid syndrome (28). Gustafsson et al. reported that accelerated atherosclerosis in SLE is mainly confined to a subgroup with lupus nephritis (29). The four factors above may work alone or coordinate to cause LS and PSD impairment. Interestingly, PSD correlated with the three-layer-specific GLS parameters in the univariate analysis. Furthermore, partial correlation and multivariate regression analysis revealed that epicardial GLS is an independent predictor of PSD, suggesting that epicardial GLS may be a contributor to LVMD.

Routine echocardiography is commonly used to assess cardiac dysfunction in SLE patients. However, serious limitations exist for the reasons referred to above. In this study, all participants had normal left ventricular systolic and diastolic function on routine echocardiography, suggesting the longitudinal parameters measured in STE are more sensitive tools for assessing myocardial function impairment at an early stage.

There are some limitations to this study. Firstly, the predictive value of layer-specific STE parameters could not be judged well. Secondly, we did not enroll SLE patients having cardiac symptoms as the first manifestation to assess the clinical significance more comprehensively. A large-scale study with long-term follow-up in SLE patients is needed to evaluate the prognostic value of the STE parameters. Finally, we could not exclude the possibility that pulmonary hypertension (PH) contributes to impaired GLS in SLE patients. The limited number of patients with SLE-PH in this study makes it difficult to perform a subgroup analysis between SLE-PH and SLE-non-PH patients. A further study will need to include a larger cohort of patients to clarify this issue.

Conclusions

This is the first study to demonstrate that drug-naive patients with new-onset SLE, including those with normal LVEF, are likely to have subclinical GLS impairment and left ventricular dyssynchrony. Some SLE-related risk factors are associated with these dysfunctions.

Acknowledgments

Funding: This work was supported by Key Clinical Specialty Discipline Construction Program of Fujian, China, Natural Science Foundation of Fujian Province (grant No. 2019J01473) and the Science and Technology Program of Quanzhou (grant No. 2018N014S, 2017Z009).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-859). The authors have no conflicts of interest to declare.

Ethical Statement: Written informed consent forms were obtained from all individuals included. This study was approved by the ethics committee of the Second Affiliated Hospital of Fujian Medical University.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
