Application of magnetic resonance fingerprinting to differentiate grade I transitional and fibrous meningiomas from meningothelial meningiomas

Introduction

Meningiomas are the second most common primary tumor of the central nervous system (1). According to the 2016 World Health Organization (WHO) classification of tumors of the central nervous system, meningiomas can be classified into 3 grades and 15 pathological subtypes (2); 9 subtypes are classified as WHO grade I, 3 subtypes are classified as WHO grade II and 3 are classified as grade III. Most meningiomas are WHO grade I, and the most common histological subtypes are meningothelial, transitional, and fibrous meningiomas. Although grade I meningiomas are benign (3), patients with these tumors do not always have satisfactory surgical outcomes. Meningothelial meningiomas rarely involve intra-tumoral hemorrhage, whereas transitional and fibrous meningiomas are prone to hemorrhage (4). Therefore, compared with meningothelial subtype, transitional and fibrous meningiomas are associated with a higher bleeding risk during surgery and a worse outcome at follow-up. The accurate diagnosis of transitional and fibrous meningiomas before surgery is therefore essential for selecting the most appropriate surgical procedure.

With the continuous development of technology, the clinical application of imaging techniques, such as magnetic resonance imaging (MRI) and computed tomography, has significantly improved the accuracy of localization and the qualitative diagnosis of meningiomas. However, conventional techniques can only reflect the gross morphological changes of tumors. Most subtypes of meningioma cannot be characterized by conventional imaging, so challenges remain regarding their differentiation before surgery (5,6). Conventional MRI, including T₁-weighted imaging (T1WI), T₂-weighted imaging (T2WI), and contrast-enhanced T1WI, has been widely used in the preoperative diagnosis of meningiomas. Diffusion-weighted imaging (DWI) is a technique that relies on the movement of water molecules at the cellular level (7). The apparent diffusion coefficient (ADC) value, which is derived from DWI, quantifies the diffusion state of water molecules. Different pathologies alter the movement of water molecules in different ways, and ADC values can allow researchers to differentiate between pathologies, including different tumor types (8,9). However, the ability of conventional MRI and DWI-derived ADC values to differentiate WHO grade I transitional and fibrous meningiomas from meningothelial meningiomas is limited, because of the overlap in imaging characteristics and ADC values (10). Therefore, new MRI techniques are needed to improve diagnostic accuracy in differentiating between meningioma subtypes.

Magnetic resonance fingerprinting (MRF) is a novel MRI technique that can simultaneously estimate multiple quantitative biophysical parameters of different tissue components (11,12). Previous studies have shown that quantitative MRI can better detect physiological and morphological changes, such as liver and cardiac fibrosis, than conventional qualitative MRI (13,14). MRF addresses the limitations of traditional MRI technology, which cannot simultaneously separate and accurately estimate physiological parameters of different tissues, and achieves parallel quantitative imaging of various physiological parameters. The entire MRF process can be divided into three parts: data acquisition, pattern matching, and organizational feature visualization (15). It is a simple, fast, non-invasive quantitative MRI technique that enables multiple organizational characteristics to be acquired simultaneously in a single, efficient acquisition. MRF uses random excitation flip angles and repetition times (TRs) for data acquisition to obtain incoherent and different magnetic resonance time courses (16). In the pattern matching stage of the process, the unique “fingerprints” from each voxel are matched to a set of simulated fingerprints in a dictionary generated by the MRF sequence using the same acquisition parameters. The magnetic resonance parameters that produce the best match are used as definite quantity results (17). MRF has been proved to be a valuable tool for the characterization of pathological conditions in diseases, such as multiple sclerosis (18), epilepsy (19), and brain tumors (17). However, to the best of our knowledge, MRF has not been used for the differential diagnosis of meningioma subtypes. In the present study, we aimed to evaluate and compare the ability of MRF, conventional MRI, and DWI in differentiating WHO grade I transitional and fibrous meningiomas from meningothelial meningiomas.

Methods

Patients

The present study was approved by the local institutional review boards, and written informed consent was obtained from all participants. From June 2019 to December 2019, 53 patients with suspected meningiomas (36 women and 17 men; age range: 29–72 years, mean ± standard deviation age: 55.7±10.1 years) were enrolled in the study. The inclusion criteria were as follows: (I) conventional brain MRI scans and enhancements had been performed without preoperative biopsy, radiotherapy, chemotherapy, and other interventions or treatments; (II) postoperative pathological results confirmed the presence of WHO grade I meningiomas, including meningothelial, transitional, and fibrous meningiomas, after MRI examination; and (III) the MRI quality was adequate for further analysis. The exclusion criteria were as follows: (I) recent cerebrovascular diseases or cerebrovascular accidents; and (II) a previous history of other head and neck tumors. After pathological examination, four patients were found not to have meningiomas, and three patients had images with severe motion artifacts. Finally, 46 patients (age range: 31–72 years, mean ± standard deviation age: 56.0±9.6 years, 32 women and 14 men) with pathologically confirmed meningothelial (n=15), transitional (n=18), and fibrous meningiomas (n=13) were included in the study.

MRI data acquisition

Before surgery, all patients underwent MRI using a 3T MAGNETOM Skyra scanner (Siemens Healthcare, Erlangen, Germany) equipped with a 20-channel head/neck coil. The MRI protocol included the following sequences: a prototype spiral fast imaging with steady-state precession MRF sequence with the same parameters as the reference [field of view (FOV) =256×256 mm², matrix =256×256, slice thickness =5 mm, flip angle variable =0–74°, TR between 12.1 and 15.0 ms, measurements =3,000, acquisition time =12 min and 18 s, number of slices =18] and conventional MRI sequences (slice thickness =5 mm; FOV =256×256 mm²) (12), including axial and sagittal T1WI [TR =250 ms, echo time (TE) =2.46 ms], axial T2WI (TR: 5,000 ms, TE: 96 ms), axial fluid attenuated inversion recovery (TR: 7,500 ms, TE: 81 ms; inversion recovery: 2,300 ms), and DWI sequences (TR =4,140 ms, TE =64 ms, b value: 0 and 1,000 s/mm²). The gadolinium-diethylenetriamine pentaacetic acid contrast agent (0.1 mmol/kg; Xi’an Ruixi Biological Technology Co., Ltd, Xi’an, China) was administered intravenously to perform contrast-enhanced imaging; the above mentioned T1WI scanning parameters were used.

MRI data analysis

All MRI data were analyzed using a workstation (syngo.via; Siemens Healthcare, Germany). The MRI data were independently analyzed by two radiologists (with 9 and 7 years of experience in diagnostic radiology, respectively), who were blinded to the histological results. For T1WI and T2WI, hyperintense meningiomas were defined as those with a signal intensity that was obviously higher than that of the surrounding gray matter; slightly hyperintense meningiomas were defined as those with a signal intensity that was slightly higher than that of the surrounding gray matter; isointense meningiomas were defined as those with a signal intensity similar to that of the surrounding gray matter; slightly hypointense meningiomas were defined as those with a signal intensity that was slightly lower than that of the surrounding gray matter; and hypointense meningiomas were defined as those with a signal intensity that was obviously lower than that of the surrounding gray matter. Meningioma enhancement levels were evaluated on the contrast-enhanced T1WI images and were compared to the cavernous sinus, which served as a reference. Mild enhancement indicated that the degree of enhancement was less than that in the cavernous sinus. Moderate enhancement indicated that the degree of enhancement was similar to that in the cavernous sinus. Significant enhancement indicated that the degree of enhancement was greater than that in the cavernous sinus.

The ADC map was calculated from DWI. The quantitative T1 and T2 maps were generated by matching the measured MRF signal time course to the dictionary. Because the tumor features and contours were clearly displayed by contrast-enhanced T1WI, the regions of interest (ROIs) were manually drawn on the solid tumor components of the contrast-enhanced image using the Siemens syngo.via application, and the areas of hemorrhage and necrosis were excluded. The ROIs drawn on the enhancement images were then copied to the quantitative T1, T2, and ADC maps to extract tumor characteristics. The T1, T2, and ADC values of normal brain tissue were also included for analysis. Normal brain tissue values were derived from the ROI on the contralateral side, which had a similar volume and location to the tumor ROI. The mean value of each ROI was used for the statistical analysis for each quantitative parameter. All analysis results were reviewed by an expert with extensive experience in the radiological diagnosis of central nervous system diseases.

Statistical analyses

The differences in T1WI and T2WI signal and enhancement characteristics between different subtypes of meningiomas were analyzed using the Jonckheere-Terpstra test. The Kruskal-Wallis test was used to evaluate the differences in the T1, T2, and ADC values of normal brain tissue and tumor tissue between the transitional, fibrous, and meningothelial subtypes. After Bonferroni correction for multiple comparisons, P<0.017 was considered to show statistical significance. The Two-Related Samples test was used to calculate the difference in T1, T2, and ADC values between meningioma and the contralateral normal tissue of the three different tumor subtypes. Receiver operating characteristic (ROC) curve analysis was conducted, and the areas under the ROC curves (AUCs) were calculated between statistically significant groups to evaluate the efficacy of T1 and T2 values in differentiating between different subtypes of meningiomas. The diagnostic sensitivity and specificity of the values were calculated, and thresholds were selected to maximize the Youden index. If two or more quantitative parameters were found to be statistically significant, binary logistic regression analysis was used to combine significant parameters to obtain a combined variable. A ROC analysis was performed to evaluate the different diagnostic performances of the combined variables between different subtypes of meningiomas. All statistical analyses were analyzed using SPSS version 18.0 (SPSS, Chicago, IL, USA).

Results

The T1 values (mean ± standard deviation) for meningothelial, transitional, and fibrous meningiomas were 1,661±222, 1,491±91, and 1,485±78 ms, respectively. The T2 values (mean ± standard deviation) for meningothelial, transitional, and fibrous meningiomas were 87±40, 69±15, and 65±9 ms, respectively. As shown in Figure 1, the meningothelial meningiomas had significantly higher T1 (P=0.002 and P=0.002, respectively; significant after Bonferroni correction) and T2 values (P=0.002 and P=0.001, respectively; significant after Bonferroni correction) than transitional and fibrous meningiomas. No statistically significant difference was found in T1 and T2 values between transitional and fibrous meningiomas (P=0.936 and P=0.617, respectively). The ADC values of meningothelial, transitional, and fibrous meningiomas were (0.89±0.20)×10^–3, (0.84±0.18)×10^–3, and (0.87±0.09)×10^–3 mm²/s, respectively, but there were no statistical differences between the three groups (P=0.258). In terms of normal brain tissue, the T1 values (mean ± standard deviation) of the meningothelial, transitional, and fibrous subtypes were 1,131±94, 1,123±76, and 1,092±87 ms, respectively; the T2 values (mean ± standard deviation) of the meningothelial, transitional, and fibrous subtypes were 53±5, 52±7, and 54±4 ms, respectively; and the ADC values of the meningothelial, transitional, and fibrous subtypes were (0.72±0.02)×10^–3, (0.74±0.02)×10^–3, and (0.72±0.03)×10^–3 mm²/s, respectively. The T1, T2, and ADC values of normal brain tissue were not statistically different between the three subtypes (P=0.480, P=0.646, and P=0.197, respectively). The T1, T2, and ADC values between meningioma and the contralateral normal brain tissue of the three tumor subtypes were statistically different (all P<0.05).

Figure 1 Histograms of quantitative values for three meningioma subtypes. (A) Histogram of T1 values of three different subtypes of meningioma and the contralateral normal brain tissue. There were statistically significant differences in T1 values between meningothelial and transitional or fibrous meningiomas. T1 values between meningioma and contralateral normal brain tissue were statistically different in the three subtypes. (B) Histogram of T2 values of three different subtypes of meningioma and the contralateral normal brain tissue. There were statistically significant differences in T2 values between meningothelial and transitional or fibrous meningiomas. T2 values between meningioma and contralateral normal brain tissue were statistically different in the three subtypes. (C) Histogram of apparent diffusion coefficient (ADC) values of three different subtypes of meningioma and the contralateral normal brain tissue. No statistically significant differences were found in ADC values between the three subtypes. ADC values between meningioma and contralateral normal brain tissue were statistically different in the three subtypes. *Statistical difference between two groups.

Tables 1 and 2 summarize T1WI and T2WI signal characteristics. MRI enhancement characteristics of patients are shown in Table 3. There were no statistical differences in T1WI, T2WI, or contrast-enhanced T1WI between the three meningioma groups (P=0.754, P=0.203, and P=0.202, respectively). Data from three representative patients with different meningioma subtypes are shown in Figures 2-4. Figure 5 shows the biopsy images of the three representative patients. The T1WI and T2WI signals of these patients were similar, and all showed obvious enhancement. Therefore, there are still limitations in distinguishing between meningioma subtypes using conventional MRI. In the maps generated by MRF, the T1 and T2 values of meningothelial patients appeared to be slightly higher than those of transitional and fibrous patients. Figure 6 shows the ROC curves of the T1, T2, and combined T1 and T2 (combined variable) values between statistically significant groups.

Table 1 T₁-weighted imaging signal characteristics of different meningioma subtypes
Full table

Table 2 T₂-weighted imaging signal characteristics of different meningioma subtypes
Full table

Table 3 Magnetic resonance imaging enhancement characteristics of different meningioma subtypes
Full table

Figure 2 Data from a representative 52-year-old female patient with a meningothelial meningioma. (A) T₁-weighted imaging (T1WI) MRI; (B) T₂-weighted imaging (T2WI) MRI; (C) contrast-enhanced T1WI; (D) diffusion-weighted imaging (DWI); (E) apparent diffusion coefficient map; (F) T1 value derived from magnetic resonance fingerprinting (MRF); (G) T2 value derived from MRF.

Figure 3 Data from a representative 71-year-old female patient with transitional meningioma. (A) T₁-weighted imaging (T1WI) MRI; (B) T₂-weighted imaging (T2WI) MRI; (C) contrast-enhanced T1WI; (D) diffusion-weighted imaging (DWI); (E) apparent diffusion coefficient map; (F) T1 value derived from magnetic resonance fingerprinting (MRF); (G) T2 value derived from MRF.

Figure 4 Data from a representative 44-year-old female patient with fibrous meningioma. (A) T₁-weighted imaging (T1WI) MRI; (B) T₂-weighted imaging (T2WI) MRI; (C) contrast-enhanced T1WI; (D) diffusion-weighted imaging (DWI); (E) apparent diffusion coefficient map; (F) T1 value derived from magnetic resonance fingerprinting (MRF); (G) T2 value derived from MRF.

Figure 5 Pathological results of a representative patient with meningothelial meningioma (A), a representative patient with transitional meningioma (B), and a representative patient with fibrous meningioma (C). [A,C: hematoxylin-eosin (HE) stain, 4×10; B: HE stain, 10×10].

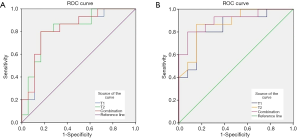

Figure 6 (A) Receiver-operating characteristic (ROC) curve of T1 and T2 values and the combination of the T1 and T2 values (combined variable) for the differential diagnosis of (A) meningothelial and transitional meningiomas, (B) meningothelial and fibrous meningiomas.

The AUCs for differentiating between the meningothelial and transitional groups for the T1, T2, and combined T1 and T2 values were 0.819, 0.822, and 0.826, respectively. The T1 and T2 values both had a sensitivity of 80% and a specificity of 83.33%, with an optimal threshold of 1564 and 72, respectively. The combination of the T1 and T2 values also had a sensitivity of 80% and a specificity of 83.33%. For the meningothelial and fibrous groups, the AUCs for the T1, T2, and combined T1 and T2 values were 0.841, 0.874, and 0.903, respectively. The optimal threshold for the T1 value was 1,563, with a sensitivity of 80% and a specificity of 84.62%, whereas for the T2 value, the optimal threshold was 71 and the sensitivity and specificity were 86.67% and 84.62%, respectively. The combination of the T1 and T2 values had a sensitivity of 80% and a specificity of 92.31%.

Discussion

Our results indicated transitional and fibrous meningiomas to have significantly lower T1 and T2 values than meningothelial meningiomas. However, conventional MRI, including T1WI, T2WI, contrast-enhanced T1WI, and ADC values, indicated no significant differences between transitional/fibrous meningiomas and meningothelial meningiomas. The ROC analyses showed the T1 and T2 mapping generated by MRF may have potential for differentiating transitional and fibrous meningiomas from meningothelial meningiomas.

In the present study, we compared and analyzed the value of conventional MRI and DWI techniques in the classification of meningiomas. For the analysis using conventional T1WI, T2WI, and contrast-enhanced T1WI, neither radiologist was able to differentiate transitional and fibrous meningiomas from meningothelial meningiomas. The visual observation of conventional MRI had larger overlaps between the transitional and fibrous meningiomas and the meningothelial meningiomas. Further, the ADC values did not differ statistically between the three meningioma subtypes, a finding which was consistent with the results of a previous study in another lab (20). High cellularity in meningothelial meningiomas leads to a decrease in ADC values, and the rich fibrous nature of transitional and fibrous meningiomas has similar effects, which may account for the lack of statistically significant difference in the ADC values of these meningioma subtypes in this study.

Current research of the liver (21), prostate (22), musculoskeletal system, cardiovascular system (23), and other organ systems shows that MRF has the advantage of yielding rapid multi-parameter results compared with traditional MRI methods, and it is able to quantitatively and reproducibly measure tissue characteristics. In view of these advantages, this technology has the potential to become a useful tool for MRI. Furthermore, a previous study by Li et al. provided evidence that MRF has the potential to accurately distinguish brain tissue components and detect local micro-regional lesions (24). Our results support these findings, and also indicate that the quantitative advantages of MRF allow signal digitization and utilization of values to directly and objectively reflect the difference between different meningioma subtypes.

The T1 and T2 values yielded from MRF were able to differentiate WHO grade I transitional and fibrous meningiomas from meningothelial meningiomas, which may be related to the histology of brain tumors. The T1 and T2 values in tissue depend on many factors, such as structure, cellular density, water content, and collagen fibers. In meningothelial meningiomas, tumor cells are similar to normal arachnoid cap cells, which are surrounded by a thin collagen membrane to form leaflets. The sparse fibrous stroma is mainly limited to the trabecula that can divide the tumor into lobules with high water content, which increases the T1 and T2 values. In contrast to meningothelial meningiomas, the tumor cells in transitional and fibrous meningiomas are denser and are arranged into a compact structure. The tumor cells are also separated by a large number of collagen fibers. The dense cellularity and abundant collagen fibers of transitional and fibrous meningiomas may decrease the T1 and T2 values. Therefore, these differences in the histological characteristics between transitional and fibrous meningiomas and meningothelial meningiomas may contribute to differences in T1 and T2 values. T1 and T2 values did not vary significantly between transitional and fibrous meningiomas in this study, which could be due the similar pathological characteristics of these meningiomas.

Even with similar treatments, different WHO grade I meningioma subtypes may have different outcomes. Hemorrhage during meningioma surgery often results in a poor prognosis. Meningothelial meningiomas are rarely associated with intraoperative hemorrhage in surgery, whereas transitional and fibrous meningiomas have a higher tendency to hemorrhage. Moreover, the 22q chromosomal abnormality is related to tumor aggressiveness. This chromosomal abnormality is more commonly seen in both the transitional and fibrous subtypes than in meningothelial meningiomas (25). Transitional and fibrous meningiomas are highly aggressive, which may be the reason why intraoperative hemorrhage is more common than in meningothelial meningiomas. Therefore, the differentiation of transitional and fibrous meningiomas from meningothelial meningiomas using a non-invasive technique, such as MRF, before surgery could contribute to preoperative planning and a more accurate prognosis.

The present study has some limitations, such as a small sample size, the exclusion of other meningioma subtypes, and a lack of grading studies. Due to the small sample size, even a small number of outliers may have significantly affected the results of the study. Therefore, in-depth research that appropriately expands the study sample inclusion criteria and enrolls patients with other meningioma subtypes will ensure greater accuracy, comprehensiveness, and generalizability of the outcomes. Second, additional correlation analyses between pathological tumor markers and T1 and T2 values should be conducted in the future to support the findings of the present study.

Conclusions

The T1 and T2 values yielded from MRF can differentiate transitional and fibrous meningiomas from meningothelial meningiomas. The combination of T1 and T2 values achieved the best diagnostic performance for differentiating transitional from meningothelial meningiomas (AUC =0.826, sensitivity =80%, and specificity =83.33%) and differentiating fibrous from meningothelial meningiomas (AUC =0.903, sensitivity =80%, and specificity =92.31%). These findings could benefit preoperative treatment options for meningiomas and allow for more accurate prognoses.

Acknowledgments

Funding: This work was supported by the National Key R&D Program of China (No. 2017YFE0103600), National Natural Science Foundation of China (No. 81720108021), Zhongyuan Thousand Talents Plan Project–Basic Research Leader Talent (No. ZYQR201810117), Scientific and Technological Research Project of Henan Province (No. 182102310496), and Medical Science and Technology Research Project of Henan Province (No. 2018020403).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-732). XZ, MN, and GK are employees of Siemens Healthcare. The other authors have no conflicts of interest to declare.

Ethical Statement: The present prospective study was approved by our hospital’s institutional ethics committee. All enrolled patients provided signed informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
