Dual-energy computed tomography of the neck—optimizing tube current settings and radiation dose using a 3D-printed patient phantom

Introduction

Dual-energy computed tomography (DECT), also called spectral CT, gained importance during recent years along with the development of different clinical applications. It provides opportunities for advanced material characterization by using the attenuation at two or more energy levels (i.e., tube voltages) to deduce the effective atomic number (effective Z) of an object (1,2). Especially materials with high effective Z such as iodinated contrast media can be visualized through their difference in attenuation by the photoelectric effect and Compton scattering, which can be expressed by a material-specific gradient (3,4).

DECT is therefore interesting for applications with contrast media (5,6), e.g., the reconstruction of virtual non-enhanced images (7,8) or iodine maps (9,10). The quantification of iodine uptake using DECT iodine maps in patients with squamous cell carcinomas showed value for the prediction of recurrence after radiotherapy (11). However, DECT also allows to reconstruct virtual blended images (VBIs) and virtual monochromatic images (VMIs). VBIs are calculated as average of the differently weighted DECT source images (12) and aim to imitate conventional single energy CT (SECT) images. They can be reconstructed at variable energy levels and thereby simulate the whole X-ray spectrum of a conventional CT machine (e.g., 80, 100 or 120 kilovolt peak; kVp). VMIs simulate patient imaging with a monochromatic beam instead of an X-ray spectrum as used for single energy CT (e.g., 70 kiloelectronvolt; keV). VMIs with low keV can increase the image contrast and thus compensate low contrast medium concentrations (13-15). VMIs with high keV allow for the reduction of metal artefacts, e.g., of dental implants (16-18).

While the diagnostic benefits of DECT are at hand, it is controversial if the application of DECT exhibits more radiation exposure compared to SECT or if DECT can be performed while maintaining or improving the image quality with the same dose as SECT (19-21). To this end, we wanted to extrapolate optimal tube current settings from a variety of combinations that would result in the best ratio of image quality and radiation exposure. For this study, we used a novel anthropomorphic three-dimensional printed phantom based on a clinical CT-scan of the neck and performed different SECT and DECT scans and a variety of DECT post-processing procedures. The phantom allowed for repeated measurements at different energy levels and with varying radiation exposure while imitating the anatomy of a patient. The aim of the study was to deduce optimal tube current settings for a DECT scan of the neck with acceptable image quality and lowest possible radiation exposure compared to clinical standard SECT.

Methods

Phantom

A radiopaque 3D printed neck phantom was used for simulation of patient imaging (see Figure 1). This approach allowed for a large number of repeated exposures and measurements in an anatomically accurate object, which is not possible with conventional phantoms or patient cohorts. The phantom has precise density values that reflect different iodine concentrations and, thus, contrast enhancement. The anatomical correctness takes into account the patients’ microstructure and possible geometrical artefacts. The phantom was manufactured from a random clinical contrast enhanced CT scan of a patient. The CT images were printed with aqueous potassium iodide doped ink (600 mg/mL) on paper using previously published methods to reproduce patient anatomy and attenuation values (22). The printed paper sheets were then assembled to a phantom using paper-based 3D printing, where the paper sheets are stacked, glued and cut to the patient shape (23). The phantom thus consisted of a paper base material, potassium iodide and glue. It covered 22.5 cm in z-axis and had the same size and contour as the patient. Internal airways (e.g., pharynx) were represented by unprinted paper, which was not removed from this phantom.

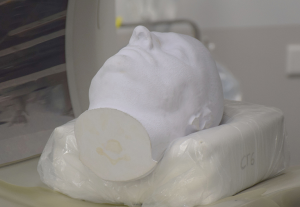

Figure 1 Photography of the phantom.

Scanning protocol

A 320 rows detector CT system (Canon Aquilion One Vision edition; Canon Medical Systems) was used for image acquisition. The scanning protocol consisted of a standard scanogram, a set of four clinical single-energy CTs (SECT) that were used as standard of reference for most image quality evaluations and a set of dual-energy CT (DECT) scans to provide the basic datasets for the following reconstructions. The SECT and DECT scans were performed in volume mode using a medium field-of-view without table movement.

SECT scanning protocol

Four scans with different tube voltages were acquired using clinical standard settings for the neck with enabled automated exposure control [standard deviation (SD) value of 12 and a maximum tube current of 600 mA], which reflects the standard of clinical care in our institution. The applied tube voltages were 80, 100, 120 and 135 kVp. Thus, the whole spectrum of the CT machine was used. For a better comparison with the DECT datasets, a volume scan technique with 16 cm z-axis coverage and a rotation time of 0.5 s was used instead of a spiral scan. The volume mode utilizes the whole width of the detector (16 cm, 320 rows) without table movement, thus, acquiring up to 640 images in one gantry rotation.

DECT scanning protocol

Six DECT scans were performed with 80 and 135 kVp tube voltage and an ascending order of tube currents (30, 55, 115, 230 and 400 mAs for 80 kVp and 5, 10, 20, 40, 80 and 160 mAs for 135 kVp). No tin-filter was applied. The automatic exposure control was disabled to allow a structured thorough analysis of low and high radiation exposure within the limits of the scanning system. The rotation time was 0.5 s.

Image reconstruction

We used a medium soft tissue kernel without beam hardening compensation (FC13) for the reconstruction of each volume dataset to 0.5 mm isotropic voxel. All images were reconstructed using iterative reconstruction (AIDR-3D standard).

The images were further processed using the CT console and two software applications: (I) Dual-Energy Image View (Version 6, Canon Medical Systems) and (II) Dual-Energy Raw Data Analysis (Version 6, Canon Medica Systems) for the reconstruction of (I) VBIs and (II) VMIs. Application-inherent registration algorithms were applied.

All acquired 80 and 135 kVp DECT source datasets were combined with each other for the reconstruction of VBIs. This resulted in a total of 30 source dataset pairs. For VMIs only the pairings recommended by the vendor could be used due to restrictions of the software [6 pairings (tube current at high/low tube voltage): 5/30, 10/55, 20/115, 40/230, 80/400, and 160/400 mAs]. VBIs were reconstructed at 80, 100, 120 and 135 kilo Volt equivalent (kVe) and VMIs with 35, 45, 55, 65, 75, 85, 95, 105, 115, 125 and 135 keV.

Measurements and calculations

We defined twelve circular regions of interest (ROIs) with 10 mm² area, each on six consecutive 0.5 mm axial planes within the phantom (1st left common carotid artery, 2^nd right common carotid artery, 3^rd left subcutaneous soft tissue, 4^th right subcutaneous soft tissue, 5^th left mandibular bone, 6^th right mandibular bone, 7^th left sternocleidomastoid muscle 8^th right sternocleidomastoid muscle, 9^th left submandibular gland, 10^th right submandibular gland, 11^th vertebral body of C2, 12^th pharyngeal space—reflecting different iodine concentrations within the phantom) and one ROI in the air ventral, posterior, left and right of the phantom, respectively. As there was no table movement between the scans, the ROIs could precisely be co-registered using the table position/slice number. Signal-to-noise ratios (SNR) and contrast-to-noise ratios (CNR) were calculated according to Eqs. [1] and [2], respectively.

SNR= signalnoise= mean HUROImean SDair[1]

Eq. [1]: calculation of signal-to-noise ratio. SNR: signal-to-noise ratio; mean HU: mean attenuation in Hounsfield units (HU) measured in the organ ROI; mean SD: mean standard deviation measured in all air ROI placed in air outside the phantom.

CNR= signalorgan− signalphantomnoise=mean HUROI 1−11− mean HUROI12mean SDair[2]

Eq. [2]: calculation of the contrast-to-noise ratio. CNR: contrast-to-noise ratio; mean HU: mean attenuation in Hounsfield units (HU); mean SD: mean standard deviation measured in all air ROI placed in air outside the phantom.

Primary endpoints and statistics

For all measurements the corresponding SECT dataset was used as standard of reference. A repeated measurements ANOVA and Dunnett’s multiple comparison test was used for different calculations: (I) to compare HU of different VBI reconstructions with corresponding SECT datasets (e.g., 100 kVe VBI with 100 kVp SECT), (II) to compare HU of different VMIs with the four SECT datasets. SNR and CNR values of VBI and VMI reconstructions were compared graphically by plotting the respective image quality value (SNR or CNR) against the radiation exposure as measured by the dose length product (DLP). A non-linear second order regression analysis was performed to project a curve from the different data points. The optimal image settings were defined as the point on the curve being closest to the reference SECT scan, i.e., having the most similar combination of image quality and radiation exposure. For this purpose, the minimum of the following distance Eq. [3] was calculated.

d(x)=(x−A)2+(B2x2+B1x+B0−B)22[3]

Eq. [3]: distance (d(x)) of the single energy dataset (point (A | B)) from the dual energy function with the formula f(x) = B₂x²+B₁x+B₀. The graph formula was derived from a non-linear second order regression analysis of signal (or contrast) to noise ratio (y-axis) and total radiation exposure [DLP] (x-axis).

Results

The following datasets were included in the analysis: 4 SECT, 120 VBI and 66 VMI datasets (see Figure 2). For each dataset, 96 ROI measurements were performed resulting in a total of 18,240 measurements. Exemplary images are provided in Figure 3.

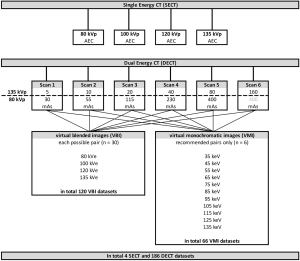

Figure 2 Flow chart of single energy computed tomography (SECT) and dual energy computed tomography (DECT) scans and image reconstructions. Four SECT images were reconstructed and served as standard of reference. In total 186 DECT images were reconstructed: for virtual blended images (VBIs) all possible pairings of tube current for high and low tube voltage of the six different DECT scans were used (n=30), for virtual monochromatic images only the recommended pairings were used (n=6).

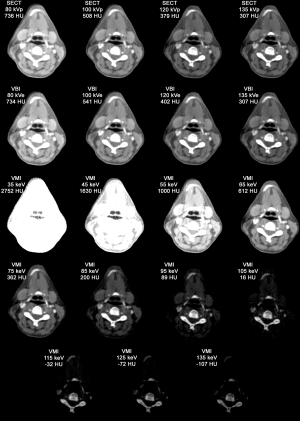

Figure 3 Example images of single energy computed tomography (SECT) scans and dual energy computed tomography (DECT) reconstructions. The DECT reconstructions were derived from the 20/115 mAs (high/low energy) dataset. Images are presented with window level 240 and window width 730. The given HU value represents the mean of all ROI measurements in from this scan. VBI, virtual blended images; VMI, virtual monochromatic images.

Hounsfield units

The mean measured HU of the reference SECT datasets, reconstructed VBI and VMIs are shown in Figure 4. We observed overexposure in the 135 kVp/160 mAs DECT source dataset that was transferred to related reconstructions.

Figure 4 Hounsfield units (HU) of virtual blended images (VBI) and virtual monochromatic images (VMI) compared to single energy computed tomography (SECT). (A) Virtual blended images in 80, 100, 120 and 135 kVe compared to the corresponding SECT images. (B) Differences in HU between SECT and VBI. Numbers of statistically significant deviations from Dunnett’s multiple comparison test are shown on top (see also Appendix 1A-D). (C) Comparison of HU between VMI and SECT. The horizontal lines indicate the corresponding values of the SECT datasets. There was no difference between the 75 keV VMI and 120 kVp SECT. All plotted values are the mean values of all ROI measurements of the respective reconstruction.

VBIs

The mean ± SD difference of the HU measured in the corresponding SECT images and VBI (HUSECT – HUVBI) was 2.63±2.1 HU for 80 kVe and did not reach significance for pairings based on the 400 mAs dual-energy source dataset, −31.68±1.18 HU for 100 kVe (P<0.0001 for all pairings), −22.03±0.75 HU for 120 kVe (P<0.0001 for all pairings) and 0.79±0.75 HU for 135 kVe (only significant for pairings based on the 160 mAs dataset). The detailed results of the multiple comparison analysis can be found in Appendix 1A-D, a graphical version is presented in Figure 4A and B.

VMIs

There was no statistical difference of HU between the 120 kV SECT and the 75 keV VMI images (mean difference 16.8±19.0 HU). All other dual-energy pairings showed highly significant differences to all SECT images (P<0.001). A graphical comparison of the measured HU in VMI and SECT images can be found in Figure 4C.

Image quality parameters

SNR and CNR values of VBI and VMI reconstructions can be found in Figure 5 and Appendix 2.

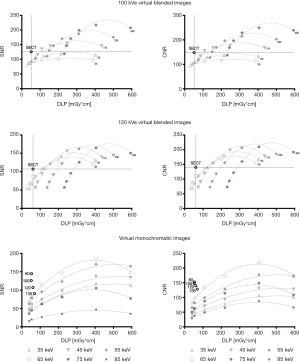

Figure 5 Comparison of image quality and radiation dose of dual-energy computed tomography (DECT) reconstructions to single-energy computed tomography (SECT) images that served as standard of reference. Signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) values (y-axis) compared to the radiation exposure as measured by the dose length product (DLP; x-axis) of virtual blended images in 100 and 120 kVe reconstructions and selected virtual monochromatic images (35 to 85 keV) compared to SECT datasets. The left upper corner on the graph represents high image quality and low radiation exposure (thus, optimal balance) whereas the right lower corner represents low image quality and high exposure. The figure shows that neither actual measured DECT reconstructions nor extrapolations between the datapoints were able to achieve a similar or superior ratio of radiation exposure and image quality as SECT images (with the exception of 65 keV VMI images that may meet the SNR/DLP of 135 kVp SECT).

VBIs

SNR and CNR values of VBI reconstructions were inferior to the corresponding SECT images when taking the radiation exposure into account (see Figure 5). Non-linear regression suggests that a pair of source data with similar radiation exposure resulting in similar image quality cannot be found using the current reconstruction technique. Furthermore, the image quality of the 120 kVe images was more dependent on the tube current at high kVp, whereas the quality of the 100 kVe images depended more on the low kVp dataset (see Table 1).

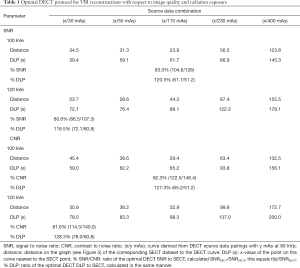

Table 1 Optimal DECT protocol for VBI reconstructions with respect to image quality and radiation exposure
Full table

VMIs

Among the VMI reconstructions, 65 keV images showed the highest SNR and CNR (see Appendix 2). Nonetheless, when taking the radiation exposure into account, all VMI reconstructions are inferior to all SECT images. However, non-linear regression suggests that 65 keV reconstructions may reach similar SNR (but not CNR) values as 135 kVp images using the same radiation exposure (see Figure 5).

Optimal scanning parameters

The formulas of the graphs shown in Figure 5 were inserted into Eq. [1] and, thus, the minimum difference to the SECT images was calculated. The results can be found in Table 1. In conclusion, using the optimal parameters, DECT could be performed with about 120% of the radiation exposure, however, resulting only in about 80% of the image quality of the corresponding SECT images.

Discussion

Our study used a 3D-printed phantom of the neck from actual patient data, thorough DECT scanning and reconstructions and comprehensive measurements to evaluate image quality and radiation dose of DECT in comparison to clinical standard SECT. We found that VBI reconstructions of 100 and 120 kVe images showed a small but significant overestimation of HU, when compared to corresponding SECT. HU of 75 keV VMI corresponded well to 120 kVp SECT, as found by other studies before (24). DECT showed a significant shortfall in image quality per radiation dose for all reconstructions (Figure 5). We found that under optimal tube current settings DECT reconstructions could achieve about 80% SNR and CNR by using 120% of the corresponding SECT radiation exposure. The optimal ratio of the tube current in high and low tube voltage DECT scans depended on the desired reconstruction: 120 kVe VBI images profited from rather high mAs in high kVp (e.g., 20/30 or 40/30 mAs), whereas 100 kVe VBI profited from a higher tube current for low kVp data (e.g., 5/115 or 10/55 mAs).

We conclude that the sequential DECT technique used for this study compared to clinical standard SECT goes along with either increased radiation exposure or with a decrease in image quality or a combination of both. However, we did not analyse a possible added value of the additional information that DECT is able to provide. Therefore, we cannot conclude whether the inferior image quality of DECT can be compensated in clinical practice. We propose that a sequential or dual-source DECT protocol should aim at approximately 120% of the radiation exposure of the standard SECT of the corresponding anatomic region; the ratio of tube currents in high and low tube voltage scans should be adapted to meet the desired main goal of reconstructions. However, this is not possible with all DECT machines: Fast-kVp-switching and dual-layer detectors do not allow for an independent modulation of the tube current for low and high energy datasets.

Our results of Hounsfield units and image quality are in line with previous studies. Lam et al. found that the SNR and CNR values of VMI are optimal at 65 keV (25). This is in line with our results that suggest that 65 keV reconstructions might reach a similar ratio of radiation exposure and SNR as 135 kVp SE images, but were not able to achieve similar CNR. This is most likely attributable to the fact that 65 keV VMIs correspond to 90 kVp SE in terms of HU (thus, being more sensitive iodinated contrast) but show higher noise compared to 135 kVp. However, they found that tumor visibility was improved using 40 keV reconstructions because the contrast uptake is better visualized near the k-edge of iodine. Another phantom study achieved similar results on the image characteristics of VMI (26). Scholtz et al. also found a deviation of VBIs from corresponding SECT scans when using a standard linear blending algorithm (12). Some previous studies state that DECT image quality may be superior to corresponding SECT or may reduce the radiation exposure (27). The discrepancy to our findings might be attributable to differences in methodology, e.g., a study on actual patients with subjective image quality assessment compared to a phantom study with quantitative measurements, or in the DECT machine. Special techniques for DECT acquisition can possibly improve the image quality of secondary DECT reconstructions. For example, the tin filter technique achieves a better spectral separation and, therefore, might result in lower radiation exposure without compromising the image quality. The possible influence of the DECT reconstruction software on image quality might also explain differences to previous studies. Moreover, the physical properties of our phantom may have an influence. The attenuation of the phantom was mainly based on iodinated ink that has different dual-energy properties compared to the soft tissue or bone of a real patient. Therefore, the phantom does not fully reflect the effective Z in a patient and measurements of DE values in the phantom will not compare to those in clinical practice. However, as one central advantage of DECT is its sensitivity for contrast medium, we believe that our results reflect the applicability.

Some limitations have to be discussed: We used DECT with sequential volume acquisition for our analysis as this is the preferred technique by the vendor. Therefore, our data cannot be directly applied to other DECT machines and protocols. However, the conclusions might in part be transferred to other sequential acquisition techniques and dual-source scanners. Spiral CT would result in higher radiation exposure (28). No beam hardening compensation was applied because the vendor does not allow the reconstruction of DECT raw-data sets with beam hardening compensation. Therefore, the results, especially for low keV VMIs might be impaired. In one of our DECT examinations we noticed an overexposure phenomenon of the detector during the high-energy scan that lead to a significant decrease of the image quality of the related secondary reconstructions. A multivariate analysis was not performed following the advice of our statistics team. We were not able to investigate the influence of different pairings on VMI images—neither the CT machine allowed for an independent adjustment of the tube current nor did the raw-data based software that was used for VMI reconstructions allow a separate selection of datasets. Furthermore, the details of the VMI reconstruction software remain hidden from the user. Future studies might go beyond those limitations, e.g., by using an independent software solution and a more sophisticated phantom approach that has more realistic dual-energy properties.

Conclusions

Based on the measurements on a 3D-printed anthropomorphic phantom of the neck, we were able to show that the sequential acquisition of DECT results in increased radiation exposure or decreased image quality when compared to SECT with respect to the usage of iodinated contrast and corresponding DECT applications. Optimal DECT protocols would apply an estimated 120% of the SECT radiation exposure and result in approximately 80% of the image quality. The tube current of the high and low energy dataset should be adapted to the desired DECT information, if the CT machine allows for a separate adjustment. Current VBI reconstructions overestimate the Hounsfield Units of different contrast concentrations leading to a demand of non-linear blending algorithms to achieve more accuracy.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-854). TD held talks for Canon Medical System. However, the company did not influence nor authorize the results of this study. MS reports grants from Bundesministerium für Wirtschaft und Energie (DE), during the conduct of the study; other from PhantomX GmbH, outside the submitted work; in addition, MS has a patent DE202015104282U1 issued, a patent US9924919B2 issued, a patent US10182786B2 issued, and a patent EP3135199A1 pending. BH reports grants to the Department of Radiology outside the submitted work from Abbott, Actelion Pharma, Bayer Schering Pharma, Bayer Vital, BRACCO Group, Bristol-Myers Squibb, Charité Research organisation GmbH, Deutsche Krebshilfe, Dt. Stiftung für Herzforschung, Essex Pharma, EU Programmes, Fibrex Medical Inc., Focused ultrasound Surgery Foundation, Fraunhofer Gesellschaft, Gurbet, INC Research, InSightec Ltd., IPSEN Pharma, Kendle/MorphoSys AG, Lilly GmbH, Lundbeck GmbH, MeVis Medical Solutions AG, Nexus Oncology, Novartis, Parexel CRO Service, Perceptive, Pfizer GmbH, Philipps, sonofis-aventis S.A., Siemens, Spectranetics GmbH, Terumo Medical Corporation, TNS Healthcare GmbH, Canon Medical, UCB Pharma, Wyeth Pharma, Zukunftsfond Berlin (TSB), outside the submitted work. Dr. PJ reports grants from Bundesministerium für Wirtschaft und Energie (DE), during the conduct of the study; other from PhantomX GmbH, outside the submitted work; in addition, PJ has a patent DE202015104282U1 issued, a patent US9924919B2 issued, a patent US10182786B2 issued, and a patent EP3135199A1 pending. The other author has no conflicts of interest to declare.

Ethical Statement: An approval of the institutional review board was waived for this study as no patients were involved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
