Determining the optimal magnetic resonance imaging sequences for the efficient diagnosis of temporomandibular joint disorders

Introduction

Temporomandibular joint disorders (TMDs) are defined as an assorted set of clinical conditions characterized by pain and dysfunction of the masticatory muscles, the temporomandibular joint (TMJ), and the associated hard and soft tissues (1-3). Reports have shown that about 5–14% of the population experience clinical symptoms of TMD (2-4). In addition, radiographic evidence has shown that approximately 45–70% of people over the age of 65 have some degree of TMJ degeneration (5). Precise TMD diagnosis and treatment requires the assessment of structural characteristics by imaging. With the rapid development of modern medical imaging techniques, magnetic resonance imaging (MRI) has become the gold standard for the noninvasive evaluation of the TMJ region due to several factors. Firstly, there is no X-ray radiation with MRIs and secondly, MRIs provide clear visualization of the articular disc, the retrodiscal tissue, soft-tissue structures, the cartilage, the masticatory muscles, and the synovial fluid. This is particularly important in cases where comprehensive evaluation of patients with TMD is required (6-8). However, few studies have performed systematic and detailed analysis and comparisons of the MRI sequence techniques for imaging the TMJ. To date, there is no uniform standard for the conventional sequence and no clear guidelines for the evaluation of the related TMJ anatomical structures using different sequences. Moreover, different sequences are used in different hospitals (9-19) (Table 1), and the scanning time can range from 20 to 40 minutes, requiring the patient’s cooperation and tolerance for a significant period of time. Our study compared and analyzed three basic MRI sequences (including two combinations of scanning directions and mouth positions), and determined the optimum sequences for the rapid diagnosis of TMD within 10 minutes.

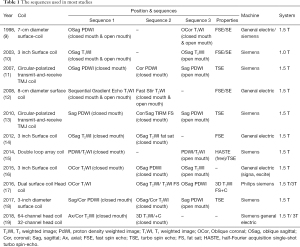

Table 1 The sequences used in most studies
Full table

Methods

Volunteers and patients

A total of 20 young volunteers, including 14 females and 6 males, aged between 22 and 26 years (mean age 23.61±2.23 years) were included in this study. From these volunteers, a total of 40 asymptomatic joints were examined. Three basic sequences, T₁-weighted imaging (T₁WI), T₂-weighted imaging (T₂WI), and proton density-weighted imaging (PDWI), were examined (9-19). These sequences were combined with the three positions: oblique sagittal (OSag) with closed mouth, oblique coronal (OCor) with closed mouth, and OSag with opened mouth (Table 2). All volunteers underwent a simultaneous bilateral scan of the TMJ. A total of nine MRI sequences were used. The main scanning parameters of all the sequences are presented in Table 2.

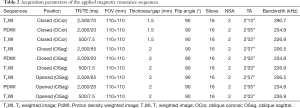

Table 2 Acquisition parameters of the applied magnetic resonance sequences
Full table

A total of 1,479 patients with anterior disc displacement who were admitted to the Ninth People’s Hospital, Shanghai Jiao Tong University, and the School of Medicine, between May 2018 and July 2019 were included in the study. There were 1053 females and 426 males aged between 22 and 60 years, with a mean age of 36.18±7.32 years. All patients were diagnosed in the department of Oral Surgery or Orthodontics and were administered regular conservative treatments for several months prior to surgery. Arthroscopy or open surgery on the TMJ was conducted if patients were not responsive to conventional therapy.

None of the volunteers or patients had contraindications for MRI. The exclusion criteria were pregnancy and claustrophobia. No metal artifacts were encountered in the imaged areas. Volunteers who presented with severe bone changes in the condyle and abnormal signals in the regions of interest (ROIs) were excluded.

Machine and position

All participants underwent MRI scanning and images were produced using a 3.0T MR scanner (Ingenia, Philips Healthcare Systems, The Netherlands). The surface coils were adjusted to the center of the bilateral TMJ close to the surface of the joint, and the scanning range included the entire TMJ region. Based on the axial position, the condyle head could be viewed clearly. MRI images were acquired in both the closed mouth and opened mouth positions. Closed-mouth means the status that the mouth is closed and the posterior teeth are clenched. Opened-mouth means the status that the patient should open its mouth to the maximum. The location lines for the OSag with closed mouth position were perpendicular to the long axis of the condyle head, while the location lines for the OCor with closed mouth position were parallel to the long axis of the condyle head. The OSag position with opened mouth was adjusted according to the actual degree that the patient’s mouth was opened. Patients were requested to bite onto a modal block with their teeth and keep it in place for about 2 minutes (the scanning time required for a sequence).

Statistical analysis

All data were measured on the same display (24-inch widescreen LCD monitor, 1,920×1,200 pixels, 74.04 kHz, 60 Hz; Hewlett-Packard Development Company, L.P., Palo Alto, CA, USA). Statistical analyses were performed using SPSS^® software v.17.0 (IBM Corp., New York, NY, USA; formerly SPSS Inc., Chicago, IL, USA). Two senior radiologists analyzed the images using a double-blind method. To determine the inter-reader agreement on the qualitative MRI analyses, kappa statistics were used. Kappa values of 0.41–0.60 were considered moderate agreement, values of 0.61–0.80 were considered substantial agreement, values of 0.81–0.99 were considered almost perfect agreement, and a value of 1.00 was considered perfect agreement. In the OCor position, four ROIs (ROI1–ROI4), condyle (C), disc (D), disc outside (DO), and fat (F) were selected. For the OSag with closed mouth position and the OSag with opened mouth position sequences, four ROIs, condyle (C), disc (D), disc ahead (DA), and disc rear (DR), were selected (Figures 1,2). In addition, the background noise of each image was measured. The mean signal intensity (SI) values of each group were calculated on a workstation (Ingenia Extended WorkStation; Philips Healthcare Systems). The signal-to-noise ratio (SNR), contrast-to-noise ratio (CNR), and SI ratio (SIR) values were calculated and analyzed using an independent sample t-test and one-way analysis of variance for the volunteers. The calculation formulae for SNR (20-24), CNR (25,26), and SIR (27,28) were as follows:

Figure 1 The nine MRI sequences (from a combination of three basic sequences, two plane positions, and two mouth postures). (A) OCor T₁WI (closed mouth); (B) OCor PDWI (closed mouth); (C) OCor T₂WI (closed mouth); (D) OSag T₁WI (closed mouth); (E) OSag PDWI (closed mouth); (F) OSag T₂WI (closed mouth); (G) OSag T₁WI (opened mouth); (H) OSag PDWI (opened mouth); (I) OSag T₂WI (opened mouth). (A,B,C) show the OCor position with closed mouth; (D,E,F) show the OSag position with closed mouth; (G,H,I) show the OSag position with opened mouth.

Figure 2 Regions of interest. The four regions of interest (ROIs) in the OCor position were ROI₁ condyle, ROI₂ disc, ROI₃ disc outside, and ROI₄ fat (shown with red circles). The same four ROIs examined in the OSag with closed mouth position (yellow circles) and the OSag with opened mouth position (green circles) were ROI₁ condyle, ROI₂ disc, ROI₃ disc ahead, and ROI₄ disc rear.

$$SNR={\overline{S}}_n/\sigma$$[1]

$$CNR=\left|{\overline{S}}_n-{\overline{S}}_N\right|/{\overline{S}}_n$$[2]

$$SIR={\overline{S}}_n/{\overline{S}}_N$$[3]

σ: standard deviation of the background noise

${\overline{S}}_n$, ${\overline{S}}_N$: mean SI value of different ROIs

Values of P<0.05 were considered statistically significant.

Two senior radiologists reached marking consensus and scored the images of the nine sequences subjectively. The scoring criteria were as follows: 3 points for clear contrast and definite recognition of contours without artifact; 2 points for moderate contrast and probable recognition of the contour with or without a little artifact; and 1 point for low contrast and unclear contours with or without artifact. The mean value and standard deviation were measured for all nine combinations. Based on the subjective and objective evaluation methods, three optimized sequences were selected for rapid TMD MRI diagnosis. For the patient group, MRI diagnosis and operation results were compared and analyzed according to the three optimized sequences. The statistical analyses were performed using the Chi-square test. P values <0.05 were considered statistically significant.

Results

Nine imaging sequences, consisting of three OCor sequences with closed mouth and six OSag sequences (three closed mouth and three opened mouth positions), were successfully obtained from all the volunteers. All imaging sequences were feasible (Figure 1). For the repeated ROI measurements, there was good or excellent agreement [intraclass correlation (ICC), 0.78–0.99] for all ROIs in the volunteer group. For the coronal position, the four ROIs were the condyle (C), the disc (D), the outside of the disc (DO), and fat (F). For the sagittal position, the four ROIs were the condyle (C), the disc (D), the DA, and the DR.

The SNR was measured by comparing the signal of the MRI image to the background noise of the image (29,30). The SNR values of the nine sequences were measured according to the imaging characteristics (Figure 2, Table 3). Among all nine combinations, the ROIs in the T₁WI sequences had the highest SNR (Table 3). The disc of the T₂WI sequence (in both the OCor and the OSag positions) had the lowest SNR value (Table 3).

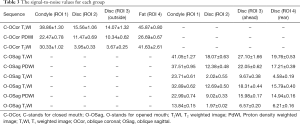

Table 3 The signal-to-noise values for each group
Full table

The CNR values were obtained by calculating the deltas between the SNR values of the two tissue types. The CNR values measured for the three coronal sequences were (C-D)/C and (F-DO)/F, while the SIR values assessed for the coronal sequences were C/D, C/DO, and F/DO (Table 4). In the SIR comparison, it was found that the value of F/DO was higher than that of C/D and C/DO (Table 4). There were significant differences among the three OCor sequences (multiple comparison) for all five CNR and SIR comparisons (P<0.05 for all comparisons, Table 4). In addition, the CNR and SIR values were the highest in the T₂WI sequences (Table 4).

Table 4 The comparison results of anatomical structures in coronal sequences
Full table

For the six sagittal sequences (three with closed mouth, C-OSag, and three with opened mouth, O-OSag), the CNR values measured were (C-D)/C, (C-DA)/C, and (C-DR)/C, while the SIR values measured were C/D, C/DA, C/DR, DA/D, and DR/D (Table 5). The highest CNR and SIR values of the eight measured items were observed in the T₂WI sequences for both closed- and opened-mouth OSag. There were significant differences between the T₂WI sequence and both the T₁WI and PDWI sequences, for both the closed and opened mouth positions (P<0.05 for all comparisons, Table 5). In the closed mouth position, the CNR and SIR values of the PDWI sequence were higher than those of the T₁WI sequence. In the opened mouth position, the CNR comparison indicated that the values of the T₁WI sequence were higher than those of the PDWI sequence. Furthermore, in the SIR comparisons, with the exception of SIR DA/D and SIR DR/D, the values of the T₁WI group were significantly higher than those of the PDWI group (P<0.05, Table 5).

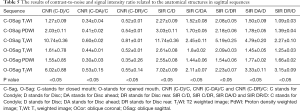

Table 5 The results of contrast-to-noise and signal intensity ratio related to the anatomical structures in sagittal sequences
Full table

The quality of the nine sequences was assessed and scored subjectively. A histogram of the mean values was generated for the three OCor and six OSag sequences (Figure 3). The disc and condyle of three OCor sequences were scored. The scores of T₂WI with closed mouth were the highest (2.875 and 2.925 points). The C-Sag PDWI and O-Sag T₂WI sequences obtained the highest scores for the articular disc, DA, and DR (2.75, 2.825, and 2.8 points, respectively, for C-Sag PDW; and 2.8, 2.9, and 2.8 points, respectively, for O-Sag). The C-Sag T₂WI and C-Sag PDWI sequences obtained the highest scores for the condyle (2.875 and 2.85 points, respectively). The combinations with the highest total score of the four items were OSag T₂WI in the opened mouth position (11.25 points) and OSag PDWI in the closed mouth position (11.225 points). Through the subjective and objective evaluation of data, senior oral radiologists selected three optimal sequences, OSag PDWI with closed mouth, OCor T₂WI with closed mouth, and OSag T₂WI with opened mouth.

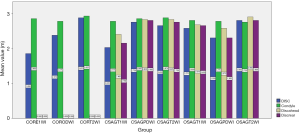

Figure 3 The histogram of the mean values for nine sequences. A histogram of the mean values was generated for nine sequences. Four-color histograms stand for disc (blue), condyle (green), disc ahead (light brown) and disc rear (purple) regions, respectively. The scores of T2WI with closed mouth were the highest (2.875 and 2.925 points). The C-OSag PDWI (2.75, 2.825, and 2.8 points) and O-OSag T2WI (2.8, 2.9, and 2.8 points) sequences obtained the highest scores for articular disc, disc ahead, and disc rear, respectively; the CSag T2WI (2.875 points) and CSag PDWI (2.85 points) sequences obtained the highest scores for the condyle. C, closed; O, opened.

The three selected optimal sequences were then used for the MR imaging of 1,479 patients with anterior disc displacement with or without reduction (ADDwR and ADDwoR, respectively). MRI scanning of the TMJ was conducted prior to maxillofacial arthroscopy or open surgery. The results of the comparison of surgery and MRI diagnosis are shown in Table 6. The total diagnostic accuracy of MRI was 96.3% (1,425/1,479 cases). The accuracy for ADDwoR was 98.5% (1,372/1,393 cases), and the accuracy for ADDwR was 61.6% (53/86 cases). There were significant differences between the ADDwoR and ADDwR groups (x²=312.92, P<0.01).

Table 6 The results of the comparison of surgery and the magnetic resonance imaging diagnosis
Full table

Discussion

Selection of optimized sequences

In MRI, the SNR is conceptualized by comparing the signal of the MRI image to the background noise of the image (29,30). The increase in the associated SNR could be successfully transitioned into imaging at a higher spatial resolution, allowing for the improved assessment of anatomical and pathological structures (31,32). In the same sequence, CNR values can be obtained by calculating the deltas between the SNR values of two tissue types. The CNR is not directly affected by most acquisition parameters; rather, it is major influenced by SNR when the other parameters are the same, and thus CNR has become a core quality parameter for the MRI diagnosis of diseases (31,33). It has been reported that quantitative alterations in the SIR could reflect the clinical features and can therefore be used as a complementary method to evaluate the correlation between the tissue signal changes and clinical outcome (27). Consequently, we selected the above three quantitative indices as objective evaluation measures to determine the optimal rapid scanning sequences in the MRI of the TMJ.

In this study, we found that objective evaluation was insufficient and that subjective analysis was preferable in real practice. Although the T1WI sequence had the highest SNR value among the three groups, it was not selected as one of the optimal TMJ imaging sequences. Two positions (OCor in the closed mouth and OSag in the opened mouth positions) of the T₂WI sequence were selected, although the SNR values for these positions were the lowest. The T₂WI sequence in both the coronal and sagittal positions had the highest CNR and SIR values, particularly for CNR (C-D)/C. Therefore, the SNR value did not strongly correlate with the sequence selection, but the quantitative alterations in the CNR and SIR obtained from the calculation of the SNR correlation were of great significance in TMD diagnosis. In comparing the SIR values in the coronal position, the SIR F/DO values were higher than those of the other two groups, which indicated that the tissue signal was clearer in the lateral area of the disc-condyle complex and was thus advantageous in the diagnosis of lateral displacement of the articular disc. Similarly, in OSag imaging, the SIR C/D value was the highest, particularly in the T₂WI sequence, which indicated that the OSag T₂WI sequence was optimal for visualization of the disc-condyle complex.

Senior radiologists subjectively evaluated all images and awarded scores of 1 to 3 for each image. The scores of the OCor T₂WI with closed mouth and OSag T₂WI with opened mouth sequences were the highest, which agreed with the findings of the objective evaluation. However, the scores were the highest in the OSag PDWI sequence with closed mouth in the same group, with the exception of the condyle in subjective evaluation. On this point, there are differences between subjective evaluation and objective evaluation. Therefore, after comprehensive subjective and objective evaluation, the three optimized sequences were chosen as the preferred sequences for the rapid diagnosis of TMD.

Study limitations

The present study had some limitations. First, in the experiment, we could only select patients who had surgical results and MRI scans for statistical analyses. Hence, for patients who did not undergo surgery, the accuracy of image diagnosis by using these three optimized sequences could not be determined. To further develop clinically optimized sequence versions and measurement protocols that best match different clinical situations, investigations with an increased sample size must be conducted. Second, in addition to the basic sequences investigated in this study, there are other sequences with unique advantages that were not included in this study, such as dynamic imaging, ultra-short echo time imaging, and 3D imaging. The sequence combinations chosen in this study are mainly suitable for TMD, TMJ trauma, joint ankylosis, and some tumor or tumor-like lesions such as synovial chondromatosis. For TMJ traumas, the main diagnosis from imaging is to determine whether traumatic disc displacement has occurred and whether the ligament or bilaminar region has been injured. For joint ankylosis, imaging is used to determine whether the joint disc is present or not. For synovial chondromatosis, a large amount of effusion and free bodies can be observed on T₂WI with opened mouth imaging, which is the typical radiological manifestation of synovial chondromatosis. Of course, these three sequences are not sufficient for all tumor diseases in the TMJ region, and other sequences and positions need to be considered. Identifying the optimal set of sequences will be helpful for the comprehensive evaluation of TMJ diseases. Third, not all parameters and factors were considered in this study. Aside from the selection of optimized sequences, the adjustment and application of parameters are especially important. For example, Montesinos and colleagues (34) reported that the use of enhancement filters could be beneficial in the MRI imaging and diagnosis of TMJ diseases. Fourth, whether this sequence combination is significant for different clinical stages of TMJ disease requires further investigation. Moreover, whether this sequence combination could be used to guide clinical operations is yet to be determined. Lastly, due to the extended interval time between the preoperative MRI examination and the actual operation, the surgical results and MRI results differed. In the clinical group, 1,479 patients with ADDwR or ADDwoR underwent maxillofacial arthroscopy or open surgery. The accuracy of image diagnosis of ADDwR was 61.6%, and that of ADDwoR was 98.5%. The main reason for the inconsistency between the operation results and the MRI, and the reason ADDwoR was misdiagnosed as ADDwR, was the extended interval time between the preoperative MRI examination and the actual operation (5–8 months on average). It is possible that ADDwR was misdiagnosed as ADDwoR due to the patient’s mouth not being opened to the maximum position in the opened mouth scan because of pain or an incorrectly sized mouth opening device being selected. Indeed, the time required for articular disc reduction in some patients with ADDwR was at the end of the period of mouth opening. We suggest that the interval time between TMJ MRI examination and surgery should not exceed over 1 month.

In summary, the three optimal MRI sequences selected for the rapid and efficient diagnosis of TMD were OSag PDWI, OCor T₂WI with closed mouth, and OSag T₂WI with opened mouth.

Acknowledgments

Funding: This study was supported by grants from the Science and Technology Commission of Shanghai Municipality, China (No. 18DZ2291100).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-67). The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by the ethics board of the Shanghai Ninth People’s Hospital (No. S9HIE 2017-348-T257*), and informed consent was obtained from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
