The assessment of the frequency and arrangement of the subsegmental branches of V3 using computed tomography angiography

Kai Liu1, Xinli Liu2, Huixiao Song3, Xiujuan Gao4, Menglong Zhang5, Yuangang Qi6

1Department of Medical Imaging, Ganzhou People’s Hospital, The Affiliated Ganzhou Hospital of Nanchang University, Ganzhou, China;2Department of Radiology, The Forth People’s Hospital of Jinan, Jinan, China;3Department of Traditional Chinese Medicine, Ganzhou People’s Hospital, The Affiliated Ganzhou Hospital of Nanchang University, Ganzhou, China;4Department of Cardiology, Ji’nan Jigang Hospital, Jinan, China;5Department of Minimally Invasive Intervention, Ganzhou People’s Hospital, The Affiliated Ganzhou Hospital of Nanchang University, Ganzhou, China;6Department of Radiology, Shandong Cancer Hospital and Institute, Shandong First Medical University and Shandong Academy of Medical Science, Jinan, China

Correspondence to: Yuangang Qi, MD. Department of Radiology, Shandong Cancer Hospital and Institute, Shandong First Medical University and Shandong Academy of Medical Science, Jinan 250117, China. Email: qiyuangang2004@126.com.

Background: The frequency and arrangement of the subsegmental branches of the third portion of the vertebral artery (V3) have been assessed in small samples by autopsy, but they have not been assessed by computed tomography angiography (CTA). To determine the frequency and arrangement of subsegmental branches of V3 by CTA and to analyze the interrelationships among frequency, arrangement, sex, and side-to-side.

Methods: First, the radiology records of 668 consecutive patients who underwent cervical or craniocervical CTA scans from October 1, 2017 to October 31, 2019 were retrospectively retrieved. Second, the four demarcation points were ascertained to define the three subsegments by reviewing the resource images, namely, the vertical portion of V3(V3v), horizontal portion of V3(V3h), and extradural portion of V3(V3e). Then, the numerical value and the location of the bifurcating branch in each subsegment of V3 were recorded. Third, the frequency and arrangement of the branches was assessed, and the relationships between sex, laterality and frequency and arrangement were analyzed as well as the interobserver performance.

Results: On the left, 25%, 20.21%, and 6.59% were the frequencies of one branch in the V3v, V3h, and V3e, and 1.05%, 0.00%, and 0.45% were the frequencies of two branches, respectively. On the right, 25.04%, 17.07%, and 6.44% were the frequencies of one branch in the V3v, V3h, and V3e, and 1.04%, 0.3%, and 0.15% were the frequencies of two branches, respectively. There were no differences between the side-to-side and numerical values of the branches according to the t-test (P=0.4341, P=0.7968), and there were no differences between the side-to-side variable, sex variable and number of branches according to the t-test (P=0.4474, P=0.3593). There were no differences between the side-to-side and eight arrangements (permutation of 000; 100; 110; 111; 010; 011; 001; 101) by using the two-sample KS test (P=0.942), and there were no differences between sex and the eight arrangements according to the two-sample KS test (P=0.9973, P=0.8519). The interobserver reliability was excellent (Spearman's ranked correlation: 0.9927).

Conclusions: The frequency and arrangement of V3 subsegmental branches could be displayed by source imaging with CTA, and there were no significant differences according to the sex or side of the individual. It was imperative to acquaint the subsegmental branches before the operation involving V3 in the craniocervical junction to determine the surgical approach and reduce bleeding during the surgical procedures.

Keywords: V3; branch; computed tomography angiography; frequency; arrangement

Submitted Jun 04, 2020. Accepted for publication Oct 18, 2020.

doi: 10.21037/qims-20-725

Introduction

The V3 is located within the craniocervical junction; it originates from the transverse foramen of the axis, continues inferiorly with the second portion of the vertebral artery (V2), reaches the piercing site of the dura mater at the foramen magnum, and continues superiorly with the fourth portion of the vertebral artery (V4). Many vascular lesions in V3, including tumors, occlusions, deformities, and those caused by trauma, have been documented, and these lesions have been associated with dissection, aneurysm, and Bow Hunter Syndrome (1-5). The decision of whether to utilize or to protect V3 varies by the disease during treatment (6-13). To date, many imaging modalities, such as digital subtraction angiography, dual-energy computed tomography, Doppler ultrasound, and MRI, have be applied to detect V3 (14-18). CTA has been frequently in imaging examinations to simultaneously reveal the three-dimensional anatomy surrounding V3, as it has the advantages of being noninvasive and fast and yielding volumetric scans. Morphometric analyses of V3 performed by using CTA have been reported in many studies (19-24), but the branches of V3 have been studied in few studies, with small sample sizes of cadavers due to the high cost and intricate procedures required (25-27). Although a large sample of vertebral arteries can be assessed by CTA, the branches of V3 have not yet been reported. The purpose of this study was to reveal the frequency and arrangement of the subsegmental branches of V3 on CTA source images in a large sample, analyze the relationships of these data with the patient’s sex and laterality, and evaluate interobserver performance.

Methods

The retrospective study was approved by the institutional review board, and informed consent was waived.

Patients

Using radiology computer records, we retrospectively identified 668 consecutive domestic patients of Han nationality in the People’s Republic of China who had undergone a cervical or cervical or craniocervical CTA scan from October 1, 2017 to October 31, 2019. The CTA scans were collected from a large referral base in a major tertiary care Chinese university hospital, Shandong Medical Imaging Research affiliated with Shandong University in the People’s Republic of China. The mean age of the patients was 55.8 years (age range, 2.9–84.6 years). The patients included 419 men and 249 women (Table 1). The inclusion criteria of the study were as follows: (I) patients who were clinically diagnosed with cervical vascular lesions and underwent CTA scans so that the disease nature, location, and extent could be assessed; (II) patients who had no contraindications to CTA, such as a high temperature, heart failure, or kidney failure; and (III) patients whose V3 coursed normally. In other words, some vertebral artery anomalies were included in our study, such as a high-riding vertebral arteries, posterior cerebellar arteries with extracranial atlas/axial (C1/2) origins, and persistent first intersegmental arteries because of the normal course of V3. Thirty-one patients were excluded for the following reasons: 19 cases were accompanied by congenital osseous deformities and dislocation in the craniocervical junction (12 cases of basilar invagination, 7 cases of assimilation of the atlas), 5 cases were occluded in V3 bilaterally, and 1 case had a bilaterally fenestrated vertebral artery. Six patients had abnormally enhanced surrounding veins, including 2 cases of neoplastic lesions.

Table 1
Table 1 The patient characteristics
Full table

Acquisition of CTA images

The patients were placed in a supine position with their arms placed alongside the body and the head and neck in a neutral position. For each patient, a CTA scan was performed using a dual-source CT scanner (Somatom Definition Flash CT VA48A, Siemens Medical Solutions, Forchheim, Germany) with the following parameters: 150 kV, 51 mAs; 100 kV, 87 mAs; collimation of 2×128×0.6 mm; 250 ms/rotation; and a pitch of 0.85. A contrast medium bolus (Iohexol, 350 mg of iodine per milliliter) with an automatic trigger sequence was utilized for cervical arterial angiography (ascending aorta 100 HU). During the procedure, 45 mL of nonionic iodinated contrast medium, followed by 40 mL of saline, was infused and injected via a double power injector into the patient’s antecubital vein at a rate of 5 mL/s. A pediatric sedative (chloral hydrate, 0.5 mL/kg), if necessary, was taken orally by the infants. The dosage of contrast medium was reduced in proportion to the infants’ weight, and infant scanning parameters were selected accordingly. All the data were exported to a workstation (Syngo.via software (Syngo.via VB20A HF06 Siemens Healthineers). The source images were viewed randomly using multiplanar reconstruction with a thickness of less than 1 mm.

Image analysis

All the images were reviewed in consensus by three radiologists, each of whom had at least ten years of experience in CT diagnosis. By consulting the three-section classification criteria of V3 (13,28), we divided V3 into three subsegments: vertical portion originating from the foramen of C2, horizontal portion originating from the foramen of C1, and extradural portion originating from the posterior atlantooccipital membrane and ending at the site of piercing the dura. The three subsegments were referred to as V3v, V3h, and V3e, respectively (Figures 1-4). The number of branches was recorded. With regard to the arrangement of the branch of V3, the number 0 indicated no branches in the subsegment, and the number 1 indicated no less than one branch in the subsegment (Figure 1). There were eight kinds of arrangements of the branches altogether (000; 100; 110; 111; 010; 011; 001; 101). After an agreement was reached by consensus, all the data were confirmed. The reproducibility was assessed by comparing a subset of measurements made on 100 randomly selected cases. The radiologists were blinded to the measurements taken by the other radiologists. The 100 cases were reviewed by three observers, and interobserver agreement was calculated. All the data were imported into R statistical software, version 3.6.1, to be processed further.

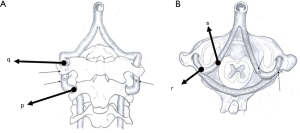

Figure 1 Schematic drawing of the demarcation of three subsegments of V3 and examples of the arrangements of the branches of V3 in the same patient. (A) The point “p” is located at the superior border of the foramen of left C2, and the point “q” is located at the superior border of the foramen of left C1. The V3v was the vertebral artery of V3 between “p” and “q”. (B) The point “r” was located at the point of intersection of the course of V3 and the superior border of the left C1, to which the posterior atlantooccipital membrane was attached, and the point “s” was the site of the dura pierced by the left V3. The V3h was the vertebral artery of V3 located between “q” and “r”, and V3e was located between “r” and “s”. (A,B) Two branches sprouted from V3v on the right (small arrow), and there was one branch on the left. One branch sprouted from V3h and V3e on the left (small arrow). (1,0,0) is the arrangement of V3 in the left, and (1,1,1) is the arrangement on the right.
Figure 2 Illustration of the bifurcation of V3v on a CTA image in a 51.3-year-old patient. One branch originated from the right V3v on the axial CTA source image, and the branch coursed posteriorly (arrow).
Figure 3 Illustration of the bifurcations of V3h on a CTA image in a 72.6-year-old patient. Two branches originated from the bilateral V3h and coursed normally on the axial CTA source image, and the branches coursed interior-posteriorly (arrow).
Figure 4 Illustrations of the bifurcation of V3e on CTA images in the same 46.9-year-old patient. (A) One branch sprouted interior-anteriorly from the V3e and coursed normally on the left on the axial CTA source image (arrow). (B) The branch under the V3e was identified on the CTA image reformatted randomly (arrow).

Results

Six, 8, and 7 cases were not shown in the left V3v, V3 h, and V3e, respectively, among the 668 cases. On the left, 25% (167/662), 20.21% (135/660), and 6.59% (44/661) were the frequencies of one branch in the V3v, V3h, and V3e, respectively, and 1.05% (7/662), 0.00% (0/660), and 0.45% (3/661) were the frequencies of two branches, respectively. Fourteen, 15, and 15 cases were not shown in the right V3v, V3 h, and V3e, respectively, among the 668 cases. On the right, 25.04% (167/654), 17.07% (114/653), and 6.44% (43/653) were the frequencies of one branch in the V3v, V3h, V3e, respectively, and 1.04% (7/654), 0.3% (2/653), and 0.15% (1/653) were the frequencies of two branches, respectively (Table 2).

Table 2
Table 2 Numerical values of the three subsegmental branches on different sides
Full table

There were no differences between the side-to-side and one branch variables according to the t-test (P=0.4341), and there were no differences between the side-to-side and two branch variables according to the t-test (P=0.7968). There were no differences between sex and one branch according to the t-test (P=0.4474), and there were no differences between sex and two branches according to the t-test (P=0.3593).

There were no differences between the side-to-side and eight arrangements (permutation of 000; 100; 110; 111; 010; 011; 001; 101) according to the two-sample KS test (P=0.942), and there were no differences between sex and the eight arrangements according to the two-sample KS test (P=0.9973, P=0.8519). The interobserver reliability was excellent (Spearman's ranked correlation: 0.9927).

A total of 365,115, 33, 7, 87, 7, 20, and 10 cases had the eight kinds of arrangements, the 000; 100; 110; 111; 010; 011; 001; and 101 arrangements, respectively, in the left V3v, V3h, and V3e, and 373, 126, 26, 7, 76, 5, 19, and 12 cases had these arrangements on the right. A total of 139, 44, 11, 4, 35, 2, 5, and 2 cases had the eight kinds of arrangements in the left V3v, V3h, and V3e in the females, and 226, 71, 22, 3, 52, 5, 15, 8 cases had these arrangements in the left V3v, V3h, and V3e in the males. A total of 141, 54, 5, 2, 27, 2, 9, and 2 cases had the eight kinds of arrangements in the right V3v, V3h, and V3e in the females, and 232, 72, 21, 5, 49, 3, 10, and 10 cases had these arrangements in the right V3v, V3h, and V3e in the males (Table 2). There were no differences between sex and the left side according to the two-sample KS test (P=0.942), and there were no differences between sex and the right side (P=0.8519). According to Kendall’s W test, the interobserver agreement was excellent (uncorrected for ties: 0.9802, corrected for ties: 0.9939, Spearman's ranked correlation: 0.9927).

Discussion

The vertebral artery has a tortuous shape to meet the need for flexible movement and to facilitate smooth blood flow. V3 is anatomically defined as the vertebral artery that passes from the foramen of C1 to the site of the piercing dura, and it is radiologically defined as the artery passing from the foramen of C2 to the piercing site (26,27). Considering the occipito-atlantoaxial complex is a functional complex, we adopted the latter definition. The V3 that was identified was then divided into two portions demarcated by the foramen of the C1 process, namely, the horizontal and vertical portions, as reported in previous studies. In this study, we divided V3 into three subsegments, namely, the V3v, V3h, and V3e subsegments (13,29). V3e was the section passing from the posterior atlantooccipital membrane to the site of piercing the dura (28). The V3v was easily identified on CTA images. The starting point of V3e was defined as the point of intersection of the course of V3 and the superior border of C1 to which the posterior atlantooccipital membrane attached (29). The terminal point of V3e was marked by the density difference between the cerebrospinal fluid and dura mater on CTA images. The branch arising from V3h was defined as the suboccipital artery of Salmon that supplied the neighboring muscles. The frequency of the artery of Salmon was 20% in a study of 10 cadavers and 67% a study of 15 cadavers (26,27). The frequency of the artery of Salmon was 17.07–20.21% in V3h. Our results are consistent with those reported by Tubbs RS et al. Three branches arising from the V3h were discovered by dissecting cadavers (27), while no more than 2 branches were revealed in our research. The frequency of the branch was 25% in V3v and less than 6% in V3e. The rate of asymmetry in the arrangements of the branches of V3 was 30% according to the autopsy; in other words, the rate of symmetry was 70% in the arrangements (27). In our study, all eight arrangements of branches of V3 were symmetric, regardless of the sex and side of the patient. The permutation of (0,0,0) was the most frequently occurring permutation, followed by (1,0,0), and (0,1,1) was the least frequent (Table 3).

Table 3

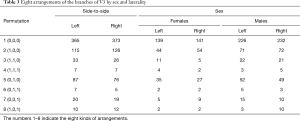

Table 3 Eight arrangements of the branches of V3 by sex and laterality
Full table

It was essential for a surgeon to acquaint every patient’s bifurcations of V3 on CTA before the operation. V3e is fixed by surrounding structures, and its branch has important clinical significance when an operation is conducted in the cranio-occipital region because it might cause mortal bleeding (28-30). The branch of V3 was often ignored on the CTA images by volume rendering process in postprocessing. It cannot be stressed enough that a surgeon must determine the number and locations of the branches of V3, and it is helpful for surgeons to conduct surgical planning to minimize the volume of bleeding.

Skeletal deformities of the occipito-atlantoaxial complex are usually combined with deformities of vessels, nerves, and muscles (14,15,25). The anomaly rate has been reported to be much higher in people with bone deformities than in those without bone deformities (31), so subjects who had bone deformities were excluded so that we could study the frequency and arrangement of V3 in normal persons. The variation of the fenestrated vertebral artery was not assessed because it is difficult to assess for the V3, and the other variations, such as the high-riding vertebral artery, extracranial C1/2 origin of the posterior cerebellar artery, and persistent first intersegmental artery, were included because they could be assessed. Unilateral vertebral atherosclerosis was included, which caused the asymmetric values in Tables 1 and 2 (Figure 5). Although this study had the advantages of noninvasive, in vivo, and fast imaging and had a large sample size, it had the following disadvantages compared to autopsy studies: (I) we were unable to distinguish the branches of V3 on the CTA source images from muscular, osseous radicular, meningeal branches but not for the artery of Salmon (26,32). (II) We were unable to measure the size on the source images as a result of the limited density and spatial resolution of CTA and only counted the branches whose diameters ranged between 0.5 mm and 1.1 mm according to the autopsy (26).

Figure 5 Illustration of the occlusion of the unilateral V3 on a CTA image in a 73.6-year-old patient. The right V3 was occluded on the axial CTA source image in the foramen of C1 (arrow), and the left V3 coursed normally.

Conclusions

To conclude, the frequency and arrangement of the subsegmental branches of V3 could be viewed by the CTA source images in a large sample. The frequencies of the V3v, V3h, and V3e were approximately 25%, 20%, and 6%, respectively, and the most common arrangement of V3 was (0,0,0). This information is helpful for surgeons when performing an operation involving V3.

Acknowledgments

The authors thanks Fei Qi for his help in the statistics, and Xiaopei Guo for her help in drawing the anatomical illustration.

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-725). The authors have no conflicts of interest to declare.

Ethical Statement: The retrospective study was approved by the institutional review board, and informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
