Improving deformable image registration with point metric and masking technique for postoperative breast cancer radiotherapy

Introduction

Breast cancer is the most commonly diagnosed cancer and the leading cause of cancer death among women worldwide (1). Breast-conserving therapy (BCT), which involves a wide local excision followed by radiotherapy to the whole breast, has become the standard treatment for early-stage breast cancer (2). The addition of boost irradiation to the tumor bed after whole breast irradiation (WBI) has shown further improvement of local control (3). As most local recurrences appear close to the tumorectomy cavity, accelerated partial breast irradiation (APBI), which only irradiates the tumor bed and its surrounding breast tissue, has become an alternative to WBI for patients with low risk of recurrence (4). For either irradiation mode, accurate delineation of the breast tumor bed and its target volume is essential. However, the target volume varies widely in terms of specimen volume, seroma size, clarity, surgical clips, inter-observer variability, and other factors (5).

Registering the computed tomography (CT) image acquired before surgery to the CT image acquired after surgery can help define the target volumes for radiotherapy treatment planning. However, considering soft tissue nature, the image registration for breast is difficult (6). Breast is a non-rigid object which undergoes large and complex deformations in shape and volume. Due to surgical operation and postoperative breast changes, it is difficult to match the pre- and post-operative CT scans using rigid image registration methods (7-9). Recently, deformable image registration (DIR) has been introduced to define the breast tumor bed with different imaging modalities, including CT (10), contrast CT (11), magnetic resonance imaging (MRI) (12) and positron emission tomography/computed tomography (PET/CT) (13). In general, the registration accuracy of DIR methods is higher than that of rigid registration methods.

According to matching information used in registration (14), the DIR methods can be divided into two categories: feature-based DIR and intensity-based DIR. So far, there are no reports on feature-based DIR in breast cancer radiotherapy due to the difficulty in identifying landmarks in clinical practice. For intensity-based DIR, there are several applications. However, certain issues have to be considered, which usually do not exist in conventional registration applications (15,16). First, for patients undergoing breast-conserving surgery, the tumor is resected, and the tumor bed displays different image intensities due to the insertion of surgical clips and postoperative changes (such as seromas). These intensity changes will compromise the accuracy of intensity-based DIR methods (17,18). Second, the traditional evaluation metrics for image registration are not directly applicable (16). Since the tumor is resected, there is no direct correspondence between the tumor and its bed. Third, the final deformation field is discontinuous due to tumor resection and clip insertion. This discontinuity will cause an ill-conditioned and non-invertible transformation matrix. Fourth, not all breast tumors are visible on preoperative CT images, particularly for CT scans without contrast usage. The tumor volume on the preoperative CT image is different from the real tumor volume resected during surgery. Additionally, the uniform expansion of the preoperative tumor volume does not well represent the resected tumor volume due to asymmetric excision of the tumor (19).

There are several DIR methods adopted by commercial image registration software, such as MIM (20), Velocity (13), and Mirada (11), of which the performance of contour propagation has been thoroughly investigated (21). Although most studies have indicated that DIR is helpful in contour delineation, Yu et al. (12) found a relatively poor spatial overlap for both the whole breast and the target volumes. These studies focused mainly on commercial image registration software’s clinical applications and less on the technical aspects of DIR methods. To investigate the reliability of the DIR methods, Wodzinski et al. (22) examined different variants of the Demons algorithm. The nonparametric Demons algorithms were compared with the parametric B-spline free-form deformations (FFD), which employed analytical gradient calculation (23) to speed up the registration process. For the initial alignment procedure, the iterative closest point algorithm was comparable with the intensity-based rigid registration (24). To further validate the deformation correctness, Wodzinski et al. (10) proposed alternative artificial deformations that model the tumor bed creation process. A comprehensive evaluation demonstrated that the symmetric Demons algorithm provides the most accurate soft tissue alignment, while B-splines FFD and TV-L1 optical flow are not appropriate. Although the dedicated artificial deformation models were proposed to mimic real soft tissue motions, the ideal solution to validate the deformation would be a method to incorporate with biomechanical analysis. Besides, the above studies concentrated mostly on the tumor bed rather than the clinical target volume (CTV). Since CTV is defined as the extension of the tumor bed, which includes more surrounding soft tissue areas, the DIR method could pay more attention to the alignment of surrounding soft tissue, rather than the local discontinuities near the tumor bed region.

In this study, the conventional B-splines based DIR method was improved with the introduction of point metric and masking technique to reduce the influence of discontinuities caused by tumor resection and clip insertion on registration accuracy. In Method Section, the procedure of the improved intensity-based DIR method is introduced. Then, the applications of the point metric and masking technique are explained in detail. Next, the experiments and evaluation methods are described. In Results Section, the improved DIR method’s performance combined with point metric and masking technique is reported. Finally, the proposed method’s advantages and disadvantages are discussed, and future work is prospected.

Methods

Improved intensity-based DIR

The flowchart of the improved image registration process is illustrated in Figure 1. Image registration aims to find a transform T that spatially aligns a moving image I_M to a fixed image I_F. The masking technique is employed, and both masks for fixed and moving images are generated. For intensity-based image registration, the optimal alignment is generally determined by optimizing a similarity metric between image intensities. In this study, mutual information (MI) was used because it is appropriate for circumstances where corresponding anatomies’ pixel intensities are inherently different. Additionally, a point metric was introduced to regularize the intensity-based registration. The registration was performed in two steps. First, the global registration, affine transformation (AT), was used for initial alignment between fixed and moving images. Then the local registration, B-splines based DIR (25), was used to refine the initial alignment between the two sets of images. In this study, an iterative stochastic gradient descent optimizer was employed, and its principles are described in Appendix 1.

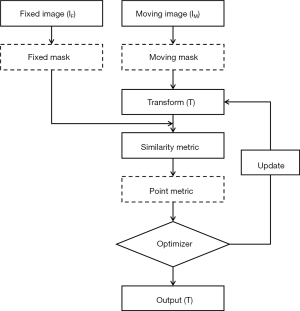

Figure 1 Flowchart of the improved image registration process. Solid boxes represent the conventional procedure, while dashed boxes represent the introduced components (point metric and masking technique).

Point metric and masking technique

A point metric (26) minimizes the distance between two point sets with known correspondence. It is defined as the mean Euclidean distance:

SCP=1P∑xFi∥xMi−Tμ(xFi)∥[1]

where P is the number of points x_i, xFi and xMi are corresponding points from the fixed and moving image point sets, respectively. We modeled the non-rigid transform T with a B-splines based deformation field, where µ is parameters of the transformation T. This metric was used to regularize an intensity-based registration by considering those positions where their correspondences were known. The derivative of S_CP is:

$$\frac{\partial }{\partial \text{μ}}{\text{S}}_{\text{CP}}=-\frac{1}{\text{P}}{\displaystyle {\sum }_{{\text{x}}_{{\text{F}}_{\text{i}}}}\frac{1}{\parallel {\text{x}}_{{\text{M}}_{\text{i}}}-{\text{T}}_{\text{μ}}\left({\text{x}}_{{\text{F}}_{\text{i}}}\right)\parallel }\left({\text{x}}_{{\text{M}}_{\text{i}}}-{\text{T}}_{\text{μ}}\left({\text{x}}_{{\text{F}}_{\text{i}}}\right)\right)\frac{\partial \text{T}}{\partial \text{μ}}\left({\text{x}}_{{\text{F}}_{\text{i}}}\right)}$$[2]

The corresponding point sets in each patient contained an average 30 pairs of points located in unaffected breast tissue and were marked manually by the physician.

The masking technique is mainly for setting the region of interest (ROI). Masks can be used for both the fixed and the moving images. A fixed image mask is sufficient to focus the registration on an ROI, since samples are drawn from the fixed image. A mask for the moving image excludes nonsense grey values since areas outside the mask do not actively contribute to the cost function. The mask is used for dilated whole breast subtracting 2 cm expansion of the tumor on the diagnostic CT (the fixed image). If the tumor expansion is not subtracted, it means no mask for the fixed image in this context. The mask is used for dilated whole breast subtracting obvious postoperative changes such as clips and seromas near the tumor bed region on the planning CT (the moving image). If postoperative changes are not subtracted, it means no mask for the moving image in this context.

For testing purposes, registration based on the AT and the conventional DIR method was performed to obtain a standard result. Examples of fixed and moving images in the conventional DIR method are shown in Figure 2A,B, respectively. Three combinations of point metric and masking technique on the effect of registration accuracy were investigated. The first combination (DIR-1) consisted of the fixed image (Figure 2C) and the moving image (Figure 2D) both without point metric but with masking technique. The second combination (DIR-2) consisted of the fixed image (Figure 2E) and the moving image (Figure 2F) both with point metric but without masking technique. The third combination (DIR-3) consisted of the fixed image (Figure 2G) and the moving image (Figure 2H) both with point metric and masking technique.

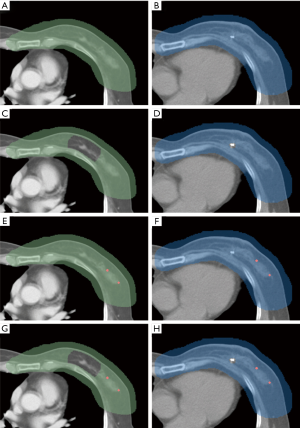

Figure 2 Examples of fixed and moving images in four deformable image registration (DIR) methods. (A) Fixed image of DIR; (B) moving image of DIR; (C) fixed image of DIR-1; (D) moving image of DIR-1; (E) fixed image of DIR-2; (F) moving image of DIR-2; (G) fixed image of DIR-3; (H) moving image of DIR-3. The green label represents the fixed image mask (if tumor expansion is not subtracted, it means no mask) and the blue label represents the moving image mask (if postoperative changes are not subtracted, it means no mask). Point pairs for calculating point metric are represented by red dots. For DIR, the conventional method consisted of the fixed image and the moving image both without point metric and without masking technique. For DIR-1, the first combination consisted of the fixed image and the moving image both without point metric but with masking technique. For DIR-2, the second combination consisted of the fixed image and the moving image both with point metric but without masking technique. For DIR-3, the third combination consisted of the fixed image and the moving image both with point metric and with masking technique. DIR, deformable image registration.

Experiments

The local ethics committee approved this study, and informed consent was waived in this retrospective study. The test data set consisted of 26 CT scans collected from 13 patients who underwent breast-conserving surgery and postoperative radiotherapy in our hospital. All tumors were clearly visible on the diagnostic CT scans, and their volumes varied from 630 to 5,420 mm³, averaging 1,621 mm³. The dimensions of CT volume varied from 512×512×57 to 512×512×86 in voxels, and the slice thickness was 5.0 mm. In-plane image resolution varied from 0.68×0.68 mm to 1.37×1.37 mm. The registrations were performed on a 64 bit PC equipped with Intel Core i5 CPU 3.4-GHz and 32 GB RAM.

Elastix registration software developed by Klein and Staring (27,28) (http://elastix.isi.uu.nl) was employed in this study. The AT initialized the intensity-based registration. A multi-resolution B-splines based registration was then performed. In the multi-resolution approach, Gaussian pyramid was used to smooth and down-sample the image at different scales. Here, we chose three resolutions. The grid size of the control points of the B-splines model was set to 16. Each scale’s grid space was set to [4 2 1] times a physical unit (in mm). The larger grid size allowed the registration to match large structures and skip small structures in the multi-resolution registration. The smaller grid size ensured that the detailed structures in the breast could be matched.

Evaluations

The methods’ performances were evaluated by the standards of target registration error (TRE), the Jacobian determinant, and visual assessment.

TRE (29) is based on the Euclidean distance between corresponding points in the fixed and the moving images. Mean TRE value is defined as follows:

$${\text{TRE}}_{\text{mean}}=\frac{1}{\text{I}}{\displaystyle {\sum }_{\text{i}}\sqrt{{\left({\text{x}}_{\text{i}}-{\text{x}}_{\text{i}}\right)}^2+{\left({\text{y}}_{\text{i}}-{\text{y}}_{\text{i}}\right)}^2+{\left({\text{z}}_{\text{i}}-{\text{z}}_{\text{i}}\right)}^2}}$$[3]

where i is a single point indicator, I is the total number of points, x, y, z denote the fixed point coordinates, and x', y', z' denote the corresponding point coordinates in the transformed moving image. It is noted that there is no direct correspondence between the tumor and its bed. We grouped all points into three categories according to their locations at unaffected soft tissues (within 5 cm away from tumor area), rigid structures (ribs, breastbone), and body boundaries (nipple) as illustrated in Figure 3. In total, 30 pairs of points were chosen for each patient. The median of the registration error, together with 25 and 75 percentile values were reported. The Benjamini-Hochberg method was used to correct for multiple comparisons in five registration methods (AT, DIR, DIR-1, DIR-2, and DIR-3). A level of P<0.05 was considered statistically significant, and all statistical analyses were performed in R (version 3.6.3).

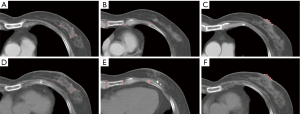

Figure 3 Three categories of point sets chosen for calculating target registration error (TRE). (A) Soft tissues next to the tumor area (fixed image); (B) rigid structures (fixed image); (C) body boundaries (fixed image); (D) soft tissues next to the tumor area (moving image); (E) rigid structures (moving image); (F) body boundaries (moving image). These points are represented by red dots.

The resulting transformations’ plausibility was assessed by the Jacobian determinant of the displacement vector field (DVF). The Jacobian determinant identifies the local volume change as a result of the registration. Values greater than 1 indicate volume expansion. Values between 0 and 1 indicate volume reduction. Value 1 indicates no change. A value less than or equal to 0 indicates non-physical motion. This quantity can be used to screen the transformation matrix for any ill behaviors. However, positive Jacobians do not automatically guarantee registration accuracy because large local changes in the Jacobian determinant can also indicate a registration error (e.g., voxels in a small 2×2 region with a Jacobian of 10 while surrounding voxels have a Jacobian of 1).

Visual assessment of medical images is necessary because it is easy to identify improper results based on the physician’s clinical experience. The checkerboard image is one of the most commonly-used qualitative visualization tools for detecting registration error. It is particularly effective for identifying mismatches between corresponding structures at high contrast tissue interfaces (16). Besides, image overlay display produces images that are the blended composition of registered images. Fixed and deformed moving images are displayed in opposite colors (red and cyan), and all perfectly aligned structures are displayed in gray. Any deviations are shown in either red or cyan for fixed or deformed moving images, respectively. Each patient CT image was evaluated by two experienced physicians within 4 to 5 minutes.

Results

The running time of a single test including affine and B-splines based registration averaged 150 seconds. With the application of point metric and masking technique, the running time was 158 seconds. On average, the time taken to place points was 8 minutes, and the time taken to set the masks was 3 minutes.

The statistics of TRE for the five different methods are listed in Table 1. The corrected P values for multiple comparisons are shown in Figure 4. The initial AT achieved median TREs of 7.38, 5.82, and 8.17 mm for soft tissue, rigid structure, and boundaries, respectively. The Wilcoxon signed-rank test was performed to compare the AT and other DIR methods. The P values were less than 0.05, which indicated significance with the application of DIR methods. Except for soft tissue alignment, there was no statistical difference between AT and DIR methods without point metric (DIR and DIR-1). Specifically, the P value was 0.29 between AT and DIR, and the P value was 0.19 between AT and DIR-1.

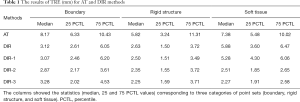

Table 1 The results of TRE (mm) for AT and DIR methods
Full table

Figure 4 The corrected P values for multiple comparisons of the five registration methods. A level of P<0.05 was considered statistically significant. For DIR, the conventional method consisted of the fixed image and the moving image both without point metric and without masking technique. For DIR-1, the first combination consisted of the fixed image and the moving image both without point metric but with masking technique. For DIR-2, the second combination consisted of the fixed image and the moving image both with point metric but without masking technique. For DIR-3, the third combination consisted of the fixed image and the moving image both with point metric and with masking technique. AT, affine transformation; DIR, deformable image registration.

Among the different DIR methods listed in Table 1, the application of point metric (DIR-2 and DIR-3) significantly improved the soft tissue alignment. Specifically, without applying masking technique, TRE decreased from 5.88 to 2.51 mm (comparison between DIR and DIR-2). With the application of masking technique, TRE decreased from 5.28 to 2.27 mm (comparison between DIR-1 and DIR-3). In evaluating rigid structures, all DIR methods met the clinical tolerance of 2–3 mm (16). Although there was no statistically significant improvement with the application of masking technique (DIR-1 compared with DIR, DIR-3 compared with DIR-2), a slight decrease in registration error was observed. P values were all above 0.05 within the three different point sets. However, TRE decreased by 4.6% and 9.9% on average in rigid structure and soft tissue alignment, respectively. DIR-3 showed higher accuracy in the registration of soft tissue and rigid structures, but less accuracy in the registration of boundaries.

The statistics of the Jacobian determinant for the 4 DIR methods are listed in Table 2. Representative transverse views of the spatial Jacobian map around the tumor areas are shown in Figure 5. The Jacobian determinant of the deformation was positive for all patients. In general, with the application of point metric, the mean values of the Jacobian determinant decreased (DIR-2 compared with DIR, DIR-3 compared with DIR-1). Without application of masking technique (as shown in Figure 5A,C), a local expansion of volume near the tumor region was observed, which seemed unrealistic from a clinical point of view.

Table 2 The results of Jacobian determinant for four DIR methods
Full table

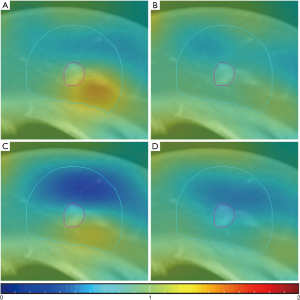

Figure 5 Transverse views of the spatial Jacobian map of the transformation for deformable image registration (DIR) (A), DIR-1 (B), DIR-2 (C), DIR-3 (D). Values greater than 1 (red end of spectrum) indicate local volume expansion. Values less than 1 (blue end of spectrum) indicate volume reduction. The pink contour represents the original tumor and the blue contour represents its expansion with a 2-cm margin. For DIR, the conventional method consisted of the fixed image and the moving image both without point metric and without masking technique. For DIR-1, the first combination consisted of the fixed image and the moving image both without point metric but with masking technique. For DIR-2, the second combination consisted of the fixed image and the moving image both with point metric but without masking technique. For DIR-3, the third combination consisted of the fixed image and the moving image both with point metric and with masking technique.

For qualitative visual assessment, the image overlay displays and the checkerboard images between the fixed and the transformed moving images are shown in Figure 6. Visual assessment of DIR methods was better than that of AT, which was consistent with the TRE metric’s evaluation results. Further improvement of soft tissue alignment was observed in the methods with point metric (as shown in Figure 6G,H,I,J) since the blended displays were almost in gray. However, there was no significant difference between DIR-2 and DIR-3.

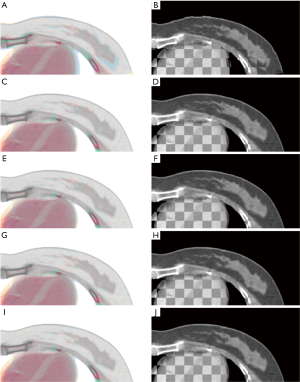

Figure 6 Image overlay displays and checkerboard images for visual assessment. (A) Image overlay display of the affine transformation (AT); (B) checkerboard image of AT; (C) image overlay display of deformable image registration (DIR); (D) checkerboard image of DIR; (E) image overlay display of DIR-1; (F) checkerboard image of DIR-1; (G) image overlay display of DIR-2; (H) checkerboard image of DIR-2; (I) image overlay display of DIR-3; (J) checkerboard image of DIR-3. For DIR, the conventional method consisted of the fixed image and the moving image both without point metric and without masking technique. For DIR-1, the first combination consisted of the fixed image and the moving image both without point metric but with masking technique. For DIR-2, the second combination consisted of the fixed image and the moving image both with point metric but without masking technique. For DIR-3, the third combination consisted of the fixed image and the moving image both with point metric and with masking technique.

Discussion

The alignment of anatomical landmarks is a direct way to evaluate the accuracy of registration. In this study, the landmarks in soft tissue were within 5 cm away from the tumor region, which better represents soft tissue movement close to the tumor. Furthermore, the soft tissue points can be more reliable than the other two categories (rigid structures and body boundaries) because they are the closest to the tumor region.

The introduction of point metric is critical for DIR methods. As shown in Table 1, without the application of point metric (DIR and DIR-1), the soft tissue alignment was poor and did not meet the clinical tolerance. With the masking technique’s application only (DIR-1), the improvement of soft tissue alignment was limited. This might have been caused by the intensity changes of non-corresponding regions, as well as inaccurate masking area. With the application of point metric and masking technique (DIR-3), higher registration accuracy in soft tissue and rigid structures was obtained. However, the registration accuracy in the boundaries was poorer. This is partly due to surgery’s unexpected effect, where some patients may undergo extensive remodeling of the nipples (presented as the boundaries).

The spatial Jacobian image can help to identify certain unrealistic results according to the clinical scenario. Our hospital’s surgical regimen did not involve oncoplastic surgery, where the breast tissue is remodeled extensively (10,11). Thus, the Jacobian determinant would not deviate too far from 1, especially near the excision area. The mean values of the Jacobian determinants were smaller with the application of point metric (DIR-2 compared with DIR, DIR-3 compared with DIR-1), which is more consistent with the volume reduction caused by surgery. Without applying masking technique (as shown in Figure 5A,C), there is a local expansion of volume near the 2 cm expansion of the tumor. It seems unrealistic because the 2 cm expansion is approximate to the real surgical margin of the tumor. Thus, the masking technique is recommended for more realistic modeling of the deformation on the expansion of the tumor region.

For qualitative visualization, the region next to the tumor can be more reliable in assessing accuracy. Therefore, in our study, unaffected soft tissues were inspected more carefully. The method with point metric achieved better matching for soft tissue, regardless of applying masking technique.

Contour-based DIR or hybrid DIR methods have been applied in various sites. Incorporating contour information with intensity-based registration can achieve better registration accuracy. However, in our study, the ROIs that could be used as constraints were almost unavailable, which precludes the application of the contour-based or hybrid DIR methods. Our method had significant advantages in terms of performance compared with other open source DIR frameworks (30). Based on preliminary results, our work achieved comparable results to commercial image registration software (31,32) in terms of the TRE tolerance, according to the AAPM TG-132. The proposed method could be applied to other sites, especially for those non-corresponding regions composed of low contrast tissue.

DIR methods that employ both image intensity and landmarks hold great promise for medical image registration applications (33). However, these methods lack robustness for clinical applications since the landmarks are less available in routine practice (34). Moreover, there exists the possibility of inter-observer disagreement in identifying landmarks, especially in low contrast regions, which has also been investigated by some researchers (35). As for the application of masking technique for diagnostic CT, 2 cm is generally recognized as the safety margin in breast-conserving surgery. However, the asymmetric excisional margin varies from person to person in clinical practice. Thus, a more appropriate range of masking should be considered in order to achieve more reasonable delineation of CTV.

There are several limitations of this study. First, the image data sets were limited, as the patients were required to undergo diagnostic CT as a preoperative work-up. More data should be collected in the future. Second, the evaluation was susceptible to subjectivity of human operator. More physicians should, therefore, be recruited for evaluation in the future. Third, the CT image’s slice resolution in this study was limited to 5 mm due to clinical protocol. A finer thickness (<3 mm) will result in better registration accuracy, where the improvement is marginal with 1 mm according to previous reports (36). Therefore, 3 mm is preferred for clinical use and will be adopted in future studies.

In this study, the corresponding point sets were recognized manually by experienced physicians. This procedure can be greatly improved by automatic detection algorithms and deep learning methods in terms of efficiency and precision. Furthermore, additional feature extraction and other intensity-based registration methods should be explored. Since the points used for regularization in the DIR method are extracted from unaffected glandular tissue, the gland’s entire contour could also be used as an additional feature. It may also serve as an ROI for quantitative assessment, which is supplementary to current evaluation methods.

Conclusions

The introduction of point metric and masking technique to the intensity-based B-splines DIR method is effective for registering CT images before and after breast-conserving surgery. The influence of large deformations and non-correspondence on the DIR method’s registration accuracy can be reduced to a certain degree. This method provides a feasible way for target volume definition in postoperative breast cancer radiotherapy treatment planning.

Acknowledgments

Funding: This work is partially supported by the National Natural Science Foundation of China (11875320) and Beijing Hope Run Special Fund of Cancer Foundation of China (LC2018A08).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-705). The authors report grants from the National Natural Science Foundation of China and grants from Beijing Hope Run Special Fund of Cancer Foundation of China during the conduct of the study.

Ethical Statement: This study was approved by the institutional Ethics Committee of Cancer Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College. Informed consent was waived in this retrospective study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
