Mandibular condyle displacements after orthognathic surgery—an overview of quantitative studies

Introduction

Orthognathic surgery is one of the methods used for the correction of malocclusion and temporomandibular disorders. Changes introduced to the geometry of maxillofacial structures have an impact on the biomechanics of the stomatognathic system and the position of the mandibular condyle. The study of the relationship of the factors affecting the movement of the condyle and the correlation between displacements and treatment results are the subject of many analytical considerations.

Postoperative displacement of the condyle is considered as one of the determinants of the outcome of treatment. The position of the mandibular condyle may be affected by various factors, such as distal segment repositioning, the alignment of bony fragments, the method of bony segment fixation, the tensional balance of the muscles and surrounding tissue, and the surgeon’s experience (1,2). There are numerous studies concerning the influence of individual variables on changes in condylar position. A quantitative approach can also be seen to assess the effects of condylar displacements on the temporomandibular joint (TMJ) structures and skeletal stability. Early postoperative relapse and temporomandibular dysfunctions might be observed in the short-term, while late relapse associated with significant morphologic changes of the mandibular condyle and bone remodeling usually occur over a longer period (3-5).

The available literature mainly evaluates changes in the joint space, as well as changes in the translational and rotational displacements of the mandibular condyle. In the beginning, studies were based on two-dimensional radiography. Currently, computer techniques enable measurements to be taken from 3D models reconstructed from computed tomography scans. Three-dimensional methods have not only enabled the taking of more precise measurements (6,7), but also the observation of condylar surface changes (8), therefore allowing an accurate evaluation of bone remodeling. Considerations of the relationship between the positional changes of the condyle and the magnitude of the reposition of maxillofacial bone segments usually focus on selected displacements (9,10). Due to the complex character of condylar movement, data for all angular and linear displacements of the condylar head might provide a more reliable outcome.

Currently, computer techniques are broadly used in the study of biological structures (11,12). They allow a more accurate insight into the condition of loaded tissues (13,14). The authors of several studies utilized numerical methods in the analysis of orthognathic surgery results (15-17). Quantitative data can be used both to determine the boundary conditions, as well as for the subsequent analysis of the obtained results and validation of the numerical model. Results of such analysis, combined with biomechanical considerations of the orthognathic surgery, may also be used in predicting treatment outcome and potential risk.

The aim of this study was an overview of the literature presenting the quantitative analysis of condylar rotational and translational displacement resulting from orthognathic surgeries. The authors attempted to analyze recent literature fields of interest and collect data (with a description of each study’s purpose and research characteristics), while at the same time provide information that might be useful in both clinical treatment preparations and in further analytical research planning.

Methodology

The methodology implemented in this work was adapted from systematic reviews. Relevant literature searching was focused on the quantitative aspect of the presented results.

Three methods of data presentation can be distinguished:

• Mean position value [standard deviation (SD)] for specific pre- and post-surgery periods;
• Mean change value (SD);
• Mean change (SD) + extreme displacement values.

In the second method, extreme changes can be approximated with an assumed level of significance using basic statistical operations. The first method does not allow a fully reliable assessment of a rotational and translational displacements. The value of the mean changes can be calculated, yet the SD of changes is unknown. This method of data presentation, however, might give an overview of the displacements pattern. Joint space is usually measured on 2D radiographs, so the differences in values can result from both condyle rotation and translation.

Old articles often contain analyses that include factors that are no longer relevant (e.g., fixation with lag screw or wire) or that use less precise measurement methods. Analysis of bone remodeling provides more reliable results when implementing modern methods based on the analysis of 3D models. Three-dimensional measurements are also valuable in the evaluation of condylar movement. Constant development can be observed in the field of imaging, as well as in orthognathic procedures, e.g., virtual methods of bone segment positioning, surgery planning (18,19). Considering this development, the authors decided to limit the searching time-frame to the last 10 years in order to present the currently obtained results.

The following inclusion criteria were chosen when selecting articles:

• Studies published since 2010 (search updated on 11.05.2020);
• English language articles only;
• Using displacements measured for condyles;
• Data presented in two forms: mean (SD) value of displacement; mean (SD) + extreme values;
• Human trials only.

Articles presenting measurements of the proximal segment, ramus, angle, and joint space were excluded from the analysis. Studies aimed at quantitative analysis of condyle rotation and translation resulting from orthognathic surgeries were sought. The data search included a combination of terms in three conditions: orthognathic surgery (“orthognathic”, “advance*”, “setback”, “osteotomy”, “bimax*”, “distract*”), “condyl*” AND “mandible*” and the character of changes (“position*”, “dislocation*”, “rotation*”). A detailed electronic search was carried out in the PubMed, Scopus and Web of Science databases. The search was updated on 19.02.2020 and expanded by manual searching including the reference list of the publications preliminarily included in the analysis.

Literature search outcome

The searching for the aforementioned terms resulted in 283, 272 and 256 records for PubMed, Scopus and Web of Science, respectively, giving a total of 811 articles; 397 were unique records that were considered for further critical reading of the title and abstract; 334 articles were excluded because no premise of quantitative evaluation was found; 63 articles were included for full-text reading. An additional 20 articles were obtained by reference list screening. Twenty articles were excluded because of data presentation in the form of mean position and joint space measurements. One paper was excluded from the review because of the ambiguity connected with the negative value of SD. After the final selection according to the inclusion/exclusion criteria, twenty-nine articles were chosen and reviewed (Figure 1).

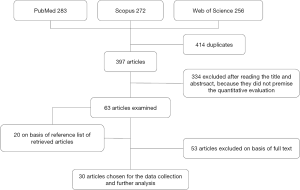

Figure 1 Flow chart of the searching.

The overview of the included articles allowed the authors to distinguish two groups of studies. In the first one group, displacements were considered as a comparative factor (osteosynthesis methods, types of facial deformations, surgical interventions and surgical approaches, joint condition), or were of an evaluative nature (effectiveness of the methods/modifications, clinical reports, pattern and extent of displacement). In the second group, positional changes of the condyle (both direction and magnitude are considered) were analyzed as the potential correlation factor (with skeletal relapse, condylar volume change, TMJ signs and symptoms, condylar remodeling).

Condylar displacements as a comparative/evaluation factor were used in 22 articles (citations), and most of the studies were of an evaluative character (evaluation of the effectiveness of the surgical technique, magnitude or pattern of displacements after specific surgery). Condylar changes according to different malocclusion types or bony defects (citations) were one of the subjects of the comparison. Five articles included the collation of treatment methods—differences between treatment approaches (orthodontic-first approach OFA/surgery-first approach SFA) and the surgical methods [bilateral sagittal split osteotomy (BSSO)/BSSO + LeFort I]. A comparison of the fixation methods was found in two articles. In the majority of articles, inclusion criteria were based on the type of maxillomandibular deformity or surgical intervention. Class III malocclusion and BSSO/BSSRO combined with LeFort I were often assumed as the constant agent in the compared groups. Details of the surgical procedure, measuring technique, reference landmarks and surgical changes were usually reported. Radiograms from CBCT were most frequently utilized for the evaluation of changes. Other methods were based on the superimposition of the 3D models, and the voxel-based registration of subvolumes. The Frankfort horizontal plane was most often assumed as one of the reference planes for the measurement and orientation of the reference system. Condylar translations were determined on the basis of the differences between the characteristic landmarks, or on the basis of the displacements of the centre of the condylar head. Rotations were evaluated from reposition of the condylar long axis, or calculated from the landmark directories. In most of the articles, advanced statistical methods were implemented for the analysis of the results, however, great heterogeneity can be noticed among them. An example of this can be seen in the evaluation of the significance of the time course of positional changes.

The second, less numerous group (seven articles) includes studies about the relationships between various study variables. In most cases, multivariate statistical methods were used to analyze correlations between factors. The effect of the condylar displacements was evaluated based on the clinical dysfunction indexes, condylar head remodeling, postoperative joint signs and skeletal relapse. The following factors, which probably affect the condylar position, were considered in publications: skeletal movement, proximal segment rotation, condylar volume, vertical bony step, age, gender, mandibular plane angle. The registration of changes related to bone remodeling and their subsequent analysis requires advanced methods. In most cases, the measurements were based on three-dimensional models, their superimposition, and advanced algorithms of data interpretation. Detailed characteristics of the studies included in the overview are shown in Table 1 and Table 2.

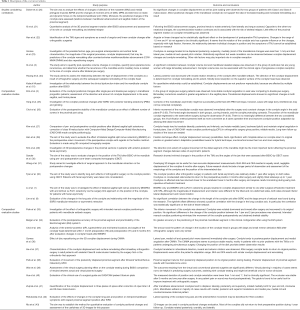

Table 1 Description of the overviewed articles
Full table

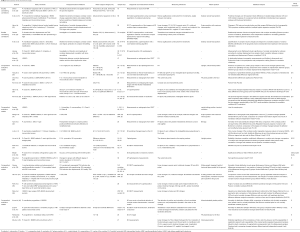

Table 2 Characteristics of the overviewed articles
Full table

Data were presented as mean and SD rounded to two decimal places. In 9 (31%) studies, extreme values were also given, and 11 (38%) studies included measurements of all linear and angular displacements. About half of the works included all rotational or translational changes (41% and 59%). The most frequently reported parameter was Yaw rotation (90%), followed by Roll rotation (66%), and superior-inferior (62%), anterior-posterior (59%), and medial-lateral translations (55%). Pitch rotation was reported in less than half of the works (41%), with perioperative changes being the most frequently reported (immediate 66%). The measurements were made in intervals of 3 months, 6 months and 1 year after the surgical procedure (21%, 38%, 21%). One study contained measurements after an average of 6 weeks, and one after more than one year. The greatest displacements are observed immediately after surgery. In the postoperative period, the condyle showed the tendency to return toward the preoperative position. The summary of the results for the various periods is presented in 11 papers (2, 8, 5 and 3 for Imm/3 months, Imm/6 months, Imm/1 year and 3 months/6 months, respectively).

Data interpretation is a difficult task due to the multiplicity of factors differentiating the studies. The main direction of surgical changes, i.e. distinguishing data for patients with Class II and Class III malocclusion, can be adopted as the basic criterion for classification. The analysis of the average changes in positions should be carried out for individual time intervals. Quantitative evaluation for the group of retrognathic patients and for the specific postoperative period can be performed based on data from 4 articles. In a greater number of articles, that is 14, data for Class III malocclusion are presented. The values of immediate displacements for the single or two-jaw BSSO procedure could be found in 9 publications. The data from 6 articles also meet these criteria for the 6-month post-treatment period. The results with quantitative data collected from the analysed articles are presented in Figure S1and Figure S2.

Discussion

The influence of orthognathic surgeries on the TMJ and the stability of treatment results has been the subject of considerations and controversies over many years. The main goal of those studies was to analyze the factors that have an impact on the treatment and its outcome, and furthermore to improve the surgical techniques and treatment process. However, many variables can affect the results. Apart from frequently considered biological or demographic aspects, a multitude of issues related to the procedure itself can be distinguished, e.g., type of surgical intervention, type of fixation method, magnitude and direction of surgical changes, considered time intervals of measurement. Quantitative analyzes present measurable data that are useful for both evaluation and comparative purposes, as well as for considering the relationship between variables.

The comparative studies evaluate the differences between specific aspects, including fixation methods, skeletal defects, and surgical treatment. Regarding fixation methods, the results presented in the clinical research were consistent with the experimental studies performed on mandible models. Although the surgical changes did not show any significant differences, these were noticeable for changes in the postoperative retention period. Rigid fixation with bicortical screws provides greater stability than hybrid and semi-rigid techniques. It results in the lower ability of the condylar adaptation movement and a return toward the preoperative position. Rigid fixation is characterized by greater stability, but it also entails the risk of undesirable condylar torque and displacement during the fixation (44,45), and poses a risk of nerve damage due to the compression of bone segments. Intuitive differences concern the direction and range of displacements. They are especially visible when comparing Class II and Class III malocclusions (41). Changes resulting from the correction of the asymmetry are less predictable due to the complex, spatial reposition of the distal bone segment. Both sides of the mandible might present different positional changes due to varying bony interferences and bony gaps (46). Varying displacements might also be connected with the greater unilateral tension of soft tissues and muscles, and as a consequence there are unbalanced results (47,48). Kim et al. (29) concluded that the most important factor affecting proximal segment position between deviated and nondeviated sides might not actually be the extent, but the direction of the distal segment movement. Neither the type of malocclusion, nor the menton deviation affect the differences between the sides (29,35). Moreover, the comparison of the sequence of treatments (OFA/SFA), as well as the number of surgical procedures (two-jaw/single-jaw) did not show significant differences in condylar displacements.

Biomechanically, it seems to be possible to predict specific displacements for individual treatments. Costas et al. (49) claim that all condylar positional rearrangement, despite lateromedial movements, can be predicted. Proximal segments tend to rotate in the coronal plane in the form of passive movement that results from repositioning of the distal segment. This scheme of the displacements is connected with the V or U shape of the jaw and the geometry of the osteotomy design. As expected, changes in the position of the condyle, resulting directly from BSSO, can be considered to be rotations in three axes (Figure 2A) and lateral-medial translation (Figure 2B). The medial distraction procedure will mainly affect the rotation in the axial plane, as well as ML translation. Correction of mandible asymmetry is connected with much more complex, and difficult to predict positional changes of the proximal segment. Therefore, mandible asymmetry is often considered in the analyses as an excluding criterion. Although condyles undergo complex spatial displacements, translations in the anterior-posterior and inferior-superior directions should not be considered to be the result of the changes introduced to the geometry of the jaw bone itself. They seem to instead be an effect of surgical intervention, such as the positioning of the condyle head in the fossa. In both mentioned directions, the condyle has the greatest natural mobility, as well as an ability to adapt.

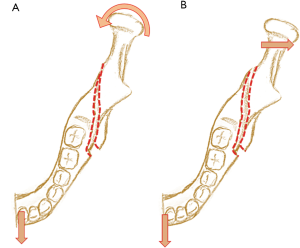

Figure 2 Proximal segment positional change after distal segment advancement: (A) rotation in an axial plane, (B) displacement in a transverse direction.

Nevertheless, the analysis of the displacements direction and magnitude shows inconsistency among the results. Inward yaw rotation is often reported to be a consequence of mandibular setback (8,47,50,51), while mandibular advancement may result in outward (21,36) or inward (41) rotation. In the correction of Class II and III malocclusions, medial roll was mainly observed (36,41,52). The pitch rotation is suspected to be influenced by the direction of distal segment repositioning, and therefore counterclockwise rotation occurs in mandible advancement (21,36), and clockwise rotation occurs in setback (27). The specific pattern for the direction and extent of condylar displacements is difficult to assess. One reason for this may be the adaptation of the proximal to the distal segment, which might depend on the osteotomy method. Greater positional differences can be noticed in the case of the correction of patients with asymmetry defects (1). The tendency of the condyle to return to the preoperative position up to 6 months after surgery was observed in most of the long-term analyses (1,26,31,35).

As a result of orthognathic procedures, changes are introduced to both the bone geometry and the relative position of the craniofacial structures. Displacements of the condyles seem to be inevitable, and changes within some range are considered as clinically insignificant (29,53). The great majority of reported changes were within a clinically acceptable range of 1 mm and 4 degrees. Nevertheless, even minute change of the condylar position may affect the biomechanics of the system, as well as the functioning of the TMJ. The preoperative functionality of the stomatognathic system is usually regained in 6 months. After that period, full bone union and restoration of occlusal strength can be assumed. Ma et al. (43) noted that the position of the condyle does not change significantly after 3 months of the operation taking place. Nevertheless, biomechanics of the jaw bones may be affected in longer period (late postoperative relapse) by changes in bone morphology associated with bone remodelling and progressive condylar resorption (5,54). Condyle displacement is often mentioned as one of the factors causing skeletal relapse, which might progresses over time even after a 1-year follow-up. Structures such as cartilage and muscle tissue undergo earlier adaptation, but nevertheless still affect long-term results. Differences in the postoperative period displacement values, as well as recovery movement to the original position, may be associated with the tension and further adaptation of soft tissues and muscles (8,21,47,50). During distal segment advancement, tissues are extended, and therefore in the postoperative period they tend to contract, pull the mandible backward, and possibly cause posterior displacement of the condyle.

The positive impact of orthognathic treatment on TMJ problems was noted in the vast majority of publications. Only individual cases of new symptoms and complications were reported (1,22). According to the work of Rokutanda et al. (42), outward yaw rotation and condylar anteroinferior movement can positively affect TMJ problems. Statistically significant rotations in the axial plane are considered as one of the remodeling-inducing factors (8,47,50). Several studies that include considerations of bone remodeling can be found (8,25,50). Ha et al. (50) reported reduced condylar heights on sagittal and coronal planes, as well as resorption on the anterior and superior areas on the sagittal plane, which corroborates with the findings of Park et al. (47). The authors found a correlation between resorption and inward rotation in the axial plane. The pitch rotation of the proximal segment, especially in a counterclockwise direction, is indicated as another factor that has an impact on skeletal relapse (3,21,55). Xi et al. (21) observed that skeletal relapse greater than 2 mm occurred in 10/11cases with counterclockwise rotation. The authors also point out the magnitude of advancement, preoperative condylar volume and condyle decrease in volume as potential risk factors affecting skeletal relapse. In later work, the relationship between proximal segment flaring and the risk of condylar volume loss was reported (3). Dicker et al. (20) found that the changes of the proximal segment position affect the direction of masticatory muscles, and therefore also influence the biomechanics of the masticatory system. Mechanical advantage for muscles was noticed, yet the authors did not find significant differences in condyle angular changes, and for this reason do not support the idea of increased condyle loading. They suggest that the condyle can adapt to moderate changes in the sagittal plane due to its plate-like trabecular architecture (56). An et al. (8) also did not find a direct correlation between specific rotation and remodeling. Moreover, bone resorption was observed more frequently than bone formulation. However, a positive relationship between all proximal segment rotations and condylar volume changes was noticed by Yang and Hwang (25). The authors noticed that condylar remodeling and its extent are determined by the direction of condylar displacement during surgery. The exception is a superior surface, on which bone resorption was mostly observed. Prevention of the postoperative structural changes in the TMJ can be obtained by maintaining the condylar head in the center of the articular fossa (57). Ueki et al. (58), on the other hand. claim that the correct positioning of the condyle cannot be definitely determined. The most favourable is the position where the minimal remodelling induced by postoperative biomechanical stress would be the smallest. Short-term analyses are the most commonly found due to the fact that CT scans are usually necessary to depict surgical changes. Long-term data concerning a statistically sufficient population is more difficult to collect and can explain the lower number of studies presenting these kinds of results. Therefore, the need for long-term analyses was noticed in several publications (1,26,40,41,58). The impact of condyle displacements on changes in the TMJ is still debatable, and what is more the range and importance of those changes, which may be relevant regarding postsurgical normal function, is still unknown (7,30). Global analysis of mean values can be useful in the assessment of the general pattern and range of changes for specific conditions. Among the analyzed articles, in only 7 papers did the inclusion criteria match with regards to the type of defect and the surgical procedure. An exemplary summary for the 13 sample values of immediate changes in yaw rotation are presented in Figure 3. Similar collations of the collected data are included in a low number of data samples. Due to the limited amount of available data and the great heterogeneity of variables between studies, such an assessment poses a demanding task. To estimate the range of displacements, a larger number of studies with a higher level of homogeneity between conditions is needed.

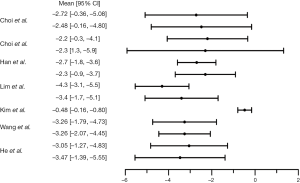

Figure 3 Mean immediate yaw rotation for BSSO/BSSO+LeFort.

Measurements are still commonly performed on the 2D radiographs from CBCT scans. They are used in the evaluation of condyle movements, joint space changes, and the intercondylar width and angle. More accurate techniques are based on frequently utilized 3D analyses. Xi et al. (3) recognize the use of 3D cephalometry on a reconstructed model from CBCT scans for assessing the facial skeleton changes to be the strength of their study. Condyle translational changes are measured as the displacements of the center of the condyle head point, or evaluated from the directions between characteristic points on the head surface. The joint space is measured as the distance between specific landmarks at the opposite surfaces. Ueki et al. (59) claim that condyle positional changes can be reflected by joint space changes. Considering the complexity of condylar displacement, a direct link between both of those values is not fully appropriate, especially when measurements are performed on 2D scans instead of three-dimensional models. The rearrangement of the space between the condylar head of the mandible and the fossa can result from both translational and rotational displacements (Figure 4). Therefore, the reduction of the complex TMJ to a two-dimensional projection, which is especially common in old articles, has obvious limitations (30). Modern methods of analyzing medical images are characterized by additional possibilities of data interpretation and the greater accuracy of measurements. Values presented in articles are given rounded to two decimal places. Such accuracy may be important in the observation of bone remodeling or skeletal relapse, as well as when quantifying complex condylar movements. However, conventional 2D and 3D cephalometric analyzes seem to be insufficient to determine such small changes (3). The total measurement error consists of both the errors of the CBCT superimposition and the identification error of the landmarks (60), which are often greater than the accuracy of the reported results. For registration and quantification of such relatively minute movements and bone changes, tools based on 3D imaging are required (61). Three methods of presenting angular change can be noticed among the studies. In the first, most common method, the mean value of the condyle angular position with SD for treatment periods are reported. This method allows tendency of the angle changes over time to be observed. The mean value of displacements between postoperative intervals can be assessed, however, the range of the angular changes is not possible to define. The second way of reporting condyle rotations is by presenting the average values of the positional changes between specific periods. Theoretically, the values of the lower and the upper limit can be estimated for the given confidence interval using statistical methods.

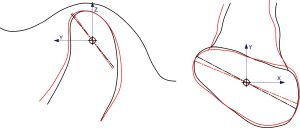

Figure 4 Sagittal and coronal view of positional changes in the joint space resulting from condyle rotation: black—before, red—after condylar axial rotation.

More recently, innovative computer-aided technologies were introduced into the process of surgery planning and support. The benefits of implementing Virtual Surgery Planning or Electromagnetic navigated systems were noticed, but they do not result in higher accuracy for proximal segment positioning (34,39). The results obtained in advanced computer methods often differ from real surgery, which does not allow for predictions of the treatment outcome (39). Computer simulations are additional techniques that are currently implemented in the research of biological structures. Numerical methods allow for more accurate insight into the results of the procedure on individual structures. Nevertheless, orthognathic surgeries are difficult to recreate using numerical simulation. A reliable outcome would require the reconstruction of complex, manual surgical operations, such as condyle positioning. Quantitative data on changes in the condylar position recorded in clinical measurements could be used as input in numerical simulations. The position of proximal fragments could be directly introduced to the model.

Conclusions

Quantitative data are often utilized in medical science research for interpretation and analysis. Such considerations can be seen to be valuable for wider evaluations concerning condylar displacement after orthognathic surgeries. Particular attention should therefore be given to both the quantitative and qualitative analysis of this problem. The presented study showed an overview of the issues considering mandibular condyle displacement using a quantitative approach. A great heterogeneity among articles was noticed regarding both the research problem itself and the research methodology. A limited sample size was often reported by authors as a study limitation. The set of results can be useful for interpreting data in the form of a meta-analysis. Nevertheless, in such a case, the number of variables between the analyzed articles should be minimized. Due to the complex character of condylar movement, measurements for all rotational and translational directions seem to be appropriate. A lack of data on one of the displacements leads to its influence on the result being neglected. An example of this can be seen to be the least often reported pitch rotation, which was found to be strongly connected with skeletal relapse and changes in TMJ structures. The information available in the literature does not allow conclusions to be drawn regarding the direction and extent of condylar displacements resulting from orthognathic surgeries. More rigorous research concerning yaw and pitch rotation as possible risk factors is suggested. The need for long-term analyses, especially important in studies that include bone remodeling, should also be mentioned. The collected information and quantitative data presented in this overview are believed to be helpful as a source for future comparative analyses, as well as a guide in determining the scientific problem and for conducting research.
