Correlations between left ventricular rotational mechanics and parasympathetic autonomic function—results from the three-dimensional speckle-tracking echocardiographic MAGYAR-Healthy Study

Introduction

Left ventricular (LV) base of the healthy heart rotates clockwise, while LV apex rotates counterclockwise in systole representing a “towel-wringing” motion called as LV twist (1,2). The LV twist is the result of the movement of double, orthogonally oriented helical structure of myocardial fibers (2). Despite the fact that several physiological variables could affect LV rotational mechanics, little is known about the effect of autonomic function (1,2). Three-dimensional (3D) speckle-tracking echocardiography (3DSTE) has been introduced for non-invasive bedside evaluation of LV rotational mechanics, and seems to be an optimal tool for clinical studies (3-5). The current study was designed to evaluate correlations between the result of Ewing’s 5 standard cardiovascular reflex tests characterizing autonomic function and 3DSTE-derived LV rotational parameters in healthy volunteers.

Patients and methods

Patient population

The present study comprised 18 healthy subjects in sinus rhythm (mean age: 36±12 years, 12 men). All cases had undergone two-dimensional (2D) Doppler echocardiography, 3DSTE and the 5 cardiovascular reflex tests. None of the healthy subjects had any known symptoms, factors or disease, which could have affected our results. A study has been organized in our department for the evaluation of the usefulness, diagnostic and prognostic value of 3DSTE-derived parameters named MAGYAR-Healthy Study (Motion Analysis of the heart and Great vessels bY three-dimensionAl speckle-tRacking echocardiography in Healthy subjects) (‘magyar’ means ‘Hungarian’ in Hungarian language). The study complied with the Declaration of Helsinki. Informed consent was obtained from each subject and the study was approved by the institutional review board at the University of Szeged, Hungary.

Two-dimensional echocardiography

Conventional echocardiography was performed using a Toshiba Artida™ echocardiographic system (Toshiba Medical Systems, Tochigi, Japan) attached to a PST-30SBP (1–5 MHz) phased-array transducer. Routine echocardiographic parameters were evaluated by M-mode and 2D Doppler echocardiography captured in parasternal and apical views according to the clinical guidelines (6).

Three-dimensional speckle-tracking echocardiography

3DSTE studies were performed with the same Toshiba Artida^TM echocardiography equipment (Toshiba, Tokyo, Japan) with a 1–4 MHz matrix phased-array PST-25SX transducer (5). Following 3D data collections within a single breath-hold from an apical window, the stored echocardiographic data were exported to a separate workstation for off-line analysis, where chamber quantification was performed using 3D Wall Motion Tracking software version 2.7 (Toshiba Medical Systems). Following definition of mitral annular edges and apex in apical two- (AP2CH) and four-chamber (AP4CH) views, endocardial border of the LV cavity was automatically detected by the software in 3D. Curves were generated by the software for quantification of 3DSTE-derived global peak apical and basal LV rotations and LV twist (Figure 1).

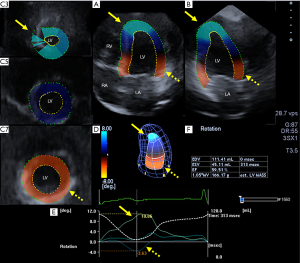

Figure 1 The apical four-chamber (A) and two-chamber (B) views and 3 short-axis views (C3, C5, C7) at different left ventricular levels are presented in a healthy woman. Three-dimensional cast of the LV (D) and apical, midventricular and basal regional LV rotational curves (E) are demonstrated together with LV volumetric data (F). The adequate rotational directions are counterclockwise motion of the left ventricular apex expressed with positive value (yellow arrow) and clockwise rotation of the left ventricular base expressed with negative value (dashed yellow arrow). EDV, end-diastolic volume; EF, ejection fraction, ESV, end-systolic volume; LA, left atrium; LV, left ventricle; LV MASS, LV mass; RA, right atrium; RV, right ventricle.

Autonomic function

Autonomic function was assessed by means of 5 standard cardiovascular reflex tests (7). Mainly featuring parasympathetic function, heart rate response to deep breathing (normal value: ≥15 bpm, abnormal value: ≤10 bpm), Valsalva ratio (normal value: ≥1.21, abnormal value: ≤1.10) and 30/15 ratio (normal value: ≥1.03, abnormal value: ≤1.00) were determined, while sustained handgrip test (normal value: ≤10 mmHg, abnormal value: ≥30 mmHg) and systolic blood pressure response to standing (normal value: ≥16 mmHg, abnormal value: ≤10 mmHg) were used for predominantly reflecting sympathetic function (borderline values are between normal and abnormal values). The results of each of the 5 tests were scored as 0 (normal), 1 (borderline), or 2 (abnormal), and a final autonomic neuropathy score (ANS) was calculated (range, 0–10) to express the severity of the overall autonomic disorder.

Statistical analysis

All data are reported as mean ± SD. A value of P<0.05 was considered to be statistically significant. Medcalc software was used for statistical calculations (Medcalc, Mariakerke, Belgium). Numerical correlations were established by Pearson’s correlation. GPower 3.1.9 Software (Heinrich-Heine Universität, Düsseldorf, Germany) was applied for power calculation: in the presence of effect size: 0.7, alpha: 0.05, power: 0.7 the minimum group size is n=14.

Results

Results of the cardiovascular reflex tests

Data are presented in Table 1.

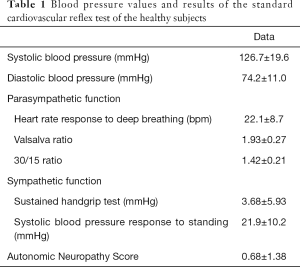

Table 1 Blood pressure values and results of the standard cardiovascular reflex test of the healthy subjects
Full table

Two-dimensional and three-dimensional speckle-tracking echocardiographic data

Routine two-dimensional echocardiographic data are presented in Table 2. None of the subjects have grade ≥1 valvular regurgitation or stenosis. During 3DSTE, basal LV rotation proved to be −3.24±2.02 degree, while apical LV rotation was 9.08±3.04 degree, therefore LV twist was 11.70±6.80 degree.

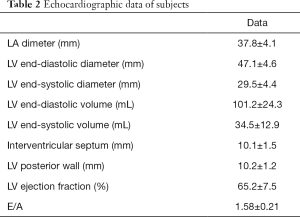

Table 2 Echocardiographic data of subjects
Full table

Correlations between cardiovascular reflex tests and LV rotational parameters

Valsalva test showed significant correlations with LV basal (r=0.529, P=0.019) and apical LV rotations (r=−0.534, P=0.022), and LV twist (r=−0.467, P=0.044). Heart rate response to deep breathing significantly correlated with LV twist, as well (r=−0.452, P=0.052). The other tests did not have any relationship with LV rotational characteristics (Table 3).

Table 3 Pearson correlation coefficients between left ventricular rotational parameters and standard cardiovascular reflex tests in healthy volunteers
Full table

Discussion

To the best of the authors’ knowledge, this is the first study in which relationship between Ewing’s cardiovascular reflex tests characterizing autonomic function and 3DSTE-derived LV rotational parameters were examined in healthy adults. Significant correlations could be demonstrated between cardiovascular reflex tests mainly characterizing parasympathetic autonomic function and LV rotational parameters in healthy volunteers.

Movement of two orthogonally oriented muscular bands of a helical myocardial structure is responsible for the LV twist with consequent clockwise rotation of the LV base and counterclockwise rotation of the LV apex (4,8). LV rotational mechanics (twist) are governed by the following main factors as suggested by Nakatani (1):

• The degree of contraction and relaxation of the myocardium,
• The balance between contraction of the subendocardium and subepicardium and
• Orientation of the myocardial fibers.

Moreover, LV twist is greater with higher preload, increases with LV contractility, exercise and age, but LV twist is lower with higher afterload (2). Aortic stiffness could also have an effect on LV twisting mechanics even in healthy subjects (9). 3DSTE is a non-invasive, simple, easy-to-learn tool, which is based on tracking and measurement of tissue displacement in the 3D space respecting cardiac cycle and was found to be feasible for the assessment of LV rotational parameters (4).

Diabetic autonomic neuropathy is one of the best opportunities to examine the influence of the autonomic regulation on the LV. Sacre et al. highlighted the fact that global relationships of cardiac autonomic neuropathy and LV dysfunction remain independent of known factors in the pathogenesis of myocardial disease (10). Cardiac autonomic neuropathy seems to be related to altered LV filling patterns in the presence of preserved systolic function in patients with different types of diabetes mellitus (11,12). Recently, LV twist was examined in patients with diabetic cardiovascular autonomic neuropathy by two-dimensional speckle tracking imaging (13).

The main message of the present study is that relationship exists between the parasympathetic autonomic function and the LV rotational mechanics even in healthy subjects. Result of the present study could suggest, that with increasing parasympathetic function a decrease in LV basal and apical rotations and LV twist could be detected. Moreover, no relationship was found between tests mainly characterizing sympathetic autonomic function and LV rotational parameters. However, further studies are warranted to confirm our results in a larger healthy population with other methods.

Limitation section

• Current image quality obtained by 3DSTE is worse than for 2D echocardiography due to low temporal and spatial image resolutions (4).
• This was a single-centre experience and limited by a relatively small number of healthy volunteers. The study would have been statistically stronger, if larger number of subjects had been evaluated.
• Ewing tests can be use to examine the physiological responses to shifts in autonomic function. However, in the context of LV twist, most of these tests profoundly impact other regulators of LV mechanics and hemodynamics, including venous return and afterload.
• Moreover, the Valsalva maneuver, while being a tool to assess the baroreflex responses to the breathing, is not necessarily a test delineating sympathetic versus vagal input, and also poses the additional constraint on the heart of altered lung volumes and impedes quality echocardiographic imaging.

Conclusions

Correlations exist between parasympathetic autonomic function and LV rotation and twist in healthy volunteers.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-544). AN serves as an unpaid editorial board member of Quantitative Imaging in Medicine and Surgery. The authors have no conflicts of interest to declare.

Ethical Statement: The study complied with the Declaration of Helsinki. Informed consent was obtained from each patient and the study was approved by the institutional review board at the University of Szeged, Hungary.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
