The accuracy of cone-beam computed tomography and augmented fluoroscopy-guided bronchoscopic marking of multiple small-sized pulmonary nodules in a hybrid operating room: a retrospective cohort study

Introduction

Computed tomography (CT) is currently the most effective screening method for detecting lung cancer and reducing lung cancer mortality (1-3). The pulmonary lesion, radiologically called a ground-glass nodule (GGN), is suggestive of lung adenocarcinoma of the following histological subtypes: adenocarcinoma in situ (AIS) and minimally invasive adenocarcinoma (MIA) (4). Since AIS and MIA are classified as non-invasive, early-stage lung cancers, they are considered to be a good indication for limited pulmonary resection (5-9). Furthermore, small-sized pulmonary metastases from other malignancies could also be an indication for limited pulmonary resection as a part of a multidisciplinary treatment approach (10-15). However, some of the small-sized pulmonary nodules, such as GGNs, and metastatic pulmonary nodules are hard to identify during video-assisted thoracic surgery (VATS), unless there are accompanying visceral pleural changes such as pleural indentation. A VATS marker placement, therefore, is considered prior to surgery.

Preoperative CT-guided hookwire placement has been the most commonly used method to localize small-sized pulmonary lesions. VATS markers such as a hook-thread (16), spiral wire needle (17), microcoil (18), fiducial markers (19), color dyes such as methylene blue (20), barium (21), and lipiodol (22), and radiotracers such as technetium 99 and Tc99m (23,24) are placed nearby the target pulmonary lesions. Pneumothorax, hemothorax, or air embolus can occur because of the invasive puncture of the visceral pleura.

Bronchoscopic marking is an alternative to a percutaneous approach. VATS markers are delivered nearby the target pulmonary nodules through the accessory channel of the flexible bronchoscope. If properly performed, bronchoscopic marking of the pulmonary nodules is achieved without injuring the visceral pleura and, therefore, avoiding the risk of pneumothorax. Various materials such as methylene blue (25), indigo carmine (26), and fiducial markers (27) have been used as materials for bronchoscopic VATS markings. Generally, X-ray fluoroscopy is used in combination with bronchoscopy to reach the peripheral lung lesion. However, if the target pulmonary nodule is not clearly visible on X-ray fluoroscopy, it is not easy to lead the VATS marker to the vicinity of the target, which could lower the VATS marking accuracy. Recently, ENB has been used to increase the accuracy of bronchoscopic VATS markings. By registering the previously obtained CT data, the bronchoscope can be guided to the vicinity of the peripheral lung mass, which is not visible on X-ray fluoroscopy (25,28-30).

The cone-beam CT (CBCT)-guided bronchoscopy performed in hybrid operating rooms (ORs) may be useful in improving the accuracy of bronchoscopic markings. However, it is unclear how the accuracy of the procedure will be improved by adding the imaging guidance available in the hybrid OR to that used during conventional bronchoscopic marking. In this historical controlled study, we aimed to numerically clarify how the latest image-guided technology improves the accuracy of markings compared to that obtained with conventional X-ray fluoroscopic image-guided bronchoscopy. We hypothesize that the utilization of the hybrid OR can improve the accuracy of the bronchoscopic markings. This will become widely recognized and used in clinical practice.

In the current study, three different VATS marking approaches were compared: CT-guided percutaneous VATS marking, X-ray fluoroscopy-guided bronchoscopic VATS marking, and bronchoscopic VATS marking in a hybrid OR.

We have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-781).

Methods

Ethics, consent, and permissions

Patients provided written informed consent to participate in the study and for individual patient data to be published. This study was approved by the institutional review board of Kochi Medical School, Kochi University, and registered in the Japanese clinical trial registration database (registration number: UMIN-CTR R000027833), which is accepted by the International Committee of Medical Journal Editors.

Eligible participants

Patients who were scheduled to undergo VATS wedge resection of a non-solid, partly solid, or solid pulmonary nodule with a maximum nodule diameter of less than 20 mm and without radiological changes in the visceral pleura on CT located in the peripheral lung (outer 1/3 side of the lung) were included in this study. The study period was from January 2013 to December 2014 for CT-guided percutaneous marking, January 2015 to December 2016 for navigation bronchoscopic marking, and January 2017 to December 2018 for CBCT and augmented fluoroscopy-guided bronchoscopic marking in the hybrid OR. The study design for all periods is illustrated in Figure 1.

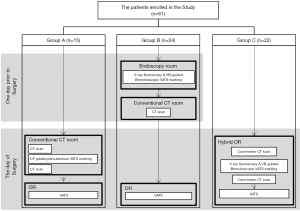

Figure 1 The flow of video-assisted thoracic surgery (VATS) marking procedures in each group. In group A, CT-guided percutaneous VATS markings are performed on the morning of surgery. The patients are moved from the CT room to the operating room (OR) for VATS. In group B, bronchoscopic VATS markings are performed in the endoscopy room on the day prior to surgery using X-ray fluoroscopy and virtual bronchoscopic navigation. After the procedure, the patient is moved to the CT room, and a CT scan is performed to confirm the VATS marker placement. In group C, patients are given general anesthesia in the hybrid OR; all subsequent procedures, including cone-beam computed tomography (CBCT) (registration of the target lesion), bronchoscopic VATS markings with imaging guidance by augmented X-ray fluoroscopy, and another CBCT to confirm the successful VATS marking, are performed simultaneously.

Group A: CT-guided percutaneous marking

The CT-guided percutaneous marking procedure was performed from January 2013 until December 2014 as previously reported (31).

The patient was placed in either the prone, supine, or lateral position, depending on the location of the lesion. After a preliminary scan, the CT scanner (320-row area detector CT, Aquilion ONE; Canon Medical Systems Co., Ltd., Tochigi, Japan) was focused on the area of the pulmonary nodule. After providing local anesthesia with lidocaine, a 23-gauge needle filled with the marking solution was inserted near the pulmonary nodule. Fifty to 100 µL of indocyanine green (ICG)/iopamidol marking solution was injected during real-time imaging using CT fluoroscopy (Figure 2).

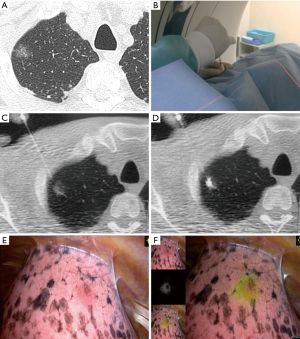

Figure 2 CT-guided percutaneous marking. (A) A localized ground-glass nodule visualized using CT. (B) Puncture using a 23-G needle under local anesthesia. (C) Needle puncture near the target during apnea. (D) Injection of 0.05 mL of indocyanine green (ICG)/iopamidol mixed solution serving as a video-assisted thoracic surgery (VATS) marker. (E) White-light imaging by thoracoscopy. (F) ICG fluorescence (ICG-FL) imaging showing the ICG-FL marker as a green spot.

Group B: X-ray fluoroscopy-guided bronchoscopic marking

The bronchoscopic marking procedure was performed from January 2015 until May 2017 as previously reported (31).

After local anesthesia had been performed, moderate sedation was achieved by administrating 2–3 mg of midazolam intravenously. A thin, flexible bronchoscope (Olympus P290; Olympus, Tokyo, Japan) was inserted nasally into the tracheobronchial tree. The bronchoscope was led from the subsegmental bronchus to the target pulmonary nodule under virtual bronchoscopy navigation generated by the CT DICOM data with the Synapse Vincent (Fuji Film, Tokyo, Japan) volume analyzer.

A bronchoscopic biopsy needle was inserted through the accessory channel of the flexible bronchoscope to the peripheral aspect of the bronchus immediately below the visceral pleura under X-ray fluoroscopy. The sheath was retracted 3 cm from that position, the transbronchial aspiration cytology (TBAC) needle was exposed 1 cm from the sheath, and then, the sheath and the needle were advanced together 1 cm to puncture the lung parenchyma. Fifty to 100 µL of ICG/iopamidol marking solution was injected into the lung parenchyma under X-ray fluoroscopy. A chest CT was then performed to confirm the marking point (Figure 3).

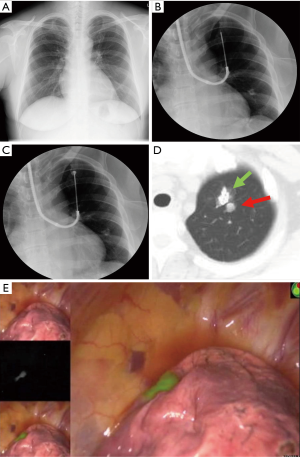

Figure 3 Bronchoscopic marking with conventional X-ray fluoroscopy and virtual bronchoscopy guidance. (A) A tumor on the left apex of the lung is not visualized on a plain chest X-ray. (B) A bronchoscopic needle is led under radioscopy and virtual bronchoscopy to the site where the tumor is considered to be present. (C) Injection of video-assisted thoracic surgery (VATS) marker. (D) After the bronchoscopy is complete, patients are moved to the CT room, a CT scan is performed, and the positional relationship between the target lesion (red arrow) and the VATS marker (green arrow) is confirmed. (E) Visualization of indocyanine green fluorescence by fluorescent thoracoscopy.

Group C: CBCT and augmented X-ray fluoroscopy-guided bronchoscopic VATS marking in the hybrid OR

Group C included 22 consecutive patients who undertook CBCT and navigation bronchoscopic VATS marking.

The patient was given general anesthesia in the hybrid OR, and tracheal intubation was performed. Non-contrast CBCT was performed during suspended respiration using an Artis Q device (Siemens Healthcare, Forchheim, Germany). Cross-sectional images were then reconstructed automatically on a dedicated workstation (Syngo X Workplace; Siemens Healthcare, Forchheim, Germany). On cross-sectional images, the target lesion was manually contoured in multiple orthogonal planes using dedicated software (Syngo iGuide Toolbox; Siemens Healthcare, Forchheim, Germany). The contours were displayed live on augmented X-ray fluoroscopy for intraprocedural guidance. A bronchoscope was then inserted through the tracheal tube to the peripheral bronchus. A TBAC needle-guide sheath was led close to the target pulmonary nodule under CBCT-augmented X-ray fluoroscopy guidance. When the TBAC needle was deployed nearby the target contour, the C-arm of the CBCT-augmented X-ray fluoroscopy was tilted from the vertical to the horizontal direction to confirm that the tip of the TBAC needle was placed at the appropriate position three-dimensionally (Figure 4A,B). The VATS marker was then injected into the parenchyma near the target pulmonary lesion in the same manner as that performed in group B (Figure 4C,D). Compared to the first CBCT taken at the beginning of the procedure (Figure 5A), the second CBCT (Figure 5B,C) confirmed that the bronchoscopically injected VATS marker is located adjacent to the target pulmonary lesion. A three-dimensional CT image displaying the target pulmonary nodule(s) and VATS marker(s) in the half-translucent lung was created for intraoperative reference aiding the surgeons (Figure 5D). After inserting a bronchial blocker for isolated lung ventilation, the patient was placed in a lateral position, and VATS was continued.

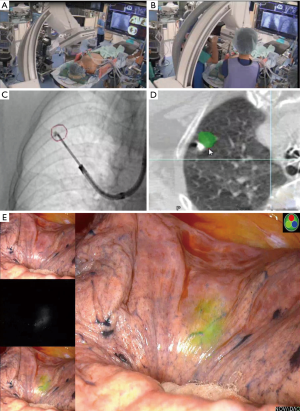

Figure 4 Bronchoscopic video-assisted thoracic surgery (VATS) marking in the hybrid operating room (OR). (A) After the induction of general anesthesia, the target lesion can be visualized using cone-beam CT (CBCT); the tumor can then be displayed as red nodules or circles on augmented fluoroscopy. Even if the tumor itself is not visible under radiography, the position of the target lesion can be indicated on the monitor throughout the procedure. (B) A flexible bronchoscope is inserted through the intratracheal tube to the peripheral bronchus. The tip of the bronchoscopic needle is guided to the target lesion under both augmented X-ray fluorography and virtual bronchoscopy guidance. (C) A total of 0.05 mL of a VATS marker is injected. (D) A CBCT scan is performed again to confirm that the VATS marker was injected adjacent to the target pulmonary nodule (green-colored lesion). (E) The patient is repositioned into the lateral recumbent position. Thoracoscopic surgery is started, and the position of the target lesion is visualized using fluorescent thoracoscopy.

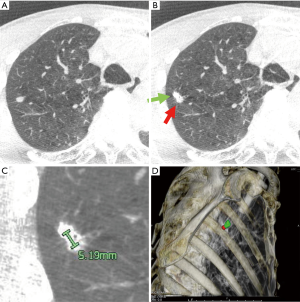

Figure 5 Examination of the accuracy of VATS marking on CT images. (A) The target pulmonary nodule to be marked by VATS. (B) CT image after the VATS marker (green arrow) is injected near the target pulmonary nodule (red arrow). (C) The distance between the center point of the target lesion and the center point of the VATS marker is measured on the workstation. (D) Three-dimensional chest image from the right lateral direction. The surgeon confirms that the VATS maker (green spot) is placed near the target (red spot).

ICG fluorescence (ICG-FL) VATS marker

An ICG/iopamidol mixture was prepared as a VATS marker solution by diluting ICG (2.5 mg/mL, 10 mL; Daiichi-Sankyo, Tokyo, Japan) 100-fold with iopamidol (Iopamiron 370; Bayer, Leverkusen, Germany). A 1-mL syringe was filled with the ICG/iopamidol mixture and connected to either a 23-gauge CT-guided percutaneous needle or a 21-gauge bronchoscopic biopsy needle (NA-1C-1; Olympus America). The needle lumen was filled with the marking solution prior to the marking procedure.

Examination of VATS marking accuracy

The straight-line distance connecting the center points of both the VATS marker and the target lung mass was measured on the CT workstation (Figure 5A,B,C). The primary outcome was set as the marking accuracy (i.e., the straight-line distance between a target pulmonary nodule and the corresponding VATS marker), and the secondary outcomes were defined as the detection rate of fluorescent VATS markers and the incidence of adverse events.

ICG-FL-guided thoracoscopic wedge resection

Three-dimensional CT images of the half-translucent lung including the pulmonary nodule(s) and VATS marker(s) were displayed side-by-side with a thoracoscopy display during surgery to clarify the positional relationship between the marker and the tumor (Figure 5D). The ICG-FL VATS marker was visualized by the PINPOINT^® endoscopic fluorescence imaging system (Stryker, Kalamazoo, MI) (Figure 2E,F, Figure 4D). The part of the lung thought to contain the tumor was partially excised with an endo-stapler. Successful removal was confirmed by rapid pathological diagnosis.

Statistical analyses

Any significant differences in the continuous variables among the categorized groups were compared using the Kruskal-Wallis test. Fisher’s exact test was used for the comparison of discrete variables between groups.

The required sample size for group C was determined as follows. Previous research comparing the marking accuracy between group A (pulmonary nodules n=15) and group B (n=25) revealed that group A was more accurate than group B (P=0.0012, power =0.830). Therefore, P<0.05 and power =0.8 were defined for the setting of the current study. The effect size was defined as 0.8 according to custom.

To negate the null hypothesis that there is no significant difference in marking accuracy between group B and group C under the above-defined conditions, the required sample size of group C was n=19. The a priori power analysis to determine the sample size for the nonparametric dataset was calculated using G*power version 3.1.9.2 (a program written by Franz Faul, University of Kiel, Germany). All other statistical analyses were performed using JMP version 14 (SAS, Cary, NC, USA).

Results

In total, 61 patients participated in this clinical trial, including 15 patients in group A (CT-guided percutaneous marking), 24 patients in group B (X-ray fluoroscopy-guided bronchoscopic marking), and 22 patients in group C (CBCT and augmented X-ray fluoroscopy-guided bronchoscopic marking). Clinical background data and the results of each patient group are summarized in Table 1.

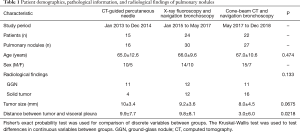

Table 1 Patient demographics, pathological information, and radiological findings of pulmonary nodules
Full table

Group A included 15 patients with 16 pulmonary nodules who underwent VATS markings. ICG-FL was successfully detected by near infra-red spectroscopy (NIRS) thoracoscopy in 15/16 (93.8%) pulmonary nodules (Table 2). In a patient with two pulmonary nodules, VATS marking was attempted for the second nodule and failed because of the development of a small secondary pneumothorax that occurred after the first VATS marking. In total, a small pneumothorax occurred in 3/15 (20.0%) patients in this group, none of whom required a chest tube insertion.

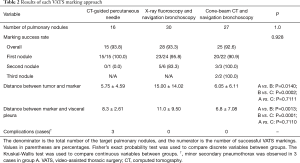

Table 2 Results of each VATS marking approach
Full table

Group B included 24 patients with 30 nodules. The first and second VATS markings were successful in 28/30 (93.3%) and 5/6 (83.3%) pulmonary nodules, respectively (Table 2).

In group C, we required at least 19 pulmonary lesions with successful VATS markings that could be evaluated for accuracy by measuring the distance between the tumor and the marker. Assuming a marking success rate of 80%, 24 lesions were required. Thus, 25 consecutive pulmonary nodules with successful VATS markings were included in group C. VATS markings were successful for the first 20/22 pulmonary nodules. In the two unsuccessful cases, the ICG-FL VATS marker was placed deeper into the lesion in the lung parenchyma, 22 mm from the visceral pleura; hence, the NIRS thoracoscope failed to visualize the ICG-FL intraoperatively. Markings of the second (n=3) and third nodules (n=2) were all successful.

For pulmonary nodules in which the ICG-FL VATS marker was not detected by the NIRS thoracoscope, the access portal was extended by about 3 cm, and the surgeon localized the pulmonary nodules by finger palpation. Ultimately, the target pulmonary nodules were successfully resected with a negative surgical margin in all patients. Other than a small pneumothorax in three patients in group A, no complications were observed throughout the study period.

Discussion

In this study, three VATS marking techniques were compared in terms of the accuracy and complication rate. The image-guided bronchoscope in the hybrid OR was more accurate than the bronchoscopic marking under normal radiography and was comparable to CT-guided percutaneous marking. The results of the current study proved that CBCT and augmented X-ray fluoroscopic imaging navigation can improve the accuracy of the bronchoscopic approach to peripheral pulmonary nodules. With this technique, bronchoscopic VATS marking can be performed with the same accuracy as the conventional percutaneous approach, but with fewer complications. This technique could be implemented in clinical practice to detect and resect small and/or multiple pulmonary nodules with accuracy, while avoiding complications. This result indicates that the hybrid OR is useful as a helpful image-guided modality in reaching a peripheral lung target by bronchoscopy. It is hoped that the hybrid OR will be used not only for the purpose of bronchoscopic VATS marking but also for all bronchoscopy procedures for peripheral pulmonary lesions.

In group A, CT-guided percutaneous needle marking was performed while observing the target in real-time, and the approaching route was independent of the bronchial anatomy, thus, the marking accuracy was naturally high. On the other hand, since a small pneumothorax developed when the visceral pleura was punctured, this method was not suitable for repeated VATS markings at multiple locations. There are some anatomical points of the lung where the scapula or ribs interfere, the apex of the lung near the subclavian artery or vein, or the deep mediastinal aspect of the lung where percutaneous VATS marking would not be suitable.

Groups B and C had VATS markings performed with a TBAC needle inserted through the accessory channel of the flexible bronchoscope. This method is suitable for multiple VATS markings because it minimally damages the visceral pleura, reducing the risk of pneumothorax. From the central bronchus to the middle layer, virtual bronchoscopy navigation can guide the tip of the bronchoscope through the correct central bronchus, leading to the peripheral bronchus where the target peripheral pulmonary nodule is located. Bronchoscopic guidance in the middle to the peripheral bronchus is done exclusively by X-ray fluoroscopy. This is considered to be the main factor that reduces the accuracy of the marking in this group. Small lung masses and GGNs may have been unclear on the fluoroscopy images used in Group B.

Group C first underwent a CBCT scan, and the three-dimensional location of the small pulmonary mass lesion that was invisible by simple radiography was registered. Even if target lesions such as GGNs are not visible on X-ray fluoroscopic images, the target lesion can be virtually displayed on the augmented X-ray fluoroscopic image based on the CBCT data. X-ray fluoroscopy accompanying CBCT is also used during bronchoscope insertion, but small lung lesions are virtually displayed on radiographs taken in anterior-posterior or side views. Therefore, the tip of the TBAC needle can be accurately guided to the lesion. This is the main factor that improved the marking accuracy in group C. In group C, since CT imaging and VATS markings are performed under general anesthesia, there is no subject movement, thus, ensuring accuracy. Patients do not suffer any pain due to the general anesthesia.

Limitations

In this study, there was no difference in the VATS marking accuracy between group A and group C, but if the larger sample size is considered, group C may be less accurate than group A. This is because group C may be affected by the superiority of bronchoscopic procedures. However, group C still has the advantage of being able to mark multiple points with fewer incidences. The effectiveness of group C’s method should be verified by testing the inter-operator reliability in a multicenter study.

Conclusions

VATS marking under bronchoscopy with a CBCT and augmented X-ray fluoroscopy guide under general anesthesia in a hybrid OR may have an accuracy comparable to CT-guided percutaneous VATS marking. By utilizing the tools of the hybrid OR, the accuracy of approaching and marking the peripheral target lesion by the use of a bronchoscope can be increased to a level that is comparable to that achieved by a CT-guided approach. The utilization of hybrid ORs for bronchoscopy/interventions is expected to increase in more facilities.

Acknowledgments

Funding: This work was financially supported by a Grant-in-Aid for Scientific Research KAKENHI from the Japanese Society for the Promotion of Science (grant number JP15K01294).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-781). The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by the institutional review board of Kochi Medical School, Kochi University, and registered in the Japanese clinical trial registration database (registration number: UMIN-CTR R000027833), which is accepted by the International Committee of Medical Journal Editors. Patients provided written informed consent to participate in the study and for individual patient data to be published.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
