Analysis of liver steatosis analysis and controlled attenuation parameter for grading liver steatosis in patients with chronic hepatitis B

Introduction

Liver steatosis is defined by the accumulation of lipid droplets, primarily triglycerides, in hepatocytes (1,2). Steatosis has become a common finding of liver biopsies as obesity and metabolic syndrome have risen in prevalence worldwide, and it may co-exist with other chronic liver diseases, such as chronic hepatitis B infection (3,4).

Several noninvasive techniques can be used to diagnose liver steatosis, including ultrasound, computed tomography (CT), and magnetic resonance imaging (MRI). Conventional B-mode ultrasonography is the most widely used technique to detect the presence of liver steatosis; however, it is not completely sensitive, especially when there is less than 30% hepatic fat infiltration (5,6). CT also has limited sensitivity for quantifying liver steatosis; moreover, this technique involves radiation exposure (7). MRI, particularly proton MRI spectroscopy, is the most reliable method for the quantification of fatty liver disease; however, the examination and the image-processing procedures tend to be complex, and the high cost restricts this method’s regular use (8).

Recently, controlled attenuation parameter (CAP), a physical parameter acquired with the FibroScan (Echosens, France), has been widely used to assess steatosis (9,10). FibroScan is an ultrasound-based vibration-controlled transient elastography (VCTE) device that is used to detect hepatic fibrosis-associated liver elasticity. CAP, which is based on FibroScan, measures the ultrasound attenuation at the center frequency of the M probe (3.5 MHz). CAP is reported to have an excellent performance in the diagnosis of more than 10% of liver steatosis cases (11,12). However, because CAP is not guided by two-dimensional gray-scale sonography, it cannot effectively avoid the biliary tract, large blood vessels, or intrahepatic masses. In practical operations, CAP is often time-consuming, difficult to use, and even fails in the detection of liver steatosis (13,14). Liver steatosis analysis (LiSA) is a newly developed ultrasound attenuation parameter for the diagnosis of hepatic steatosis that is based on a visual quantitative measuring platform, Hepatus (Mindray, China).

Chronic hepatitis B is the most common chronic liver disease in China. For chronic hepatitis B patients with steatosis, the risks of cirrhosis and hepatocellular carcinoma are increased (15,16). It is important to screen for steatosis in patients with chronic hepatitis B. Therefore, we selected patients with HBV infection as our study subjects. This study aimed to evaluate the clinical value of LiSA in differentiating significant (≥10%) from insignificant (<10%) steatosis in patients with chronic hepatitis B, and to compare its clinical value with that of CAP.

Methods

Patients

All patients with HBV-related chronic liver disease who underwent percutaneous liver biopsy in the ultrasound unit of the Department of Infectious Disease in Ruijin Hospital between November 2018 and October 2019 were screened for inclusion. The exclusion criteria were as follows: (I) patients with regular alcohol consumption in the past 12 months, which was defined as more than 140 grams per week for men or more than 70 grams per week for women; (II) patients with other liver diseases that could cause steatosis, such as an infection or combined infection with other hepatitis virus, drug-induced liver injury, Wilson’s disease, autoimmune hepatitis; (III) patients with total parenteral nutrition, liver transplantation patients, other end-stage medical diseases, or malignant tumors; (IV) patients with an aspartate aminotransferase (AST) or alanine aminotransferase (ALT) level >5 times the upper limit of normal values; (V) patients with a skin-to-liver capsule distance of >25 mm, or a body mass index (BMI) of ≥28 kg/m².

For all enrolled patients, blood samples, liver stiffness measurement, CAP and LiSA assessment, and liver biopsy were performed on the same day. The following information was also collected at the time of liver steatosis evaluation: weight, height, waist circumference, arterial hypertension, diabetes, and alcohol and tobacco use.

Ethical statement and written informed consent

The study was approved by the ethics committee of Ruijin Hospital (No. 2017-72), and written informed consent was obtained from each patient. The patients did not receive any financial compensation.

Equipment

Measurement of LiSA was performed with Hepatus, a newly developed ultrasound machine, with a 3.5-MHz phased array probe (LFP5-1U, Mindray, Re 6S, China). FibroScan with an M probe (Echosens, FibroScan 502, France) was used to measure CAP. The attenuation of ultrasound propagation in the liver tissue is increased by fat accumulation. Therefore, the detection of ultrasonic attenuation coefficient is a quantitative method for evaluating the degree of liver steatosis (10). Both LiSA and CAP measure the total ultrasonic attenuation (go-and-return path) in the liver at 3.5 MHz, which is expressed in decibels per meter (dB/m). CAP measures the ultrasonic attenuation in the liver tissue along the vertical axis of the probe (one dimension), while LiSA detects the mean ultrasonic attenuations in liver tissue at the region of interest (two dimension) (Figure 1A). The actual visual measurement screen of LiSA is shown in Figure 1B.

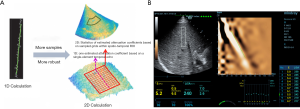

Figure 1 Liver steatosis analysis (LiSA). (A) The difference between controlled attenuation parameter (CAP) and LiSA in the detection of ultrasound attenuation in the liver. (B) Actual measurement screen of LiSA.

Measurement of liver steatosis

Experienced operators performed all CAP and LiSA examinations according to the manufacturer’s instructions. During the examinations, all patients were in the dorsal decubitus position, with their right arm extended and lifted. Imaging was used to assess the right lobe of the liver through the intercostal approach with a calm breath hold of 6–7 seconds. Detection with successful measurements in fewer than 8 in 10 attempts was deemed a failure. The success rate was calculated as successful examinations versus total examinations. The final LiSA or CAP value was the median of individual measurements, and the interquartile range (IQR) <40 dB/m was used as a quality criterion.

Laboratory examinations

The blood biochemical parameters of the patients were tested including fasting glucose, liver function [ALT, AST, γ-glutamyltransferase (γ-GT), and total bilirubin (TB)], and lipids [total cholesterol (TC), triglyceride (TG), high-density lipoprotein cholesterol (HDL-C), and low-density lipoprotein cholesterol (LDL-C)]. All biochemical parameters were detected by standard automated laboratory methods using commercially available kits in accordance with the manufacturers’ protocols.

Liver histology

Liver biopsy was performed on the same day as ultrasound measurement and was conducted by senior operators using an automated biopsy gun with a 16 G needle (Bard Magnum, USA). Samples were required to be >1.5 cm in length and contain >10 portal tracts. The samples of damaged liver tissue were not included in this study. The specimens were fixed in formalin, embedded in paraffin, and continuously sectioned. Then, the samples were stained with hematoxylin and eosin, and Masson’s trichromic stain to detect collagen. Patients were categorized by visual assessment as group 1: steatosis <10% of hepatocytes, and group 2: steatosis ≥10%. Hepatic fibrosis stage and inflammatory activity grade were evaluated according to the Scheuer scoring system. The final pathological report was made by two senior pathologists, who were blinded to the results of LiSA, CAP, and liver stiffness measurement.

Statistical analysis

Continuous variables were expressed as mean ± standard deviation (s.d.) and were compared using the Student’s t test or Mann-Whitney U test. Categorical variables were compared using the χ² test. Relationships between LiSA or CAP and clinical parameters were evaluated using Pearson’s correlation coefficient. Factors associated with steatosis >10% on liver biopsy were analyzed by logistic regression. Receiver operating characteristic (ROC) curves were constructed and the area under the ROC curves (AUCs) were calculated for LiSA and CAP. The Youden index was used to determine the diagnostic threshold and corresponding diagnostic sensitivity and specificity. The AUC values were compared using the DeLong test. Statistical analyses were performed with SPSS software (version 22.0; IBM Corp, Armonk, NY, USA). P<0.05 was considered as statistically significant.

Results

Clinical and histological characteristics of patients

A total of 203 patients who met the inclusion criteria were included in this study. The patients were divided into group 1 (liver fat content <10%) or group 2 (liver fat content ≥10%) according to liver fat content validated by liver biopsy. The clinical and histological characteristics of the two groups of patients are listed in Table 1. All clinical and histological indicators measured in this study failed to discriminate the two groups of patients.

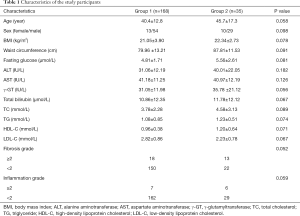

Table 1 Characteristics of the study participants
Full table

Performances of LiSA and CAP

The success rates of LiSA and CAP for the measurement of liver steatosis were 100% (203/203) and 98.52% (200/203), respectively (P>0.05). The values of CAP in patients with <10% and ≥10% steatosis were 211±46 and 243±36 dB/m, respectively, and the values of LiSA in these patients were 207±41 and 244±38 dB/m, respectively. Patients with severe steatosis had significantly higher CAP or LiSA values than those with less severe steatosis (P=0.024 for CAP; P=0.032 for LiSA) (Figure 2A). The ROC curves also indicated that both methods showed good diagnostic ability (AUC >0.7) for steatosis ≥10%, and the performance of LiSA was significantly better than CAP (AUC 0.859 vs. 0.801, P=0.048). Using optimal cut-off points, LiSA had a specificity and sensitivity of 96.23% and 76.08%, respectively, for the diagnosis of steatosis ≥10%, compared to 91.53% and 72.10%, respectively, for CAP (Figure 2B).

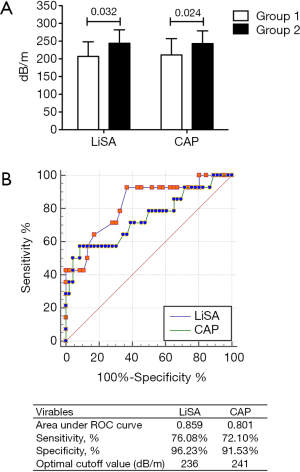

Figure 2 The performances of the two attenuation parameters for grading hepatic steatosis. (A) The values of liver steatosis determined using the two methods. (B) Receiver operating characteristic (ROC) curve analysis of the two methods.

Both LiSA and CAP were significantly correlated with BMI (LiSA: r=0.769, P=0.039; CAP: r=0.716, P=0.048), fasting glucose (LiSA: r=0.156, P=0.041; CAP: r=0.167, P=0.045), and liver stiffness (LiSA: r=0.802, P<0.001; CAP: r=0.781, P<0.001), but not with age, waist circumference, ALT, AST, γ-GT, total bilirubin, TC, TG, HDL-C, or LDL-C (Table 2).

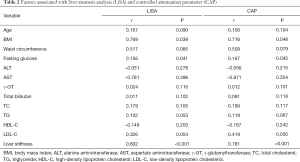

Table 2 Factors associated with liver steatosis analysis (LiSA) and controlled attenuation parameter (CAP)
Full table

In univariate analysis, the factors associated with steatosis ≥10% on liver biopsy were BMI, waist circumference, TC, TG, HDL-C, CAP, and LiSA. In multivariate analysis, BMI (OR: 4.92, 95% CI: 2.89–8.27, P<0.001), waist circumference (OR: 2.01, 95% CI: 1.09–3.02, P=0.037), CAP (OR: 5.04, 95% CI: 2.43–8.50, P<0.001), and LiSA (OR: 5.82, 95% CI: 2.76–11.81, P<0.001) were independently associated with steatosis ≥10% on liver biopsy (Table 3).

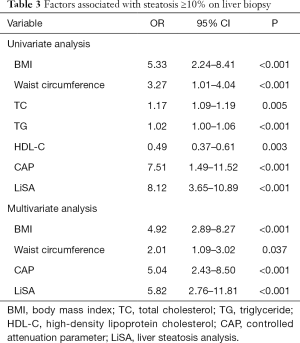

Table 3 Factors associated with steatosis ≥10% on liver biopsy
Full table

Discussion

Liver steatosis is a common histological feature among patients with chronic liver diseases, and its coexistence can accelerate the progression of fibrosis and reduce the treatment response. Therefore, the ability to accurately diagnose liver steatosis is important for clinical decision-making and estimating prognosis. Biopsy still remains the gold standard for liver steatosis diagnosis and grading, although it has clear limitations. These include invasiveness, potential sampling error, and intra/inter observer variability (17,18). Liver steatosis can also be diagnosed through noninvasive techniques, including ultrasound, CT, and MRI. However, unfortunately, conventional B-mode ultrasonography and CT can only be used to detect steatosis starting from around 30% of hepatocytes. Additional limitations include its operator dependence, high cost, and restricted availability (6-8).

New tools are needed to overcome these limitations. Fat accumulation will increase the attenuation of ultrasound propagation in the liver tissue; therefore, new tools based on ultrasound attenuation measurements obtained using an ultrasound scanner have been developed to evaluate hepatic steatosis. CAP of FibroScan is a practical example that is reported to show a high correlation with steatosis grades and to be able to evaluate steatosis efficiently (19). However, since FibroScan is not an imaging modality, CAP should be used in combination with a general purpose ultrasonic diagnostic system. To overcome the limitations of CAP, there are several tools that combine the echo attenuation measurement function with an ultrasonic diagnostic system for the accurate diagnosis of liver steatosis, including ultrasound-guided attenuation parameter (UGAP), attenuation imaging (ATI) modality, and attenuation coefficient (ATT) modality (20-22). UGAP was performed on LOGIQ E9 XDclear 2.0 ultrasound scanner (GE Healthcare, USA) with a C1-6-D phased array probe (frequency: 4 MHz) (20). The AUROCs of UGAP for the prediction of grade 1 (5–33%), 2 (33–66%), and 3 (>66%) steatosis were 0.900, 0.950, and 0.959, respectively. Contrastingly, in the same studied subjects, the AUROCs of CAP for the diagnosis of grade 1, 2, and 3 steatosis were 0.829, 0.841, and 0.817, respectively. The AUROCs were significantly higher for UGAP than for CAP in the prediction of grade 2 and 3 steatosis (20). The ATI modality was installed on the Aplio i-series system with a convex probe (Canon Medical Systems Corporation, Japan) (21). The AUROCs of ATI for the diagnosis of grade 1, 2, and 3 steatosis were 0.85, 0.91, and 0.91, respectively (21). ATT was performed using ultrasound (HI VISION Ascendus, Japan) and an EUP-C715 convex type probe (5-1 MHz; Hitachi, Japan) (22). The AUROCs of ATT for the diagnosis of grade 1, 2, and 3 steatosis were 0.79, 0.87, and 0.96, respectively (22). Generally, these tools were found to have good diagnostic ability for hepatic steatosis, even for mild cases (>5%).

In this study, the clinical value of LiSA, a newly developed ultrasound attenuation parameter acquired by Hepatus (Mindray, China), for the differentiation of significant (≥10%) from insignificant steatosis (<10%) was evaluated in patients with chronic hepatitis B, and compared with that of CAP, the widely used ultrasound attenuation parameter acquired by FibroScan (Echosens, France). The use of the Hepatus system for the assessment of steatosis has not been reported. The ROC curves indicated that both LiSA and CAP had good diagnostic ability (AUC >0.7) for steatosis ≥10%, and the performance of LiSA was significantly better than that of CAP (AUC 0.859 vs. 0.801). Using optimal cut-off points, LiSA also had higher specificity and sensitivity than CAP. Therefore, the findings of our study combined with those of other reports show that tools that combine ultrasound attenuation measurements with general ultrasonography seem to have an advantage over CAP, which has insufficient visual guidance.

The advantage of LiSA over CAP may be attributable to the following reasons. First, LiSA has a real-time image guidance system that can help operators to quickly find the effective detection windows and effectively avoid large blood vessels, biliary tract, and intrahepatic masses. Furthermore, CAP based on the FibroScan platform evaluates fat content through the detection of the average attenuation of ultrasonic signal generated by external low-frequency vibration instrument in one-dimensional linear echo. It is a single channel signal system but consists of multiple signals. Meanwhile, LiSA, based on the Hepatus platform, assesses fat content by measuring the average attenuation of ultrasonic signals in the region of interest. The multi-element probe it uses can distinguish the details of different local positions in a certain range of space with higher resolution and more information. Therefore, the area of liver tissue detected by LiSA is much larger than that measured by CAP. However, further research should be conducted to test the effectiveness of this tool in larger study populations.

The limitations of this study included its small sample size, single-center nature, and focus on a single type of liver disease resulting in steatosis. Although, we used liver biopsy, which is the gold standard for the diagnosis of liver steatosis, as the diagnostic reference, the area detected by biopsy was smaller than that measured by LiSA and CAP, and might not represent the whole disease status of the liver. Future studies with a large sample size and patients from multiple medical centers should be carried out.

Conclusions

LiSA is a non-invasive, inexpensive tool for diagnosing and grading steatosis. It can be easily applied to obtain immediate results with high sensitivity.
