Inter-observer agreement of computed tomography and magnetic resonance imaging on gross tumor volume delineation of intrahepatic cholangiocarcinoma: an initial study

Introduction

Intrahepatic cholangiocarcinoma (ICC) is the second most common primary liver tumor with an increasing prevalence (1). The reason for the increased prevalence might be that some adenocarcinomas with unknown primary are now reclassified as ICC (1). Surgical resection is a potential curative treatment, with a 5-year survival rate of 15% to 40% (1,2). However, lesions of ICC in many patients are beyond resectable criteria. In addition, some elderly patients cannot undergo curative surgical resection due to comorbidities (3). For those patients, local radiotherapy has a positive effect on reducing tumor burden and improving prognosis (4,5).

Accurate delineation of gross tumor volume (GTV) is crucial to improve the efficacy of radiotherapy and reduce radiation-induced complications (6,7). Computed tomography (CT) remains the gold standard for GTV delineation, but it has some limitations, such as insufficient contrast between tumor and adjacent soft tissue (6). Therefore, it is essential to combine techniques with high soft tissue contrast to improve the accuracy of GTV delineation.

Magnetic resonance imaging (MRI) is an advanced tool with high resolution of soft tissue, and has become the standard imaging method for the detection and characterization of liver tumors (8). Diffusion weighted imaging (DWI) reflects the thermally random motion of water molecule, which is influenced by the obstruction of cell membranes and macromolecules in tissues (9). In recent years, DWI has been widely used for the detection, diagnosis, grading, and therapy response assessment of liver tumors (10-13). Pathologically, collagen deposition and fibrosis are the characteristics of ICC (14). Fibrosis in tumor tissues limits the random motion of water molecules and improves tumor definition on DWI images. Gadoxetic acid disodium (Gd-EOB-DTPA) is a liver-specific MRI contrast agent and has hepatocyte-selective properties. Therefore, Gd-EOB-DTPA-enhanced MRI can provide both vascular phase images and hepatocyte-selective phase images, which has been applied to evaluate several liver tumors (15,16). ICC originates from the intrahepatic biliary epithelium (14), which does not demonstrate uptake of Gd-EOB-DTPA. Therefore, there is theoretically no notable Gd-EOB-DTPA uptake by ICC in hepatocyte-selective phase, but the adjacent normal liver tissues would take in Gd-EOB-DTPA (8). This facilitates the delineation of ICC. Radiation therapy planning based on Gd-EOB-DTPA-enhanced MRI has been used to preserve functional liver tissues adjacent to hepatocellular carcinoma during radiotherapy (17). Therefore, we believe that DWI and Gd-EOB-DTPA-enhanced MRI can contribute to the GTV delineation of ICC.

The purpose of this study was to detect the inter-observer agreement of GTV delineation on CT, DWI and Gd-EOB-DTPA-enhanced MRI in ICC. Values of DWI and Gd-EOB-DTPA-enhanced MRI in GTV delineation of ICC was evaluated.

Methods

Patients

The ethical committee of Nanjing Drum Tower Hospital approved this prospective study, and all patients gave written informed consents. Fourteen patients (7 males and 7 females) affected by ICC were recruited between March 2017 and February 2019. Multiple liver lesions were found in three patients, and single liver lesion was found in the other eleven patients. The inclusion criteria were: (I) age ≥18 years old; (II) pathologically confirmed ICC (needle biopsy, abdominal laparotomy, or postoperative pathology); (III) scheduled to undergo radiotherapy and receive CT and MRI follow-ups in our hospital. The exclusion criteria were: (I) patients with hilar cholangiocarcinoma or distal cholangiocarcinoma; (II) the recurrent lesions that had unclear boundary with the postoperative changes; (III) Gd-EOB-DTPA-enhanced or iodinated contrast-enhanced contraindications (e.g., GFR <30 mL/min or combined with severe cardiovascular disease); (IV) MRI contraindications (e.g., artificial cochlea or cardiac pacemaker implantation).

CT and MRI examinations

CT and MRI examinations for all patients were performed before radiotherapy, and the interval between CT and MRI scans was less than 2 weeks. All patients fasted for 4–8 hours before examinations. CT images were obtained using a 64-multi-detector CT scanner (LightSpeed VCT, GE Healthcare, Waukesha, USA), with supine position and head-first. The time points for the arterial, portal, and delayed CT scans were 35, 70 and 180 s after the injection of Omnipaque (350 mgI/mL, GE Healthcare, Shanghai, China), respectively. 80–100 mL omnipaque was intravenously injected at a rate of 3.0 mL/s followed by 50 mL saline flush using a power injector (Medrad Stellant CT Injector System; One Medrad Drive Indianola, PA, USA). Plain and Portal were defined as CT scans before and 70 s after the injection of Omnipaque, respectively. The slice thickness for CT images was 5 mm.

MRI images were acquired using a 3.0-T MRI scanner (Ingenia, Philips Medical Systems, Best, the Netherlands) with a 16-channel phased-array body coil in supine position and head-first. mDIXON sequence (water, fat, in-phase, and out-phase images) with 2 mm slice thickness was used to obtain T1-weighted images. Gd-EOB-DTPA (Primovist; Bayer HealthCare, Berlin, Germany) was used for enhanced MRI protocol. Three-arterial-phase images (early arterial phase, middle arterial phase, and late arterial phase) were acquired at 20 s after the intravenous administration of Gd-EOB-DTPA (0.025 mmol/kg), and each arterial phase was 6 s. Gd-EOB-DTPA was injected at a rate of 1.0 mL/s, followed by 15 mL saline flush with a same speed using a power injector (Medrad Spectris Solaris EP MR Injector System; One Medrad Drive Indianola, PA, USA). Portal phase images (EOB 70 s), delayed phase images, and hepatobiliary phase images (EOB 15 min) were acquired using mDIXON sequence at 70 s, 180 s, 15 min after the injection of Gd-EOB-DTPA, respectively. A single shot echo-planar imaging (SS-EPI) DWI with b values of 0, 800, and 1,000 s/mm² was acquired, and the slice thickness was 6 mm. DWI image with b value of 1,000 s/mm² was used for GTV delineation.

Image analysis

All CT and MRI images were transferred to ITK-SNAP software (version 3.4.0, www.itksnap.org) for analysis. GTV of ICC was independently delineated on CT and MRI images by one radiation oncologist (with 4 years of clinical experience in liver tumor radiotherapy) and three radiologists (with 3, 5 and 8 years of experience in liver imaging, respectively). GTV delineation included the visible tumor area as shown in Figure 1. For multiple hepatic lesions, only the largest one was chosen for GTV delineation. None of the four observers knew any clinical information of patients. Tumor volume was automatically calculated after GTV delineation. The average tumor volume delineated by the four observers was set as the final tumor volume. Delineation of GTV by the four observers via consensus was considered as the benchmark (18). Dice similarity coefficient (DSC) is the measurement for the spatial overlap between two delineations A and B (19). DSC was calculated using the following equation with an in-house program based on Matlab software (MathWorks Inc., Natick, MA, USA):

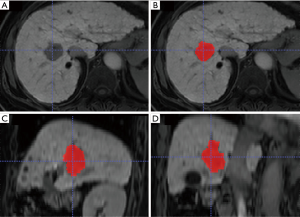

Figure 1 GTV delineation for ICC. (A) The location of ICC; (B) the delineation of GTV slice by slice; (C,D) exhibited the GTV delineation on sagittal and coronal views, respectively.

$$DSC=\frac{2\left|A\cap B\right|}{\left|A\right|+\left|B\right|}$$

where A was the volume of GTV for an observer and B was the volume of GTV for the benchmark. DSC ≥0.8 indicated almost perfect agreement (20).

Statistical analysis

SPSS18.0 software (SPSS Inc., Chicago, IL, USA) was used for all statistical analyses. Continuous data was showed as median and range. Nonparametric paired-sample Wilcoxon signed-rank test was used to test the differences of tumor volumes and DSC among each sequence, and P<0.005 was considered to be statistically significant (Bonferroni corrected). Spearman rank correlation test was used to evaluate the relationship between DSC and tumor volume delineated by each observer, and P<0.05 was considered a significant difference.

Results

Tumor volumes and DSCs of each CT or MRI sequence were shown in Table 1, and the differences of tumor volumes and DSCs are shown in Table 2.

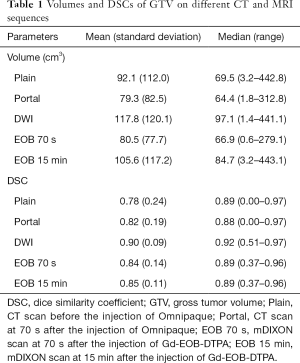

Table 1 Volumes and DSCs of GTV on different CT and MRI sequences
Full table

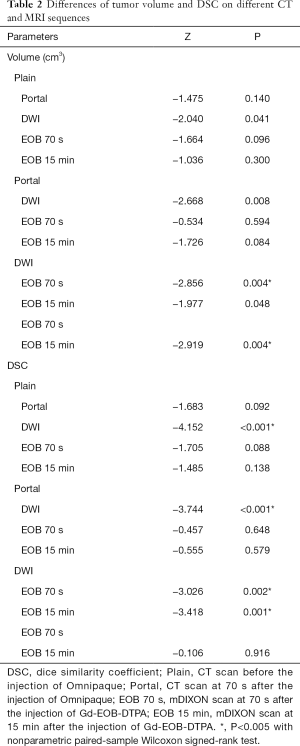

Table 2 Differences of tumor volume and DSC on different CT and MRI sequences
Full table

Tumor volumes on DWI and EOB 15 min were significantly larger than that on EOB 70 s. But tumor volume delineated on other CT or MRI sequences had no significant differences.

DSC of DWI was significantly larger than that of other CT and MRI sequences. DSC of EOB 15 min tended to be larger than that of Plain, Portal and EOB 70 s, however, without significant differences.

In addition, significant correlation was found between DSC and tumor volume on all CT and MRI sequences (R=0.35, P=0.003).

Discussion

Tumor volume on DWI was the largest and significantly larger than that on EOB 70 s. ICC always showed a non-encapsulated mass with irregular contour and ill-defined margin (21,22). In addition, some daughter nodules could be found around the primary tumor (23). Therefore, it was difficult to clearly delineate the margin of the tumor, and some peripheral tumor tissues were excluded from GTV delineation. Pathologically, ICC always shows peripheral hypercellularity and central hypocellularity with fibrous component (24). This causes peripheral hyperintensity and central hypointensity on DWI images with high b-value (25). Therefore, we considered that the margin of ICC on DWI could display more clearly than other CT and MRI sequences, and more peripheral tumor tissues could be included on GTV delineation. Tumor volume on EOB 15 min is the second largest. This might be due to the relatively clear tumor margin secondary to the absorption of Gd-EOB-DTPA by the adjacent normal liver tissues. However, the definite mechanism remains to be confirmed by comparative study on imaging and pathology. Clinically, Portal phase CT can increase the visualization of ICC than non-contrast CT. Previous study has shown that a phase with the best tumor visualization may not correspond to the phase with the largest tumor volume (26). Because perfusion abnormalities can complicate GTV identification and lead to contour heterogeneity. So, we considered that the larger tumor volume on “plain” CT than portal phase CT might be due to the heterogeneous enhancement of ICC on portal phase.

DSC of DWI was significantly larger than that of other CT and MRI sequences. Peripheral hyperintensity and central hypointensity on DWI images with high b-value of ICC has been confirmed (25). This might cause the relatively clear boundary of ICC on DWI, which led to better inter-observer repeatability. DSC of EOB 15 min tended to be larger than that of Plain, Portal and EOB 70 s, however, without significant difference. The potential value of EOB-DTPA in improving the repeatability of GTV delineation on ICC needs further investigation. We also found that DSC was significant positively correlated with tumor volume. This might indicate that larger tumors had better inter-observer agreement on GTV delineation.

DWI and Gd-EOB-DTPA-enhanced MRI showed perfect inter-observer agreements. To our knowledge, ICC on non-contrast CT is usually quite difficult to visualize. Péporté et al. showed that T1-weighted images in the hepatobiliary phase had the highest lesion conspicuity, which was significantly higher than the lesion conspicuity of plain and venous T1-weighted images (8). Xu et al. reported that the detectable rate of ICC on DWI was 100% (27). In addition, Lewis et al. found that the signal intensity of all ICC lesions increased on DWI with high b-value compared to the normal liver, with diffuse hyperintensity or target appearance (11). Therefore, we considered that the margins might be better seen on DWI and Gd-EOB-DTPA-enhanced MRI compared to CT. Compared to CT, MRI allows for better estimation of tumor volume, which can improve the treatment effect of radiotherapy.

This current study has some limitations. First, for a more detailed investigation of the advantage of MRI on GTV delineation, more patients are required. Yet the sample size was comparative to that of a similar investigation of 16 patients and enough for an initial study (28). Second, primary, and recurrent ICCs were not distinguished. Further study is needed to determine whether there is any difference in the GTV delineation between these two groups. Third, though interobserver agreement of GTV is important, whether DWI can more usefully reflect the accurate volume determination is unknown due to the absence of pathological results, which should be further investigated.

Conclusions

In conclusion, DWI has a significantly higher agreement on GTV delineation of ICC. GTV delineations of ICC on Gd-EOB-DTPA-enhanced MRI showed excellent inter-observer agreement. Therefore, fusion of CT and MRI images should be considered to improve the accuracy of GTV delineation and reduce radiation-induced liver injury.

Acknowledgments

Funding: This study has received funding by Key Project and Outstanding Youth supported by Medical Science and Technology Development Foundation Nanjing (YKK15067, QRX11178), Jiangsu Province Key Medical Young Talents, “13th Five-Year” Health Promotion Project of Jiangsu Province (QNRC2016041), and the National Nature Science Foundation of China (81701683). This study was sponsored by Bayer Healthcare Company Ltd.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-19-1093). JH reports grants from Key Project and Outstanding Youth supported by Medical Science and Technology Development Foundation Nanjing, grants from Jiangsu Province Key Medical Young Talents, “13th Five-Year” Health Promotion Project of Jiangsu Province, grants from Bayer Healthcare Company Ltd. FZ reports grants from the National Nature Science Foundation of China, during the conduct of the study. The other authors have no conflicts of interest to declare.

Ethical Statement: The ethical committee of Nanjing Drum Tower Hospital approved this prospective study, and all patients gave written informed consents.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
