3D-segmentation and characterization of visceral and abdominal subcutaneous adipose tissue on CT: influence of contrast medium and contrast phase

Introduction

Body composition analysis is a powerful tool for the assessment of frailty, metabolic characterization, cardiovascular risk stratification and risk assessment prior to major surgery or chemotherapy, potentially utilizing CT with adipose tissue being one of the key metrics for evaluation (1-6). CT was first proposed for body composition analysis in the early 1980s with Kvist et al. introducing systematically evaluated thresholds forming the basis for semi-automatic segmentation of adipose tissue (7). This technique ultimately proved to be much more precise and reproducible than previous methods such as nuclear medicine and anthropometric techniques or bioelectrical impedance analysis (8-12).

Validation of segmented adipose tissue and correlation to clinical data has been performed on non-enhanced scans (NES) (1,7,9-11,13). Only few studies have analyzed the effect of iodinated contrast medium (ICM) on quality and quantity of segmented adipose tissue (14-16). These studies have examined a limited range of contrast phases in only parts of the abdomen and have only rarely accounted for potentially confounding factors. However, the utility of contrast enhanced scans (CES) for body composition analysis with the possibility of comparing the obtained values to other studies would be most convenient as many patients require a CES for other aspects of clinical decision making. Some studies already utilize fat segmented from CES for risk assessment, but comparing these results to those of previous works would only be possible with severe limitations (17,18).

The aim of our study was to analyze the influence of contrast medium and contrast phase on the characterization and segmentation of adipose tissue in the visceral and subcutaneous abdominal compartment through three commonly acquired contrast phases in CT. A secondary goal was to assess whether or not one can convert values obtained from CES into those of NES by means of conversion formulae.

Methods

Study design

We retrospectively included 31 consecutive CT-studies of 31 patients with an NES and at least one CES of the abdomen after intravenous injection of 90 mL ICM (iohexol 350 mgI/mL, Accupaque 350, GE Healthcare, Munich, Germany) with identical scan parameters (Table S1), scanned with the same CT-scanner (Somatom Definition Flash, Siemens, Erlangen, Germany). ICM was applied via a catheter of 20 gauge or larger at the upper limb at an injection rate of 4.0 mL/s. No enteral contrast medium was applied. The inclusion criteria were constant parameters of scans within each examination, identical reconstruction of images and identical application of contrast medium. No further selection took place. In total 95 scans were included: 31 NES, 23 arterial (ART), 10 portal-venous (PVN) and 31 venous (VEN).

The study was conducted in compliance with the Declaration of Helsinki (Medical Association 2013). The local ethics committee approved the study (reference number: 337/19-ek) and written informed consent was waived.

CT acquisition

For ART a bolus-track technique was employed with the region of interest placed at the proximal abdominal aorta; the scan was initiated 5 s after reaching a threshold of 120 HU. PVN was initiated 20 s after ART. VEN was initiated either 90 s after injection of ICM, 50 s after ART or 30 s after PVN to achieve very similar delays after injection of ICM across individual exams.

Baseline characteristics and scan demographics

The leading clinical indications for CT were suspected vascular pathologies (e.g., bleeding), followed by oncological pathologies. Further baseline characteristics and scan demographics are shown in Table 1.

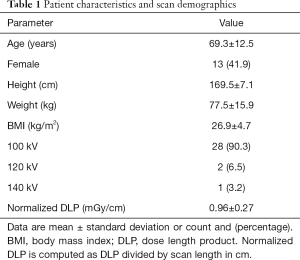

Table 1 Patient characteristics and scan demographics
Full table

Image reconstruction and analysis

Images were reconstructed with a slice thickness and increment of 3 mm with a medium smooth filtered back projection kernel (B30f). For segmentation of adipose tissue a threshold-based semi-automatic method was employed using specialized open source software (Slicer, v4.10.2, http://www.slicer.org/) (19). The threshold range was set from −190 to −30 HU (7). Visceral adipose tissue (VAT) was defined as all adipose tissue within the abdominal and pelvic cavity from below the diaphragm to the slice of the upper margin of the pubic symphysis. Subcutaneous adipose tissue (SAT) was defined as all SAT below the slice of the lower margin of Th10 to the slice of the upper margin of the pubic symphysis (Figure 1). To ensure consistency of segmentation, five datasets were initially segmented for training multiple times. After reliably identifying the chosen landmarks and obtaining very consistent data no intra- or inter-observer agreement was taken. Volume and density were recorded separately for these compartments. Segmentation of SAT and VAT took approximately 20 minutes per scan.

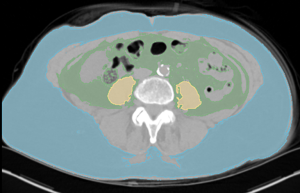

Figure 1 Example of the semi-automatic segmentation of adipose tissue at L4 with thresholds set between −190 and −30 HU. Visceral adipose tissue is marked in green, subcutaneous adipose tissue is marked in blue. The psoas muscles are marked in yellow (not part of this analysis).

Total adipose tissue (TAT) was calculated as follows:

$$TA{T}_{density}=VA{T}_{density}\cdot \frac{VA{T}_{volume}}{TA{T}_{volume}}+SA{T}_{density}\cdot \frac{SA{T}_{volume}}{TA{T}_{volume}}$$[1]

$$TA{T}_{volume}=VA{T}_{volume}+SA{T}_{volume}$$[2]

Statistical analysis

Continuous variables are given as mean and standard deviation when symmetrically distributed or as median and interquartile range for skewed distributions; categorical variables are presented as count and percentage.

For intrapatient differences between NES and CES measurements (more precisely, difference CES − NES) a paired t-test was applied; for relative differences of NES and CES measurements (i.e., ratio CES/NES) a one-sample t-test was used. In contrast to the differences, ratios were log-transformed to guarantee approximately normally distributed variables. All tests were performed at a significance level of 5%. In addition, 95% confidence intervals were calculated for the estimated sample means.

For assessing the relationship between measurements of NES and CES, linear regression analyses were performed. For validation of the regression models, each sample was randomly divided into training and test group at a proportion of 75:25 (ART: 17:6 patients; PVN: 7:3; VEN: 23:8). Linear regression models were derived using only the training data and subsequently validated using the test data. For this purpose, root-mean-square error (RMSE) was calculated for both data sets and compared.

All statistical analyses were performed using R (v3.6.2, R Foundation for Statistical Computing, Vienna, Austria).

Results

Densities of adipose tissue segmented in NES and CES are detailed in Table 2. After application of ICM, mean density between NES and CES increased significantly (P<0.001) in all compartments (TAT, VAT and SAT) with the exception of SAT on ART (+0.4±1.5 HU, P=0.19). The changes in density were more pronounced in the visceral compartment (VAT > TAT > SAT) and increased over time after injection of ICM, being more marked in later contrast phases (VEN ≈ PVN > ART).

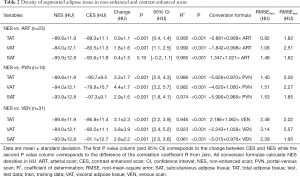

Table 2 Density of segmented adipose tissue in non-enhanced and contrast enhanced scans
Full table

The volumes of adipose tissue segmented in NES and CES are presented in detail in Table 3. Volume of VAT and also of TAT decreased significantly in all CES (P<0.001): VAT in ART: −4.64% (4.29%); VAT in PVN: −10.23% (5.77%) and VAT in VEN: −9.45% (7.71%). The volume of segmented SAT did not change significantly between NES and neither CES [ART: −1.32% (6.88%), P=0.37; PVN: −0.5% (7.30%), P=0.62; VEN: −2.61% (6.97%), P=0.38]. Similarly to density, the changes in volume were more pronounced in later CES (VEN ≈ PVN > ART), but were only significant in the visceral compartment and TAT.

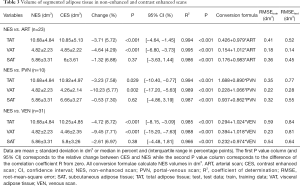

Table 3 Volume of segmented adipose tissue in non-enhanced and contrast enhanced scans
Full table

The linear regression models constructed for NES and CES for density and volume (Tables 2,3, Figures 2,3) show a good fit to the respective data points. However, the goodness of fit of these models increases consistently for volume when considering VAT and SAT separately, shown by smaller RMSE, respectively (Figure 3, Table 3).

Figure 2 Linear regression models for density of segmented adipose tissue (solid red line) fitted to randomly selected training data (red circles) for the abdominal compartments (A,B,C). Test data points are shown as blue triangles. All models achieve very good fit with similarly small root-mean-square errors for both training and test data (for details see Table 2).

Figure 3 Linear regression models for volume of segmented adipose tissue (solid red line) fitted to randomly selected training data (red circles) for the abdominal compartments (A,B,C). Test data points are shown as blue triangles. All models achieve very good fit with small root-mean-square errors for both training and test data. Note the different scales and slightly higher deviation of data points from the regression model for total abdominal adipose tissue (A) compared to the visceral and subcutaneous compartments (B,C) and ultimately smaller root-mean-square errors when considering the visceral and subcutaneous compartment separately (see also Table 3).

Discussion

The application of ICM changes the results of segmentation of adipose tissue, a key metric for body composition analysis. The effect of ICM on the results of segmentation is influenced by the time elapsed after application and differs between the compartments of the abdomen. If not accounted for, this may lead to falsely low visceral and therefore also total adipose tissue segmented on contrast enhanced CT scans. This may be an important source of bias when trying to compare results to previous studies, which may be adjusted for.

ICM increases the density of adipose tissue segmented on CT. This effect increases with the time elapsed from the application of ICM (arterial < PVN ≈ VEN) and is more pronounced in visceral adipose tissue (VAT) when compared to total (TAT) or subcutaneous adipose tissue (SAT). Furthermore, the application of ICM led to significantly decreased volumes of VAT and therefore also TAT segmented on contrast enhanced CT compared to non-enhanced CT. The effect of ICM on the segmented amount of SAT was smaller and not statistically significant; however, this is most likely attributed to the limited number of scans available for analysis. Similarly to density, the effect of ICM on segmented volume of adipose tissue was least pronounced in arterial and most pronounced in later scans (PVN, venous).

It is well known that scan parameters (kV; mAs) have a direct effect on CT-density of tissues and therefore may also influence segmentations of adipose tissue (14,20). As scan parameters were kept identical between scans, we could exclude this bias from our analysis. Furthermore, a fixed volume of ICM was applied to all patients, regardless of body weight or body mass index. Finally, we decided in favor of 3D-segmentation of the entire abdominal cavity including several hundred slices per scan. This helped to characterize the influence of ICM on segmentation more robustly through the contrast phases and minimize noise, rather than introducing additional bias, which otherwise would have made necessary a much larger number of examinations to be assessed.

Our findings of decreased TAT in PVN (median: −3.23%; mean: −5.72%) are in line with the previously observed changes in area in the present literature (reported mean PVN: −6.5%) (14). The results of another study are somewhat lower (mean ART: −2.05%, PVN: −2.44%); however, these results are more difficult to interpret as the area was converted to total body fat and the important potentially confounding factors of scan settings (mAs and kV) between the scans were not reported (16). The only other publication on this topic did not provide a delay after injection of ICM and dosed the amount according to bodyweight, and finds a positive correlation of change (smaller area of segmented VAT) with body weight (15). As this study dosed the amount of ICM according to body weight and distribution of ICM takes place in the extracellular space, which in turn is more closely related to lean body mass rather than body weight, we believe this observation to be biased.

To our knowledge, we are the first to describe the changes of segmented adipose tissue after injection of ICM separately in both visceral and subcutaneous compartments for multiple contrast phases. We present clear evidence that the observed effects increase with the delay after injection and vary in degree between VAT and SAT and therefore ultimately also in TAT.

We attribute the differing degree of changes in density and ultimately volume changes of segmented VAT and SAT after application of ICM to differing anatomical conditions and physiological roles within the compartments, which also may have to do with a different developmental origin (21,22). The adipose tissue within the visceral compartment is closely intertwined with organs, large and medium size vessels and actively participates in metabolism. Furthermore, it is believed to have endocrine function (11,23). In contrast, the subcutaneous compartment is structured much more homogeneously with only very small blood vessels, relatively clear borders and much fewer tissue interfaces. Therefore, it seems quite evident that ICM is not only carried to the VAT more promptly, but that the extracellular spaces intertwined with it are much larger than those of SAT. This leads to an elevation of density and/or misclassification of voxels in CES, which otherwise with the given threshold in NES would have been classified as adipose tissue. This is most likely a result of partial volume effect. The intensity of this seems to correlate with the delay after application of ICM, being less pronounced in ART with the contrast medium being mainly in the arteries, and being more pronounced in later scans when the contrast medium is present in both arteries and veins.

One may obtain values of segmented adipose tissue in NES from CES by either adjusting the upper limit of the threshold range (15) or by means of conversion formulae. Since conversion formulae are much easier to apply retrospectively, rather than individually adjusting the threshold range, we deem this approach more feasible. As the alterations of density and volume of segmented adipose tissue introduced by ICM are fairly predictable, contrast enhanced CT allows for the estimation of density and volume of adipose tissue measurable in non-enhanced CT by means of conversion formulae derived from linear regression analyses with remarkable precision. The achieved small RMSE speaks for the robustness of this approach despite the relatively moderate number of scans (Tables 2,3). The estimation becomes particularly precise for volumes when considering the visceral and subcutaneous compartments separately. With the help of these conversion formulae, results obtained from CES may be converted to those of NES and compared to those of previous studies using NES.

This conversion allows for the comparison of the results of body composition analysis obtained from CES to results using either NES or different CES within the same individual or even previous studies. This may aid in a more valid assessment of frailty or risk stratification.

Limitations

Our study is retrospective in design and comprises only a moderate number of patients. Moreover, not all contrast phases were available for each patient. This made it particularly difficult to precisely characterize the influence of ICM on PVN with the fewest scans included and similar changes compared to VEN. Furthermore, volume differences for SAT were smaller and did not reach statistical significance, also most likely attributable to the moderate sample size. However, as mainly intraindividual differences were assessed at a single point in time, identical scan settings were used and the entire abdominal cavity with several hundred slices per patient were segmented, the sample size was sufficient for characterizing the effect of ICM on segmentation of adipose tissue and for calculating and validating conversion formulae.

No selection or exclusion of potentially interfering medical conditions altering circulation time (e.g., heart failure, sepsis with tachycardia) or extracellular volume (e.g., oncological illness or sepsis) took place. Even though mainly intraindividual differences were observed and the direction and magnitude of change after application of ICM were relatively constant between individuals, the extent of change may still have been influenced by these conditions. Therefore, caution is necessary when applying our findings to other patient cohorts or healthy volunteers.

Conclusions

The density change of adipose tissue after injection of ICM is evident in all compartments, but varies substantially in degree between the visceral and subcutaneous compartment (visceral > total > subcutaneous adipose tissue) and may influence volume segmentation.

As the effect of contrast medium on density and segmented volume is fairly constant in a given contrast phase and compartment, density and particularly volume of adipose tissue may be accurately calculated from the segmentation of contrast enhanced CT examinations.
