Assessment of carotid atherosclerotic plaque using 3D motion-sensitized driven-equilibrium prepared rapid gradient echo: a comparative study

Introduction

Carotid atherosclerosis is increasingly considered the leading cause of ischemic stroke (1,2). Some specific morphological features of symptomatic carotid plaque, such as plaque burden, plaque size, surface status, and components, are risk factors for stroke (3-6). Clinical studies focusing on the detection and volume assessment of intraplaque hemorrhage (IPH) have demonstrated a strong correlation between IPH and future cerebrovascular events (7,8). Calcification in plaque is categorized as surface, deep, or mixed type, and mixed calcification exists both on the surface and in the plaque’s deep area (9). The quantity and configuration of calcification may affect plaque stability (10,11). Irregular plaque surface, particularly ulceration, is a major vulnerability sign, which indicates previous plaque rupture (12,13).

Vulnerable atherosclerotic plaque has been studied extensively using a variety of imaging methods, including ultrasound, digital subtraction angiography (DSA), computed tomography angiography (CTA), and magnetic resonance imaging (MRI). High-resolution vessel wall MRI (VW-MRI) is a promising imaging tool recommended by the American Society of Neuroradiology to quantitatively measure plaque morphology and components, such as plaque burden, surface irregularity, and IPH (14). Simultaneous non-contrast angiography and intraplaque hemorrhage (SNAP) is a highly T₁-weighted MRI sequence with a wide coverage of 3D isotropic inversion recovery and phase-sensitive reconstruction (15). IPH is readily detectable as a high signal on the SNAP image. The inter-reader agreement for the manual detection of IPH on SNAP is remarkably strong (16,17), and the measurement of IPH volume on SNAP imaging is consistent with that of histology (16).

Several 3D black-blood MRI sequences with high isotropic resolution, high signal-to-noise ratio, and wide coverage have been developed (15,18). Black-blood MRI using motion-sensitized driven-equilibrium prepared rapid gradient echo (MERGE) can provide imaging with improved longitudinal coverage of bilateral carotid arteries simultaneously in a short acquisition time (18,19). Similar to the previous histologically confirmed multi-contrast VW-MRI and time-of-flight magnetic resonance angiography, MERGE can also provide comparable performance in carotid atherosclerotic plaque with good inter-reader reproducibility (17). MERGE has isotropic resolution and multiple planar reconstruction capabilities, and may yield a more accurate delineation of plaque surface and imaging of plaque components (12). However, its accuracy and reliability in assessing extracranial carotid atherosclerotic plaque have not been well studied systematically. Therefore, in the present study, we aimed to compare MERGE’s diagnostic performance with reference images (SNAP, CTA, and DSA) by assessing IPH, calcification, and ulceration, respectively.

Methods

Study design and participants

This study was approved by the Institutional Review Board of Huashan Hospital, Fudan University (Shanghai, China; No. 2013.332). Written informed consent was obtained from either the patient or their legal representative before study entry.

Between April 2019 and July 2020, patients with recent cerebrovascular symptoms (amaurosis fugax, transient ischemic attack, or suspected cerebrovascular ischemia in the anterior circulation within 2 weeks) and atherosclerotic plaque in at least 1 side of the carotid artery identified by ultrasound imaging (intima-media thickness ≥1.5 mm) were prospectively recruited. The exclusion criteria were as follows: (I) hemorrhagic stroke; (II) cardiogenic stroke; (III) cerebral tumor; (IV) history of carotid endarterectomy (CEA); (V) contraindication to MRI, CTA, or DSA examination; and (VI) dementia or coma. All patients underwent 3D VW-MRI and CTA examination within 3 days before DSA. Patients who could not tolerate or complete all examinations were excluded. Clinical characteristics, including age, sex, body mass index (BMI), history of diabetes mellitus, hypertension, hyperlipidemia, alcoholism, smoking, total cholesterol, high-density lipoprotein cholesterol, low-density lipoprotein cholesterol, triglyceride, lipoprotein (a), and glucose, were collected from medical records.

MRI protocol

Patients were scanned within 2 weeks after the occurrence of cerebrovascular symptoms. A 3.0-T MR system (Ingenia; Philips Healthcare, The Netherlands) was used with an 8-channel phased-array carotid artery coil (TS Imaging, Beijing, China) and a 20-channel phased-array head and neck joint coil (Philips Healthcare, the Netherlands). After localization, MERGE and SNAP images were obtained using the following parameters: sagittal orientation, centered on the common carotid artery (CCA) bifurcation, the scan coverage comprising the C1–C7 segments of the bilateral internal carotid artery (ICA), and the M1–M2 segments of the bilateral middle cerebral artery:

• 3D MERGE: echo time (TE)/repetition time (TR) =5.2/11.0 ms, field of view (FOV) =230×161×60 mm³, voxel =0.8×0.8×0.8 mm³, matrix size =288×200×100, number of slices =100, reconstruction resolution =0.4×0.4×0.4 mm³, and scan time =2'51;
• 3D SNAP: TE/TR =5.0/11.0 ms, FOV =230×161×60 mm³, voxel =0.8×0.8×0.8 mm³, matrix size =288×200×100, number of slices =100, reconstruction resolution =0.4×0.4×0.4 mm³, and scan time =4'28.

CTA imaging protocol

CTA imaging was performed in the head-first supine position using a 256-slice-CT scanner (iCT; Philips Healthcare, The Netherlands). A total of 60 mL (rate: 5 mL/s) contrast medium was injected into the right elbow vein. Tube voltage/current =120 kV/360 mA, section thickness/spacing =0.90/0.45 mm, and voxel =0.6×0.6×0.3 mm³.

DSA imaging protocol

All sets of DSA images were obtained using an Infinx/VC digital angiography system (Toshiba, Tokyo, Japan) operated by experienced neuro-interventionalists. The Seldinger technique was used to obtain images of the ICA, including the anterior-posterior and lateral projections. A total of 7 mL (rate: 4 mL/s) contrast medium was injected into the carotid artery, and the image acquisition rate was 3.5 frames/s. The suspicious artery was imaged by 240° rotation, with an image acquisition of 15 frames/s. Matrix size =1,024×1,024 and voxel =0.3×0.3×1.0 mm³.

Image analysis

A neuro-interventionalist with more than 15 years’ work experience reviewed the DSA images and recorded ulcerations by observing the plaque on the best projection at a workstation (AW4.4; GE Healthcare, BOSTON, MA, USA). Some cases with existing surgical indications received a second verification of CEA in the intervention therapy department. For some ambiguous cases, senior doctors’ ultrasound diagnosis reports were used as a reference for comprehensive judgment. The final recorded data on plaque ulceration were the reference standard for the present study. ITK-SNAP software v.3.6.0 (University of Pennsylvania, www.itksnap.org/) was used for reformatting the original isotropic coronal MR images to axial and sagittal ones. A neuroradiologist with more than 20 years’ work experience reviewed the SNAP and CTA images and performed morphological quantification as the reference standard. SNAP imaging was used to determine the IPH and to measure the IPH volume by software. Plaque calcification and its classification and volume measurement were performed using the CTA image. All MERGE images of carotid arteries were analyzed and measured by 2 trained readers with more than 5 years’ experience in plaque imaging. They were both blinded to each other’s findings and the reference images. Image quality (IQ) was evaluated for all MR images using a 4-point scale with the following classifications: IQ =1, poor quality (VW and lumen margin and plaque compositions not identifiable); IQ =2, adequate quality (the boundary of VW can be identified, but the compositional substructure cannot be determined); IQ =3, good quality (minimal motion or flow artifacts, VW, lumen boundary and plaque compositions can be defined); and IQ =4, excellent quality (no artifacts, wall architecture and plaque composition can be depicted clearly in detail) (20). Images with IQ ≤2 were excluded.

An atherosclerotic plaque is defined as a lesion with an intima-media thickness >1.5 mm of the VW on reformatted 3D MERGE axial images. The threshold of 1.5 mm was chosen according to the correlation between the wall thickness (WT) and the increased stroke risk (21,22). If multiple stenoses were present in a single carotid artery, the section with the most severe stenosis degree was studied for statistical analysis. The maximum WT (Max WT), maximum vessel diameter (Max VD), total vessel area (TVA), and lumen area (LA) were measured at the same cross-section of vessel. Furthermore, the wall area (WA) and normalized wall index (NWI) were automatically calculated to evaluate the plaque burden by using the following formulas:

WA=TVA−LA[1]

NWI=TVA−LATVA[2]

If plaques were present on both the bilateral extracranial carotid arteries, the carotid artery with the larger NWI value was regarded as the research object. The identification of each plaque composition was based on criteria as follows: IPH is identified as an obvious hyperintense signal on MERGE images (Figure 1), and calcification is characterized by areas with a hypointense signal on MERGE images (Figure 2) (23,24). Mixed calcification refers to the calcification distributed on both the surface and deep areas of the plaque (9). Some studies have defined ulceration as the extended lumen into the plaque with a width >1 mm or depth >2 mm (25-27). Ulceration was observed on multi-dimensional reconstructed images (Figure 3). IPH or calcification volume was measured with ITK-SNAP software. The above morphological identification, measurement, and calculation were performed by 2 image readers independently.

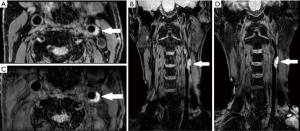

Figure 1 An example of a 71-year-old male patient who had intermittent dizziness, nausea, and weakness of both lower limbs. Bleeding plaque was detected in his left common carotid artery and the bilateral internal carotid artery. High signal on axial (A) and coronal (B) image of 3D motion-sensitized driven-equilibrium prepared rapid gradient echo showed intraplaque hemorrhage (IPH) (white arrows). Obvious high signal on axial (C) and coronal (D) image of 3D simultaneous non-contrast angiography and intraplaque hemorrhage showed IPH (white arrows).

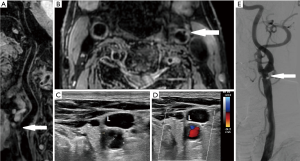

Figure 2 An example of a 63-year-old male patient who had sudden numbness and fatigue in his right limb. Calcified atherosclerotic plaque was detected in his left common carotid artery. Low signal on axial (A) and coronal (B) image of 3D motion-sensitized driven-equilibrium prepared rapid gradient echo showed calcification (white arrows). Computed tomography angiography clearly showed the shape and distribution of calcification within plaque (C,D) (white arrows); the calcification type of his plaque was mixed.

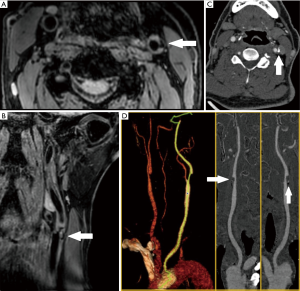

Figure 3 An example of an 81-year-old male patient who had severe stenosis of the left carotid artery with multiple ischemic infarcts in his brain. Ruptured plaque was detected in his left common carotid artery. Plaque surface defect on the curved multi-planar reconstruction image along the lumen (A) and axial image (B) of 3D motion-sensitized driven-equilibrium prepared rapid gradient echo was ulceration (white arrows). Ultrasound image showed a small plaque defect (C), and the blood flow within the ulceration was relatively disordered (D). Small niche displayed by digital subtraction angiography was plaque ulceration (E) (white arrows).

Statistical analysis

Continuous variables are presented as mean ± standard deviation (SD), categorical variables as frequencies, and the presence or absence of plaque components was denoted as binary variables. For continuous variables, an agreement among Max WT, Max VD, TVA, LA, plaque volume, IPH volume, and calcification volume between 2 MR image readers was assessed using 2-way random intraclass correlation coefficient (ICC); the consistency test of WA and NWI calculated using formulas was summarized using 2-way random ICC. For categorical variables, the presence or absence of IPH, calcification, mixed calcification, and ulceration, an agreement was summarized using 1-way random ICC. Bias between 2 readers was assessed quantitatively by mean difference ± standard error. Mann-Whitney U-test was used to test for significant differences between their results. The detection performance of IPH, calcification, mixed calcification, and ulceration were summarized by sensitivity, specificity, positive predictive value, negative predictive value, positive likelihood ratio, negative likelihood ratio, and kappa value (κ) by using SNAP, CTA, and DSA results as references. Bland-Altman analysis was used to test the measurement agreements between MERGE and reference images (SNAP and DSA) of the volume of IPH and calcification. All statistical analyses were performed using SPSS software version 23.0 (SPSS IBM, Armonk, New York, USA). P<0.05 was considered statistically significant.

Results

Patients’ clinical characteristics

Of the 84 patients, 11 were excluded from the analysis due to the following reasons: inadequate image quality (IQ ≤2) with severe blood flow artifacts (n=1) or motion artifacts (n=4), one side of the ICA was completely occluded (n=3), and carotid arteries had dissection or dissecting aneurysm (n=3). Of the 73 sets of MERGE images of diseased carotid arteries, 68 (93.15%) were graded as excellent (IQ =4). The demographic and clinical characteristics of the 73 patients are summarized in Table 1. The mean age of the patients was 65.63±8.68 years, and 63 (86.30%) were male. Their mean BMI was 24.11±2.61 kg/m². Of all patients, 47 (64.38%) had hypertension, and 27 (36.98%) had a smoking history.

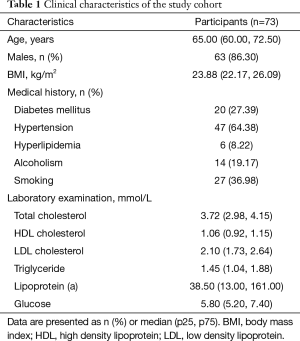

Table 1 Clinical characteristics of the study cohort
Full table

Inter-reader agreement on 3D MERGE

All ICCs for measurements and calculations based on 3D MERGE was ≥0.90, indicating excellent inter-reader reproducibility (Table 2). The ICC for the measurement of plaque volume reached 1.000. The ICC with the lowest value of 0.907 (0.856–0.941) was the detection of calcification. Differences between some metrics between 2 readers, such as the measurements of Max WT, Max VD, TVA, LA, and plaque volume, were significant (P<0.05).

Table 2 Inter-reader agreement for 73 plaques on 3D MERGE images
Full table

Agreement of IPH between 3D MERGE and 3D SNAP

In the SNAP images, 23 of 73 (31.51%) plaques were found to have IPH, and the 2 readers each identified 25 and 24 plaques with IPH. They each had 2 and 1 false-positive results for a specificity of 96% and 98%, respectively. Their sensitivity values were 100%. Kappa test between MERGE and SNAP showed strong consistency (κ=0.938, P<0.001) (Table 3). Bland-Altman plots of IPH volume measurement between MERGE and SNAP suggested that the mean difference was 0.48 mm³, and no significant bias was observed (Figure 4). IPH volume measurements obtained using MERGE and SNAP had a good agreement (ICC =0.995, 95% CI: 0.991–0.997).

Table 3 Diagnostic consistency and performance of 3D MERGE on plaque features
Full table

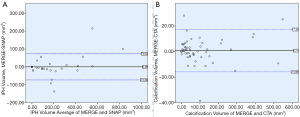

Figure 4 Bland-Altman plots of intraplaque hemorrhage volume measurements between motion-sensitized driven-equilibrium prepared rapid gradient echo (MERGE) image reader 1 and simultaneous non-contrast angiography and intraplaque hemorrhage in symptomatic atherosclerotic plaques (A). Bland-Altman plots of calcification volume measurements between MERGE reader 1 and computed tomography angiography in symptomatic atherosclerotic plaques (B). Solid lines represent the mean difference (overall bias), and dashed lines indicate the 95% limits of agreement.

Agreement of calcification between 3D MERGE and CTA

Of the 73 plaques, 47 (64.38%) had calcification on CTA images, while 30 of 47 had mixed calcification. The 2 readers each identified 51 and 50 plaques with calcification, and 29 and 27 mixed calcifications, respectively. Kappa test showed that the detected calcification and mixed calcification between MERGE and CTA had very strong consistency (κ=0.814, 0.972, P<0.001) (Table 3). The Bland–Altman plots of calcification volume measurement between MERGE and CTA suggested that the mean difference was 0.71 mm³, and no significant bias was observed (Figure 4). The calcification volume measurements obtained using MERGE and CTA had a good agreement (ICC =0.996, 95% CI: 0.993–0.997).

Agreement of ulceration between 3D MERGE and DSA

In the DSA images, 18 of 73 plaques (24.66%) were found to have ulcerations. Of these, 6 cases were confirmed by the CEA, and 3 cases were confirmed with a combination of CEA and ultrasound diagnostic reports. Both MR image readers identified 17 plaques containing ulcerations. The sensitivity values were 77.78% and 83.33%, and the specificity values were 94.55% and 96.36%, respectively. Kappa test showed a relatively strong agreement for the detection of ulceration between MERGE and DSA (κ=0.737, P<0.001) (Table 3).

Discussion

We compared MERGE performance and references in assessing symptomatic carotid plaques and confirmed the accuracy of MERGE in both morphological measurement and plaque component identification. The present study showed the usefulness of MERGE as a reliable and accurate modality for atherosclerotic plaque imaging.

MERGE showed good inter-observer reproducibility in identifying plaque components and measuring morphological parameters (17,28,29). Slow and stagnant blood flow is eliminated by dephasing the flow spins within each voxel (30). Wei et al. revealed a good inter-reader agreement to identify calcification based on multi-contrast imaging with κ=0.66 (17), but this result was not as good as ours. It may be because calcification is manifested as an obvious low signal, but the human eye is more sensitive to high signals, which leads to differences in personal subjective vision. Zhao et al. obtained κ=0.95 (0.84–0.99) for ulceration identification (29), which was better than our result. The observation of ulceration was affected by varying reconstruction habits and doctors’ experiences. The systematic differences in Max WT, Max VD, TVA, LA, and plaque volume might be due to the non-circular lumen shape, irregular shape of plaque, and different measurement habits in our study. Some systematic differences in diameter measurements, particularly for large-size vessel segments in other studies were noted (31). Nevertheless, these slight differences had no significant effect on the accuracy of diagnosis.

To the best of our knowledge, the present study is the first attempt to validate MERGE-based IPH detection and volume measurement in symptomatic carotid plaque using SNAP imaging as a reference. IPH shows a high signal on T₁-weighted sequences due to the short T₁ relaxation of methemoglobin with super para-magnetism (15,32). Compared with the magnetization prepared rapid gradient echo (33), SNAP is more sensitive to IPH and can provide higher IPH-plaque contrast (Figure 1). Previous studies have reported the strong agreement between the high signal detected on conventional MRI and histologically confirmed IPH (34), but with a systematic underestimation of IPH area using histology as the gold standard (24); therefore, SNAP might exhibit higher sensitivity in detecting small IPH lesions in plaque. Qiao et al. found moderate agreement between T₁ mapping cardiovascular MR and histology in detecting IPH and excellent agreement in measuring the area of IPH (ICC =0.816, 95% CI: 0.679–0.894) with a systematic overestimation (35). Our research demonstrated that MERGE and SNAP show similar performance in detecting IPH. The high signal provides an excellent contrast to yield an accurate delineation of the IPH within the plaque. With its low false-negative rate, MERGE could be useful for screening carotid vulnerable plaque. IPH is a dynamic process (36). VW-MRI, as a non-invasive imaging method that outweighs histological examination in many cases. MERGE can achieve similar detection sensitivity and volume measurement accuracy of IPH as SNAP does, and it has the potential to monitor the natural history of IPH with the half scanning time of the latter sequence.

CTA can display and accurately measure the size, shape, and distribution of calcification (Figure 2). In contrast, MERGE does not require contrast agents and exhibits wide coverage, and the improved spatial resolution of 0.4 mm results in improved visualization for the detection of small calcifications that would otherwise remain undetected due to partial volume averaging (18). Calcification can be delineated clearly, and mixed calcification can be detected as low signal distributed both on the surface and in the plaque's deep area (Figure 2). The location distribution of calcification may affect the regularity of the plaque surface, which may further influence plaque vulnerability (12). Through the accurate assessment of calcification in plaque by MERGE, the underlying mechanism behind the relationship between mixed calcification and irregular plaque surface is yet to be revealed.

The diagnostic accuracy of non-invasive imaging is usually assessed using DSA as a reference standard. However, the disadvantages of DSA, including the possibility of neurological complications in 0.5–1% of patients (37), have prompted researchers to consider non-invasive methods as an alternative to DSA. The suboptimal performance of DSA in detecting ulceration of symptomatic plaque has been previously reported (38-40). VW-MRI has high sensitivity, high specificity, and good agreement with DSA for detecting ulceration (29,31). In our study, the plaque ulcerations of some patients were validated by DSA and by histological examination after CEA. We did not perform histological examination for patients who had no surgical indications to comply with the ethical principles, but we determined the presence or absence of plaque ulcerations comprehensively through ultrasound and DSA diagnoses (Figure 3).

Given that MERGE images can be reconstructed using a curved multi-planar reformation algorithm along the lumen or any orientation without tissue distortion, it can directly display the precise details of plaque ulceration (Figure 3) (29). However, the doctor’s manual reconstruction may potentially introduce subjective bias. The false-negative cases of missed small ulcerations were attributed to the limited spatial resolution; calcification adjacent to the lumen may obscure the lumen surface, resulting in the misidentification of false-positive cases (23). It has been reported that bright-blood sequences are highly accurate in detecting ulceration (41); therefore, the combination of bright-blood and black-blood technique may serve as an alternative imaging approach to DSA in identifying plaque ulceration.

The present study has several limitations. First, the morphology and composition of plaque were observed by SNAP, CTA, and DSA as reference images, which were less accurate than a histological gold standard. Although these previously proposed techniques are histologically validated, further histological data are essential to evaluate MERGE's reliability and stability for future work. Second, the target plaque was located either at the CCA bifurcation or at the initial ICA segment, which may cause a certain degree of analysis bias.

Conclusions

3D MERGE showed good performance in identifying and measuring IPH and calcification in carotid plaques and performed well in the detection of plaque ulceration. It may be a promising alternative imaging approach for histological examination in some clinical studies of carotid atherosclerotic plaques.
