Associations between morphology and hemodynamics of intracranial aneurysms based on 4D flow and black-blood magnetic resonance imaging

Introduction

Intracranial aneurysm (IA) refers to the local dilatation of a cerebral artery. IAs often occur in the circle of Willis, especially at arterial bifurcations (1). Rupture of IA, which is the most common cause of non-traumatic subarachnoid hemorrhage (SAH), carries a mortality rate of 50% (2). With the development of advanced imaging techniques, such as digital subtraction angiography (DSA), computed tomography angiography (CTA), and magnetic resonance angiography (MRA), IA can be detected before rupture occurs. Previous studies have suggested that morphological indices, including IA size (3) and IA size ratio (SR) (4), may serve as biomarkers of IA rupture. However, IA size and IA SR may not provide a comprehensive evaluation of IA rupture risk, because other characteristics, such as condition of the vessel walls (5) and hemodynamics (6), have been reported to play an important role in aneurysm rupture.

Previous studies have hypothesized that IA morphology interacts with hemodynamic conditions. The variation of morphology can change the hemodynamic conditions, including blood flow, velocity, pulsatility index (PI), and more advanced parameters, such as wall shear stress (WSS) (7). Moreover, hemodynamic conditions also affect IA size (8), IA wall thickness (9), size ratio (10), and other morphological parameters. However, most of these studies were performed on animal models or using computational fluid dynamics (CFD) simulation. Both the morphological and hemodynamic characteristics of IA need to be observed with advanced imaging techniques in a large group of IA patients. Recently, it has been reported that black-blood magnetic resonance imaging (BB-MRI) can be used to characterize IA size and wall thickness (WT) (11,12). Moreover, the popularity of 4D flow MRI, which combines time-resolved 3D phase contrast MRI with postprocessing strategies, for the measurement of hemodynamic parameters in IA has increased (13-15). MRI provides a single image modality solution for both the morphological and hemodynamic measurements of IA.

Therefore, the purpose of this study was to analyze the interaction of morphology and hemodynamics in a large group of IA patients using BB-MRI and 4D flow MRI techniques.

Methods

Study population

This study involved 97 patients [26 male and 71 females; age, 57.7±11.6 years (range, 20–81 years)] with unruptured IA detected by DSA, CTA, or MRA who were recruited between April 2014 and October 2018. Patients with saccular IAs >4 mm were included. Patients with contraindications to MRI, including pregnancy or breastfeeding, claustrophobia, or existing MRI-incompatible implants were excluded, as were patients whose MRI scans were incomplete or had poor image quality.

Standard protocol approvals, registrations, and patient consents

All protocols were reviewed and approved by the local institutional ethics committee, and written informed consent was obtained from all participants.

In vivo MR imaging

All MR imaging was performed using a 3.0T MR scanner (Achieva TX, Philips, Best, The Netherlands) with a 32-channel head coil. First, a 3D black-blood T1-weighted volumetric isotropic turbo spin echo acquisition (T1-VISTA) sequence (12) was used to investigate IA size and wall conditions. The imaging parameters were TR/TE =800/21 ms, FOV =200×180×40 mm³, voxel size =0.6×0.6×0.6 mm³, echo train length (ETL) =30, 2 startup echoes, and number of averages =1. The variable flip angle scheme was set according to a previously reported study (16). Further, 4D flow MRI data was acquired by a free-breathing, peripheral pulse-gated, multi-shot turbo field echo sequence for hemodynamic parameters evaluation. The scan parameters were TR/TE =8.0/3.6 ms, FOV =160×160×30 mm³, voxel size =1×1×1 mm³, velocity encoding (VENC) =120 cm/s for all 3 directions, flip angle =20°, turbo factor=3, 4 startup echoes, and number of averages =1. Parallel imaging was applied to accelerate the acquisition for T1-VISTA and 4D flow, with a sensitivity encoding (SENSE) factor of 2 and 3 in a right-to-left direction, respectively.

Morphological analysis

The IA size measured by BB-MRI was defined as the largest value of: (I) aneurysm neck width, which was the virtual line separating the aneurysm from the parental artery; (II) maximum aneurysm height, which was the maximum height from the neck to the dome tip; or (III) maximum aneurysm width, which was perpendicular to maximum aneurysm height, as illustrated in Figure 1.

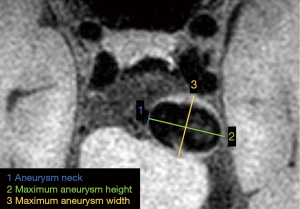

Figure 1 Measurement of IA size using BB-MRI. IA size was defined as the largest of three measurements. IA, intracranial aneurysm; BB-MRI, black-blood magnetic resonance imaging.

The IA SR was calculated by dividing the maximum aneurysm height by the mean parent artery diameter on BB-MRI (10,17). The minimum wall thickness (mWT) of the IA was measured in the same geometry as BB-MRI as WSS measurements (in hemodynamic analysis), which will be introduced in the next section. If the mWT of the IA > voxel size, the wall thickness was directly measured manually. For aneurysm walls that were thinner than voxel sizes, wall thickness was calculated using the following equation (18):

$$w=d\frac{S_w}{S_0}$$[1]

where S_w is the voxel signal, d is the voxel size, S₀ is the voxel signal completely filled with vessel wall.

Hemodynamic analysis

All preprocessing, visualization, and quantification of 4D flow data were performed using GTFlow, version 2.2.15 (GyroTools LLC., Zurich, Switzerland). Preprocessing steps, including eddy current correction, velocity mask application, and vessel segmentation, were performed prior to data visualization and quantification. Velocity-weighted masks were adopted to segment the IA, and streamlines were provided for visualization and quantification of blood flow.

Hemodynamic parameters including velocity, blood flow, PI, and WSS were measured at the peak systole, (when peak velocity appears) on 4D flow MRI scan. A cross-sectional plane was created perpendicular to the streamline containing the maximum velocity point with IA (Figure 2) and contours were drawn manually. By evaluating all pixels within the contours, maximum through-plane velocity (V_IA, cm/s) and blood flow through the cut-plane (Flow_IA, mL/s) were measured, and PI was calculated as follows:

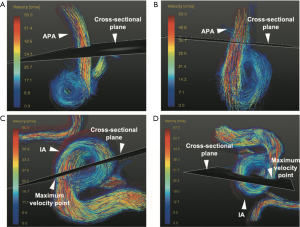

Figure 2 Illustration of 4D flow data analysis using dedicated software in different IA. Flow pattern visualization of the (A,B) APA and (C,D) IA were performed by streamlines, and hemodynamic measurements within contours were conducted in a defined cross-sectional plane of the APA and IA. APA, adjacent parent artery; IA, intracranial aneurysm.

$$PI=\frac{V_{peak}-V_{valley}}{V_{mean}}$$[2]

where V_peak/V_valley/V_mean are peak/valley/mean values of maximum through-plane velocity (cm/s) over all time indices in 1 cardiac cycle in the same cross-sectional plane as defined previously. Furthermore, WSS was defined as the velocity gradient along the perpendicular path of the IA wall (19,20). Average WSS (WSS_avg, N/m²) magnitude along the contour was calculated. The hemodynamic parameters in the adjacent parent artery (APA) of the aneurysms, including maximum through-plane velocity (V_APA, cm/s), and maximum blood flow (Flow_APA, mL/s), were also explored at the cross-sectional plane where maximum velocity appeared (Figure 2) (21). All definitions of hemodynamic parameter measurements are summarized and illustrated in Figure 3.

Figure 3 Illustration of hemodynamic and morphological parameter measurements. All hemodynamic measurements were implemented at the peak systolic phase. Cut-planes were created in the largest cross-sectional plane of APA and IA containing the maximum velocity vector. Maximum through-plane velocity in the APA (V_APA, cm/s) and maximum blood flow in the APA (Flow_APA, mL/s) were automatically measured. Maximum through-plane velocity in the IA (V_IA, cm/s), maximum blood flow in the IA (Flow_IA, mL/s), and average WSS of the IA (WSS_avg) were also automatically measured. In the meantime, mWT was also measured in the same geometry from BB-MRI. APA, adjacent parent artery; IA, intracranial aneurysm; mWT, minimum wall thickness; WSS, wall shear stress.

Statistical analysis

Statistical analysis was conducted with MedCalc (version 15.2, MedCalc Software bvba, Mariakerke, Belgium) and MATLAB (version 8.5.0 (R2017a), MathWorks Inc., Natick, MA, USA). The relationship between IA size and other factors including the morphological indices of mWT, hemodynamic parameters V_IA, V_APA, Flow_IA, Flow_APA, PI, and WSS_avg, and the demographic parameters of sex, age, smoking history, hypertension, diabetes, and hyperlipidemia was investigated by linear regression analysis (r). The variables which P<0.2 were selected for multivariate logistic regression analysis (partial correlation r). The relationship between WSS_avg and mWT was also investigated by linear regression analysis (r). Furthermore, the unpaired two-sample t-test was used to investigate the association between IA size, IA SR, and hemodynamic parameters. The level of statistical significance was set at P<0.05.

Results

Of the 97 patients examined in the study period, 27 participants were excluded due to incomplete MRI scans or poor image quality. Therefore, 70 patients (mean age, 53.8±11.7 years) with 72 aneurysms were included.

The relationship between morphological and hemodynamic parameters with potentially demographic confounding factors such as sex, age, smoking history, hypertension, diabetes, and hyperlipidemia are summarized in Table 1. A negative correlation was found between mWT and IA size (r=−0.665, P<0.001) and WSS_avg and IA size (r=−0.650, P<0.001). A positive correlation existed between Flow_IA and IA size (r=0.458, P<0.001). The relationship still existed when the multivariate analysis was adjusted for confounding factors. The WSS_avg were positively correlated with mWT (r=0.528, P<0.001). Furthermore, scatter plots and regression lines were used to demonstrate those three relationships (Figure 4).

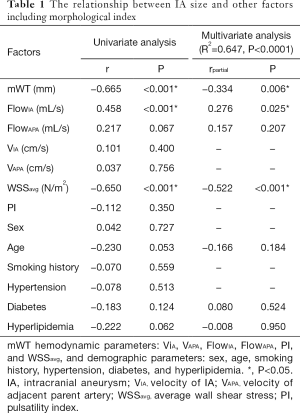

Table 1 The relationship between IA size and other factors including morphological index
Full table

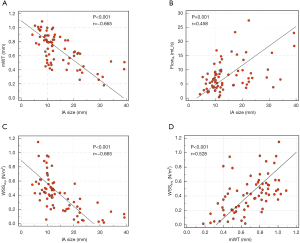

Figure 4 Scatter plots illustrating the relationship between morphological indices and hemodynamic parameters. (A) mWT was negatively correlated with IA size; (B) maximum Flow_IA was positively correlated with IA size; (C) WSS_avg was negatively correlated with IA size; (D) WSS_avg was positively correlated with mWT. mWT, minimum wall thickness; WSS, wall shear stress.

The unpaired two-sample t-test was used to further analyze the association between morphological and hemodynamic parameters. The relationships between IA diameter (abscissa) and 7 features (ordinate) are summarized in Figure 5A. The relationships between IA SR (abscissa) and 7 features (ordinate) are summarized in Figure 5B. The participants were divided into 2 subgroups based on the features. For 7 non-binary features (PI, Flow_IA, V_IA, Flow_APA, V_APA, WSS_age, and mWT), the median was chosen as the threshold. As shown in Figure 5A, Flow_IA, WSS_avg, and mWT were statistically significantly associated with the IA size. These results were consistent with the linear regression in Figure 4, in which mWT, as well as WSS­_avg, were negatively correlated with IA size, whereas Flow_IA was positively related to the IA size. Figure 5B shows that Flow_IA, WSS_avg, and mWT were statistically significantly associated with IA SR.

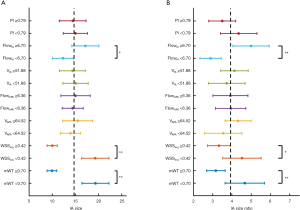

Figure 5 (A) The relationship (A) between IA diameter (abscissa) and 7 features (ordinate) and (B) between IA size ratio (abscissa) and 7 features (ordinate). For each feature, patients were separated into two subgroups based on the feature. Mean IA diameter, mean IA size ratio (SR), and 95% CI are shown for all subgroups. Vertical dashed lines show the mean IA diameter and mean IA SR from 72 patients. Two sample t-test. *, P<0.05; **, P<0.01. IA, intracranial aneurysm.

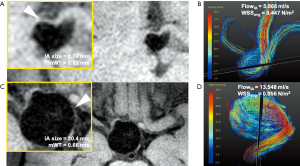

Figure 6 shows two examples of patients with small (Figure 6A,B) and large (Figure 6C,D) IAs, respectively. The large IA had a thinner mWT, smaller WSS, and faster maximum blood flow than the small IA.

Figure 6 Two representative cases of IA. Example of a patient with: (A,B) IA size =8.74 mm, mWT =0.82 mm, maximum Flow_IA =5.866 mL/s, WSS_avg =0.447 N/m², and another patient with (C,D) IA size =20.4 mm, mWT =0.66 mm, Flow_IA =13.548 mL/s, WSS_avg =0.056 N/m². The giant IA has a thinner wall thickness, smaller WSS, and faster maximum blood flow than the small IA. IA, intracranial aneurysm; mWT, minimum wall thickness; WSS, wall shear stress.

Discussion

In this study, BB-MRI and 4D flow MRI were applied to acquire multiple imaging biomarkers of IAs, and the relationships between morphological and hemodynamic parameters were analyzed.

First, we found that blood flow in IAs was positively correlated with size, even after multivariate analysis was adjusted for confounding factors. Previous studies have reported that hemodynamics play an important role in the pathogenesis and treatment of IA (22,23). Some of these studies found that the formation of aneurysms relied on an increase in blood flow (24), hinting that an increase in blood flow may also be required to increase the IA size. Also, by leading to an increment of IA pressure, increased blood flow might contribute to growth in the size of the IA; a recent study suggested that aneurysm pressure was positively correlated with aneurysm size (25). Since IA size has been considered as a predictor of IA rupture, it is reasonable to state that hemodynamics, especially for large blood flow, may also be taken as an important parameter for the risk evaluation of IA rupture. Second, we found that WSS_avg was negatively correlated with IA size. Our findings support the results of a previous study (7) in which the WSS showed a negative linear correlation with the aneurysm dome size, suggesting that the WSS may decrease as the IA grows. Third, we found that WSS_avg was positively correlated with mWT. It is still unclear whether high or low WSS is associated with aneurysm wall degeneration (26-29) or IA growth/rupture (30). Our findings support that low WSS may be associated with the process of aneurysm wall degeneration. This finding is similar to that of a previous study (9), which reported that thin-walled regions of unruptured cerebral aneurysms colocalize with low WSS. Researchers have also theorized that low WSS may contribute to wall degradation through a static deleterious endothelial phenotype (31,32), which has been indirectly illustrated by our results.

A similar relationship to that between IA size and hemodynamics was found in the relationship between IA SR and hemodynamics (Figure 5), with SR representing the ratio between IA size and parent artery diameter. These results indicated that the parent artery diameter had a minimal effect on the hemodynamic condition of aneurysms. This is consistent with the fact that Flow_APA and V_APA are not associated with IA size (Table 1, Figure 5). Although Kashiwazaki et al. (17) showed that IA SR was a predictive factor for rupture, their criteria included patients with small IAs (IAs <5 mm), whereas our analysis included patients with IAs >4 mm. This difference in entry criteria may be the primary reason for the different conclusions.

Interestingly, we also found that blood flow velocity was not associated with IA size. Considering that blood flow is the integral of velocity with respect to contour area, and contour area is determined by IA size, it is reasonable to state that V_IA may not be a risk factor for aneurysm rupture. Additionally, PI was not associated with morphological indices, which demonstrated that PI may not be a risk factor for aneurysm rupture.

Currently, the most widely used IA rupture risk evaluation method in clinical practice is the aneurysm size-based standard, as established by the International Study of Unruptured Intracranial Aneurysms (ISUIA) (33). One major drawback of the aneurysm size-based ISUIA standard is that some small aneurysms may still rupture. Orz et al. (34) investigated 34 patients who had small, as well as medium or large-sized aneurysm(s); of the 34 participants, 9 (26.5%) displayed rupture of the small aneurysms. Their data suggest that small aneurysms (≤6 mm in size, ISUIA grade 1) are prone to rupture. In this study, larger aneurysms were observed to have increased blood flow, smaller WSS, and smaller mWT. However, some small aneurysms (ISUIA grade 1, size ≤7 mm) were found to have a faster blood flow, smaller WSS, and smaller mWT. These results suggest that other than size, blood flow, WSS, and mWT may be monitored to provide additional information about aneurysm instability.

A benefit of the high resolution of BB-MRI is that it can be used to provide detailed morphological information of IAs (18). By measuring IA size and mWT simultaneously, BB-MRI has demonstrated these two parameters to be negatively correlated. Moreover, 4D flow MRI can provide a more versatile depiction of IA hemodynamics than other imaging techniques, and its accuracy and stability on hemodynamic measurements have been acknowledged (10,35,36). Another alternative to 4D Flow MRI is using hemodynamic software based on CFD simulations, such as the analysis system (ANSYS). The CFD software calculates hemodynamic parameters based on flow model, boundary conditions, and simulation. It has several disadvantages, including: (I) simulation modeling is hypothetical and uncertain (37); (II) low sensitivity of reconstructed geometry to imaging modality (38); (III) segmentation variability (39); and (VI) unrealistic modeling of flow data (10). On the contrary, 4D flow MRI and related post-processing software provide velocity in three directions at each voxel during a cardiac cycle measured with the principle of phase contrast MRI measures velocity using MRI physics, and is not restricted by model precision, boundary conditions, or fluid structure interaction (FSI). By combining BB-MRI and 4D flow MRI, the relationship between the morphology and hemodynamics of IA can be further illustrated. More importantly, BB-MRI and 4D flow MRI may help to characterize the aneurysm wall and abnormal hemodynamics overlooked by conventional imaging modalities, which may further guide treatment selection.

This study has some limitations. First, the measurement of morphological parameters (mWT, IA size, and IA SR) was conducted manually, which increases the chance of error. Also, due to the limited spatial resolution of 4D flow MRI, patients with IA sizes <4 mm were not included; our conclusions may not be generalizable on small aneurysms. Moreover, longitudinal studies are required to investigate the relationship between imaging biomarkers and rupture risk of IA.

Conclusions

In summary, by utilizing BB-MRI and 4D flow MRI, four associations between morphology and hemodynamics of IA were found. First, mWT was negatively correlated with IA size; second, blood flow in IA was positively correlated with IA size; third, WSS was negatively correlated with IA size; and fourth, WSS was positively correlated with mWT. Blood flow, WSS, and mWT measured by 4D flow and BB-MRI may be used as non-invasive biomarkers to assess IAs, and contribute to a more comprehensive characterization of the IA mechanism.
