Value of quantitative dynamic contrast-enhanced and diffusion-weighted magnetic resonance imaging in predicting extramural venous invasion in locally advanced gastric cancer and prognostic significance

Introduction

Gastric cancer is the fifth most common cancer and the third leading cause of cancer-related mortality globally (1). The symptoms of early gastric cancer are vague; consequently, 32% of patients already have locally advanced gastric cancer (LAGC) at the time of diagnosis (2). Despite early diagnosis and the development of therapeutic modalities, the overall 5-year survival rate is only approximately 26%, due to a high frequency of postoperative recurrence, even after radical gastrectomy (2,3).

Studies in recent years have shown that preoperative neoadjuvant therapy can control local lesions in LAGC patients, improve the radical resection rate, and subsequently prolong disease-free and overall survival (4). However, some studies have failed to find the benefit of neoadjuvant therapy (5); therefore, a consensus on neoadjuvant therapy for patients with gastric cancer has not been reached. These inconsistent results might be caused by the heterogeneity of LAGC. Depth of tumor invasion (T stage) and lymph node status (N stage) are important pathological factors that affect postoperative survival in LAGC, and are applied in the American Joint Committee on Cancer (AJCC)/International Union Against Cancer (UICC) staging system (6). Patients with similar clinicopathological factors have also been reported to have different survival outcomes (7). Therefore, other risk-stratification factors affecting postoperative recurrence and survival are needed to guide clinical treatment.

Recently, extramural venous invasion (EMVI) has been found to be an independent risk factor for recurrence and distant metastasis in patients with gastric and rectal cancer (8,9). EMVI is defined as the invasion of the veins beyond the muscularis propria of the gastrointestinal tract by tumor cells, which is considered to be a mode of tumor spread (10,11). EMVI is an adverse prognostic factor in rectal cancer (8), and it has been included as an important imaging parameter prior to neoadjuvant therapy in the National Comprehensive Cancer Network guidelines for rectal cancer. However, few studies on EMVI imaging in gastric cancer have been conducted.

Quantitative dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) and diffusion-weighted imaging (DWI) are commonly used techniques in clinical practice (12). Quantitative DCE-MRI was demonstrated to non-invasively calculate hemodynamic parameters (13), such as tissue perfusion, microvascular permeability, and vascular cell clearance volume, through a contrast pharmacokinetic model. DWI reflects the diffusion movement of water molecules by calculating the apparent diffusion coefficient (ADC) of tumor tissue. Quantitative DCE-MRI parameters and ADC values have been reported to be closely related to clinical, histopathological, and prognostic factors of various tumors (14-17). However, due to respiratory movement and gastrointestinal motility, these functional MRI techniques are rarely used in gastric research. To the best of our knowledge, no studies have been performed on the prediction and prognostic impact of EMVI using quantitative DCE-MRI and DWI in gastric cancer.

The present study aimed to explore the predictive value of combined quantitative DCE-MRI and DWI on pathological EMVI (pEMVI), and to determine the relationship between prediction results and prognosis in terms of recurrence-free survival (RFS) in LAGC patients after radical gastrectomy and adjuvant chemotherapy in order to guide clinical decision-making.

Methods

Patients

The Independent Ethics Committee of the Cancer Hospital, Chinese Academy of Medical Sciences (Beijing, China) approved this retrospective study and waived the requirement for informed patient consent. Between January, 2015, and June, 2017, 95 patients with newly diagnosed resectable LAGC undergoing gastric MRI preoperatively were recruited for participation in the present study. The inclusion criteria were as follows: (I) TNM stage cT2–4aN0–3M0, based on preoperative computed tomography (CT), MRI, or endoscopic ultrasonography (18); (II) gastric cancer and pEMVI status confirmed by surgical pathology; (III) R0 radical gastrectomy within 30 days after MRI; and (IV) regular postoperative follow-up. Sixteen patients were excluded for the following reasons: (I) obvious motion artifact related to respiration and bowel peristalsis during the acquisition (n=5); (II) maximum tumor diameter (MTD) <1 cm (n=4); and (III) postoperative follow-up time <3 months (n=7). Finally, 79 patients were enrolled in the present study, including 68 males and 11 females, with a median age of 58 years old (range, 30–70 years). Figure 1 shows the patient selection flowchart.

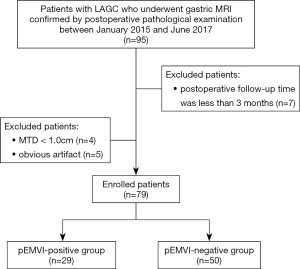

Figure 1 Recruitment of the study population and the exclusion criteria. LAGC, locally advanced gastric cancer; MRI, magnetic resonance imaging; MTD, maximum tumor diameter; pEMVI, pathological extramural venous invasion.

MRI examination

All patients were fasted for 6–8 h before MRI to empty the gastrointestinal tract. If no contraindications were present (i.e., glaucoma, prostate hypertrophy, asthma, or severe heart disease), 10 mg anisodamine (Minsheng Pharmaceutical, China) was injected intramuscularly to prevent gastrointestinal motility, and 800–1,000 mL water was orally administered to dilate the stomach wall before MRI.

All of the magnetic resonance images were acquired using a 3.0 T body MRI system (Discovery MR750 3.0T; GE Medical Systems, USA) equipped with an 8-channel, phased-array body coil.

DWI was performed using spin-echo echo-planar imaging in the respiratory-gating mode in the transverse plane, with the following scanning parameters: b-values: 0 and 800 s/mm²; repetition time (TR): 8,000 ms; echo time (TE): 60 ms; field of view (FOV): 38 cm × 38 cm; matrix: 160×128; section thickness: 5 mm; and gap: 1 mm. Quantitative DCE-MRI acquisitions were performed with breath-hold multiphase liver acceleration volume acquisition sequence. According to a recent study (19), pre-contrast T1 mapping with multiflip angles (3°, 6°, 9°, and 12°) was acquired in the axial plane before dynamic scanning (TR: 2.6 ms, TE: 1.2 ms, FOV: 38 cm × 38 cm, matrix: 224×224, section thickness: 5 mm, gap: 0 mm). A bolus of gadopentetate dimeglumine (Magnevist, Bayer Schering, Germany) at a constant dose of 0.1 mmol/kg was power injected, followed by a 20 mL saline flush at a rate of 2.5 mL/s for all patients. The scanning parameters and range of dynamic sequences were the same as those for T1 mapping, with a flip angle of 15°. Forty-two repetitions were acquired at a temporal resolution of 6 s, with an interval of 5–10 s for each of the three consecutive phases; the total scanning time for DCE-MRI was 5–6 min.

MRI analysis

The MTD was measured at the largest section of the tumor using good image quality. The DCE-MRI and DWI parameters were measured independently by 2 radiologists (YJZ and YL, with 7 and 15 years of experience in gastrointestinal abdominal imaging, respectively) who were blinded to the patients’ clinical and histopathological data. The region of interest (ROI) drawing principles were as follows: the ROI was manually traced slightly along the borders of the tumor to include the entire tumor at a single slice that showed the maximum dimension of the visible tumor, while avoiding visible blood vessels, necrotic areas, and cystic areas, on DCE-MRI and DWI, respectively.

ADC maps were created by Function Tool software on the GE ADW4.6 workstation (GE Medical Systems, USA) using DWI data. The ROI was automatically copied from the DWI images to the ADC maps, and the ADC values were obtained from the ROI on the ADC map.

Quantitative DCE-MRI analysis was performed using an inhouse-developed software, OmniKinetics 2.0.10 (Life Science, GE Healthcare, China). First, DCE images were pre-processed with three-dimensional non-rigid registration to correct the ROI displacement caused by patients' breathing and other involuntary movements. Second, the abdominal aorta was selected as the input artery on the transverse plane in the peak arterial enhancement phase. Third, the extended Tofts 2-compartment pharmacokinetic model was applied to obtain quantitative parameter maps (20), including volume transfer constant (K^trans), reverse reflux rate constant (k_ep), extracellular extravascular volume fraction (v_e), and plasma volume fraction (v_p). By drawing a freehand ROI, K^trans, k_ep, v_e, and v_p values for the selected ROI were automatically calculated.

Clinical treatment

All patients underwent D2 radical gastrectomy within 30 days after MRI and adjuvant chemotherapy with oxaliplatin and S1 (n=65), oxaliplatin and capecitabine (n=10), or other (n=4).

Pathological examination and EMVI evaluation

Patient records and original histopathological slides were independently re-evaluated by 2 pathologists with >10 years’ experience in gastrointestinal pathology. The pathologists were blinded to the routine diagnoses and patient outcomes. A median of 5 paraffin-embedded tissue blocks per tumor were used for analysis. As the vessels are orientated approximately at a right angle to the gastric wall, we adopted tangential macroscopic dissection, as well as conventional perpendicular sampling, which enabled all veins from the tumor region to be thoroughly evaluated, as proposed by Dirschmid et al. and Sternberg et al. (21-23), which is routine procedure in our hospital. The pEMVI status was recorded as present or absent with hematoxylin and eosin (HE)-stained slides.

The diagnostic criteria for pEMVI adopted in the present study were based on those reported by Talbot et al. (24), the cancer datasets of the Royal College of Pathologists, United Kingdom (RCPathUK) (25), and the reporting protocol College of American Pathologists (CAP) (26). EMVI is now listed as a line item in CAP gastric cancer reporting protocols (27), and is a simple item in RCPathUK gastric cancer datasets (28). Therefore, we adopted the definition used in corresponding colorectal cancer guidelines (25,26): the presence of a rounded mass of tumor tissue within an endothelium-lined space, either surrounded by a rim of smooth muscle or containing red blood cells. Other auxiliary characteristic signs (e.g., the “protruding tongue” and the “orphan artery” signs) could indicate EMVI, according to RCPathUK and CAP guidelines (25,26). To ensure consistency of the evaluation criteria, the 2 pathologists were trained with pathological diagnostic guidelines (25,26) prior to the evaluation. In case of disagreement, a consensus was reached by discussion.

Pathological staging was assessed according to the 8th edition of the AJCC/UICC TNM staging system (6). The histopathological type, differentiation, Lauren’s classification (29), and human epidermal growth factor receptor 2 (HER2) expression were also examined. HER2 expression was detected according to Hofmann et al.’s approach (30).

Follow-up

Follow-up after radical gastrectomy was carried out via interview in the outpatient department every 3 months for the first year, and every 6–12 months thereafter. Follow-up data included laboratory examinations, CT scans, and endoscopic examinations. RFS was recorded and was measured from the date of surgery to the first date of local and/or distant recurrence or the last follow-up date without recurrence. Tumor recurrence was defined as local recurrence, distant metastasis, or death caused by gastric cancer, detected by imaging or pathology. The last date of data collection was May 31, 2019.

Statistical analysis

Continuous variables with normal distribution were presented as mean ± standard deviation, and those with abnormal distribution were expressed as medians and interquartile ranges. Categorical variables were presented as frequencies and percentages.

Interobserver agreements for DCE-MRI parameters and ADC values were assessed using intraclass correlation coefficients (ICCs) with 2-way random method. The ICC was defined as follows (31): <0.20, poor; 0.20–0.40, fair; 0.41–0.60, moderate; 0.61–0.80, good; and ≥0.81, excellent. The averages of the measurements were used for further statistical analysis.

The independent samples t-test was used to compare normally distributed data, and the Mann-Whitney U-test was used to compare non-normally distributed parameters. Categorical variables were compared using the χ²-test or Fisher’s exact test. Differences in clinicopathological features, quantitative DCE-MRI parameters, and ADC values between the pEMVI-positive and -negative groups were compared. Multivariate logistic regression was used to build the combined prediction model with the statistically significant parameters. The prediction performance of the model was evaluated by receiver operating characteristic (ROC) curve using prediction probability, quantified by the area under the curve (AUC), overall accuracy (ACC), sensitivity, specificity, negative predictive value (NPV), and positive predictive value (PPV). The optimal cutoff value for the prediction probability of the regression equation was calculated at the maximum value of the Youden index (sensitivity + specificity^–1). The patients were then divided into MRI-predicted EMVI (mrEMVI)-positive and -negative groups according to the cutoff value. The RFS between the 2 groups was estimated using the Kaplan-Meier method, and differences were compared using the log-rank test. Statistical analyses were carried out using R software (version 3.5.3; http://www.r-project.org/). P<0.05 was considered to be statistically significant.

Results

Clinical and pathological characteristics

Of the 79 patients in the present study, 29 were pEMVI positive and 50 were pEMVI negative. A significant difference was observed in postoperative pathological staging between the 2 groups (P=0.015). No significant differences were found for sex, age, MTD, tumor site, histological type, differentiation, Lauren’s classification, or HER2 expression between patients with or without pEMVI (all P>0.05) (Table 1).

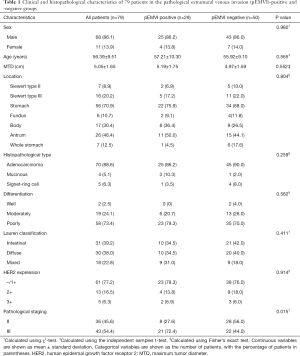

Table 1 Clinical and histopathological characteristics of 79 patients in the pathological extramural venous invasion (pEMVI)-positive and -negative groups
Full table

Interobserver agreement

The ICC values between the two radiologists for K^trans, k_ep, v_e, v_p, and ADC were 0.925 [95% confidence interval (CI): 0.885–0.951], 0.903 (95% CI: 0.853–0.937), 0.877 (95% CI: 0.814–0.919), 0.891 (95% CI: 0.834–0.929), and 0.930 (95% CI: 0.893–0.955), respectively, indicating almost excellent agreement.

Differences in quantitative DCE-MRI parameters and ADC values between pEMVI-positive and -negative groups

Among the 79 patients, quantitative DCE-MRI parameters of K^trans, k_ep, v_e, and v_p were 0.107 (0.058, 0.176) min^–1, 0.545 (0.360, 0.729) min^–1, 0.270 (0.205, 0.368), and 0.012 (0.006, 0.030), respectively; the ADC value was 1.29 (1.21, 1.58) ×10^–3 mm²/s. The comparisons of quantitative DCE-MRI parameters and ADC values between the pEMVI-positive and -negative groups are summarized in Table 2. The results showed that, in the pEMVI-positive group (Figure 2), the K^trans and k_ep values were significantly higher than those in the pEMVI negative group (Figure 3), and the ADC values were significantly lower (P<0.001, P<0.001, and 0.002, respectively), whereas v_e and v_p showed no significant difference (P>0.05).

Table 2 Comparison of dynamic contrast-enhanced magnetic resonance imaging quantitative parameters and apparent diffusion coefficient (ADC) values between pathological extramural venous invasion (pEMVI)-positive and -negative groups
Full table

Figure 2 Images of a 39-year-old man with extramural venous invasion-positive gastric adenocarcinoma in body of the stomach. (A) In the contrast-enhanced imaging, the gastric wall was irregularly thickened and heterogeneous enhanced; (B) The lesion showed a high signal in the diffusion-weighted image. Pseudo-colorized apparent diffusion coefficient (ADC) map (C), volume transfer constant (K^trans) map (D), reverse reflux rate constant (k_ep) map (E), extracellular extravascular volume fraction (v_e) map (F), and plasma volume fraction (v_p) map (G) shows mixed red, green, and blue in the corresponding tumor, with an ADC of 1.22×10^–3 mm²/s, K^trans of 0.165 min^–1, k_ep of 0.911 min^–1, v_e of 0.231, and v_p of 0.042.

Figure 3 Images of a 58-year-old man with extramural venous invasion-negative gastric adenocarcinoma in the esophagogastric junction. (A) In the contrast-enhanced imaging, the gastric wall was irregularly thickened and heterogeneous enhancement; (B) The lesion showed a high signal in the diffusion-weighted image. Pseudo-colorized apparent diffusion coefficient (ADC) map (C), volume transfer constant (K^trans) map (D), reverse reflux rate constant (k_ep) map (E), extracellular extravascular volume fraction (v_e) map (F), and plasma volume fraction (v_p) map (G) shows mixed red, green, and blue in the corresponding tumor with an ADC of 1.60×10^–3 mm²/s, K^trans of 0.048 min^–1, k_ep of 0.517 min^–1, v_e of 0.128, and v_p of 0.039.

Combined prediction efficiency of pEMVI using K^trans, k_ep, and ADC values

Multivariate logistic regression analysis was conducted with K^trans, k_ep, and ADC values as covariables, and pEMVI as the dependent variable. The results showed that K^trans, k_ep, and ADC values were independently associated with the pEMVI with odds ratio (OR) values of 3.66, 2.65, and 0.30 (all P<0.05, Table 3).

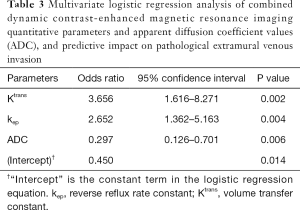

Table 3 Multivariate logistic regression analysis of combined dynamic contrast-enhanced magnetic resonance imaging quantitative parameters and apparent diffusion coefficient values (ADC), and predictive impact on pathological extramural venous invasion
Full table

ROC analysis was performed based on the prediction probability of the regression equation (Figure 4). The cutoff value was 0.513, the AUC was 0.879 (95% CI: 0.797–0.961), and the ACC, sensitivity, specificity, PPV, and NPV were 87.3%, 72.4%, 96.0%, 91.3%, and 85.7%, respectively. Based on the predictive results, 23 cases were found to be mrEMVI positive and 56 were mrEMVI negative.

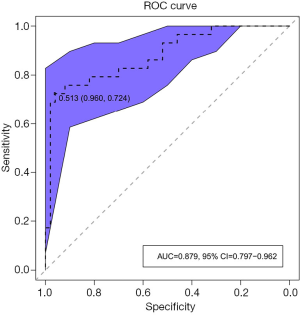

Figure 4 Receiver-operating characteristic (ROC) curve of model established by dynamic contrast-enhanced magnetic resonance imaging quantitative parameters and apparent diffusion coefficient values for the prediction of pathological extramural venous invasion in locally advanced gastric cancer. Area under the curve (AUC) was 0.879. CI, confidence interval.

Prognostic value of mrEMVI and its association with RFS

In the present study, the median follow-up duration for all patients was 20 months (range: 5–40 months), of which 29 of 79 (36.7%) had tumor recurrence. The recurrence rate was 14 of 23 (60.9%) in the mrEMVI-positive group and 15 of 56 (26.8%) in the mrEMVI-negative group, with a significant difference between the 2 groups (P=0.006).

The Kaplan-Meier survival analysis showed that the median RFS of all patients was 28.7 months (95% CI: 25.6–31.8), and the 2-year RFS rate was 62%. The median RFS of the mrEMVI-positive group was 21.7 months (95% CI: 18.0–25.4), and the 2-year RFS rate was 43.6%. The median RFS of the mrEMVI-negative group was 31.2 months (95% CI: 27.6–34.9), and the 2-year RFS rate was 72.5%. The 2-year RFS rates were significantly associated with mrEMVI, according to the log-rank test (P=0.010) (Figure 5).

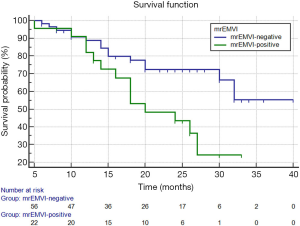

Figure 5 Kaplan-Meier recurrence-free survival (RFS) analysis of each group divided according to magnetic resonance imaging extramural venous invasion (mrEMVI). mrEMVI-positive patients had a significantly poorer RFS than patients without mrEMVI (cumulative 2-year RFS rate: 43.6% vs. 72.5%, P=0.010).

Discussion

In the present study, we combined DCE-MRI and DWI for the first time to build a model to predict pEMVI in LAGC and explore their prognostic significance. Our study showed that the combined prediction model based on quantitative DCE parameters and ADC values has a good prediction efficiency for pEMVI in LAGC, with an AUC value of 0.879 (95% CI: 0.797–0.961). The RFS of the mrEMVI-positive group was significantly lower than that of the mrEMVI-negative group.

The incidence of pathological EMVI has been reported to vary from 20% to 75% in gastric cancer due to different pathological stages and staining techniques (e.g., HE or elastic fiber staining) (11). Our study found the frequency of pEMVI was 36.7% (29/79), which was slightly lower than a recent study that reported a 51% frequency in stage III gastric cancer (32). The pathological staging of tumors is well known to be important for prognosis. In their study of 529 patients with gastric cancer, Gabbert et al. found that the incidence of EMVI increased with the depth of tumor invasion and the lymph node metastasis (9). This finding was consistent with the results of the present study; the pathological staging in the pEMVI-positive group was significantly higher than that in the pEMVI-negative group.

Traditionally, EMVI could only be detected after postoperative histopathological examination, and therefore cannot be used to predict treatment benefit. If EMVI status could be predicted preoperatively and non-invasively, appropriate and individualized treatment plans could be developed to improve the prognosis of LAGC patients. Recently, Tan et al. proposed some general CT imaging features of EMVI (11), and Kim et al. found that EMVI detected by CT was an independent prognostic factor for reduced disease-free survival in patients with gastric cancer (33). Furthermore, in a study by Cheng et al., EMVI detected by CT, combined with N status detected by contrast-enhanced CT, could be used as a valuable preoperative prognostic factor in patients with T4a gastric cancer (34). However, these studies are all based on morphological diagnoses and depend on the experience of the radiologist. Functional MRI, such as quantitative DCE-MRI and DWI, could obtain quantitative parameters, which are more objective and reproducible. In the present study, quantitative DCE-MRI and DWI were combined to predict pEMVI in LAGC, and the prognostic value of mrEMVI was explored.

In the present study, DCE-MRI parameters, K^trans and k_ep, in the pEMVI-positive group were significantly higher than those in the pEMVI-negative group. Previous studies of DCE-MRI in gastric cancer have focused on tumor staging, diagnosis, and the correlation of pharmacokinetic parameters with pathological prognostic factors (35-37). K^trans reflects the exchange ability of contrast agent in plasma and extracellular space, whereas k_ep quantifies the flux rate of the contrast agent from the extracellular space back to the plasma, both of which are important markers of vascular permeability (20). Joo et al. demonstrated that K^trans was significantly correlated with the grade of epidermal growth-factor receptor expression (35). Ma et al. found that K^trans showed a significant positive correlation with vascular endothelial growth factor (36). These findings suggest that DCE-MRI reflects tumor biology, providing prognostic information for patients with gastric cancer. Yu et al. found that, in rectal cancers, K^trans and k_ep values in patients with synchronous liver metastasis were significantly higher than those without metastasis (14). Li et al. reported that higher K^trans and k_ep values in breast cancer before neoadjuvant therapy were significantly correlated with lower disease-free and overall survival (15). According to our findings and those of previous studies (14,15,35-37), we hypothesized that higher K^trans and k_ep values in the pEMVI-positive group suggest higher tumor angiogenesis permeability and blood perfusion, which could promote hematogenous metastasis, leading to the occurrence of EMVI and postoperative tumor recurrence. The extravascular extracellular space and the blood plasma volume per unit volume of tissue were reflected by v_e and v_p, respectively. Joo et al. found that v_e showed a significant positive correlation with the T staging of gastric cancers (35), and Ma et al. found that the diffuse type showed a higher v_e than the intestinal type in the Lauren classification (36). In a previously published study, v_e values were found to be significantly correlated with progression-free and overall survival at 3 years in oropharyngeal and hypopharyngeal squamous cell carcinoma (38). However, no significant differences in v_e and v_p values were found between the pEMVI-positive and -negative groups in our study. v_e and v_p might have more influence factors, and their significance in the prediction of pEMVI and prognosis of gastric cancer need to be further clarified.

DWI has been widely used in the diagnosis, treatment response, and prognostic prediction of various tumors, and the ADC value has been reported to be closely related to prognosis (16,17,39-41). In their study, Peng et al. found that quantitative whole-lesion ADC histogram analysis could help to differentiate histological grades of rectal cancer (16). Giganti et al. reported that ADC is different according to local invasion, nodal involvement, and the 7th edition TNM stage groups (39). In a recently published study with 82 patients, the ADC value of pathological lymph nodes was shown to be lower than that of benign lymph nodes (40). In their study, De Cobelli et al. reported that responders showed a significant increase in ADC compared with non-responders after neoadjuvant treatment (85.45% increase vs. 8.21% decrease, respectively) (41). Therefore, DWI is a promising, non-invasive imaging biomarker for the evaluation of the aggressiveness of gastric cancer. In the present study, the ADC value in the pEMVI-positive group was significantly lower than that in the pEMVI-negative group, and the multivariate logistic regression results revealed that the OR value of pEMVI was 0.297, suggesting that patients with low ADC values were more likely to develop pEMVI. The ADC value reflects the diffusion of water molecules in tumor tissues. A lower ADC value indirectly indicates increased density, proliferation activity, and atypia of tumor cells, along with imbalance of the cytoplasmic ratio and reduced extracellular space. Tumor cells in tumor tissues with low ADC values are more likely to migrate into vessels, and eventually cause tumor recurrence and metastasis, than those with high ADC values.

In the present study, we attempted to combine K^trans, k_ep, and ADC values to predict the occurrence of pEMVI in LAGC for the first time. ROC analysis showed that combined quantitative DCE and DWI multiparameters resulted in good prediction performance in terms of pEMVI, with an AUC of 0.879, and sensitivity and specificity of 72.4% and 96%, respectively. To further investigate the relationship between mrEMVI and patient prognosis, Kaplan–Meier survival analysis was performed on the 79 patients. The results showed that the tumor recurrence rate in the mrEMVI-positive group was significantly higher than in the mrEMVI-negative group (60.9% vs. 26.8%), and the RFS in the mrEMVI-positive group was significantly lower than that in the mrEMVI-negative group (21.9 vs. 31.2 months). Nishibeppu et al. found that the incidence of hematogenous metastasis in pEMVI-positive stage III gastric cancer patients was significantly higher than that in the negative group (32). This may be attributed to tumor cells derived from the primary lesion entering the blood circulation, resulting in distant organ metastasis. mrEMVI makes it possible to predict pEMVI preoperatively, which is an important stratified risk factor and can provide a basis for the selection of an individualized treatment plan for LAGC patients. Because tumor cells can exist in the blood circulation before surgery, for patients with a high risk of EMVI or those who are mrEMVI positive, neoadjuvant therapy, intensive postoperative adjuvant therapy, or the addition of anti-angiogenic molecular-targeted drugs (i.e., trastuzumab) may be needed in clinical practice.

The present study has some limitations. First, the sample size was relatively small, and more cases are needed for validation. Second, the patients enrolled in the study were diagnosed with LAGC, and early gastric cancer patients were not included; therefore, selection bias was unavoidable. Third, the manual drawing of the ROI may have introduced a certain amount of subjectivity. Fourth, pEMVI was detected on routine HE staining slides only, and not with elastin staining. Special staining for elastin fiber could help to identify venous invasion, but itis not routinely performed for all patients in our hospital. However, special staining is not recommended in the current practice guidelines, and these techniques are also labor intensive, time consuming, and expensive. Despite this, we took some measures to improve the rate of EMVI detection, such as tangential sampling, unifying assessment criteria, training the pathologists with pathological diagnostic guidelines (25,26) before evaluation, and using auxiliary signs to aid detection. These measures might have offset the reduced detection rate caused by the absence of elastin staining to some extent. Finally, due to the short follow-up time (median follow-up time, 20 months), no analysis of overall survival was conducted.

Conclusions

The preoperative quantitative DCE-MRI parameters K^trans and k_ep, and the DWI parameter ADC, are independent predictors of pEMVI in LAGC. Also, mrEMVI based on the logistic regression model helped to predict the RFS of patients. This is of great value to clinicians when choosing the most appropriate treatment strategy for patients.

Acknowledgments

Funding: This work was supported by the Beijing Hope Run Special Fund (no. LC2016A06).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-246). The authors have no conflicts of interest to declare.

Ethical Statement: The present study was approved by the Independent Ethics Committee of the Cancer Hospital, Chinese Academy of Medical Sciences (Beijing, China), and the requirement for informed patient consent was waived (no. 2019081617374702).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
