Longitudinal label-free optical-resolution photoacoustic microscopy of tumor angiogenesis in vivo

Introduction

Angiogenesis is known to be a hallmark of malignant tumor growth, invasion, and metastasis (1,2). As early as in 1970s, a strategy that inhibits angiogenesis for anti-cancer therapy was proposed (3,4). Afterwards, in a few decades, investigations on angiogenesis have rapidly become one of the hottest topics in oncology research. Regulated by a number of growth factors secreted by tumor cells, the remodeling of existing vasculature and forming of new microvessels result in the alteration of the morphology of the microvascular networks (5). Clinical imaging modalities such as magnetic resonance imaging (MRI) and positron emission tomography (PET) have been applied to imaging tumor angiogenesis (6,7), but the lack of micrometer-level resolution limits their capacity to visualize fine feature changes in the microvasculature. In combination with a skin-fold window chamber mounted on a mouse’s back or head, intravital microscopy (IVM) based on confocal or two-photon laser scanning florescence microscope allows high-resolution imaging of tumors in vivo (8-12). However, due to the strong scattering of visible light in tissue, tissue penetration is usually a trade-off of the high resolution in IVM, which has an imaging depth of ~0.5 mm or less. To improve the imaging depth, optical frequency domain imaging (OFDI) and optical microangiography (OMAG) were developed and applied to imaging microvasculature networks (13-17). These techniques utilize near-infrared light to achieve a better imaging depth of ~1 mm, with sufficient spatial resolution (~10 µm) for visualizing most microvessels. In addition, they can be conveniently used for longitudinal imaging without the need of exogenous contrast agents, which are required for florescence-based IVM.

In recent decades, photoacoustic tomography (PAT) is rapidly emerging as a vital tool for many biomedical imaging applications (18). PAT is based on the detection and reconstruction of depth-resolved ultrasound waves induced by local absorption of short laser pulses in biological tissue. Due to the strong optical absorption of hemoglobin at visible and near-infrared wavelengths, PAT provides extremely high sensitivity for label-free imaging of the microvasculature in vivo (19). In addition, featured by significantly lower scattering of ultrasound in tissue compared to photons, PAT can offer a scalable imaging depth ranging from several millimeters to several centimeters, depending on the required spatial resolution (20). Previous studies using photoacoustic computed tomography (PA-CT) at low ultrasonic frequency successfully depicted the main trunks of the vascular network of subcutaneously implanted tumors on the mouse back (21-24). A Fabry-Perot polymer film ultrasound sensor was also applied for mapping the tumor vasculature with a spatial resolution of ~100 µm (25). However, to clearly visualize the finest microvessels (capillaries) in tumor angiogenesis, a spatial resolution of ~5 µm is required, which can be provided by optical-resolution photoacoustic microscopy (OR-PAM)—a technique that uses a tightly focused laser beam for photoacoustic excitation (26,27).

In order to avoid the respiratory and cardiac motion artifacts from living animals, previous studies of tumor angiogenesis by OR-PAM were carried out primarily on the ears of mice (28-30). Though impressive findings were generated, the ear is not commonly considered to be an ideal site for implanting tumors due to insufficient nutrition supply for tumor growth. A more widely used site for tumor implantation is the subcutaneous region on the back. In order to obtain sufficient optical imaging depth, conventionally, a skin-fold window chamber is mounted on the back of a mouse by surgical operation for imaging the tumor vasculature with IVM. In such a setup, the skin on the back of a mouse is stretched and fitted between two glass slides allowing in vivo optical microscopy. However, the skin-fold window chamber is invasive, and may disturb the microcirculation and microenvironment for tumor growth. In addition, the animals may become susceptible to infections, and thus make longitudinal studies more challenging. Finally, the glass slices of the chamber can attenuate the photoacoustic signals seriously due to the mismatch of acoustic impedance between the tissue and glass. Therefore, it is essential to design a new experimental protocol with auxiliary devices dedicated to OR-PAM for angiogenesis imaging. In this study, a novel noninvasive dorsal skin-fold (N-DSF) animal fixture, together with adaptive z-scanning and a corresponding experimental protocol, is developed, which, for the first time to our knowledge, has enabled in vivo. OR-PAM of subcutaneously implanted tumors in the dorsal region of mice.

Methods and materials

Imaging system setup

A detailed description of our OR-PAM system can be found in our previous publications (31,32). Briefly, as illustrated in Figure 1, a 1.8-ns pulsed laser beam emitted at 532 nm from an Nd:YAG laser source (SPOT-532, Elforlight, UK) was focused to an optical diffraction-limited spot to irradiate the sample for excitation. Then, a 75-MHz transducer (V2022, Olympus-NDT, Japan) was used to detect the time-resolved photoacoustic signals from the sample. A-line pulse repetition rate of up to 5 kHz was used in all experiments. The motor scanning and data acquisition (DAQ) were controlled by customized computer software written in LabView (2011, National Instruments). A volumetric dataset could be obtained by two-dimensional mechanical scanning of the imaging probe. Using the photoacoustic signals from the tumor skin surface as feedback, the height of the imaging probe was adjusted adaptively during the acquisition of successive B-scans. This adaptive scanning was helpful for enabling the major tumor microvessels to be imaged within focus, although their height may vary due to the protruding tumor contour.

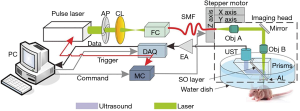

Figure 1 Schematic of the OR-PAM system. AP, aperture; CL, convex lens; FC, fiber coupler; SMF, single mode fiber; Obj, objective; UST, ultrasonic transducer; AL, acoustic lens; SO, silicone oil; EA, electrical amplifier; DAQ, data acquisition; PC, personal computer; OR-PAM, optical-resolution photoacoustic microscopy.

Animal tumor model

Female BALB/c mice (4-6 weeks old and weighted 18-20 g) were purchased from the Medical Experimental Animal Center of Guangdong Province (Guangzhou, China). Mouse 4T1 mammary carcinoma cells were cultured with DMEM. The culture media were supplemented with 10% fetal bovine serum and 1% antibiotics-antimycotics. For tumor inoculation, cells (1×10⁶ cells/mouse) were suspended in serum-free DMEM medium and administered subcutaneously to the backs of the mice.

Imaging procedure

All experimental animal procedures were carried out in compliance with protocols approved by the Animal Studies Committee of the Shenzhen Institutes of Advanced Technology, the Chinese Academy of Sciences. The mice were anesthetized using a mixture of isofluorane and oxygen at a concentration of 4% isofluorane for induction and 1.5% for maintenance (flow rate: 300 mL/min). The implanted tumor was positioned at the center of the scanning region. Acoustic gel was smeared between the skin and water tank for ultrasound coupling. Typically, one imaging session for a scanning region of 6 mm × 8 mm was completed within ~40 min. The tumors were imaged every 2 or 3 days after implantation. In all in vivo experiments, the optical energy fluence was maintained around 18 mJ/cm² on the skin surface, which conforms to the ANSI standard (ANSI Z136.3-2005).

N-DSF mouse fixture

The overall architecture of the N-DSF fixture is shown in Figure 2A. The dorsal skin was gently lifted up and flattened on the top surface of the fixture. The relative positions of the two symmetrical metallic parts of the fixture can be adjusted via a pair of parallel slots to slightly clamp the skin. Then, four screws were used to fasten the entire fixture onto the platform.

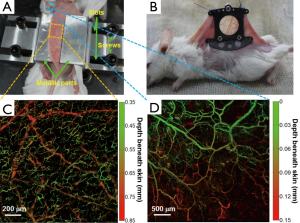

Figure 2 (A) N-DSF mouse fixture designed for our OR-PAM system. The dorsal skin only needs to be slightly clamped temporarily using this fixture; (B) Traditional invasive skin-fold window chamber used for intravital optical microscopy, permanently mounted on the mouse back by a surgical operation; (C) a representative depth-encoded MAP image of a normal mouse’s dorsal region acquired by the combined use of OR-PAM and N-DSF fixture; (D) a representative depth-encoded MAP image of a normal mouse ear acquired by OR-PAM. The color scale represents depth below the skin surface. N-DSF, noninvasive dorsal skin-fold; OR-PAM, optical-resolution photoacoustic microscopy; MAP, maximum amplitude projection.

Compared with skin-fold window chamber as shown in Figure 2B, our new fixture is noninvasive, which is quite beneficial for long-term imaging of tumor angiogenesis in vivo. In Figure 2C, a depth-encoded maximum amplitude projection (MAP) image of the subcutaneous blood vessels of a normal mouse is shown. In the image, different depths were encoded by various colors from green (superficial) to red (deep). From Figure 2C,D, it can be seen that the vascular morphologies of the ear and back are quite different. In particular, in Figure 2C, two distinct layers of vessels are shown, with the upper layer representing capillary-level microvessels in the dermis, while the lower layer representing relatively large arteries and veins beneath the dermis. The results suggest that our N-DSF mouse fixture is an effective tool dedicated to OR-PAM for imaging subcutaneous vessels.

Results

Using OR-PAM, first, we demonstrated an example of imaging 4T1 mouse mammary tumor (day 4 post implantation), as shown in Figure 3. The tumor was located at the center of the image, surrounded by a dense vascular network of the dorsal skin; several feeding vessels beneath and within the tumor could also be visualized. The dark region in the center of the image might be attributed to the necrosis of the tumor core. Overall, it can be seen that the high lateral resolution of OR-PAM has offered a unique capacity to clearly identify the surrounding tumor vasculature without any exogenous contrast agent.

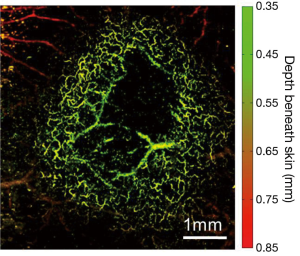

Figure 3 Photoacoustic depth-encoded MAP of a subcutaneously implanted 4T1 mouse mammary carcinoma 4 days after implantation. MAP, maximum amplitude projection.

Further, a series of longitudinal images of the developing 4T1 tumor angiogenesis was acquired every 2 to 3 days. Representative images acquired on days 5, 7, and 9 are shown in Figure 4, exhibiting the progressive growth of the tumor vessels. Quantitative analyses of selected representative vessels and regions were shown in Figure 5. Figure 5A compares the cross-sectional diameters averaged over 10 evenly selected positions along the vessel indicated by the green arrow in Figure 4. The error bars in the graph represent the standard deviations of the diameters measured at different positions. It shows that the average diameter of the vessel has increased by ~70.9% over 4 days. Figure 5B lists the integrated photoacoustic signals in the areas marked by the dashed white circles in Figure 4, revealing a >1.5-fold increase of blood flow in the tumor surrounding vessels. Accordingly, to show the depth of different vessels, the depth-encoded MAPs are also shown in Figure 4, where signals from superficial vessels are in green while signals from deeper ones are in red.

Figure 4 Longitudinal OR-PAM of developing 4T1 tumor angiogenesis (case 1) on (A) day 5; (B) day 7; and (C) day 9 post implantation; (D-F) depth-encoded MAP corresponding to (A-C). The vessel indicated by the green arrow and the region marked by the white dashed circle are extracted for further quantitative analysis shown in Figure 5. OR-PAM, optical-resolution photoacoustic microscopy; MAP, maximum amplitude projection.

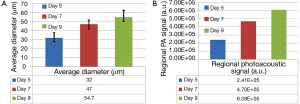

Figure 5 (A) Diameter change of the vessel indicated by the green arrow in Figure 4. The values are calculated by averaging over 10 evenly selected locations along the vessel. The error bar represents the standard deviation of the 10 measurements. (B) Change of the photoacoustic signals integrated over the area marked by the dashed white circle in Figure 4.

Figure 6 shows another series of longitudinal OR-PAM of 4T1 mouse tumor angiogenesis. Similar to the previous case, the results in Figure 6A-C are featured by gradually chaotic vasculature network, and an increased tortuosity of the vasculature surrounding the tumor. The remodeling of vasculature along tumor growth is further identified in Figure 6, as shown by the arrows pointing to several representative vessels. In Figure 6, each representative vessel is labeled by one arrow of a fixed color.

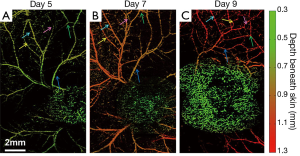

Figure 6 Longitudinal OR-PAM of developing 4T1 tumor angiogenesis (case 2) on (A) day 5; (B) day 7; and (C) day 9 post implantation. Obvious vascular morphology changes can be identified by examining each representative vessel labeled by a colored arrow. OR-PAM, optical-resolution photoacoustic microscopy.

Conclusions

To the best of our knowledge, this work represents the first demonstration of longitudinal OR-PAM of angiogenesis in a subcutaneous dorsal tumor model in mouse. It shows that, by utilizing a newly-designed N-DSF fixture, our OR-PAM system provides an outstanding capacity in label-free monitoring of developing angiogenic vasculature. Various morphological changes of tumor vasculature were clearly visualized at high resolution. Specifically, the dynamics of tumor vascular density, diameter, and tortuosity were quantitatively tracked and analyzed over several days. Also, it can be seen that, although the same tumor cell line (4T1) was used in two series of experiments, the tumor vascular morphology could be distinct, as a result of the animal individual differences. However, some common features, including the increase of vascular density and tortuosity, were still observed. The results suggest that, OR-PAM system is of great potential to find broad biomedical applications related to revealing the pathophysiology of tumor, and the monitoring of anti-angiogenesis treatments.

Acknowledgements

This work was supported in part by the National Natural Science Foundation of China grant: 61205203, 81427804, 61405234, and 61475182; the National Key Basic Research [973] Program of China: 2014CB744503, and 2015CB755500; the Shenzhen Science and Technology Innovation Committee grants: ZDSY-2013-0401165820-357, KQCX-2012-0816155844-962, CXZZ-2012-0617113635-699, and JCYJ-2012-0615125857-842; Guangdong Innovation Research Team Fund for Low-cost Healthcare Technologies (GIRTF-LCHT).

Disclosure: The authors declare no conflict of interests.
