Association between anterior talofibular ligament injury and ankle tendon, ligament, and joint conditions revealed by magnetic resonance imaging

Introduction

The lateral ankle ligament complex is comprised of the anterior talofibular ligament (ATFL), calcaneofibular ligament (CFL), and posterior talofibular ligament (PTFL) (1). The key function of the lateral ankle ligament complex is the avoidance of sudden ankle inversion movements (2). Lateral ankle ligament complex injuries are present in up to 85% of ankle sprains, making it the most frequently injured ligament secondary to strong ankle inversion movement during lateral ankle sprains (LAS) (3). Under abrupt inversion mechanisms, the CFL may be injured in conjunction with the ATFL, reaching a prevalence of 20% to 40% (1), whereas PTFL injury is infrequent (2), being the ATFL considered as the principal injured ligament followed by the CFL (4,5). From 20% to 40% about subjects with acute LAS usually developed chronic ankle instability (6-8).

Leardini et al. (9) carried out a cadaveric study in order to predict the function of each lateral ankle complex ligament under different flexion angles using the functional length fraction obtained by the relationship between the longitudinal ligament mean and the maximum longitudinal elongation. These authors concluded that the CFL played a key role in flexion and extension ankle stabilization.

In our study, the medial ankle complex is comprised of the tibialis posterior tendon, spring ligament (SL), deltoid ligament and tibiotalar ligament (10). Patients with a progressive tibialis posterior degeneration and dysfunction are related with a frequently damaged SL developing ankle instability (11,12)

Indeed, the SL may be considered a passive stabilizer of the plantar arch in the talocalcaneal joint that helps to avoid talus medial rotation and plantar flexion, as well as navicular dorsal flexion, eversion, and abduction (13). In one study, SL injury seemed to be produced in the upper-medial bundles due to its anatomic disposition, hammock shape, and lack of vascularization. The SL may be considered the strongest medial ligament since this ligament supports compression forces (generated between the tibialis posterior tendon and talus head) and elongation forces (14). Regarding conditions secondary to SL injuries, adult acquired pes planus may be produced by isolated SL injuries (15-19). Also, the posterior tibialis tendon may be considered an active stabilizer of the plantar arch and its dysfunction may commonly lead to secondary injury of the SL and talocalcaneal ligaments; it may also be linked to injuries of the deltoid ligament, the plantar fascia, and other musculoskeletal soft-tissue structures (20).

From a biomechanical point of view, functional alterations of the ATFL, CFL, and talocalcaneal interosseous ligament may provoke a non-physiological talus anterolateral rotation during gait cycle secondary to talocalcaneal joint instability (21-23). Magnetic resonance imaging (MRI) is a precise, reliable, and valid tool to visualize and diagnose ankle injuries (24). Nevertheless, there is a lack of MRI-based research studies that link the presence of ATFL injuries to other musculoskeletal injuries.

We hypothesized ATFL injury produced ankle instability and develop ligament, tendon and joint injuries of the lateral and medial ankle complex.

Therefore, the purpose of this study was to determine if there are any associations between ankle tendon, ligament, and joint conditions and ATFL injuries that are revealed by MRI.

Methods

Design and sample

A case-control study was carried out in order to compare, via MRI, the presence of ankle tendon, ligament, and joint conditions in injured and non-injured ATFLs according to the Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines (25). Researchers accessed medical records and a MRI database from a podiatric outpatient clinic, using the terms “ATFL, “sprains” and “rupture”, and found 50 MRIs and medical records, 25 with injured ATFLs and 25 non-injured ATFLs, that included data collected by a consecutive sampling method. Thus, the inclusion criteria were an indication of ankle MRI included in the MRI database of the podiatric outpatient clinic using the described search terms (“ATFL”, “sprains”, and “rupture”). The exclusion criteria were the presence of fractures, systemic conditions, rheumatic or autoimmune diseases, and/or neuropathies in the ankle, as well as other musculoskeletal conditions located in the lower limbs that did not involve the ankle, in the medical record.

Ethical considerations

This study was approved by the Ethics Committee of Rey Juan Carlos University (Spain; Registration number of 0801201800618). The Helsinki declaration and the ethical recommendations for biomedical research were respected (26). The patients previously provided informed consent at the podiatric outpatient clinic.

Procedure

Musculoskeletal structures were evaluated by MRI, such as tendons (flexor hallucis and digitorum tendons, extensor hallucis and digitorum tendons, tibialis anterior tendon, Achilles tendon and plantar fascia, and peroneus longus and brevis tendons), ligaments (PTFL, CFL, ATFL, SL, and deltoid ligament), and joints (talocalcaneal joint and tibiotalar joint).

Tendinosis was defined as the tendon intrasubstance signal intensity increment in longitudinal relaxed time (T1) and proton density (DP) and increased thickness in the axial and coronal planes without an increase in peritendinous edema (27). “Partial injury” was defined as more evident morphologic and signal intensity alterations that were associated with heterogeneous linear images that did not show a complete tear (28). In addition, alterations in the sequence T2 signal intensity were interpreted as “partial injuries” or advanced intrasubstance degeneration (tendinosis) (29). “Partial rupture” was defined as a focal increase in the DP and T1 sequence signal intensity (and occasionally T2 sequence intensity) (27,29,30). “Complete rupture” was defined as the total disruption of tendon fibers (29). Joints injuries, such as talocalcaneal and tibiotalar lesions, were determined as joint rupture, osteochondral injury, osteonecrosis and/or synovitis. Peritendinous edema quantity was not considered due to the high variability of this variable in prior research studies, including in healthy subjects (28,31,32). Notably, non-significant issues associated with a clinical indicator (cutaneous marker) coincided with a slight increase in peritendinous edema, without signal intensity changes or morphological changes in the adjacent tendon. If the edema surrounded the tendon completely, except an isolated defined sector (“tendon mesentery”), these changes were classified as tenosynovitis (33). In this study, data compatible with prior muscle, joint, or ligament ruptures were not considered. Fasciosis was defined as the focal or continuous increase in the thickness (>4 mm) of bundles in its proximal insertion (34). Achilles tendinopathy was defined as tendon thickening (>8 mm in the anteroposterior plane), with or without intrasubstance signal alterations, peritendinosis, or partial or complete rupture (34).

Synovitis was defined as synovial membrane thickening in T1-boosted sequences and increased signals in T2-boosted sequences (35). Representative MRI imagines are presented in Figures 1-10 in order to illustrate the definition of each condition.

Figure 1 Axial fat-sat proton-density image. Blue star shows anterior talofibular ligament complete rupture in distal fibula portion with subcutaneous cell tissue edema.

Figure 2 Axial fat-sat proton-density image. Blue arrow shows peroneus brevis tendon partial rupture with a characteristic of “V” shape surrounding a thickened peroneus longus tendon. Red arrow shows fibularis head cyst lesion. Yellow arrow shows hallucis longus tendon partial injury (tenosynovitis). Orange arrow shows partial flexor digitorum tendon injury (tenosynovitis) and white arrow show partial posterior tibialis tendon injury (tenosynovitis).

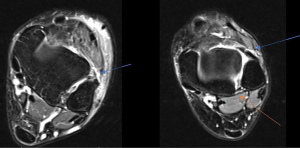

Figure 3 Partial tibialis posterior tendon injury image at the medial part of the ankle. (A) Axial fat-sat proton-density. Blue arrow shows partial tibialis posterior tendon injury (tenosynovitis). (B) Sagittal fat-sat proton-density blue arrow shows partial tibialis posterior tendon injury (tenosynovitis).

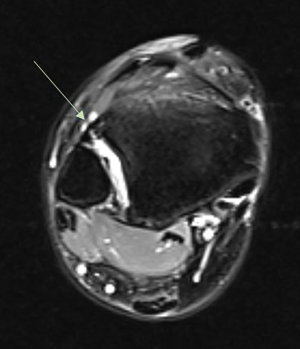

Figure 4 Axial fat-sat proton-density. Orange arrows show partial tibiotalar joint injury (synovitis). White arrow shows partial calcaneofibular injury. Blue arrows show partial tibialis posterior tendon injury (tenosynovitis).

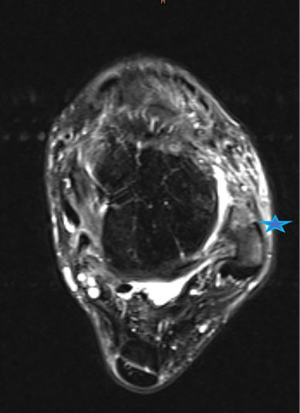

Figure 5 Axial fat-sat proton-density. Blue arrows show complete anterior talofibular ligament rupture. Orange arrow shows partial posterior talofibular ligament injury.

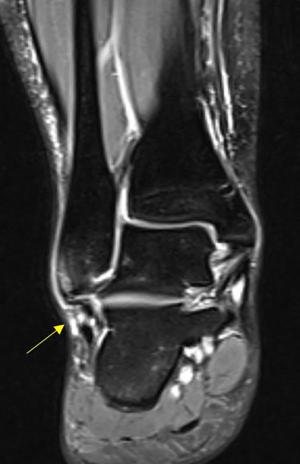

Figure 6 Coronal fat-sat proton-density. Yellow arrow shows partial fibulocalcaneal tendon injury.

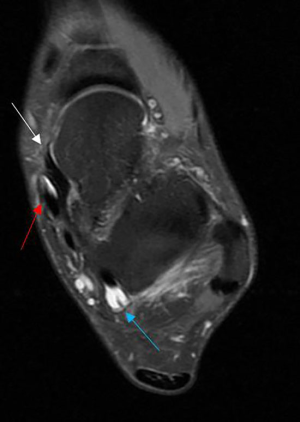

Figure 7 Axial fat-sat proton-density. White arrow shows spring ligament injury (thickened). Blue arrow shows flexor hallucis longus tendon injury (tenosynovitis). Red arrow shows tibialis posterior tendon injury (tenosynovitis).

Figure 8 Axial fat-sat proton-density. Green arrow shows partial anterior tibiofibular ligament rupture with edema.

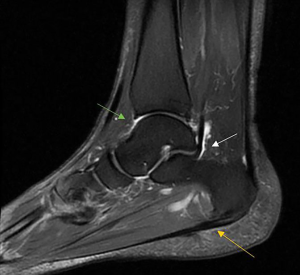

Figure 9 Sagittal fat-sat proton-density. Green arrow shows tibiotalar synovitis. White arrow shows tenosynovitis of the tibialis posterior tendon. Orange arrow shows a thickened plantar fascia.

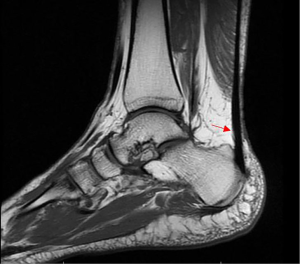

Figure 10 Sagittal fast spin echo T1. Red arrow shows a thickened Achilles tendon.

MRI processing

MRI data were analyzed by a 1.5-T scanner measurement system (Signa HD 1.5T RM, GE Medical Systems, Milwaukee, WI, USA). Images were separately analyzed by two radiologists who specialized in musculoskeletal analyses with more than 10 years of experience. Both radiologists were blinded to the case or control group allocation when analyzing the MRI data.

All MRI measurements were carried out under the following sequences in the axial, sagittal, and coronal planes: 1.5-T MRI (General Electric Medical Systems, Milwaukee, WI), T1-weighted spin echo [400–600 ms/9–17 ms (TR/TE range); 256×192 matrix; from 12- to 16-cm FOV; 1–2 NEX, 3-mm thickness cut; 1-mm space], T2-weighted spin echo [2,000–3,000 ms/70–80 ms (TR/TE range); 256×192 matrix from 12- to 16-cm FOV; 1 NEX, 3-mm thickness; 1-mm space], T2-weighted spin echo with fat saturation [3,083–5,000 ms/80–108 ms (TR/TE range); 256×192 matrix from 12- to 16-cm FOV; 2-3 NEX, 3-mm thickness; 1-mm space] and DP fast spin echo with fat saturation [1,800–3,050 ms/15–40 ms (TR/TE range)]; 256×192 matrix; 12–16 FOV; 1 NEX; 3-mm thickness cut and 1-mm space. Not all sequences were carried out in all patients but all the protocols were the same for all patients (36).

Sample size calculation

The CFL injury proportion was considered the main outcome measurement because this ligament seemed to be commonly injured in conjunction with the ATFL (1); therefore, a chi-squared test for Goodness of Fit was used for the sample size calculation in G*Power in order to test the null hypothesis that the observed frequencies would be equal to the expected frequencies (37). Based on a prior pilot study (n=18) that evaluated a non-injured ATFL control group (including 1 injured CFL from 9 feet) and an injured ATFL case group (including 3 injured CFLs from 9 feet), the normalized expected proportions for each category were P(H₀)=0.5 for the case group and P(H₀)=0.5 for the control group and the normalized observed proportions were P(H₁)=0.25 for the control group and P(H₁)=0.75 for the case group. According to an effect size of W=0.50, an error probability of α=0.05, a power (1-β error probability) of 0.90, and 1 degree of freedom, there was a 90% chance of correctly rejecting the null hypothesis of no difference between the expected and observed proportions with 43 participants (critical χ²=3.84).

Statistical analysis

Statistical analysis was performed using the SPSS 19.0 statistical software for Windows (SPSS Inc., Chicago, USA). First, the Shapiro-Wilk test was used to test if the data were normally distributed. All the variable values were considered parametric data since a normal distribution was shown (according to a P value >0.05 in the Shapiro-Wilk test). Second, mean ± standard deviation (SD) and the upper and lower limits for the 95% confidence interval (CI) were utilized in order to describe the quantitative data. Third, differences between the case and control groups were compared by Student’s t-test for independent samples for parametric data. Finally, the categorical data were described as frequencies and percentages (%) and their differences between the case and control groups were compared using Fisher’s exact test for dichotomous variables. Statistical significance was set at a P value <0.05 for a 95% CI.

Results

Sociodemographic data

The case group’s sociodemographic data showed a mean age of 41.44±14.89 years (95% CI: 35.29 to 47.59 years), a mean height of 171.64±5.61 cm (95% CI: 169.32 to 173.96 cm), a mean weight of 66.64±10.11 kg (95% CI: 62.47 to 70.81 kg), and a mean body mass index (BMI) of 22.71±2.91 kg/cm² (95% CI: 21.50 to 23.91 kg/cm²). The control group’s sociodemographic data showed a mean age of 45.68±11.96 years (95% CI: 40.74 to 50.62 years), a mean height of 170.96±6.41 cm (95% CI: 168.31 to 173.61 cm), a mean weight of 69.64±8.55 (95% CI: 66.11 to 73.17 kg), and a mean BMI of 24.12±2.54 kg/cm² (95% CI: 23.07 to 25.17 kg/cm²). In addition, there were 24 (48%) women and 26 (52%) men in the total sample, 12 (48%) women and 13 (52%) men in each group. The age, height, weight, and BMI differences between the groups were not statistically significant (Table 1).

Table 1 Demographic data of the total sample, case and control groups
Full table

MRI findings

In the case group, which was composed of 25 patients with ATFL injuries, the MRI findings showed 4 (16%) grade-I sprains, 3 (12%) grade-II sprains, 1 (4%) grade-III sprain, 11 (44%) chronic sprains, and 6 (24%) complete ruptures.

Table 2 shows the frequencies and percentages of other musculoskeletal injuries in patients with injured ATFLs (case group) and healthy subjects without ATFL injuries (control group). Statistically significant differences were found for the presence of Achilles tendinopathy [1/25 (4%) patients with injured ATFLs and 7/25 (28%) non-injured ATFL subjects; P=0.048], injured CFLs [19/25 (76%) patients with injured ATFLs and 1/25 (4%) non-injured ATFL subjects; P<0.001], and injured tibiotalar joints [16/25 (64%) patients with injured ATFLs and 5/25 (20%) non-injured ATFL subjects; P=0.002].

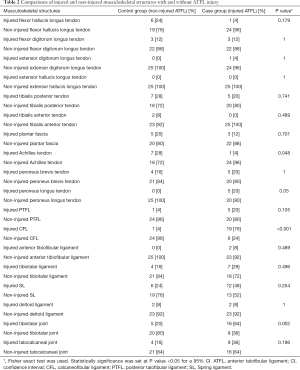

Table 2 Comparisons of injured and non-injured musculoskeletal structures with and without ATFL injury
Full table

Other musculoskeletal structures, such as the flexor hallucis longus tendon, flexor digitorum longus tendon, extensor hallucis longus tendon, extensor digitorum longus tendon, tibialis posterior tendon, tibialis anterior tendon, peroneus longus and brevis tendons, plantar fascia, PTFL, anterior tibiofibular ligament, tibiotalar ligament, SL, deltoid ligament, and talocalcaneal joint did not show statistically significant differences (P>0.05) between the two groups.

Discussion

To the authors’ knowledge, this study showed that patients who suffered from ATFL injuries exhibited a greater frequency of CFL and tibiotalar joint injuries than subjects who did not suffer from ATFL injuries. A recent study about the epidemiology of injuries secondary to ankle sprains diagnosed in an orthopedic emergency service concluded that approximately 92% of their patients suffered from some kind of injury according to their MRI findings, as indicated by correlations between lateral ligament complex injuries and syndesmosis and deltoid injuries, but not between deltoid and syndesmosis conditions, lateral ligamentous and talocalcaneal injuries, or ankle and midfoot injuries (38). Even though higher incidences of CFL and tibiotalar injuries were previously reported in patients with ATFL injuries, our study may be the first case-control study to focus solely on ATFL injury and its relationship with several tendon, ligament, and joint structures. Indeed, among the parts of the ankle lateral ligamentous complex, the ATFL is considered the ligament structure that is most frequently injured during sudden inversion movements of the ankle (1), justifying our investigation.

Association between tendon, ligament, and joint conditions and ATFL injury

Firstly, our findings about the positive association between CFL and ATFL injuries as the main outcome measurements are supported by previous studies that reported that the CFL is commonly injured in conjunction with the ATFL under abrupt inversion mechanisms (1). Secondly, our findings regarding the positive association between tibiotalar joint and ATFL injuries may be in accordance with prior studies that reported subchondral and “kissing” lesions in the talus and tibia after ankle trauma in 18% and 50% of acute and recurrent sprains, respectively (39). Finally, our last finding was a negative association between Achilles tendon and ATFL injuries since Achilles tendon injuries were more common in the control group, possibly because our sample control group presented higher average age, weight, height, and BMI values, although without statistically significant differences, than our case group and some of the reported demographic data were previously identified as risk factors for Achilles tendon abnormalities (40,41). There is a lack of studies reported association between ATFL injuries and Achilles tendon injuries. Dreyer et al. referred an uncommon and isolated Achilles rupture with associated with clinical symptoms of LAS (42). Lam et al. reported a case study of undiagnosed rupture of the Achilles tendon related to severe LAS (43).

Non-association between tendon, ligament, and joint conditions and ATFL injury

Other musculoskeletal structures, such as some tendons (flexor hallucis longus, flexor digitorum longus, extensor hallucis longus, extensor digitorum longus, tibialis posterior, tibialis anterior, peroneus longus and brevis tendons, and plantar fascia), ligaments (PTFL, anterior tibiofibular ligament, tibiotalar ligament, SL, and deltoid ligament), and the talocalcaneal joint, did not show any relationship with ATLF injuries. Our findings regarding these musculoskeletal structures are in line with prior research (2,38), except that a previous study observed correlations between lateral ligament complex injuries and syndesmosis and deltoid injuries (38) and we did not. A possible explanation of these controversial findings may be that our study was carried out in a podiatric outpatient clinic, whereas the other study was performed in an orthopedic emergency room (38). Ziai et al. analyzed the influence of the peroneus longus as passive ankle stabilizer in lateral sprains being closing that the peroneus longus tendon assume the role of stabilizer in ankle sprains (44). In our study, the peroneus longus tendon has statistically significance only in the 20% ATLF injuries. More research is necessary in this way. Recent research of Abdeen et al. compared ankle structures injured and non-injured in LAS, concluded no statistically significant differences between health injured tendon and muscles ankle with the injured, these results are similar as our findings (45).

Clinical implications

Our study’s findings support that the idea CFL and tibiotalar joint injuries should be systematically explored via ankle MRI in patients who suffer from ATLF injuries due to their presented association. Regarding the pathophysiology of the ATFL, ATLF injury seemed to be linked to ankle inversion mechanisms that impair the CFL and tibiotalar joint structures, which partially explains why other musculoskeletal structures, such as the deltoid ligament, and anterior tibiofibular injuries did not show a clear relationship with ATLF injury (38).

Limitations

There were some limitations to this study that should be acknowledged. First, a consecutive sampling method was used to select the participants and future studies should use randomized sampling methods. Second, the present study only permits us to state associations and future cohort studies should be designed in order to determine causal relationships. Third, despite the lack of statistically significant demographic differences between the case and control groups, our between-group differences could be under-estimated and influenced by the control group’s higher age and BMI, compared to the case group, which are known risk factors associated with a higher prevalence of MRI injury findings in the ankle (46,47). Finally, several patients who suffer from ATLF injuries do not receive a medical indication for MRI or other indications that prompt MRI, such as persistent pain or instability; MRI should be considered for these groups in future research studies. Though we performed a sample size calculation, both groups were heterogeneous; the ATFL case group included patients with any grade or chronicity of ATFL injury and the non-ATFL injury control group included a heterogeneous mix of other causes of ankle conditions. Therefore, a greater sample size should be considered for future studies.

Conclusions

Patients who suffered from ATFL injuries showed a greater presence of CFL and tibiotalar joint injuries, compared to subjects who did not suffer from an ATFL injury. Linking evidence to action, these specific musculoskeletal structures should be accurately assessed via MRI study of patients with ATLF injuries.
