Clinical utility of combined T2-weighted imaging and T2-mapping in the detection of prostate cancer: a multi-observer study

Introduction

Multiparametric magnetic resonance imaging (mpMRI) of the prostate is an established imaging technique for the detection of prostate cancer (1). It utilizes T2-weighted imaging, diffusion-weighted imaging (DWI) and dynamic contrast-enhanced (DCE) imaging to stratify the probability of prostate cancer, in accordance to PI-RADS (2). mpMRI has been shown to improve the detection of clinically significant cancer while reducing the detection of insignificant cancers compared to standard systematic transrectal ultrasound-guided biopsy (3,4). By identifying the most suspicious areas within the prostate, targeted biopsy can be performed, thus potentially reducing the number of biopsy cores and accompanying morbidity (5,6).

However, studies have shown significant overlap of DWI and DCE imaging findings between malignancy and benign conditions such as prostatitis and stromal hyperplasia (7,8). Development of newer quantitative imaging techniques such as intravoxel incoherent motion (IVIM), diffusion tensor imaging (DTI) and diffusion kurtosis imaging (DKI), allow quantitative assessment and show potential in improving cancer detection and predicting tumor aggressiveness (9-11).

T2-mapping using MRI is a quantitative technique where basically the T2-relaxation times of tissues can be derived from a series of T2-weighted spin-echo sequences or from the echoes of a spin-echo multi-echo sequence and then be encoded, for example, into a color map (12). This technique provides functional information in terms of the different sizes of the water compartments as well as the different proportions of stromal and glandular tissue between normal and malignant prostatic tissue, to complement anatomical and spatial information provided by standard T2-weighted imaging (13). T2-mapping is well-established for evaluation of brain and cardiac tissue as well as changes in hyaline cartilage (14-16). Preliminary studies have also shown that T2-mapping can be useful in differentiating prostate malignancy from benign prostatic tissue based on differences in T2-relaxation times (17,18). One study in particular proposed a threshold T2-relaxation time of 99 ms to achieve a 92% sensitivity (Sn) and 97% specificity (Sp) for cancer detection in the peripheral zone (PZ) (19). However, the addition of a mapping sequence increases the overall prostate MR protocol acquisition time. This might be compensated by a mapping sequence that allows the reconstruction of a simulated T2-weighted image that could be used instead of the standard T2-weighted image.

We aim to evaluate the clinical utility of combined T2-weighted imaging and T2-mapping for the detection of prostate cancer.

Methods

Patient cohort

This prospective single-center study was approved by the institutional board of Charité University Hospital—Campus Benjamin Franklin (No. EA4/010/16) and informed consent was taken from all the patients.

Subjects were recruited between December 2016 and May 2018. Prostate MRI was clinically indicated in all subjects and requested by a referring doctor. Inclusion criteria were: (I) clinical suspicion for prostate cancer based on either a raised serum prostate-specific antigen (PSA) defined as above 4 ng/mL at our institution, a palpable nodule on digital rectal examination, a suspicious finding on trans-rectal ultrasound or a combination thereof and (II) no histologically-proven prostate cancer (Gleason score ≥6) at time of MRI. Exclusion criteria were: (I) contraindications to intravenous gadolinium-based contrast, for example moderate renal impairment (eGFR <60 mL/min/1.73 m²) or allergy, (II) MRI-incompatible implants, (III) prior prostate biopsy, (IV) treatment for prostate cancer or systemic therapy for benign prostatic hypertrophy (BPH), (V) the inability to complete the full MRI study, for example due to claustrophobia or physical handicap, (VI) imaging artefacts that significantly degraded image quality. All included subjects provided written informed consent prior to the MRI scan. Patients who met all inclusion and exclusion criteria were screened consecutively. Forty-one patients were enrolled and gave written informed consent for this study. One patient could not complete the MRI scan due to claustrophobia. No patients were excluded due to poor MRI image quality. Forty patients completed the MRI scans and were included as final cohort in this study. A total of 80 prostatic zones [40 PZ, 40 transition zone (TZ)] were analyzed. Mean patient age was 70.3 (range, 57 to 84) years. Biopsy results were available in 14 out of 40 patients, either from systematic or targeted biopsies, performed after the MRI scan. Prostate malignancy was subsequently confirmed by biopsy in 11 patients (Gleason 6=1 patient, Gleason 7=6 patients, Gleason 8=4 patients). Three patients had negative biopsy results.

Imaging technique

All scans were performed on a 3 Tesla MR scanner (Magnetom Skyra, Siemens Healthineers, Erlangen, Germany) using body phased-array receiver coil (18-channel, 3 rows of 6 elements each) with an integrated spine-array receiver coil (32-channel, 8 rows of 4 elements each).

T2-mapping of the whole prostate was performed using a vendor provided works-in-progress model-based accelerated T2-mapping multi-echo sequence technique, in the axial plane (20). Standard small field-of-view (FOV) axial, sagittal and coronal T2-weighted fast spin-echo (FSE) images were also acquired for comparison, as per routine MRI protocol. The T2-mapping and T2-weighted FSE scan parameters are summarized in Table 1. In addition, the color-coded parametric T2-maps for each scan were derived using evaluation software.

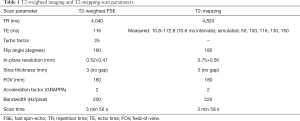

Table 1 T2-weighted imaging and T2-mapping scan parameters
Full table

The other MRI sequences acquired were: axial DWI (with acquired b values of 0, 50, 500, 1,000 s/mm², and calculated b value: 1,400 s/mm²), large FOV axial T1-weighted spin-echo sequence of the whole pelvis and DCE imaging. The DWI and DCE imaging sequences were used for assessing prostate changes according to PI-RADS version 2, with the aim of generating the reference standard for each case, while the T1-weighted sequence was used to assess for hemorrhage. The DWI, DCE and T1-weighted images otherwise were not subjected to investigation in this study.

Image analysis

The prostate was divided into the PZ and the TZ, based on the standard T2-weighted FSE sequence. The central zone was considered part of the TZ in this study.

Three readers of varying experience in prostate MRI, R1 (a final year radiology resident), R2 (a junior radiology consultant with 5 years of experience with prostate MRI) and R3 (a senior radiology consultant with 15 years of experience with prostate MRI) separately reviewed two sets of images for each patient: (I) axial T2-weighted FSE sequence (standard T2) and (II) T2-mapping with reconstructed color-coded parametric T2-map. Since T2-mapping was derived from axial T2-weighted images, the readers were only required to review the standard T2 images in the axial plane. To allow a uniform standardized comparison, the sagittal and coronal T2-weighted, DWI, DCE and T1-weighted images were not made available to readers for review. The readers were also blinded to histological findings. The reading was conducted in two sessions 1 week apart, to avoid recall bias.

The first reading session involved reviewing the standard T2 images. First, a T2 PI-RADS score of 1 to 5 was assigned to the most suspicious lesion in each prostatic zone based on PI-RADS version 2 guidelines (21). If there was no focal lesion, a T2 PI-RADS score of 1 was assigned (normal). This score was modified to reflect the probability of clinically significant prostate malignancy on a Likert-like scale (Table 2).

Table 2 Scoring scale for probability of prostate malignancy in each zone
Full table

In the second reading session, the standard T2 and the parametric T2-maps were reviewed in combination and the most suspicious lesion in each prostatic zone was again assigned a probability score for clinically significant cancer based on a Likert-like scale (Table 2). This was performed qualitatively by evaluating the morphology on the standard T2, and quantitatively using the parametric T2-maps by applying a threshold T2-relaxation time of 99 ms below which the suspicion of malignancy is increased (19). During quantitative assessment using the parametric T2-maps, a region of interest (ROI) in each zone was marked with a circular marker and the mean T2-relaxation time within the ROI was recorded. The T1-weighted sequence was also evaluated to avoid areas of hemorrhage or calcification while marking the ROI.

Reference standard

As not all patients had histological correlation available, the PI-RADS score in each zone was taken as reference standard, taking into account DWI and DCE imaging as well (“overall PI-RADS score”). This score was assigned in consensus by two expert observers (with combined 25 years of prostate MRI experience) not involved in the readings. The full MRI study (including axial, coronal and sagittal T2-weighted, DWI and DCE imaging) were available for review by the two expert observers. In our study, an overall PI-RADS score of 1–3 was considered reference standard negative while an overall PI-RADS score of 4 and 5 was considered reference standard positive for malignancy (22,23).

Statistical analysis

Inter-observer agreement between three readers for standard T2 and combined standard T2 with T2-mapping was calculated using the intraclass correlation coefficient (ICC) for more than two observers.

The T2 PI-RADS scores for standard T2 and the Likert scores for combined standard T2 with T2-mapping were compared using the area under the receiver operating characteristic curve (AUROC).

Point estimates for Sn, Sp, positive predictive values (PPVs) and negative predictive values (NPVs) were derived by constructing the 2×2 contingency table. Diagnostic performance in terms of Sn, Sp, PPV and NPV for standard T2 alone and combined standard T2 with T2-mapping were compared using the McNemar Test for paired observations.

In a subgroup analysis, for each zone assigned a particular T2 PI-RADS score, the diagnostic accuracy of standard T2 alone and combined standard T2 with T2-mapping was compared using the McNemar Chi-Square test.

For purposes of statistical analysis, a reader-assigned T2 PI-RADS or Likert scale score of 1 to 3 was considered as scan-negative while a score of 4 to 5 was considered scan-positive for malignancy.

Individual reader and overall results are presented with 95% confidence intervals (CIs) and P values. Significance level for all comparisons was set at 5%. Statistical analysis was performed using SPSS Statistics for Windows, version 21.0 (IBM Corp., Armonk, NY, USA).

Results

The probability scores assigned by each reader as well as the overall PI-RADS scores (reference standard) assigned in consensus by two expert observers, with their distribution across the PZs and TZs, are summarized in Table 3.

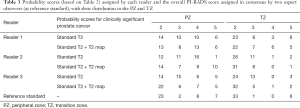

Table 3 Probability scores (based on Table 2) assigned by each reader and the overall PI-RADS score assigned in consensus by two expert observers (as reference standard), with their distribution in the PZ and TZ
Full table

There was fair agreement between all three readers for standard T2 (ICC =0.56) and combined standard T2 with T2-mapping (ICC =0.58).

The overall AUROC (Figure 1) was also higher for combined standard T2 with T2-mapping, but this was not statistically significant (0.89 vs. 0.82, P=0.31).

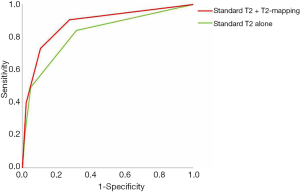

Figure 1 Overall receiver operating characteristic curves for combined T2-weighted imaging with T2-map and T2-weighted imaging alone.

The combined Sn for all readers was significantly higher for combined standard T2 with T2-mapping compared to standard T2 alone (73.0% vs. 49.2%, P=0.006) in the detection of prostate cancer. The combined NPV was also higher for combined standard T2 with T2-mapping, approaching statistical significance (90.3% vs. 84.9%, P=0.07). However combined Sp was borderline significantly lower for combined standard T2 with T2-mapping compared to standard T2 alone (89.3% vs. 94.9%, P=0.05). There was no significant difference between the combined PPV (P=0.45). These results are summarized in Table 4.

Table 4 Comparison of the combined diagnostic performance for T2-weighted imaging alone and in combination with T2-mapping
Full table

In a subgroup analysis, the T2 PI-RADS score assigned on standard T2 in the first reading session was compared to the corresponding Likert score assigned for combined standard T2 with T2-mapping in the second reading session, for each zone. This was performed to assess if there was a subgroup where the addition of T2-mapping to T2-weighted imaging would be particularly useful. This analysis showed that the addition of T2-mapping significantly increased the diagnostic accuracy compared to standard T2 alone, for zones assigned a T2 PI-RADS score of 3 (79.7% for combined standard T2 with T2-mapping vs. 63.8% for standard T2 alone, P=0.04). For zones assigned T2 PI-RADS scores of 2, 4 or 5, the addition of T2-mapping did not significantly improve diagnostic accuracy. These results are summarized in Table 5.

Table 5 Subgroup analysis by T2 PI-RADS score
Full table

TZs assigned with a T2 PI-RADS score of 3 were further reviewed. Across all three readers, there were 31 zones assigned a T2 PI-RADS score of 3. The addition of T2-mapping correctly “downgraded” the probability scores in 13 zones to a “low probability of clinically significant prostate cancer” (Likert-like score 2) whilst correctly “upgraded” the probability scores in two zones to a “high or very high probability of clinically significant prostate cancer” (Likert-like score 4 or 5). There was no incorrect downgrading or upgrading of scores for this subset of zones although in the remaining 16 zones, addition of T2-mapping did not change the probability scores.

Case examples are shown (Figures 2-4).

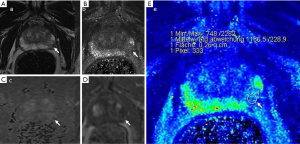

Figure 2 Prostate mpMRI of a 51-year-old gentleman with a PSA of 6.9 ng/mL. (A) T2-weighted imaging showed a focal hypointense lesion in the PZ of the right prostatic lobe (arrow); (B) ADC map also showed focal hypointensity (arrow); (C) there was corresponding mild hyperintensity on high b value DWI (b=1,400) (arrow); (D) DCE-imaging showed focal early enhancement on DCE-imaging in the PZ in the right midgland (arrow). This was given an overall PI-RADS 4 by expert consensus (reference standard positive for malignancy); (E) T2-mapping showed T2-relaxation time of 85.1 ms in the PZ at the right midgland, below threshold value of 99 ms (arrow). All three readers assigned a T2 PI-RADS score of 3 but correctly upgraded to a Likert score of 4 based on combined T2 and T2-mapping. mpMRI, multiparametric magnetic resonance imaging; PSA, prostate-specific antigen; PZ, peripheral zone; ADC, apparent diffusion coefficient; DWI, diffusion-weighted imaging; DCE, dynamic contrast-enhanced.

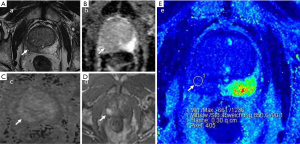

Figure 3 Prostate mpMRI of a 60-year-old gentleman with a PSA of 5.1 ng/mL. (A) T2-weighted imaging showed a focal wedge-shaped hypointensity in the PZ at the left apex (arrow); (B) ADC map showed corresponding mild focal hypointensity (arrow); (C) this was iso-intense on high b value DWI (b=1,400) (arrow); (D) DCE-imaging showed no early enhancement (arrow). The overall PI-RADS score was 2 (reference standard negative for malignancy); (E) T2-mapping showed a T2-relaxation time of 118.7 ms, above threshold value of 99 ms (arrow). This was assigned a T2 PI-RADS score of 4 by reader R2. However, this was correctly re-categorized to a Likert score of 2 based on combined T2 and T2-mapping. mpMRI, multiparametric magnetic resonance imaging; PSA, prostate-specific antigen; PZ, peripheral zone; ADC, apparent diffusion coefficient; DWI, diffusion-weighted imaging; DCE, dynamic contrast-enhanced.

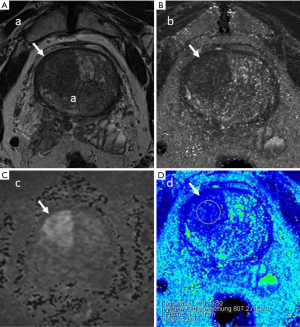

Figure 4 Prostate mpMRI of a 69-year-old gentleman with PSA of 9.3 ng/mL. (A) T2-weighted imaging showed a hypointense lesion with partially-obscured borders in the TZ in the right prostatic lobe (arrow); (B) ADC map showed marked hypointensity (arrow); (C) high b value DWI (b=1,400) showed corresponding marked hyperintensity (arrow). This was given an overall PI-RADS 5 (reference standard positive for malignancy). Also, in this case, targeted biopsy performed after MRI showed Gleason 5+5 prostate cancer; (D) T2-mapping showed a T2-relaxation time of 80.7 ms, below threshold value of 99 ms (arrow). Readers R1 and R2 assigned a T2 PI-RADS score of 3 and both appropriately upgraded to a Likert score of 5 based on combined T2 and T2-mapping. No intravenous contrast was administered in this patient. mpMRI, multiparametric magnetic resonance imaging; PSA, prostate-specific antigen; TZ, transition zone; ADC, apparent diffusion coefficient; DWI, diffusion-weighted imaging.

Discussion

Prostate cancer detection using mpMRI, even with standardization of imaging technique, interpretation and reporting, remains subjective and dependent on reader experience (24,25). Quantitative imaging techniques are able to provide measurements for increased objectivity in image analysis and are increasingly being studied in the evaluation of prostate cancer (26). There is substantial literature demonstrating the usefulness of T2-relaxation times derived from quantitative T2-mapping in the detection of prostate malignancy (17,18,27,28).

In our study, we attempted to assign a single threshold T2-relaxation time in the quantitative assessment of the parametric T2-maps. However, this was challenging due to considerable overlap of T2-relaxation times between benign stromal hyperplasia and TZ malignancy (29,30). While one study proposed a cut-off T2-value of 99 ms for identifying malignancy in the PZ (19), no such cut-off could be recommended for TZ malignancy. Therefore, in our study, in addition to applying this recommended threshold T2-relaxation time while analyzing the parametric T2-maps, we also included evaluation of morphology on T2-weighted imaging, and not just assigning a probability score based on T2-relaxation times alone. We believe this should also reflect the way T2-mapping is utilized in clinical practice, and underscores the importance of assessing lesion shape and margins on T2-weighted imaging, particularly in the TZ (31).

Our study involved multiple readers in a zone-by-zone analysis of the prostate. This was suggested to be more relevant to clinical practice as compared to a region-of-interest analysis (22). Also, our patient cohort consisted of subjects without known prostate malignancy at the time of scan, a few of whom eventually had biopsy-proven prostate malignancy. This approach was chosen to be more reflective of the imaging spectrum in clinical practice given that mpMRI of the prostate is increasingly the first investigation of choice in the initial evaluation of a raised PSA level (32,33).

Our results appear to be mixed when compared to available literature. In our study, combined standard T2 with T2-mapping provided higher Sn and NPV compared to standard T2 alone for detection of prostate malignancy. However, there was trade-off with reduction in Sp. We noted that there is little comparable evidence in the literature and no optimal method on the utilization of T2-mapping with standard mpMRI sequences. Wu et al. compared diagnostic performance of T2-weighted imaging and T2-star-mapping and found that the combination of T2-weighted imaging and T2-star-mapping provided a significantly higher AUROC, Sn, Sp and accuracy compared to T2-weighted imaging alone (22). However, the method of utilizing the T2-star-maps in that study was not clear. Chatterjee et al. found no significant differences in the sensitivities and specificities between T2-weighted imaging and T2-mapping although a significantly higher PPV for T2-mapping was noted (23). However, it was not clear in that study, if the T2-maps were utilized alone or in conjunction with T2-weighted imaging. Most importantly, the patient cohort in these two studies was biased in favor of prostate malignancy as all patients had histologically-proven prostate malignancy and had undergone radical prostatectomy. One possible explanation for the reduction in Sp for combined standard T2 and T2-mapping in our study could be due to the fact that DWI and DCE imaging, which have been shown to increase Sp compared to T2-weighted imaging alone, were not made available to the readers (34). Although this might limit the applicability in actual clinical practice, this approach was adopted to allow uniform comparison between standard T2 and T2-mapping, and also because it has not been established how T2-mapping complements mpMRI in clinical practice.

In our study, T2-mapping was most accurate when used to re-assess lesions that were deemed of intermediate probability of malignancy on standard T2 (T2 PI-RADS score 3). For lesions that were already classified on standard T2 as low probability of malignancy (T2 PI-RADS score 1 or 2) or high probability of malignancy (T2 PI-RADS score 4 or 5), the addition of T2-mapping was not helpful. Given that the PI-RADS version 2 grading of TZ lesions relies heavily on T2-weighted imaging, T2-mapping could be useful in distinguishing malignancy for PI-RADS 3 lesions in the TZ, and this appears to be supported by our review of the TZs in our study which were assigned a T2 PI-RADS score of 3. However, in our patient cohort there were too few zones in the TZ assigned an overall PI-RADS score of 4 or 5 (6/40 zones), therefore we were not able to perform a meaningful statistical analysis. This reflects the fact that the majority of prostate malignancies occur in the PZ (35). The difficulty in evaluating the usefulness of T2-mapping for TZ malignancies due to the relatively low incidence was also highlighted in other studies (28,36,37).

We observed substantial interobserver variability in analyzing the combined standard T2 with T2-mapping, as evidenced by only “fair” agreement between readers. This suggests that while quantitative measurements should help increase objectivity in imaging analysis, different readers may utilize the parametric T2-maps in combination with T2-weighted imaging differently, with some preferring to place greater emphasis on the T2 and some preferring to place greater emphasis on measured tissue T2-relaxation times from T2-mapping.

Our study has several limitations. First, not all the subjects in our patient cohort eventually had biopsy or proven prostate malignancy. In the study cohort, only 14 out of 40 subjects underwent prostate biopsy. Therefore, we adopted a cumulative reference standard of expert-assigned overall PI-RADS score (taking into account DWI and DCE imaging). Reference standard of biopsy or prostatectomy would usually be ideal for correlation of MRI findings. We agree our results might not have been truly validated in our study in terms of histological correlation. Also because of this, we were unable to make a head-to-head comparison between T2-mapping, DWI and DCE imaging, which would have been ideal. However, biopsy and MRI findings might not always correlate due to either inconsistencies in sample labelling, sampling error or inherent limitations of MRI (38). This can be difficult to determine without analysis of whole-mount prostatectomy specimen. Moreover, in our patient cohort where the majority does not have a prostate malignancy, correlating with histology from prostatectomy would not be practical. Furthermore, our study aimed to evaluate the clinical utility of T2-mapping and how it could potentially be used to complement existing mpMRI sequences, rather than diagnostic accuracy of T2-mapping for cancer detection.

Secondly, whilst our study shows that T2-mapping could be helpful in evaluation of T2 PI-RADS 3 lesions, in current practice this would be relevant only if DWI and/or DCE imaging is non-diagnostic (31). Therefore, excluding reader assessment of DWI and DCE imaging in our study is somewhat artificial and may limit applicability of our study in the clinical setting.

Thirdly, one problem with adopting expert-assigned overall PI-RADS score as reference standard would be the dilemma of PI-RADS 3 scores. Whilst overall PI-RADS scores of 1–2 and 4–5 were reasonably classified as reference standard negative and positive for malignancy, PI-RADS score of 3 was less clear. Given the variable rate of clinically significant malignancy in PI-RADS 3 lesions, ranging from 5–26% (39-41), we therefore classified overall PI-RADS score 3 as reference standard negative for malignancy for purposes of statistical analysis. Similarly, we considered a reader-assigned T2 PI-RADS score of 3 as scan-negative for malignancy, given the relatively low Sn of T2-weighted imaging for prostate cancer detection (42,43). This method of stratification was also performed by Wu et al. and Chatterjee et al. (22,23).

Finally, the exact lesion locations in our study were not assessed. The location of the reader-identified lesion might not represent that of the reference standard, apart from whether it was located in the PZ or TZ. However, this was to avoid inter-reader ambiguity in definition of the prostatic apex, midgland and base, particularly for small-volume prostates. Midline lesions might also cause confusion between readers with regards to the laterality (i.e., left or right prostatic lobe). Moreover, there were many subjects with only BPH nodules and identifying a particular nodule in a specific location is usually not clinically relevant in such cases.

In conclusion, quantitative T2-mapping shows potential for improved detection of clinically-significant prostate malignancy, when read in conjunction with T2-weighted imaging. By applying a threshold tissue T2-relaxation time of 99 ms, a combination of T2-weighted imaging and T2-mapping increases Sn and NPV for prostate malignancy compared to T2-weighted imaging alone. T2-mapping was particularly useful in re-categorizing T2 PI-RADS 3 lesions (of intermediate probability of cancer) into either low or high probability of malignancy. However, the application of T2-mapping in conjunction with DWI and DCE imaging as part of mpMRI of the prostate remains uncertain. Further studies are recommended to determine the optimal method of utilizing T2-mapping in clinical practice, and to define its role in complementing established mpMRI sequences.

Acknowledgments

We acknowledge support from the German Research Foundation (DFG) and the Open Access Publication Funds of Charité-Universitätsmedizin Berlin.

Funding: This study has received funding and technical support from Siemens Healthineers.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-222). CHL reports grants and non-financial support from Siemens Healthineers, during the conduct of the study. MT reports grants and non-financial support from Siemens Healthineers, during the conduct of the study; grants and personal fees from CRC 1340/1 (DFG, Germany Research Foundation), outside the submitted work. PA reports grants and non-financial support from Siemens Healthineers, during the conduct of the study; personal fees from b.e.imaging, grants from CRC 1340/1 (DFG, Germany Research Foundation), other from ESR European Society of Radiology, other from DRG Germany Roentgen Society, personal fees and other from CSR Chinese Society of Radiology, outside the submitted work. MH reports grants and non-financial support from Siemens Healthineers, during the conduct of the study; personal fees from b.e.imaging, outside the submitted work. The other author has no conflicts of interest to declare.

Ethical Statement: The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This prospective single-center study was approved by the institutional board of Charité University Hospital—Campus Benjamin Franklin (No. EA4/010/16) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
