Ultrasound imaging, a stethoscope for body composition assessment

Introduction

Fuel storage organs, such as liver, skeletal muscle and adipose tissues, determine fuel selection and delivery under strict control of neuroendocrine system. Dysregulation of this energy control is correlated with human metabolic disorders, which are typically characterized by an impaired body composition (BC), including obesity and sarcopenia. However how this control is being regulated for adaptive adjustments of systemic metabolism remains unknown.

According to the WHO, overweight and obesity are defined as abnormal or excessive fat accumulation in the body and they are usually classified by body mass index (BMI). Obesity is well known as a risk factor for metabolic disorders development, such as cardiovascular diseases (CVDs) and type 2 diabetes mellitus (T2DM) (1) and its prevalence is increasing throughout the world (2,3). Although total body fat remains a physiological parameter of major significance, there is now a growing consensus over the clinical role of regional and differential quantification of precise fat tissue compartments. As a matter of fact, specific body fat distribution patterns associate with specific profiles of metabolic deregulation. Researches have showed a link between ectopic fat accumulation, including visceral fat, hepatic fat (steatosis) and cardiac fat, with an increased risk of hypertension, coronary heart disease and atherosclerosis as well as arterial and venous thrombosis (4-7).

In parallel the attention of scientific community has been focused on the evaluation of sarcopenia, a condition characterized by progressive and generalized reduction of skeletal muscle mass and strength, associated with an increased risk of adverse outcomes (disability, hospitalization, death), making this geriatric syndrome a major public health burden (8).

Although many tools are available to investigate BC at different levels of organization (Table 1), the latter is mainly studied and scanned by employing clinically available techniques, such as anthropometry (whole-body level), bioelectrical impedance analysis (BIA, bi-compartmental model) and dual-energy X-ray absorptiometry (DXA, tri-compartmental model). In particular both DXA and BIA are techniques used in the assessment of BC at molecular level with the difference that DXA is based on a three-compartment model [distinguishing fat mass (FM), non-bone lean mass (LM) and bone mineral content (BMC)], while BIA is based on a two-compartment model (distinguishing FM and LM + BMC). Since fat, muscles and other deposits in which lipids accumulate are studied and considered, by definition, as tissues and organs, the organ-tissue level of organization is considered one of the most relevant in the field of BC clinical applications.

Table 1 Advantages and disadvantages of different technique to investigate the BC (9-12)
Full table

Computed tomography (CT) and magnetic resonance imaging (MRI) are precise imaging methods that are very well suited to the purposes of BC analysis. However, for safety and cost reasons, these techniques remain unsuitable for conducting large population and longitudinal studies. Ultrasonography (US) is a fast and non-invasive technique capable of directly measuring visceral adipose tissue (VAT) and subcutaneous adipose tissue (SAT) in different sections of the abdomen, also enabling the opportunity of directly assessing individual muscles or organs; this peculiarity allows US to overcome some limits of anthropometry and of conventional DXA and BIA technologies and, for these reasons, it holds great potential in studying BC. Moreover, US widespread availability and low cost, together with no ionizing radiation risks, make it the first-line diagnostic method for the evaluation of large cohort of patients in clinical settings (9,10,13,14).

Aims of this review work are to describe the technical aspects and the latest methods of US examination in order to outline the role of this technology in the translation of BC studies to clinical routine; to facilitate reading this narrative review has been arranged in four topics (abdominal fat compartments, SAT, skeletal muscle, liver) each of which consisting of a short explanation of the topic, an ultrasound technique section and a clinical significance section.

Abdominal fat compartments

The most commonly measure adopted to assess obesity is BMI, defined as weight/(height)². This index doesn’t allow to distinguish body fat from LM (muscle compartment and BMC), so it is an inaccurate parameter of BC assessment, overestimating fat in muscular people without providing information regarding its distribution (15,16).

Waist circumference (WC) is often used as raw measurement of abdominal fat, however this evaluation system is unable to separate the effect of VAT from that of SAT (17), and lacks in accuracy as regards its correlation with cardiovascular (CV) risk stratification, as described by several authors (18-21). A further limitation of the WC is that the use of this measure in isolation may underestimate or overestimate the health risks for tall and short individuals with similar WCs, because there is relatively strong evidence of an inverse association between height and health risks (22-24). There are at least five proposed cut-off thresholds for different sexes, races and countries, considering the height effect over the metabolic risk in different populations (25).

Ultrasound technique

The use of ultrasound for the assessment of abdominal adiposity dates back to the 90s (26) and, over the last three decades, it has emerged as a useful tool for measuring VAT. In general, when US technique is employed to assess BC, the parameters of visceral adiposity are measured using a probe, which is kept perpendicular to the skin while applying a light pressure on the abdomen with the hands, paying attention not to compress the layers of fat, with the subject in a supine position (arms at sides) at the end of a normal expiration, to avoid the misleading reduction of tissue compartments thicknesses (13,14). Thus, considerable skill, training, and practice are necessary to produce reliable and valid results (see Table 2). Moreover obesity and non-compliance with fasting are two limiting factors in accuracy of measurements due to poor visualization of anatomical structures (13,14).

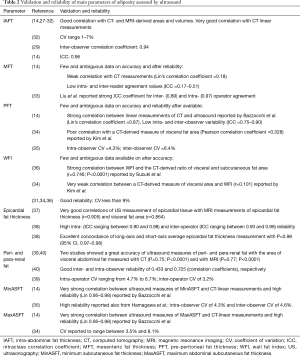

Table 2 Validation and reliability of main parameters of adiposity assessed by ultrasound
Full table

US procedures for assessing abdominal adiposity are not as clearly defined or standardized unlike other BC methods. In literature have been published detail anatomical placement, measurement technique, and pretesting guidelines for anthropometry, skinfolds and BIA, yet there is considerable variability for ultrasound frequencies and measurement sites (11). The following are the most used and shared measurements of visceral adiposity during the last three decades.

Intra-abdominal fat thickness (IAFT)

IAFT is one of the most useful measurement in adiposity ultrasound evaluation; this parameter is assessed adopting a convex probe (3.5–5 MHz), however there is no unanimous consensus on which anatomical measures should be considered as reference to be acquired by US: some authors measured IAFT as the distance between the anterior wall of the aorta and the posterior surface of linea alba, 2 cm above the umbilicus (Figures 1,2) (13,26,34,41,42). Others have measured IAFT from the abdominal muscle to the anterior wall of a lumbar vertebra, to the psoas muscle, or to the posterior wall of the aorta (27-29), otherwise it has been evaluated as the distance between the peritoneum and the lumbar spine (30).

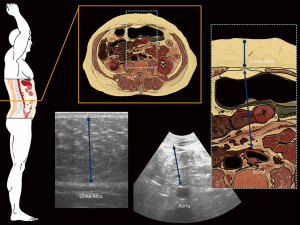

Figure 1 Anatomic representation of the abdominal sagittal section (on the left) and the abdominal axial section (on the center with its enlargement on the right) 2 cm above the umbilicus where are measured US MaxASFT (blue caliper with rounded tips) and intra-abdominal fat thickness (blue caliper with filled arrowheads). US, ultrasonography; MaxASFT, maximum abdominal subcutaneous fat thickness.

Figure 2 On the left (A) is represented the anatomical posture of ultrasound’s probe in the evaluation of IAFT, while on the right (B) is represent represented the anatomical postures of ultrasound’s probe in the evaluation of MFT. IAFT, intra-abdominal fat thickness; MFT, mesenteric fat thickness.

Mesenteric fat thickness (MFT)

MFT is measured with a convex probe on the area surrounding the umbilicus as the distance between the mesenteric leaves conventionally identified as a highly reflective peritoneal surfaces (Figure 2) (33).

Pre-peritoneal fat thickness (PFT)

PFT was firstly introduced by Suzuki et al. in 1993, as a component of the abdominal wall fat index (WFI) (36).

It is assessed with linear probe (7.5 MHz), right below the xiphoid process with a longitudinal scan on the xiphoumbilical line, as the major distance between the anterior surface of the peritoneum covering the liver to the posterior surface of linea alba (Figures 3,4).

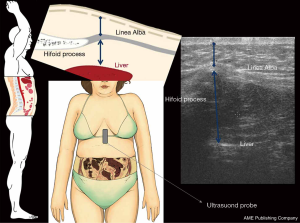

Figure 3 On the left are represented anatomic pictures of the abdominal sagittal section (with its enlargement in upper) and of the abdominal frontal section where MinASFT (blue caliper with diamond tips) and maximum preperitoneal fat thickness (blue caliper with arrowheads) have been measured with US. US, ultrasonography; MinASFT, minimum abdominal subcutaneous fat thickness.

Figure 4 In the boxes with black border are represented the anatomical postures of ultrasound’s probe in the evaluation of subcutaneous tissue. (A) MaxASFT_lower; (B) MaxASFT_upper; (C) MinASFT and PFT. MaxASFT_lower, maximum abdominal subcutaneous fat thickness 2 cm below the umbilicus; MaxASFT_upper, maximum abdominal subcutaneous fat thickness 2 cm above the umbilicus; MinASFT, minimum abdominal subcutaneous fat thickness; PFT, pre-peritoneal fat thickness.

It is not universally considered as a type of visceral fat since it directly drains from the systemic bloodstream rather than from the portal system (31,33).

Abdominal WFI

The abdominal WFI is widely used to assess regional fat deposits. This measure, introduced by Suzuki et al. in 1993 (36) is calculated as the ratio of PFT to minimum abdominal subcutaneous fat thickness (MinASFT). Based on the WFI, obesity could be classified into visceral (WFI >1) or subcutaneous (WFI <1) type.

Epicardial fat

Epicardial fat is the visceral fat depot of the heart. The thickness of epicardial fat is usually assessed with subjects in left lateral decubitus position. Typically, 10 cycles of two-dimensional parasternal views with long and short axes and 10 cycles of M-mode are necessary for precise evaluation. The thickness of epicardial fat appears as an echo-free area on the free wall of the right ventricle, which has the thickest layer of epicardial fat, both from long and short axis parasternal views (37).

Peri- and para-renal fat

Peri-renal fat is the adipose tissue surrounding the kidneys and lies between the outer surface of the renal parenchyma and the renal (Gerota’s) fascia. Para-renal fat is a type of adipose tissue outside the Gerota fascia and accumulates mainly posteriorly and postero-laterally to each kidney. They are measured as distance between the inner side of the abdominal muscle and the surface of the kidney as mean of both sides values, employing a 3.5–5 MHz probe, over a longitudinal scan with the surface of the kidney parallel to the skin (39).

Clinical significance

The adipose tissue located inside the abdomen and the thorax, known as VAT, has been reported as the most dangerous, being the major determinant of insulin resistance (IR), glucose intolerance, dyslipidemia, atherogenic lipid profile, endothelial damage and thrombophilia, that are all known predictors of CV risk (18), as well as its increase is associated with cognitive decrements (43).

Many authors found positive correlation of ultrasound-assessed VAT with clinical and laboratory markers. Kim et al. (34) and Stolk et al. (44), have shown that IAFT was correlated with cholesterol and triglyceride (TG) levels, fasting insulin levels, high-density lipoprotein (HDL) (34,44), fasting glucose (44), IR and the carotid intima-medial thickness (IMT) (34).

A strong correlation between MFT and several clinical parameters of metabolic and CVDs has been evidenced by Liu et al.; such parameters include total cholesterol, low-density lipoprotein (LDL) cholesterol, TG, fasting glucose, glycate hemoglobin levels and systolic blood pressure in men, and TG and glycate hemoglobin levels in women (31,33).

The amount of epicardial adipose tissue, significantly higher in subjects with metabolic syndrome (MS) than in subjects without MS, was related to LDL cholesterol levels directly associated with blood pressure, fasting glucose, inflammatory markers and inversely associated with insulin sensitivity (38).

In one of largest and recent study (45) that has measured VAT and SAT by US, Bertoli et al. found that VAT is strongly and independently associated to MS and its components. In addition, VAT has shown a stronger association than WC with high values of liver enzymes [alanine aminotransferase (ALT) and γ-glutamyl transferase (GGT)] and a similar association compared to WC with high uric acid (45), that have been recently related to MS (46-48). Moreover, VAT correlates equally or better than WC with clinical parameters, except for high blood pressure and low HDL (45). In 2018, Bellan et al. (18) found that VAT was strongly associated with BMI and WC over the full spectrum of BMI categories when measuring IAFT by US, although the strength of these associations was strong in obese patients and weak in subjects of normal weight. Moreover, the same research group evaluated that, by adding to the model the estimate of the VAT by ultrasound in relation to the BMI alone, a better prediction of the Framingham score, the vascular age and the homeostatic model assessment (HOMA)-IR can be obtained (17). Interestingly, Jena et al. (49) found significantly higher VAT thickness in women with polycystic ovary syndrome (PCOS) than healthy controls, and this correlated significantly with CV risk factors such as central obesity [WC and waist-to-hip ratio (WHR)], BMI, and blood pressure, suggesting that VAT may be an independent predictor of CV risk among women with PCOS.

Another promising field of application is the use of US-assessed VAT in early pregnancy. Thaware et al. (50) observed that VAT measurement in early pregnancy was independently associated with risk of gestational diabetes mellitus (GDM) and it could be a potential clinical tool for improving the sensitivity of selective screening for GDM.

Along time, several other studies (51-54) found a correlation between measures of US-assessed VAT and clinical parameters of metabolic and CVDs, and these data suggest that visceral abdominal fat plays an important role in the development of cardiometabolic risk factors.

To our knowledge only Bazzocchi et al. (55) has investigated US assessed reference values of visceral adiposity in adult healthy people, while only one study identified cutoff points of intra-abdominal fat values associated with a greater chance of MS in adolescents (age 14–19) (56) (Table 3); further robust studies are needed to implement its use in routine clinical practice.

Table 3 Reference values for healthy Italian people
Full table

Subcutaneous adipose tissue

SAT has been often assessed using skinfolds, but the accuracy obtainable with this technique is limited because skin and SAT are measured together in a compressed state (57), by the lack of correction for elastic properties of tissue between individuals and there is also a practical limitation in the skinfold width that can be measured using a caliper in people with high body FM (58).

Due to high accuracy and precision US can be used to measure SAT patterning and its longitudinal changes with the best sensitivity so far among other methods in different population (e.g., in athletes, where accurate BC assessment is important to avoid health risks in weight-sensitive sports) (57).

Ultrasound technique

In the abdomen, two specific subcutaneous thicknesses are often considered: MinASFT and maximum abdominal subcutaneous fat thickness (MaxASFT) (see Table 2), both evaluated in the same condition of visceral adiposity parameters (14,30,33,36).

MinASFT is measured with linear probe (7.5 MHz) in the same anatomic region of the maximum pre-peritoneal fat, as the distance between the anterior surface of linea alba and the fat-skin barrier (Figures 3,4) (13,14). Like pre-peritoneal fat, MinASFT is a part of the abdominal WFI and it was first described by Suzuki in 1993 (36).

Regarding MaxASFT, Liu et al. (33) measured it as the distance between the linea alba and the fat-skin barrier, transversely placing a linear transducer perpendicular to the skin, right in the midline of the abdomen, between the xiphoid process and the umbilicus while in other studies MaxASFT was measured 1 cm (34) and 5 cm (30) above the umbilicus, or at two levels (2 cm above and 2 cm below the umbilicus) as visualized in Figures 1,4 (14).

Considering the whole body, a standardized, semi-automatic, US SAT thickness evaluation technique with measurements at a set of eight standardized sites (upper abdomen, lower abdomen, lateral thigh, erector spinae, distal triceps, brachioradialis, front thigh and medial calf) has recently been proposed in order to maximize both accuracy and reproducibility (57). To avoid measurements errors it is recommended to use a thick layer (5 mm) of US gel between the probe and the skin due to the compressibility of adipose tissue, without any pressure on the US probe, and to set speed of sound at 1,450 m/s instead of 1,540 m/s used in conventional diagnostic US systems (59). Speed of sound allows to calculate the distance from the probe to the boundary between two tissues: this parameter is of utmost importance as in fat sound speed is substantially lower (1,450 m/s) than e.g., muscle and skin (60), so in thick layers of fat tissue the correct choice of sound speed (1,450 m/s) predominantly determines the accuracy. Not correctly setting this parameter leads to a measurement error of about 6% and even a small deviation of only 15 m/s (1%) generates a thickness measurement error of 1% (59,61).

At all measurement sites, subcutaneous fat is recorded as the perpendicular distance between the upper edge of the dermal/adipose interface and the upper edge of the adipose/muscular interface (13,14).

Although the scan is a simple procedure, the interpretation is relative difficult and subjective. First, fascia between superficial and depth SAT could be mistaken for the boundary layer between subcutaneous fat and muscle. The operator must be able to identify interfaces, particularly the adipose-muscle interface, and accurately measure the subcutaneous tissue layer of interest. Additionally, pressing the transducer onto the patient’s skin with too much force will significantly reduce the SAT thickness, until a reduction by 25–37% of SAT layer, as described by Toomey et al. (58).

Clinical significance

The contribution of SAT in the development of CV- and obesity-related diseases is controversial (protective or detrimental role depending on the authors), as discussed below (45,62-65).

In a recent study, Bertoli et al. (45) evaluated not only the SAT relation with MS and its components alone, but also the joint contribution of SAT and VAT to MS. They found that SAT was independently associated with MS, and the association of SAT and VAT with MS was greater when they were considered together than when they were used alone. Moreover, SAT was independently associated also with high blood pressure and high ALT.

Other authors (65) have shown that subcutaneous fat is not associated with a linear increase in the prevalence of all risk factors among the obese; most striking, they found that linear trends for TGs decrease with increasing SAT in those with the most visceral fat, suggesting that subcutaneous fat could be a protective fat depot.

In a large and interesting study with a long median follow-up time (4.43 years), Kim et al. (66) showed that baseline SAT was significantly higher in the subjects who experienced regression of their nonalcoholic fatty liver disease (NAFLD) during follow-up period, than in the subjects who did not experience regression, regardless of their baseline VAT, providing a novel longitudinal evidence that SAT might be a possible metabolic protective factor for metabolic diseases, including NAFLD.

Jung et al. (67) demonstrated that, only in male in patients with T2DM, SAT was inversely associated with carotid intima-media thickness after adjustments for BMI and other traditional or non-traditional CVD risk factors, showing a significant gender effect on the correlation between SAT and CIMT. Bazzocchi et al. investigated MinASFT and MaxASFT values (shown in Table 4) in 250 healthy Italian people of different age groups (55) to identify cut-off values that could be used in clinical practice, although further studies involving other populations are needed as well as for abdominal fat compartments.

Table 4 Reference values for healthy Italian people
Full table

Skeletal muscle

Another big chapter in the US assessment of BC is the evaluation of the skeletal muscle. As established by EWGSOP2 sarcopenia “is a progressive and generalised skeletal muscle disorder that is associated with increased likelihood of adverse outcomes including falls, fractures, physical disability and mortality” (68).

The three core criteria of low muscle strength, low muscle mass (quantity or quality) and poor physical performance can be used both in the diagnosis of sarcopenia and in the assessment of its severity, with low muscle strength alone indicating probable sarcopenia, associated loss of muscle mass indicating sarcopenia and the presence of all three conditions indicating severe sarcopenia.

Recently a systematic review and meta-analysis by Beaudart et al. (8) has made a clear synthesis of the outcomes of sarcopenia, evaluating its clinical and socio-economic consequences.

According to this meta-analysis (8), sarcopenia patients face a four times higher risk of mortality and a three times higher risk of functional decline or functional disability than non-sarcopenic subjects.

Despite the adverse impact of sarcopenia on the individual and their carers, the condition remains poorly understood and inconsistently diagnosed and managed. The diagnostic algorithm suggested by the EWGSOP2 assesses muscle mass, strength and performance. However, many of the relevant measurement techniques for assessing muscle mass have numerous flaws that make them unsuitable for routine use in frail older adults.

When the target sarcopenic population is typically frail, elderly and immobile, the imaging technique must be easily accessible, both geographically and physically, and in this regard ultrasound presents an advantage over other methods (Table 1).

US can play an important role in this developing research field, providing the opportunity to assess muscle thickness, marker of muscle quantity, and muscle echostructure, marker of muscle quality (including muscle echogenicity and pennation angle (PA), i.e., the angle in which muscles fibers are positioned), along with all US-associated benefits (noninvasive, low cost, portability, etc.).

Technique

Several methodological approaches have been used among patient populations in the study of muscle (69) but, nowadays, no standardized protocol for the assessment of skeletal muscle has been established. In particular, a definitive agreement about which muscle group should be measured has not been reached.

The most commonly adopted methods are the measure of quadriceps muscle layer thickness (QMLT), rectus femoris cross-sectional area (RF CSA), and RF thickness (69-75): a single landmark (i.e., RF muscle thickness and RF CSA), two landmarks (i.e., QMLT) or three or more landmarks can be analyzed (69).

Alongside measures of muscle mass, an important role is played by the quality of muscle that can be assessed by measuring the PA and echo intensity (EI) of the muscle (76,77).

RF muscle thickness is measured half-way along the line from the anterior-superior iliac spine to the superior border of the patella (75): the scan is performed by placing the transducer oriented in the transverse plane perpendicular to the skin in correspondence of the largest muscle diameter with the patient in supine position with arms and legs extended and muscles completely relaxed, measuring the distance between the superficial and the deep fascia, with none or minimal transducer compression on the skin and a suitable amount of ultrasound gel (Figure 5) (69,75,76). Other authors, like Ema et al. (78), measured RF muscle thickness at approximately 60–70% of the thigh length, from the popliteal crease to the greater trochanter, corresponding to the muscle belly of RF, with a longitudinal scan, applying the lowest possible probe compression and with patient in supine position.

Figure 5 On the left is represented the anatomical posture of ultrasound’s probe in the evaluation of RF muscle thickness; on the right are represented ultrasound images of healthy younger (H) and sarcopenic older adult (S) with their related differences of muscle echogenicity depicted in enlargements. RF, rectus femoris.

RF CSA measures are taken with the US transducer placed perpendicular to the long axis of the thigh on its superior aspect, three-fifths of the distance from the anterior superior iliac spine to the superior patellar border because this is the highest point in the thigh that can be displayed in a single field within the entire cross-section of the femoral rectum (Figure 6) (70). The patient has to be in supine position and minimal compression shall be exercised by the US transducer on the skin (70).

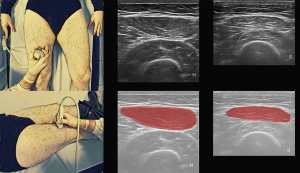

Figure 6 On the left is represented the anatomical posture of ultrasound’s probe in the evaluation of RF CSA; on the right are represented ultrasound images of healthy younger (H) and sarcopenic older adult (S). RF CSA, rectus femoris cross-sectional area.

Measurement of QMLT combines the thickness of the RF and of the vastus intermedius muscles and it is calculated as the distance between the upper margin of the femoral bone and the superficial fascia of the RF (subcutaneous fat-muscle interface). QMLT is calculated by taking the measurement at the border between the lower third and upper two-thirds between the anterior-superior iliac spine and the upper pole of the patella, and at the mid-point between the ASIS and the upper pole of the patella, with the patient in a supine or standing position and maximal transducer compression on the skin (69,71,79-81). Right and left quadriceps are assessed and then the average of these four readings over the right and left legs (two at each site) is done (71,79). In some studies, QMLT is measured only at the mid-point between the ASIS and the upper pole of the patella (80,81).

Other authors (82,83) have used three or more landmarks; for example, Baldwin et al. (82) used acromiale, radiale, stylion, trochanterion, tibiale laterale sites (with patient in supine position and none transducer compression) while Sanada et al. (83) used nine sites in total (lateral forearm, anterior and posterior upper arm, abdomen, subscapula, anterior and posterior thigh, anterior and posterior lower leg) with patient in standing position (83,84) and none transducer compression (83).

Reference values in healthy people for RF muscle thickness (75,78,85), RF CSA (70,85) QMLT (71,77), PA (76) and EI (76) are shown in Table 5. PA is defined as the angle between muscle fibers (that run obliquely to the axis of pull) and their inserting intramuscular tendon (deep aponeurosis) (86). This parameter describes the muscle architecture and it is related to muscle quality (and strength) as the larger the PA, the more contractile material can be contained within a certain volume (76,87). In muscles where the orientation of the fibers is almost parallel to their fascia (e.g., RF), the PA could be difficult to measure and not determinable (76). Its measure can be taken with a US longitudinal scan in the same place of RF thickness parameter, keeping the transducer compression on the skin as low as possible and using a suitable amount of ultrasound gel (Figure 7) (88).

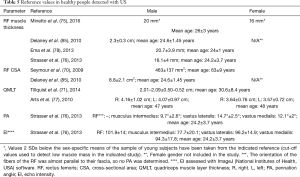

Table 5 Reference values in healthy people detected with US
Full table

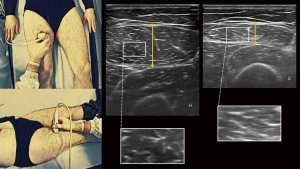

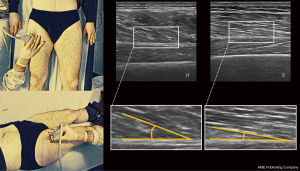

Figure 7 On the left is represented the anatomical posture of ultrasound’s probe in the evaluation of vastus lateralis muscle’s PA; on the right are represented ultrasound images of healthy younger (H) and sarcopenic older adult (S). PA, pennation angle.

Quantitative analysis of EI can be achieved by computer-aided gray-scale analysis using grayscale histogram offered by several software and calculating the mean EI (a number between 0 and 255, where black =0 and white =255) of a region of interest in the selected muscle, such as a transversal scan of RF thickness (Figure 5) (76,77).

The validation and reliability studies of the literature demonstrated high values of ICC of thickness measures and RF CSA both in old and young people; on the other hand PA and EI parameters have shown low to moderate reliability as depicted in Table 6 (76). A further consideration is the repeatability of measures between different US equipment: while measurement of muscle thickness does not depend on US device, EI values is influenced by ultrasound system hardware and software and is therefore different for each US device used, so reference EI values can only be used with the same US device and settings. Pillen et al. (89) calculated an equation to convert and make reliable muscle EI values obtained between different US devices in a healthy control group. However they found a higher variability between the US devices for EI values >70 so in patients with high muscle EI, repeated measurements with different US devices might not be able to reliably assess muscle quality changes over time (89).

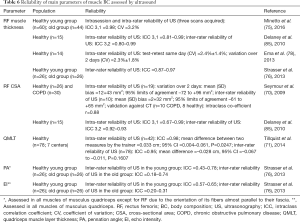

Table 6 Reliability of main parameters of muscle BC assessed by ultrasound
Full table

Clinical significance

The use of ultrasound to assess sarcopenia has been constantly increasing due to its known advantages and motivated by several studies in different clinical settings (70,71,90).

Puthucheary et al. (91) found that, among critically ill patients in an intensive care unit (ICU), muscle wasting measured by CSA, occurred early and rapidly during the first week of critical illness and was more severe among those with multiorgan failure compared with those with single organ failure.

Proximal muscles of the lower limb are preferentially affected by thickness loss than distal muscles (75), while the upper extremity muscles are less affected by aging (92). In a recent study, Ata et al. (90) found that abdominal [rectus abdominis (RA)] and thigh muscles (RF) were thinner in the older subjects than the younger ones, consistent with previous findings, and that they were affected earlier, together with a higher rate of decline, than total muscle mass. Gait speed (a parameter of physical performance) was associated with RF muscle thickness (90), suggesting that the regional assessment of muscle mass should be used to confirm the diagnosis of sarcopenia in subjects with low grip strength, or for predicting gait speed when could not be evaluated.

An interesting study by Strasser et al. (76) investigated with US not only dimensional changes but also changes in muscle architecture-echostructure (by measuring PA and EI) during ageing in all muscles of quadriceps and their association with skeletal muscle strength in the elderly. They found a significant reduced muscle thickness of all muscles of quadriceps, especially the RF, in the old group compared to the young group. Moreover all muscles investigated had a direct influence of maximum voluntary contraction (MVC) force but, after multiple regression analysis, only thickness of musculus vastus medialis in the old group and thickness of musculus vastus medialis and musculus intermedius in the young group demonstrated significant correlation with MVC (76).

Increased EI on an ultrasound image of skeletal muscle during ageing indicates changes in muscle quality, including raise of intramuscular fibrous and adipose tissues (76,93).

Fukumoto et al. (93) and Watanabe et al. (81) reported that muscle quality assessed with EI correlated with muscle strength in middle-aged elderly women (93) and men, independently of muscle thickness (81), although other authors reported opposite results (76). As the matter of fact Strasser et al. (76) and Arts et al. (77), although they found a significant EI increase in elderly group, didn’t find a significant correlation between EI and MVC in the older patient group. This discrepancy, as suggested by the authors (76), may be due to the different US scan plane adopted for EI determination (longitudinal vs. transverse). In addition to those results, a significant association has been reported between the EI value of anterior thigh muscles and functional mobility, indicating that muscle composition affects physical function in the old people (94). A clinical setting has been analyzed by Ye et al. (95): they found a significantly higher EI of the RF in all stages of chronic obstructive pulmonary disease (COPD) patients than in age-matched non-COPD subjects in addiction to an independent correlation of this US parameter with health-related quality of life (95). Investigations of PA values revealed its decrease with age (76,96), in particular of musculus vastus lateralis and medialis (76), although without significant influence on MVC (76).

One of the major limitation of US in the study of skeletal muscle is the wide variability in body size-composition among populations. In fact, the cut-off values for detection of low muscle mass established in a specific ethnic group cannot be applied to other groups (75).

Arts et al. (77) and Minetto et al. (75) proposed a panel of skeletal muscles cut-off values by US to identify low muscle mass both in men and women of different age, although reference cut points are still lacking in many populations, including critically ill patients.

Nowadays thickness measurements of musculus quadriceps have shown encouraging results in the evaluation of the skeletal muscle mass and strength and could be a valid tool for diagnosis and follow-up of sarcopenia, while EI and PA parameters need to be further substantial investigated. The lack of standard evaluation criteria (parameters to consider, how to take them and reference values in healthy and sarcopenic population) currently represent the main limitation of US in the assessment of skeletal muscle.

Liver

Hepatic steatosis (HS) is the term used to describe cytoplasmatic micro-, macro- or mixed vesicular incorporation of triacylglycerols (TAGs) into hepatocytes (97). Alcoholic liver disease and NAFLD are the most common conditions associated with fatty liver (98).

According to the guidelines of the American Association for the Study of Liver Diseases the definition of NAFLD requires that there is evidence of HS, diagnosed either by imaging or by histology and there are no causes for secondary hepatic fat accumulation such as significant alcohol consumption, use of steatogenic medication or hereditary disorders (99). NAFLD is associated with metabolic risk factors reflecting the MS and is becoming the most common cause of chronic liver diseases in Western countries, with a prevalence for adults in Western countries of 20–30% (100). HS can be isolated (majority of patients) or associated with hepatitis—non-alcoholic steatohepatitis (NASH). NASH determine hepatocellular injury (ballooning) and inflammation and can progress to cirrhosis through the development of fibrosis and lastly hepatocellular carcinoma (101).

Technique

Liver biopsy is the gold reference standard method for the HS assessment (102,103) and it is the only procedure that can reliably differentiates NAFLD from NASH (104). However, its intrusiveness and other drawbacks (subjective visual estimation, small tissue samples) limits its broad application in clinical practice and epidemiological studies. MRI proton density fat fraction (MRI-PDFF) represents the reference standard among noninvasive technique (105,106) although it is not widely available and expensive.

Based on Clinical Practice Guidelines by EASL-EASD-EASO (104), US is the preferred first-line diagnostic procedure for imaging of NAFLD. US evaluation of HS typically consists of a qualitative visual assessment of hepatic echogenicity (107), evaluation of echo penetration into the deep portion of the liver, the relative echogenicity of the liver to the kidney and determination of the clarity of blood vessel structures in the liver. Normally, liver echogenicity equals or slightly exceeds renal cortical echogenicity, while fatty liver has higher echogenicity (“bright liver”) than renal cortex and splenic parenchyma, due to intracellular fat vacuole accumulation, and intra-hepatic vascular blurring (107,108).

To overcome the limitations of the conventional qualitative evaluation, quantitative ultrasound (QUS) parameters, including attenuation coefficient and backscatter coefficient (BSC) (109,110), have been developed and studied. This methodology overcomes previous limitations of conventional qualitative US because QUS parameters are estimated using a reference phantom and objective computer algorithms. Thus, the phantom reference addresses machine (transducer format, gain, dynamic range, focusing, frequency, etc.) and operator dependencies, therefore helping to reduce both sources of variability (111-113). Ultrasound signals, that depend on tissue microstructure, can be analyzed using two methods: (I) spectral-based parameterization of the signals (that focuses on estimation of the BSC as a starting point from which additional QUS estimates are calculated); (II) characterization of the envelope statistics (113). BSC is defined as the differential scattering cross section per unit volume for a scattering angle of 180° (114); it is related to the underlying tissue structure and, similarly to the attenuation, is a fundamental property of tissue (115). Attenuation is the loss of energy of an US signal as it is propagated through a tissue (116) and an attenuation coefficient can be estimated from the ultrasonic backscattered RF data (117). Information about the tissue microstructural properties can be extracted from the envelope of backscattered RF signals. Several models for the statistics of the envelope have been proposed and investigated, such as Nakagami and homodyned-K (HK) distributions with promising although not conclusive results (118,119).

Clinical significance

With US qualitative assessment of HS, severity is usually graded clinically using a four-point scale, as follows: normal (grade 0), mild (grade 1), moderate (grade 2), and severe (grade 3) (120,121) (Table 7). However such qualitative subjective evaluation presents low sensitivity (steatosis <20% is not reliably detected) (120,122), low specificity and substantial observer variability. According to Strauss et al. (123) mean inter-observer and intra-observer agreement rates for the presence of fatty liver were 72% (kappa =0.43) and 76% (kappa =0.54), while intra-observer agreement for severity of fatty liver ranged from 55% to 68% (kappa =0.51–0.63). Moreover, it cannot distinguish between NAFLD and NASH. Several recent inter-laboratory studies demonstrated that QUS methods in reference phantoms and in vivo using clinical imaging scanners are highly reproducible and independent of operator and imaging system factors. QUS BSC showed robust correlation with MRI-PDFF towards the degree of HS and the identification of patients with NAFLD (sensitivity: 87–93%; specificity: 91–93%) with potential for noninvasive quantification of liver fat content. Several studies have shown a strong correlation between the attenuation coefficient and the amount of fat in the liver measured by MRI-PDFF and demonstrated, although values were different among different works, a higher attenuation for fatty liver than that in normal liver (116,124-127).

Table 7 Qualitative steatosis grading by abdominal ultrasound (121)
Full table

Conclusions

US is a fast, close-at-hand, low cost and widely available technology. It demonstrated a good accuracy and reproducibility, which can be considered acceptable for most screening and clinical intents. Operators can be trained relatively easily and quickly. However, some features may represent a significant limitation in longitudinal evaluation of patients which are expected to have only mild changes in weight and BC. It can regionally distinguish between visceral and subcutaneous fat depots and can assess lipid storage within organs, such as liver and muscle. The association between visceral fat thickness measured by ultrasound and the metabolic risk factors of CVD is more pronounced than the associations between these factors and anthropometric parameters (BMI and WC). It can be used from infancy, making this technique a feasible and valuable method for the assessment of possible risk factors associated with obesity in a very early stage. US is a valid tool to assess subcutaneous fat thicknesses due to its high repeatability and precision. This technique has the advantage that measures can be taken in participants with severe obesity at sites not amenable to skinfold measures. Ultrasound has the advantage of being able to assess both skeletal muscle quantity (measurements of muscle thickness and CSA) and quality (measurements of PA and echogenicity), supporting the diagnosis of sarcopenia in older adults. It is a valid method for detecting the presence or absence of liver steatosis when compared to the gold standard method (liver biopsy) and the reference imaging methods, such as CT and MRI.

Alongside the “traditional” qualitative US evaluation, more recently the QUS measurements (attenuation coefficient, BSC) have shown great potential in quantify HS and to screen the population for NAFLD although further investigations are needed to translate QUS from research into the clinical practice. There are no risks related to ionizing radiation for patients, but this method is more operator-dependent than other techniques. The training of the operator, the light pressure of the probe on the skin, the supine positioning and respiratory condition of the patients as well as the fasting period before the examination, if not carefully performed, could lead to a decrease in accuracy and inter- and intra-operator agreement. Although the use of US in the field of BC appears promising this technique pose some problems. In particular, there is currently a lack of a clear and standardized protocol for the assessment of FM and LM, including: (I) no widely established norms for the various muscle and adipose tissue US parameters within the healthy population; (II) there is no definitive agreement either about which muscle groups or fat compartments should be measured or the probe sites; (III) there is no defined criteria for low skeletal muscle mass or its impaired quality identification in sarcopenia as well as there is not consolidated quantitative reference values of fat parameters discriminating population at cardio-metabolic risk.

Due to lack of evidence on absolute validity or consolidated reference values, US should be used with caution when more accurate measures of fat distribution are required, for instance in individuals with specific conditions (e.g., lipodystrophy). For these cases, the use of other heavier imaging technique (MRI, CT and DXA) is preferred. The heterogeneity of US methods that could be adopted for BC measurement and analysis could impact on future clinical and research implementation, thus it is imperative that a standardized and easily applied technique is agreed on. US has the potential to become the first-line diagnostic imaging tool in the evaluation of BC, especially in muscle-liver-adipose tissue axis, with a major impact on the management of metabolic diseases, including obesity and sarcopenia.
