Relationship between markers of disease activity and progression in skeletal muscle of GNE myopathy patients using quantitative nuclear magnetic resonance imaging and ³¹P nuclear magnetic resonance spectroscopy

Introduction

GNE myopathy (GNEM) is a rare, autosomal recessive, progressive neuromuscular disorder, caused by mutations in the UDP-N-acetylglucosamine 2-epimerase/N-acetylmannosamine kinase gene (abbreviated as GNE), which is a bifunctional enzyme of the sialic acid biosynthetic pathway (1). Sialic acids play an important role in maintaining membrane stability (2), and a decrease in sialic acid production will result in a reduced sialylation, which is the incorporation of sialic acid in glycoproteins and glycolipids, found in large numbers in cellular membranes (3). Reduced levels of sialic acid were observed in a mouse model expressing mutated GNE (4) that develop a pathology resembling a rimmed vacuolar myopathy (4) and named after the autophagic byproducts called ‘rimmed vacuoles’ (5). The exact mechanisms leading to these aggregates are still unknown. Although some degree of inflammation is a common feature in (sporadic) inclusion body myositis (3), it is usually not observed in GNEM. GNEM is characterized by an onset typically in the third decade of life, with initial distal lower limb muscle atrophy as a clinical presentation and a gradual spreading to more proximal muscles and upper limb (5).

Qualitative T₁-weighted nuclear magnetic resonance imaging (NMRI) revealed fatty infiltrations in all leg (6), thigh (6,7), gluteus (6,8) and forearm (9) muscles. The disorder is known for the relative preservation of the quadriceps (QUAD), yet affected by fatty replacement in the later stages of the disease (3). Currently, quantitative NMRI is being used more and more in the evaluation of the disease of neuromuscular disorders (10) such as Duchenne muscular dystrophy (DMD) (11-13), Becker muscular dystrophy (BMD) (14), facioscapulohumeral muscular dystrophy (FSHD) (15), limb-girdle muscular dystrophy type 2I (16), late-onset Pompe disease (17) and inclusion body myositis (18). Most of these quantitative NMRI studies included a muscle-to-muscle-based determination of fat fraction (Fat%), often derived from Dixon-based water-fat separation approaches, and used as an outcome measure for disease progression. In a recent publication, we have reported significant changes in disease progression (i.e., change in Fat% and contractile cross-sectional area or cCSA) that were detected over the course of one year in GNEM patients using water-fat separation-based quantitative NMRI, whereas functional and strength tests could not demonstrate this progression (19).

Other NMR parameters such as muscle water T₂ and phosphorus (³¹P) NMR spectroscopy (NMRS) indices have also been investigated in neuromuscular disorders, although to a lesser extent (11,12,14,17,20). These NMR biomarkers may, in fact, indicate abnormalities related to the underlying pathophysiological mechanisms, and could, therefore, be observed as markers of ‘disease activity’ (10). Specifically, in the case of T₂, using qualitative T₂-weighted NMR images, hyperintensities have been observed in the tibialis anterior and the medio-posterior part of the thigh in GNEM patients (6,9). This qualitative approach used in diagnostic imaging, not in the least in inflammatory myopathies (21-26), is based on visual evaluation of contrast differences between normal and abnormal muscle tissue. Besides the subjective nature of visual scoring of the T₂-weighted approach, patients showing systemic inflammation across all investigated muscles might be erroneously categorized as false negatives (26). Quantitative muscle water T₂, however, cancel out these aforementioned limitations of T₂-weighted NMRI. Due to the sensitivity of water T₂ to changes in muscle composition, it has been proposed as a quantitative outcome measure in a number of neuromuscular disorders, including late-onset Pompe disease (17), DMD (12,20,27) and inflammatory myopathies such as dermatomyositis (28) and inclusion body myositis (18,29). A study in healthy volunteers has also illustrated changes in water T₂ values with ageing (30). Quantitative water T₂ evaluations allow to mutually compare patients and/or to assess the changes within patients in longitudinal studies.

The purpose of the current work was to assess changes of water T₂ and ³¹P NMRS indices in a one-year longitudinal study of GNEM patients. We investigated the predictive value of these ‘disease activity’ indices, by determining their relationship with parameters reflecting the disease progression (i.e., change in Fat% and cCSA), and, hence, to assess whether these indices prove to constitute surrogate endpoints in the longitudinal evaluation of GNEM.

Methods

Study population

The NMR protocol was performed at baseline and at a 1-year interval in 10 GNEM patients (mean age, 47±15 years; range, 25–73 years; 5 male, 3 non-ambulant), as previously described (19), and 29 age-matched healthy control subjects (mean age, 48±14 years; range, 18–70 years; 17 male). The patients were included from the French cohort of the Ultragenyx GNE-Myopathy Disease Monitoring Program (GNEM-DMP UX001-CL401), participating in the ClinBio GNE study. GNEM diagnosis was genetically confirmed. Healthy control subjects were scanned as part of a methodology NMRI/S protocol approved by the local ethics committee (CPP-Ile de France VI–Groupe Hospitalier Pitié-Salpêtrière, ID RCB: 2012-A01689-34) and informed consent was obtained from all controls and patients.

NMR acquisitions

NMR data were acquired on a 3-T clinical system (Trio until December 2014 or PrismaFit from January 2015, Siemens Healthineers, Erlangen, Germany). For quantitative NMRI, the system’s body coil for radiofrequency transmission was used with two 18-channel phase array surface coils (Siemens) covering both legs and thighs or a 4-phase array surface coil (Siemens) covering the dominant forearm, combined with a 32-channel spine coil (Siemens) for signal collection. Additionally, for ³¹P NMRS experiments, a dual-tuned ³¹P/¹H transmit/receive surface coil (RAPID Biomedical GmbH, Rimpar, Germany) was placed over the thigh (centered at mid-femur), once on the anterior side, once on the posterior side, interrogating the QUAD and the hamstring (HSTR) muscles, respectively. We have described subject position in detail in a recently published work (19).

The NMR protocol began with a whole-body (3-point) Dixon acquisition (i.e., multiple 3D gradient echo sequences for quantitative water-fat imaging across the entire body), employing a methodology described in an earlier publication by some of the co-authors of this work (31). The objective of the whole-body Dixon measurement was to determine which of the segments demonstrated an overall Fat% >60%, which was determined as the upper limit for performing further quantitative NMRI and ³¹P NMRS.

Indeed, the actual quantitative NMRI protocol in this study comprised the acquisition of 3-point Dixon and water T₂ mapping NMRI sequences at the level of the legs, the thighs and the domination forearm, separately. Details of the 3-point Dixon NMRI sequence were described in a separate publication in GNEM (19). For water T₂ mapping, a multi-slice multi-echo (MSME) sequence was employed, covering 3 slices in the forearm and 9 slices in legs and thighs (10 mm slice thickness) and the following acquisition parameters: a train of 17 equidistant echoes (8.7 to 147.9 ms for the forearm; 9.5 to 161.5 ms for the legs/thighs); TR = 4,000 ms (forearm) or 3,000 ms (legs/thighs); nominal flip angles = 90° and 180°; field-of-view = 104×128 mm² (forearm) or 224×448 mm² (legs/thighs); spatial resolution = 1×1 mm² (forearm) or 1.4×1.4 mm² (legs/thighs); bandwidth = 445 Hz/pixel; slice gap = 30 mm; acquisition time = 5 min 18 s (forearm) or 3 min 45 s (legs/thighs). For calculating the transmit field (B₁⁺) spatial distribution, the XFL sequence (32), which is a fast gradient echo image, was run covering the same volume as the MSME sequence, with the following parameters: TR = 2,000 ms (forearm) or 4,750 ms (legs/thighs); TE = 1.78 ms, flip angle = 8°.

³¹P NMRS data were obtained from a non-localized 500-µs hard pulse excitation with a TR of 4,000 ms, 64 averages, a bandwidth of 3,000 Hz, 2,048 data points, and an acquisition time of 4 min 16 s. For additional details about the ³¹P NMRS acquisitions, we refer to earlier publications (11,20).

NMR processing

All quantitative NMRI data were processed using in-house written code. Regions of interest (ROIs) were drawn manually, by the same operator, both on the out-of-phase Dixon and the MSME images, using a free software tool (www.itksnap.org). The ROIs were drawn on both left and right side, except for the forearm where only the dominant side was assessed. For the determination of Fat% and CSA, ROIs were drawn, respectively on the Dixon and the MSME images, in different muscle groups and therefore including intermuscular fat: the QUAD muscle group (comprising vastus lateralis, vastus medialis, vastus intermedius and rectus femoris muscles) and the HSTR muscle group (comprising biceps femoris, semimembranosus and semitendinosus muscles) of the thigh; the triceps surae (TRIC) muscle group (comprising soleus, gastrocnemius medialis and gastrocnemius lateralis muscles), the fibularis (FIB) muscle group and the extensor (EXT_LEG) muscle group (comprising tibialis anterior and extensor digitorum muscles) of the leg; and the flexor (FLEX) muscle group (comprising flexor carpi radialis, flexor carpi ulnaris, flexor digitorum profundus and flexor digitorum superficialis muscles) and the extensor (EXT_FOREARM) muscle group (comprising extensor pollicis longus, extensor carpi radialis, extensor carpi ulnaris, extensor digiti minimi and extensor digitorum muscles) of the forearm.

Using the Dixon images, Fat% values (expressed in percentage) were computed as the ratio between the fat signal and the sum of the water and fat signals. The Fat% value per muscle group was determined as a weighted average across five central slices (corresponding to the five central slices acquired with MSME, see further on in the text). The values for CSA were calculated in the same muscle groups on the same slices on the co-registered MSME images. The CSA value per muscle group was a mean value across these slices. The contractile CSA (cCSA), defined as the lean muscle CSA corresponding to the muscle volume fraction containing the contractile apparatus, was determined as follows:

Indices of disease progression were the Fat% change after 1 year (ΔFat%, in %), the muscle transformation rate (R_{muscle_transf}, in year⁻¹), the (absolute) change in cCSA (ΔcCSA, in mm²), and the relative change in cCSA (ΔcCSA_rel, in %); and were calculated as follows (with baseline and year-1 abbreviated as BL and Y1):

For assessment of water T₂, ROIs delineated the interior of the muscle avoiding fasciae and blood vessels (33). ROIs for water T₂ were drawn FIB, in the individual muscles of EXT_LEG, TRIC, QUAD and HSTR, as well as in the muscle groups EXT_FOREARM and FLEX (because of the difficulty to distinguish the different muscles in these groups). The MSME images were processed based on a tri-exponential fitting procedure (33), which is a model that takes into account both water and fat components in the muscle tissue. Water T₂ values were determined as a mean value within the drawn muscle ROIs, averaged across the five centrally acquired slices (Figure 1). The acquisition of a B₁ map enabled voxel sorting by eliminating those voxels having a B₁⁺-value outside the prescribed boundaries (i.e., lower than 80% or higher than 120% of the nominal flip angle). The threshold for abnormal water T₂ was set at two standard deviations above mean muscle water T₂ in healthy volunteers, which is approximately 39 ms on the system used in this work (33). Water T₂ values of individual muscles were pooled, weighted by the size of the ROI, to compare with all other measured NMR indices which were all determined on a muscle group level.

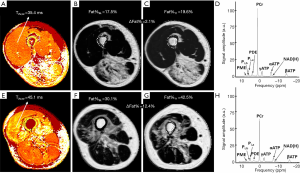

Figure 1 MSME-based baseline water T₂ maps (A,E), Dixon-based baseline (B,F), year-1 Fat% maps (C,G) and baseline QUAD ³¹P NMR spectra (D,H) of two GNE myopathy patients. Values for water T₂, Fat%_BL, Fat%_Y1 and ΔFat% in QUAD are given. In the first patient, water T₂ was normal (A), Fat%_BL was relatively low (B), ΔFat% was the lowest of all patients (B,C), and PCr/γATP and pH_w values were normal (D). In the second patient, water T₂ was abnormal (E), Fat%_BL was intermediate (F), ΔFat% was the highest of all patients (F,G), and PCr/γATP and pH_w values were significantly decreased and increased (H), respectively, as compared to controls. Notice that HSTR muscles shows much higher fatty depositions in the first and much less in the second patient. ATP, adenosine triphosphate; Fat%_BL, baseline fat fraction; Fat%_Y1, year-1 fat fraction; MSME, multi-slice multi-echo; NAD(H), nicotinamide adenine dicnucleotide; PCr, phosphocreatine; PDE, phosphodiesters; P_i,a, cytosolic inorganic phosphate; P_i,b, alkaline inorganic phosphate; PME, phosphomonoesters; T_2w,av, average water T₂ value; ΔFat%, fat fraction difference between baseline and year-1 visit.

³¹P NMRS data were processed as previously described (11), using AMARES (34) in jMRUI (35) for the deconvolution of the two inorganic phosphate (P_i) resonances, and Topspin (Bruker Medical GMbG, Ettlingen, Germany) for the determination of PME (phosphomonoesters) and PDE (phosphodiesters). The following resonances were quantified: PME, P_i,b (alkaline inorganic phosphate), P_i,a (cytosolic inorganic phosphate), P_i,tot = P_i,b + P_i,a (total inorganic phosphate), PDE, PCr (phosphocreatine), γATP, αATP, NAD(H) (nicotonamide adenine dinucleotide) and βATP (adenosine triphosphate) (11). Prior knowledge was imposed on signal amplitude, line width, phases and line shape (11). All metabolites were expressed as metabolite ratios, corrected for partial saturation. The (weighted) pH_w value was calculated based on the chemical shift difference between PCr and the P_i resonances (36). The intramuscular Mg²⁺ concentration was calculated based on the chemical shift difference between αATP and βATP (37,38). In Figure 1, two examples of ³¹P NMR spectra are given for patients with a different disease progression.

Statistical analysis

Statistical analyses were conducted using SPSS software version 22 (SPSS, Chicago, IL, USA). Given the small number of patients, non-parametric tests were performed, including the Mann-Whitney test for comparing control and patient values and the Wilcoxon test for comparing sides and 1-year differences. Ambulant and non-ambulant patients were pooled for all analyses. The Spearman-rank correlation test was used for investigating the relationship between variables reflecting ‘disease activity’ (water T₂ and ³¹P NMRS) and the earlier assessed indices of disease progression (19). Water T₂ values and ³¹P NMRS indices used for correlation analyses are presented as the average value between the baseline and year-1 visit. The level of statistical significance was corrected for multiple comparisons and set at P<0.007 and at P<0.02, for NMRI and ³¹P NMRS parameters, respectively.

The standardized response mean (SRM) is defined as the mean change over 1 year divided by the standard deviation of this change (39). An SRM ≥0.8 is considered to reflect a high responsiveness to change (39). For variables that are known to be less integrative but are, nevertheless, significantly different between the pathological and normal state, the standard SRM calculation is less pertinent. Therefore, we introduced an additional variable for the disease activity indices, which we further will call the ‘standardized difference mean’ (SDM). The SDM is defined as the sum of the mean change over 1 year and the mean difference between the patient and control group, divided by the pooled standard deviation of the 1-year change. Similar as for the SRM, an SDM ≥0.8 is considered to reflect a strong measurable difference from normality.

Results

Data overview

Quantitative NMRI data were obtained in the dominant forearm and the thigh of all ten GNEM patients. In four of the ten patients, no quantitative NMRI data were obtained in the leg due to overall Fat% values that were higher than 60%, as assessed by the whole-body Dixon measurement at the beginning of the NMR protocol. Three of these four patients were non-ambulant.

³¹P NMRS measurements were performed at the level of the QUAD in all ten GNEM patients. In four of the ten patients (including the three non-ambulant subjects), ³¹P NMRS was not obtained in the HSTR, due to very high Fat% values in HSTR muscles. A fourth patient felt discomfort and the NMR protocol was ended before the ³¹P NMRS measurement in the HSTR.

‘Disease progression’ NMR indices in patients

As can be observed from Table 1, changes in Fat% were significant for the QUAD. No other significant changes were observed.

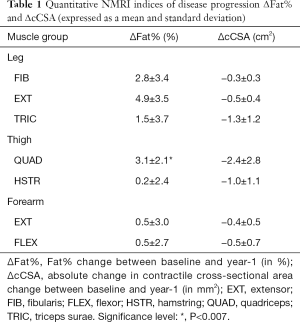

Table 1 Quantitative NMRI indices of disease progression ΔFat% and ΔcCSA (expressed as a mean and standard deviation)
Full table

Changes in ‘disease activity’ NMR indices between patients and controls

No significant age differences were found between patients and controls (P=0.292). There were no differences between left and right sides for water T₂ values (P>0.05 for all muscles).

Compared to controls, significantly higher water T₂ values (Figure 2) were only found in QUAD and HSTR muscles of GNEM patients, as depicted in Figure 2. SDM values for water T₂ were high for QUAD, FIB and forearm muscles. No significant differences between muscles were observed for the average water T₂ values in both patients and controls (P>0.05).

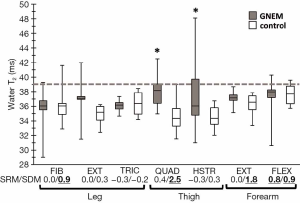

Figure 2 Box-and-whisker plots of water T₂ at baseline. The horizontal line represents an empirically determined threshold water T₂ value at 39 ms (i.e., the mean value plus twice the standard deviation of water T₂ in normal muscle) (31). SRM and SDM values ≥0.8 are indicated in bold. EXT, extensor; FIB, fibularis; FLEX, flexor; HSTR, hamstring; QUAD, quadriceps; SDM, standardized difference mean; SRM, standardized response mean; TRIC, triceps surae. Significance level: *P<0.007.

Additionally, anomalies in various ³¹P NMRS indices were observed in QUAD and HSTR as compared to controls (Figure 3). Corresponding SDM values for all depicted ³¹P NMRS indices were all higher than 0.8.

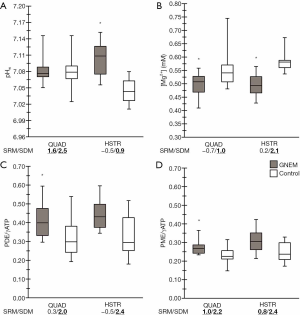

Figure 3 Box-and-whisker plots of pH_w (A), [Mg²⁺] (B), PDE/γATP (C) and PME/γATP (D) at baseline in QUAD and HSTR. SRM and SDM values ≥0.8 are indicated in bold. ATP, adenosine triphosphate; HSTR, hamstring; [Mg²⁺], intramuscular magnesium concentration (in mM); pH_w, weighted pH; PDE, phosphomonoesters; PME, phosphomonoesters; QUAD, quadriceps; SDM, standardized difference mean; SRM, standardized response mean; significance level: *P<0.02.

Significant differences between QUAD and HSTR were only found for pH in the healthy controls (7.08±0.03 vs. 7.05±0.02, P=0.003) and for PCr/γATP (5.56±0.39 vs. 4.89±0.33, P=0.016) in GNEM patients.

Changes in ‘disease activity’ NMR indices in patients after 1 year

Water T₂ did not change after one year of follow-up. The SRM value in FLEX_FOREARM reached 0.8 but water T₂ changes were non-significant (37.3±2.6 to 39.5±2.0 ms, P=0.022).

A few ³¹P NMRS indices changed significantly over the course of one year, such as increases in pH_w (7.08±0.03 vs. 7.10±0.03, P=0.012, SRM =1.6) and PME/γATP (0.27±0.04 vs. 0.33±0.07, P=0.014, SRM =1.0) in QUAD. SRM reached 0.8 in HSTR for PME/γATP but changes were, however, non-significant after 1 year.

Correlations between ‘disease activity’ and ‘disease progression’ NMR indices

All correlation coefficients and corresponding P-values can be found in Table 2.

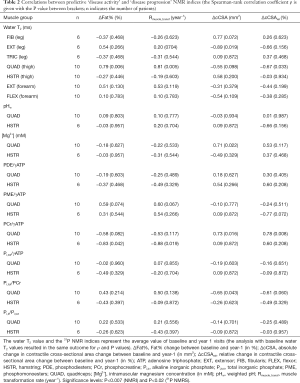

Table 2 Correlations between predictive ‘disease activity’ and ‘disease progression’ NMR indices (the Spearman-rank correlation coefficient ρ is given with the P value between brackets; n indicates the number of patients)
Full table

In QUAD, ΔFat% correlated significantly with water T₂ (Figure 4). This significance was even more pronounced when correlating water T₂ with the R_{muscle_transf} index, as seen in Figure 4B. Water T₂ values in QUAD seemed to be correlated (albeit non-significant) with the relative ΔcCSA values, as illustrated in Figure 4D. Additionally, significant correlations were found between PCr/γATP and ΔcCSA and ΔcCSA_rel in QUAD (Figure 5).

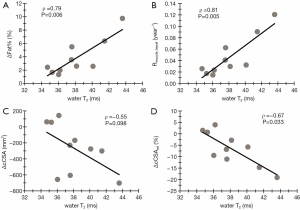

Figure 4 All ‘disease progression’ NMRI indices as a function of water T₂ in QUAD. Every point represents 1 patient. The water T₂ value represents the average value of baseline and year 1 visits (the analysis with baseline water T₂ values resulted in the same outcome for ρ and P values). See Table 2 for Spearman correlation coefficients (ρ) and corresponding P values. ΔFat%, fat fraction change between baseline and year-1 (in %); ΔcCSA, absolute change in contractile cross-sectional area change between baseline and year-1 (in mm²); ΔcCSA_rel, relative change in contractile cross-sectional area change between baseline and year-1 (in %); R_{muscle_transf}, muscle transformation rate (year⁻¹). Significance level: *P<0.007.

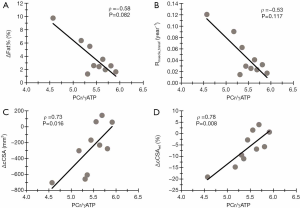

Figure 5 ΔFat% (A), R_{muscle_transf} (B) ΔcCSA (C) and ΔcCSA_rel (D) as a function of PCr/γATP in QUAD. Every point represents 1 patient. All ³¹P NMR indices represent the average value of baseline and year 1 visits (the analysis with baseline water T₂ values resulted in the same outcome for ρ and P values). See Table 2 for Spearman correlation coefficients (ρ) and corresponding P values. ΔFat%, fat fraction change between baseline and year-1 (in %); ΔcCSA, absolute change in contractile cross-sectional area change between baseline and year-1 (in mm²); ΔcCSA_rel, relative change in contractile cross-sectional area change between baseline and year-1 (in %); ATP, adenosine triphosphate; PCr, phosphocreatine; R_{muscle_transf}, muscle transformation rate (year⁻¹). Significance level: *P<0.02.

Discussion

This study demonstrates that water T₂ and ³¹P NMRS have a predictive value on the progression of disease in skeletal muscles as established by fat-water separation-based quantitative NMRI in GNEM patients.

‘Disease progression’: ΔFat% and ΔcCSA

The extent of muscle destruction in GNEM, as reflected by the increased fatty infiltration and decreased lean muscle tissue as compared to controls, was especially evident in the thigh (QUAD and HSTR) and the extensor compartment of the leg, with a relative sparing of the QUAD muscle group as compared to the other muscles (19), confirming observations from earlier reports (3). Disease progression in GNEM, illustrated by both an increase in fatty depositions (ΔFat%) and a decrease in lean muscle tissue (ΔcCSA), was also seen in these three muscle groups (although only significant changes were seen for Fat% in QUAD). In general, all leg muscles in GNEM patients were heavily fatty infiltrated, confirming the distal-to-proximal disease evolution known in GNEM (40). Disease progression indices were handled in detail in a separate publication (19).

‘Disease activity’: water T₂

An increase in water T₂ might be related to different phenomena such as inflammation, myocytic lesions, cell necrosis or edema, and can therefore be regarded as a non-specific NMR biomarker reflecting ‘disease activity’ (10). Whereas the abovementioned variables, Fat% and cCSA, are more integrators of the global disease progression over time, water T₂ reflects a more instantaneous phenomenon.

The significantly increased water T₂, as found in this study in 25% of all QUAD and HSTR muscles, might be perceived as surprising, as it is known that inflammation is generally absent in GNEM (3). A similar apparent paradox has been observed in late-onset Pompe disease patients (17) where the increased water T₂ could not be associated to an inflammatory cause, from which it is hypothesized that the abnormal water T₂ values rather reflect myocytic lesions, possibly related to the rupture of lysosomes. In the patients assessed in our study, a significantly increased water T₂ was only found in the thigh. This could be due to a lack of statistical power since leg data were not acquired in four of the ten patients due to very high Fat% levels (19). EXT_FOREARM muscles revealed to have an SDM similar as found in thigh, illustrating its potential as a muscle where water T₂ might be significantly different between healthy and pathological muscle tissue. GNEM patients did not show any significant change in water T₂ over a 1-year time period, which does not rule out fluctuations between these two time points. Altogether, these data indicate that the well-preserved QUAD is the most appropriate muscle group to assess disease evolution through water T₂ measurements in GNEM.

‘Disease activity’: ³¹P NMRS

Although inter-patient differences in ³¹P NMRS indices were apparent, significant differences as compared to controls were found for only a few of these parameters. One of the prominent differences were the elevated levels of PDE, found in QUAD and HSTR, which reflects an increased turnover of phospholipids, indicating a metabolic disturbance at the level of the sarcolemmal membrane (41). Both in BMD and DMD, PDE was found to be an early marker during the disease, as changes were observed prior to any other NMR-detectable changes such as Fat% (12,14). When comparing our results to those of the BMD study where the patient age range (i.e., 20–60 years) was similar to the one in this work (i.e., 25–73 years), we can, however, not assess the possibility of PDE as an early-phase biomarker of the disease, since the relatively spared QUAD demonstrated already low to moderate fat replacement (i.e., between 4.3% and 29.7%) (19). Additionally, it is known that PDE correlates positively with age (42,43), making age a confounding factor for further interpretation. Also, an elevated pH value was found in the HSTR and QUAD (at least at year 1), when comparing to the controls. An alkaline pH has shown to be a biomarker for dystrophic muscle, as illustrated in several studies already, with a normal pH in non-fat infiltrated DMD patients (12) compared to an alkaline pH when muscle began to show fatty replacement (11,12,20). An elevated pH reflects an increase in the second more alkaline P_i pool (P_i,b), which is hypothesized to originate from suffering myocytes or from an expanded interstitial space, as was demonstrated in dystrophic muscle (11,20). Increased PDE, as a marker of membrane disturbance, could result from abnormal or insufficient glycosylation/sialylation of important transmembrane glycoproteins, such as the voltage-gated sodium channels or α-dystroglycan as part of the dystrophin-glycoprotein complex (44). Dysfunction of these proteins could result in a reduced mechanostability of the sarcolemma, causing leaky membranes and a disturbed ionic homeostasis with implications on the value of pH. Further studies are required to investigate the dynamics of pH and PDE before the occurrence of fatty depositions in the muscle of GNEM patients. Finally, a significantly decreased intramuscular Mg²⁺ content, as was observed in both QUAD and HSTR, is also an interesting finding, knowing that Mg²⁺ is an essential and one of the most effective metal ions with respect to the activity of N-acetylmannosamine kinase activity, being one of the two GNE-coded enzymes (45,46). Despite the difference in Fat% between QUAD and HSTR (4.3–29.7% and 8.1–86.4%, respectively) (19), only the PCr/γATP ratio was shown to differ significantly between the two muscle groups. This illustrates that the very different extent of fatty infiltration in these muscle groups (at least up until a certain threshold) seemed to have, on average, little effect on the outcome of these parameters, whereas this correlation has been observed earlier in FSHD (47) and DMD (11). Significant changes coupled to high SRM values were only found for pH, PME/γATP and PCr/γATP in QUAD. This doesn’t rule out, nevertheless, the use of Mg²⁺ and PDE/γATP as biomarkers that are potentially subjective to treatment effects, since they show, just as pH and PME/γATP, a high degree of discriminative power between patients and controls (SDM ≥0.8) in both QUAD and HSTR.

Relationship between ‘disease activity’ and ‘disease progression’

We demonstrated that QUAD muscles of GNEM patients with abnormal water T₂ experienced a faster disease progression, as seen with most variables reflecting ‘disease progression’. A similar relationship was observed in late-onset Pompe disease patients (17) where an elevated water T₂ implied a doubling of the fatty infiltration rate. Along the same line, convincing evidence have been repeatedly produced in FSHD, a disease where bursts of toxic gene expression and inflammation in a particular muscle result in its rapid destruction. Several studies have shown that muscle hyperintensities in STIR imaging or muscle water T₂ increases in quantitative maps precede muscle fatty replacement in T₁-weighted images or in fat fraction maps (48-50). Correlations between water T₂ and disease progression indices were less clear in other lower limb and forearm flexor muscles in this study, most plausibly due to the higher degree of fatty replacement in these muscles (19), making a reliable estimation of water T₂ more challenging (33). Also, fluctuations of water T₂ during the course of the study might have impacted the correlation. Therefore, the average value of both visits was used for the correlation analysis since it reflects better the oscillating nature of the muscle water T₂ during which the study was running. The PCr/γATP ratio, as a marker of metabolic efficiency of the (residual) muscle, was correlated with disease progression indices in the thigh muscles. In QUAD, a strong relationship between the macroscopic loss of muscle mass as reflected by a reduction in cCSA, and biochemical changes such as the decreased PCr/γATP ratio reflecting a loss of contractile tissue, was shown in that specific muscle that is relatively spared but where disease activity is, nevertheless, high. In DMD, a positive correlation was established between PCr/γATP and the grip strength in FLEX_FOREARM (51), which, in its turn, is strongly correlated with the amount of muscle tissue, as illustrated in GNEM (19). In HSTR, where fatty infiltration was, on average, much more pronounced, similar correlations were observed, more indirectly, between PCr/γATP and R_{muscle_transf}, but not with cCSA changes. Finally, the tendency of correlation found between intramuscular Mg²⁺ and the loss in QUAD tissue suggests that Mg²⁺ could be a potential biomarker in future therapeutic interventions in GNEM.

A recent phase-3 trial demonstrated that the extended-release formulation of sialic acid did not improve muscle strength and function in GNEM patients, as compared to placebo-treated GNEM patients (52), although it should be mentioned that quantitative NMRI and ³¹P NMRS variables were not assessed in these patients. The study outcome might have been different, however, if these variables had been measured. While quantitative NMRI and several functional quantitative biomarkers have illustrated to be highly sensitive to disease progression, the regulatory agencies are still requesting evidence of a tangible clinical effect for a new treatment to be validated. There are many observations supporting the following chain of events in muscle disease: (I) muscle damage, (II) muscle destruction and fatty replacement, (III) strength loss, (IV) functional impairment, and finally (V) disability. The formal demonstration of this cascade is extremely challenging, though, because of the time-scale in most diseases. A normalization of water T₂ or halting the muscle fatty replacement as measured with quantitative NMRI, reflecting an interruption of the succession of pathological mechanisms leading to disability, are both potential strong indicators of a successful therapeutic intervention.

Methodological aspects

The major methodological issue in this study was the combination of the limited amount of patients, which is due to the very low prevalence of the disease (estimated 1/1,000,000 worldwide) (3) and the heterogeneous phenotype inherent to the disease, emphasizing even more the need for objective outcome measures. Because the ambulant and non-ambulant cohorts were too small for a paired ambulant versus non-ambulant analysis, data were pooled. Despite the low number of patient data, however, we were able to detect significant changes and correlations in skeletal muscle over a 1-year period using quantitative NMRI and ³¹P NMRS. Nevertheless, more data is needed to confirm and verify correlations between ‘disease prediction’ and ‘disease progression’ NMR indices, since above a certain threshold of fatty infiltration (approximately 50%), water T₂ assessment becomes unreliable (33) and ³¹P NMRS does not reach a sufficient signal-to-noise level due to lack of viable muscle tissue, as was, for example, the case for HSTR in this study.

Conclusions

To summarize, this study revealed that, in GNEM, water T₂ and ³¹P NMRS are complementary NMR indices to the standard Fat% assessment for evaluating muscle changes during the course of the disease. More specifically, the QUAD, which is relatively preserved in GNEM, in patients with higher water T2 values showed a faster disease progression. The results obtained in this study confirm the ability of the use of water T₂ and ³¹P NMRS as possible surrogate endpoints in longitudinal studies of neuromuscular disorders. Future steps could be the implementation of this quantitative NMR protocol in a larger patient cohort as well as in clinical trials before and after a suitable treatment.

Acknowledgments

The authors thank the patients and their families for participating in the study. We acknowledge Jean-Yves Hogrel (Neuromuscular Physiology Laboratory, Neuromuscular Investigation Center, Institute of Myology) as well as Melanie Annoussamy, Ferial Toumi, Melanie Villeret, Dominique Duchêne, Aurelie Chabanon and Gwenn Ollivier (I-Motion) for their contributions in this work.

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-39). AB reports personal fees from Ultragenyx pharmaceutical, during the conduct of the study; LS reports grants and personal fees from Avexis, grants and personal fees from Biogen, grants and personal fees from Roche, personal fees from Cytokinetics, personal fees from Sarepta, personal fees from Biophytis, personal fees from Pfizer, personal fees from Catabasis, personal fees from Lupin, grants and personal fees from Dynacure, personal fees from Audentes, outside the submitted work; PGC reports personal fees from Santhera, personal fees from Sanofi, personal fees from Sarepta, outside the submitted work. The authors have no other conflicts of interest to declare.

Ethical Statement: Healthy control subjects were scanned as part of a methodology NMRI/S protocol approved by the local ethics committee (CPP-Ile de France VI – Groupe Hospitalier Pitié-Salpêtrière, ID RCB: 2012-A01689-34) and informed consent was obtained from all controls and patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
