Quantitative assessment of renal allograft pathologic changes: comparisons of mono-exponential and bi-exponential models using diffusion-weighted imaging

Introduction

With advances in perioperative management, the short-term survival rate of kidney transplants has improved dramatically. Counterintuitively, no significant improvements in long-term prognosis have been documented (1). Post-transplant complications, such as rejection and glomerulonephritis, could reduce the allograft survival rate to varying degrees. Both acute (e.g., inflammation) and chronic (e.g., interstitial fibrosis) pathologic changes are common histologic features in biopsy samples from dysfunctional allografts. These pathophysiologic processes reduce the viable number of nephrons and are potent predictors of allograft prognosis (2). Furthermore, the evaluation of allograft pathologic changes also bears therapeutic significance. For example, clinicians tend to treat patients with severe allograft interstitial fibrosis more conservatively, while more aggressive therapies would be much more likely to be offered to those with only mild tubulointerstitial fibrosis. Regrettably, the evaluation of kidney allograft pathologic changes could only be made by biopsies, which is an invasive procedure with potential complications of bleeding, infections, arteriovenous fistula formations, or even death. Therefore, the noninvasive quantification of kidney transplant pathologic changes would significantly facilitate patient management and prognostication assessment.

Diffusion-weighted imaging (DWI) is beneficial in the evaluation of kidney transplants, allowing a noninvasive means of kidney allograft functional characterization (3). Prior studies have consistently found that the apparent diffusion coefficient (ADC) calculated from DWI with a monoexponential model correlated significantly with interstitial fibrosis (4,5). Nonetheless, monoexponential ADC does not consider the physiological process of microcapillary perfusion. By contrast, recent advances suggest that the bi-exponential models could more accurately characterize the molecular diffusion of water than mono-exponential models by separating true diffusion from pseudodiffusion caused by the blood microcirculation in capillaries. A recent study by Mao et al. (6) reported that intravoxel incoherent motion DWI (IVIM-DWI) could also characterize pathologic lesions in the kidneys. However, the capability of DWI parameters derived from both mono-exponential and bi-exponential models to assess kidney allograft pathologic changes has not been compared, and it remains unclear which model is superior for categorizing kidney transplant pathologic changes. Moreover, earlier studies have focused on evaluating kidney fibrosis (4-8), but few have explored the capability of DWI to evaluate acute pathologic changes.

Thus, this study aimed to compare the diagnostic performances of bi-exponential IVIM-DWI with that of mono-exponential data analysis for evaluating the severity of pathologic changes in a cohort of kidney transplant patients, using histopathology as the reference standard.

Methods

Patients

This prospective study was approved by the local institutional review board, and written informed consent was obtained from all patients. Patients with allograft dysfunction (rising serum creatinine and/or proteinuria) who required allograft biopsy for differential diagnoses between July 2017 and April 2018 were recruited and examined. Patients with general contraindications to magnetic resonance imaging (MRI) were excluded from participation (n=4). In total, 50 patients were examined, of which 3 cases were excluded from the final analysis due to a lack of biopsy (n=1) and severe image motion artifacts (n=2). Finally, data from 47 patients (33 males and 14 females, mean age 38.2±10.9 years, and age range 18–63 years) were analyzed. The demographics and baseline characteristics of the included patients are shown in Table 1.

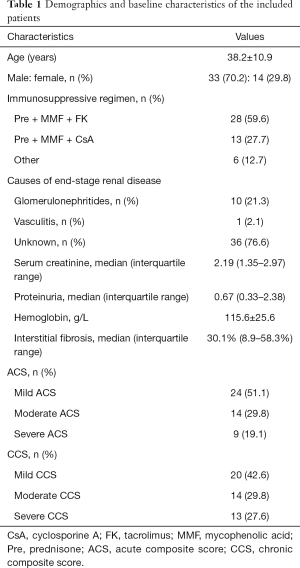

Table 1 Demographics and baseline characteristics of the included patients
Full table

MRI acquisition

All patients underwent MRI imaging using a 3.0 Tesla clinical MRI imaging unit (Discovery MR 750; General Electric Medical Systems, Milwaukee, WI, USA) and a 32-channel torso coil. Conventional coronal T1- and axial T2-weighted images were routinely acquired. Multi-b DWI was performed by using a respiration-triggered echo-planar sequence in the axial plane under the following parameters: TR, 2,857 ms; TE, 87.2 ms; section thickness, 6 mm; number of slices, 15; field of view (FOV) 38×30.4 cm; matrix, 256×128; number of excitations 2. A total of 11 diffusion gradient b values from 0 to 1,000 s/mm² (0, 10, 30, 50, 70, 100, 150, 200, 400, 800, 1,000) were applied in three diffusion directions. The total scan time for the DWI ranged from 4 to 6 minutes, depending on the respiratory rhythm of the patient.

MRI image analyses

Raw DWI images were transferred to a vendor-supplied imaging workstation (Advantage Workstation 4.6; General Electric Healthcare) and post-processed using the MADC program. Regions of interest (ROI) were drawn manually by two radiologists (YD and LP, both with more than 5 years of experience with abdominal radiology) independently and without referring to the clinical or pathologic results. Each radiologist placed a large ROI to encompass the cortex and three smaller ROIs in the medulla (20–40 mm² each) in each slice for three consecutive peri-hilar slices on the b=0 mm²/s images, as we previously reported (9). A typical example of ROI placement is shown in Figure S1. The ROIs were then copied automatically to the functional maps, whose readings were later averaged to be the cortical and medullary readings for each allograft. Caution was exercised to exclude area/slices with hemorrhages, cysts, or inhomogeneous intensities when delineating ROIs.

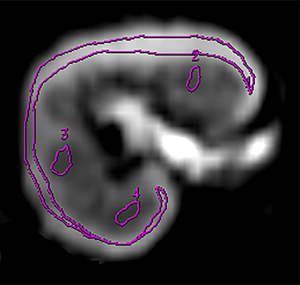

Figure S1 An example of a ROI placement in the kidney allograft. A large ROI and three smaller ROIs were manually placed in the cortex and medulla, respectively. ROI, region of interest.

Mono-exponential and bi-exponential models of DWI

DWI parameters were calculated on a pixel-by-pixel basis. The total apparent diffusion coefficient (ADC_T) was obtained by fitting all 11 b values using a mono-exponential model according to the following equation: S_b/S₀ = exp (–b × ADC_T), where S_b represents the signal intensity at a given b value, and S₀ is the signal intensity for b=0 mm²/s. Perfusion fraction (fp), true diffusion coefficient (D), and perfusion-related pseudo-diffusion coefficient (D*) were calculated by using the bi-exponential intravoxel incoherent motion (IVIM) analysis: S_b/S₀ = (1 – fp) exp (–bD) + fp.exp [–b (D* + D)]. Consistent with earlier studies (10-12), a constrained segmented fitting algorithm was employed. Briefly, initial D value was estimated using a reduced set of b values >200 s/mm², and subsequently, D was kept constant when fitting for the determination of the fp and the pseudo-perfusion D*.

Histologic analysis

A renal allograft biopsy was performed within 1 week after MRI examinations. Slides stained for hematoxylin and eosin, periodic acid Schiff, and Masson’s trichrome stains were routinely prepared for pathologic evaluation. Masson’s trichrome-stained slides were digitized and quantified for tubulointerstitial fibrosis by a semi-automatic calculation of the percentages of areas with blue color with the colocalization algorithm to calculate the burden of interstitial fibrosis (version 9; Aperio Technologies, Inc.) in a digital pathology platform (Aperio Scanscope XT Turbo Scanner, Leica, Wetzlar, Germany) as previously reported (13). The Banff 2015 classification (14) is an international consensus regarding the diagnosis and scoring of allograft pathologies; the calculated tubulointerstitial fibrosis were categorized as mild (<25%), moderate (25–50%) or severe (≥50%).

Kidney allograft acute and chronic pathologic changes were retrieved from the pathology report that routinely reported Banff descriptor scores. The acute changes of interstitial inflammation, peritubular capillaritis, glomerulitis, and tubulitis were each scored from 0 to 3. According to the transplantation literature, a score of 0 indicated the absence of this lesion while a score of 3 denoted the most severe changes (15). The score of each acute pathologic lesion was summed up to reach an acute composite score (ACS) that reflected the overall severity of acute changes. Similarly, a chronic composite score (CCS) was generated for better characterization of chronic pathologic changes, which included interstitial fibrosis, tubular atrophy, vascular intimal thickening, and chronic glomerulopathy. The scoring of each chronic lesion was like that described for acute pathologic lesions. A detailed description of the scoring system for acute and chronic pathologic lesions is described in Table S1. ACS and CCS were arbitrarily divided into three categories, with 0–4, 5–8, and 9–12 standing for mild, moderate, and severe changes, respectively.

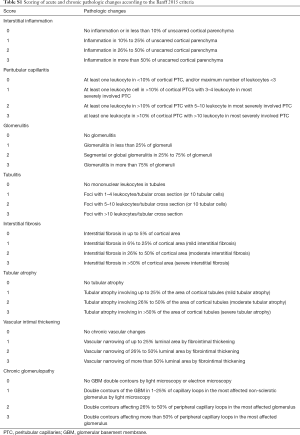

Table S1 Scoring of acute and chronic pathologic changes according to the Banff 2015 criteria
Full table

Statistical analysis

The inter-rater observer agreement was assessed by calculating the intraclass correlation coefficient (ICC). The correlations between DWI parameters and tubulointerstitial fibrosis, ACS, and CCS were evaluated by the Pearson’s or Spearman’s correlation analysis, as appropriate. Receiver-operating characteristic (ROC) curves were used to evaluate the diagnostic performances of both mono-exponential and bi-exponential parameters for distinguishing mild from moderate and severe ACS/CCS/tubulointerstitial fibrosis as well as mild and moderate from severe ACS/CCS/tubulointerstitial fibrosis. The areas under the curve (AUCs) for the significant parameters were compared, as reported previously (16). We also calculated the sensitivity and specificity for parallel or serial use of D and fp at each optimal cutoff point. A P value of <0.05 was considered statistically significant in two-sided tests.

Results

Measurement reproducibility

The ICCs for cortical and medullary ADC_T were 0.903 and 0.894 respectively, the ICCs of cortical D and fp were 0.837 and 0.874 respectively, and the ICCs of medullary D and fp were 0.825 and 0.883 respectively. The DWI parameters from both raters thus averaged and used for subsequent analysis.

Correlations between DWI parameters and pathologic lesions

Mono-exponential ADC_T and bi-exponential D & fp in both the cortex and medulla were all inversely correlated with ACS, CCS, and interstitial fibrosis (Table 2). The correlation coefficient was the largest between ACS and cortical fp (ρ=0.68), CCS and medullary ADC_T (ρ=0.77), and interstitial fibrosis and cortical ADC_T (r=0.79).

Table 2 Correlations between DWI parameters and histopathologic changes
Full table

Comparison of mono-exponential and bi-exponential models for assessing acute pathologic changes

Allografts with moderate and severe ACS had significantly reduced ADC_T, compared with those with only mild ACS. Figure 1 illustrates typical images of DWI functional analysis in an allograft with mild ACS and one with severe ACS. As summarized in Table 3, ROC curve analysis indicated that cortical fp and ADC_T distinguished mild from moderate and severe ACS with the largest AUC of 0.89 [95% confidence interval (CI), 0.77–0.96] and the highest specificity of 100% (95% CI, 85.2–100%). Noticeably, only cortical fp could differentiate severe ACS from mild and moderate ACS (P<0.001) with an AUC of 0.80 (95% CI, 0.65–0.90) and a sensitivity of 100% (95% CI, 66.4–100%). Therefore, cortical fp was superior to the ADC_T for finding both mild and severe acute pathologic changes

Figure 1 Pathologic slides and functional DWI maps in an allograft with no acute pathologic changes (A,B,C,D,E) and one with severe acute pathologic changes (F,G,H,I,J). (A) Preserved renal architecture with no inflammation (PAS stain, scale bar 100 µm); (B) b=0 image for the allograft shown in (A); (C,D,E) ADCT, D, and fp maps respectively for the allograft with pathology shown in (A); (F) a biopsy showing distorted renal architecture with avid inflammation (PAS stain, scale bar 100 µm); (G) b=0 image for the allograft shown in (F); (H,I,J) ADCT, D, and fp maps respectively for the allograft with pathology shown in (F); the values in (H,I,J) correspondingly decreased as compared with (C,D,E). DWI, diffusion-weighted imaging; ADCT, total apparent diffusion coefficient; D, true diffusion; fp, perfusion fraction.

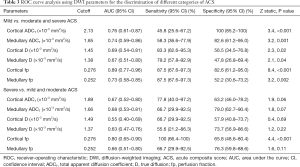

Table 3 ROC curve analysis using DWI parameters for the discrimination of different categories of ACS
Full table

Comparison of mono-exponential and bi-exponential models for characterizing interstitial fibrosis

When looking at the ROC curve analysis in distinguishing mild fibrosis from moderate and severe fibrosis (Table 4), AUCs for cortical and medullary ADC_T were significantly different compared to medullary D (0.92 vs. 0.81, P=0.04; 0.93 vs. 0.81, P=0.03 respectively) and fp (0.92 vs. 0.72, P=0.008; 0.93 vs. 0.72, P=0.006 respectively), but similar to cortical D (0.84, 95% CI, 0.71–0.93) and fp (0.83, 0.69–0.92). Furthermore, cortical ADC_T had the largest AUC of 0.86 (95% CI, 0.72–0.94) and a specificity of 100% (89.1–100.0%) for identifying severe interstitial fibrosis. However, the AUCs by ADC_T, D, and fp in both the cortex and medulla were not statistically significant.

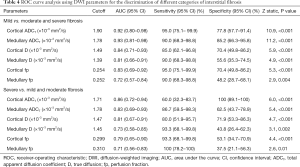

Table 4 ROC curve analysis using DWI parameters for the discrimination of different categories of interstitial fibrosis
Full table

Comparison of mono-exponential and bi-exponential models for differentiating chronic pathologic changes

Since interstitial fibrosis is just a part of chronic change, we then further evaluated the ability of DWI parameters to assess the CCS. Table 5 shows that both cortical ADC_T, medullary ADC_T, cortical D, and fp distinguished mild CCS from moderate to severe CCS with good AUCs (AUC from 0.81 to 0.90). For identifying mild CCS, the AUC of medullary ADC_T (0.90, 95% CI, 0.78–0.97) was similar to that of cortical D (0.81, 95% CI, 0.67–0.91) and fp (0.86, 95% CI, 0.73–0.94), but statistically larger than that of medullary D (P=0.005) and fp (P=0.01). The AUCs for differentiating between severe and mild and moderate CCS were statistically insignificant among ADC_T, D, and fp in the cortex and medulla (P≥0.15).

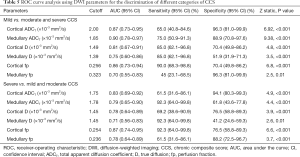

Table 5 ROC curve analysis using DWI parameters for the discrimination of different categories of CCS
Full table

Combining D and fp for assessing renal allograft pathologic changes

As shown in Table 6, a maximal sensitivity of 100% (95% CI, 85.8–100%) was obtained with the parallel use of cortical D and cortical/medullary fp for distinguishing mild from moderate and severe ACS. Strikingly, the joint use of D and fp in either the cortex or the medulla could achieve a sensitivity of 100% for identifying either mild or severe interstitial fibrosis. In the meantime, the serial use of cortical D and cortical fp could result in the largest specificity for identifying both mild [88.9% (95% CI, 70.8–97.6%)] and severe [84.4% (95% CI, 67.2–94.7%)] interstitial fibrosis. Furthermore, parallel use of cortical D and cortical fp could increase the sensitivity for distinguishing mild from moderate and severe CCS to 95.0% (95% CI, 75.1–99.9%), whereas the serial use of medullary D and medullary fp could increase specificity to 100% (95% CI, 87.2–100%). However, for differentiating severe from mild and moderate CCS, a maximal specificity of 100% (95% CI, 89.7–100%) was attained by serial use of cortical D and medullary fp.

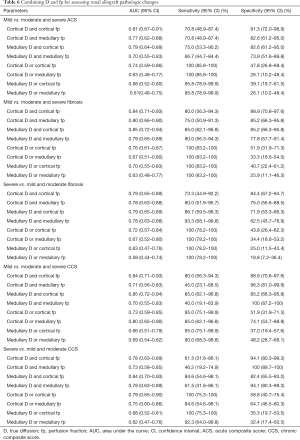

Table 6 Combining D and fp for assessing renal allograft pathologic changes
Full table

Discussion

The noninvasive assessment of renal allograft acute and chronic pathologic lesions are helpful for tailoring management and predicting prognosis. In this study, we found that cortical fp calculated by the bi-exponential model was strongly correlated with acute pathologic lesions and was superior to ADC_T for identifying severe acute pathologic changes. By contrast, ADC_T was equal to or better than single D or fp for characterizing interstitial fibrosis and chronic pathologic changes. Nonetheless, combined use of D and fp could increase the sensitivity and specificity in discriminating allograft pathologic changes severity.

Acute pathologic lesions are histologically characterized by inflammatory cell infiltration, forming typical features of interstitial inflammation, glomerulitis, tubulitis, and peritubular capillaritis. Clinically, these types of changes can be ameliorated or even completely dissipated with the treatment of glucocorticoids. However, the evaluation of acute pathologic changes received little attention in the literature in relation to renal DWI. Inflammatory cell infiltration may partially account for the decreased ADC_T, which is particularly sensitive to water diffusion restriction caused by increased cellular density. In line with this, Notohamiprodjo et al. (17) reported a significant negative correlation between ADC_T and interstitial inflammation (r=–0.73) in rat models of kidney transplant rejection.

Although both cortical and medullary ADC_T correlated with ACS and could identify early mild ACS with moderate AUC, they could not be used to distinguish severe from mild and moderate ACS. By contrast, cortical fp demonstrated a strong correlation with ACS and can be used to identify both mild and severe ACS with good AUC. According to the IVIM imaging theory proposed by Le Bihan et al. (18), fp correlated with the blood microcirculation in the capillary network. Nevertheless, studies have shown that fp in the kidney may also be related to the tubular flow (19). It may be explained by a decreased fp being related to reduced transplant capillary perfusion with an increasing ACS, as it has been reported that kidney blood microcirculation, as assessed by ultrasound, diminished in a peritubular capillaritis-dependent manner in kidney allografts (20).

Interstitial fibrosis is an irreversible lesion that has received considerable attention in the literature in regards to the native kidneys. At least a dozen studies have explored the utility of DWI for assessing interstitial fibrosis either in animal models or human subjects (4-8,13,21-27). However, the diagnostic performances of mono-exponential and bi-exponential models, to the best of our knowledge, have been scarcely compared. In the present study, we found that the AUCs from cortical and medullary ADC_T demonstrated no significant differences with those from cortical D and fp, suggesting that cortical IVIM-DWI parameters and ADC_T are complementary for assessing renal allograft tubulointerstitial fibrosis. These results are consistent with a prior study by Wang et al. (13) who found that both cortical fp and ADC_T distinguished mild from moderate and severe fibrosis (0.81 vs. 0.87, P>0.05) and severe from mild and moderate fibrosis (0.86 vs. 0.88, P>0.05) with similar AUCs. Nevertheless, combining fp and D could yield a sensitivity of 100% for identifying severe interstitial fibrosis, which was consistent with the study by Wáng et al., demonstrating that fp may be the most sensitive parameter for assessing liver fibrosis (28).

In addition to interstitial fibrosis, pathologic changes of tubular atrophy, chronic glomerulopathy, and vascular intimal thickening are also irreversible and should be routinely assessed and reported. Earlier studies have concluded that ADC correlated with chronic pathologic lesions (29), which was congruent with the good-to-excellent diagnostic performances calculated from the ROC curve analysis in the present study. Additionally, we found that ADC_T was equal to or better than some IVIM-DWI parameters for evaluating chronic pathologic changes. These results emphasize that ADC_T is still a robust parameter for evaluating chronic pathologic burden, but cortical D and fp could also provide useful information.

Of further interest, we showed that the combined use of D and fp could significantly increase the sensitivity or specificity for discriminating allograft pathologic changes severity. This result is consistent with the finding by Ni et al. indicating that the combined use of cortical D and medullary fp could increase the specificity in identifying allografts that need clinical intervention (30). Given that IVIM-DWI parameters D and fp denote disparate pathophysiologic processes, it is not surprising that their combined use would characterize tissue microstructure changes more accurately.

Undoubtedly, the results of this study would be influenced by the number and strength of the gradient b values, for which there is no consensus to date. For instance, it is known that D is determined by higher b values (>100 s/mm²), while D* is significantly influenced by lower b values. The number of b values used in the literature ranges from 1 to 16 (31), with strength generally no more than 1,500 s/mm² (32).

The results of the present study are subject to several limitations. First, the ROI in this study encompassed the entire renal parenchyma, while the biopsy sampled was only from a small region. Second, the patient population was small. Third, ROIs were drawn manually, which is time-consuming and may introduce potential biases. There are other studies that have used automatic segmentation and convolutional neural networks (33,34) which can increase the measurement reproducibility and reduce labor, respectively. Finally, the IVIM parameter D* was not assessed in this study, since it has been reported that D* suffers from a notoriously low reproducibility that significantly impairs its clinical utility (35,36).

In conclusion, we showed that cortical fp was superior to the ADC_T for identifying both mild and severe acute pathologic changes. Nevertheless, ADC_T was equal to or better than single D or fp for evaluating chronic pathologic changes. Thus, both mono-exponential and bi-exponential analysis of DWI images are complementary in evaluating kidney allograft pathologic changes, and the combined use of D and fp can increase the sensitivity and specificity for discriminating allograft pathologic changes severity.
