Diffusion-weighted EPI- and HASTE-MRI and 18F-FDG-PET-CT early during chemoradiotherapy in advanced head and neck cancer

Introduction

Patients with resectable advanced staged head and neck squamous cell carcinomas (HNSCC) are currently often treated with non-surgical protocols to preserve organ function and to maintain quality of life (1,2). Although chemoradiotherapy (CRT) results in acceptable locoregional control rates, recurrence rates remain considerable (2,3). If residual or recurrent disease is detected after CRT, surgical ‘salvage’ treatment may be an option, but ‘salvage’ surgery is often associated with substantial morbidity and complications (4,5). Prediction of treatment outcome early during treatment might avoid ineffective treatment in certain patients and would allow a treatment switch to surgery in these patients (6).

Diffusion-weighted magnetic resonance imaging (DW-MRI) has been suggested as a predictive factor for response of tumor to CRT (7). DW-MRI characterizes tissue based on differences in water mobility, which is related to cellularity (8). These differences can be quantified with Apparent Diffusion Coefficient (ADC): hypercellular tissue (e.g., malignancy) is characterized by a low ADC, whereas hypocellular tissue with necrosis or apoptosis is characterized by a high ADC (9). Conceptually, response to treatment should correspond to an increase in ADC, because treatment-induced loss of tumor cells increases water mobility at the microscopic level. In contrast, residual tumor cells might be detected as decreased ADC-values (10). Several studies have indicated the potential of DW-MRI as a predictor of treatment response in HNSCC (11-13).

DW-MRI in HNSCC is most commonly performed with an echo-planar imaging (EPI)-sequence (11-13). It may be difficult to perform DWI of the head and neck area, because this region is very inhomogeneous and susceptible to artefacts. EPI-DWI is particularly prone to geometric distortions due to susceptibility artefacts (14). DW-MRI is a potential technique for tumor definition in radiotherapy planning, but accurate target definition is essential. Also, with PET/MRI spreading in the clinical field, geometrical accuracy is crucial for fusing PET-images with DW-MRI images. If artefacts with EPI-DWI are too detrimental, a non-EPI method such as half-fourier acquisition single-shot turbo spin-echo (HASTE), may be a better alternative (15). Verhappen et al. compared EPI- with HASTE-DWI in HNSCC and concluded that EPI images showed more geometric distortions (15). A comparative study between EPI- and HASTE-DWI in HNSCC for prediction of locoregional control after CRT has not been performed previously.

Tumor metabolism is another potential predictor and can be studied with positron emission tomography (PET). 18F-fluorodeoxyglucose (18F-FDG), a radiolabeled glucose analogue, is used to measure glucose metabolism in malignant tissues. Clinical studies report associations between decline in 18F-FDG uptake in the early phase of CRT and a positive therapy outcome (16-18).

The aim of this pilot study was twofold. First, the purpose was to compare HASTE-DWI with EPI-DWI and 18F-FDG-PET (-CT) early during CRT for their potential to predict locoregional outcome in patients with HNSCC. Secondly, we wanted to correlate changes in ADC- and SUV-values between pretreatment and early during treatment.

Materials and methods

Patients and study design

Eight patients with histological proven advanced (T2, T3 or T4) oro- or hypopharyngeal carcinoma (with a total of 7 primary tumors and 25 lymph node metastases) scheduled for primary CRT with curative intent, were enrolled in this prospective pilot study (Table 1). The study was approved by the institutional ethics committee and complies with the Declaration of Helskini. Informed consent was obtained in all patients. Routine pretreatment examinations included 18F-FDG-PET(-CT) (PET₁), MRI and a panendoscopy with biopsies. For study-purposes, EPI- and HASTE-DWI were added (DW-MRI₁). A second MRI with additional DW-MRI (DW-MRI₂) and a second 18F-FDG-PET(-CT) (PET₂) were performed 14 days (±1 day) after the start of radiotherapy (20±2 Gy). DW-MRI₂ and PET₂ were not used for clinical assessment. All patients received cisplatin-based CRT (n=6) or cetuximab-based CRT (n=2). A radiation dose of 70 Gray (Gy) in 2 Gy/fraction was delivered and elective nodal regions received a dose of 54.25-57.75 Gy in 1.55-1.65 Gy/fraction. All patients completed radiotherapy, but toxicity precluded complete cisplatin-CRT in one patient.

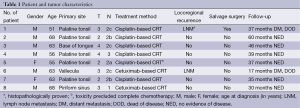

Table 1 Patient and tumor characteristics
Full table

During follow-up, patients were regularly examined according to our standard head-and-neck oncology protocol. Routine response evaluation was performed three months after CRT, using DW-MRI (DW-MRI₃), 18F-FDG-PET(-CT) (PET₃) and an examination under general anaesthesia. Median follow-up was 38 months (range, 17-60 months). Additional investigations during follow-up were performed at the discretion of the attending physician. Locoregional control was defined as persistent complete regression of the primary tumor and lymph nodes during follow-up. A timeline illustrating the consecutive methodological steps in the study is shown in Figure 1.

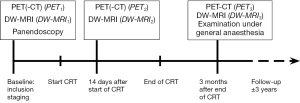

Figure 1 Timeline illustrating the consecutive methodological steps in the study.

DW-MRI

MRI was performed using a 1.5 Tesla MR imaging system (Sonata; Siemens, Erlangen, Germany) with a head coil combined with a phased array spine and neck coil. After an axial short TI inversion-recovery (STIR)-series with 7-mm sections covering the entire neck area, subsequent images were centered on the area of interest containing the primary tumor and enlarged lymph nodes. Axial images (22 slices of 4-mm slice thickness and 0.4-mm gap, in-plane pixel size of 0.9 mm × 0.9 mm) were obtained with STIR (TR/TE/T1 =5,500/26/150 ms, 2 averages) and T1-weighted (T1WI) spin-echo (TR/TE =390/140 ms, 2 averages, no fat saturation) before and after the injection of contrast material. Gadovist (0.1 mL/kg of gadobutrol), Magnevist (0.2 mL/kg gadopentetate dimeglumine; both Bayer Schering Pharma, Berlin-Wedding, Germany) or Dotarem (0.2 mL/kg of gadoteric acid; Guerbet, Aulnay-sous Bois, France), was intravenously administered to obtain contrast-enhanced T1WI.

DWI with both EPI- and HASTE-techniques was obtained for the same 22 slices at the same slice position as the axial STIR and T1WI. Parameters for EPI were the following: TR/TE =5,000/105 ms, in-plane pixel size =2 mm × 2 mm, and b values =0, 500 and 1,000 s/mm² (3 averages). Parameters for HASTE were: TR/TE =900/110 ms, in-plane pixel size=1.1 mm × 1.1 mm, and b values =0 s/mm² (3 averages) and 1,000 s/mm² (12 averages). ADC maps of both EPI- and HASTE-DWI were calculated on-line or off-line, respectively, by using the software of the scanner.

18F-FDG-PET(-CT)

All patients fasted for at least 6 hours. Mean serum glucose levels were 6.5 mmol/L, with a range from 4.3 to 11.2 mmol/L. 186-367 MBq of 18F-FDG, depending on the body mass index and PET system used, was intravenously injected. PET₁ consisted of at least a whole-body PET (mid-femur to cranial vault) in all patients plus head and neck imaging (jugulum to orbit) in four patients, whereas PET₂ and PET₃ only comprised PET images of the head and neck region. In two patients, PET imaging was performed using a full-ring BGO PET scanner (ECAT EXACT HR+, CTI/Siemens, Erlangen, Germany; 2D-mode; 5 min emission scans/bed position, 2-min transmission scans using Ge-68 rod sources). PET-scanning started at sixty minutes (±15) post injection (p.i). of 18F-FDG. The PET-images were reconstructed using ordered subset expectation maximisation (OSEM) with 2 iterations and 16 subsets, an image matrix size of 128×128, resulting in voxel sizes of 5 mm × 5 mm. A 5-mm FWHM Gaussian post-reconstruction filter was applied, resulting in a final image resolution of 7 mm FWHM. During reconstruction all corrections needed for quantification were applied, such as decay, attenuation, scatter, dead time and normalisation corrections. In the other patients, PET-imaging was performed using an integrated PET-CT system (Gemini TF, Philips Medical Systems, Best, the Netherlands; 3D-mode; 2 min emission scans/bed position). Low dose CT scanning was performed with 120 kV and 50 mAs prior to emission scanning and used for attenuation correction of the emission scan and for anatomical localisation of FDG-avid lesions. In three patients, PET imaging was performed 60 minutes (±15) p.i. and in three patients PET was performed 90 minutes (±15) p.i. PET-CT data were reconstructed using a time of flight row-action maximum likelihood algorithm, as implemented by the vendor. Final image matrix size equals 170×170 with a voxel size of 4 mm × 4 mm × 4 mm. Final image resolution equalled 7 mm FWHM. Serial PET-CT studies in a single patient were performed using the same scanner, uptake time, acquisition and reconstruction protocols.

Analysis of MRI data

DW-MRI scans were analysed by a radiologist (J.A.C.) with 29 years of experience in head and neck radiology. Clinical information was provided about TNM stage, but the interpreter was blinded to clinical outcome. DW-MRI₁, DW-MRI₂ and DW-MRI₃ were simultaneous analysed on PACS (Sectra RIS/PACS version 12, Sectra Imtec AB, Linköping, Sweden) that allowed viewing of multiple MRI scans. All primary tumor and metastatic lymph nodes with a minimal axial diameter >5 mm were included. A lymph node was considered metastatic if proven by fine needle aspiration cytology or indicated by increased 18F-FDG uptake on PET(-CT) scan. All included lesions were identified on baseline images and corresponding lesions on DW-MRI₂ and DW-MRI₃ were identified by visual and slice position-based correlation. For each lesion, contours were manually drawn on the conventional MR images by J.A.C. around the lesional border at each slice position to measure total tumor volume. The volume of the lesions was calculated as the sum of the surfaces at each slice position multiplied by slice thickness and the interslice gap. Volume changes (ΔV_X) in % in relation to DW-MRI₁ were calculated using the formula:

ΔV_X= [(V_X – V_B)/ V_B]*100

where V_B represents baseline volume and V_X represents volume on the X^th time point during or after treatment. A composite of all included lymph nodes was used to calculate the change in nodal volume.

Thereafter, ADC-values were calculated by drawing a region of interest (ROI) on a single slice of an axial EPI- and HASTE-ADC map, containing the largest available tumor area. The sets of DWI were evaluated independently from each other. For solid lesions, ROIs were drawn encompassing the entire lesion. In case of necrotic components, ROIs were drawn in that area of the lesion that showed contrast-enhancement in the corresponding post-contrast T1WI. ADC was measured before, during and after treatment in those patients with a residual enlarged lymph node. It was impossible to reliably draw a ROI if lymph node metastases had strongly shrunk due to the treatment. The lowest ADC-value of all pathologic lymph nodes in one patient (ADC_low) was considered a representative measure for follow-up, as suggested by Wahl et al. for PET (19). ADC-changes (ΔADC_X) in % in relation to baseline were calculated, similar to changes in volume.

Analysis of PET(-CT) data

PET images were independently interpreted by two nuclear medicine physicians with each 15 years PET experience (O.S.H. and E.F.C.) in head and neck oncology. PET-images were assessed on the presence of foci of increased activity within the tumor greater than surrounding background. PET readers had access to clinical information and DW-MRI₁ for anatomic correlation, but were blinded to the report of the radiologist and clinical outcome. PET(-CT) images were displayed on a standard workstation allowing simultaneous viewing of coronal, sagittal and transverse planes, with cross-referencing, as well as a 3-dimensional rotation projection. In case of discrepant interpretations a consensus was reached after discussion.

Standardized uptake values (SUV) were calculated as SUV_max (highest tumor voxel value within the lesion) and SUV_mean (average SUV within the lesion) by C.S.S., under supervision of O.S.H., measured in the primary tumors and in the (up to 3) largest lymph nodes, using previously described methodology (20). SUVs were normalized for body weight and serum glucose. If, after treatment, no lesions with increased 18F-FDG uptake were visible, a ROI of 3×3×3 voxels was drawn at the initial location of the primary tumor and/or lymph nodes. SUV-changes (ΔSUV_X) in % in relation to baseline were calculated.

Statistics

Statistical analyses were performed using SPSS software package (version 20.0; IBM Corp., Armonk, NY, USA). The level of significance was set at P<0.05. A two-sided nonparametric exact Wilcoxon signed rank test was used for paired data comparisons between primary tumor parameters from the first and second DW-MRI or 18F-FDG-PET(-CT). A two-sided Mann-Whitney U test was used for group comparisons; regional control versus regional recurrent disease. To evaluate correlations between ΔADC and ΔSUV, a Spearman’s correlation coefficient was used.

Results

Imaging

DW-imaging before and during treatment was conducted in all patients according to the study protocol. PET(-CT) imaging and reconstruction was not correctly performed in all patients due to different logistic difficulties, as indicated in Tables 2,3. All primary tumors were detected with DW-MRI (both EPI- and HASTE-technique) and PET(-CT) except in one patient, in whom the primary tumor had been resected transorally in another hospital. ADC- and ΔSUV-values of the primary tumor and nodal metastases at baseline and during treatment are shown in Tables 2,3.

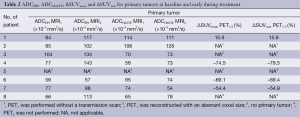

Table 2 ADC_EPI, ADC_HASTE, ΔSUV_mean and ΔSUV_max for primary tumors at baseline and early during treatment
Full table

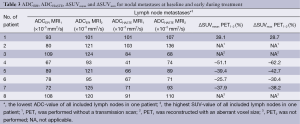

Table 3 ADC_EPI, ADC_HASTE, ΔSUV_mean and ΔSUV_max for nodal metastases at baseline and early during treatment
Full table

Treatment outcome

Six out of eight patients remained disease-free during follow-up. In two patients a regional recurrence was diagnosed; at 17 and 29 months posttreatment. No local recurrences were detected. One salvage neck dissection was performed with histopathologically proven lymph node metastases in the surgical specimen. In the other patient, regional recurrence was presumed on the basis of clinical examination and ultrasound imaging. This patient died (of a carotid blow-out) before histopathological diagnosis was obtained.

Primary tumor

Figure 2 represents the pattern of change in ADC_EPI and ADC_HASTE. With EPI-DWI, six patients showed a substantial ADC-increase from DW-MRI₁ to DW-MRI₂, whereas ADC_EPI increased with only 1.8% in patient 6 on DW-MRI₂. With HASTE-DWI, three patients showed a substantial ADC-increase on DW-MRI₂ compared to DW-MRI₁. ADC-values in the other four patients did not show a substantial increase or showed a decrease. Volume, ADC-, ΔADC- and ΔSUV-values of the primary tumors are listed in Table 4. Median pretreatment ADC_EPI was 77×10^–5 (SD 15.2) mm²/s, significantly increasing to 113×10^–5 (SD 27.8) mm²/s (P=0.02) early during treatment. Median ADC_HASTE values were 74×10^–5 (SD 21.1) mm²/s and 74×10^–5 (SD 25.6) mm²/s.

Figure 2 Patterns of change in ADC_EPI (A) and ADC_HASTE (B) between DW-MRI₁, DW-MRI₂ and DW-MRI₃ of the primary tumor. The DW-MRI after treatment was not conducted using study protocol in patient 7 and patient 8.

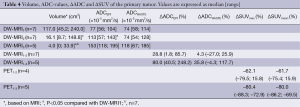

Table 4 Volume, ADC-values, ΔADC and ΔSUV of the primary tumor. Values are expressed as median [range]
Full table

Visual interpretation of PET₂ still showed a focus of increased activity within the tumor in four patients. ΔSUV_max decreased with 62.1%±43.1% (median ± SD) and ΔSUV_mean with 61.7±41.8 from PET₁ to PET₂.

Lymph node metastases

An example of DW-MRI₁ and DW-MRI₂ in a patient with a regional recurrence is shown in Figure 3. At baseline, median ADC-values of patients with regional control (ADC_EPI: 87.5×10^–5 mm²/s and ADC_HASTE: 76.7×10^–5 mm²/s) and those with recurrent disease (ADC_EPI: 85.5×10^–5 mm²/s and ADC_HASTE: 84.0×10^–5 mm²/s) were similar (P=0.89 and P=0.74, respectively). At DW-MRI₂, ADC_low with EPI tended to be (not statistically significant, P=0.18) higher for six patients with regional control [(117.3±12.1)×10^–5 mm²/s] than for the patients with a recurrence [(98.0±4.2)×10^–5 mm²/s]. With HASTE-DWI this difference was not seen [(93.5±26.7)×10^–5 versus (89.0±25.5)×10^–5 mm²/s, P=0.74] (Figure 4A). ΔADC_low-2weeks with EPI tended to be higher for patients with regional control than for recurrences (37.4%±23.5% versus 15.2%±9.3%, P=0.18). ΔADC_low-2weeks with HASTE also tended to be higher for patients with regional control (27.4%±27.1% versus 6.0%±0.02%, P=0.18) (Figure 4B).

Figure 3 Axial images showing a metastatic node (arrows) in patient number 1 in whom recurrent viable squamous cell carcinoma was diagnosed histopathologically in level II right during follow-up. DW-MRI₁ (top row) and DW-MRI₂ (bottom row): (A) STIR; (B) contrast-enhanced T1WI; (C) ADC maps with EPI technique and (D) ADC maps with HASTE technique. ADC_EPI-values of the lymph node (arrow) are 99×10^–5 and 102×10^–5 mm²/s for DW-MRI₁ and DW-MRI₂, respectively. ADC_HASTE-values are 106×10^–5 and 118×10^–5 mm²/s. Four years after completion of CRT this patient died due to lung metastases.

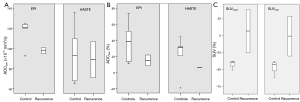

Figure 4 Comparison of lymph node (A) ADC_low at DW-MRI₂, (B) ΔADC_low-2weeks (in %) and (C) ΔSUV_2weeks (in %), in six patients with regional control and two patients with recurrent disease. Box-whisker plots are presented with median (–), interquartile range (box), and range (–).

ΔVolume_2weeks in six patients with regional control was –38.9%±42.5% (mean±SD) and 13.0%±9.2% in the two patients with a lymph node recurrence (P=0.74). Both patients with a regional recurrence were visually interpreted as a non-complete response on PET₂. Of the patients with regional control, in two patients no focus of increased activity within the lymph nodes was seen, whereas in three patients a focus was still seen. A trend was seen for more change in SUV_max in patients with regional control than in patients with a regional recurrence. ΔSUV_max-2weeks in regional control was –47.7%±12.7% and –0.8%±41.8% in regional recurrences. ΔSUV_mean-2weeks in patients with regional control was –42.8%±7.2% and 6.7%±45.8% in patients with a recurrence (P=0.08) (Figure 4C).

Correlation between ADC and SUV

For the primary tumors, no correlation were found between ΔADC_EPI-2weeks and ΔSUV_mean-2weeks or ΔSUV_max-2weeks (P=0.80) or between ΔADC_HASTE-2weeks and ΔSUV_mean-2weeks or ΔSUV_max-2weeks (P=0.60). For the lymph node metastases, no correlation was seen in ΔADC_EPI-2weeks and ΔSUV_mean-2weeks (spearman’s rho =–0.70, P=0.19) or ΔSUV_max-2weeks (spearman’s rho =–0.40, P=0.6). A significant negative correlation was found between ΔADC_HASTE-2weeks and ΔSUV_max-2weeks (spearman’s rho =–0.90, P=0.04) and ΔSUV_mean-2weeks (spearman’s rho =–1.0, P=0.01) (Figure 5).

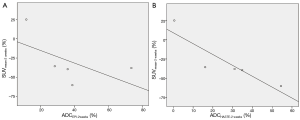

Figure 5 Correlation for the lymph node metastases between (A) ∆ADC_EPI-2weeks and ∆SUV_mean-2weeks and (B) ∆ADC_HASTE-2weeks and ∆SUV_mean-2weeks.

Discussion

CRT is a standard therapeutic option for patients with advanced stage HNSCC, also if technically resectable. Identification of non-responders early during CRT may spare a number of patients from a futile extensive treatment. Several results in HNSCC studies suggest that changes in ADC measured with an EPI-DWI technique early during CRT are associated with locoregional response (11-13). However, EPI-DWI suffers from geometrical distortions, especially in regions with air-tissue transitions such as in the head and neck area. Consequently, the use of EPI-DWI in radiotherapy planning and in simultaneous PET/MRI imaging may be limited. In this pilot study, we wanted to explore the use of a non-EPI DWI method, because such DWI sequences are more robust concerning geometric accuracy. We compared EPI-DWI with HASTE-DWI early during CRT for their potential to predict locoregional outcome. Our preliminary results suggest that EPI-DWI seems to have greater potential in predicting locoregional outcome early after start of CRT than HASTE-DWI. Although HASTE-DWI has a lower incidence of geometric distortions as compared to an EPI-DWI (15), this technique seems to fail in early CRT response prediction in HNSCC.

CRT induces loss of tumor cells and thus increases water mobility at the microscopic level. Response to treatment corresponds to an increase in ADC. This treatment-induced ADC-increase has been confirmed in several HNSCC-studies. Kim et al. showed a significant ADC increase in responding, compared to non-complete responding metastatic lymph nodes from HNSCC, one week after initiation of radiotherapy (11). Unlike the study of Kim et al., our DWI sequences covered the neck completely instead of only the metastatic lymph node and analysis also included the primary tumor. In a second study, King et al. analysed primary tumors and lymph nodes together, without differentiating these entities and showed that serial changes in tumor ADC, obtained over the course of treatment, provided a marker for treatment response. A fall in ADC during treatment correlated with locoregional failure (13). In another study with 30 patients, Vandecaveye et al. concluded that ADC-changes of the primary tumor and lymph nodes at 2 and 4 weeks after the start of CRT were significantly associated with locoregional response, in contrast to the change in volume (12). In the head and neck region, DWI is generally performed with an EPI-sequence, as in previous described studies. Our findings using EPI-DWI are compatible with these HNSCC-studies. In contrary to previous studies, we evaluated DWI as a technique to predict treatment response with both EPI- and HASTE-DWI, to explore the application of a non-EPI sequence in this area of research.

DWI is particularly difficult in this region, because it contains a variety of tissues, including bone, fat, muscle, glandular tissue and air. Moreover, movement-related problems, like swallowing, breathing, coughing, speaking and jaw movements impede imaging of the head and neck. This can produce images with strong susceptibility artefacts. EPI-DWI is sensitive to geometric distortions, which is especially strong near interfaces between soft tissue and air or bone. Functional imaging has a crucial role in accurate tumor delineation and defining the targets for radiotherapy planning. 18F-FDG-PET-CT is commonly used for treatment planning. DW-MRI might has additional value in treatment planning, because DW-MRI can distinguish between reactively enlarged lymph nodes and metastatic lymph nodes (21). Therefore, DW images without geometric distortions are important for fusing PET images with DWI. If artefacts are too detrimental, a non-EPI technique can be used instead of an EPI-technique. MR images performed with an EPI- or non-EPI method, vary concerning contrast, signal-to-noise ratio (SNR) and artefarcts. In HNSCC, Verhappen et al. showed that primary tumors and metastatic lymph nodes are more easily visualized on EPI-DWI compared to HASTE-DWI due to a higher SNR. However, EPI-DWI demonstrated more frequent susceptibility artefacts resulting in geometric distortions (14,15). In the present study, we performed both EPI- and HASTE-DWI. As stated above, EPI-DWI might have greater potential in predicting locoregional outcome and HASTE-DWI seems to provide inadequate information. Up to now, it is uncertain which DWI-technique is most appropriate in head-and-neck imaging. However, our study contributes to the general opinion that EPI-DWI probably is the most promising technique in oncologic imaging in the head and neck region. Therefore, further optimization of the EPI-DWI sequence is necessary to reduce image distortions and in order to make this technique useful in radiotherapy planning and simultaneous PET/MRI imaging.

18F-FDG-PET-CT is another possible modality for treatment prediction. Controversial results on the accuracy of PET to predict treatment outcome in HNSCC patients have been reported. Several authors have concluded that changes in FDG-uptake levels during non-surgical treatment are associated with tumor response, locoregional control and overall survival (16-18). However, Castaldi et al. could not confirm a predictive role for PET-CT performed after 2 weeks of CRT (22). Ceulemans et al. found a low sensitivity for FDG-PET after 47 Gy (23). The interpretation of PET-images can be difficult because of false positive findings, as tracer uptake can also occur in normal tissues, inflammatory tissue or reactive lymph nodes. Besides, optimal timing to assess response with PET-CT during radiotherapy remains a matter of debate, since increases in 18F-FDG-uptake early during treatment have been reported due to radiation-induced inflammatory responses and repair processes (24). We performed PET(-CT) after 20 Gy. At this time, radiotherapy-induced inflammation and 18F-FDG accumulation in the activated macrophages is assumed to be low (25). Most aforementioned studies are performed with stand-alone PET, while PET-CT is the current ‘state of the art’. In the present study PET-CT was performed in most patients, using CT to improve the optimal delineation of the primary tumor and lymph node metastases (ROI).

DW-MRI and 18F-FDG-PET-CT are both imaging techniques used in oncology and have similar clinical applications. However, both modalities represent different aspects of tumor biology; ADC representing tissue cellularity and SUV representing glucose metabolism. A few studies in HNSCC assessed the correlation between pretreatment ADC-values and SUV-values. Nakajo et al. demonstrated a significant inverse correlation between primary tumor SUV_max and ADC in 26 patients (26). Nakamatsu et al. demonstrated this negative correlation between SUV_max and ADCmin also in 41 metastatic lymph nodes (27). Opposite, Fruehwald-Pallamar et al. and Varoquaux et al. did not find a correlation between primary tumor ADC and SUV (28,29). Our present pilot study is the first study to compare changes in ADC and SUV between pretreatment and early during treatment. For the primary tumor, no correlations between ΔADC (with EPI- and HASTE-DWI) and ΔSUV were found. The results for the nodal metastases demonstrated no correlation between ΔADC_EPI and ΔSUV. A significant negative correlation was found between ΔADC_HASTE and ΔSUV. Our results suggest that both EPI-DWI and 18F-FDG-PET-CT might provide independent information in the early response to treatment, since no correlations were found. Both techniques could play a different role in clinical assessment, in contrast to HASTE-DWI which seems to provide the same information as 18F-FDG-PET(-CT), since significant correlations were found between ΔADC_HASTE and ΔSUV. Therefore, a combination of EPI-DWI and PET might be promising in predictive and follow-up studies of HNSCC and with simultaneous PET/MRI imaging spreading in the clinical field, both techniques can be combined in one single scanner.

We acknowledge several limitations to this study. First, this pilot study had an exploratory character and was conducted with a small number of patients. Although a limited number of patients was included, this is the first study to evaluate the potential predictive value of two DWI-techniques and 18F-FDG-PET(-CT) with follow-up. Multiple tumors (primary and metastases) in a single patient were analysed independently to offset this small number of patients, resulting in 32 tumors. Second, in our patient cohort no local recurrences occurred during follow-up. Therefore, it is difficult to investigate the role of DW-MRI and 18F-FDG-PET(-CT) as an imaging tool to predict local outcome. However, in our preliminary results ADC_EPI from the primary tumors showed the expected significant increase from baseline to early during treatment, in contrast to ADC_HASTE. Third, we evaluated the DWI-images by whole-tumor mean ADC-value. The accuracy of DW-MRI can possibly be improved by expanding these calculations with data on skewness and kurtosis, taking tumor heterogeneity into account (30) or a voxel-wise approach with parametric response maps (31). Finally, we were not able to report absolute SUV-values since we applied two different uptake intervals (60 and 90 minutes); changes of SUV are more robust provided that the same conditions prevailed during serial imaging per patient, and this was the case in our study.

Our preliminary results suggest that HASTE-DWI seems to be inadequate in early response prediction, compared to EPI-DWI which has greater potential to predict locoregional outcome after CRT. EPI-DWI and 18F-FDG-PET-CT could potentially provide independent information in the early response to treatment, since no correlations were found between ΔADC_EPI and ΔSUV. This is in contrast to ADC-HASTE, which appears to provide similar information as 18F-FDG-PET-CT, because significant correlations were found between ΔADC_HASTE and ΔSUV.

Acknowledgements

We would like to thank Prof. Dr. R. Boellaard for his assistance in reconstructing PET-data.

Author contribution: CSS: [1] data acquisition, data analysis, [2] drafting the article, [3] final approval; RdB: [1] conception and design, [2] revising the article critically, [3] final approval; LvdP: [1] data acquisition, [2] revising the article critically, [3] final approval; DPN: [1] data interpretation, [2] revising the article critically, [3] final approval; OSH: [1] data interpretation, [2] revising the article critically, [3] final approval; EFC: [1] data interpretation, [2] revising the article critically, [3] final approval; BIW: [1] data analysis, [2] revising the article critically, [3] final approval; PAD: [1] conception and design, [2] revising the article critically, [3] final approval; CRL: [1] conception and design, [2] revising the article critically, [3] final approval; JAC: [1] conception and design, data interpretation, [2] revising the article critically, [3] final approval.

Disclosure: The authors declare no conflict of interest.
