Spontaneous interventricular septum dissecting hematoma with endocardial fibroelastosis: imaging, diagnosis, surgical therapy and 6-year follow-up outcomes

Introduction

Interventricular septum dissecting hematoma is a rare and fatal cardiac complication with various causes including myocardial infarction, surgery, interventional therapy and trauma (1-3). Although several cases of this condition have been reported among infants and children with congenital heart disease surgery (mainly for ventricular septal defect) (2,4,5), there is no report of spontaneous interventricular septum dissecting hematoma combined with endocardial fibroelastosis. Furthermore, controversy surrounds the treatment for interventricular septum dissecting hematoma. This study reports a rare case of spontaneous interventricular septum dissecting hematoma combined with development of endocardial fibroelastosis. This case highlights imaging appearances of echocardiography and cardiac magnetic resonance (MR) imaging and presents correlated surgical treatment. The case is further supported by a 6-year follow-up study with reports of echocardiographic imaging on a comparative basis.

Case study details

A 20-year-old male patient was admitted to our hospital with onset of sudden chest distress for 24 hours accompanied by progressive dyspnea but no chest pain or fever. Family history showed no evidence of cardiovascular disease. All laboratory blood test results were negative. The electrocardiogram showed ST-segment decline with biphasic or inverted T-wave in II, III, avF, V4 through V6.

Transthoracic echocardiography (TTE) showed enlargement of both left ventricle and left atrium. Interventricular septum fusiform showed thickening of the middle and apical segments with hypokinesis. Further observations revealed a 34 mm × 36 mm cystic lesion with mixed echo appearance at the septum with 19 mm × 16 mm thrombosis (Figure 1A). The lesion protruded into the left ventricular cavity without obvious obstruction. Endocardial fibroelastosis was indicated by a thickening of the left ventricular endocardium with hyperecho (Figure 1A). Examination also revealed a bicuspid aortic valve (Figure 1B). Systolic pulmonary artery pressure was 66 mmHg. Left ventricular ejection fraction (EF) was 58%.

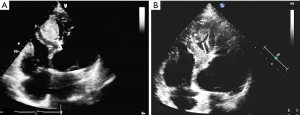

Figure 1 Transthoracic echocardiography examination of the lesion. (A) Fusiform thickness (thin arrow) of the interventricular septum with mixed echo cystic lesion (*) protruding into left ventricular cavity. Furthermore thickening of the left ventricular endocardium with hyperecho is evident in apical long axial four-chamber view (thick arrow). (B) Bicuspid aortic valve (arrowhead) is shown at short axial view of the aortic valve.

Cardiac MR examination demonstrated hyper-signal intensity of the septal cystic lesion on both T1WI and T2WI images without any signal decrease on fat-suppression sequence (Figure 2). The motion function of interventricular septum was impaired and the lesion could be compressed during the diastolic phase (Figure 3). Perfusion sequence imaging exhibited a heterogeneous enhancement pattern following myocardium enhancement (Figure 4). Myocardium perfusion defect and delay enhancement were both absent during cardiac MR examination (Figures 4 and 5).

Figure 2 Cardiac MR imaging of the lesion. Slightly high signal is observed on T1 dark blood image (thin arrow in A) without decrease on T1WI fat-suppression sequence (thick arrow in C). High signal is demonstrated on T2 dark blood image (arrowhead in B).

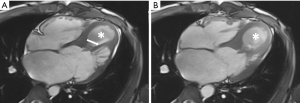

Figure 3 Dynamic cardiac MR imaging of lesion changes during different cardiac phases. Cine steady state free precession (SSFP) sequence four chambers view shows septal movement decrease during diastolic (A) and systolic (B) phases. In diastolic phase (A) the cystic lesion (*) is compressed (arrow).

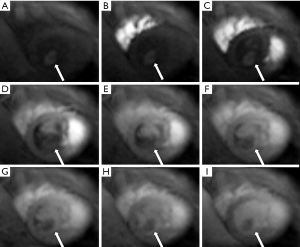

Figure 4 Contrast-enhanced cardiac MR imaging of lesion enhancement pattern. Heterogeneous enhancement is seen in the cystic lesion by first-pass perfusion sequence short axial view (A,B,C,D,E,F,G,H,I). Unenhanced thrombus (arrow) shows relatively high signal in pre-enhanced image (A). No perfusion delay or defect is shown in the myocardium.

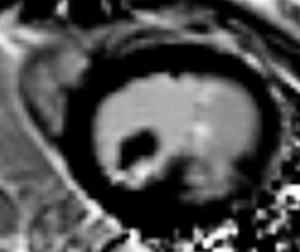

Figure 5 Perfusion cardiac MR imaging. Fifteen minutes post-gadolinium phase-sensitive inversion recovery (PSIR) short-axis image shows no delay enhancement in myocardium.

Surgery was performed on the patient. During the procedure endocardioscopy revealed thickness of the left ventricular endocardium with white color (Figure 6A). A 5 mm surface area indentation was observed at the cardiac apex with a branch passing through the myocardium arising from the left anterior descending artery (LAD) (Figure 6B). Puncture resulted in release of myocardium tension and 10 mL blood was drawn out from the lesion (Figure 6C). The blood supply branch artery was ligatured.

Figure 6 Endoscopic views of the lesion and ventricular myocardium. (A) Endocardioscopy shows thickness of the left ventricular endocardium with white color (arrow); (B) dimples change at heart apex with a branch vessel stick into myocardium (*); (C) 10 mL blood aspirated through cardiac apex puncture.

Following surgery, the patient was sent to intensive care unit (ICU) for 24 hours and discharged from hospital one week later. No adverse events occurred during the period of hospitalization. Post-surgery ultrasound examination was conducted after 3 months and repeated after 6 years showing thrombosis formation and decrease in size of the lesion (Figure 7). The patient remained free from discomfort and did not experience any cardiovascular adverse events during the six years following surgery.

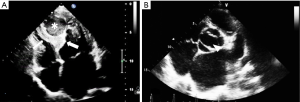

Figure 7 Comparison of follow-up imaging to determine lesion changes. Three-month (A) and 6-year (B) results of echocardiography follow up with obvious thrombosis (arrows) formation in the septal cystic lesion.

Discussion

The present study reports a rare and complex occurrence of spontaneous dissecting hematoma at the interventricular septum in combination with endocardial fibroelastosis. Such a study has not been described earlier. The 20-year-old male subject suffered from bicuspid aortic valve and endocardial fibroelastosis. A branch arising from LAD and passing through the myocardium was observed at the cardiac apex. Cardiac MR examination did not indicate perfusion defect or delay enhancement associated with the lesion.

TTE is the most convenient imaging modality for evaluating the movement and morphology of the ventricular septum. This technique very clearly facilitates assessment of several parameters including interventricular septum hypokinesis/akinesis, thickened septum with mixed or hypoechoic cystic lesion and outflow obstruction, as is evident in the present study. Examination of the lesion by cardiac MR showed high T1WI signal because of filling with blood. Injection of contrast medium enabled enhancement of the interventricular septum during coronary angiography or ventriculography. The treatment of interventricular septum dissecting hematoma is fraught with controversy (1). Previous reports cite a higher incidence of mortality associated with operative therapy in comparison to conservative management (1,5) which may be ascribed to differences in clinical conditions. While patients with stable hemodynamic status usually receive conservative management, emergency surgery represents the more frequently chosen option for those with outflow tract obstruction, severe heart failure and fatal arrhythmia. In the present study, septal dissecting hematoma was drawn out to effectively reduce myocardium pressure and the blood supply branch was subsequently ligatured. During the follow up period, formation of thrombosis and thinning of the interventricular septum were noticed.

This article provides a detailed analysis of imaging findings based on both TTE as well as cardiac MR imaging. In addition, results of surgical intervention are detailed and supported by a follow-up echocardiography examination 3 months and 6 years after surgery in order to confirm the success of treatment outcomes with complete absence of cardiac adverse events. It follows that echocardiography is the preferred imaging modality for timely diagnosis of patients with suspected interventricular septal hematoma.
