Optical coherence tomography characterizes the roughness and thickness of the heterogeneous layer on cortical bone surface induced by Er:YAG laser ablation at different moisture contents

Introduction

There is a long history of using manual instruments such as metal drills for hard-tissue procedures in oral and maxillofacial surgery. However, using these instruments is usually accompanied by extremely harsh noise, and even worse, could cause the deposition of metal shavings (1). In recent years, the laser, which can achieve cutting effects similar to conventional rotary instruments, was introduced into dentistry as an alternative to traditional mechanical instrumentation for the removal of biological tissues (2,3). The erbium: yttrium-aluminum-garnet (Er:YAG) laser emits a 2,940 nm wavelength that coincides with the absorption peak of water and is also well absorbed by the hydroxyl groups in hydroxyapatite (HA) crystals. Its mechanism in hard tissue ablation is the thermo-mechanical effect induced by the “micro-explosion” of water molecules (4). The sudden evaporation of bound water causes micro-explosions that blast away tiny particles of bone tissue (5). Because of its many advantages, such as precise cut geometry, high bactericidal effect, reduced tissue bleeding, and less noise, vibration, and more discomfort for the patient than rotary instruments, the Er:YAG laser has been reported as suitable for use in clinical bone surgery (6-8). Compared to conventional rotary instruments, the Er:YAG laser can promote early bone healing due to high levels of platelet-derived growth factor released in the wound and the creation of a favorable surface for cell attachment (9,10).

Real-time and non-destructive monitoring of ablation efficiency and morphology on bone tissue surface is essential in clinical practice. The current mastery of ablation efficiency depends on the physician’s experience and visual observations. Traditional methods to evaluate bone surfaces, such as histology and scanning electron microscope (SEM), are mostly destructive tests and cannot be directly applied in clinical cases (11,12). Therefore, it is necessary to develop a testing aid that can evaluate the character of bone tissue in a real-time and non-invasive manner. Optical coherence tomography (OCT) is a real-time and noninvasive optical imaging modality based on the back-scattered signal intensity from within structure (13,14). OCT has a high resolution, significant depth, fast speed, and three-dimensional (3D) imaging ability (15). Its applications in dentistry include assessing dental caries and detecting tooth-composite interfacial integrity and tooth cracks (16-19). In addition, OCT also has unparalleled security and convenience. Endoscopic OCT devices are being used for clinical cardiovascular and bronchial imaging, and hand-held OCT devices for retinal and tympanic membrane imaging are being developed (20-22). Therefore, it is possible to develop OCT oral imaging equipment.

Laser irradiation may cause thermal tissue damage, which is closely related to the internal water content of the tissue and external water spray. It is known to all that a great difference exists between the water content of bone dense matter and that of bone loose matter. Moreover, inadequate water irrigation may occur during laser irradiation in clinical situations, and irradiation without water-cooling may have detrimental effects on bone tissue. Therefore, to ensure the clinical safety of Er:YAG laser during orthopedic surgery, a thorough analysis of the actual maximal thermal damage caused to the cortical bone in a clinical situation should be performed. In this study, four different moisture content models were constructed by changing internal water content and external water spray. Since cross-sectional or 3D images of specimens can be obtained by OCT, the purpose of this study was to examine the feasibility of rapidly and non-invasively evaluating the surface properties of cortical bone after Er:YAG laser irradiation at different moisture contents by OCT. SEM, energy dispersive X-ray (EDX) spectroscopy, and pathological section were also used in this study. Our findings may help to develop a testing aid that can evaluate the thermal damage of bone tissue in a real-time and non-invasive manner.

Methods

Specimen preparation

The experimental specimens were freshly isolated cortical bones from pig tibias. The surrounding soft tissues and periostea were removed, making the specimens as smooth as possible. All of the collected cortical bone specimens were cut into several pieces with a low-speed electric saw under running water to obtain regular bone specimens with size 5×6 mm². The thickness of all specimens was the original size of the pig bone, ranging from 3 to 5 mm. Each bone specimen was observed under a stereo microscope, and then any cracked bone pieces were discarded. All of the bone specimens were stored in the 0.9% physiological saline at 4 °C and used for experiment within one week. The specimens at room temperature were dried with compressed air before the experiment.

Er:YAG laser ablation

A commercially available pulsed Er:YAG laser (LightWalker, Fotona LLC., Dallas, USA) was applied for bone ablation. A sapphire tip 1.3 mm in diameter was used, and the laser tip was placed vertically on the bone surface. The laser beam propagated through the articular arm and was focused directly on the surface of specimens through the lens. The laser was set according to the recommended energy parameters (120 mJ/pulse, 20 Hz, 100 µs). Due to an energy loss of approximately 20% in the probe, the actual output energy at the tip was about 96 mJ/pulse, and the laser output energy density was approximately 0.36 J/mm². With or without continuous water spray and 90% air pressure, the laser transmission was carried out by R14 handpiece in the indirect contact mode from the target 1 mm, and the laser hand tool was moved to form a linear tunneling area through the full length of the bone specimens.

SEM and EDX spectroscopy

A back-scattering electron mode SEM (S-3400N II, Hitachii, Japan) was used in this study. The bone specimens were fixed with 4% paraformaldehyde solution for 48 h, rinsed with water overnight, and then dehydrated using cryodesiccation. Then, the specimens were mounted, sputter-coated with gold, and observed with SEM at 50, 250, and 500 magnifications. The accelerating voltage was 15 kV. The composition of elements was detected by an EDX spectroscopy (550i, IXRF Sytems, Austin TX, USA) that was installed on the SEM. Each tested region was randomly selected from 3–4 laser-irradiated regions and non-irradiating regions to determine the contents of calcium (Ca, atomic %), phosphorus (P, atomic %), and carbon (C, atomic %). The ratios of calcium and phosphorus (Ca/P) were calculated from each region.

The OCT system

A spectral-domain OCT (SD-OCT) imaging system (Figure 1) was utilized in the study (23). This SD-OCT system utilized a single superluminescent diode (InPhenix, Livermore CA, USA) with an 840 nm central wavelength and an over 40 nm spectral bandwidth as the light source. A 50/50 broad bandwidth spliced fiber coupler (Ziyin Photoelectric Technology, Shenzhen, China) served as the core of the interferometer. The spectrometer of this OCT system integrated 1,200 L/mm @ 840 nm volume phase holographic gratings (Wasatch Photonics, Logan UT, USA) and a 2,048-pixel line-scan camera (SF-10-02K40-GE-02, Luster Co., Ltd., Beijing, China). The spectrometer design was optimized for the light source of this system, and our SD-OCT imaging setup could achieve an axial resolution of 8 µm and a lateral resolution of 12 µm in the air. The imaging depth of this system could achieve around 4 mm for the clear optical phantom and about 2 mm for tissues such as muscle. The scan system adopted two high-speed galvo mirrors (Han’s Motor, Shenzhen, China), which enabled rapid volume acquisitions at a high imaging speed of up to 18 kHz A-scan per second. A custom C# language code was developed for operating the SD-OCT system. As a result, the SD-OCT could carry out real-time, depth-resolved, cross-sectional, and 3D imaging. The maximum viewing field of the SD-OCT system reached 10×10×2 mm³. Data acquisition and signal processing were simultaneously performed using a high-performance personal computer. A CCD camera (Daheng Optics, Shanghai, China) could live to monitor the application area and take photographs of the samples. OCT imaging could be performed along a path selected based on the photograph of a sample. With the help of the CCD camera, we were able to acquire the OCT images along with the same profile on the sample for each time point.

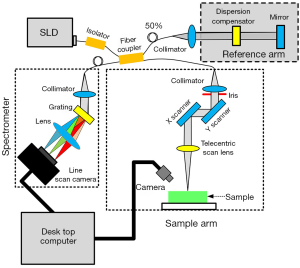

Figure 1 Schematic diagram of the spectral-domain optical coherence tomography imaging system.

Histological section

The bone specimens in each group were fixed with 4% paraformaldehyde solution for 48 h and then were rinsed with water overnight. All bone specimens were soaked in EDTA decalcified solution for 21 days and flushed 4 h after decalcification. After dehydration, the specimens were embedded in paraffin and cut into 4–5 µm tissue sections. The specimens were stained with hematoxylin-eosin and subjected to light microscopy (DM4, Leica, Wetzlar, Germany). Photomicrographs were taken, and histomorphometric analyses were performed.

Experimental protocol

According to whether the specimens were dry and whether or not there was external water spray, the experimental specimens were divided into four groups: the undried and with water spray group (Group 1), the dry and with water spray group (Group 2), the undried and without water spray group (Group 3), and the dry and without water spray group (Group 4). Each group comprised of 20 specimens. Ten non-irradiating bone specimens were regarded as the control group. The drying method of placing the drying box at 60 °C for 24 h was adopted. Then, the irradiated bone specimens were randomly distributed into two groups: the OCT-histology analysis group and the SEM-EDX analysis group. The OCT and EDX analysis were detected in the control group. The experimental protocols of this study are shown in Figure 2.

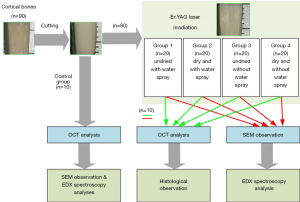

Figure 2 The experimental protocols of this study.

Surface line and image profile extraction

To acquire images with minimum inhomogeneity, imaging was performed multiple times in different regions. Images with the least heterogeneous presentation were imported and saved using MATLAB 8.0 (MathWorks, Natick MA, USA). OCT images were binarized and etched, and then surface lines could be extracted by a simple maximum detection method. To compare the roughness more accurately, all the surface lines were calibrated by the polynomial fitting. In addition, the OCT intensity profiles for each image were extrapolated according to the Hilbit envelope function. The OCT intensity profiles were determined on the basis of the distribution and density of the pixels within the image and provided information regarding the thickness of the bone tissues.

Statistical analysis

The differences in the calcium, phosphorus, and carbon content, as well as the groove depths on the surface of the bone tissues, were subjected to one-way analysis of variance (ANOVA) followed by the Bonferroni post hoc test for multiple comparisons at a 5% significance level (P=0.05). Differences in the ratios of calcium and phosphorus were analyzed by the Kruskal-Wallis test, and P<0.05 was considered statistically significant. Quantitative data were expressed as mean ± standard deviation. The calculations were handled using Prism 5.0 (GraphPad Software, San Diego CA, USA).

Results

Performance of the OCT system

The lateral resolution of the OCT imaging system depended on the bandwidth of light source that is shown in Figure 3A. The bandwidth of the light source is about 40 nm. According to the calculation formula, R_axial = (2ln2/π) × (λ²/∆λ), where the λ is the central wavelength, and the ∆λ is the spectral bandwidth, the axial resolution of the OCT system is ~7 µm. Furthermore, the lateral resolution of the OCT system was measured by imaging a blade. The 3D OCT image of the blade is shown in Figure 3B. An OCT image profile was extracted and fitted to obtain a line expansion function. Normalized differentiation of the line spread function is shown in Figure 3. The full width at half maximum (FWHM) ~12 µm was the lateral resolution of the OCT system. We further imaged the bone tissue samples to test the imaging depth of the OCT system, as shown in Figure 3D. The OCT image was an X-Z cross-sectional view that covered a 2×2 mm² area. The left part of the OCT image showed the location of the horizontal plane of bone, and the right part showed the inclined plane of bone. The imaging depth of the OCT system in bone was about 400 µm, as measured in the image by the green dash line. Based on these unique advantages, this OCT system is very suitable for the evaluation of laser-ablated bone surface.

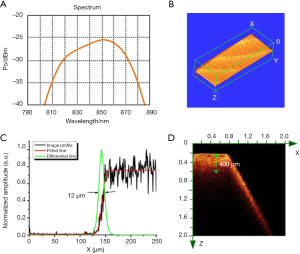

Figure 3 Performance of OCT system. (A) The bandwidth of light source used in the OCT system. (B) 3D OCT image of a blade. (C) OCT image intensity profile (black line), fitting line (red line), and corresponding normalized differential line (green line). (D) Cross-sectional OCT image of a piece of normal cortical bone. OCT, optical coherence tomography.

En-face micro-morphology of the bone surface observed by SEM

The bone samples used in this study were machined. The first column of Figure 4 shows the SEM image of the bone without Er:YAG laser ablation. The trace induced by mechanical cutting could be clearly seen in the 50× magnification SEM image, as shown in Figure 4A. The surface of the bone tissue was very flat, but fine cracks could be seen in the high magnification SEM images (Figure 4B,C). The SEM images in columns 2–5 correspond to the bone tissue samples of the laser ablation experiments in Groups 1–4. Continuous grooves with clear and regular boundaries were observed on the surface of bone tissues in the 50× SEM image of Group 1 (undried and with water spray, Figure 4D). Under the condition of high magnifications (250× and 500×), a large number of multilayer protrusions were observed, which were slightly irregular and rough scales (Figure 4E,F). In Groups 2, 3 and 4, the melting effect in bone tissues was obvious, and there were continuous grooves with irregular boundaries. Under the condition of high magnifications (250× and 500×), more irregular protrusions and micro-cracks were observed (Figure 4G,H,I,J,K,L,M,N,O).

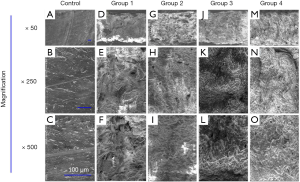

Figure 4 SEM images at three magnifications (50×, 250× and 500×) used for characterizing bone surface before (A,B,C) and after Er:YAG laser-treatment at four different moisture contents [Group 1 (D,E,F), Group 2 (G,H,I), Group 3 (J,K,L), and Group 4 (M,N,O)]. Scale bars are 100 µm in all images.

The elemental changes in bone surface assessing by EDX spectroscopy

Calcium, phosphorus, and carbon are three key elements in bone tissue. The results of EDX spectroscopy analysis are shown in Figure 5. Compared to the control group (non-irradiating sites), the results from Group 1 (undried and with water spray) showed no significant changes in the amounts of calcium and phosphorus and Ca/P ratios (P>0.05), except for slightly increased carbon component (P<0.05). The high water content and external water spray surface received more energy and reduced thermal deposition at the same time. Mechanical tissue was removed without undesirable thermal damage, leading to no significant change in calcium and phosphorus from the irradiated bone surface. In Groups 2, 3, and 4, the amounts of calcium and phosphorus were significantly increased compared with the control group, and Group 1 (P<0.05). A decrease in the amount of carbon was noted in Group 2 and Group 3 (P<0.05), while the carbon amount remained unchanged in Group 4 (P>0.05). The evaluation of the Ca/P ratio showed no significant changes between the laser-ablated group and the control group (P>0.05). Once the water content of tissue is not high enough or without external water spray, no additional water is available for absorbing laser energy and the laser energy dries out the bone surface, resulting in an uncontrolled energy deposition and the consequent change of calcium and phosphorus from the irradiated bone surface.

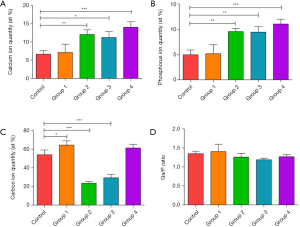

Figure 5 The calcium (A), phosphorus (B), and carbon (C) content on the surface of bone tissues after Er:YAG laser ablation at four different moisture contents (Groups 1–4) measured by EDX spectroscopy as well as the ratio between calcium and phosphorus (D). The control group represented the non-irradiated areas of bone tissue. *, P<0.05, **, P<0.01, ***, P<0.001.

Evaluating the bone surface before and after Er:YAG laser ablation by 3D OCT

Figure 6A is a brief introduction to the 3D OCT imaging process. As a non-contact imaging mode, the scans were 0.2×4 mm² and 2 mm in depth, centered on the laser-ablated bone surface with an 18 kHz A-scan imaging speed. The acquisition time for a 3D OCT image was ~2 s. Figure 6B shows the 3D OCT image of bone before Er:YAG laser ablation, depicting a very smooth surface. Figure 6C,D show the 3D images of laser-ablated bone with water spray. Ablation grooves on the two bones were inverted trapezoid. Figure 6E,F show the 3D images of laser-ablated bone without water spray. Ablation grooves induced without water spray showed a circular shape. The shape of the ablation groove depended on whether or not there was water spray. The groove depth was extracted from the OCT images and statistical analysis was performed, as shown in Figure 7. Among Groups 1–4, the highest ablation depth could be seen in Group 4 (P<0.05). The ablated depths of Group 1 were significantly lower than those of Groups 3 and 4 (P<0.05). There was no significant difference in groove depths between Group 1 and Group 2 (P>0.05). These results demonstrated that OCT has the ability to evaluate ablation efficiency in real-time.

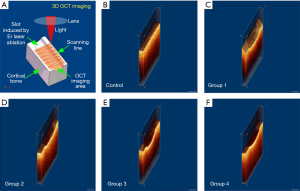

Figure 6 Evaluation of bone surface properties by OCT in 3D imaging mode. (A) Schematic of the imaging process. OCT 3D images of the bone tissues before (B) and after Er:YAG laser ablation (C,D,E,F) at four different moisture contents (Groups 1–4). OCT, optical coherence tomography.

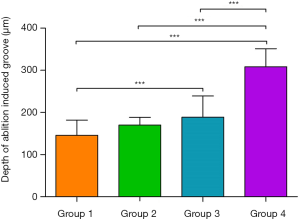

Figure 7 Quantitative evaluation of the groove depth induced by Er:YAG laser at four moisture contents (Groups 1–4) based on 3D OCT images. ***, P<0.001. OCT, optical coherence tomography.

OCT characterizing the laser-ablated surface of bone along the depth direction

One of the significant advantages of OCT imaging is that it can obtain a high-resolution depth profile of samples. Figure 8A shows an OCT image of bone tissue in the control group. In this OCT image, the surface of bone tissue is smooth, with uniform light scattering characteristics in the depth direction. The green arrow indicated the boundary between bone tissue and air. Figure 8B,C,D,E show the OCT images of bone tissue treated with Er:YAG laser. The boundary of all four laser-ablated bones showed relatively high image intensity. The thickness of the high image intensity area was similar in Group 1 and Group 2, which were treated under water spray. The thickness of the high image intensity area increased when the bone was ablated without water spray. Group 4 showed the maximum thickness, which is related to having the lowest moisture content. There is an inevitable relationship between the high-intensity layer in the OCT images and Er:YAG laser ablation. The evaluation based on OCT image intensity was qualitative, and quantitative analysis based on FWHM will be given in the following section.

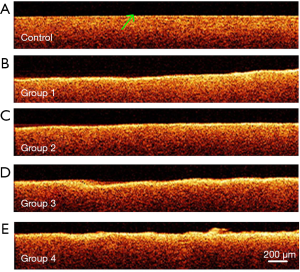

Figure 8 The OCT images of bone tissues before (A) and after Er:YAG laser ablation (B,C,D,E) at four different moisture contents (Groups 1–4). Scale bar: 200 µm. The green arrow indicated the boundary between bone tissue and air. OCT, optical coherence tomography.

Pathological verifying the heterogeneity of bone surface after laser ablation

The Er:YAG laser-ablated bone specimens were further examined after sectioning and staining. The histological results are shown in Figure 9. The laser-irradiated bone areas are within the range of the black dashed lines. All groups had thin layers stained by eosin along the surface of the grooves with irregular boundaries and without a clear structure. The green arrows indicate the deep stained layers. The black arrows indicate the non-irradiated areas. No eosin-stained layer was observed in non-irradiating areas of bone tissues (Figure 9A,C,E,G). The eosin-stained layers in the non-sprayed groups (Figure 9E,F,G,H) were thicker than those in the water sprayed groups (Figure 9A,B,C,D). There was no significant difference in eosin-stained layers between the dry groups (Figure 9C,D,G,H) and the undried groups (Figure 9A,B,E,F). The thickness of the thin eosin-stained layers was affected by the external water spray, but not by internal water content, which matches well with OCT results of the layers with high image intensity.

Figure 9 The histological sections of bone tissues after Er:YAG laser ablation. In Group 1 (A,B), Group 2 (C,D), Group 3 (E,F), and Group 4 (G,H). Scale bar: 80 µm. The green arrows indicate the deep stained layers. The black arrows indicate the non-irradiated areas. Dashed lines label the boundary of laser ablated areas.

Discussion

Optical imaging technology and optical therapy technology play an increasingly important role in the process of disease diagnosis and treatment. The primary goal of this study was to test the feasibility of real-time evaluation of Er:YAG laser ablation on the cortical bone surface by OCT. At the same time, SEM, EDX, and pathology were also used in this study for qualitatively evaluating laser-ablated bone surface at four different moisture contents.

Holmes et al. obtained the range of thermal relaxation time in cortical bone are 400 to 500 µs (24). On the basis of the fact that the pulse width (100 µs) used in this study was close to 400 µs, residual heat under laser irradiation without water cooling could spread to the surrounding tissue, and thus further micro-explosion shock could cause microcracks in the tissue. In this study, the thermo-melting effect was obvious, and more cracks were observed in the SEM results of the dry groups and non-sprayed groups. Er:YAG laser ablation of hard tissue is based on the thermo-mechanical theory. Water absorbs the laser energy and then vaporizes rapidly, resulting in micro-explosion within a small range of laser irradiation. Thus, in this way, accurate cutting can be achieved, similar to blasting rock with explosives. The faster the laser pulse, the shorter the time it takes for heat to transfer to the surrounding tissue, minimizing lateral thermal damage (25).

The response of biological tissue to laser irradiation largely depends on the nature of its components. Bone is composed of apatites surrounded by an organic matrix. In this study, EDX spectroscopy results showed a clear increase of calcium and phosphorus content in Groups 2, 3 and 4, and that laser ablation with water spray does not affect the calcium and phosphorus content in undried bones. In a study by Sasaki et al., the chemical composition of laser-irradiating bone tissues in rat skull was analyzed by EDX spectroscopy, and the calcium, phosphorus content, and Ca/P ratios were all found to be decreased (26). Nevertheless, Panduric et al. observed no differences in calcium, phosphorus content, or Ca/P ratios between Er:YAG laser or low-speed guided drill-treated pig ribs (27). Differences in laser-irradiated parameters, sample types, and experimental design can explain the inconsistency in results (28,29).

The OCT system has three advantages: first, it has high imaging resolution and can perform depth imaging; second, it has a large imaging range and fast scanning speed that enable real-time 3D imaging; and third, it is a non-contact and non-invasive imaging mode as the front end of OCT system can be miniaturized. Based on the advantages mentioned above, the OCT system has been tested for evaluating the effect of laser ablation of bone tissue in the past few years. Ohmi et al. and Zhan et al. measured the depth of craters induced by Nd: YAG laser or CO₂ laser on the hard bone surface (30,31). More recently, Fuchs et al. achieved online measurement and evaluation of the Er:YAG laser ablation process using an integrated OCT system (32). Previous studies have focused on the evaluation of ablation efficiency, explicitly measuring the depth of the ablation crater. OCT technology has developed rapidly in recent years. Our OCT system could image 0.5×4×2 mm³ bone tissue in 2 seconds. In this study, the highest ablation could be seen in dry bones without an external water spray (Group 4), as shown in Figure 7. The ablated depth was significantly lower in the groups with external water spray, which is consistent with the results of Meister et al. (33). On the contrary, different internal water volume had little effect on tissue ablation efficiency. This study demonstrated that real-time imaging of Er:YAG laser ablation grooves could be realized based on the 3D OCT system.

Based on its broad field view 3D imaging capacity, OCT could provide information about the ablation groove. In addition to visual evaluation, the OCT features high-resolution imaging that allows the quantification of the roughness of the ablation groove surface. Five surface lines were extracted from the OCT images, as shown in Figure 8. The original surface lines with 2 mm length are shown in Figure 10A. For a clear illustration of surface roughness, baseline calibration was performed on each surface line. Figure 10B,C,D,E,F provide five calibrated surface lines. Obviously, the surface line of the control group was the flattest, followed by the surface lines of Groups 1 and 2. The surface lines of Groups 3 and 4 were the most rugged. Moreover, similar roughness was observed between Groups 1 and 2, as well as between Groups 3 and 4. This confirms the fact that water spray plays an important role in the roughness of bone surface induced by Er:YAG laser ablation.

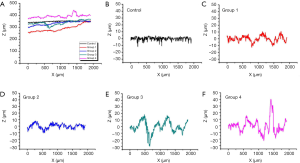

Figure 10 Quantitative evaluation of surface roughness. (A) Surface lines extracted from the OCT images shown in Figure 8. (B) Calibrated surface line of the control group without Er:YAG laser ablation. (C,D,E,F) showed the calibrated surface lines of bone ablated with Er:YAG laser at four different moisture contents (Groups 1–4). OCT, optical coherence tomography.

Furthermore, our OCT system could achieve depth imaging of bone tissue with a thickness of over 400 microns. This imaging capability is beyond the capacity of other existing imaging technologies. Based on the high-resolution cross-sectional OCT image of the bone tissue surface, it could be clearly found that the boundary between the bone tissue surface and air in the control group was straight, and the bone under the decomposition line was very uniform. After Er:YAG laser ablation, the surface of the bone tissue was uneven, and there were distinct bright layers on the surface. Quantitative evaluation can be realized by the extraction and analysis of image intensity. Image intensity profiles (with 200 µm length) covering the boundary and bright layers were extracted from the OCT images (control group, Groups 1–4), as shown in Figure 11. The maximum value of each image intensity profile was different but insignificant. The FWHM was measured and marked on each line as a quantitative evaluation standard. These layers in the non-sprayed groups were thicker than that in the control group and water spray groups, indicating that the thickness of heterogeneous layers had a positive correlation with the corresponding thermal damage of the laser-irradiating tissues. The water content in cortical bone does not affect the thickness of heterogeneous layers after laser ablation. On the contrary, external water supply makes it possible to reduce the thermal damage to the surrounding tissues.

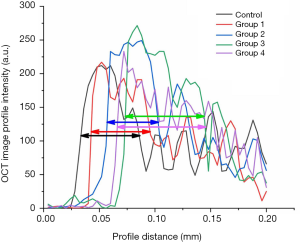

Figure 11 The OCT image profile intensity of bone before (control group) and after Er:YAG laser ablation at four different moisture contents (Groups 1–4), as shown in Figure 8. The length of the two-way arrow line is the full width at half maximum (FWHM) of the corresponding OCT image profile intensity line. OCT, optical coherence tomography.

Similarly, thin eosin-stained layers were observed in all the experimental groups through histology. The eosin-stained layers in the non-sprayed groups were thicker than those in the non-irradiating areas and water spray groups. This is consistent with the results of Yoshino et al. (34), who used Er:YAG laser (pulse energy 115 mJ, pulse repetition frequency 10 Hz) without water spray to ablate the cortical bone of rat skull and observed a thin denatured layer without serious thermal damage by histology. It is also worth noting that there was good agreement between the denatured layers obtained by OCT and histology.

In this study, four different moisture content models were constructed by changing internal water content and external water spray. Compared with normal bone, the irradiated bone with high water content and external water spray showed no significant change of calcium and phosphorus, representing lower thermal damage. This study had some limitations that need to be addressed, such as bone samples and Er:YAG laser parameters should be more diversified. However, we observed that OCT allows the real-time imaging and assessment of alterations of surface properties of cortical bone after Er:YAG laser irradiation at different moisture contents without having to harvest specimens of tissue. Large field of view 3D OCT imaging could be used to evaluate ablation efficiency and ablation groove morphology. Surface lines could be extracted from high-resolution OCT images and be used to evaluate roughness. OCT images with large imaging depth realized non-destructive visualization of a heterogeneous layer on cortical bone surface induced by Er:YAG laser ablation. This study demonstrated that different moisture contents led to different ablation effects, and OCT could quickly and accurately evaluate the differences between them, as compared to histology and SEM. In conclusion, this study will promote the application of OCT technology in the real-time evaluation of Er:YAG laser ablation of bone.
