The value of quantified plaque analysis by dual-source coronary CT angiography to detect vulnerable plaques: a comparison study with intravascular ultrasound

Introduction

Coronary vulnerable plaque, also known as thin-cap fibroatheroma (TCFA), is pathologically characterized by a thin fibrous cap (<65 µm in thickness) and large necrotic core with spotty calcification and positive remodeling (PR) (1,2). Plaque rupture of TCFA lesions is considered the major underlying cause of acute coronary syndrome (ACS) (3). Previous longitudinal intravascular ultrasound (IVUS) study also confirms that TCFA is independent predictor for major adverse cardiac events (4). However, IVUS is an invasive imaging modality and associated with approximately 1.6% of procedural related vascular injuries (4). Therefore, it cannot be indicated in all patients for the screening of vulnerable plaques. It is of clinical importance to search for another non-invasive imaging method for early detection and treatment of coronary vulnerable plaques.

Coronary computed tomography angiography (CCTA) is one wildly applied imaging modality with high sensitivity and negative predictive value (NPV) to safely rule out obstructive coronary artery disease (CAD) (5,6). It is also clinically useful for characterization of high-risk plaque features, such as Napkin-ring sign (NRS), low attenuation plaque (LAP), spotty calcification and PR (7). Those high-risk features were found to be associated with unfavorable clinical outcomes or hemodynamic significance (8-14).

More recently, absolute plaque quantification analysis has been reported to be beneficial for improving risk stratification and dynamic follow-up of medical treatment (15,16). With the technical development of CT hardware, dual-source CT (DSCT) equipped with fully integrated circuit detector system offers high spatial and temporal resolution (17). Given the fact that coronary plaques usually have very small volumes, this high-definition detector would theoretically benefit CT plaque evaluation by reducing partial volume effect especially for quantification of different intra-plaque components. We hypothesized that the plaque quantification by DSCT would be helpful for prediction of vulnerable plaques. Therefore, we aimed to study the diagnostic performance of quantified plaque analysis and high-risk plaque characterization by DSCT for identifying vulnerable plaques as determined by IVUS.

Methods

Patient population

Between January 2012 to December 2016, consecutive patients, who had stable angina (defined as Canadian Cardiovascular Society classification grade I to grade II) and referred for CCTA and IVUS, were retrospectively searched and reviewed. IVUS was clinically indicated by interventional cardiologists during the procedure of invasive coronary angiography (ICA) after CCTA to evaluate the morphological features of intermediate lesions in order to determine optimal treatment strategy. The inclusion criteria were: (I) CCTA and IVUS were performed to assess native coronary lesions within 4 weeks; (II) the image quality of CCTA was excellent or good (without artifact or with mild artifact). Exclusion criteria were as follows: (I) CCTA and IVUS were performed to evaluate in-stent restenosis; (II) the image quality of CCTA was sufficient or poor (with moderate or severe artifact); (III) the interval between CCTA and IVUS was more than 4 weeks (Figure 1). Hospital ethic committee approved this retrospective study and informed consent was waived from all patients.

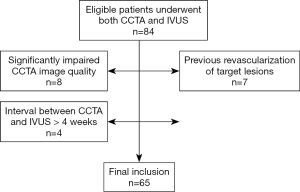

Figure 1 Flow chart of patient inclusion and exclusion criteria. CCTA, coronary computed tomography angiography; IVUS, intravascular ultrasound.

CCTA protocol

A second-generation DSCT (Somatom Definition FLASH, Siemens Healthineers) equipped with fully integrated circuit detector was employed for scanning. Nitroglycerin (0.5 mg) was given sublingually in all patients whereas beta-blocker was not administrated. Calcium score scan was first performed to calculate the Agatston score of coronary arteries. After then, a bolus of 60 to 70 mL contrast media (iopamidol 370 mg iodine/mL, Bayer) was injected into the antecubital vein at the rate of 4.5–5 mL/s, followed by injection of a 20–40 mL saline flush. Bolus tracking was used with automated study triggering when the attenuation reached 100 HU in a region of interest within the ascending aorta with a 6 seconds delay. Prospective ECG-triggered sequential acquisition was performed in all patients (with the coverage of 30% to 80% of R-R interval) and the detailed scanning parameters were listed as follow: collimation =64×0.6 mm, reconstructed slice thickness =0.75 mm, reconstructed slice interval =0.5 mm, rotation time =280 ms and application of automated tube voltage and current modulation (CAREKv, CAREDose 4D, Siemens Healthineers).

CT-derived plaque analysis

All data were reconstructed with a medium soft kernel (I26f) and iterative reconstruction technique (SAFIRE, Siemens Healthineers). Datasets of all available cardiac phases were then transferred to an offline workstation (Syngo.Via, Siemens Healthineers) and the phases with best image quality were manually selected for further analysis. The image quality was assessed by 4-grade scale: excellent (absence of artifact); good (presence of mild artifact), sufficient (presence of moderate artifact, but still diagnostic), poor (presence of severe artifact, non-diagnostic). Only patients with image quality of excellent and good were included for further analysis. The image quality of CCTA was assessed by various objective image quality parameters (18). The details of image quality evaluation were given in supplementary.

All lesions with CCTA and IVUS validation were analyzed using a dedicated plaque analysis software (Coronary Plaque Analysis, version 2.0, Siemens Healthineers). This software enables quantification of different plaque components based on HU thresholds. The borders of target lesions were semi-automatically delineated once the proximal and distal shoulders of the plaques were determined. Manual adjustment of plaque borders was needed when necessary. The measured parameters were listed as follow: (I) the minimal lumen area (MLA) was measured manually with a digital caliper at the narrowest level of the lesion on the cross-sectional images; (II) the diameter stenosis (DS) was defined as (reference diameter – minimal lumen diameter)/reference diameter; (III) the plaque burden was defined as (vessel cross-sectional area – MLA)/cross-sectional area; (IV) the remodeling index (RI) was defined as the ratio of cross-sectional vessel area of the lesion to the proximal reference area and PR was defined as a RI ≥1.1 (7); (V) LAP was defined as any voxel <30 HU within a coronary plaque (7) and total plaque volume (TPV) as well as LAP volume were quantified by the dedicated plaque analysis software; (VI) spotty calcification was defined by an intra-lesion calcific plaque <3 mm in length that comprised <90 degrees of the lesion circumference (7); (VII) NRS was characterized by a plaque core with low computed tomography attenuation surrounded by a rim-like area of higher attenuation as previous reported (8). Calcified lesions were not excluded from analysis regardless of calcium burden. In order to ensure that identical lesions were assessed by CCTA and IVUS, anatomical landmarks, such as coronary ostium and bifurcation were used for reference. In brief, the distance between target lesions and anatomical landmarks was measured by IVUS and the same distance distal to the landmarks was used to locate the plaque on CCTA.

The image quality of CCTA and all plaque characterization was retrospectively evaluated by two cardiovascular radiologists (with 10 and 9 years of experience on cardiac imaging), who were blinded to ICA and IVUS results. The mean values of quantitative parameters measured by two observers were used for further analysis.

ICA procedure and IVUS analysis

The ICA was performed with standard techniques, and at least 2 different views were obtained for each main vessel. Significant coronary stenosis was defined as luminal stenosis ≥50% by visual assessment. All segments were retrospectively evaluated by two interventional cardiologists (with 16 and 12 years of experience on coronary intervention), who were blinded to the results of CCTA.

The IVUS and virtual histology IVUS (VH-IVUS) were acquired with 3.2 F 20 MHz Eagle-eye Gold catheters (Volcano) using a motorized pull-back at 1 mm/s. The IVUS images were digitally recorded and archived. IVUS and VH-IVUS images were retrospectively analyzed by same two interventional cardiologists with the INDEC Echo Plaque software (INDEC Medical System). TCFA lesions were defined as plaque burden >40%, confluent necrotic core >10% plaque cross-sectional area, in contact with vessel lumen for 3 consecutive frames (19). Any disagreement was resolved by means of consensus.

Statistical analysis

Statistical analysis was performed using commercially available statistical software (MedCalc Statistical Software version 15.2.2, MedCalc Software bvba and SPSS Statistical Software version 17.0). One-sample Kolmogorov-Smirnov test was used to check the assumption of normal distribution. Quantitative variables with normal distribution were expressed as means ± standard deviations while median and quartiles were used otherwise. Categorical variables were reported as count (%), and compared by the Fisher’s exact test or chi-square test, according to the data cell size. Student’s t test was used for normally distributed data, and the Mann-Whitney U test was used for data that were not normally distributed. Variables that were significant at univariate analysis were included for further multivariate analysis. Multivariate regression analysis was used to determine the independent predictors of IVUS-determined TCFA lesions which were performed using the “forward” method. The model included variables with P value <0.10 in the univariate regression analysis. Inter-observer agreements of all parameters were examined for intra-class correlation coefficients (ICC). A two-tailed P value <0.05 was statistically considered significant.

Results

Clinical characteristics

A total of 84 patients undergoing both CCTA and IVUS were initially reviewed. Four patients were excluded because the interval between CCTA and ICA was longer than 4 weeks whereas another exclusion of 8 patients was due to significantly impaired CCTA image quality. Seven patients with previous revascularization of target lesions were further excluded (Figure 1). Finally, 65 patients (mean age: 69.8±9.2 (range, 51–86) years; 36 males (mean age: 67.6±9.5 years; range, 51–84 years, and 29 females (mean age: 72.5±8.2 years; range 51–86 years) with 89 lesions were included in our study. The mean interval between CCTA and IVUS was 9.3±4.7 days (range, 1 to 25 days). The mean effective dose was 4.2±1.5 (range, 2.3–7.6) mSv. The percentages of patients scanned with 80, 100 and 120 kV were 36.9% (24/65), 50.8% (33/65) and 12.3% (8/65) respectively. The mean time for plaque quantification was 12.8±4.7 minutes. None of the target lesions had predilatation before IVUS imaging. Detailed demographic data was given in Table 1.

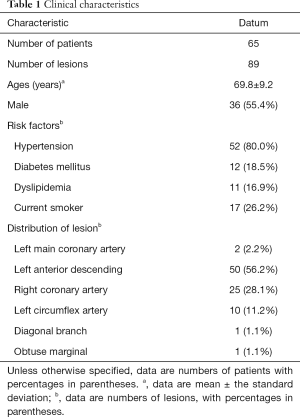

Table 1 Clinical characteristics
Full table

Correlation of CT-derived quantitative plaque parameters with TCFAs determined by IVUS

The inter-observer agreement for various CT-derived quantitative and qualitative parameters was excellent (Table S1).The image quality of CCTA was also listed in Table S2. LAP and NRS were more frequently presented in the group of TCFA lesions than in the group of non-TCFA lesions (P≤RS w0 for both) (Table 2). The mean LAP volume of TCFA lesions was significantly larger than that of non-TCFA lesions [16.5 (11.0–23.0) vs. 0 (0–1.5) mm³, P<0.001, Figure 2]. In contrast, there was no significant difference between group of TCFA lesions and non-TCFA lesions with respect to any other CT parameters, such as DS, MLA, plaque burden, spotty calcification, PR, remodeling index and TPV (P>0.05 for all) (Table 2).

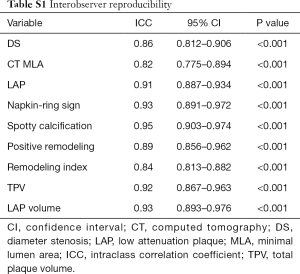

Table S1 Interobserver reproducibility
Full table

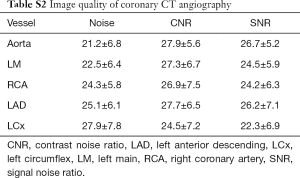

Table S2 Image quality of coronary CT angiography
Full table

Table 2 Comparison of CT-derived plaque parameters between TCFA and non-TCFA lesions
Full table

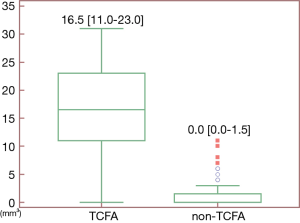

Figure 2 Box plot showing the difference of LAP volume between TCFA and non-TCFA lesions. The LAP volume of TCFAs is significantly larger than that of non-TCFAs [16.5 (11.0–23.0) vs. 0 (0–1.5) mm³, P<0.001]. LAP, low attenuation plaque; TCFA, thin-cap fibroatheroma.

Diagnostic performance of CT-derived quantitative plaque parameters for predicting TCFAs

In univariate analysis, LAP, NRS, and LAP volume were all significant predictors for TCFA lesions (details in Table 3). According to multivariate logistic regression analysis, only LAP volume remained significant predictor for IVUS-confirmed vulnerable plaques (odds ratio =3.294, 95% confidence interval: 1.177–9.223, P=0.023).

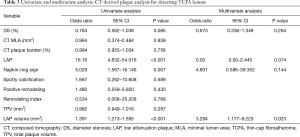

Table 3 Univariate and multivariate analysis: CT-derived plaque analysis for detecting TCFA lesions
Full table

According to ROC curve analysis, LAP volume showed largest AUC for diagnosing TCFA lesions (AUC =0.901, 95% confidence interval: 0.819–0.954, P<0.0001) (Figure 3). When using >8 mm³ as the best cutoff value, the diagnostic accuracy, sensitivity and specificity of LAP volume for predicting TCFA lesions were 91.0% (81/89), 84.6% (22/26) and 96.8% (61/63) respectively. Representative cases were given in Figures 4 and 5.

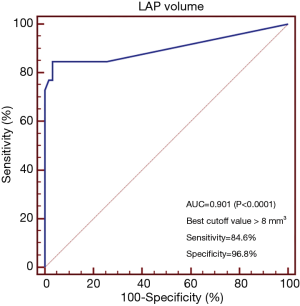

Figure 3 ROC curve analysis of LAP volume for identification of TCFA lesions. AUC, area under curve; LAP, low attenuation plaque; ROC, receiver operating characteristic.

Figure 4 Representative case of CCTA plaque quantification in patient with TCFA lesion. (A) Curved planar reformation image showed a non-calcified plaque at proximal LAD with moderate stenosis. (B) The color-coded CPR image using a dedicated plaque analysis software identified the presence of low attenuation components (labeled as blue, −100 to 30 HU) within the plaque. (C) Histogram of different plaque components based on HU thresholds. The total plaque volume was 113 mm³ while the low attenuation component volume was 27.98 mm³. (D) ICA showed intermediate coronary stenosis (white arrow) at the proximal LAD. (E) VH-IVUS confirmed the diagnosis of TCFA lesion, showing large necrotic core (labelled as red) within the plaque. CCTA, coronary computed tomography angiography; ICA, invasive coronary angiography; LAD, left anterior descending; TCFA, thin-cap fibroatheroma; VH-IVUS, virtual histology intravascular ultrasound.

Figure 5 Representative case of CCTA plaque quantification in patient with non-TCFA lesion. (A) Curved planar reformation image showed a non-calcified plaque at proximal RCA with severe stenosis. (B) The color-coded CPR image using a dedicated plaque analysis software revealed minimal presence of LAP component within the plaque. (C) Histogram of different plaque components based on HU thresholds. The total plaque volume was 159.5 mm³ while the low attenuation component volume was 7.03 mm³. (D) ICA showed severe coronary stenosis (white arrow) at the proximal RCA. (E) VH-IVUS confirmed the diagnosis of non-TCFA lesion, showing minimal necrotic core (labelled as red) within the plaque. CCTA, coronary computed tomography angiography; ICA, invasive coronary angiography; LAP, low attenuation plaque; RCA, right coronary artery; TCFA, thin-cap fibroatheroma; VH-IVUS, virtual histology intravascular ultrasound.

Discussion

The major finding of the current study was that LAP volume was significantly larger in TCFA lesions and this parameter was the strongest predictors for vulnerable plaques.

Coronary vulnerable plaque, or TCFA, is pathologically characterized by large necrotic core covered by thin fibrous cap (2). TCFAs are prone to progress or even rupture under the effect of low endothelial shear stress (20,21). CCTA is currently the best non-invasive imaging modality for morphological assessment of coronary plaques (22). According to previous ex vivo human hearts studies, CCTA plaque characterization showed promising results to predict advanced atheroma with reference to histologic validation (23-25). However, these studies did not take the quantitative data, such as TPV and LAP volume, into account. Due to the limited spatial resolution (in-plane resolution of 300 to 400 µm) of CT detectors, it is not technically feasible to directly visualize the thin fibrous cap (<65 µm) of TCFAs. Thus, traditional high-risk plaque features are only indirect signs and may not be enough to predict TCFAs.

In line with our initial hypothesis, the absolute LAP volume outperformed other traditional high-risk plaque features for prediction of TCFA lesions. This could be ascribed to the following reasons. First, LAP is a qualitative description of the presence of any intra-plaque voxel with attenuation value <30 HU. Nevertheless, according to the diagnostic criteria for TCFA lesions by IVUS, the confluent necrotic core should account for at least 10% of plaque cross-sectional area (19). In other words, the LAP volume characterized by CT has to be “big” enough to correlate to the TCFA lesions as determined by VH-IVUS. According to the current results, the best cut-off value of LAP volume to predict TCFA lesions was 8 mm³. Considering the fact that mean TPV of TCFA group was 65.5 mm³, 8 mm³ accounted for approximately 12.2% of TPV. Interestingly, this number is similar to the diagnostic criteria for TCFAs by VH-IVUS. Therefore, it is conceivable that the absolute quantification of LAP volume was more accurate than LAP alone to predict TCFA lesions. Second, the identification of traditional high-risk plaque features, such as NRS, is relatively a subjective diagnosis and can sometimes be equivocal. In contrast, the quantification of LAP volume is an objective measurement and more reproducible than the recognition of those traditional high-risk plaque features. Third, NRS is considered to be related with neoangiogenesis of vasa vasorum, which is secondary to plaque inflammation in vulnerable plaques (26). However, NRS is originally discovered for culprit lesions in patients with ACS (8,27,28). The incidence of NRS varied significantly between different cohorts, especially for patients with ACS or with stable angina. One study by Tomizawa showed that NRS was observed in 77% of TCFA lesions and the overall incidence of NRS in that cohort was 52% (29). Another study with larger sample size only revealed the presence of NRS in 1.4% of all population (30). The current study demonstrated that NRS was presented in 34.6% of TCFA lesions and 9.5% of non-TCFA lesions and overall incidence of NRS was 16.9%. The heterogeneity of different cohorts, as noted in different studies, might be the main reason for such varied incidence of NRS. Due to the above factors, it is reasonable for absolute LAP volume to outperform other parameters to predict TCFAs.

The potential clinical implication of the present results lies in the use of quantified LAP volume to non-invasively screen for vulnerable coronary plaques. Previous studies with optical coherence tomography (OCT) as the reference standard have confirmed the value of CCTA-derived high-risk plaque features for detection of TCFA lesion (31-33). However, only qualitative parameters, such as PR, presence of LAP and NRS, were used in those studies. In contrast, the current study validated the quantified LAP volume as the strongest predictor of TCFAs and using the cutoff value of 8 mm³ outperformed other qualitative parameters for identifying TCFAs. Therefore, CT-based plaque quantitative analysis might be more helpful to identify the subgroup of high-risk intermediate stenosis. In that case, intensified medical treatment may be warranted in order to stabilize the lesions and CCTA can also serve as the ideal follow-up imaging modality to monitor the change of plaque composition (16).

It is of note that the clinical outcome data of the current cohort was not available due to the retrospective design of the study. Other previous studies have revealed the prognostic implications of CT-derived plaque features, such as conventional high-risk plaque features and quantified lipid rich necrotic core volume (34-37). Although we validated LAP volume as a strong independent predictor for TCFA lesions, it still needs to be verified whether LAP volume also carries prognostic value like other conventional high-risk plaque features have.

Despite of the above promising results, the current study has several limitations. First, IVUS was clinically indicated in the present cohort to evaluate the intermediate lesions. This leaded to inclusion bias because very few target lesions in the current study had mild or severe stenosis. Therefore, the imaging findings of TCFAs in mild or severe stenosis still need to be explored. Second, OCT, which is considered the gold-standard for in vivo imaging of vulnerable plaques, was not available for identification of TCFAs in the current study (38). Since IVUS has lower spatial resolution as compared to OCT to detect TCFAs (38), the present findings still need to be confirmed by future studies with reference to OCT. Finally, CT plaque images were acquired by a second generation DSCT using varied kV settings in different patients. As shown by one previous study, different tube voltages might make minor differences in quantification of plaque attenuation (39). Therefore, future studies with more homogeneous acquisition parameters are warranted to confirm the present findings.

In conclusion, CT-derived LAP volume of TCFA lesions was significantly higher than those of non-TCFA lesions. LAP volume was the strongest predictor for TCFA lesions as validated by IVUS.

Supplementary

Coronary CT angiography image quality assessment

Various objective image quality parameters, including image noise of the aortic root and proximal coronary arteries, signal-to-noise ratio (SNR), and contrast-to-noise ratio (CNR), were also evaluated. A circular region of interest (ROI) was manually placed in the aortic root at the level of the left main coronary artery ostium (2.5 cm in diameter) to measure lumen attenuation and image noise. The same measurement was also performed in the proximal segments of the left and right coronary arteries (ROI was drowned as large as possible with exclusion of vessel wall). All ROIs were measured three times, and mean measurements were used for further analysis. The SNR of each measured vessel was calculated by dividing the mean HU by the mean image noise. The proximal vessel contrast was defined as the HU difference between the vessel lumen measurement and the measurement of surrounding tissue immediately next to the vessel contour. The CNR was calculated as the vessel contrast value divided by image noise of the corresponding vessel.

Acknowledgments

Funding: This study is supported by 2017 People’s Livelihood Project of Pudong Committee on Science and Technology in Shanghai (No. PKJ2017-Y39), Key and Weak Specialty Construction Program of Pudong Health Bureau of Shanghai (No. PWZbr2017-11), Innovative And Collaborative Project Funding of Shanghai University of Medicine and Health Sciences (No. SPCI-18-17-001) and 2017 General Research Projects of Health Bureau of Shanghai (No. 201740199).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: Hospital ethic committee approved this retrospective study and informed consent was waived from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
